Samsung YP-R1 User manual

SERVICE
Manual
MP3 Player
Model Name : YP-R1
Model Code : YP-R1AB/XER
MP3 Player CONTENTS
1. Precaution
2. Product Specification
3. Disassembly & Reassembly
4. Troubleshooting
5. Exploded View & Part List
6. PCB Diagram
7. Schematic Diagram
YP-R1

This Service Manual is a property of Samsung Electronics
Co.,Ltd. Any unauthorized use of Manual can be punished
under applicable International and/or domestic law.
GSPN (Global Service Partner Network)
Area Web Site
North America service.samsungportal.com
Latin America latin.samsungportal.com
CIS cis.samsungportal.com
Europe europe.samsungportal.com
China china.samsungportal.com
Asia asia.samsungportal.com
Mideast & Africa mea.samsungportal.com
© Samsung Electronics Co.,Ltd. Oct. 2009
Printed in Korea

Contents
1. Precaution
1-1 Safety Precautions...........................................................................................1-1
1-2 Static Electricity Precautions............................................................................1-2
2. Product Specification
2-1 Product Feature ...............................................................................................2-1
2-2 Specifications...................................................................................................2-2
2-3 Specifications Analysis.....................................................................................2-4
2-4 Accessories......................................................................................................2-6
3. Disassembly & Reassembly
3-1 Overall Disassembly & Reassembly ................................................................3-1
4. Troubleshooting

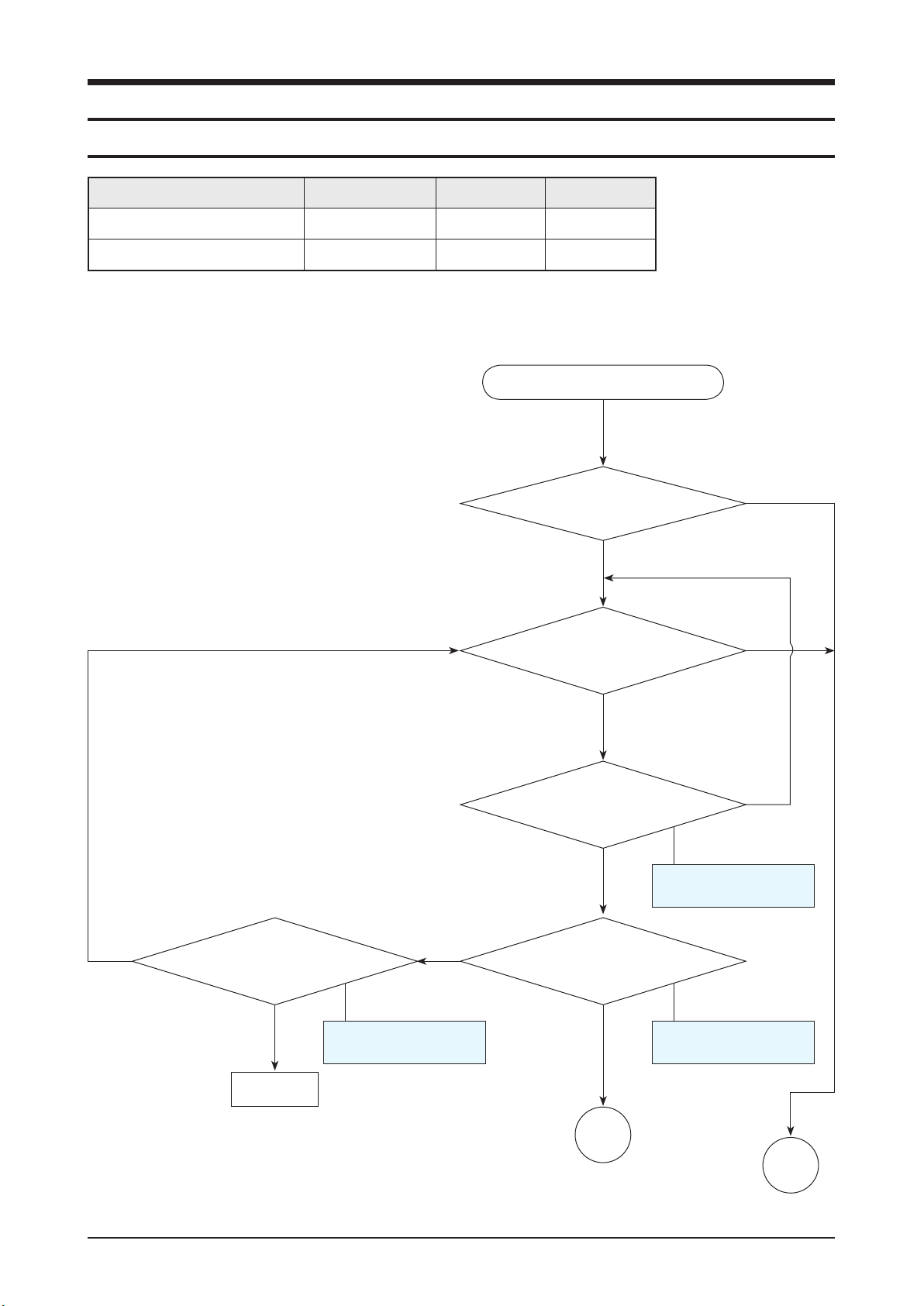

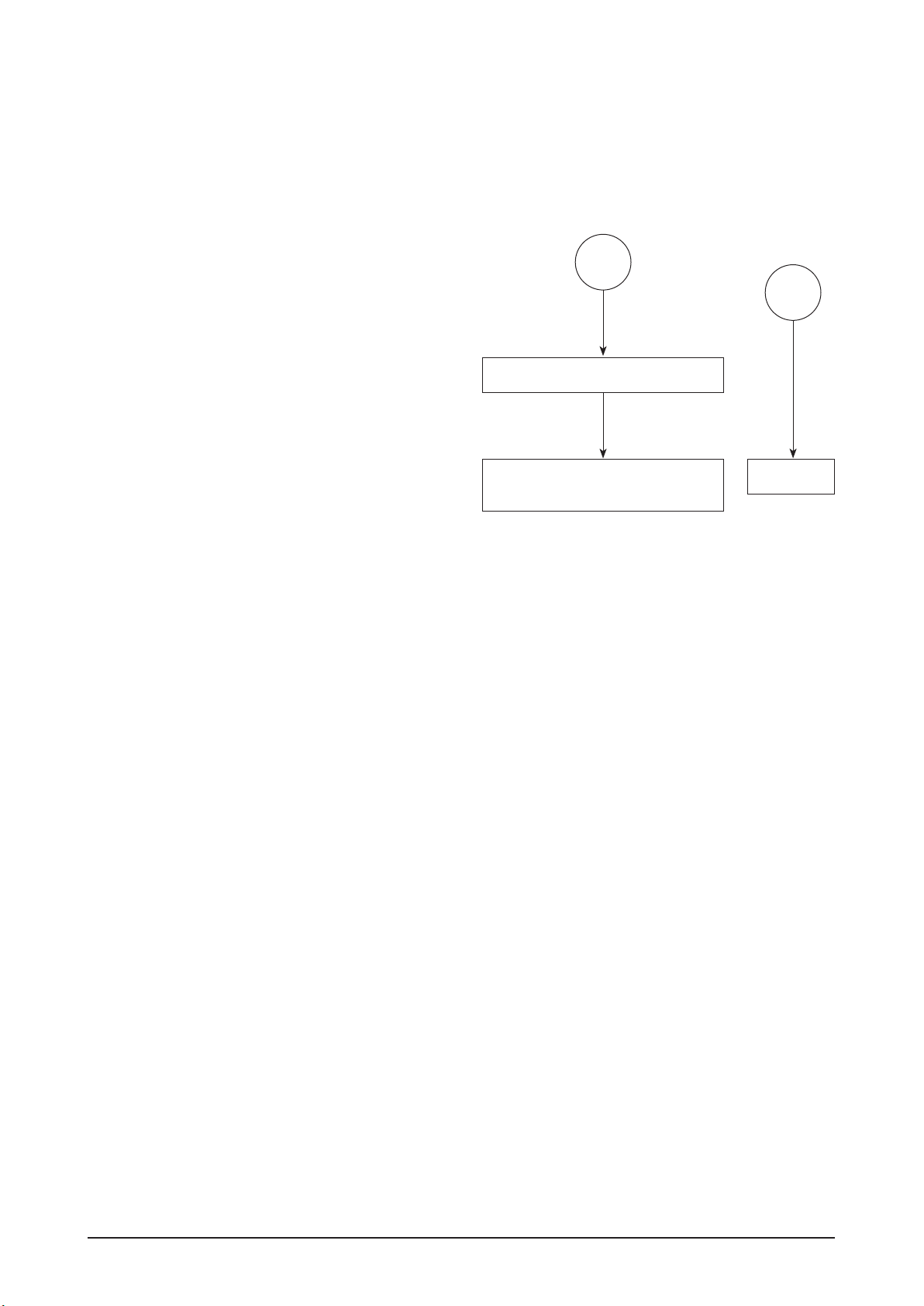

4-1 Checkpoints by Error Mode..............................................................................4-1
4-2 Upgrade Methods.............................................................................................4-23
5. Exploded View & Part List
5-1 Exploded View .................................................................................................5-1
5-2 Electrical Part List ............................................................................................5-3
6. PCB Diagram
6-1 MAIN PCB Top .................................................................................................6-1
6-2 MAIN PCB Bottom ...........................................................................................6-3
7. Schematic Diagram
7-1 Overall Block Diagram .....................................................................................7-1
7-2 MAIN CPU-1 ....................................................................................................7-2
7-3 MAIN CPU-2 ....................................................................................................7-3
7-4 Memory (SDRAM, NAND-Flash)......................................................................7-4
7-5 Power Management.........................................................................................7-5
7-6 AUDIO CODEC................................................................................................7-6
7-7 24PIN IO INTERFACE .....................................................................................7-7
7-8 PBA / LCD INTERFACE...................................................................................7-8
7-9 BLUETOOTH / FM...........................................................................................7-9

Samsung Electronics 1-1
Precaution
1. Precaution
1-1 Safety Precautions
1. To remove dust from the cabinet, use a dry cloth. Do not use any liquid or aerosol cleaners.
2. You should not use any attachments that are not recommended by the company. This could cause damage to
the unit.
3. You should not use this product near or in water.
4. You should only use the power supply provided by the company.
5. If replacement material is required you should only use standardized materials, if you use non-standardized
materials you could cause failure to the product.

1-2 Samsung Electronics
Precaution
1-2 Static Electricity Precautions
1. Some semiconductor (“solid state”) devices are easily damaged by static electricity.
Such components are called Electrostatically Sensitive Devices (ESDs). Examples include integrated circuits
and some field-effect transistors. The following techniques will reduce the occurrence of component damage
caused by static electricity.
2. Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from
your body by touching a known earth ground. Alternatively, wear a discharging wrist-strap device. (Be sure to
remove it prior to applying power--this is an electric shock precaution.)
3. After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent
accumulation of electrostatic charge.
4. Do not use freon-propelled chemicals. These can generate electrical charges that damage ESDs.
5. Use only a grounded-tip soldering iron when soldering or unsoldering ESDs.
6. Use only an anti-static solder removal device. Many solder removal devices are not rated as “anti-static” (these
can accumulate sufficient electrical charge to damage ESDs).
7. Do not remove a replacement ESD from its protective package until you are ready to install it.
Most replacement ESDs are packaged with leads that are electrically shorted together by conductive foam,
aluminum foil or other conductive materials.
8. Immediately before removing the protective material from the leads of a replacement ESD, touch the protective
material to the chassis or circuit assembly into which the device will be installed.
9. Minimize body motions when handing unpackaged replacement ESDs. Motions such as brushing clothes
together, or lifting a foot from a carpeted floor can generate enough static electricity to damage an ESD.

Samsung Electronics 2-1
Product Specification
2. Product Specification
2-1 Product Feature
Convenient to use
- Convenient and intuitive menu selection that you can navigate with your
fingertips on a full screen touch pad.
Video playback without converting
- Playback is possible by simply transferring files without converting.
All file formats to the right are supported.
Compact design
- Compact design giving excellent portability.
45.5(H) x 85.2(V) x 8.9(D) mm

2-2 Samsung Electronics
Product Specification
2-2 Specifications
Basic Specification
Rating DC 5.0V / 1A
File
Audio
• MPEG1/2/2.5 Layer3 (8kbps ~ 320kbps, 8kHz ~ 48kHz)
• WMA (12kbps ~ 320kbps, 16kHz ~ 48kHz)
• Ogg (32kbps ~ 400kbps, Q0 ~ Q10, 8kHz ~ 48kHz)
• AAC-LC (8kbps ~ 320kbps, 8kHz ~ 48kHz)
• AAC+ (8kbps ~ 320kbps, 8kHz ~ 48kHz)
• Enhanced-AAC-Plus (8kbps ~ 320kbps, 8kHz ~ 48kHz)
• FLAC (levle0 ~ 8, 16kHz ~ 48kHz)
• RA (20kbps ~ 96kbps, 8kHz, 11.025kHz, 44.1kHz)
• WAV (wav standard, 8kHz ~ 48kHz)
Video
Video Audio
AVI/
SVI
• MPEG4 (Max.720 X 480) Advanced Simple Profile@
Level 5, 8 Mbps
• Divx3/4/5/(Max. 720 X 480), 8 Mbps
• Xvid (Max. 720 X 480), 8 Mbps
• H.264/AVC (Max. 720 X 480) High [email protected],
12.5 Mbps
MP3/AAC/
AAC+
• WMV9 (MAX 720 X 480) Advanced Profile@level1,
10 Mbps WMA
MP4
• MPEG4 (Max.720 X 480) Advanced Simple Profile@
Level 5, 8 Mbps
• H.264/AVC (Max. 720 X 480) High [email protected],
12.5 Mbps
MP3/AAC/
AAC+
WMV/
ASF
• WMV9 (MAX 720 X 480) Advanced Profile@level1(vc1),
10 Mbps WMA
MOV
• MPEG4 (Max.720 X 480) Advanced Simple Profile@
Level 5, 8 Mbps
• H.264/AVC (Max. 720 X 480) High [email protected],
12.5 Mbps
AAC/AAC+
Image JPEG (Baseline, Progressive), BMP (MAX32Bit), PNG, Gif (89a/87a)
Flash SWF (Flash Player 8.0 or lower, ActionScript2.0 or lower)
Earphones Output 20 mW/Ch. (France 5 mW/Ch.) (based on16 Ω)
Output Frequency
Range 20Hz ~ 20kHz
Signal to Noise Ratio 90dB with 20kHz LPF (based on 1kHz 0dB)
Supported Number of
Files/Folders
File: Max. 5000
Folder: Max. 5000 (including File)
Playing Time Music: 25 hours (MP3 128 kbps, Volume level 15, Normal sound mode, LCD off)
Video: 5 hours (Brightness 3, Volume level 15, Normal sound mode, SVI)

Samsung Electronics 2-3
Product Specification
Temperature Range for
Operation -5° C ~ 35° C (23° F ~ 95° F)
Case Tempered glass, Plastic, Aluminum
Weight 50g
Dimensions (WxHxD) 45.5 X 85.2 X 8.9 mm
FM
FM T.H.D 1%
FM Signal to
Noise Ratio 55dB
FM Useable
Sensitivity 38dBμ
Wireless System
Bluetooth QD ID B015440
Emission Type F1D
RF power CLASS I
Transmit Frequency 2402MHz ~ 2480MHz
Receive Frequency 2402MHz ~ 2480MHz
Number of channels 79 channels
Modulation System GFSK
Communication Mode Semi-duplex Operation
Humidity 0 ~ 95%
Specifications Version
Supported 2.0 + EDR
Module BCM2070

2-4 Samsung Electronics
Product Specification
2-3 Specifications Analysis
Model YP-R1 YP-Q2
BASIC
Storage Type Flash memory (MLC) Flash memory (MLC)
Display
SIZE: 2.6" WQVGA
Display Color: 16.7M LCD
(Dot pitch: 0.14475 (H) x 0.14475 (V))
Resolution: 240RGB (H) x 400 (V)
SIZE: 2.4" QVGA TFT LCD
Resolution: 320 (H) x 240 (V)
Platform i.MX37 (Freescale) Sigmatel (STMP3750)
Battery Type Li-Polymer Li-Polymer
Battery Capacity 500mAh 580mAh
Playback Time
(Earphone)
25 Hours of Music Playback with Earphones
(Based on MP3 128 kbps, Volume 15,
Normal EQ, LCD OFF),
5 Hours of Video Playback
(Based on MPEG4@SP, Volume 15,
Normal EQ, LCD lv3)
50 Hours of Music Playback with Earphones,
4Hours of Video Playback
Color Black / Silver / Pink White / Black / Blue
Capacity 8G / 16G / 32G 4G / 8G / 16G
CASE Tempered glass, Aluminum, Plastic, ABS Aluminum, Plastic
NO Conversion X
Widgets X
Colorful + Moving GUI X
FILES
MP3  
WMA  
RA X
OGG (MAX Q10) (up to Q10)
WAV X
AAC X
Audible X X
JPEG  
FLAC  
APE X X
Divx (3, 4, 5) X
Xvid X
H.264 X
ASF X
MOV X
WMV  
MPEG4 (SVI)  
SWF X
: application, X: non-application

Samsung Electronics 2-5
Product Specification
Model YP-R1 YP-Q2
SOUND
DNSE
DNSE 3.0
(General, Studio, Rock, Classic, Jazz, Ballad,
Club, R&B, Dance, Cafe, Concert, Cathedral)
DNSE 3.0
(General, Studio, Rock, Classic, Jazz, Ballad,
R&B, Dance, Concert)
User EQ (9 band control) (9 band control)
Street Mode  
Sound Feedback (AUI) (AUI)
High-pitched Sound
Recovery
X
Playlist DNSE X
Speed Control (MP3 file play 0.75 ~ 1.3X) (MP3 file play 0.75 ~ 1.3X)
Output Power (Earphone) 20mW/CH 20mW/CH
TUNER
FM  
RDS X
ETC X X
FUNCTIONS
Alarm X X
Bluetooth X
Photo Viewer  
Text Viewer  
Game  
Wallpaper  
World Clock  
Voice Recording  
FM Recording X
Wise Volume
(Hearing Protection)
X
Address Book X
Data Cast X
Flash Player X
Calculator X X
TTS (Text to Speech) X (FW will be supported) X
Calender X
Bookmark TEXT, VIDEO
Vive Woofer
(Using Haptic) X X
Quick Tray X
Mini Player X
DRM
Netsync  
WMA DRM  
Janus  
: application, X: non-application

2-6 Samsung Electronics
Product Specification
2-4 Accessories
2-4-1 Supplied Accessories
Accessories Item Item Code Remark
Earphones GM59-01016A
Samsung Service
Center
USB Cable GM39-01002A
User's Manual GM68-01002J

Samsung Electronics 3-1
Disassembly & Reassembly
3. Disassembly & Reassembly
3-1 Overall Disassembly & Reassembly
- Please follow the disassemble sequence describes below. Otherwise, the product may be
damaged.
- Be sure to carefully read and understand the safety instructions describes at the start of this
manual before performing any work on the IC chips on the PCB.
- To assemble, follow the below instructions in reverse order.

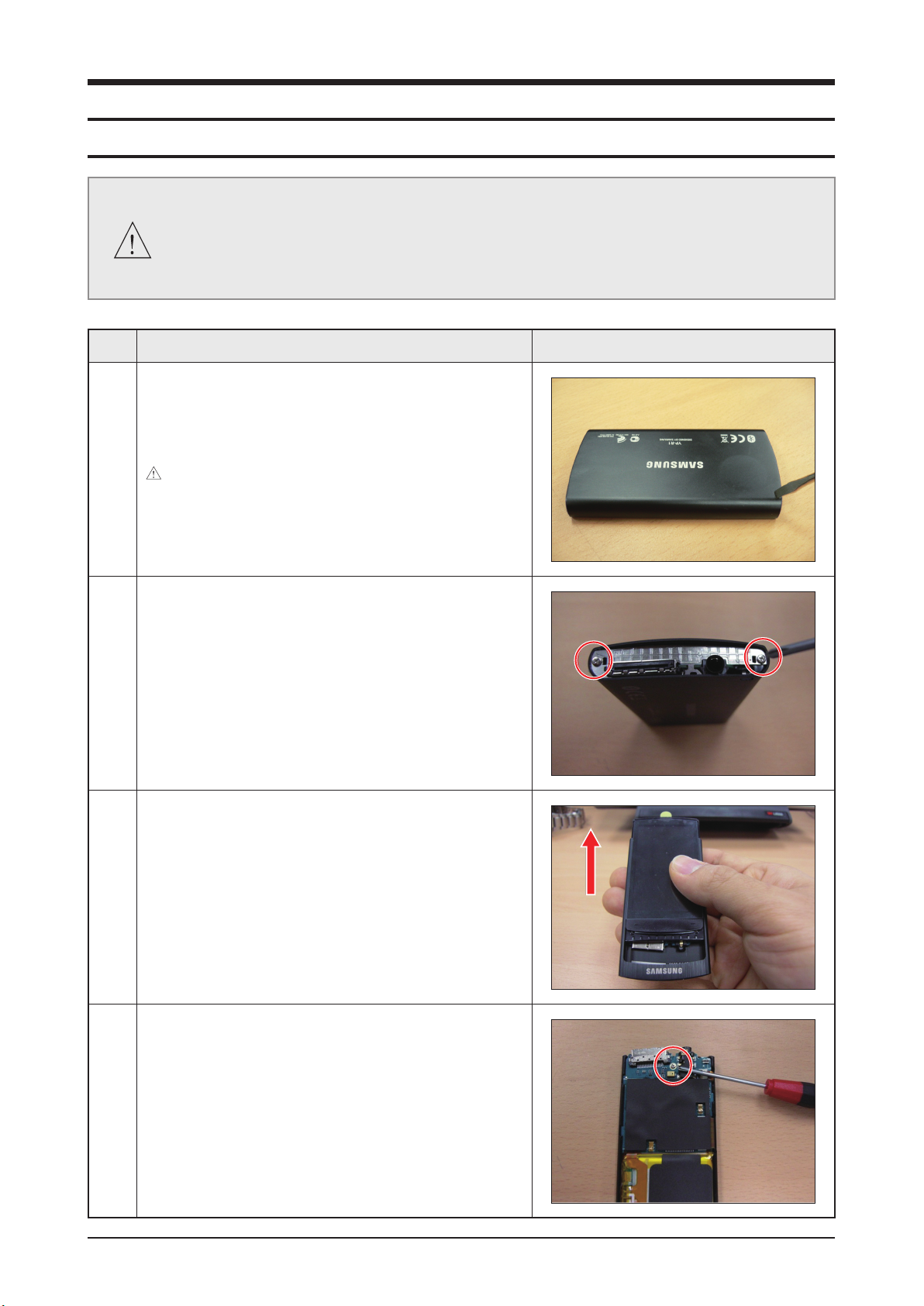

No. Description Description Photo
1 1) Insert a flat screwdriver or tweezers into the hole
shown on the right. Remove the cover attached with
double sided tape.
Be careful not to make any scratches as you remove
the cover.
2 1) Remove the two screws using a phillips screwdriver,
and remove the SUS BRACKET.
3 1) Disconnect the case from the main body by pulling the
AL CASE down.
4 1) Remove the screw from the MAIN PCB.

3-2 Samsung Electronics
Disassembly & Reassembly

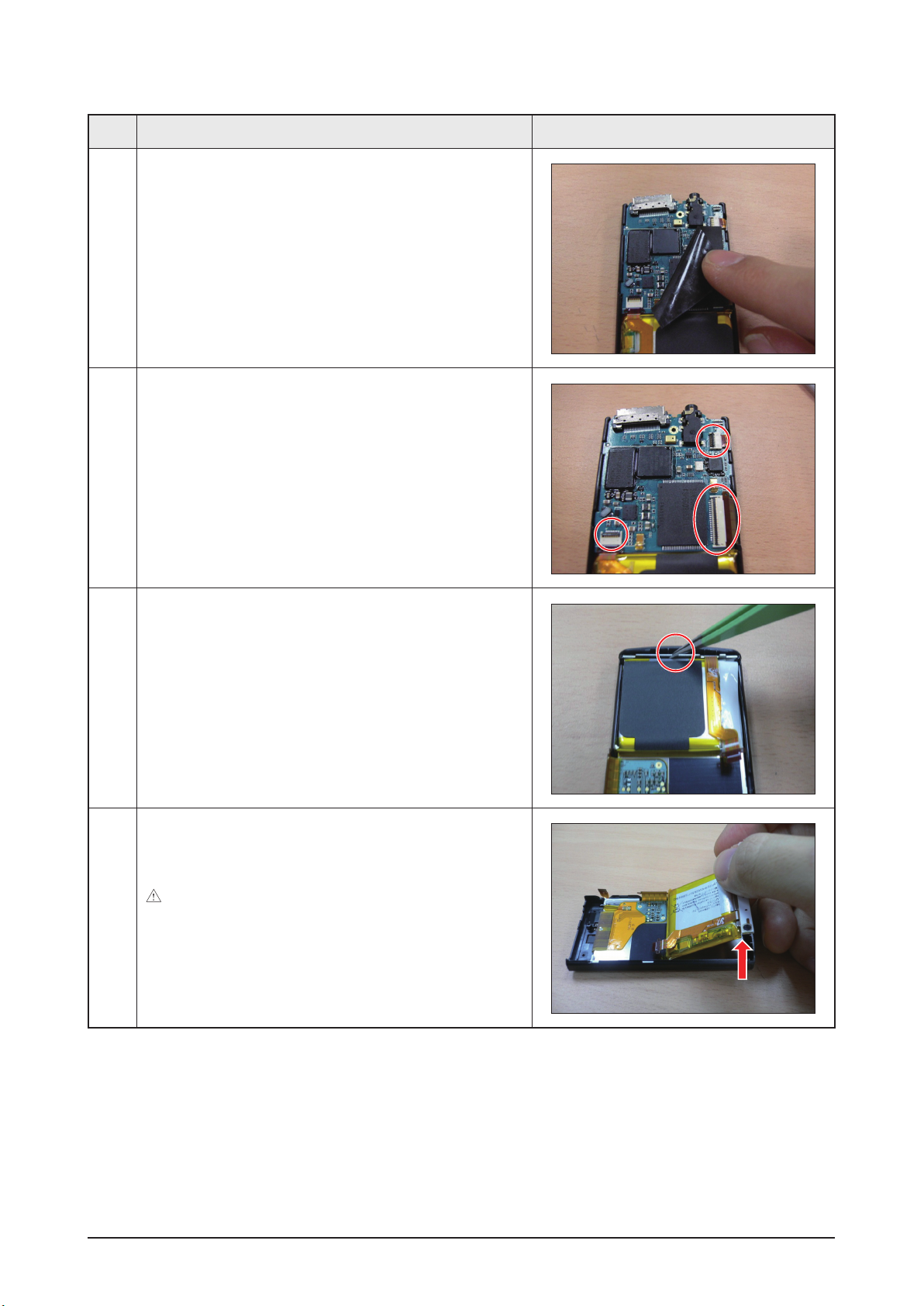

No. Description Description Photo
5 1) Remove the Cushion PCB from the MAIN PCB.
6 1) Disconnect the three connectors on the MAIN PCB
and remove the FPCB, and the MAIN PCB.
7 1) Insert a flat screwdriver or tweezers into the hole next
to the battery FPCB and remove the battery FPCB.
8 1) Remove the battery that is fixed with double sided
tape onto the LCD MODULE .
Ensure that the battery doesn’t get damaged.

Samsung Electronics 3-3
Disassembly & Reassembly
No. Description Description Photo
9 1) When removing the hooked LCD, pull the bottom of
the LCD (2) upwards while widening the side of the
Touch Assy (1).
10 1) After disassembly
1
2

3-4 Samsung Electronics
MEMO

Samsung Electronics 4-1
Troubleshooting
4. Troubleshooting
4-1 Checkpoints by Error Mode
Oscilloscope Setting Values Normal Voltage 24MHz 32.768KHz
Voltage/DIV 800mV/DIV 400mV/DIV 400mV/DIV
TIME/DIV 100ms/DIV 100us/DIV 100ns/DIV
4-1-1 If there is no power
Check that the
firmware is upgraded.
(See 4-2 Upgrade Methods)
Charge the battery and
check that the power is on.
Yes
No
1/2/3
C316: 2.5V, C318: 1.2V, C303: 3.0V
Check the voltage.
No
No
No
6/7
Check CPU_RST - HIGH
R406 - LOW
4/5
Check that the clock on X403 and
X402 oscillates.
No
Faulty
Yes
Yes
Yes
Yes
If there is no power
See the waveform and
the image in Fig. 4-1.
A
B
See the waveform and
the image in Fig. 4-3.
See the waveform and
the image in Fig. 4-2.

4-2 Samsung Electronics
Troubleshooting
Replace the battery and check the
voltage again.
No
Complete
A
B
Check the voltage on the battery.

1
1
C316
2
3
1
2
3
2C318 3C303
Samsung Electronics 4-3
Troubleshooting
DDR_SD_DA[0]
DDR_SD_DA[1]
DDR_SD_DA[2]
DDR_SD_DA[3]
DDR_SD_DA[4]
DDR_SD_DA[5]
DDR_SD_DA[6]
DDR_SD_DA[7]
DDR_SD_DA[8]
DDR_SD_DA[9]
DDR_SD_DA[10]
DDR_SD_DA[11]
DDR_SD_DA[12]
DDR_SD_DA[13]
DDR_SD_DA[14]
DDR_SD_DA[15]
DDR_SD_DA[20]
DDR_SD_DA[17]
DDR_SD_DA[18]
DDR_SD_DA[21]
DDR_SD_DA[16]
DDR_SD_DA[19]
DDR_SD_DA[26]
DDR_SD_DA[23]
DDR_SD_DA[24]
DDR_SD_DA[27]
DDR_SD_DA[22]
DDR_SD_DA[25]
DDR_SD_DA[28]
DDR_SD_DA[29]
DDR_SD_DA[30]
DDR_SD_DA[31]
NAND_DQ[0]
NAND_DQ[1]
NAND_DQ[2]
NAND_DQ[3]
NAND_DQ[4]
NAND_DQ[5]
NAND_DQ[6]
DDR_SD_AD[2]
DDR_SD_AD[1]
DDR_SD_AD[4]
DDR_SD_AD[5]
DDR_SD_AD[3]
DDR_SD_AD[0]
DDR_SD_AD[6]
DDR_SD_AD[7]
DDR_SD_AD[8]
DDR_SD_AD[9]
DDR_SD_AD[10]
DDR_SD_AD[11]
DDR_SD_AD[12]
NAND_DQ[7]
DDR_SD_DA[0-31] GND
GND
GND
P_1.8V
P_1.0V
GND
P_1.2V
C333
100nF
GND
P_3.0V
C315
100nF
GND
C308
100nF
C336
100nF
C310
100nF
GND
P_2.5V
GND
C309
100nF
C330
100nF
C311
100nF
C332
100nF
GND
C338
100nF
C303
100nF
GND
C337
100nF
GND
USB_D-
USB_D+
USB_P5V
VIDEO_DACOUT
C301
100nF
GND C302
100nF
P_2.5V
NAND_OE
NAND_CLE
NAND_CPU_CS2
NAND_R/B0
NAND_CPU_CS3
NAND_WE
NAND_CPU_CS0
NAND_ALE
NAND_CPU_CS1
NAND_WP
DDR_SD_BA[0]
DDR_SD_DQS[2]
DDR_SD_DQM[3]
DDR_SD_DQM[2]
DDR_SD_DQS[0]
DDR_SD_WE
DDR_SD_DQS[3]
DDR_SD_CAS
DDR_SD_DQM[0]
DDR_SD_DQS[1]
DDR_SD_BA[1]
DDR_SD_RAS
DDR_SD_CLK
DDR_SD_CS
DDR_SD_CKE
DDR_SD_/CLK
DDR_SD_DQM[1]
DDR_SD_CKE
GND
DDR_SD_AD[0-12]
P_3.0V
NAND_DQ[0-7]
VDDA_1.2V
C339
100nF
P_3.3V
C320
100nF
C323
100nF
C327
100nF
C305
100nF
C331
100nF
C328
100nF
C321
100nF
C304
100nF
C307
100nF
C329
100nF
C312
100nF
C325
100nF
C324
100nF
U301
MCIMX37
M15 EIM_D0/GPIO3_20
L18 EIM_D1/GPIO3_21
L16 EIM_D2/GPIO3_22
L15 EIM_D3/GPIO3_23
L14 EIM_D4/GPIO3_24
K18 EIM_D5/GPIO3_25
K19 EIM_D6/GPIO3_26
K15 EIM_D7/GPIO3_27
J19 EIM_D8/TRACE8/GPIO1_8
J18 EIM_D9/TRACE9
J16 EIM_D10/TRACE10
J15 EIM_D11/TRACE11
H18 EIM_D12/TRACE12
H19 EIM_D13/TRACE13
H16 EIM_D14/TRACE14/ANY_PU_RST
G18 EIM_D15/TRACE15/SYSTEM_RST
D15 NANDF_WE_B
C18 NANDF_RE_B
C19 NANDF_ALE
D19 NANDF_CLE
D18 NANDF_WP
D16 NANDF_RB
E16 NANDF_CS0
E18 NANDF_CS1
E19 NANDF_CS2
E15 NANDF_CS3
A3
DRAM_A14
A4
DRAM_A13
B4
DRAM_A12
A5
DRAM_A11
F7
DRAM_A10
B7
DRAM_A9
A7
DRAM_A8
A8
DRAM_A7
E8
DRAM_A6
E9
DRAM_A5
B9
DRAM_A4
A9
DRAM_A3
B13
DRAM_A2
A11
DRAM_A1
A12
DRAM_A0
D6
ETM_D7/EIM_DA15/DRAM_D31
E7
ETM_D6/EIM_DA14/DRAM_D30
E6
ETM_D5/EIM_DA13/DRAM_D29
D5
ETM_D4/EIM_DA12/DRAM_D28
E5
ETM_D3/EIM_DA11/DRAM_D27
D4
ETM_D2/EIM_DA10/DRAM_D26
B3
ETM_D1/EIM_DA9/DRAM_D25
F5
ETM_D0/EIM_DA8/DRAM_D24
B2
KEY_ROW7/EIM_DA7/DRAM_D23
B1
KEY_ROW6/EIM_DA6/DRAM_D22
C2
KEY_ROW5/EIM_DA5/DRAM_D21
C1
KEY_ROW4/EIM_DA4/DRAM_D20
D2
KEY_ROW3/EIM_DA3/DRAM_D19
D1
KEY_ROW2/EIM_DA2/DRAM_D18
E2
KEY_ROW1/EIM_DA1/DRAM_D17
E1
KEY_ROW0/EIM_DA0/DRAM_D16
F11
DRAM_D15
E10
DRAM_D14
E11
DRAM_D13
A15
DRAM_D12
G13
DRAM_D11
F9
DRAM_D10
E12
DRAM_D9
D14
DRAM_D8
A16
DRAM_D7
B15
DRAM_D6
B16
DRAM_D5
B17
DRAM_D4
A17
DRAM_D3
A18
DRAM_D2
B18
DRAM_D1
B19
DRAM_D0
A13
DRAM_SDCLK
A14
DRAM_SDCLK_B
B11
DRAM_CS1
B12
DRAM_CS0
G6
DRAM_SDQS3
F6
DRAM_SDQS2
F10
DRAM_SDQS1
E13
DRAM_SDQS0
B10
DRAM_SDCKE1
A10
DRAM_SDCKE0
A6
DRAM_SDWE
F8
DRAM_CAS
B8
DRAM_RAS
E4
DRAM_DQM3/GPIO_14
A2
DRAM_DQM2/GPIO_15
E14
DRAM_DQM1
B14
DRAM_DQM0
B6
EIM_SDBA1
B5
EIM_SDBA0
U301
MCIMX37
A1 GND_1
A19 GND_2
H9 GND_3
H10 GND_4
J8 GND_5
J9 GND_6
J10 GND_7
J11 GND_8
K8 GND_9
K9 GND_10
K10 GND_11
K11 GND_12
K12 GND_13
L9 GND_14
L10 GND_15
L11 GND_16
L12 GND_17
W19 GND_18
M8 GND_19
M10 GND_20
W1 GND_21
K13 GND_22
F12 GND_ANA_PLL_A
M13 GND_ANA_PLL_B
F14 GND_DIG_PLL_A
N13 GND_DIG_PLL_B
P19 NGND_OSC
G15 NGND_USBPHY
T11 NGND_RGB1
V11 NGND_RGB2
F15 RREFEXT
F16 ID
H15 VBUS
G19 DN
F19 DP
V14 IOB_BACK
W11 IOB
V15 IOG_BACK
W12 IOG
W15 IOR_BACK
W13 IOR
V13 RSET
T13 VREFIN
P11 VREOUT
W14 COMP T15
VDD_FUSE
N16
FASTR_DIG
M18
FASTR_ANA
P14
NVCC_SRTC_POW
N8
VDD_TVDIG
M7
VDDA2
G12
VDDA1
N12
VDD_DIG_PLL_B
G14
VDD_DIG_PLL_A
M11
VDD_ANA_PLL_B
F13
VDD_ANA_PLL_A
L19
NVCC_OSC
G16
NVCC_USBPHY
M9
NVCC_TV_BACK
P12
NVCC_DAC
V12
AHVDDRGB2
T12
AHVDDRGB1
R12
VDD_TVSUPPLY
L13
PER9
R14
PER8
P6
PER6
L7
PER4
P7
PER3
P8
PER2
J7
NVCC_IPU2
H7
NVCC_IPU1
J14
VDDA33_2
H14
VDDA33_1
N7
PER14
R15
PER13
K14
NVCC_EMI3
J13
NVCC_EMI2
H13
NVCC_EMI1
G7
NVCC_CTNR_EMI
F4
NVCC_EMI_DRAM8
D13
NVCC_EMI_DRAM7
D12
NVCC_EMI_DRAM6
D11
NVCC_EMI_DRAM5
D10
NVCC_EMI_DRAM4
D9
NVCC_EMI_DRAM3
D8
NVCC_EMI_DRAM2
D7
NVCC_EMI_DRAM1
L8
VCC4_1
K7
VCC4_2
N10
VCC3
M12
VCC2
J12
VCC_1
H12
VCC_2
H11
VCC_3
H8
VDDGP5
G11
VDDGP4
G10
VDDGP3
G9
VDDGP2
G8
VDDGP1
C322
1000nF
C314
1000nF
C316
1000nF
C318
1000nF
R307 100K
C319
4700nF
R301
2.4K
C335
100nF C334
100nF
R302
1K
R304
5.6K
C313
10000nF
VCC_CORE
VCC_1.2V
VCC_1.8V
VCC_3.0V
VCC_3.0V
VCC_1.8V
VCC_2.5V
VDDA_1.2V
VCC_1.8V
DC/DC
DC/DC
DC/DC
LDO
LDO
CVBS VIDEO OUT
1%
LDO
MAIN CPU-1, page 7-2
U701
U504
U801
U402
U101
U702
U507 U506
U604
U401
MAIN PCB Top, page 6-1
CON901
CON601
CON802
CON801
U503 U502
U301
U102
U601
U501
MAIN PCB Bottom, page 6-3
<Fig. 4-1>

4
5
4
5
5
4
4-4 Samsung Electronics
Troubleshooting
PBA_CE
LCD_RED2
JTAG_TCK
LCD_GRN0
LCD_RED0
BT_UART_RX0
JTAG_RST
BT_UART_RTS0
JTAG_TMS
I2C_CLK1
LCD_BLU4
TOUCH_DAT
BT_UART_TX0
LCD_GRN1
LCD_GRN5
LCD_BLU6
LCD_GRN4
LCD_DOTCLK
AUD_BCLK
LCD_RED1
LCD_HSYNC
LCD_GRN2
LCD_RED3
JTAG_TDO
LCD_BLU7
JTAG_TDI
LCD_RED5
PWR_ON_OFF
LCD_RED7
LCD_BLU1
CHG_STATUS
LCD_BLU2
LCD_GRN6
JTAG_RTCK
AUD_LRCK
LCD_RED6
BT_UART_CTS0
GND
LCD_BLU0
LCD_GRN3
I2C_DAT1
LCD_GRN7
LCD_RED4
LCD_BLU3
LCD_VSYNC
LCD_BLU5
MUTE
LED_DIMMING
AUD_DATA_OUT
AUD_DATA_IN
CPU_RST
EARPHONE_DET
R413
1M
BT_WAKE
GND
P_3.0V
P_3.0V
TOUCH_CLK
TOUCH_INTR
CHARGE_EN
TOUCH_CE
RESET_IN
EXT_PWR
C406
100nF
R407
1K
DEVICE_DET
LCD_CLK
LCD_ENABLE
P_3.0V
LCD_DATA_OUT
LCD_DATA_IN
P_3.0V
I2C_CLK0
I2C_DAT0
GND
CLK_SELECT
CLK_SELECT
EXT_PWR
BOOT_MODE1
BOOT_MODE0
GND
P_3.0V
C404
100nF
GND
R417
47K
GND
VIDEO_EN
INN_BATT
GND
C403
7pF
12
C402
7pF
12
GND
X402
32.768KHz
1
IN
2
OUT
3
GND
U402
S-35392A
1 32KO
2XOUT
3 XIN
4 VSS 5
INT2
6
SCL
7
SDA
8
VDD
32.768KHZ_OUT
P_3.0V
32.768KHZ_OUT
FM_SEARCH
BT_RST
LCD_CHECK
LCD_RST
LCD_CS
X403
24MHz
1
23
4
PWR_IN_CPU
BOOT_MODE1
BOOT_MODE0
JTAG_RST
GND
FM_BUS_EN
D402
KDS121V
UART_TX1
UART_RX1
NAND_CS_CTL
CORE_CTL
VOLUME-
VOLUME+
R409
10K
GND
NAND_R/B1
NAND_R/B2
NAND_R/B3
NAND_R/B4
NAND_R/B5
NAND_R/B6
NAND_R/B7
D401
KDS121V
P_3.0V
PWR_IN_DDCON
R404
22K
I2C_DAT0
I2C_CLK0
C407
0.022nF
C409
0.022nF
U401
NC7SV08P5X
1A
2B
3GND 4
Y
5
Vcc
LP_CTL
C408
100nF
R421
4.7K
R424
4.7K
R425
4.7K
R422
4.7K
R410
22
BT_REG_EN
NAND_SELECT
AUD_MCLK
R411
22
BOOT_MODE0
R406
22K
R408 100K
U301
MCIMX37
T19 PMIC_VSTBY
R16 PMIC_PWRFAIL
R19 CKIL
N18 CKIH
P15 CLK_SS
W7 WDOG_RST/PMIC_RDY/GPIO3_28
N14 RESET_IN_B
N15 POR_B
P16 BOOT_MODE0/AUD_MCLK2
P18 BOOT_MODE1
M19 XTAL
N19 EXTAL
R1 THDIODE
R18 TEST_MODE
F18 GPANAIO
H4
LCD_HSYNC/GPIO3_31
G2
LCD_VSYNC/GPIO3_29
P2
LCD_WR/GPIO3_10
P1
LCD_RD/GPIO3_11
N6
LCD_RS/GPIO3_12
N2
LCD_RDY/GPIO1_30
N5
LCD_CS/GPIO3_13
F1
LCD_DOTCLK/GPIO3_30
T8 GPIO1_31/WDOG_RST_B_DEB
R9 UART2_RXD_MUX/GPIO2_31
V8 UART2_TXD_MUX/GPIO2_30
P9 UART2_RTS_MUX/GPIO2_29
W8 UART2_CTS
W9 GPIO2_27
V9 GPIO2_26
T9 UART_TX1/GPIO2_25
V10 UART_RX1/GPIO_24
T6 CSPI2_SCLK/I2C3_SCLK/GPIO3_9
W4 CSPI2_SS1/GPIO3_8
V5 CSPI2_SS0/GPIO3_7
W5 CSPI2_MISO/GPIO3_6
R7 CSPI2_MOSI/I2C3_SDA/GPIO3_5
T7 CSPI1_SCLK/I2C1_SCL/GPIO3_4
V6 CSPI1_SS1/GPIO3_3
R8 CSPI1_SS0/GPIO3_2
W6 CSPI1_MISO/GPIO3_1
V7 CSPI1_MOSI/GPIO3_0
T4
AUD_LRCK
U2
AUD_BCLK
R6
AUD_DAI
V1
AUD_DAO
V2
GPIO2_19
T5
GPIO2_18
V3
UART3_CTS/GPIO2_17
W2
UART3_R_RTS/GPIO2_16
W3
UART3_TXD_MUX/GPIO2_15
V4
UART3_RXD_MUX/GPIO2_14
M16
I2C1_DAT/GPIO2_13
M14
I2C1_CLK/GPIO2_12
R10
GPIO1_27
W10
GPIO1_26
P10
GPIO1_25
N11
CSPI3_MISO/GPIO1_24
R11
CSPI3_SCLK/GPIO1_23
N9
CSPI3_MOSI/GPIO1_22
V18
SD1_DATA3/CSPI2_SS0/GPIO1_21
V19
SD1_DATA2/GPIO1_20
U19
SD1_DATA1/GPIO1_19
U18
SD1_DATA0/CSPI3_MIOS/GPIO1_18
T18
SD1_CLK/CSPI3_SCLK/GPIO1_17
T16
SD1_CMD/CSPI3_MOSI/GPIO1_16
H5
ETM_CTL/GPIO_D13
G5
EIM_RW/GPIO1_9
H6
ETM_CLK/GPIO_10
G4
EIM_CS1/GPIO2_1
F2
EIM_CS0/GPIO2_0
J6
DISP1_DAT23
G1
DISP1_DAT22
J5
DISP1_DAT21
H2
DISP1_DAT20
J4
DISP1_DAT19/ETM_D3
H1
DISP1_DAT18/ETM_D2
K6
DISP1_DAT17/ETM_D1
J1
DISP1_DAT16/ETM_D0
J2
DISP1_DAT15
K5
DISP1_DAT14
L6
DISP1_DAT13
K2
DISP1_DAT12
L5
DISP1_DAT11
K1
DISP1_DAT10
L4
DISP1_DAT9
L1
DISP1_DAT8
L2
DISP1_DAT7
M6
DISP1_DAT6
M5
DISP1_DAT5
M2
DISP1_DAT4
M1
DISP1_DAT3
M4
DISP1_DAT2
N4
DISP1_DAT1
N1
DISP1_DAT0
P4
GPIO1_7
P5
GPIO1_6/CLK0/AUD_MCLK
R2
GPIO1_5/USB_PWR
R4
GPIO1_4
T1
GPIO1_3
R5
GPIO1_2
T2
GPIO1_1/I2C2_SDA
U1
GPIO1_0/I2C2_SCL
P13 JTAG_MOD
T14 JTAG_DE_B
R13 JTAG_TRSTB
V16 JTAG_TDO
W16 JTAG_TDI
W17 JTAG_TMS
V17 JTAG_TCK
W18 JTAG_RTCK
LED_PWM
VD401
14V
R412 4.7K
R401
4.7K
P3.3_CTL
R405 6.8K
R415 6.8K
R402
10K
R403 4.7K
R426
47K
R423
47K
R420
47K
RED
BLUE
GREEN
FUEL GAUGE
CPU ---> LCD
LCD ---> CPU
RTC, CODEC, FM
10 : NAND BOOT
1.10V
CKIL
BOOT MODE
REAL TIME CLOCK
SPI3 INTERFACE
TOUCH INTERFACE
CLK/DAT <--I2C_3
ARM_DEBUG
11 : USB BOOT
PWR_IN_CPU
LED_DIMMING
MUTE
PWR_ON_OFF
Default Low port
Place this part to CPU as close as possible
LCD_RESET
SRTC_POW PER4
PER_9
PER_2
PER_9
NVCC_OSC
PER4
PER9
USBPHY
PER8
PER2
PER3
NVCC_IPU
NVCC_CNTR
PER13
PER14
NVCC_EMI
PER6
AND GATE
VIDEO_EN
RESET_IN
NAND_CS_CTL
CODEC;MCLK
MAIN CPU-2, page 7-3
PBA_CE
LCD_RED2
JTAG_TCK
LCD_GRN0
LCD_RED0
BT_UART_RX0
JTAG_RST
BT_UART_RTS0
JTAG_TMS
I2C_CLK1
LCD_BLU4
TOUCH_DAT
BT_UART_TX0
LCD_GRN1
LCD_GRN5
LCD_BLU6
LCD_GRN4
LCD_DOTCLK
AUD_BCLK
LCD_RED1
LCD_HSYNC
LCD_GRN2
LCD_RED3
JTAG_TDO
LCD_BLU7
JTAG_TDI
LCD_RED5
PWR_ON_OFF
LCD_RED7
LCD_BLU1
CHG_STATUS
LCD_BLU2
LCD_GRN6
JTAG_RTCK
AUD_LRCK
LCD_RED6
BT_UART_CTS0
GND
LCD_BLU0
LCD_GRN3
I2C_DAT1
LCD_GRN7
LCD_RED4
LCD_BLU3
LCD_VSYNC
LCD_BLU5
MUTE
LED_DIMMING
AUD_DATA_OUT
AUD_DATA_IN
CPU_RST
EARPHONE_DET
R413
1M
BT_WAKE
GND
P_3.0V
P_3.0V
TOUCH_CLK
TOUCH_INTR
CHARGE_EN
TOUCH_CE
RESET_IN
EXT_PWR
C406
100nF
R407
1K
DEVICE_DET
LCD_CLK
LCD_ENABLE
P_3.0V
LCD_DATA_OUT
LCD_DATA_IN
P_3.0V
I2C_CLK0
I2C_DAT0
GND
CLK_SELECT
CLK_SELECT
EXT_PWR
BOOT_MODE1
BOOT_MODE0
GND
P_3.0V
C404
100nF
GND
R417
47K
GND
VIDEO_EN
INN_BATT
GND
C403
7pF
12
C402
7pF
12
GND
X402
32.768KHz
1
IN
2
OUT
3
GND
U402
S-35392A
1 32KO
2XOUT
3 XIN
4 VSS 5
INT2
6
SCL
7
SDA
8
VDD
32.768KHZ_OUT
P_3.0V
32.768KHZ_OUT
FM_SEARCH
BT_RST
LCD_CHECK
LCD_RST
LCD_CS
X403
24MHz
1
23
4
PWR_IN_CPU
BOOT_MODE1
BOOT_MODE0
JTAG_RST
GND
FM_BUS_EN
D402
KDS121V
UART_TX1
UART_RX1
NAND_CS_CTL
CORE_CTL
VOLUME-
VOLUME+
R409
10K
GND
NAND_R/B1
NAND_R/B2
NAND_R/B3
NAND_R/B4
NAND_R/B5
NAND_R/B6
NAND_R/B7
D401
KDS121V
P_3.0V
PWR_IN_DDCON
R404
22K
I2C_DAT0
I2C_CLK0
C407
0.022nF
C409
0.022nF
U401
NC7SV08P5X
1A
2B
3GND 4
Y
5
Vcc
LP_CTL
C408
100nF
R421
4.7K
R424
4.7K
R425
4.7K
R422
4.7K
R410
22
BT_REG_EN
NAND_SELECT
AUD_MCLK
R411
22
BOOT_MODE0
R406
22K
R408 100K
U301
MCIMX37
T19 PMIC_VSTBY
R16 PMIC_PWRFAIL
R19 CKIL
N18 CKIH
P15 CLK_SS
W7 WDOG_RST/PMIC_RDY/GPIO3_28
N14 RESET_IN_B
N15 POR_B
P16 BOOT_MODE0/AUD_MCLK2
P18 BOOT_MODE1
M19 XTAL
N19 EXTAL
R1 THDIODE
R18 TEST_MODE
F18 GPANAIO
H4
LCD_HSYNC/GPIO3_31
G2
LCD_VSYNC/GPIO3_29
P2
LCD_WR/GPIO3_10
P1
LCD_RD/GPIO3_11
N6
LCD_RS/GPIO3_12
N2
LCD_RDY/GPIO1_30
N5
LCD_CS/GPIO3_13
F1
LCD_DOTCLK/GPIO3_30
T8 GPIO1_31/WDOG_RST_B_DEB
R9 UART2_RXD_MUX/GPIO2_31
V8 UART2_TXD_MUX/GPIO2_30
P9 UART2_RTS_MUX/GPIO2_29
W8 UART2_CTS
W9 GPIO2_27
V9 GPIO2_26
T9 UART_TX1/GPIO2_25
V10 UART_RX1/GPIO_24
T6 CSPI2_SCLK/I2C3_SCLK/GPIO3_9
W4 CSPI2_SS1/GPIO3_8
V5 CSPI2_SS0/GPIO3_7
W5 CSPI2_MISO/GPIO3_6
R7 CSPI2_MOSI/I2C3_SDA/GPIO3_5
T7 CSPI1_SCLK/I2C1_SCL/GPIO3_4
V6 CSPI1_SS1/GPIO3_3
R8 CSPI1_SS0/GPIO3_2
W6 CSPI1_MISO/GPIO3_1
V7 CSPI1_MOSI/GPIO3_0
T4
AUD_LRCK
U2
AUD_BCLK
R6
AUD_DAI
V1
AUD_DAO
V2
GPIO2_19
T5
GPIO2_18
V3
UART3_CTS/GPIO2_17
W2
UART3_R_RTS/GPIO2_16
W3
UART3_TXD_MUX/GPIO2_15
V4
UART3_RXD_MUX/GPIO2_14
M16
I2C1_DAT/GPIO2_13
M14
I2C1_CLK/GPIO2_12
R10
GPIO1_27
W10
GPIO1_26
P10
GPIO1_25
N11
CSPI3_MISO/GPIO1_24
R11
CSPI3_SCLK/GPIO1_23
N9
CSPI3_MOSI/GPIO1_22
V18
SD1_DATA3/CSPI2_SS0/GPIO1_21
V19
SD1_DATA2/GPIO1_20
U19
SD1_DATA1/GPIO1_19
U18
SD1_DATA0/CSPI3_MIOS/GPIO1_18
T18
SD1_CLK/CSPI3_SCLK/GPIO1_17
T16
SD1_CMD/CSPI3_MOSI/GPIO1_16
H5
ETM_CTL/GPIO_D13
G5
EIM_RW/GPIO1_9
H6
ETM_CLK/GPIO_10
G4
EIM_CS1/GPIO2_1
F2
EIM_CS0/GPIO2_0
J6
DISP1_DAT23
G1
DISP1_DAT22
J5
DISP1_DAT21
H2
DISP1_DAT20
J4
DISP1_DAT19/ETM_D3
H1
DISP1_DAT18/ETM_D2
K6
DISP1_DAT17/ETM_D1
J1
DISP1_DAT16/ETM_D0
J2
DISP1_DAT15
K5
DISP1_DAT14
L6
DISP1_DAT13
K2
DISP1_DAT12
L5
DISP1_DAT11
K1
DISP1_DAT10
L4
DISP1_DAT9
L1
DISP1_DAT8
L2
DISP1_DAT7
M6
DISP1_DAT6
M5
DISP1_DAT5
M2
DISP1_DAT4
M1
DISP1_DAT3
M4
DISP1_DAT2
N4
DISP1_DAT1
N1
DISP1_DAT0
P4
GPIO1_7
P5
GPIO1_6/CLK0/AUD_MCLK
R2
GPIO1_5/USB_PWR
R4
GPIO1_4
T1
GPIO1_3
R5
GPIO1_2
T2
GPIO1_1/I2C2_SDA
U1
GPIO1_0/I2C2_SCL
P13 JTAG_MOD
T14 JTAG_DE_B
R13 JTAG_TRSTB
V16 JTAG_TDO
W16 JTAG_TDI
W17 JTAG_TMS
V17 JTAG_TCK
W18 JTAG_RTCK
LED_PWM
VD401
14V
R412 4.7K
R401
4.7K
P3.3_CTL
R405 6.8K
R415 6.8K
R402
10K
R403 4.7K
R426
47K
R423
47K
R420
47K
RED
BLUE
GREEN
FUEL GAUGE
CPU ---> LCD
LCD ---> CPU
RTC, CODEC, FM
10 : NAND BOOT
1.10V
CKIL
BOOT MODE
REAL TIME CLOCK
SPI3 INTERFACE
TOUCH INTERFACE
CLK/DAT <--I2C_3
ARM_DEBUG
11 : USB BOOT
PWR_IN_CPU
LED_DIMMING
MUTE
PWR_ON_OFF
Default Low port
Place this part to CPU as close as possible
LCD_RESET
SRTC_POW PER4
PER_9
PER_2
PER_9
NVCC_OSC
PER4
PER9
USBPHY
PER8
PER2
PER3
NVCC_IPU
NVCC_CNTR
PER13
PER14
NVCC_EMI
PER6
AND GATE
VIDEO_EN
RESET_IN
NAND_CS_CTL
CODEC;MCLK
MAIN CPU-2, page 7-3
U701
U504
U801
U402
U101
U702
U507 U506
U604
U401
MAIN PCB Top, page 6-1
<Fig. 4-2>

6
7
7
6
7
6
Samsung Electronics 4-5
Troubleshooting
PBA_CE
LCD_RED2
JTAG_TCK
LCD_GRN0
LCD_RED0
BT_UART_RX0
JTAG_RST
BT_UART_RTS0
JTAG_TMS
I2C_CLK1
LCD_BLU4
TOUCH_DAT
BT_UART_TX0
LCD_GRN1
LCD_GRN5
LCD_BLU6
LCD_GRN4
LCD_DOTCLK
AUD_BCLK
LCD_RED1
LCD_HSYNC
LCD_GRN2
LCD_RED3
JTAG_TDO
LCD_BLU7
JTAG_TDI
LCD_RED5
PWR_ON_OFF
LCD_RED7
LCD_BLU1
CHG_STATUS
LCD_BLU2
LCD_GRN6
JTAG_RTCK
AUD_LRCK
LCD_RED6
BT_UART_CTS0
GND
LCD_BLU0
LCD_GRN3
I2C_DAT1
LCD_GRN7
LCD_RED4
LCD_BLU3
LCD_VSYNC
LCD_BLU5
MUTE
LED_DIMMING
AUD_DATA_OUT
AUD_DATA_IN
CPU_RST
EARPHONE_DET
R413
1M
BT_WAKE
GND
P_3.0V
P_3.0V
TOUCH_CLK
TOUCH_INTR
CHARGE_EN
TOUCH_CE
RESET_IN
EXT_PWR
C406
100nF
R407
1K
DEVICE_DET
LCD_CLK
LCD_ENABLE
P_3.0V
LCD_DATA_OUT
LCD_DATA_IN
P_3.0V
I2C_CLK0
I2C_DAT0
GND
CLK_SELECT
CLK_SELECT
EXT_PWR
BOOT_MODE1
BOOT_MODE0
GND
P_3.0V
C404
100nF
GND
R417
47K
GND
VIDEO_EN
INN_BATT
GND
C403
7pF
12
C402
7pF
12
GND
X402
32.768KHz
1
IN
2
OUT
3
GND
U402
S-35392A
1 32KO
2XOUT
3 XIN
4 VSS 5
INT2
6
SCL
7
SDA
8
VDD
32.768KHZ_OUT
P_3.0V
32.768KHZ_OUT
FM_SEARCH
BT_RST
LCD_CHECK
LCD_RST
LCD_CS
X403
24MHz
1
23
4
PWR_IN_CPU
BOOT_MODE1
BOOT_MODE0
JTAG_RST
GND
FM_BUS_EN
D402
KDS121V
UART_TX1
UART_RX1
NAND_CS_CTL
CORE_CTL
VOLUME-
VOLUME+
R409
10K
GND
NAND_R/B1
NAND_R/B2
NAND_R/B3
NAND_R/B4
NAND_R/B5
NAND_R/B6
NAND_R/B7
D401
KDS121V
P_3.0V
PWR_IN_DDCON
R404
22K
I2C_DAT0
I2C_CLK0
C407
0.022nF
C409
0.022nF
U401
NC7SV08P5X
1A
2B
3GND 4
Y
5
Vcc
LP_CTL
C408
100nF
R421
4.7K
R424
4.7K
R425
4.7K
R422
4.7K
R410
22
BT_REG_EN
NAND_SELECT
AUD_MCLK
R411
22
BOOT_MODE0
R406
22K
R408 100K
U301
MCIMX37
T19 PMIC_VSTBY
R16 PMIC_PWRFAIL
R19 CKIL
N18 CKIH
P15 CLK_SS
W7 WDOG_RST/PMIC_RDY/GPIO3_28
N14 RESET_IN_B
N15 POR_B
P16 BOOT_MODE0/AUD_MCLK2
P18 BOOT_MODE1
M19 XTAL
N19 EXTAL
R1 THDIODE
R18 TEST_MODE
F18 GPANAIO
H4
LCD_HSYNC/GPIO3_31
G2
LCD_VSYNC/GPIO3_29
P2
LCD_WR/GPIO3_10
P1
LCD_RD/GPIO3_11
N6
LCD_RS/GPIO3_12
N2
LCD_RDY/GPIO1_30
N5
LCD_CS/GPIO3_13
F1
LCD_DOTCLK/GPIO3_30
T8 GPIO1_31/WDOG_RST_B_DEB
R9 UART2_RXD_MUX/GPIO2_31
V8 UART2_TXD_MUX/GPIO2_30
P9 UART2_RTS_MUX/GPIO2_29
W8 UART2_CTS
W9 GPIO2_27
V9 GPIO2_26
T9 UART_TX1/GPIO2_25
V10 UART_RX1/GPIO_24
T6 CSPI2_SCLK/I2C3_SCLK/GPIO3_9
W4 CSPI2_SS1/GPIO3_8
V5 CSPI2_SS0/GPIO3_7
W5 CSPI2_MISO/GPIO3_6
R7 CSPI2_MOSI/I2C3_SDA/GPIO3_5
T7 CSPI1_SCLK/I2C1_SCL/GPIO3_4
V6 CSPI1_SS1/GPIO3_3
R8 CSPI1_SS0/GPIO3_2
W6 CSPI1_MISO/GPIO3_1
V7 CSPI1_MOSI/GPIO3_0
T4
AUD_LRCK
U2
AUD_BCLK
R6
AUD_DAI
V1
AUD_DAO
V2
GPIO2_19
T5
GPIO2_18
V3
UART3_CTS/GPIO2_17
W2
UART3_R_RTS/GPIO2_16
W3
UART3_TXD_MUX/GPIO2_15
V4
UART3_RXD_MUX/GPIO2_14
M16
I2C1_DAT/GPIO2_13
M14
I2C1_CLK/GPIO2_12
R10
GPIO1_27
W10
GPIO1_26
P10
GPIO1_25
N11
CSPI3_MISO/GPIO1_24
R11
CSPI3_SCLK/GPIO1_23
N9
CSPI3_MOSI/GPIO1_22
V18
SD1_DATA3/CSPI2_SS0/GPIO1_21
V19
SD1_DATA2/GPIO1_20
U19
SD1_DATA1/GPIO1_19
U18
SD1_DATA0/CSPI3_MIOS/GPIO1_18
T18
SD1_CLK/CSPI3_SCLK/GPIO1_17
T16
SD1_CMD/CSPI3_MOSI/GPIO1_16
H5
ETM_CTL/GPIO_D13
G5
EIM_RW/GPIO1_9
H6
ETM_CLK/GPIO_10
G4
EIM_CS1/GPIO2_1
F2
EIM_CS0/GPIO2_0
J6
DISP1_DAT23
G1
DISP1_DAT22
J5
DISP1_DAT21
H2
DISP1_DAT20
J4
DISP1_DAT19/ETM_D3
H1
DISP1_DAT18/ETM_D2
K6
DISP1_DAT17/ETM_D1
J1
DISP1_DAT16/ETM_D0
J2
DISP1_DAT15
K5
DISP1_DAT14
L6
DISP1_DAT13
K2
DISP1_DAT12
L5
DISP1_DAT11
K1
DISP1_DAT10
L4
DISP1_DAT9
L1
DISP1_DAT8
L2
DISP1_DAT7
M6
DISP1_DAT6
M5
DISP1_DAT5
M2
DISP1_DAT4
M1
DISP1_DAT3
M4
DISP1_DAT2
N4
DISP1_DAT1
N1
DISP1_DAT0
P4
GPIO1_7
P5
GPIO1_6/CLK0/AUD_MCLK
R2
GPIO1_5/USB_PWR
R4
GPIO1_4
T1
GPIO1_3
R5
GPIO1_2
T2
GPIO1_1/I2C2_SDA
U1
GPIO1_0/I2C2_SCL
P13 JTAG_MOD
T14 JTAG_DE_B
R13 JTAG_TRSTB
V16 JTAG_TDO
W16 JTAG_TDI
W17 JTAG_TMS
V17 JTAG_TCK
W18 JTAG_RTCK
LED_PWM
VD401
14V
R412 4.7K
R401
4.7K
P3.3_CTL
R405 6.8K
R415 6.8K
R402
10K
R403 4.7K
R426
47K
R423
47K
R420
47K
RED
BLUE
GREEN
FUEL GAUGE
CPU ---> LCD
LCD ---> CPU
RTC, CODEC, FM
10 : NAND BOOT
1.10V
CKIL
BOOT MODE
REAL TIME CLOCK
SPI3 INTERFACE
TOUCH INTERFACE
CLK/DAT <--I2C_3
ARM_DEBUG
11 : USB BOOT
PWR_IN_CPU
LED_DIMMING
MUTE
PWR_ON_OFF
Default Low port
Place this part to CPU as close as possible
LCD_RESET
SRTC_POW PER4
PER_9
PER_2
PER_9
NVCC_OSC
PER4
PER9
USBPHY
PER8
PER2
PER3
NVCC_IPU
NVCC_CNTR
PER13
PER14
NVCC_EMI
PER6
AND GATE
VIDEO_EN
RESET_IN
NAND_CS_CTL
CODEC;MCLK
MAIN CPU-2, page 7-3
U701
U504
U801
U402
U101
U702
U507 U506
U604
U401
MAIN PCB Bottom, page 6-3
U701
U504
U801
U402
U101
U702
U507 U506
U604
U401
MAIN PCB Top, page 6-1
<Fig. 4-3>
