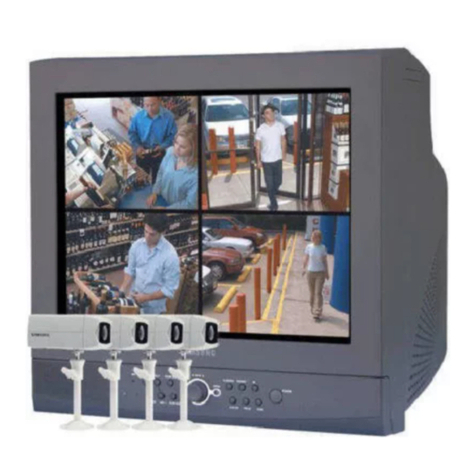

Samsung SSC-21WEB User manual

COLOR DUAL QUAD NETWORK
OBSERVATION SYSTEM
SSC21WEB
User Guide
SSC21WEB-cover 2004.8.25 6:23 PM Page 2

Eng-2
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these Instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety.
If the provided plug does not fit into your outlet consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at
plugs convenience receptacles and the point where they exit from the
apparatus.
11. Only use attachment/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer or sold
with the apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long
periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way such as power-supply
cord or plug is damaged liquid has been spilled or objects have fallen into
the apparatus the apparatus has been exposed to rain or moisture does not
operate normally or has been dropped.
SSC21WEB-1 2004.8.25 5:38 PM Page 2

Graphic Symbol Explanation
The lightning flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the
presence of uninsulated ‘dangerous voltage’ within the
product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
Warnin - To Prevent Fire or Shock Hazard, Do Not
Expose This Monitor To Rain or Moisture.
Eng-3
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
SSC21WEB-1 2004.8.25 5:38 PM Page 3

Eng-4
IMPORTANT SAFEGUARDS
Caution
Power source is indicated on the rear of the set. It contains high-voltage parts.
If you remove the cover, it may cause fire or electric shock. Do not remove the
cover by yourself. (Control switches are at the front of the monitor.)
1. Read Instructions : All the safety and operating instructions should be
read before the appliance is operated.
2. Retain Instructions : The safety and operating instructions should be
retained for future reference.
3. Heed Warnin s : All warnings on the monitor and in the operating
instructions should be adhered to.
4. Follow Instructions : All operating and user instructions should be
followed.
5. Cleanin : Unplug this monitor from the wall outlet before cleaning.
Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for
cleaning.
Exception. A monitor that is meant for uninterrupted service and that for
some specific reason such as the possibility of the loss of an
authorization code for a CATV converter is not intended to be
unplugged by the user for cleaning or any other purpose may exclude the
reference to unplugging the monitor in the cleaning description
otherwise required in Item 5.
6. Attachments : Do not use attachments not recommended by Samsung
as they may cause hazards.
7. Water and Moisture : Do not use this monitor near water for example
near a bathtub wash bowl kitchen sink or laundry tub in a wet basement
or near a swimming pool and the like wet basement or near a swimming
pool and the like.
SSC21WEB-1 2004.8.25 5:38 PM Page 4

Eng-5
8. Accessories : Do not place this monitor on an unstable cart, stand,
tripod, bracket or table. The monitor may fall causing serious injury to a
child or adult and serious damage to the appliance. Use only with a cart,
stand, tripod. bracket or table recommended by Samsung or sold with
the monitor. Any mounting of the monitor should follow Samsung’s
instructions and should use a mounting accessory recommended by
Samsung.
9. Ventilation : Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the monitor and to protect
it from overheating and these openings should never be blocked by
placing the monitor on a bed, sofa, rug, or other similar surface. This
monitor should never be placed near or over a radiator or heat register.
This monitor should not be placed in a built-in installation such as a
bookcase or rack unless proper ventilation is provided or Samsung’s
instructions have been adhered to.
10. Power Sources : This monitor should be operated only from the type of
power source indicated on the making label. If you are not sure of the
type of power supply to your installation site consult your Samsung
dealer or local power company.
11. Groundin or Polarization : For monitors equipped with a 3-wire
grounding-type plug having a third(grounding) pin. This plug will only
fit into a grounding type power outlet. This is a safety feature. If you are
unable to insert the plug into the outlet contact your electrician to
replace your obsolete outlet. Do not defeat the safety purpose of the
grounding-type plug.
12. Power : Cord Protection-Power supply cords should be routed so that
they are not likely to be walked on or pinched by items placed upon or
against them paying particular attention to cords at plugs convenience
receptacles and the point where they exit from the monitor.
SSC21WEB-1 2004.8.25 5:38 PM Page 5

Eng-6
13. Li htnin : For added protection for this monitor during a lightning
storm or when it is left unattended and unused for long periods of time,
unplug it from the wall outlet and disconnect the cable system. This will
prevent damage to the monitor due to lightning and power-line surges.
14. Overloadin : Do not overload wall outlets and extension cords as this
can result in a risk of fire of electric shock.
15. Object and liquid Entry : Never push objects of any kind into this
monitor through openings as they may touch dangerous voltage points or
short-out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the monitor.
16. Servicin : Do not attempt to service this monitor yourself as opening or
removing cover may expose you to dangerous voltage or other hazards.
Refer all servicing to qualified service personnel.
17. Dama e Requirin Service : Unplug this monitor from the wall outlet
and refer servicing to qualified service personnel under the following
conditions.
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled or objects have fallen into the monitor.
c. If the monitor has been exposed to rain or water.
d. If the monitor does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the
operating instructions as an improper adjustment of other controls
may result in damage and require extensive work by a qualified
technician to restore the monitor to its normal operation.
e. If the monitor has been dropped or the cabinet has been damaged.
f. When the monitor exhibits a distinct change in performance-this
indicates a need for service.
SSC21WEB-1 2004.8.25 5:38 PM Page 6

Eng-7
18. Replacement Parts : When replacement parts are required be sure the
service technician has used replacement parts specified by Samsung or
have the same characteristics as the original parts.
Unauthorized substitutions may result in fire electric shock or other
hazards.
19. Safety Check : Upon completion of any service or repairs to this
monitor ask the service technician to preform safety checks to determine
that the monitor is in proper operating condition.
FCC & ICES Information
Warnin
This equipment has been tested and found to comply the limits for a class A
digital device pursuant to part 15 of the FCC Rules and ICES-003 of
Industry Canada. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial
environment. This equipment generate uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction
manual may cause harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause harmful interference
in which case the user will be required to correct the interference at his own
expense.
User-Installer Caution
Your authority to operate this FCC verified equipment could be voided if
you make changes or modifications not expressly approved by the party
responsible for compliance to part 15 of the FCC Rules.
SSC21WEB-1 2004.8.25 5:38 PM Page 7

Information to user
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits
for a Class A digital device pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates uses and can radiate radio frequency energy and if
not installed and used in accordance with the instruction manual may cause
harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference and (2) this device must accept any interference received
including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment. If
necessary consult your dealer or an experienced radio/television technician
for additional suggestions. You may find the booklet called How to Identify
and Resolve Radio/TV Interference Problems helpful. This booklet was
prepared by the Federal Communications Commission. It is available from
the U.S. Government Printing Office Washington, DC 20402, Stock Number
004-000-00345-4.
Eng-8
SSC21WEB-1 2004.8.25 5:38 PM Page 8

Eng-9
The party responsible for product compliance:
SAMSUNG ELECTRONICS CO., LTD.
America QA Lab of Samsung
3351 Michelson Drive,
Suite #290, Irvine, CA92612 USA
IC Compliance Notice
This Class (A) digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Cet appareil numérique de la classe (A) respecte toutes les exigences du
Règlement sur le matériel brouilleur du Canada.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numéique de la classe A est conforme à la norme NMB-003 du
Canada.
Warning
This is a class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.
SSC21WEB-1 2004.8.25 5:38 PM Page 9

Eng-10
Contents
IMPORTANT SAFETY INSTRUCTIONS...........................Eng-2
IMPORTANT SAFEGUARDS..............................................Eng-4
FCC & ICES Information.......................................................Eng-7
Chapter 1: System Components and Installation
1-1) Environmental requirements for installation and safety ...Eng-12
1-2) System Components......................................................Eng-13
1-3) CAMERA composition and installation method .........Eng-14
1-4) CAMERA Composition and Connecting Method
to MONITOR................................................................Eng-18
1-5) External terminal connecting method for CAMERA and
MONITOR ....................................................................Eng-19
1-6) Whole System connection and configuration................Eng-20
Chapter 2: MONITOR FRONT PANEL KEY Function and
Usin Method
2-1) TALK KEY...................................................................Eng-21
2-2) AUD/SP SEL KEY .......................................................Eng-21
2-3) VOL+/VOL- KEY.........................................................Eng-21
2-4) POWER SAVE- KEY...................................................Eng-22
2-5) ALARM RESET- KEY.................................................Eng-22
2-6) QUAD/PAGE- KEY.....................................................Eng-22
2-7) LIVE/VCR- KEY..........................................................Eng-22
2-8) PIP- KEY.......................................................................Eng-23
2-9) FREEZE- KEY..............................................................Eng-23
2-10) SEQUENCE- KEY .....................................................Eng-23
2-11) ZOOM- KEY...............................................................Eng-23
2-12) POWER- KEY ............................................................Eng-23
2-13) ENTER- KEY .............................................................Eng-24
2-14) MENU- KEY...............................................................Eng-24
SSC21WEB-1 2004.8.25 5:38 PM Page 10

Eng-11
Chapter 3: Settin each item function at SETUP MENU
3-1) ADJUST MENU function and setting method .............Eng-25
3-2) DATE/TIME MENU Function setting..........................Eng-26
3-3) DWELL TIME MENU function setting .......................Eng-26
3-4) DISPLAY MENU function setting ..............................Eng-27
3-5) TITLE MENU Function setting....................................Eng-28
3-6) ALARM MENU Function setting.................................Eng-29
3-7) NETWORK SETUP function and setting method........Eng-30
3-8) SSC21WEB basic setting..............................................Eng-38
3-8-1) “LIVE” MENU.......................................................Eng-40
3-8-2) System Configuration Menu...................................Eng-55
3-8-3) Network Configuration Menu.................................Eng-63
3-8-4) Moniter Set up.........................................................Eng-72
3-8-5) Utilities....................................................................Eng-73
3-9) VIEW EVENT LOG MENU function and
setting method ...............................................................Eng-85
Chapter 4: DISPLAY MODE settin method
4-1) SINGLE SCREEN DISPLAY ......................................Eng-86
4-2) QUAD MODE DISPLAY.............................................Eng-87
4-3) AUTO SEQUENTIAL DISPLAY MODE...................Eng-88
4-4) PIP MODE DISPLAY ..................................................Eng-89
4-5) ZOOM MODE DISPLAY ............................................Eng-90
Chapter 5: Each product feature
SOD14C (Standard Camera).................................................Eng-91
SSC21WEB (Observaion Monitor) ......................................Eng-92
SSC21WEB (NETWORK)...................................................Eng-93
Appendix A) Software up data .............................................Eng-95
Appendix B) IP Router Setup Guide ....................................Eng-96
1. Total System Configuration...........................................Eng-97
2. Local System Configuration..........................................Eng-98
3. Step-by-step Examples...................................................Eng-99
SSC21WEB-1 2004.8.25 5:38 PM Page 11

Eng-12
Chapter 1: System Components and Installation
1-1) Environmental requirements for installation and safety
This section describes the environmental requirements for safe installation and use.
Install the product on a flat table or in a rack. It should be used only when level and should not be
used when stood vertically or obliquely. The location in which the main system is installed and the
configuration of the wiring room are very important for proper operation of the system.
When the products are installed too closely together or the location is poorly ventilated, the system
may not operate properly and maintenance of the system may be difficult. Sufficiently circulate the
air within the system operating room and tightly fasten the cover of the main system to prevent
malfunction and reduce system downs due to environmental causes.
There are high voltage parts inside. Do not arbitrarily open the cover.
Install the product in a place that meets the following environmental conditions. Be sure to maintain
the system under the temperatures and humidity conditions given below:
• Operating temperature: 0°C ~ 40°C
• Storage temperature: -20°C ~ 60°C
• Operating humidity: 20% ~ 85% RH
• Storage humidity: 20% ~ 95 RH
• Input voltage: AC 120V
• Power usage: less than 110 Watts
• Frequency: 60Hz
Caution
When operating the product, the fluctuation of input voltage must be within 10% of the rated voltage
and the external power outlet must be grounded, otherwise, it may cause electric shock or malfunction
of the product. Do not connect heat-generating appliances such as a hair dryer, iron or refrigerator to the
same power outlet in which the product is plugged, otherwise it may cause a fire or malfunction of the
product. The use of an Automatic Voltage Regulator (AVR) is highly recommended to ensure that
stable power is supplied. Be sure to coil CORE-FERRITE on the connector to reduce electro-magnetic
interference (EMI).
SSC21WEB-1 2004.8.25 5:38 PM Page 12

Eng-13
1-2) System Components
The system consists of the following:
• Check whether all the following devices and accessories are included with the main system.
MONITOR STANDARD
CAMERA
CAMERA BRACKET POWER CODE &
INSTALLATION MANUAL CAMERA CABLE
VCR CABLE
SENSOR
CONNECTOR
ITEM
MONITOR
STANDARD CAMERA
CAMERA BRACKET
CAMERA CABLE
INSTALLATION MANUAL
POWER CORD
VCR CABLE
SENSOR CONNECTOR
MODEL
SSC21WEB
SOD14C
SBR-110
MCB-60
-
-
-
-
DESCRIPTION
21" FLAT CRT MONITOR
NORMAL TYPE CAMERA
STAND TYPE BRACKET
6PIN SHIELD CABLE
-
-
-
-
Q’ty
1
4
4
4
1
1
1
4
NOTE
Tapping Screw 3
60ft(1ft=0.3048m)
SSC21WEB-1 2004.8.25 5:38 PM Page 13

Eng-14
1-3) CAMERA composition and installation method
1) Standard Camera composition (SOD14C)
a. Lens
It has a focal length of 3.8mm and makes it possible for you to observe a relatively wide
area.
b. Microphone
Capable of picking up all sound in the vicinity of the camera location and transmitting to
the monitor.
c. Camera fittin roove
Enables the camera to be fixed onto the bracket. You may install it either above or below
the camera if necessary.
d. 6-pin modular jack
Used to connect the camera to the monitor.
e. SENSOR jack
Used to connect the sensor to the camera.
PIN NUMBER
!
@
#
$
%
^
SPEC
SPEAKER(HOT)
VIDEO_OUT
GND
SPEAKER(COLD)
AUDIO_OUT/ALARM_OUT
12V DC
SSC21WEB-1 2004.8.25 5:38 PM Page 14

Eng-15
f. Speaker
It outputs the sound signal which was transfered from the monitor.
2) INSTALLING STANDARD CAMERA (SOD14C)
SOD14C s camera can be attached to the wall, ceiling or shelf using the camera mount bracket
(SBR-110).
Choose an installation site that can sufficiently support the weight of the equipments to be installed.
Attach the camera mount bracket to the wall or ceiling using the supplied three screws (M4 X L15).
Adjust the camera to target the video location and tighten the bracket handle on the camera mount
bracket.
4x15 sized screws
wall or ceiling
SSC21WEB-1 2004.8.25 5:38 PM Page 15

Eng-16
3) CAMERA MOUNT BRACKET(SBR-110) & STANDARD CAMERA(SOD14C)
(1)
Overview
CAMERA MOUNT BRACKET (SBR-110) is used to attach the camera to a wall, ceiling or shelf.
(2)
Installation
Explains the installation of CAMERA MOUNT BRACKET as wall as the installation of the camera
onto the CAMERA MOUNT BRACKET.
• Choose an installation site that can sufficiently support the weight of the equipments to be
installed.
• Attach the camera mount bracket to the wall using the supplied screws (M4 X L15).
• Adjust the camera to target the video location and tighten the bracket handle on the camera
mount bracket. Install the camera on to the male screw of the Camera Mount Bracket by
rotating the camera in clockwise.
SSC21WEB-1 2004.8.25 5:38 PM Page 16

Eng-17
• Loosen the handle by turning it in a counter clockwise direction and then adjust the camera
position . Tighten the handle, turning it clockwise, and lock the camera in position.
• Connect the camera cable to the camera.
(3) Specifications
Use : Indoor
Installation : Wall or Ceiling
Dimensions : 57 (W) X 47.2(H) X 100.5(L)
Wei ht : 150g
Operatin Temperature : -10
°C ~ 50 °C
(4) Accessories
SCREW (M4 X L15) : 3 pcs
Handle
SSC21WEB-1 2004.8.25 5:38 PM Page 17

Eng-18
1-4) CAMERA Composition and Connectin Method to
MONITOR
After positioning monitor and installing four cameras to a desired location, please connect
CAMERA to MONITOR through CAMERA CABLE (MCB-60) as shown in the below
figure. Please check whether or not it is properly connected.
Connection status checkin method :
• Turn on the monitor after connecting cameras, and check if camera image is displayed.
The initial screen mode of monitor is quad mode.
•
In case monitor and camera is not connected, OSD ‘L’(LOSS) will be displayed on screen.
SSC21WEB-1 2004.8.25 5:38 PM Page 18

Eng-19
1-5) External terminal connectin method for CAMERA and
MONITOR
1) External terminal connectin method for CAMERA
•
An additional PIR sensor or external sensor can also be connected.
• The additional PIR sensor can be connected as shown in the above graphic.
• Sensor’s trigger signal is NO (Normal Open).
• Sensor is not supplied. (Sold separately)
2) VIDEO OUT BNC (1~4) terminals connectin method of monitor rear
VIDEO OUT BNC1 ~ BNC4 terminals in the rear of the monitor are VIDEO terminals for outputting
video images from OBSEVATION CAMERA to THROUGH OUT.
BNC VIDEO output terminal can be used to connect to VCR (TIME LAPSE) or SLAVE MONITOR.
3) VCR or ALARM terminal connectin method
a) Connect the 6-pin plug to the VCR terminal on the rear panel.
b) Connect the VIDEO OUT plug to the VIDEO IN terminal of the VCR.
c) Connect the VIDEO IN plug to the VIDEO OUT terminal of the VCR.
d) Connect the AUDIO OUT plug to the AUDIO IN terminal of the VCR.
e) Connect the AUDIO IN plug to the AUDIO OUT terminal of the VCR.
VIDEO IN
TIME LAPSE VCR
OR NORMAL VCR
VIDEO OUT
AUDIO IN AUDIO OUT
VIDEO OUT VIDEO IN
AUDIO OUT AUDIO IN
NOT USED
b
d
f
c
e
a
SSC21WEB-1 2004.8.25 5:38 PM Page 19

Eng-20
f) Not Used
g) Connect the A/O (HOT) terminal on the rear panel to the Alarm IN terminal of the VCR.
h) Connect the A/O (COLD) terminal on the rear panel to the Ground terminal of the VCR.
i) Connect the A/R terminal on the rear panel to the Alarm Reset terminal of the VCR.
j) Connect the G (ground) terminal on the rear panel to the Ground terminal of the VCR.
1-6) Whole System connection and confi uration
VCR (TIME LAPSE) REAR
VCR
SLAVE
MONITOR
OR
SSC21WEB-1 2004.8.25 5:38 PM Page 20
