Samsung SDH-P4041 User manual

Samsung All-in-One
Security System
User Manual SDH-P4041

2_ Samsung All-in-One Security System
PACKAGE CONTENTS
Please unwrap the product, and place the product on a flat place or in the place to be installed.
Please check the following contents are included in addition to the main unit.
POWER REC NETWORK
SDR-4200 8CH DVR Adapter/Power Cable Remote Control /
Remote Control Battery (AAA x 2)
Mouse SDC-9440BU 4EA Expansion pipe and Screw
Camera Cable 4EA (60FT) Network Cable HDMI Cable
RS-485 Connector Quick Guide/Warranty Card (Optional) CD (User Manual, Quick Guide,
Router Guide)
Network Viewer Software

English _3
PRODUCT SPECIFICATION (CAMERA)
Item Details
SDC-9440BU
Electrical
Input Voltage DC 12V(by PoE) (not compatible with general PoE)
Power Consumption 4W
Video
Imaging Device 1/2.9" 2M COS
Total Pixels 1920 x 1080(1080p) or Higher
Scanning System Progressive
Synchronization Internal
Frequency -
Horizontal Resolution -
Min. Illumination OLux (IR-LED)
UTP
Built-in UTP TX
Maximum Transmission Length:
100m (UTP CAT5e, Solid Wire)
50m (UTP CAT5e, Stranded Wire)
It is subject to change depending on user environment.
Camera connection time
Normal 3~6 Sec
Camera image may take longer time to show depend on camera type and status. (over 10 Sec)
Lens
Focus Length 3.6mm
Max.Aperture Ratio 1.8
Angular Field of View H : 87.92˚, V : 47.66˚, D : 103.1˚
Operational
Shutter Mode Auto(Rolling Shutter)
 Flickering may occur with electronic fluorescent lamps.
Gain Control Auto
White Balance Auto (1,800 ~ 10,500˚K)
WDR -
Sharpness -
Contrast -
Brightness -
Flickerless Auto
Digital Noise Reduction Auto
Day & Night Auto
IR Distance 30m

4_ Samsung All-in-One Security System
Item Details
SDC-9440BU
Environmental
Operating Temperature/
Humidity -10°C ~ +50°C / 90%
IP Grade IP66
Appearance
Dimension (W x H x D) W70.8 x H70.4 x D200mm (Bracket included)
Weight 255g
Design type Box Camera

English _5
PRODUCT SPECIFICATION (DVR)
Item
Details
SDR-4200
Operation System Embedded LINUX
Input Video Format HD : HD-UTP (Own format, 1080P/720P), SD : CVBS
Operation Mode Live/REC/PB/NW
Video In
Channel 8CH(4CH HD, 4CH SD)
Connector Type UTP(HD) x 4CH, BNC(SD) x 4CH
Video Out
VGA NTSC : MAX 1080P (60Hz), PAL : MAX 1080P (50Hz)
HDMI NTSC : MAX 1080P (60Hz), PAL : MAX 1080P (50Hz)
Simultaneous Out VGA and HDMI
Audio In
Channel 4
Connector Type RCA
Audio Out
Channel 1
Connector Type RCA
Compression
Video H.264
Audio G.711
Codec Type H/W
Dual Codec O
Live
Resolution 1080P/720P/960H
Split Mode 1/4/8/9/13/PIP
Recording
Resolution & Frame
Rate
HD : 1080p (NTSC:MAX 120fps / PAL:MAX 100fps),
720p (NTSC:MAX 120fps / PAL:MAX 100fps)
SD : 960H (NTSC:MAX 120fps / PAL:MAX 100fps)
Quality Level 8Level(LV1~LV8)
REC Mode
1. Normal REC
2. Schedule REC
3. Event REC
- Motion/Tampering/Video Loss
4. Pre REC
- Off/5sec
5. Post REC
- 5/10/20/30sec
- 1/2/3/5/60min
6. Time Laps REC
- 1,2,3,.., 29,30 fps
Function
1. Setting for each channel
- Resolution
- Frame Rate

6_ Samsung All-in-One Security System
Item
Details
SDR-4200
Playback
Resolution & Frame
Rate
HD : 1080p (NTSC:MAX 30fps / PAL:MAX 25fps),
720p (NTSC:MAX 60fps / PAL:MAX 50fps)
SD : CIF (NTSC:MAX 120fps / PAL:MAX 100fps)
Search Mode
1. Time Search
- Date/Time
- Go to First/Go to Last
- Calendar
- Time Bar
2. Event Search
- Motion/Tampering/Video Loss
3. Backup Search
- USB Memory
- USB External HDD
Tric Mode
1. Play/Pause/Stop
2. Fast Forward/Backward
- x2/x4/x8/x16/x32/x64
3. Slow Forward/Backward
- x1/2, x1/4, x1/8
4. Step Play
- Forward : I+P frame
- Backward : I frame
Storage
Internal
1. Max Capacity : 2TB
2. Install HDD : 1EA
3. Packing : 2TB
External
1. USB 2.0 I/F
2. E-SATA
3. Max Capacity : 2TB
Backup
USB
1. USB 2.0
2. Memory : Max 32G
3. External HDD : Max 1TB
Format 1. SEC
2. DVR
Remote Viewer
Network 10/100 Mbps Ethernet
Transmit Speed 4CIF/640 x 360 120fps/100fps (Web), CIF/320 x 180 480fps/400fps (Web)
4CIF/640 x 360 16fps (Mobile), CIF/320 x 180 16fps (Mobile)
Connection No 10 (Admin 1 + User 9)

English _7
Item
Details
SDR-4200
Remote Viewer
Connection Mode
1. Static IP
2. Dynamic IP
3. PPPoE
Protocol TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP, UPnP
Webviewer IE, Safari, Chrome, Firefox
Mobile iPOLiS Mobile
Function
1. Quality
2. Bandwidth
- Unlimited/2/1.5/1M
- 800/600/500/400/300Kbps
- 128Kbps
3. TCP/UDP Port
4. Unicast/Multicast
5. Webviewer Port
6. DDNS
- Samsung iPOLiS DDNS
- dyndns.com
- no-ip.com
- changeip.com
7. Mailing Service
PTZ Control
I/F RS-485 Half Duplex
Protocol SAMSUNG-T, VICON, PANASONIC,AD, PHILIPS, PELLCO D, PELLCO P, SAMSUNG-E, GE
Intelligent Video Tampering Support
Control
Jog & Shuttle X
Mouse USB I/F
Remocon Samsung Remocon
Camera Control I2C
In/Out
USB 2
RS-485 O
RS-232C X
E-SATA O
Alarm In X
Alarm Out X
Language OSG
Korean, Japanese, Chinese (Simplified), English, French, German,
Spanish (European), Italian, Russian, Polish, Czech, Turkish, Netherlands, Portuguese
(South American), Swedish, Danish, Thailandais, Rumania, Serbia, Croatia, Hungary,
Greek, Chinese (Traditional), Finnish, Norwegian (25 Language)

8_ Samsung All-in-One Security System
Item
Details
SDR-4200
The Other Function
1. Tool Bar
2. Pop Menu
3. S/W Upgrade
- USB / Network
4. Live & Network Monitoring without HDD
Electrical
Power Type Adaptor(12V DC)
Power MAX 40W(DVR + HD CAM 4EA)
Input Voltage 100 ~ 240VAC
Operation Condition Temperature 0~40, Humidity 20~85%RH
Mechanical
Dimensions (WxHxD)
W413 x H57.7 x D178.5 mm
Gross weight 1.52 Kg
Packing List
1. LAN Cable
2. Power Cord
3. Remocon
4. Mouse(Included Camera)
5. Quick Guide
6. CD(User Manual, Quick Guide, Router Guide)
7. Cushion
8. PE Bag
SDH-P4041
Dimensions (WxHxD)
W497 x H298 x D323 mm
Gross weight 7.6 Kg

SALES NETWORK
SAMSUNG TECHWIN CO., LTD.
Samsung Techwin R&D Center, 6, Pangyo-ro 319beon-gil, Bundang-gu, Songnam-si, Gyeonggi-do 463-400, Korea
TEL : [phone]~60 FAX : [phone]
SAMSUNG TECHWIN AMERICA Inc.
100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660
Toll Free : [phone] Direct : [phone]
Fax : [phone]
www.samsungsv.com
SAMSUNG TECHWIN EUROPE LTD.
Samsung House, 1000 Hillswood Drive, Hillswood Business
Park Chertsey, Surrey, UNITED KINGDOM KT16 OPS
TEL : [phone] FAX : [phone]
www.samsungtechwin.com
www.samsungsecurity.com
www.samsungipolis.com

English _1
SAMSUNG ALL-IN-ONE SECURITY SYSTEM
DVR Quick Start Guide
Thank you for purchasing a Samsung All In One Security System.
Follow the simple steps in this guide to set up and start using your new system.
If you have any questions or need help installing your new product please contact our free technical support.
Internet: http://www.samsungsecurehome.eu/

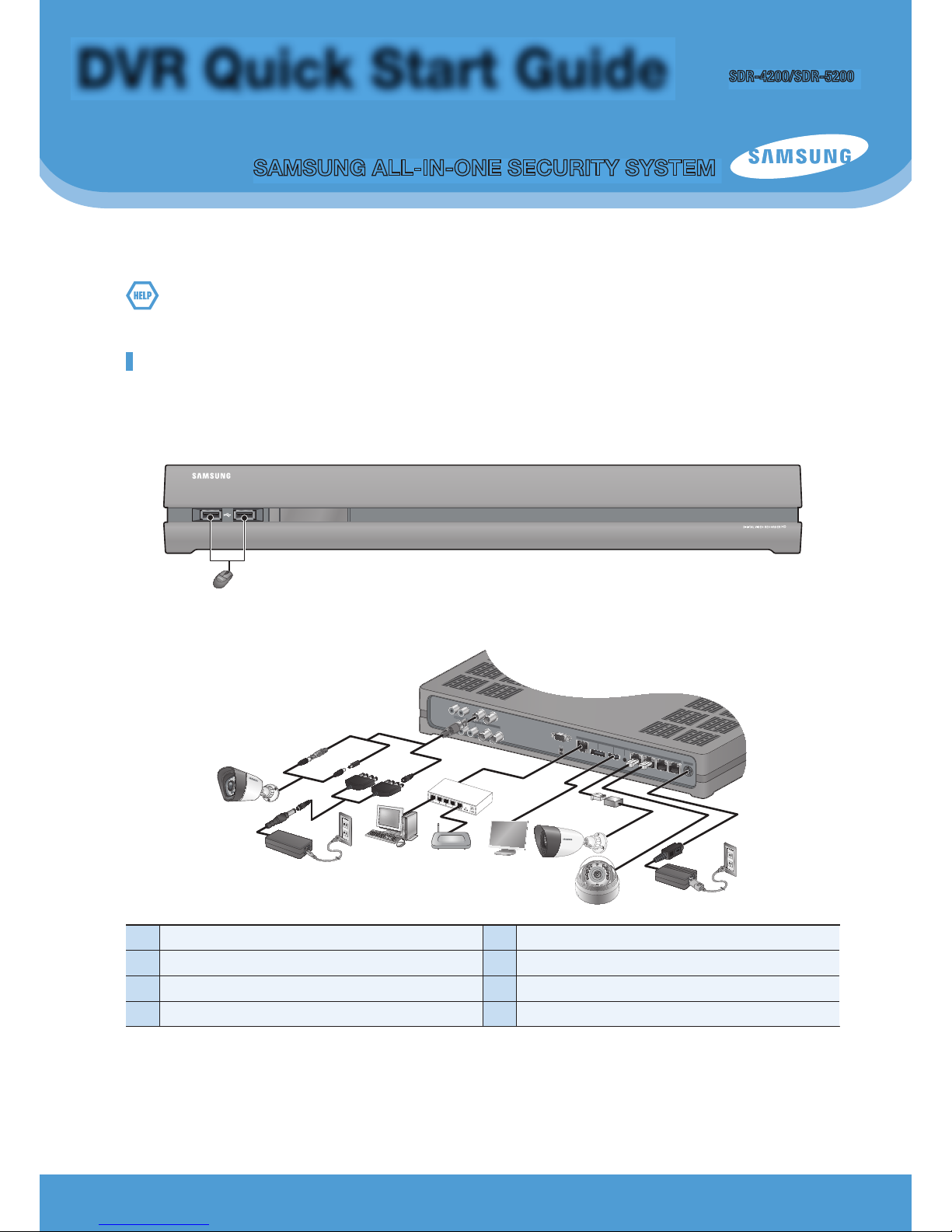

INSTALLING YOUR SYSTEM
❒8CH DVR
Front
Rear
1Connect a mouse 5Connect a monitor
2Connect an BNC camera 6Connect an UTP camera
3Connect the DC adaptors (Camera) 7Connect the DC adaptors (DVR)
4Connect to a network router
SDR-4200/SDR-5200
POWER REC NETWORK
1
AUDIO IN
AUDIO IN VIDEO IN
VIDEO IN
12
34
12
34
AUDIO OUT
AUDIO OUT
56
8
VGA
NETWORK e-SATA HDMI HD VIDEO IN POWER
DC-12V1 234
CONSOLE
7
56
VGA
NETWORK e-SATA HDMI HD VIDEO IN POWER
DC-12V
1234
CONSOLE
78RS-485
RS-485
1.ALARMIN
2.GND
2
5
4
367

2_ English
❒16CH DVR
Rear
1Connect a mouse 5Connect a monitor
2Connect an BNC camera 6Connect an UTP camera
3Connect the DC adaptors (Camera) 7Connect the DC adaptors (DVR)
4Connect to a network router
CAUTION
Maximum Transmission Length : 100m (UTP CAT5e, Solid Wire)/50m (UTP CAT5e, stranded wire)
Do not plug any other cable except normal direct cable in the camera UTP port.
Do not plug any other cable except the one connected with the camera in the camera HD UTP port.
(Samsung HD UTP dedicated camera : SDC-8340BU, SDC-9440BU, SDC-9410DU)
This product may not work properly if the air opening is blocked or if other unit is laid upon this product.
Please install the unit in a well-ventilated place.
Camera image may take longer time to show depend on camera type and status. (over 10 Sec)
❒Connecting the DVR to Live monitoring
Front
POWER REC NETWORK
1 Connect a mouse
AUDIO IN
AUDIO IN VIDEO IN
VIDEO IN
12
34
12
34
AUDIO OUT
AUDIO OUT
5678910
11 12 13 14 15 16
VGA
NETWORK e-SATA HDMI HD VIDEO IN POWER
DC-12V
1234
CONSOLE
5678910
11 12 13 14 15 16
VGA
NETWORK e-SATA HDMI HD VIDEO IN POWER
DC-12V
1234
CONSOLE
RS-485
RS-485
1.ALARMIN
2.GND
2
5
4
367

English _3
Rear
AUDIO INAUDIO IN VIDEO INVIDEO IN
12
34
12
34
AUDIO OUTAUDIO OUT
5678910
11 12 13 14 15 16
VGA
NETWORK e-SATA HDMI HD VIDEO IN POWER
DC-12V1234
CONSOLE
5678910
11 12 13 14 15 16
VGA
NETWORK e-SATA HDMI HD VIDEO IN POWER
DC-12V1234
CONSOLE
RS-485
RS-485
4 Connect to a network router
5 Connect a monitor
6 Connect an UTP camera
7 Connect the DC adaptors (DVR)
2 Connect an BNC camera
3 Connect the DC adaptors (Camera)

4_ English
VIEW THE LAUNCHER MENU
The Launcher menu appears on the bottom of the live screen.
1.
In Live mode, right-click to display the context menu and select
<Show Launcher>.
2.
Move the cursor to the bottom and click a desired item in the Launcher
menu.
M
If no input is entered for 10 seconds, the menu will disappear.
The Launcher menu can be accessed only by using the mouse.
Screen mode may vary depending on the DVR supported channel.
1Date/Time 5Zoom 9Play
2Screen Mode 6PTZ 0Record
3Menu Expansion Button 7Alarm
4Audio 8Freeze
SYSTEM SETTING
❒Time Setting
1.
Right click on the mouse and select main menu.
2.
In the login window, enter the password and click <OK>.
JThe initial administrator ID is “admin” and the password should be set
when logging in for the first time.
Set password for your wireless network if you use the product with a
wireless router. Being not protected with password or using the default
wireless router password may expose your video data to potential threat.
Please change your password every three months to safely protect
personal information and to prevent the damage of the information theft.
Please, take note that it’s a user’s responsibility for the security and any
other problems caused by mismanaging a password.
2014-01-01
01:10:25
2014-01-01
01:10:25
1 2 34567890

English _5
3.
Click on Date/Time/Language. Set time and date.
4.
After filling in the information, Click <OK>.

6_ English

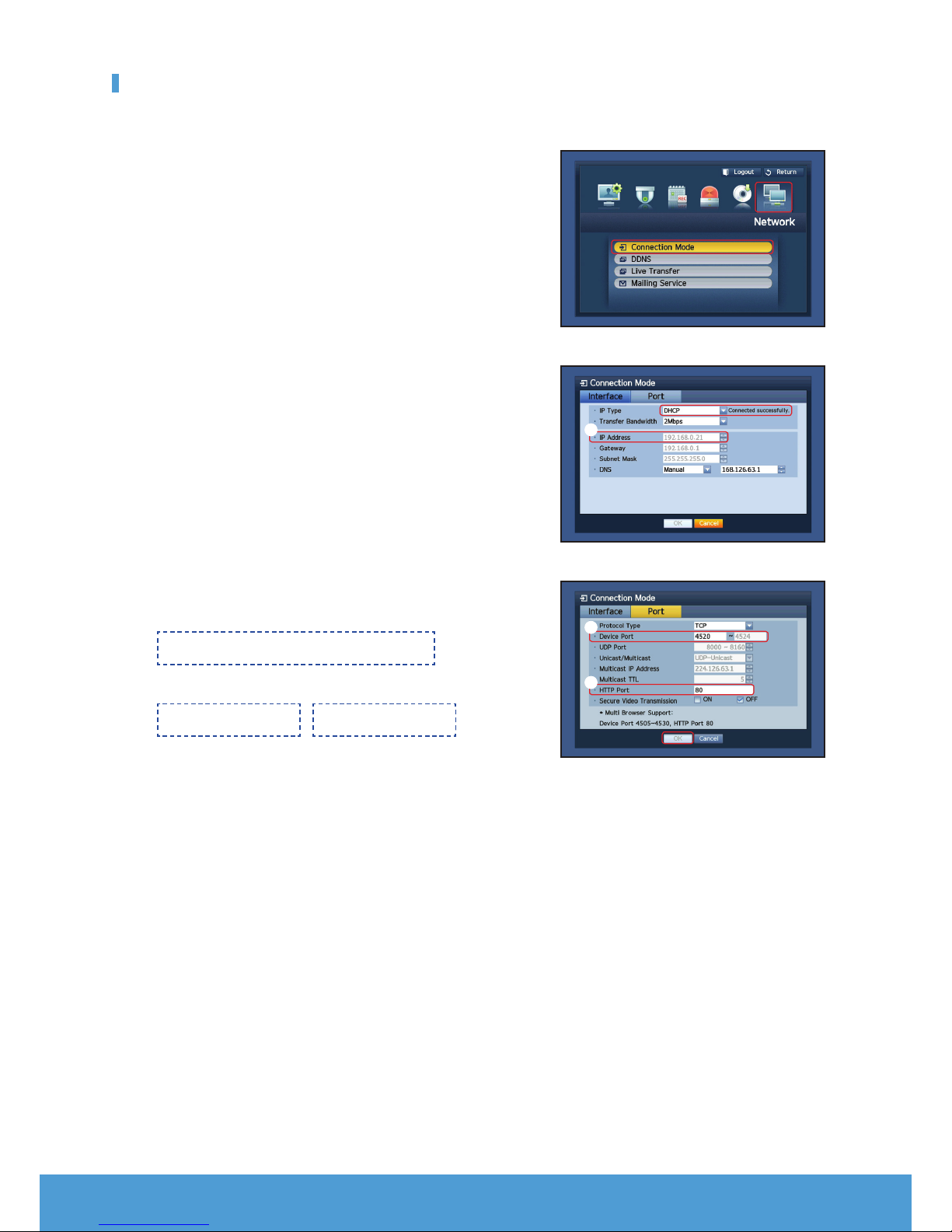

Network Setting
❒Connection Mode (DHCP)
1.
Click on Network and select <Connection Mode>.
If there occur a problem with Connection Mode, check the connection
as “Installing your system” on page 1.
If you still have a problem, contact the nearest service center for more
information.
2.
Under <Interface> Tab.
Check <IP Type> is set to <DHCP> as default.
If it connected successfully, you can see the success comment.
JIf you know Static IP information from your router, please select
<Static> and enter IP address, Gateway, and Subnet Mask etc.
M
Please refer to the Router Guide in provided CD when you use a static IP.
3.
Under <Port> Tab.
JWrite down <Device Port> and <HTTP Port>.
1IP Address
2Device Port 3HTTP Port
4.
When completing the setting, click <OK>.
2
3
1

English _7
❒SETTING UP SAMSUNG iPOLiS DDNS
Since you will be accessing the DVR remotely, let’s setup your Samsung iPOLiS account first using the PC.
Go to Your PC
1.
Open your browser and go to http://www.samsungipolis.com and click
<LOGIN>.
2.
You first need to create an account.
Click <SIGN UP>.
3.
Follow the account registration instructions on the website.
4.
After completing the account registration, login to your account.
JWrite down your ID and Password below.
1ID 2Password
5.
Add your DVR to your account. Click <PRODUCT REGISTRATION>.
6.
Create a name(Product ID) for your DVR. Use 4 to 20 alphanumeric
characters without spaces. Select classification, model number of the
DVR and click <REGISTER>.
JModel Number
16CH DVR : SDR-5200
8CH DVR : SDR-4200
7.
After registration, you should see your product in the list.
JWrite down the product ID below.
3Product ID
8.
Click <LOGOUT> to close the Web Page.
1
2
3

8_ English
Go back to DVR
1.

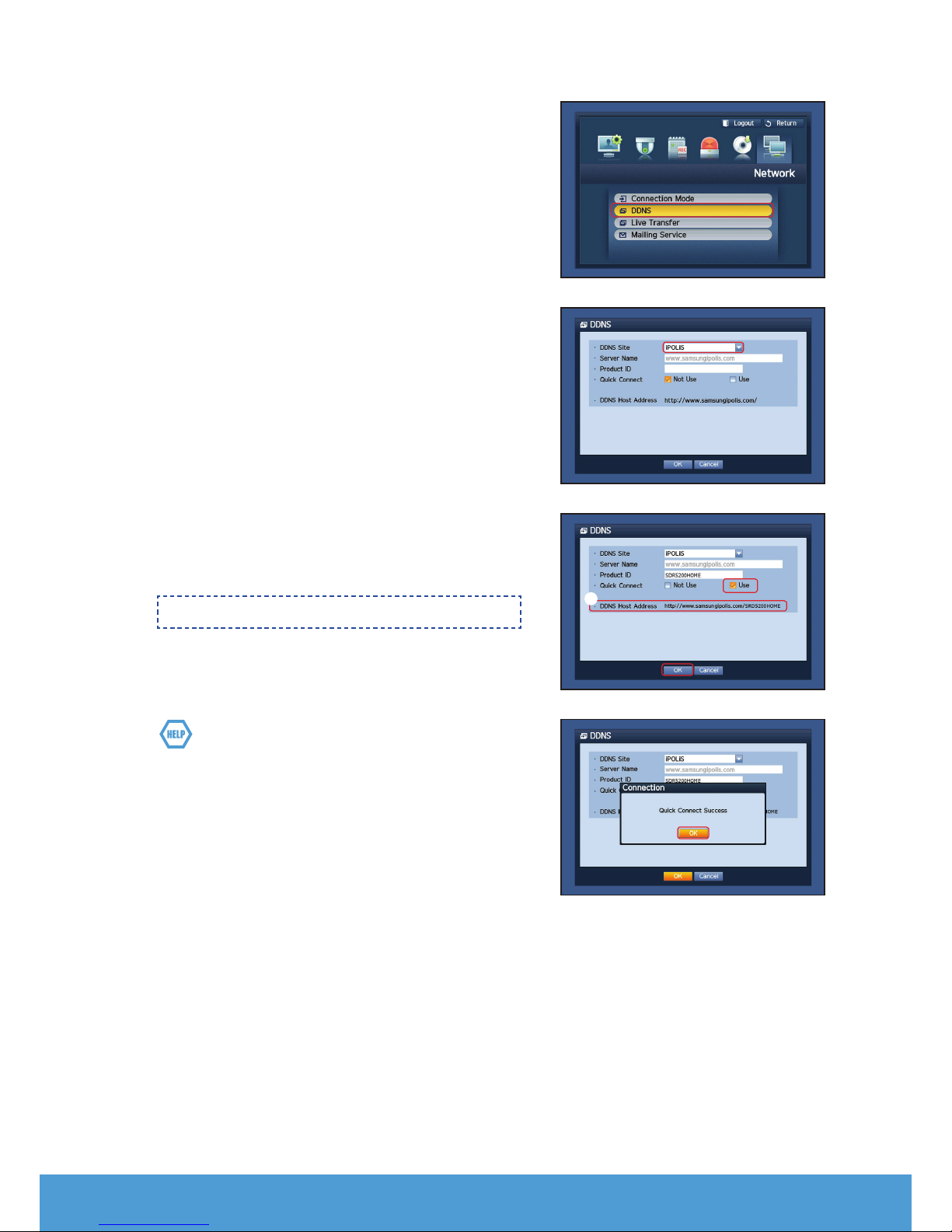

From network tab, click on <DDNS>.
2.
Under DDNS Site, select <iPOLiS>.
3.
Under Product ID, enter the product ID you created on the Samsung
iPOLiS website.
Under Quick Connect, select <Use> and click <OK>.
JWrite down the DDNS Host address:.
1DDNS Host Address
If the connection was not successful, your router may not be
supporting UPNP.
For more information on enabling UPNP on your router, please see
Router manual.
1

English _9
REMOTE MONITORING
From a Windows computer
1.
Open Windows Internet Explorer and go to http://www.samsungipolis.
com and click <LOGIN>.
2.
Login with the user ID and password you wrote down earlier.
3.
Click < > icon.
4.
You will be asked to install the active X plug-in.
5.
Enter the user ID and password for the DVR.
JIf the screen to the bottom right does not appear, check if the DVR set is
connected properly with a valid IP address.
6.
Now, you can install the cameras and place the cameras where they are
needed.

10_ English
USING A SMARTPHONE
❒For Android Phone
1 Visit Play Store to Download the
Samsung iPOLiS mobile app.
SDR-5200
2 Search for Samsung iPOLis and install
<iPOLiS mobile>.
3 Launch the iPOLiS mobile app add the
DVR.
Tap on the menu icon and tap <Add
Device>.
SDR-5200
www.samsungipolis.com/SDR-5200
80
4254
admin
4 Register the DVR to the iPOLiS mobile.
JName : Create a name for the DVR you are adding
Model : Select the DVR
Host : If you are using Samsung iPOLiS DDNS, enter the DDNS Host Address you
wrote down earlier. (Page 7, 8)
It should be www.samsungipolis.com/Product ID
HTTP Port : Enter the HTTP Port you wrote down earlier.
RTSP Port : Enter the last port number of Device Port you wrote down earlier.
ID : Default ID is <admin>. If you change before, please enter changed ID.
Password : If you changed before, please enter changed Password.
Camera : Select the cameras you want to view.
JThe initial administrator ID is “admin” and the password should be set when
logging in for the first time.
Set password for your wireless network if you use the product with a wireless
router. Being not protected with password or using the default wireless router
password may expose your video data to potential threat.
Please change your password every three months to safely protect personal
information and to prevent the damage of the information theft.
Please, take note that it’s a user’s responsibility for the security and any other
problems caused by mismanaging a password.

English _11
❒For iPhone

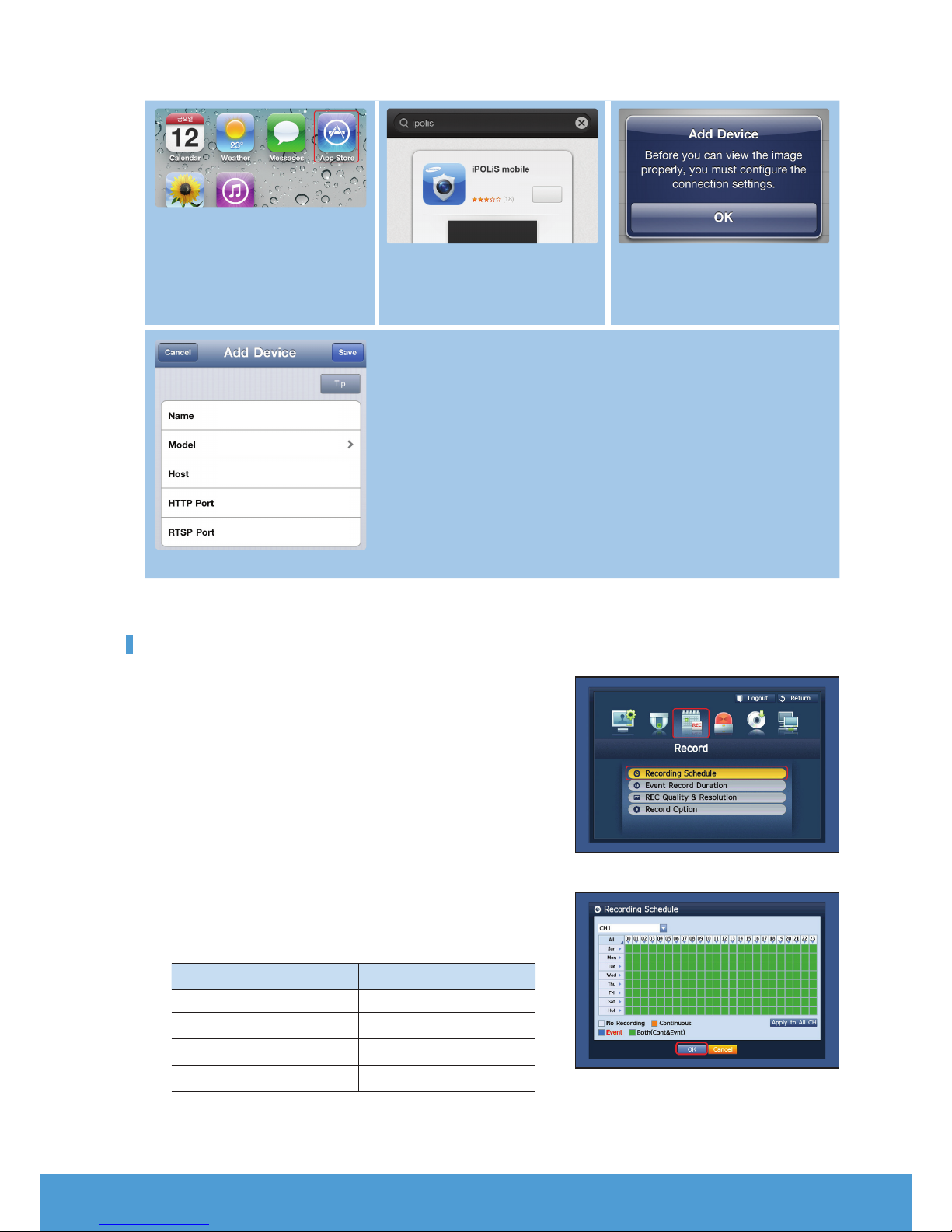

1 Visit App Store to Download the
Samsung iPOLiS mobile app.
Install
SAMSUNG TECHWIN C...
Utilities
2 Search for Samsung iPOLis and install
<iPOLiS mobile>.
3 Launch the iPOLiS mobile app add the
DVR.
At the Add Device pop-up, tap <OK>.
SDR-5200
DVR
www.samsungipolis.com/s...
80
4254
4 Register the DVR to the iPOLiS mobile and click <Save>.
MFor more information of each item, refer to “For Android Phone”.
RECORDING AND PLAYBACK
1.
Press the [MENU] button on the remote control.
Use the left/right buttons (◄►) to select <Record>.
Use the up/down buttons (▲▼) to move to <Recording Schedule>,
and press [ENTER] button.
2.
Set each of the Record Schedule options.
To change the setting, set the channel then select the time and date you
want to record and click <OK>.
The default is as shown.
Color Part Names Functions
White No Recording No schedule / event recording
Orange Continuous Scheduled recording only
Blue Event Event recording only
Green Both(Cont&Evnt) Both scheduled / event recordings
