Samsung GT-C3500 User manual

GSM TELEPHONE
GT-C3500
1. Safety Precautions
2. Specification
3. Product Function
4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1Repair
7. Level 2Repair
8. Level 3Repair
9. Reference data
Notice :
All functionality, features, specifications and other
product information provided in this document inclu
ding, but not limited to, the benefits, design, pricing,
components, performance, availability, and capabiliti
-es of the product are subject to change without
notice or obligation. Samsung reserves the right to
make changes to this document and the product
described herein, at anytime, without obligation on
Samsung to provide notification of such change.
GSM TELEPHONE CONTENTS

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
―Repair in Shield Box, during detailed tuning. Take specially care of tuning or test, because
specipicty of cellular phone is sensitive for surrounding interference(RF noise).
―Be careful to use akind of magnetic object or tool, because performance of parts is damaged by
the influence of magnetic force.
―Surely use astandard screwdriver when you disassemble this product, otherwise screw will be
worn away.
―Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
―Repair after separate Test Pack and Set because for short danger (for example an overcurrent
and furious flames of parts etc) when you repair board in condition of connecting Test Pack and
tuning on.
―Take specially care of soldering, because Land of PCB is small and weak in heat.
―Surely tune on/off while using AC power plug, because arepair of battery charger is dangerous
when tuning ON/OFF PBA and Connector after disassembling charger.
―Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
―Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity prevention
string on wrist.
―Use earthed soldering steel when you connect or disconnect ESD.
―Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by static
electricity.
―Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum plate to have conductive power,they are prevented from static electricity.
―You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

2. Specification
2-1
2-1. GSM General Specification
GSM850
Phase 1
EGSM 900
Phase 2
DCS1800
Phase 1 PCS1900
Freq.
Band[MHz]
Uplink/Downlink
824~849
869~894
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
ARFCN range 128~251 0~124 &
975~1023 512~885 512~810
Tx/Rx spacing 45MHz 45MHz 95MHz 80MHz
Mod. Bit rate/
Bit Period
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
Time Slot
Period/Frame
Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK
MS Power 33dBm~5dBm 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm
Power Class 5pcl ~ 19pcl 5pcl ~19
pcl 0pcl ~15 pcl 0pcl ~15 pcl
Sensitivity -102dBm -102dBm -100dBm -100dBm
TDMA Mux 8 8 8 8
Cell Radius 35Km 35Km 2Km 2Km

Specification
2-2
2-2. GSM Tx Power Class
TX Power
control
level
GSM850
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
EGSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Operation Instruction and Installation
3-1
This Document can not be used without Samsung's authorization
Main Function
-2.4”TFT 262K QVGA Touch Screen
-2
MP Camera
-Native SNS client, Multi IM, Conv. SMS
-Music Player, MP3 Recorder ,3.5pi ear jack
-Buddy list ,BT messenger
-Stereo FM Radio (Recording)
-USB 2.0, Bluetooth v2.1
-Fake Call, SOS Message, Mobile Tracker
-Email(POP3/IMAP4), Push Email (ActiveSync)

SAMSUNG Proprietary-Contents may change without notice
4. Exploded View and Parts List
4-1
This Document can not be used without Samsung's authorization

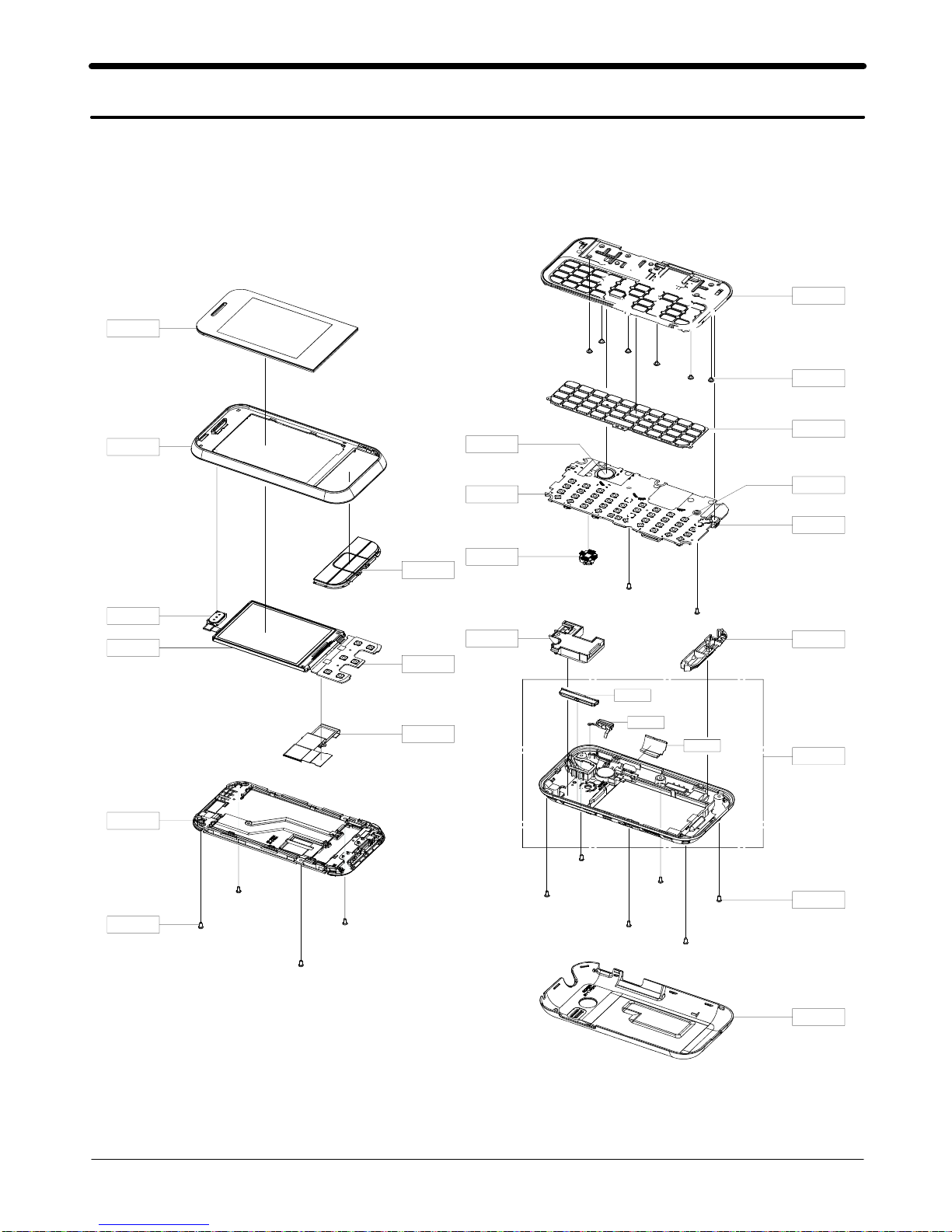

4-1. Cellular phone Exploded View
QME03
QFU01
QAR01
QLC01 QSP01
QMO01
QMP01
QCA01
QFL01
QCR12
QVO01
QRE01
QAN02
QME02
QPC01
QKP02
QME01
QMI01
QKP01
QCR93
QFR01
QCR72
QBC00
QCK02
QRF06

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
4-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QAR01 AUDIO-RECEIVER 3009-001520
QCR12 SCREW-MACHINE 6001-001530
QCR72 SCREW-MACHINE 6001-002051
QCR93 SCREW-MACHINE 6001-002263
QMI01 MICROPHONE-ASSY-GT-C3500 GH30-00704A
QMO01 MOTOR DC-SGHT539 GH31-00328A
QAN02 INTENNA-GT-C3500 GH42-02826A
QCA01 CAMERA MODULE-SF 1/5" 2M SOCKET MODULE GH59-09909A
QPC01 ASSY ETC-SLIDE FPCB GH59-10325A
QME02 KEY FPCB-SUB KEY PBA GH59-10326A
QME03 TOUCH/PANEL-GT_C3500 EU GH59-10351A
QME01 KEY FPCB-QWERTY DOME SHEET GH59-10358A
QSP01 MODULE-SPEAKER (GT_C3500) GH59-10487A
QKP01 RMO DECO-QWERTY KEY_UK_OPEN GH73-14784A
QMP01 A/S ASSY-PBA MAIN (COMM) GH82-05448A
QLC01 ELA MODULE-GT_C3500 LCD;GT-C3500,OPEN,EU GH96-04920A
QFU01 ASSY CASE-SLIDE UPPER GH98-18254A
QFR01 ASSY CASE-FRONT GH98-18255A
QFL01 ASSY CASE-SLIDE LOWER GH98-18257A
QKP02 ASSY KEYPAD-SUB GH98-18259A
QBC00 ASSY COVER-BATT(BLACK) GH98-18776A
QRE01 ASSY CASE-REAR GH98-18256A
QVO01 PMO KEY-VOLUME GH72-61507A
QCK02 PMO KEY-HOLD GH72-61508A
QRF06 PMO KEY-COVER DC USB GH72-61509A
4-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
5. MAIN Electrical Parts List
5-1
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription
0403-001688 D307 USFZ5.6V-RTK/H
0404-001172 D315 RB520S-30
0406-001293 D300 ESD9B3.3ST5G
0406-001293 D308 ESD9B3.3ST5G
0406-001293 D309 ESD9B3.3ST5G
0406-001293 D310 ESD9B3.3ST5G
0406-001293 D314 ESD9B3.3ST5G
0406-001231 D303 DF2S5.6FS(TPL3)
0406-001231 D304 DF2S5.6FS(TPL3)
0406-001231 D305 DF2S5.6FS(TPL3)
0406-001286 ZD302 PESD5V0L5UV
0406-001293 D302 ESD9B3.3ST5G
0406-001293 D311 ESD9B3.3ST5G
0406-001293 D312 ESD9B3.3ST5G
0406-001293 D313 ESD9B3.3ST5G
0407-001002 ZD301 DAN222TL
0505-002384 Q300 PMR280UN
0505-002384 Q301PMR280UN
0505-002712 Q201 PMGD780SN
0601-002268 LED300 AEOWU-VOYY
0601-002268 LED301 AEOWU-VOYY
0601-002268 LED302 AEOWU-VOYY
0601-002268 LED303 AEOWU-VOYY
1001-001677 U308 MAX14577EEWA-T
1108-000355 UME200 KAP202N00M-BWEW
1201-002933 PAM101 RF7173
1203-005823 U304 RP152L014B-TR
1203-006050 U305RP152L002B-TR
1204-003208 U102 AR1210
1205-004012 UCP200 PNX4908
1205-004116 U100 CSR8810A04-ICXR-R
1404-001221 TH200 NCP15WB473J04RC
1405-001291 V301 LXES15AAA1-017
1405-001291 V302 LXES15AAA1-017
2007-000141 R221 RC1005J222CS
2007-000141 R222 RC1005J222CS
2007-000141 R301 RC1005J222CS
2007-000143 R363 RC1005J472CS
2007-000148 R204 RC1005J103CS
2007-000148 R208 RC1005J103CS
2007-000148 R209 RC1005J103CS
2007-000148 R210 RC1005J103CS
2007-000148 R212 RC1005J103CS

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-2
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription
2007-000148 R226 RC1005J103CS
2007-000149 R200 RC1005J123CS
2007-000149 R201 RC1005J123CS
2007-000149 R205 RC1005J123CS
2007-000149 R206 RC1005J123CS
2007-000149 R216 RC1005J123CS
2007-000149 R217 RC1005J123CS
2007-000149 R218 RC1005J123CS
2007-000149 R219 RC1005J123CS
2007-000149 R220 RC1005J123CS
2007-000151 R321 RC1005J153CS
2007-000152 R314 RC1005J203CS
2007-000162 R105 RC1005J104CS
2007-000162 R300 RC1005J104CS
2007-000165 R311 RC1005J204CS
2007-000170 R308 RC1005J105CS
2007-000172 R316 RC1005J100CS
2007-000172 R317 RC1005J100CS
2007-000172 R318 RC1005J100CS
2007-000172 R319 RC1005J100CS
2007-000163 R313 RC1005J124CS
2007-000157 R224 RC1005J473CS
2007-000157 R225 RC1005J473CS
2007-000173 R302 RC1005J220CS
2007-000173 R303 RC1005J220CS
2007-007156 R310 RC1005J1R0CS
2007-008040 R106 ERJ1GEJ470X
2007-008040 R107 ERJ1GEJ470X
2007-008766 R211 ERJ2RKF6041X
2203-000233 C107 GRP1555C1H101J
2203-000233 C111 GRP1555C1H101J
2203-000233 C334 GRP1555C1H101J
2203-000254 C226 GRP155R71C103K
2203-000330 C353 GRP1555C1H120J
2703-003293 L103 MLG1005SR12JT
2203-000386 C105 GRP1555C1H150J
2203-000386 C304 GRP1555C1H150J
2203-000386 C305 GRP1555C1H150J
2203-000386 C332 GRP1555C1H150J
2203-000425 C309 GRP1555C1H180J
2203-000438 C231 GRP155R71H102K
2203-000438 C237 GRP155R71H102K
2203-000438 C344 GRP155R71H102K

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-3
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription
2203-000438 C345 GRP155R71H102K
2203-000812 C120 GRP1555C1H330J
2203-000812 C121 GRP1555C1H330J
2203-000812 C327 GRP1555C1H330J
2203-000812 C333 GRP1555C1H330J
2203-000812 C341 GRP1555C1H330J
2203-001153 C243 GRP1555C1H680J
2203-001153 C300 GRP1555C1H680J
3301-001885 L312 BLM15HD182SN1D
2203-002709 C234 C1005Y5V1C104ZT
2203-002709 C324 C1005Y5V1C104ZT
2203-005234 C118 GRP1555C1H1R2CZ01E
2203-005234 C128 GRP1555C1H1R2CZ01E
2203-005234 C129 GRP1555C1H1R2CZ01E
2203-005234 C130 GRP1555C1H1R2CZ01E
2203-005234 C131 GRP1555C1H1R2CZ01E
2203-005234 C133 GRP1555C1H1R2CZ01E
2203-005234 C134 GRP1555C1H1R2CZ01E
2203-005234 L107 GRP1555C1H1R2CZ01E
2203-005234 L110 GRP1555C1H1R2CZ01E
2203-005288 C117 GRP1555C1H1R0BZ01E
2203-005682 C123 GRP0335C1E330JD01E
2203-005682 C124 GRP0335C1E330JD01E
2203-005968 C132 CL05B472KBNF
2203-006048 C101 GRM155R71A104K
2203-006048 C122 GRM155R71A104K
2203-006048 C127 GRM155R71A104K
2203-006048 C204 GRM155R71A104K
2203-006048 C207 GRM155R71A104K
2203-006048 C208 GRM155R71A104K
2203-006048 C209 GRM155R71A104K
2203-006048 C210 GRM155R71A104K
2203-006048 C211 GRM155R71A104K
2203-006048 C212 GRM155R71A104K
2203-006048 C213 GRM155R71A104K
2203-006048 C218 GRM155R71A104K
2203-006048 C235 GRM155R71A104K
2203-006048 C236 GRM155R71A104K
2203-006048 C325 GRM155R71A104K
2203-006048 C342 GRM155R71A104K
2203-006048 C352 GRM155R71A104K
2203-006190 C301 GRM155R60J224KE01E
2203-006208 C203 CM105X5R475M06AT

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-4
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription
2203-006257 C104 GRM155R60J474KE19E
2203-006260 C229 GRM155R61A224KE19E
2203-006348 C351 CV105X5R105K25AT
2203-006399 C200 GRM155R60J105KE19D
2203-006399 C201 GRM155R60J105KE19D
2203-006399 C202 GRM155R60J105KE19D
2203-006399 C206 GRM155R60J105KE19D
2203-006399 C214 GRM155R60J105KE19D
2203-006399 C215 GRM155R60J105KE19D
2203-006399 C216 GRM155R60J105KE19D
2203-006399 C222 GRM155R60J105KE19D
2203-006399 C223 GRM155R60J105KE19D
2203-006399 C224 GRM155R60J105KE19D
2203-006399 C225 GRM155R60J105KE19D
2203-006399 C230 GRM155R60J105KE19D
2203-006399 C239 GRM155R60J105KE19D
2203-006399 C241 GRM155R60J105KE19D
2203-006399 C314 GRM155R60J105KE19D
2203-006399 C321 GRM155R60J105KE19D
2203-006399 C322 GRM155R60J105KE19D
2203-006399 C323 GRM155R60J105KE19D
2203-006399 C340 GRM155R60J105KE19D
2203-007393 C220 CL05A475KP5NRNC
2203-006562 C306 CV05X5R105K10AH
2203-006562 C319 CV05X5R105K10AH
2203-006562 C320 CV05X5R105K10AH
2203-006562 C331 CV05X5R105K10AH
2203-006562 C347 CV05X5R105K10AH
2203-006681 C318 GRM155F51E104ZA01D
2203-006681 C348 GRM155F51E104ZA01D
2203-006824 C217 CV105X5R475K10AT
2203-006824 C219 CV105X5R475K10AT
2203-006824 C302 CV105X5R475K10AT
2203-006872 C100 GRM155R60J225ME15D
2203-006872 C102 GRM155R60J225ME15D
2203-006872 C103 GRM155R60J225ME15D
2203-006872 C106 GRM155R60J225ME15D
2203-006872 C205 GRM155R60J225ME15D
2203-006890 C228 CV105X5R106M06AT
2203-007240 C221 CL10A226MQ8NRNE
3301-001885 L311 BLM15HD182SN1D
2203-007279 C119 CV105X5R106M10AT
2203-007279 C339 CV105X5R106M10AT

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-5
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription
3301-001659 L303 BLM15AG601SN1
2703-001723 L305 LL1005-FH33NJ
2703-001726 L108 LL1005-FH27NJ
2203-000812 C245 GRP1555C1H330J
2703-002208 L114 CIH05T2N2SNC
2703-002208 L115 CIH05T2N2SNC
2703-002170 L112 CIH05T6N8JNC
2703-002176 L116 CIH05T2N7SNC
3301-001986 L310 BLM15PD600SN1
2703-002200 L102 CIH05T18NJNC
2703-002204 L105 CIH05T22NJNC
2703-002205 L113 CIH05T3N9KNC
2703-002176 C113 CIH05T2N7SNC
2703-002268 L109 CIH05T8N2JNC
2703-002281 L111 CIH05T5N6SNC
2703-002308 L308 CIH05T68NJNC
2703-002308 R328 CIH05T68NJNC
2703-002367 C115 CIH05T1N0SNC
2703-002208 C116 CIH05T2N2SNC
2703-003297 L202 APIS08G4R7MT
2703-003485 L309 CIG22L100MNE
2801-004769 OSC201 CXC6X260000GHVRP70
2801-004902 OSC200 ST3215SB32768E0HPWBB
2901-001454 F300 AVRC-14S-03Q-030-050R
2901-001454 F301 AVRC-14S-03Q-030-050R
2901-001454 F302 AVRC-14S-03Q-030-050R
2904-001914 F102 SAWEN1G84CB0F00
2904-001980 F101 SAWEN881MCB0F00
2909-001337 F100 LCB10B2450K4
2203-000812 C244 GRP1555C1H330J
3301-001917 L300 BLM15BD182SN1
3301-001917 L301 BLM15BD182SN1
3301-001917 L302 BLM15BD182SN1
3301-001917 L307 BLM15BD182SN1
3301-002065 L200 MMZ1005A182ET
3301-002065 L201 MMZ1005A182ET
3301-002065 L205 MMZ1005A182ET
3301-002065 L117 MMZ1005A182ET
3301-002065 R323 MMZ1005A182ET
3301-002065 R325 MMZ1005A182ET
3404-001303 TACT_DN LS12K2-T
3404-001303 TACT_ON LS12K2-T
3404-001303 TACT_UP LS12K2-T

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-6
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription
3705-001503 RFS100 KMS-560
3709-001488 SIM301 5000-6P-1.5S
3709-001575 CD302 SCHA4B0301
3710-003306 SOC300 3D1201087-ST32-7H
3711-007393 BTC300 KQ03SB2-3R
3711-007617 CN300 14-5804-040-000-829
3712-001348 ANT102 HJ-ICT-05Y
3722-003115 IFC300 KQ20AX-7P-4D
3722-003188 EAR300 IJAN4-88
GH70-04132A SC100 ONBOARD-CLIP-8
GH70-04132A SC103 ONBOARD-CLIP-8
GH70-04132A SC104 ONBOARD-CLIP-8
GH70-04132A SC105 ONBOARD-CLIP-8
GH70-04132A SC106 ONBOARD-CLIP-8
GH71-08731A ANT100 HJ-ICT-05
GH71-08731A ANT101 HJ-ICT-05
GH71-08731A SPK300 HJ-ICT-05
GH71-08731A SPK301 HJ-ICT-05
2703-003293 L103 MLG1005SR12JT
2203-003054 C357 GRP1555C1H9R0C
2203-006824 F102 FILTER-SAW
2203-006824 MIC300 MIC MEMS
2203-006824 L303 BEAD-SMD
2203-006824 L304 BEAD-SMD
2203-006824 L307 BEAD-SMD
2203-006839 L201 BEAD-SMD
2203-006839 L301 BEAD-SMD
2203-006839 L302 BEAD-SMD
2203-006839 L305 BEAD-SMD
2203-006839 U320 BEAD-SMD
2203-006839 TACT_DN SWITCH-TACT
2203-006839 TACT_HD SWITCH-TACT
2203-006839 TACT_UP SWITCH-TACT
2203-006839 RFS100 CONNECTOR-COAXIAL
2203-006839 HDC300 HEADER-BOARD TO BOARD
2203-006839 SIM300 HEADER-BOARD TO BOARD
2203-006839 CD300 HEADER-BOARD TO BOARD
2203-006839 BTC300 HEADER-BATTERY
2203-006839 HEA300 HEADER-BOARD TO BOARD
2203-006839 SLC300
2203-006839 FM_ANT
2203-006839 SPK_DWN
2203-006839 SPK_DWP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-7
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription
2203-006839 IF300
2203-006839 ANT101 NPR CONTACT-CAM
2203-006839 U104
2203-006839 SC100 IPR SHIELD-CAN CLIP
2203-006839 SC101 IPR SHIELD-CAN CLIP
2203-006839 SC104 IPR SHIELD-CAN CLIP
2203-006839 R234
2203-006841 R235
2203-006841 R236
2203-006841 R237
2203-006841 R307
2203-006978 R332
2203-006979 R345
2203-006979 EAR300
Please consult the GSPN website (Samsung Portal) for the most recent version of the product's part list.

SAMSUNG Proprietary-Contents may change without notice
6. Level 1Repair
6-1
This Document can not be used without Samsung's authorization

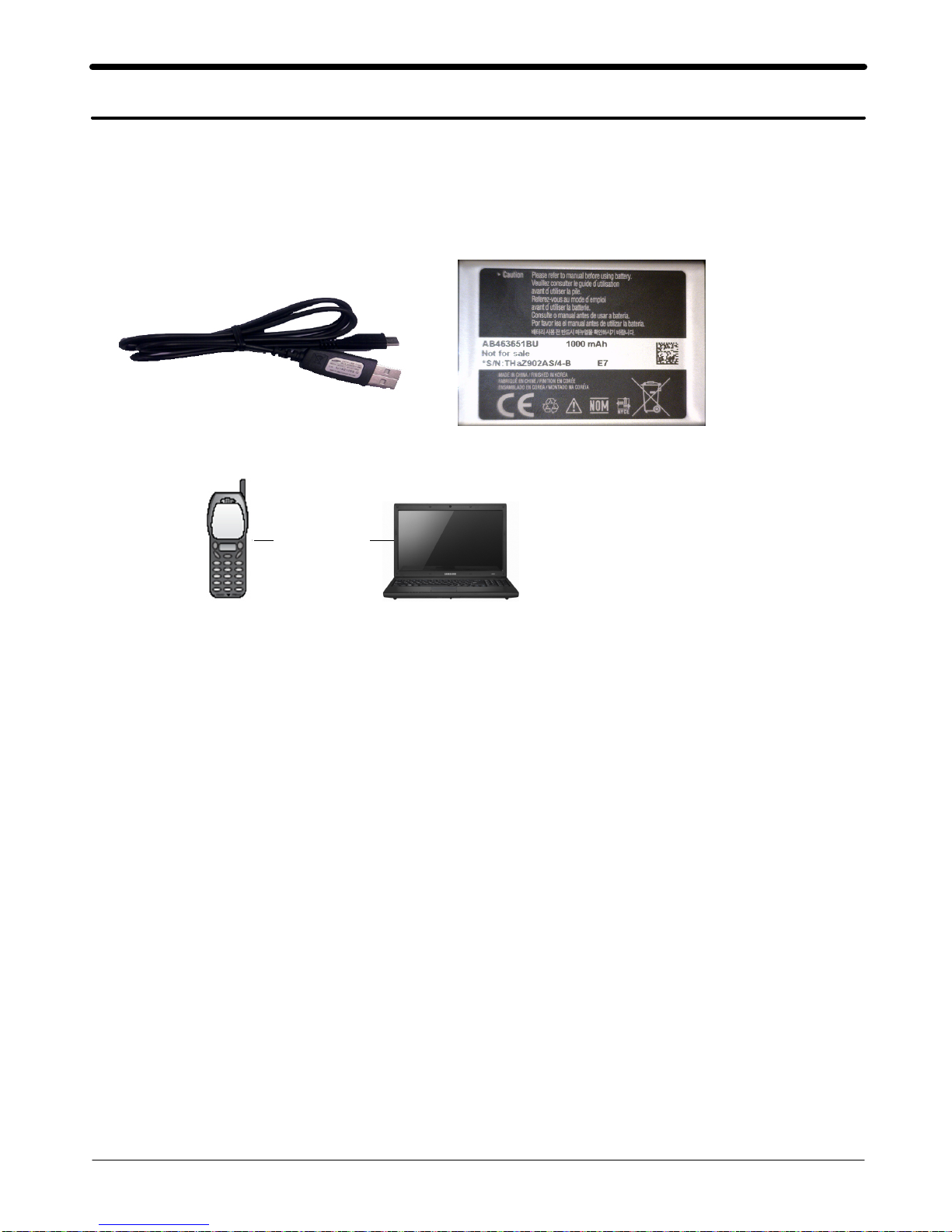

1) USB Cable :Because of supporting USB 2.0 cable,
he device manager of your PC may not recognize the cable
that does not support USB 2.0.
2) Battery :AB553446BC
-Diagram of connection
PC
Mobile Phone(with Battery)
Data Cable
6-1. Software Download
6-1-1. Pre-requisite for Download
•Download Program (there are 2ways to download.)
-Bfloader.exe :Flash loader 7.4.4_SSG_v0.5
•USB Driver
-Samsung USB Modem driver :
•GT-C3500 Mobile Device
•Data Cable
•JIG BOX (GH99-36900A)
•RF Test Cable (GH39-00985A)
•JIG Cable (GH39-01339A)
•Adapter (GH99-38251A)
•Binary files
•ActiveSync Setting
•Driver Installation.

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-2
This Document can not be used without Samsung's authorization
6-1-2. Driver Installation
-Make sure that you install the driver for aphone.
-You have to install the driver of Samsung USB Modem of downloading aphone image
-Restart your host PC after you install the phone driver.
6-1-3. S/W Download Process
1) Execute the downloader
Execute the ‘Bfloader.exe’program.
(Notice :Bfloader supports only Single-CSC.)

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-3
This Document can not be used without Samsung's authorization

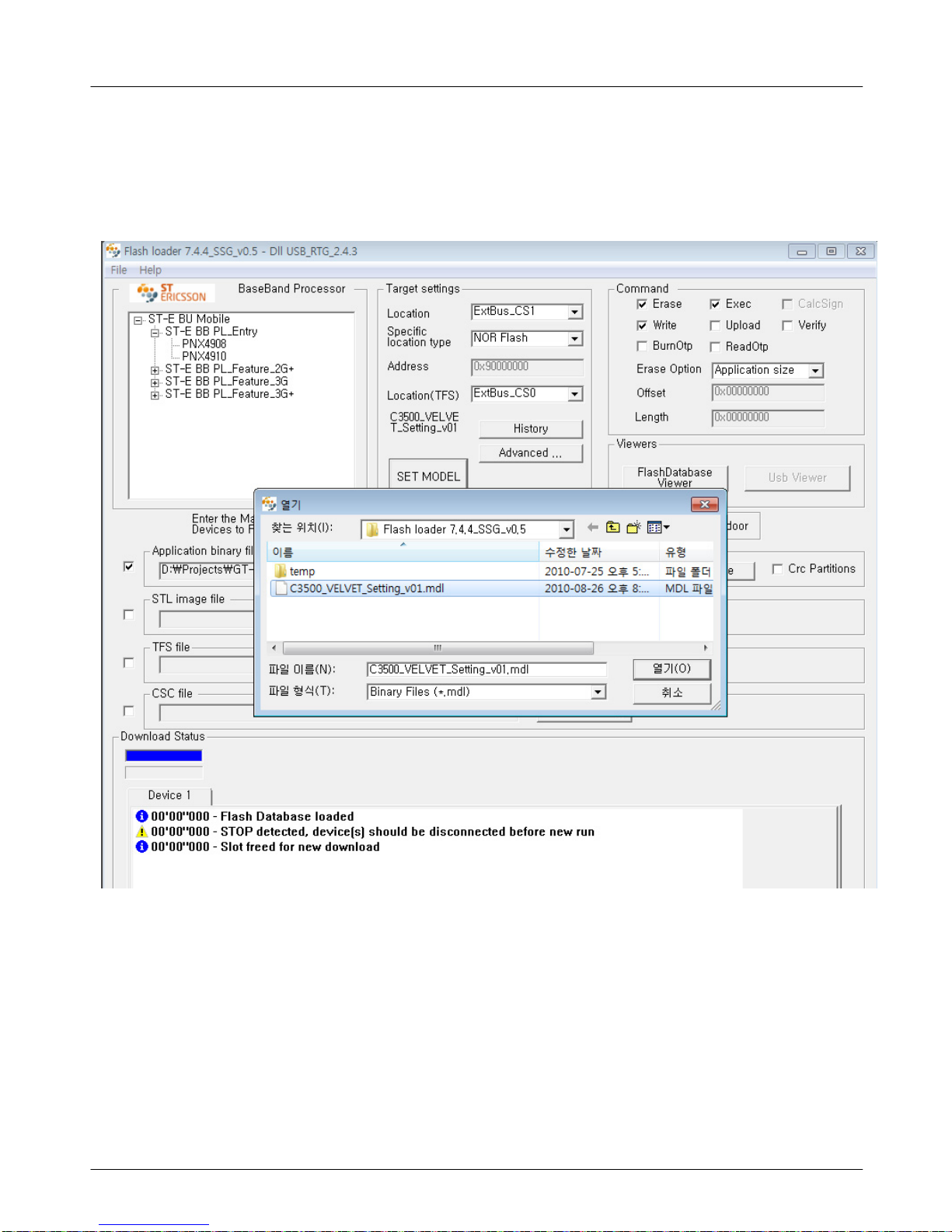

2) Set Model
Click "SET MODEL", and you can select appropriate model.
You should choice "C3500_VELVET_Setting_v01.mdl" for further advance.
3) Select the binary, TFS, and CSC files
Click "Partition Table", and you can select acertain binary.
With browsing files, you can choice appropriate Flash-loader partition table all at once.

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-4
This Document can not be used without Samsung's authorization

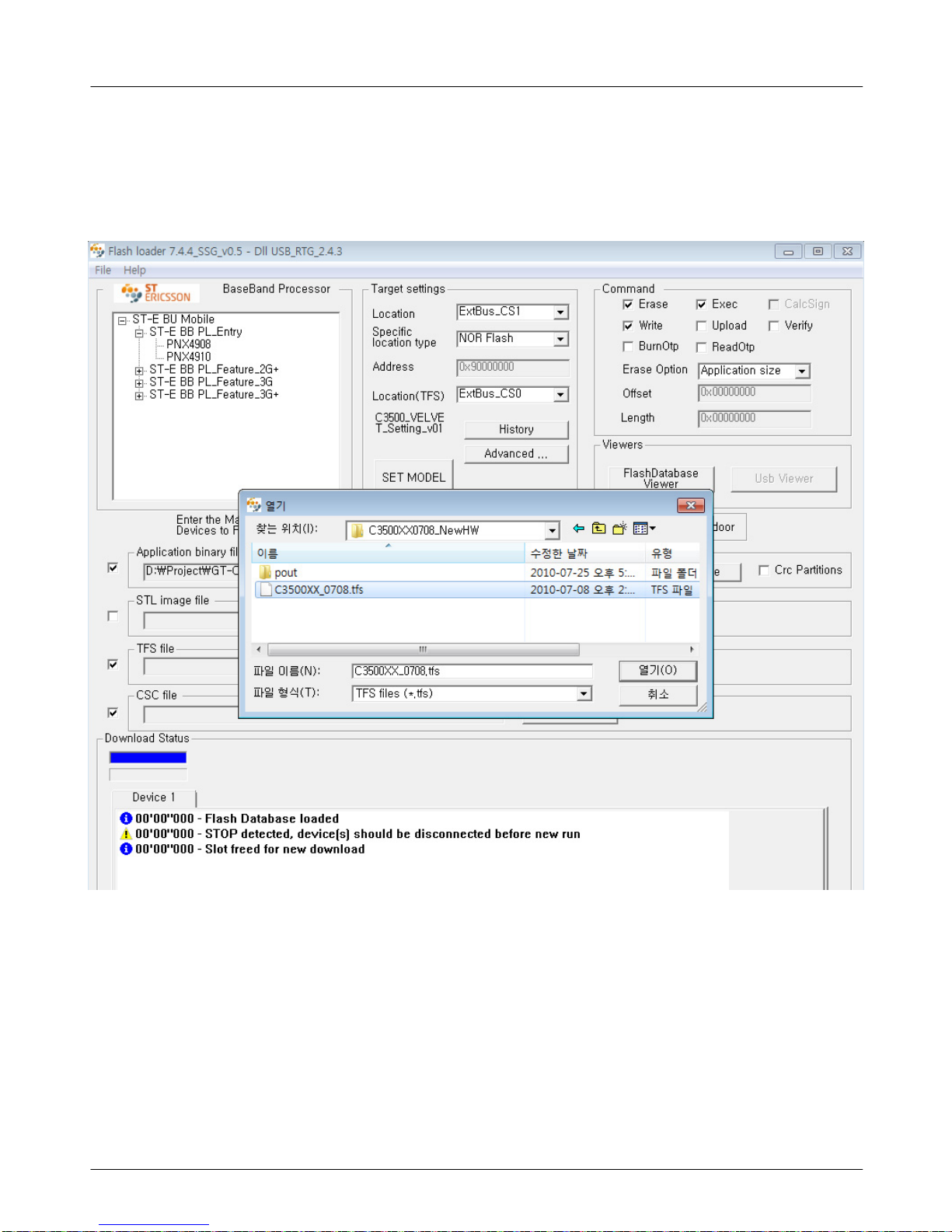

After that, you should activate TFS, CSC.
Also you can select the TFS files, and CSC files.
(Notice :The buttons of TFS and CSC need to be activated not only after phone image
is added first)

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-5
This Document can not be used without Samsung's authorization
4) Select the download mode
Click "START" to ready to download binary.
(Notice :In this step, the mobile device actually don’t download the binary yet.)
