S&A CW-5000 Series Installation instructions

TY-JS-220308-004
1
CW-5000/5200
Industrial Circulating Chiller
Installation & Operation Instructions

TY-JS-220308-004
2
FOREWORD
Thanks for your purchase of our product. Please read this
manual carefully before using and keep it properly so that you can
refer to it whenever you need information.
This manual is not a quality guarantee. Our company reserves
the right to the interpretation of the correction of misprint and
improperly described information and product improvement. The
revised content will be edited into the reprinted user manual without
prior notice.

TY-JS-220308-004
3
CONTENTS
Notice ..........................................................................................................4
I. Overview ...............................................................................................7
II. Model Illustration ................................................................................ 7
III. Product Outlines & Parts ................................................................... 8
IV. Installation ......................................................................................... 10
V. Operating States &Parameters Adjustment .................................. 12
VI. Alarm & Output Terminal ................................................................. 14
VII. Maintenance ...................................................................................... 15
VIII. Simple Troubleshooting ...................................................................16

TY-JS-220308-004
4
Notice
Please strictly adhere to the usage guidelines and requirements provided, as accidents
caused by improper operation (or use not in accordance with instructions) will be the
responsibility of the user, and our company will not be held liable.
Notice
Operation Guideline
The operation should be
carried out by professional
technicians
Handling, piping installation, electrical, operation,
maintenance, overhaul and other operations must be
completed by personnel with professional skills.
It is forbidden to be used
beyond the range of
specification
It is forbidden to use the equipment beyond the range of
manual specifications.
It is forbidden to be used in
the explosive environment
It is not permitted to install the chiller in dangerous places
with inflammable gas.
Electrical connection
a) The power supply must conform to the standard
indicated in the nameplate or the manual;
b) Use the standard cable, and select the standard wire
diameter;
c) The grounding wire must be installed and the
connection must be reliable;
It is forbidden to operate the
equipment without a cover
There are live parts inside the machine. It is forbidden
to operate without a cover.
Water-proof
Do not allow the equipment to encounter water.
Maintenance and repair
The operation must be carried out after 3 minutes of
cutting off the power supply, because the high-voltage
charging part in the equipment is not discharged within 3
minutes. Prohibit touch the live parts.
Danger
High Voltage
Contact with live parts can cause serious personal injury
or death.
Scald
Burn Risk
Stay away from high-temperature areas.

TY-JS-220308-004
5
Notice
Operation Guideline
Transport and
installation
The equipment must be firmly fixed during transport and
installation. Otherwise, there will be a danger of tipping or
falling.
Electrical protection
The power cable terminal must be equipped with the electric
leakage and overload protection device according to the rated
current indicated on the equipment nameplate.
Stop running in
abnormal state
When the equipment is abnormal, if the reason for the
abnormal is unknown, do not start the machine at this time.
Do not put fingers or
other things into the gap
of the equipment
There are rotating parts inside the device. Do not put fingers
or other things into the gap of the equipment.
Refrigerant leakage
a) When the refrigerant leaks, please make sure that the
ventilation is available.
b) Avoid contacting with skin.
Notice
Operation Guideline
Transportation with
liquid is prohibited
The equipment is not allowed to be transported with liquid to
prevent internal pipeline leakage.
Transport
a) The equipment should be fixed firmly before transportation
to prevent the equipment from moving due to vibration and
external forces. If there is excessive vibration and external
force, the internal equipment may be damaged.
b) Tilt angle should be ≤45°.Otherwise, the refrigeration
system will fail.
Operating environment
a) It is forbidden to use in special environments such as high
temperature, humidity, strong electromagnetic interference,
etc.
b) The equipment must be installed in a place where there is
no direct sunlight and away from the fire sources.
Installation
a) The equipment must be installed on a horizontal surface.
Otherwise, the refrigeration system will fail;
b) It is forbidden to place objects within 1 meter around the
air inlet and 1.5 meters around the air outlet. If the air inlet
and the air outlet are blocked, the cooling ability that the
equipment should have cannot be realized.

TY-JS-220308-004
6
Before commissioning
a) Make sure that the water supply pipe of equipment is not
blocked;
b) It is necessary to check the water pipe and the water pump
to confirm that there is a proper amount of water entering the
water pump and exhaust it through the water pump exhaust
valve, otherwise it will cause damage to the water pump;
c) Confirm that the state of the equipment is normal and safe.
Otherwise, there may be injury and damage.
Gently move the motor
impeller if the
equipment isn’t used
for a long time
For equipment that has not been used for a long time, it may
be difficult to start the pump at the first start. Please gently
move the motor impeller before the equipment is powered on.
The equipment is
forbidden to be
trampled on
Please do not step on or sit on the equipment. Otherwise, it
may cause injury accidents such as falling or overturning
Clean the air filter
regularly
Clean the air filter at least once a week. If it is blocked, the
cooling ability will decrease and the power consumption will
increase, and the alarm will not work properly.
Equipment surface
cleaning
a) Please use cleaning agents that are non-corrosive to metals
and plastics;
b) Please keep the cleaning agent properly after cleaning to
prevent liquid leakage;
c) The container for storing the cleaning agent must be sealed
completely.
No air blowing at the
water outlet
A temp sensor is installed inside the water outlet, and it is
forbidden to blow air inside the device with an air gun.
Wear protective gloves
during maintenance,
inspection and cleaning
a) The sharp edges of the condenser fins may cut the skin;
b) The temperature of the internal compressor and refrigerant
piping is very high, and direct skin contact may cause burns.
Anti-freezing
a) When the ambient temperature is lower than 2℃and the
machine is shut down for a long time, it is necessary to drain
the liquid and blow the water in the system away with
compressed air, otherwise there is a danger of freezing and
cracking the components and pipelines.
b) When room temperature is lower than 2 ℃, it is
recommended to use antifreeze with a concentration of not
more than 30% containing ethylene glycol or propylene glycol.

TY-JS-220308-004
7
I. Overview
This product is an industrial cooling device designed and manufactured for laser cutting,
laser welding, laser marking, laser engraving and other equipment that uses laser
processing. It can provide a temperature-stable cooling medium for the above application
scenarios.
The chiller is composed of a compressor, a condenser, a throttling device (expansion valve
or capillary), an evaporator, and a water pump. Its working principle is that the chiller’s
refrigeration system cools the water, and the water pump delivers the low-temperature
cooling water to the equipment that needs to be cooled. Then the cooling water will take
away the heat, heat up and return to the chiller, and then be cooled again and transported
back to the equipment. In the refrigeration system of a chiller, the refrigerant in the
evaporator coil absorbs the heat of the return water and vaporizes into steam. The
compressor continuously extracts the generated steam from the evaporator and
compresses it. The compressed high-temperature, high-pressure steam is sent to the
condenser and later will release heat (heat extracted by the fan) and condense into a high-
pressure liquid. After being reduced by the throttling device, it enters the evaporator to be
vaporized, absorbs the heat of the water, and the whole process circulates constantly.
Users can set or observe the working status of the water temperature through the
temperature controller.
II. Model Illustration
CW- 5000 T I
④Water pump
③Electric source type
②Chiller model series
①Chiller application
Note: This model description only contains the description of the company's main product codes,
not all of them are listed. Please confirm with our company before ordering the specific model,
our company has the final interpretation right about it.

TY-JS-220308-004
8
III. Product Outlines & Parts
TEMPERATUR
E
CONTROLLER
POWER SWITCH
AIR INLET
(FILTER GAUZE)

TY-JS-220308-004
9
Note: The above-mentioned product outlines and part names are only for one of the models, and
they will be slightly different in different models.

TY-JS-220308-004
10
IV. Installation
1. Open the package and check whether the machine is in good condition
and whether the accessories are complete.
2. Please ensure that the working voltage of the chiller is stable and
normal.
Because the refrigeration compressor is sensitive to the power supply voltage, the normal
working voltage of our company's standard products is 210~240V (110V model is
100~120V). If wider operating voltage range is necessary, customization is available.
3. Equipment installation conditions and requirements
(1) It must be installed on a horizontal surface and not tilted.
(2)The air outlet of the chiller should be at least 1.5m away from the obstacle, and the air
inlet must be at least 1m away from the obstacle (See below diagram).
(3) Do not install in harsh environments such as corrosive, flammable gas, dust, oil mist,
conductive dust, high temperature and humidity, strong magnetic field, direct sunlight, etc.
(4) Operating Environment
Ambient Temperature
Ambient Humidity
Altitude
0~40℃
≤90%RH
≤3,000m
(5) Medium Requirements
Cooling medium allowed by the chiller includes purified water, distilled water, high- purity
water and other softened water. It is forbidden to use oily liquids, liquids containing solid
particles, corrosive liquids, etc. Clean the filter element and replace the cooling water
regularly (about three months is recommended) to ensure the normal operation of the
chiller.
When the chiller is stored with water at room temperature lower than 2℃, it is necessary
to add anti-freezer in the chiller water tank. It is recommended to use antifreeze with a
concentration of not more than 30% containing ethylene glycol or propylene glycol. After
the temperature warms up, change to purified water, distilled water or other suggested
cooling media, let the chiller run for 30 minutes to remove the residual anti-freezer and
drain it, and then refill with unused circulating water.
4. Determine the direction of the pipeline layout according to the water
inlet and outlet of the chiller, and ensure that the waterway is clean and
free of impurities, so as to prevent impurities from entering the waterway
and causing blockage or pump failure.
5. Plug in the power cord and turn on the power switch (It is forbidden to
start without water).

TY-JS-220308-004
11
(1) After turning on the power switch, the circulating pump of the chiller starts to work.
When the new machine is turned on for the first time, there will be more air bubbles in the
pipeline, which will cause the machine to alarm occasionally, and it will return to normal
after a few minutes of operation.
(2) After starting the machine for the first time, check if the water pipes leak immediately.
(3) After turning on the power, if the water temperature is lower than the set temperature,
it is normal that the cooling fan and other devices of the machine do not work. The
temperature controller will automatically control the working status of compressors,
solenoid valves, cooling fans and other components according to the set parameters.
(4) It takes a certain time to start over the compressor and other components. The start-up
time may range from seconds to minutes according to different conditions. Therefore,
please do not turn off and turn on the power too frequently.
6.Electrical connection
(1) Please select the cable based on the max. rated current indicated on the label of the
chiller.
(2) Recommended reference standard for power cord diameter selection.
Rated current/ A
≤5
≤10
≤15
≤25
≤35
≤50
Wire diameter (copper wire)/ mm²
1.0
1.5
2.5
4.0
6.0
10.0
Note: This data is provided according to IEC 60204-1 standard and only for
reference. Standard cables must be used in the power cord.
(3) The main circuit of the power supply must be equipped with appropriate electric leakage
and overload protection devices, and the chiller must be well grounded.
(4) Less than ±10% of power supply voltage fluctuation and less than ±1Hz of frequency
fluctuation are allowed, and keep away from electromagnetic interference sources.
7. Fill Water & Exhaust Air
(1) Fill Water
After the new machine is turned on, the air in the water pipe is emptied, and the water
level of the water tank will drop slightly. In order to keep the water level in the green area,
you can add water again. Observe and write down the current water level. After the
chillerhas been running for a period of time, observe the water level gauge again. If the
water level drops significantly, check again if there is leakage in the water pipes.

TY-JS-220308-004
12
(2) Exhaust Air
After adding water for the first time or replacing water, exhaust the air in the water pump to
start use, otherwise the equipment will be damaged. The exhaust method is as follows：
Method 1: Under the state of shutting down, after adding water, remove the water outlet
and connect the water pipe, drain for 2 minutes, and then install it firmly.
Method 2：Open the water supply inlet, after starting the machine (water flows), repeatedly
press and fold the water pipe several times to drain the air from the pipe.
8.Test-run Check
(1) Check whether the water pipe connection is correct, and there must be no bubbling
or water leakage;
(2) Check whether the valve of water outlet is closed.
(3) Check the liquid level of the water tank;
(4) Confirm that the electrical wiring of the equipment is connected correctly;
(5) Confirm whether the equipment is grounded.
V. Operating States & Parameter Adjustment
The new T-503D intelligent temperature controller is designed with intelligent control mode.
It will self-adjust controlling parameters according to room temperature for meeting
equipment cooling requirements.
The new T-504D intelligent temperature controller is designed with constant temperature
control mode with water temperature maintained at 25℃. Users can adjust it as needed. T-
503D and T-504D controllers are of same functions and structure except factory setting.
1.Temperature control panel introduction
(1) Indicators D1, D2 (as shown) of thermostat working state
D1 ON: thermostat works in the intelligent control mode;
D1 OFF: thermostat works in the temperature control mode;
D1 FLASHES: thermostat works in the parameters setting mode or displays value of
roomtemperature;
D2 ON: chiller works in the refrigerating state;
D2 OFF: chiller works in the insulation working state;
D2 FLASHES: chiller works in the energy-saving state;
(2) Press ▼ button: the room temperature will be shown. Press this button for 6 seconds, the
restored defaults will be shown. Meanwhile, D1 is flashing, displaying he room temperature.
(3) ▲▼ keys are for adjusting the display status of the controller, parameters selection and
adjustment.
(4) RST key: enter key.
(5) SET key: function setting key.
2. Restore to factory settings
Before starting the machine, press and keep holding ▲▼ button then turn on the chiller,
and don’t release the buttons until the controller displays rE. The controller works in

TY-JS-220308-004
13
normal state in 6s and is restored to factory settings.
3.Press ▼key to show t1
Press ▼ key again to show room temperature (Meanwhile D1 is flashing, displaying room
temperature)；
Press ▼key again to show t2 and press ▼key again to show flow rate 1.(Unit: L/min)；
Press ▼key again to show t3 and press ▼key again to show flow rate 2.(Unit: L/min)；
Press ▼key again to exit display or to restore water temperature display in 6 seconds if
no key is pressed.
4. Alarm function
(1) Alarm Display:
When alarm occurs, the error code and the water temperature will be alternately displayed.
E1
E2
E3
E4
E5
E6
E7
Ultra-high
room
temperature
Ultra-high
water
temperature
Ultra-low
water
temperature
Room
temperature
sensor
failure
Water
temperature
sensor
failure
Flow
rate
1
alarm
Flow
rate
2
alarm
(2) To suspend the alarm:
In alarming state, the alarm sound could be suspended by pressing any button, but the
alarm display remains until the alarm condition is eliminated.
5. General settings adjustment
Press SET button（SET）to enter the user-defined state. Meanwhile, D1 flashes and
indicates that the controller is in parameter setup status.
(1) Under the intelligent mode, the control panel displays the temperature difference
between the temperature of water and room (Factory setting is -2).
(2) At this moment, press ▲▼ key to change settings. After modifying the value, press
the ENTER button (RST) to save and exit, then the new parameters take effect, or
press SET key (SET) to exit without saving the parameters. If there is no more action
within 20 seconds, the chiller will automatically exit the modifying status without saving
the new parameters.
6. Advanced parameters adjustment examples
Order
Code
Items
Value in Case 1
Value in Case 2
1
F0
Temperature setting
25
2
F1
Temperature Difference
Values
-3
3
F2
Refrigeration return
difference
0.5
2.0
4
F3
Way of control
1
0
5
F4
Alarm for over high water
temperature
15
5
6
F5
Alarm for over low water
temperature
15
10
7
F6
Alarm for over high room
temperature
45
45

TY-JS-220308-004
14
8
F7
Password
8
8
9
F8
The allowed highest water
temperature
31
30
10
F9
The allowed lowest water
temperature
25
5
11
F10
Sensor pulse
frequency alarm
8
8
Case 1: The cooling water temperature is controlled by the intelligent mode. The required
water temperature is from 25℃to 31℃and the set water temperature is 3℃lower than
the room temperature. Under the condition of constant room temperature, the fluctuation
should not exceed ±0.5℃. (e.g., There will be an alarm when the water temperature is
15℃lower or higher than the target temperature. If the room temperature is 30.0℃,
cooling water temperature is between 27.5 ℃to 26.5℃, if the air temperature is up to
30.5℃, water temperature will be between 28.0℃to 27.0℃).
Case 2: The cooling water temperature is controlled by the constant mode. It is required
that the water temperature is kept constant at 25℃, and the fluctuation should not
exceed ±2℃. There will be an ultra-high water temperature alarm when the water
temperature is 5℃higher than the target temperature; and there will be an ultra-low
temperature alarm when the water temperature is 10℃lower than the target temperature.
The water temperature setting can be easily adjusted from 5℃to 30 ℃s by user setting.
VI. Alarm & Output Terminal
In order to guarantee that the equipment will not be affected if abnormal situation happens
to the chillers, the chillers has been designed with an alarm protection function.
1.Alarm output terminals and wiring diagram

TY-JS-220308-004
15
2.Alarm causes and working status table
Display
Condition
Alarm
code
Buzzer
H1 and H2
H1 and H3
Circulating pump works properly
open circuit
connected
Ultra-high room temp
E1
sounds
connected
open circuit
Ultra-high water temp
E2
sounds
connected
open circuit
Ultra-low water temp
E3
sounds
connected
open circuit
Room temp sensor failure
E4
sounds
connected
open circuit
Water temp sensor failure
E5
sounds
connected
open circuit
Flow rate 1 alarm
E6
sounds
connected
open circuit
Flow rate 2 alarm
E7
sounds
connected
open circuit
Chiller power supply interruption
connected
open circuit
Note: the alarm output port is connected with a set of normally open or normally closed contactsof
the relay inside the machine. The working current is required to be less than 3A while the
working voltage is less than 300V.
VII. Maintenance
For equipment maintenance, firstly the machine must be stopped and the power must be
cut off. Wait 3 minutes before starting the maintenance process, otherwise there will be a
risk of electric shock. When the ambient temperature is lower than 2°C, the internal water
must be drained when the machine is shut down for a long time.
Disassemble the dust filter regularly for cleaning and use a compressed air gun to blow off
the dust accumulated in the condenser. (It is recommended to clean it once a week, and the
chiller should not work without the dust filter, except for a very quick cleaning process.)

TY-JS-220308-004
16
VIII. Simple Troubleshooting
Failure
Failure Cause
Approach
Machine turned on
but unelectrified
Power cord is not plugged
in place.
Check and ensure the power interface and the
power plug isplugged in place and in good
contact.
Fuse blown
Pull out the fuse box from the power supply
interface of the chiller, check the fuse, replace
with spare fuse if necessary, and check whether
the power supply voltage is stable. Check and
ensure the power interface and the power plug is
plugged in place and in good contact.
Flow Alarm, connecting
the wateroutlet and inlet
with a water pipe directly,
but still no water flow
Water level in the storage
water tank is too low
Check the water level gauge display, add water
until the level shown in the green area; And
check whether the water circulation pipe leaks.
When connecting the
chiller with the machine
to be cooled, flow alarm is
triggered; but when
connecting the water
outlet and inlet with a
water pipe directly, water
flows and the flow alarm
is not triggered.
Water circulation pipes
are blocked or a pipe is
bent or deformed
Check the water circulation pipe.
Ultra-high temperature
alarm
Blocked dust gauze, bad
thermolysis
Disassemble and clean the dust gauze regularly.
Poor ventilation for air
outlet and inlet
Ensure a smooth ventilation for air outlet and
inlet.
Voltage is extremely low
or unstable
Improve the power supply circuit or use a voltage
regulator.
Improper parameter
settings on thermostat
Reset the controlling parameters or restore the
factory setting.
Switch the power on and
off frequently
Ensure the time for the refrigeration process after
starting the chiller (at least 5 minutes).
Excessive heat load
Reduce the heat load or use other model with
larger cooling capacity.
Alarm for ultra-high room
temperature
The working ambient
temperature is too high for
the chiller
Improve ventilation and ensure that the machine
is operated below 40°C.
Serious problem of
condensate water
Water temperature is
much lower than ambient
temperature and the
ambient humidity is high
Increase water temperature or insulate pipes.
Water drains slowly from
outfall during water
changing
Water supply inlet is not
open
Open the water supply inlet

TY-JS-220308-004
17
Brand: 特域机电 S&A

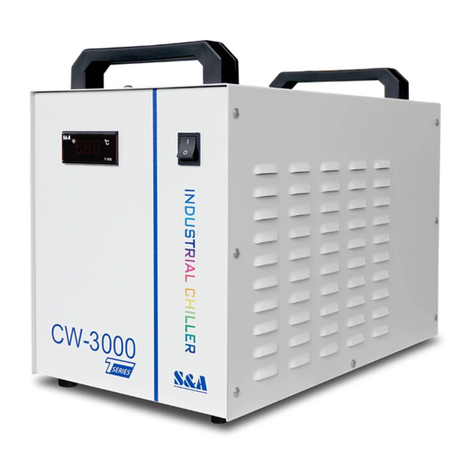

Product Name: Water Chiller
Manufacturer's Company Name: Guangzhou TEYU Electromechanical Co., Ltd
Manufacturer's Address: No. 50, Zhongchuang Road, Shengshi Industrial Zone, Zhongcun Town,
Panyu District, Guangzhou
Sales Company: Shanghai Top Nine Industrial Co., Ltd.
Seller's Company Address: No.208 Wulian Road, Room164, Shanghai Pudong New District, China,
200129, CN
E-mail: colet[email protected]om
TEL: [phone]
EC
REP
EU contact address:
Apex CE Specialists GmbH
Habichtweg 1 41468 Neuss Germany
E-mail: [email protected]
