S&A CW-6000 User manual

CW-6000/ 6100/ 6200
INDUSTRIAL CHILLER
USER MANUAL

CW-6000/6100/6200 Series
2
Contents
<1> Cautions ---------------------------------------------------------------- 3
<2> Contour and parts introduction -------------------------- ------- 4
<3> Installation -------------------------------------------------------------- 5
<4> Operation and parameters adjustment ----------------------- 6
<5> Alarm and output terminal ---------------------------------------- 10
<6> Specifications -------------------------------------------------------- 11
<7> Simple troubleshooting -------------------------------------------- 14

CW-6000/6100/6200 Series
3
Thank you for using the machine from GUANGZHOU TEYU
ELECTROMECHANICAL CO., LTD. Please read the installation instructions
carefully before installing and operating and keep it properly.
This installation instructions is not a quality assurance. GUANGZHOU TEYU
ELECTROMECHANICAL CO., LTD reserves the right to the interpretation of
correction of typographical errors, improper mentioned information and product
improvement. The amended content will be reprinted in installation instructions
without notice in advance.
<1> Cautions
1. Please ensure that the power supply and electrical outlet are in good contact
and the earth wire must be firmly grounded!
2. Please make sure there is stable and normal voltage for the working chiller!
As the refrigeration compressor is more sensitive to the power supply and
voltage, so the operating voltage of our standard product is of 200 ~ 250V (110V
model is of 100 ~130V). If you do need a wider operating voltage range,
customization is available for us.
3. Unmatched power frequency can cause the chiller damage!
Please choose model of 50Hz or 60Hz according to actual circumstance.
4. To protect the pump, it’s strictly forbidden to run the chiller without water in the
storage water tank!
The new machine is packed after draining whole water in the tank, so please
make sure the tank has water inside before machine starting, otherwise it’s
easily to have the pump damaged. When the water level is below the green
(NORMAL) range of the water level gauge, the cooling capacity of our chiller
will go down slightly. Hence please ensure the water level is within the green
(NORMAL) range. To drain through circulating pump is strictly prohibited!
5. Please be sure that the air inlet and air outlet are in good ventilation!
There must be at least 50cm from obstructions to the air outlet which is in the
back of the cooler, and should leave at least 30cm between obstructions and
the side air inlet.
6. The filter screen must be regularly cleaned!
It’s essential to unpick and wash the dust gauze, or the serious blockage will
cause breakdown to the chiller.
7. Please pay attention to the effect of the condensate water!
With greater ambient humidity, when the water temperature is lower than the
ambient temperature, the condensate water will generate on the surface of
water circular pipes and the cooled components. If above circumstance
appears, it is recommended to set a higher water temperature or keep pipes
and cooled parts warm.
8. This product is an industrial equipment.For professional use only.

CW-6000/6100/6200 Series
4
<2> Contour and parts introduction
TEMPERATURE
CONTROLLER
WATER PRESSURE
GAUGE
POWER SWITCH
WATER SUPPLY
INLET
AIR INLET
(FILTER GAUZE)
AIR OUTLET
WATER INLET
WATER OUTLET
WATER LEVEL
GAUGE
DRAIN
ALARM OUTPUT
ELECTRICAL
CONNECTING BOX

CW-6000/6100/6200 Series
5
<3> Installation
It is very simple to install this industrial cooling machine. The installation for the
first time of the new machine can be carried out by following steps:
1. Open the package to check if the machine is intact and all the necessary
accessories are completed.
2. Open the injection port to feed cooling water. (Do not let the water spill over!)
Observing the water level gauge and adding water slowly, be careful not to
have the water overflowed! For the cooling of carbon steel equipment, the
water should be added an appropriate amount of cooling water additive
(anti-corrosion water aqua). Working in cold north area, it’s better to use
noncorrosive antifreeze fluid.
3. According to system conditions, please connect the water inlet and outlet pipe
well.
4. Plug in power, turn on the power switch. (Do not start up without water in the
water tank!)
(1) Power switch turned on, the circulation pump of the chiller starts working. The
first time of operating may cause more bubbles in the pipe leading to a flow
alarming occasionally, but running for a few minutes later, it will go back to
normal.
(2) After the first boot, you must immediately check whether the water pipe leaks.
(3) Power switched on, if the water temperature is below the set value, it is normal
that fans and other components of the machine do not work. The temperature
controller will automatically control the working conditions of the compressor,
magnetic valve, fans and other parts based on the set controlling parameters.
(4) As it takes a longer time to start over the compressor and other components,
according to different conditions, the time is range from seconds to minutes, so
do not turn off the power and again on frequently.
5. Check the water level in the water tank.
The first startup of the new chiller empties the air in the water pipe, leading a
slight water level decline, but in order to keep the water level in the green area,
it’s allowed to add adequate water again. Please observe and record the current
water level, and inspect it again after the chiller running for a period of time, if
the water level drops obviously, please re-inspect the water pipeline leakage.
6. Adjust parameters of temperature controller.
CW-6000/ 6100/ 6200 series use an intelligent thermostat. Normally users do not
need to adjust it. If it is really necessary, please refer to page 17, “Operating
status and parameters adjustment.”

CW-6000/6100/6200 Series
6
<4> Operation status and parameters
adjustment
The new T-506 intelligent temperature controller does not need to adjust
the controlling parameters under normal circumstance. It will self-adjust
controlling parameters according to room temperature for meeting equipment
cooling requirements.
The new T-506H intelligent temperature controller is selected constant
temperature control mode as factory setting with water temperature at 25℃.
User can adjust it as needed.
T-506 and T-506H controllers are of same functions and structure except
default setting.

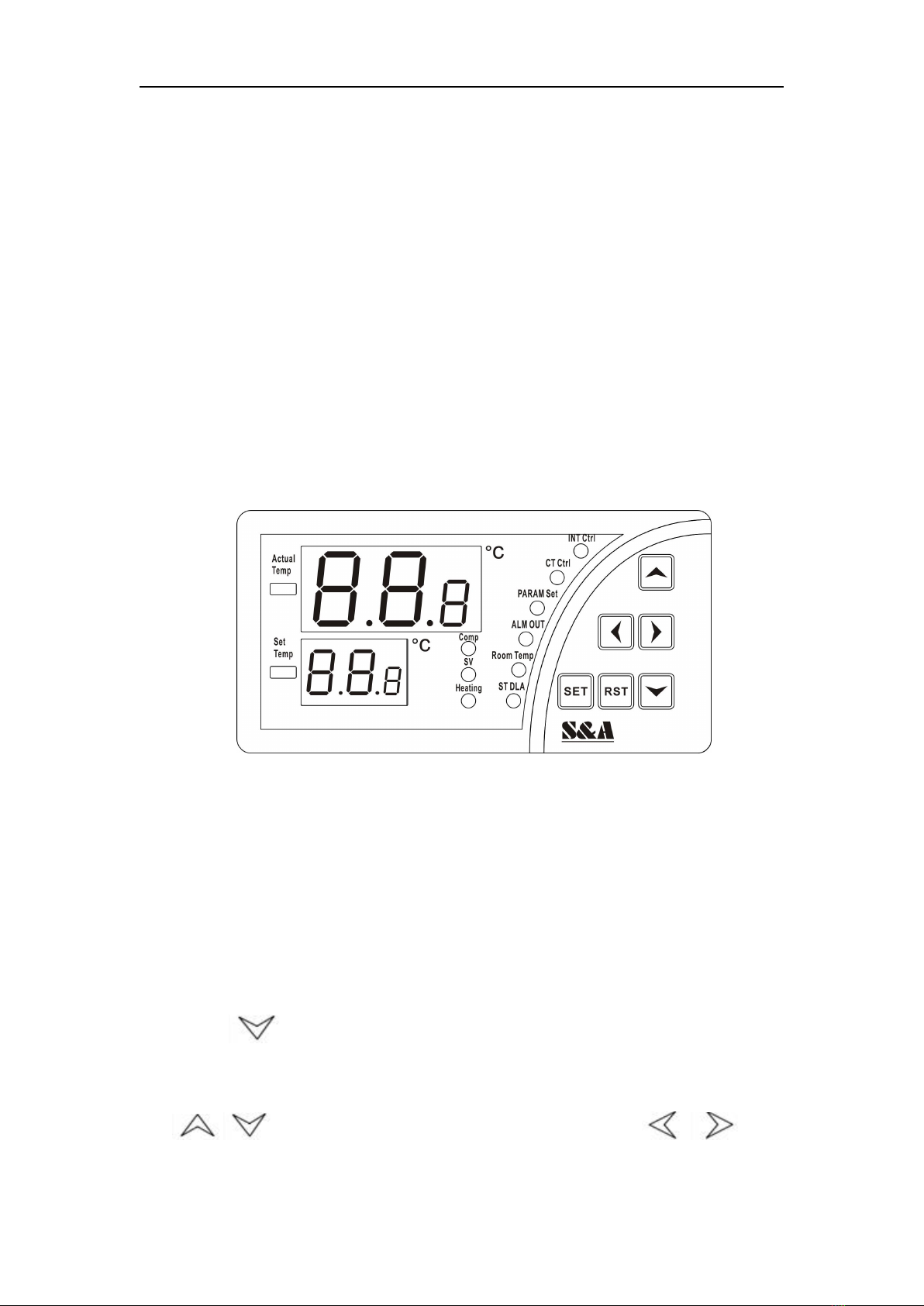

1. Temperature control panel introduction
(1). Indicators of temperature controller working status:
COMP ON, compressor working
SV ON, solenoid valve working
Heating ON, heating rod working
INT Ctrl ON, controller working in intelligent control mode
CT Ctrl ON, controller working in constant temperature control mode
PARAM Set ON, controller working in parameters setting mode
ALM OUT ON, alarm output status
Room Temp ON, displaying room temperature
ST DLA ON, starting up delay status
(2). Press key to show the room temperature, 6 seconds later default
display restored. (Meanwhile, Room Temp light is on, displaying room
temperature.)
(3). keys are for modifying parameters values and keys
are for switching parameter items.

CW-6000/6100/6200 Series
7
(4). RST key: confirm
(5). SET key: setting function
2. Restore to factory settings
Before machine startup, press and hold keys until the controller
displays rE, 6 seconds later after releasing the keys, the controller works in
normal order. All parameters values settings of the controller have been
restored to factory settings.
3. Alarm function
(1) Alarm Display:
When alarm occurs, the error code and the temperature will be alternately
displayed.
E1
E2
E3
E4
E5
E6
Ultrahigh
room
temperature
Ultrahigh
water
temperature
Ultralow
water
temperature
Room
temperature
sensor failure
Water
temperature
sensor failure
Water flow
alarm
(2) To suspend the alarm:
In alarming state, the alarm sound could be suspended by pressing any button,
but the alarm display remains until the alarm condition is eliminated.
4. Temperature controller parameters list
Order
Code
Item
Range
T-506
Temperature
controller
Factory Setting
T-506H
Temperature
controller
Factory Setting
Note
1
F0
Temperature
setting
F9~F8/
-20~+40
25
25
Constant
temperature
control effecting
2
F1
Temperature
Difference values
-15~+5
-2
-2
Intelligent control
effecting
3
F2
Cooling
hysteresis
0.1~3.0
0.8
0.3
4
F3
Way of control
0~1
1
0
1: intelligent
0: constant
temperature
5
F4
Alarm for ultrahigh
water temperature
1~20
10
10
6
F5
Alarm for ultralow
water temperature
1~20
15
15
7
F6
Alarm for ultrahigh
room temperature
40~50
45
45
8
F7
Password
00~99
8
8
9
F8
The allowed highest
water temperature
（F9+1）
~40
30
30
10
F9
The allowed lowest
water temperature
1 ~
（F8-1）
20
20

CW-6000/6100/6200 Series
8
5. General settings adjustment
Press SET key to enter into the user-defined state. Meanwhile, PARAM SET is
on, controller in parameters setup status.
(1) Under intelligent mode, the control panel displays the temperature difference
value between water and air (default value is -2).
(2) Under constant temperature mode ，the control panel displays the set
temperature value (default value is 25).
At this moment, press keys to change settings. After modifying the
value, press RST key to save and exit, then new parameters take effect, or
press SET key to exit without saving parameters. If there is no more action
within 20 seconds, it will automatically exit modifying status without saving
parameters.
6. Advanced settings adjustment
(1) Press and hold the key while press SET key for 5 seconds until 00
displayed in upper window and PAS in lower window. Then press
keys to select the password (default setting is 8), and then press the SET key, if
the password is correct, F0 displays, entering into setup status, D1 flashing to
indicate that the controller is under parameters setup status. If the password is
incorrect, it returns to temperature display.
(2) Enter setup state, press keys to switch parameter items
circularly, then press keys to modify the parameter values. Press
enter key RST at any time to exit parameters setup with saving modified
parameters and return to temperature display, then chiller runs under the new
parameters. If no key is pressed within 20 seconds, the controller will
automatically exit parameters setup without saving the modified parameters
(under parameters setup status, system running in original parameters). Under
parameters setup status, SET key does not work.
Note:
1. During parameters setting condition, system runs under original parameters.
2. Under constant temperature control mode, the water temperature is controlled by
parameter F0;
3. Under intelligent control mode, the water temperature will be automatically
adjusted according to temperature changes. The temperature difference is
commanded by F1.

CW-6000/6100/6200 Series
9
7. Advanced parameters adjustment case:
(1) Case 1: cooling water temperature is controlled by intelligent mode. Requiring
water temperature to be between 25℃to 31℃. Ambient temperature keeping
constant, when the set water temperature is 3℃lower than the ambient, the
fluctuation will not exceed ±0.5 ℃. There will be an alert when water
temperature is 10 ℃lower or higher than target. (e.g. when ambient
temperature is 30.0℃, cooling water temperature is between 27.5℃to 26.5℃,
if ambient temperature is up to 30.5 ℃, water temperature will be between
28.0℃to 27.0℃.)
(2) Case 2: cooling water temperature is controlled by constant mode. Requiring
water temperature is constant in 28℃, and the fluctuate does not exceed ±2℃.
The alarm of over high water temperature will be on when water temperature is
5℃higher than normal, and the alarm of over low water temperature will be on
when water temperature is 10℃lower than normal.
(3) Case 3: cooling water temperature is controlled by constant mode. Requiring
water temperature is constant in 25℃, and the fluctuate does not exceed ±1℃.
The over high water temperature will be on then water temperature is higher
than 30℃, and the alarm of over low water temperature will be on when water
temperature is lower than 10 ℃. (No matter what is the ambient temperature,
the cooling water temperature is constant in 24.0℃to 26.0℃)
Order
Code
Item
Value in
case 1
Value in
case 2
Value in
case 3
T-506
Temperature
controller
Factory Setting
T-506H
Temperature
controller
Factory Setting
1
F0
Temperature
setting
28
25
25
25
2
F1
Temperature
Difference values
-3
-2
-2
3
F2
Cooling
hysteresis
0.5
2.0
1.0
0.8
0.3
4
F3
Way of control
1
0
0
1
0
5
F4
Alarm for over high
water temperature
10
5
4
10
10
6
F5
Alarm for over low
water temperature
10
10
14
15
15
7
F6
Alarm for over high
Room temperature
45
45
45
45
45
8
F7
Password
8
8
8
8
8
9
F8
The allowed highest
water temperature
31
30
30
30
30
10
F9
The allowed lowest
water temperature
25
5
5
20
20

CW-6000/6100/6200 Series
10
<5> Alarm and output terminal
In order to guarantee the equipment will not be effected while abnormal situation h
appens on the chiller, CW-6000/6100/6200 series chillers possess alarm protection
function.
1. Alarm output terminals and wiring diagram.
2. Alarm causes and working status table.
Note: The flow alarm is connected to the normally open relay and normally closed
relay contacts, requiring operating current less than 5A, working voltage less than
300V.
Display
Condition
Alarm code
Buzzer
OUT
H1、H2
OUT
H1、H3
Circulating pump works
properly
DISCONNECTION
BREAKOVER
Blocked cooling water
circulation loop
E6
Sounds
BREAKOVER
DISCONNECTION
Alarm of water shortage
E6
Sounds
BREAKOVER
DISCONNECTION
Faulted circulating
pump
E6
Sounds
BREAKOVER
DISCONNECTION
Ultrahigh room temp
E1
Sounds
BREAKOVER
DISCONNECTION
Ultrahigh water temp
E2
Sounds
BREAKOVER
DISCONNECTION
Ultralow water temp
E3
Sounds
BREAKOVER
DISCONNECTION
Faulted room temp
sensor（constant temp
invalid）
E4
Sounds
BREAKOVER
DISCONNECTION
Faulted water temp
sensor
E5
Sounds
BREAKOVER
DISCONNECTION
Chiller power failure
BREAKOVER
DISCONNECTION

CW-6000/6100/6200 Series
11
<6> Specifications
CW- 6000
Model
CW-6000AH
CW-6000BH
CW-6000DH
CW-6000AI
CW-6000BI
CW-6000DI
CW-6000AN
CW-6000BN
CW-6000DN
Voltage
AC 1P 220V
AC 1P 220V
AC 1P 110V
AC 1P 220V
AC 1P 220V
AC 1P 110V
AC 1P 220V
AC 1P 220V
AC 1P 110V
Frequency
50Hz
60Hz
60Hz
50Hz
60Hz
60Hz
50Hz
60Hz
60Hz
Current
0.3~6.3A
0.45~14.7A
0.7~6.7A
1~15.3A
2.3~8.3A
4.2~18A
Compressor
power
0.965KW
0.895KW
1.12KW
0.965KW
0.895KW
1.12KW
0.965KW
0.895KW
1.12KW
1.28HP
1.22HP
1.52HP
1.28HP
1.22HP
1.52HP
1.28HP
1.22HP
1.52HP
Refrigeration
capacity
10286Btu/h
9502Btu/h
10724Btu/h
10286Btu/h
9502Btu/h
10724Btu/h
10286Btu/h
9502Btu/h
10724Btu/h
3.015KW
2.785KW
3.145KW
3.015KW
2.785KW
3.145KW
3.015KW
2.785KW
3.145KW
2592Kcal/h
2395Kcal/h
2711Kcal/h
2592Kcal/h
2395Kcal/h
2711Kcal/h
2592Kcal/h
2395Kcal/h
2711Kcal/h
Refrigerant
R-22 / R-410a
Refrigerant
charge
800g
750g
650g
800g
750g
650g
800g
750g
650g
Precision
±0.5℃
Reducer
Capillary
Protection
Overcurrent protection for compressor, flow alarm, over temperature alarm
Pump power
0.05KW
0.1KW
0.37~0.75 KW
Tank capacity
15L
Inlet and outlet
Rp1/2"
Max. lift
12M
25M
28~53 M
Max. flow
13L/min
16L/min
70L/min
N.W
60Kgs
72Kgs
G.W
70Kgs
82Kgs
Dimension
67 X 47 X 89 cm (L X W X H)
Package
dimension
74 X 60 X 109 cm (L X W X H)
*With heating and higher temperature precision functions are optional.

CW-6000/6100/6200 Series
12
CW- 6100
Model
CW-6100AH
CW-6100BH
CW-6100AI
CW-6100BI
CW-6100AN
CW-6100BN
Voltage
AC 1P 220V
AC 1P 220V
AC 1P 220V
AC 1P 220V
AC 1P 220V
AC 1P 220V
Frequency
50Hz
60Hz
50Hz
60Hz
50Hz
60Hz
Current
0.3~10 A
0.3~9A
0.7~ 10.4 A
2.3~ 12 A
2.3~11A
Compressor
power
1.38KW
1.29KW
1.38KW
1.29KW
1.38KW
1.29KW
1.84HP
1.72HP
1.84HP
1.72HP
1.84HP
1.72HP
Refrigeration
capacity
14483Btu/h
14092Btu/h
14483Btu/h
14092Btu/h
14483Btu/h
14092Btu/h
4.24KW
4.13KW
4.24KW
4.13KW
4.24KW
4.13KW
3650Kcal/h
3551Kcal/h
3650Kcal/h
3551Kcal/h
3650Kcal/h
3551Kcal/h
Refrigerant
R-22 / R-410a
Refrigerant
charge
950g
900g
950g
900g
950g
900g
Precision
±0.5℃
Reducer
Capillary
Protection
Overcurrent protection for compressor, flow alarm, over temperature alarm
Pump power
0.05KW
0.1KW
0.37~0.75 KW
Tank capacity
15L
Inlet and outlet
Rp1/2"
Max. lift
12M
25M
28~53 M
Max. flow
13L/min
16L/min
70L/min
N.W
65Kgs
77Kgs
G.W
75Kgs
87Kgs
Dimension
67 X 47 X 89 cm (L X W X H)
Package
dimension
74 X 60 X 109 cm (L X W X H)
*With heating and higher temperature precision functions are optional.

CW-6000/6100/6200 Series
13
CW- 6200
Model
CW-6200AH
CW-6200BH
CW-6200AI
CW-6200BI
CW-6200AN
CW-6200BN
Voltage
AC 1P 220V
AC 1P 220V
AC 1P 220V
AC 1P 220V
AC 1P 220V
AC 1P 220V
Frequency
50Hz
60Hz
50Hz
60Hz
50Hz
60Hz
Current
0.3~11A
0.3~11A
0.7~11.4A
0.7~11.4A
2.3~13A
2.3~14A
Compressor power
1.68KW
1.645KW
1.68KW
1.645KW
1.68KW
1.645KW
2.28HP
2.24HP
2.28HP
2.24HP
2.28HP
2.24HP
Refrigeration capacity
17510Btu/h
17640Btu/h
17510Btu/h
17640Btu/h
17510Btu/h
17640Btu/h
5.13KW
5.17KW
5.13KW
5.17KW
5.13KW
5.17KW
4420Kcal/h
4446Kcal/h
4420Kcal/h
4446Kcal/h
4420Kcal/h
4446Kcal/h
Refrigerant
R-22 / R-410a
Refrigerant charge
1100g
1200g
1100g
1200g
1100g
1200g
Precision
±0.5℃
Reducer
Capillary
Protection
Overcurrent protection for compressor, flow alarm, over temperature alarm
Pump power
0.05KW
0.1KW
0.37~0.75 KW
Tank capacity
15L
Inlet and outlet
Rp1/2"
Max. lift
12M
25M
28~53 M
Max. flow
13L/min
16L/min
70L/min
N.W
69Kgs
82Kgs
G.W
79Kgs
92Kgs
Dimension
67 X 47 X 89 cm (L X W X H)
Package dimension
74 X 60 X 109 cm (L X W X H)
*With heating and higher temperature precision functions are optional.

CW-6000/6100/6200 Series
14
<7> Simple troubleshooting
Failure
Failure Cause
Approach
Machine turned on but
unelectrified
Power cord is not plugged in place
Check and ensure the power interface
and the power plug is plugged in place
and in good contact.
Fuse burnt-out
Open the electric box cover, check the
protective tube, replace with spare one
if necessary and check whether the
power supply voltage is stable; Check
and ensure the power interface and
the power plug are in good contact.
Flow Alarm
(controller displays E6) use a
water pipe directly connect
to the water outlet and inlet
but still without water flowing
Water level in the storage water tank is too
low
Check the water level gauge display,
add water until the level shown in the
green area; And check whether water
circulation pipe leaks.
Flow alarm occurs while
running with other
equipment (controller
displays E6), but there is
water flowing and no alarm
when use a water pipe
directly connected to the
chiller water outlet and inlet.
Water circulation pipes are blocked or a
pipe bending deformation.
Check water circulation pipe
Ultrahigh water temperature
alarm
(controller displays E2)
Blocked dust gauze, bad thermolysis
Unpick and wash the dust gauze
regularly
Poor ventilation for air outlet and inlet
To ensure a smooth ventilation
for air outlet and inlet
Voltage is extremely low or astable
To improve the power supply circuit or
use a voltage regulator
Improper parameter settings on thermostat
To reset controlling parameters or
restore factory settings
Switch the power frequently
To ensure there is sufficient time
for refrigeration
(more than 5 minuets)
Excessive heat load
Reduce the heat load or use other
model with larger cooling capacity
Ultrahigh room temperature
alarm
(controller displays E1)
The working ambient
temperature is too high for the chiller
To improve the ventilation to
guarantee that the machine is running
under 40℃.
Serious problem of
condensate water
Water temperature is much lower than
ambient temperature, high humidity
Increase water temperature or
to preserve heat for pipeline
Water drains slowly from
outfall during water changing
Injection port is not open
Open the injection port

CW-6000/6100/6200 Series
15
