S&A CWFL-3000 User manual

CWFL-3000
FIBER LASER SPECIAL CHILLER
USER MANUAL

CWFL-3000 Series
2
Contents
<1> Cautions ----------------------------------------------------------------------------- 3
<2> Contour and parts introduction --------------------------------------------- 4
<3> Installation ------------------------------------------------------------------------- 5
<4> Unit introduction and parameters adjustment ------------------------- 6

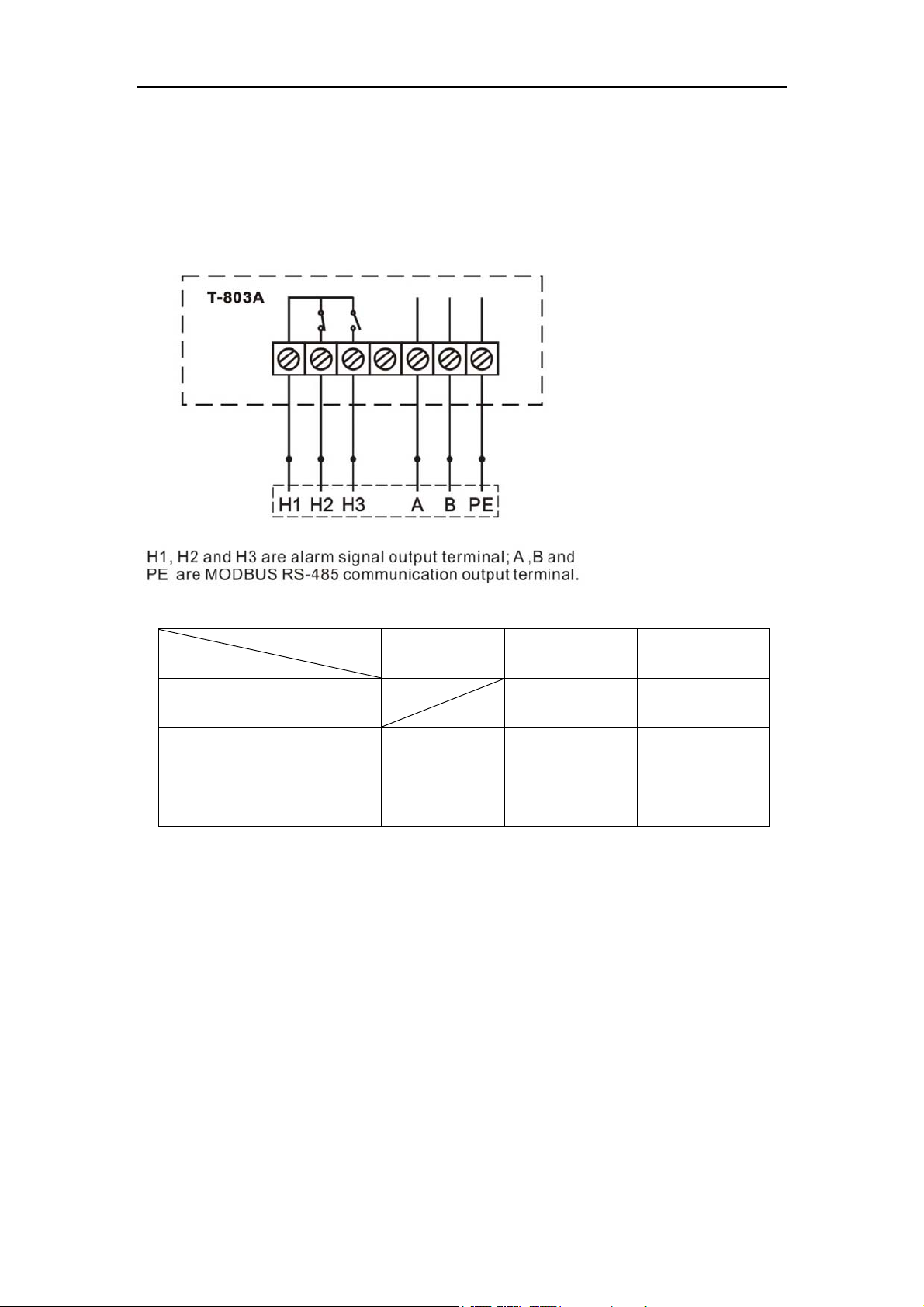

<5> Alarm and communication output ------------------------------------------- 11
<6> MODBUS RS-485 communication function ----------------------------- 12
<7> Simple troubleshooting -------------------------------------------------------- 14

CWFL-3000 Series
3
Thank you for using the machine from GUANGZHOU TEYU
ELECTROMECHANICAL CO., LTD. Please read the installation instructions
carefully before installing and operating and keep it properly.
This installation instructions is not a quality assurance. GUANGZHOU TEYU
ELECTROMECHANICAL CO., LTD reserves the right to the interpretation of
correction of typographical errors, improper mentioned information and product
improvement. The amended content will be reprinted in installation instructions
without notice in advance.
<1> Cautions
1. Please ensure that the power supply and electrical outlet are in good contact
and the earth wire must be firmly grounded!
2. Please make sure there is stable and normal voltage for the working chiller!
As the refrigeration compressor is more sensitive to the power supply and
voltage, so the operating voltage of our standard product is ±10％ of the rated
voltage. If you do need a wider operating voltage range, customization is
available for us.
3. Unmatched power frequency can cause the chiller damage!
Please choose model of 50Hz or 60Hz according to actual circumstance.
4. To protect the pump, it’s strictly forbidden to run the chiller without water in the
storage water tank!
The new machine is packed after draining whole water in the tank, so please
make sure the tank has water inside before machine starting, otherwise it’s
easily to have the pump damaged. When the water level is below the green
(NORMAL) range of the water level gauge, the cooling capacity of our chiller
will go down slightly. Hence please ensure the water level is within the green
(NORMAL) range. To drain through circulating pump is strictly prohibited!
5. Please be sure that the air inlet and air outlet are in good ventilation!
There must be at least 50cm from obstructions to the air outlet which is in the
back of the cooler, and should leave at least 30cm between obstructions and
the side air inlet.
6. The filter gauze must be regularly cleaned!
It’s essential to remove and wash the dust gauze regularly, otherwise chiller
malfunction can be caused by serious blockage.
7. Please pay attention to the effect of the condensate water!
With greater ambient humidity, when the water temperature is lower than the
ambient temperature, the condensate water will generate on the surface of
water circular pipes and the cooled components. If above circumstance
appears, it is recommended to set a higher water temperature or keep pipes
and cooled parts warm.
8. This product is an industrial equipment.For professional use only.

CWFL-3000 Series
4

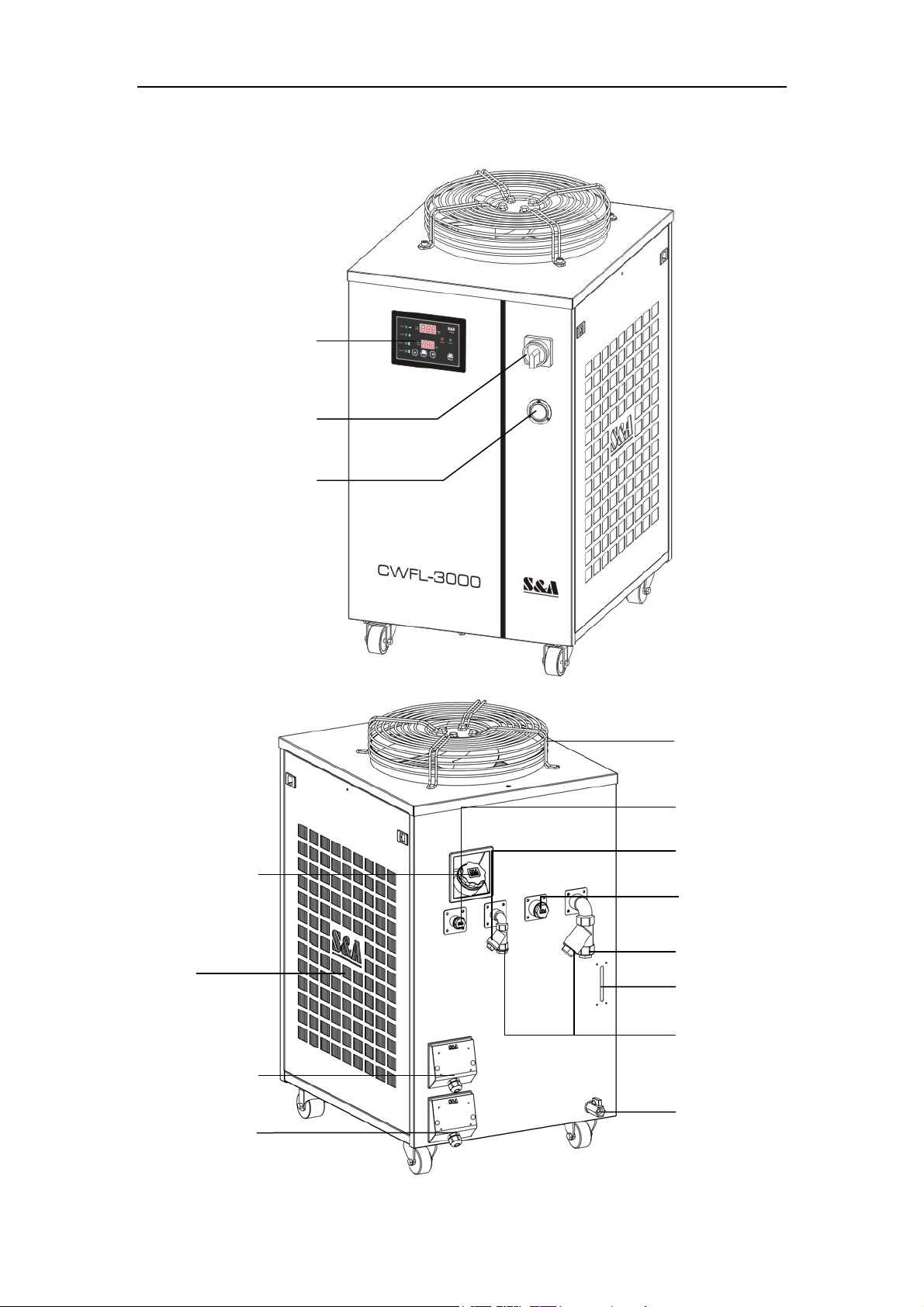

<2> Contour and parts introduction
POWER SWITCH
TEMPERATURE
CONTROLLER
WATER PRESSURE
GAUGE
AIR INLET
(FILTER GAUZE)
POWER SUPPLY
ALARM OUTPUT
WATER OUTLET (H)
WATER INLET (H)
DRAIN
WATER LEVEL GAUGE
WATER SUPPLY INLET
AIR OUTLET
WATER INLET (L)
WATER OUTLET (L)
FILTER

CWFL-3000 Series
5
<3> Installation
It is very simple to install this industrial cooling machine. The installation for the
first time of the new machine can be carried out by following steps:
1. Open the package to check if the machine is intact and all the necessary
accessories are completed.
2. Open the water supply lid to feed cooling water.
Observing the water level gauge to feed water slowly, be careful not to have the
water overflowed!
3. According to system conditions, please connect the water inlet and outlet pipe
properly.
4. Plug in power, turn on the power switch. (Do not start up without water in the
water tank!)
(1) The water pump starts working once the power switch is turned on. If “E08” or
“E09”error code is displayed on the upper window of temperature controller,
please adjust the 3-phase wiring connection order
(2) The first running of the chiller may have flow alarm because of bubbles in the
water pipe. It will recover to normal after water pump running constantly for a
while.
(3) If the chiller starts for the first time, you must immediately check whether the
water pipe leaks.
(4) Power switched on, if the water temperature is under the set value, it is normal
that fans and other components of the machine do not work. The temperature
controller will automatically control the working conditions of the compressor,
magnetic valve, fans and other parts based on the set controlling parameters.
(5) As it takes a longer time to start over the compressor and other components,
according to different conditions, the time is range from seconds to minutes, so
do not turn on and off frequently.
5. Check the water level in the water tank.
The first starting up of a new chiller will empty the air in the water pipe, causing
a slight water level decline, but in order to keep the water level in the green area,
it is allowed to add adequate water again. Please observe and record the current
water level, and inspect it again after the chiller running for a period of time, if
the water level drops obviously, please re-inspect the water pipeline leakage.
6. Adjust parameters of temperature controller.
CWFL-3000 series use an new intelligent controller. It works in defaulted
constant temperature control mode for the low temperature end with water
temperature set at 25℃ which can be adjusted as needed. The high temperature
end works in intelligent control mode and it will self-adjust controlling
parameters according to the ambient temperature changes.
Normally users do not need to adjust the parameters. If it is necessary, please
refer to page 6 , “Unit introduction and parameters adjustment.”

CWFL-3000 Series
6
<4> Unit introduction and parameters
adjustment
Default setting of T-803 new model intelligent temperature controller is
Intelligent temperature mode ,water temperature is setting 25℃, customer could
adjust the temperature according to requirement.
1.Temperature controller panel introduction
2. Power on / off operation
In power-on status, the power indicator is on, and press “on/off”to control the on
and off of the system. In the operation of dual temperature system, the digital tube
① indicates the actual water temperature of the low temperature circuit and the
digital tube ② indicates setting water temperature of the low temperature circuit.
When the system is off, the digital tube ② indicates “OFF”.
3. Parameter setting
（1）System Parameter setting
In standby status, press and hold “up”and “down”simultaneously for 5 seconds to
enter address setting. Digital tube ① indicates parameter code and digital tube ②
indicates the set value. Press “up” or “down”to adjust the set value. Press
“confirm” and exit after finishing setting.
（2）User parameter setting
In operating status, press and hold “menu”for 3 seconds to enter temperature
setting. Digital tube ① indicates parameter code and digital tube ② indicates the
set value. Press “up” or “down”to adjust the set value. Press “menu”to switch to
next parameter setting. Press “confirm” and exit after finishing setting.
（3）Admin parameter，PID parameter and Sensor parameter setting
In standby status, press and hold “menu” for 5 seconds and digital tube ①
indicates “cod”while digital tube ② indicates “000”with the first digit flashing for

CWFL-3000 Series
7
prompting password input. Press “up” or “down”to enter password. Press
“menu”to switch to the second and the third digit to enter password respectively.
After inputting correct password, press “confirm”to enter related parameter setting.
At this time, the digital tube ① indicates the related parameter code while digital
tube ② indicates the set value.Press “up” or “down”to adjust the set value. Press
“menu”to switch to the next parameter setting. Press “confirm” and exit after
finishing setting. If wrong password is input, it quits the setting automatically.
(4) Password table
Parameter category Password
Administrators Parameter 359
PID Parameter 888
Sensor Parameter 168
Reset Parameter 999
(5) Parametersettingtable
Parameter
category
Item
No. Parameter name Range Unit Factory
setting
Paramete
r address
User
parameter
1 Setting temperature of
low temperature circuit -19.9~50.0 ℃ 25.0 40047
2 Heating difference of
low temperature circuit
-5.0~8.0 ℃ 0.3 40048
3 Compressor starting
temperature difference
0.1~8.0 ℃ 0.8 40049
4 Compressor stop
temperature difference
0.0~8.0 ℃ 0.8 40050
5
Low temperature
following temperature
difference
-19.9~20.0
℃ -2.0 40051
6 Low temperature mode
selection
0-Constant temperature mode;
1- Intelligent mode 0 40052
7 Setting temperature of
high temperature circuit
5.0~60.0 ℃ 30.0 40053
8 Heating difference of
high temperature circuit
-5.0~8.0 ℃ 1 40054
9
Refrigeration difference
of high temperature
circuit
0.1~8.0
℃ 0.8 40055
10
High temperature
following temperature
difference
-19.9~20.0
℃ -2.0 40056
11 High temperature
model selection
0-Constant temperature mode;
1- Intelligent mode 1 40057
Admin
parameter 12 Start/stop mode with
power 0-standby；1-start；2-memory 0 40058

CWFL-3000 Series
8
13 Three phase detection
enable 0-Disable ; 1-Enable 1 40059
14 Compressor overload
current 0~30.0 A 9.0 40060
15 Pump overload current 0~30.0 A 4.0 40061
16 Upper limit alarm of low
temperature circuit 20.0~60.0 ℃ 35.0 40062
17 Lower limit alarm of low
temperature circuit -19.9~20.0 ℃ 5.0 40063
18 Upper limit alarm of
high temperature circuit 25.0~70.0 ℃ 40.0 40064
19 Lower limit alarm of low
temperature circuit 1.0~25.0 ℃ 10.0 40065
20
Flow rate lower limit
protection of low
temperature circuit
0~50.0
L/Min 8.0 40066
21
Flow rate lower limit
protection of high
temperature circuit
0~50.0
L/Min 0.5 40067
22 Flow switch type of low
temperature circuit 0-Normally open ; 1-Normally closed 1 40068
23 Flow switch type of
high temperature circuit 0-Normally open ; 1-Normally closed 1 40069
24 Low pressure switch
type 0-Normally open ; 1-Normally closed 0 40070
25 High pressure switch
type 0-Normally open ; 1-Normally closed 1 40071
26 Level switch type 0-Normally open ; 1-Normally closed 0 40072
27 Alarm output type 0-Normally open ; 1-Normally closed 1 40073
28 Flow rate detection
delay 0~300 Second 2 40074
29 Low pressure detection
delay 0~300 Second 60 40075
30 Compressor frequently
starting delay 10~300 Second 90 40076
31 Pump star/stop with
failure
0-Pump stops with failure
1-Pump works with failure 1 40077
32
Water temperature
following upper limit
of low temperature
circuit
25.0~45.0 ℃ 30.0 40078
33
Water temperature
following lower limit of
low temperature circuit
0.0~25.0 ℃ 20.0 40079

CWFL-3000 Series
9
34
Water temperature
following upper limit
of high temperature
circuit
25.0~50.0 ℃ 35.0 40080
35
Water temperature
following lower limit of
high temperature circuit
0.0~30.0 ℃ 20.0 40081
36 Standby antifreeze
enable 0-Disable ; 1-Enable 0 40082
37 Standby antifreeze
temperature 0.0~20.0 ℃ 5.0 40083
38 Model selection 0-Single temperature type;
1-Dual temperature type 2 40084
39 Ultra-low liquid level
delay 1~600 Second 30 40085
40 State transition delay 0~99 Second 20 40086
PID
parameter
41
PID of low
temperature circuit
enable
0-Disable ; 1-Enable 0 40087
42
PID output period of
low temperature
circuit
0.1~40.0 Second 10.0 40088
43
PID integration period
of low temperature
circuit
1~50 Second 10 40089
44 PID-KP of low
temperature circuit 0~100 10 40090
45 PID-KI of low
temperature circuit 0~100 1 40091
46 PID-KD of low
temperature circuit 0~100 2 40092
Sensor
parameter
47 Temperature sensor
selection 0-5K；1-10K 1 40093
48 Flow sensor selection 0-ON/OFF type; 1-simulation type 1 40094
49 Flow sensor ratio 0.1~60.0 2.3 40095
50
Flow sensor selection
of high temperature
circuit
0-ON/OFF type; 1-simulation type 1 40096
51
Flow sensor ratio of
high temperature
circuit
0.1~60.0 13.0 40097

CWFL-3000 Series
10
4.Error code able
When failure occurs, the output stops and gives alarm signal with error code
displayed and flashing.
Item No. error code Fault name
1 E01 ambient temperature sensor failure
2 E02 water temperature sensor failure of low temperature circuit
3 E03 water temperature sensor failure of high temperature circuit
4 E08 power missed phase
5 E09 power anti-phase
6 E10 liquid level protection
7 E11 compressor low pressure protection
8 E12 compressor high pressure protection
9 E19 compressor overload
10 E13 flow rate protection of low temperature circuit
11 E14 flow rate protection of high temperature circuit
12 E16 pump overload
13 E45 upper limit alarm of low temperature circuit
14 E54 lower limit alarm of low temperature circuit
15 E35 Upper limit alarm of high temperature circuit
16 E53 lower limit alarm of high temperature circuit
17 E17 lower flow rate limit protection of low temperature circuit
18 E18 lower flow rate limit protection of high temperature circuit
5.Temperature current checking
When the system is on, press“up” or “down”to check the working current of the
compressor and the water tank temperature. The digital tube ② indicates the
checked part while the digital tube ① indicates the checked value. If no button is
pressed within 5 seconds,then the display restores to the interface that indicates
water temperature and setting temperature status.
CH1 ----- Temperature of low temperature circuit (℃)
CH2 ----- Temperature of high temperature circuit (℃)
CH3 ----- Flow rate of low temperature circui (L/Min)
CH4 ----- Flow rate of high temperature circuit (L/Min)
CH5 ----- Compressor current (A)
CH6 ----- Pump current (A)
CH7 ----- Ambient temperature (℃)

CWFL-3000 Series
11
<5> Alarm and communication output
For ensuring the equipment will not be damaged when abnormal condition occurs
in the chiller, it has alarm protection function.
1. Alarm and MODBUS RS-485 communication output wiring diagram.
2. Working condition table of alarm signal
Note: The flow alarm is connected to the normally open relay and normally closed
relay contacts, requiring operating current less than 5A, working voltage less than
300V.
Display
working status Buzzer OUT
H1、H2
OUT
H1、H3
Circulation pump works
properly Disconnection Breakover
E01,E02,E03,E08,E09,E10,E11,
E12,E13,E14,E16,E17,E18,E19,
E35,E45,E53,E54
Sounds Breakover Disconnection

CWFL-3000 Series
12
<6> MODBUS RS-485 communication
function
This system adopts MODBUS-RTU communication slave mode, baud rate 9600, no
parity, 8 data bits, 1 stop bit, and supports MODBUS-RTU command.
Parameter
address
(decimal)
Description Value
range Remarks Attributes
00000 Output switching
value
Bit0: alarm
R
Bit1: Heating of low temperature circuit
Bit2: Pump
Bit3:Refrigeration valve/high
temperature refrigeration
Bit4:Heating valve/refrigerant valve
Bit5:Alarm
Bit6:
Bit7: Heating of high temperature circuit
10000 Input switching value
Bit0:Flow switch of low temperature
circuit
R
Bit1: Low pressure switch
Bit2: High pressure Switch
Bit3:Flow switch of high temperature
circuit
Bit4: Level switch
40015 Restore factory
default
1 *1 W
40025 System status
0x01: standby
R/W
0x02: power on
0x03: fault
40029 Error code
0: normal and no fault
R
1：Ambient temperature sensor failure
1： Water temperature sensor failure of
low temperature circuit
3：Water temperature sensor failure of
high temperature circuit
8：Power missed phase protection
9： Power anti-phase protection
10： Liquid level protection
11 ： Compressor low pressure
protection
12 ： Compressor high pressure
protection

CWFL-3000 Series
13
13 ： Flow rate protection of low
temperature circuit
14 ： Flow rate protection of high
temperature circuit
16： Pump overload
17：Lower flow rate limit protection of
low temperature circuit
18：Lower flow rate limit protection of
high temperature circuit
19： Compressor overload
33： Abnormal system operation
34：Conductivity upper limit alarm
35 ：Upper limit alarm of high
temperature circuit
45：Upper limit alarm of low temperature
circuit
53 ：Lower limit alarm of high
temperature circuit
54：Lower limit alarm of low temperature
circuit
40030 System uptime Unsigned integer *1 R
40034 Compressor uptime Unsigned integer *1 R
40039 Local address 1~125 *1 R/W
30000 Temperature of low
temperature circuit
*10
R
30001 Temperature of high
temperature circuit
*10
30002 Flow rate of low
temperature circuit
*10
30003 Flow rate of high
temperature circuit
*10
30004 Compressor current *10
30005 Pump current *10
30006 Ambient temperature *10

CWFL-3000 Series
14
<7> Simple troubleshooting
Phenomenon Reason Solution
No power after turned on
Power cord is not
plugged in place.
Check and ensure the power interface
and the power plug are well plugged.
Fuse burnt-out. Replace fuse tube that in the electric
box at the back of chiller
Flow alarm，use a water pipe
connect the water outlet and inlet
but without water flowing.
Low water level in the
water tank.
Check the water level gauge indicator,
pour water until the water meet green
area; and check whether water
circulation pipe leaks.
Flow alarm occurs while running
with applied equipments
, but there is water flowing
without alarm when use a water
pipe directly connected to the
water outlet and inlet.
Water circulation pipes
are blocked or a pipe
bending.
Check water circulation pipes.
Upper temperature limit alarm
Anti-dust gauze
accumulated heavy
dust leading to poor
heat dissipate.
Remove the anti-dust gauze and clean
it regular.
Poor ventilation for air
outlet or inlet.
Make sure good ventilation
for air outlet and inlet.
Over low or unstable
voltage.
To improve the power supply circuit or
use a voltage regulator.
Error parameter setting
of
temperature controller.
Resetting parameter or restore to
default setting.
Chiller On/Off
frequently
To make sure chiller have enough time
to refrigeration (about 5 minutes
above).
Heat overload Reduce heat overload, or use larger
refrigeration capacity chiller.
Condensate water heavily.
Water temperature is
much lower than
ambient temperature,
high humidity.
To increase water temperature or to
keep warm for pipeline.
Water drains slowly from outfall
when changing water.
Water Supply Inlet not
open. To open water supply inlet.

CWFL-3000 Series
15
CWFL-3000
光纤激光器专用冷水机
使用安装说明书

CWFL-3000 Series
16
目 录
一、使用注意事项 ----------------------------------------------------------------------- 17
二、外形及部件名称 -------------------------------------------------------------------- 18
三、安装说明 ----------------------------------------------------------------------------- 19
四、机组介绍与参数调整 -------------------------------------------------------------- 20
五、报警与通讯输出 ------------------------------------------------------------------- 23
六、MODBUS RS-485 通讯功能 --------------------------------------------------- 24
七、简单故障处理 ----------------------------------------------------------------------- 25

CWFL-3000 Series
17
感谢您购买广州特域机电有限公司的产品，请在使用前仔细阅读使用安装说
明书，并妥善保管。
本使用安装说明书并非质量保证书，对印刷错误的更正, 所述信息谬误的勘
误，以及产品的改进，均由广州特域机电有限公司随时做出解释，恕不预先通
知，修正内容将编入再版使用安装说明书中。
一、使用注意事项
1、请确保电源插座接触良好并且地线可靠接地！
2、请确保冷水机的工作电压稳定、正常！
由于制冷压缩机对电源电压比较敏感，我公司标准产品的正常工作电压为额
定电压±10％。如果确实需要更宽的工作电压范围，可以另行定制。
3、电源频率不匹配会导致机器损坏！
请根据实际情况，使用 50Hz 或60Hz 的机型。
4、为保护循环水泵，严禁无水运行！
新机装箱前都排空了储水水箱，请确保水箱注水后再开机，否则水泵极易损
坏。当水箱水位在水位计绿色（NORMAL）范围以下时，冷却机制冷量会轻
微下降，请保证水箱水位在水位计的绿色（NORMAL）范围内。严禁使用循
环泵排水！
5、请确保冷水机入风、出风通道顺畅！
冷水机上面的出风口距离障碍物要留有 50cm 以上的距离，侧面的入风口
离障碍物要求距离在 30cm 以上。
6、入风口的滤网必须定期清洗！
必须定期拆洗防尘网, 防尘网严重堵塞会引起冷水机故障。
7、请注意冷凝水的影响！
当水温低于环境温度，并且环境湿度较大时，循环水管与被冷却器件表面会
产生冷凝水。当出现以上情况时，建议调高水温或对水管与被冷却器件进行保
温。
8、本产品为工业设备，请勿让非专业人士操作。

CWFL-3000 Series
18
二、 外形及部件名称
电源开关
水压表
温度控制器
入风口（滤网）
注水口
电源
低温冷却水出口
高温冷却水入口
出风口
排水口
水位计
流量报警输出
低温冷却水入口
高温冷却水出口
过滤器

CWFL-3000 Series
19
三、 安装说明
冷水机安装使用非常简单，新机首次使用可按以下步骤进行：
1、打开包装，检查机器是否完好，附件是否齐备。
2、拧开机器注水口，加入冷却水。
加水时应同时观察水位计的水位慢慢加水，注意不要让水溢出！
3、根据设备情况接好出水管、入水管。
4、插上电源线，打开电源开关。（严禁无水开机！）
（1）打开电源开关后，水泵会立即启动。如果温度控制器上显示窗显示“E08”
或“E09”故障，请调整三相电源的接线顺序。
（2）新机第一次开机时管路中会有较多的气泡导致机器偶尔流量报警，水泵连
续运行数分钟后就会恢复正常。
（3）第一次开机后，必须马上检查水管管路有无漏水。
（4）按温控器开关键启动制冷系统后（运行指示灯亮），如果水温低于设定温度，
机器的风扇等器件不工作是正常现象。温控器会根据设定的控制参数自动
控制压缩机、电磁阀、风扇等器件的工作状态。
（5）由于压缩机等器件有一个较长的启动过程，根据不同的工况从几十秒到数
分钟不等，所以不要频繁启停冷水机。
5、检查水箱水位。
新机开机后排空了水管中的空气，水箱水位会略有下降，为了保持水位在
绿色区域，可以再次适量加水。观察并记下当前的水位情况，等冷水机运行
一段时间后再次观察水位计，如果水位下降明显，就要再次检查水管管路的
渗漏情况。
6、调整温控器参数。
CWFL-3000 双温单泵系列冷水机使用的智能温控器低温端出厂设置为恒
温控制模式，水温设定为 25℃，用户可以根据需要调整。高温端为智能控制
模式，它会根据室温的变化自动调整控制参数。
一般情况下，不需要调整控制参数，如确实必要的，可参考第 20 页《机
组介绍与参数调整》。

CWFL-3000 Series
20
四、机组介绍与参数调整
T-803A 新型智能控制器出厂设定为恒温温控模式，水温设定为 25℃，用
户可以根据需要调整。
1、温度控制器面板介绍
2、开关机操作
系统上电，电源指示灯亮，按“开/关”键控制系统开和关。开机时，单温状态
数码管①显示低温实际水温，数码管②显示低温设定水温。关机时数码管②显
示“OFF”
3、参数设置
（1）系统参数设置
待机状态下持续按住“上”“下”组合键 5 秒后，此时进入地址设置，数码管①
显示设置参数代号，数码管②显示设定值，按“上”或“下”可调整设定值。
设置完毕后按 “确认”键确认并退出
（2）用户参数设置
开机状态下持续按住“菜单”键 3 秒后，此时进入温度设置，数码管①显示设
置参数代号，数码管②显示设定值，按“上”或“下”可调整设定值，按“菜
单”键切换至下一项参数设置。参数设置完毕后按“确认”键确认并退出
（3）管理员参数，PID 参数及传感器参数设置
待机状态下持续按住“菜单”键 5 秒后，此时数码管①显示“cod”，数码管②
显示“000”且百位闪烁提示输入密码，按“上”或“下”键输入密码，按“菜
单”键切换至十位个位输入。输入正确的密码后按“确认”键进入对应的参数
设置。同时数码管①显示对应设置参数代号，数码管②显示设定值。按“上”
或“下”可调整设定值，按“菜单”键切换至下一项参数设置。参数设置完毕
后按“确认”键确认并退出。若输入密码错误立即退出设置。
