Santos 2 & 4-LITER MIXER Operating instructions

SANTOS: User and maintenance manual
98137 EN 2.2 - 12 2010 1 / 15 www.santos.fr
2 & 4-LITER MIXER N°37
SANTOS SAS :
140-150 AVENUE ROGER SALENGRO
69120 VAULX-EN-VELIN (LYON) - FRANCE
PHONE [phone] - FAX [phone] -
E-Mail: [email protected] www.santos.fr
USER AND MAINTENANCE MANUAL
! IMPORTANT: documents included in this manual to be kept:
"CE" COMPLIANCE DECLARATION
WARRANTY CERTIFICATE
Bol 4 liters
Bol 2 liters
Read the instructions for use before unpacking the appliance.
Coffee grinders - Fruit juicers - Mixers - Blenders - Drinks dispensers - Planetary mixers
Cheese graters - Ice crushers - Mincers - Vegetable slicers – Dough mixer
Moulins à café – Presse-fruits - Mixers – Blenders – Distributeurs de boissons –
Batteurs mélangeurs - Pétrin – Râpes à fromage – Broyeurs à glaçons – Hache-viande – Coupe-
légumes
MODELES DEPOSES FRANCE ET INTERNATIONAL
INTERNATIONALLY PATENTED MODELS

98137 EN 2.2 - 12 2010 2 / 15 www.santos.fr
SANTOS: User and maintenance manual
CONTENTS
“CE” COMPLIANCE DECLARATION..................................................................................3
SAFETY RULES..................................................................................................................4
INSTALLATION AND HANDLING....................................................................................4
DO NOT:..........................................................................................................................4
ELECTRICAL CONNECTION:.........................................................................................4
1st TIME USE..................................................................................................................5
RECYCLING THE PRODUCT AT THE END OF ITS SERVICE LIFE .............................5
DESCRIPTION OF APPLIANCE.........................................................................................6
USING THE APPLIANCE....................................................................................................6
USING FOR THE 1st TIME:.............................................................................................6
Locking the jar clamping rod:........................................................................................6
Operation:.....................................................................................................................7
Stopping the appliance:................................................................................................7
Rotation speed: ............................................................................................................7
Mixing solid foods:........................................................................................................7
Ice:................................................................................................................................7
Making a mayonnaise:..................................................................................................7
CLEANING.......................................................................................................................8
MAINTENANCE...............................................................................................................9

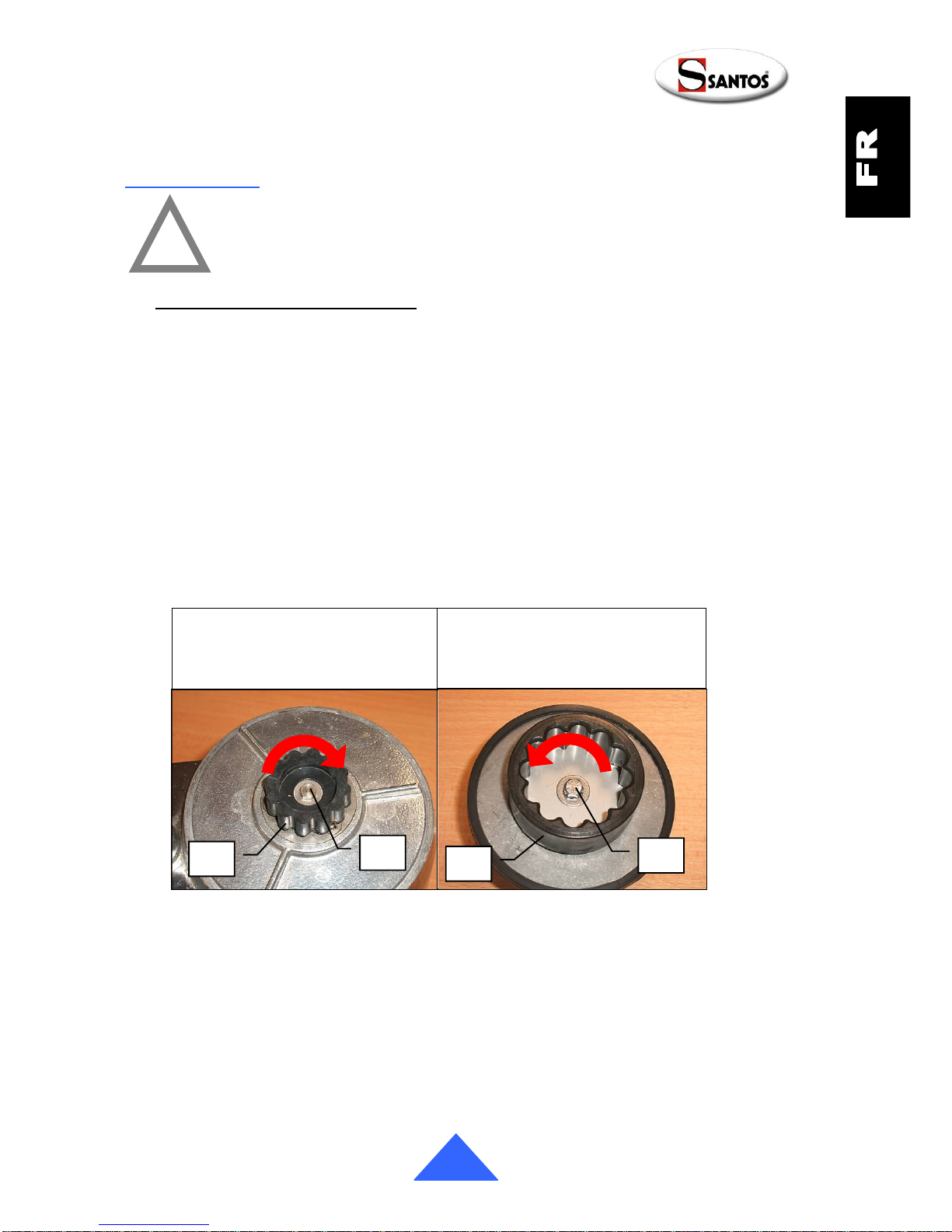

Changing the coupling system: ....................................................................................9
Spare parts:................................................................................................................10
FAULT FINDING ...............................................................................................................10
The machine will not start:..........................................................................................10
The appliance stops following an overload:................................................................10
The motor runs but the blades do not rotate:..............................................................10
APPLIANCE TECHNICAL SPECIFICATIONS ..................................................................11

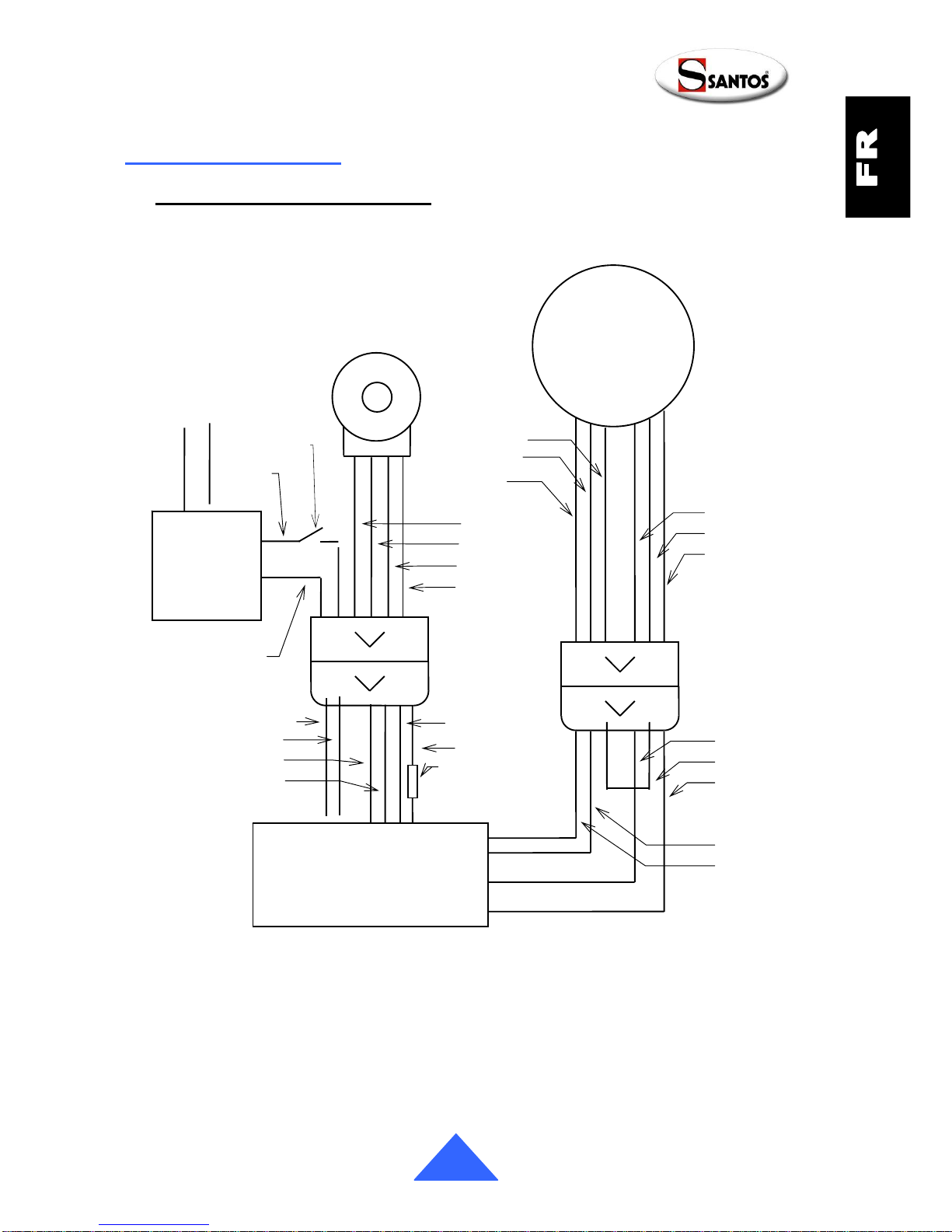

Electrical wiring diagram:...............................................................................................12
110-120V 50/60Hz wiring diagram .............................................................................12
220-240V 50/60Hz wiring diagram .............................................................................13
Figures...........................................................................................................................14
WARRANTY CERTIFICATE ............................................................................................15
APPLIANCE IDENTIFICATION PLATE ..........................................................................15

98137 EN 2.2 - 12 2010 3 / 15 www.santos.fr
SANTOS: User and maintenance manual
“CE” COMPLIANCE DECLARATION
THE MANUFACTURER:
SANTOS SAS - 140-150, Av. Roger SALENGRO 69120 VAULX-EN-VELIN (LYON)
FRANCE
declares that the appliance intended for the professional market described below:
Description: MIXER
Type number: 37, 37C
complies with:
the statutory provisions defined in appendix 1 of the European "machines" directive
n°2006/42/CE and the national legislation transposing it
the statutory provisions of the following European directives and regulations:
oN° 2006/95/CE (low voltage directive)
oN° 2004/108/CE (EMC directive)
oNo. 2002/95/CE (RoHS directive)
oNo. 2002/96/CE (WEEE directive)
oN° 1935/2004/CE (regulation) relating to materials and articles intended to
come into contact with foodstuffs
Harmonised European standards used to give presumption of conformity with the essential
requirements of the above-mentioned directives:
NF EN 12852+A1: 2010, Food processing machinery – Food preparation
equipment and blenders - Safety and hygiene requirements.
This European standard is a type-C standard as defined in EN ISO 12100. When the provisions of
this type-C standard differ from those stated in the type-A or B standards, the provisions of the type-
C standard override the provisions of the other standards. This standard provides the means to
comply with the requirements of the "machines" directive n°2006/42/CE, (see appendix ZA)
NF EN ISO 12100 -1 and 2:2004: Safety of machinery - General principles for
design
NF EN 60204-1: 2006 : Safety of machinery - Electrical equipment of machines-
General requirements
NF EN 1672-2: 2005, Food processing machinery – Basic concepts – Hygiene
requirements
NF EN 60335-1: 2003 : Household and similar electrical appliances. Safety.
NF EN 60335-2-64 :2004 : Particular requirements for commercial electric kitchen
machines
Drawn up in VAULX-EN-VELIN on: 01/01/2010
Signatory’s position: CHIEF EXECUTIVE OFFICER
Signatory’s name: Aurélien FOUQUET
Signature:

98137 EN 2.2 - 12 2010 4 / 15 www.santos.fr
SANTOS: User and maintenance manual
Note: you will find it easier to understand the next few paragraphs if you refer to the
diagrams at the end of this manual
SAFETY RULES
At the time of use, maintenance or scrapping of the appliance, always ensure that the
following elementary precautions are adhered to.
Read the explanatory instructions in full
INSTALLATION AND HANDLING
It is prohibited to hold the appliance by the rod (1) or locking lever (2)
The appliance can be installed by one person alone.
For ease of use, you are advised to place the appliance on a table or work
surface to easily add the ingredients or to monitor the progress
(recommended height: 90 cm, to be adapted as required for the user).
DO NOT:
1. Plunge the base in water or any other liquid for reasons of protection against
risks of electrocution.
2. Use this applicable to blend, grind or emulsify anything other than foodstuffs.
3. The appliance is not designed for processing frozen foods.
4. Do not insert solid ingredients into the mixer before switching it on.
5. Do not operate the appliance with the jar empty.
6. Do not remove the jar until the blades have stopped completely.
7. Never leave water permanently in the jar.
8. Neither a water spray or a pressure spray should be used for cleaning
9. Use of spare parts other than certified original SANTOS parts is prohibited
10.Never use the appliance if the power cord is damaged.
11.Never use the appliance if the blades are: broken or damaged.
12.Never attempt to change the blades with the jar on the base.
13.Be careful not to get burnt when preparing hot products. The surfaces of the
jar and lid may be very hot.
ELECTRICAL CONNECTION:
The appliance's power supply is available in two single-phase voltages:
-110-120 V 50/60 Hz:
-220-240 V 50/60 Hz:
!
!

98137 EN 2.2 - 12 2010 5 / 15 www.santos.fr
SANTOS: User and maintenance manual
Line protection: the appliance must be connected to a standard 2 pole + earth socket. The
set-up must be fitted with a differential circuit breaker and a 16A fuse. Earthing of the
appliance is compulsory.
TAKE CARE:
Before connecting the appliance, check that the mains electrical voltage is the same
as the voltage for your appliance. Its value is shown:
either on the identification plate under the appliance.
or on the identification plate on the last page of this manual.
If the power cord is damaged, it should be replaced with a special unit available from
SANTOS or a SANTOS-approved dealer.
TAKE CARE: Check that the on / off switch (3) is in position “0-Off” before
plugging the power cord in to the mains power socket.
1st TIME USE
Be careful not to get cut when handling the blades or cleaning inside
the jar.
Thoroughly clean all parts in contact with the food.
Wash the following with a standard dish washing product: jars (6), lids (7), caps (8).
You are not advised to wash the lid seals (9) in a dishwasher.
RECYCLING THE PRODUCT AT THE END OF ITS SERVICE LIFE
This appliance is marked with the symbol of the selective waste sorting
system relating to waste electrical and electronic equipment. This means
that this product is covered by a selective sorting system in compliance with
the 2002/96/CE Directive (WEEE) - part relating to appliances for
professional use - so as to be either recycled or dismantled with a view to
reducing any impact on the environment.
For further information, you can contact SANTOS or your local dealer.
For the disposal or recycling of the appliance components, please refer to a specialist
company or contact SANTOS.
Electronic products not covered by a selective sorting system are potentially dangerous for
the environment.
The packaging material should be disposed of or recycled in accordance with regulations
in force.
!
!
!

SANTOS: User and maintenance manual
98137 EN 2.2 - 12 2010 6 / 15 www.santos.fr
DESCRIPTION OF APPLIANCE
Mixer N° 37 is an electrical appliance designed to blend, grind and mix
different foodstuffs in the form of liquids, doughs/batters or solids.
The most common applications relate to the following preparations:
COOKING: soups – cream soups - sauces - creams - mousses - purées - pâtés -
soufflés...
DESSERTS: creams – stewed fruit - batters - milk-shakes - flans - mousses...
DRINKS: fruit, vegetable cocktails - punches - syrups - sangria.
USING THE APPLIANCE
Do not operate the appliance with the jar empty.
!
USING FOR THE 1st TIME:
Locking the jar clamping rod:
For your safety, the appliance can only operate when the jar (6) is
closed by its lid (7) and correctly positioned on the base (4).
Push the lever (2) to the Left to lock or to the Right to unlock the
jar clamping rod (1).
When in the unlocked position (rod in top position), place the jar
closed by its lid on the base (4).
Turn the lever (2) to the Left to lock the jar (6) (rod in lower position).
Turn the rotary switch (3) to start up the motor and set the desired
speed.
3
4
2
1 7
6
2
Lever in
Unlocked position
Lever in
Locked position

98137 EN 2.2 - 12 2010 7 / 15 www.santos.fr
SANTOS: User and maintenance manual
Operation:
The mixer must always operate with a minimum of liquid in the jar in order to drive solid
foods towards the blades.
Stopping the appliance:
There are two ways to stop the appliance:
1. Turn the rotary switch (3) to "0" to stop the motor completely, then operate the rod
locking lever (2) to release the jar. Wait until the blades have stopped completely
before removing the jar from the base.
2. During operation at a set speed, turn the lever (2) to the Right to unlock the clamping
rod (1). This operation will stop the appliance without altering the speed adjustment.
Rotation speed:
The rotation speed of the blade must be adapted to the results desired and the type of
foodstuffs to be processed.
Mixing solid foods:
Dice up dry ingredients and insert them through the opening in the lid (7) when the
appliance is in operation.
Increase the size of the cubes according to the quantity of food already mixed or "puréed"
in the jar.
Ice:
Do not use the blades to crush blocks of ice.
Small ice cubes like those produced by the majority of automatic ice makers can be
crushed at low speed.
Making a mayonnaise:
Put all the ingredients in the jar except for the oil. During operation, remove the cap (8)
from the lid and add the oil a little at a time pouring it in evenly.

SANTOS: User and maintenance manual
98137 EN 2.2 - 12 2010 8 / 15 www.santos.fr
CLEANING
Be careful not to get cut when handling the blades or cleaning inside the jar.
IMPORTANT:
Stop the appliance and unplug the power cord from the
appliance.
! The appliance should neither be cleaned in a water spray nor
with a pressure spray
The motor unit (4) must not be immersed in water.
Do not use an abrasive sponge to clean the plastic jar (6).
Do not hermetically close the jar when the appliance is stored away
(remove the cap (8) from the lid).
You are advised to clean the appliance as soon
as you have finished using it.
It will be easier to clean if you do not allow the
remaining scraps of food to dry.
For thorough cleaning, take apart the parts of the jar
(unscrew the jar (6) from the handle base (5)) and
wash them with hot soapy water, rinse and dry.
The base can be cleaned using a soft, wet sponge.
9
8
7
10
6
5
7

SANTOS: User and maintenance manual
98137 EN 2.2 - 12 2010 9 / 15 www.santos.fr
MAINTENANCE
Prior to carrying out any intervention on the appliance, it must be
disconnected from the mains without fail.
!
Changing the coupling system:
When changing the couplings, make sure you adhere to the position of each component:
flexible coupling (11) on the motor unit
rigid coupling (12) on the blade holder.
IMPORTANT:
Motor end:
The fixing screw (13) for the Flexible coupling (11) is changed over. Turn it clockwise to
loosen it.
Blade end:
Turn it counter clockwise to loosen the fixing screw (14) of the rigid coupling (12).
Note: identify the screws well so as not to mix them up when reassembling.
14
13 12
11
Loosening direction of fixing
screw, jar end: counter
clockwise
Loosening direction of fixing
screw, motor end: clockwise

98137 EN 2.2 - 12 2010 10 / 15 www.santos.fr
SANTOS: User and maintenance manual
Spare parts:
IMPORTANT: use of spare parts other than certified original SANTOS parts
is prohibited
This machine requires no specific maintenance. The bearings are lubricated for life.
If any intervention is necessary to replace parts subject to wear, such as the couplings,
blades, jar seals, electrical or other components, please refer to the parts lists (see the
exploded view at the end of this manual).
For all spare part orders (see references in the exploded view at the end of the manual),
state:
the type
the appliance serial number and
the electrical specifications
given under the appliance.
FAULT FINDING
Identifying the cause of appliance stoppage with precision.
If the problem persists, switch off the power supply to the appliance (unplug the cord from the
mains socket) and call in the maintenance service or contact a SANTOS approved dealer.
The machine will not start:
Check : the mains supply, the condition of the power cord
To run the motor of the mixer the jar (6) with its lid (7) closed must be placed on the base
(4) and locked using the clamping rod (1).
Check that there is no food that is too hard or big jamming the blades (10).
The appliance stops following an overload:
If the motor stalls during operation, reduce the load, allow the appliance to cool down
for several tens of minutes.
Check that there is no food that is too hard or big jamming the blades (10).
The motor runs but the blades do not rotate:
Check the condition of the coupling system. If required, change the 2 parts at the
same time
note: warning: the screwing direction of the fixing screws are not the same (see
"maintenance” section)
!

98137 EN 2.2 - 12 2010 11 / 15 www.santos.fr
SANTOS: User and maintenance manual
APPLIANCE TECHNICAL SPECIFICATIONS
Model n° 37
Power supply voltage (V) 220-240 110-120
Fre
q
uenc
y
(
Hz
)
50/60 50/60
Motor
Input power (W) 750 750
Max. current (A) 9 14
Speed (rpm) 0 to 15000
2L jar capacity (L) 2
4L jar capacity (L) 4
Dimensions: Height (mm) 615
Width (mm) 215
De
p
th
(
mm
)
230
Weight: Net weight (kg) 12
Packaged weight
(kg) 14
Noise: (2) LpA
accuracy KpA = 2.5dB (dBA) 66
(1) These ratings are given for your guidance. The exact electrical specifications of your appliance
can be found on the rating plate.
(2) Noise level measured in acoustic pressure of appliance loaded as per the standard ISO
11201:1995 and ISO 4871:1996.
Appliance placed on a work surface at 75cm from the floor. Microphone turned towards the
appliance at 1.6 m from the floor and 1 m from the appliance.
ITEM Description
1 Clamping rod
2 Locking lever
3 Switch, speed adjustment
4 Motor unit
5 Jar handle
6 Jar
7 Lid
8 Cap of lid
9 Lid seal
10 Blade assembly
11 Flexible motor coupling
12 Rigid jar coupling
13 Motor coupling screw
14 Blade coupling screw

98137 EN 2.2 - 12 2010 12 / 15 www.santos.fr
SANTOS: User and maintenance manual
Electrical wiring diagram:
110-120V 50/60Hz wiring diagram
MOTOR
White
Green
Black
White
Green
Pink
Blue
Grey
Orange
Grey
White
ELECTRONIC CONTROL UNIT
Knob
Speed regulation
Black
Brown
INTERFERENCE
FILTER
100-120 Volts ~
Brown
Black
White
Grey
Purple
Orange
Purple
Orange
Grey
White
Resistor 1.5 K

Handle switch

98137 EN 2.2 - 12 2010 13 / 15 www.santos.fr
SANTOS: User and maintenance manual
220-240V 50/60Hz wiring diagram
MOTOR
White
Grey
Black
White
Grey
O
r
a
n
ge
Brown
Grey
Orange
Grey
White
ELECTRONIC CONTROL
UNIT
Knob
Speed adjustment
Black
Brown
INTERFERENCE
FILTER
220-240 Volts ~
Brown
Black
White
Grey
Purple
Orange
Purple
Orange
Grey
White
Handle switch

SANTOS: User and maintenance manual
98137 EN 2.2 - 12 2010 14 / 15 www.santos.fr
Figures
7
5
6
10
7
8
1
5
2
3
9
10
6
4
8
7 9
14
13 12
11
Loosening direction of screw,
motor end: clockwise Loosening direction of screw, jar
end: counter clockwise
Fig. B’

SANTOS: User and maintenance manual
98137 EN 2.2 - 12 2010 15 / 15 www.santos.fr
WARRANTY CERTIFICATE
WARRANTY
Since the 01.01.95, all our appliances comply with CE and possess the CE label. Our guarantee is
of 24 months from the manufacturing date mentioned on the descriptive plate, except concerning
the asynchronous motors (consisting of a rotor and a stator) which are warranted for 5 years from
their manufacturing date. Warranty is strictly limited to the free replacement of any part of origin
recognized by us as defective due to a defect or building default and identified as belonging to the
concerned appliance. Warranty does not apply to damages resulting from installation or use non-
complying with our appliance data sheet (user’s manual) or in case of an evident lack of
maintenance or disrespect of elementary security electric rules. It does not apply in case of regular
wear and tear. Any replacement of parts under warranty will be realized after return of the
defective part in our workshops, postage paid, supported by a copy of a conformity statement on
which appears the serial number of the appliance. Every appliance is equipped with a descriptive
plate conforming to the EC recommendations and of which a duplicate exists in the conformity
statement (serial number, manufacturing date, electrical characteristics …). In case of serious
damage judged repairable only in our workshops, and after prior consent from our departments,
any appliance under guarantee is sent by the Distributor, carriage paid. In case of repairs or
reconditioning of appliances not under guarantee, the round trip transport is payable by the
distributor. The parts and workforce are invoiced at the current rate. A preliminary estimate can be
supplied.
Coffee grinder not using SANTOS original burrs are not taken under guarantee. The warranty
conditions, repairs, reconditioning, of the espresso coffee grinder are the object of a specific note.
Our guarantee does not extend to the payment of penalties, the repair of direct or indirect
damages and notably to any loss of income resulting from the nonconformity or the defectiveness
of products, SANTOS's global responsibility being limited to the sale price of the delivered product
and to the possible repair of the defective products.
In case of revelation of an imperfection during the warranty period, the Distributor has to, unless a
different written agreement of SANTOS, indicate to his customer to stop any use of the defective
product. Such a use would release SANTOS of any responsibility.
APPLIANCE IDENTIFICATION PLATE
SPECIMEN
For all documents not supplied with
appliance.
Printed, Faxed, Downloaded
