Santos 4 Operating instructions

SANTOS : User and maintenance manual
98101 US 3.3 - 07 2013 1 / 20 www.santos.fr
USER AND MAINTENANCE MANUAL
IMPORTANT: documents included in this manual to be kept:
•"CE" COMPLIANCE DECLARATION
•WARRANTY CERTIFICATE
Translation of the original version
Coffee grinders - Fruit juicers - Mixers - Blenders - Drinks dispensers - Planetary mixers
Cheese graters - Ice crushers - Mincers - Vegetable slicers – Dough mixer
Moulins à café - Presse-fruits - Mixers - Blenders - Distributeurs de boissons - Batteurs
mélangeurs - Pétrin - Râpes à fromage - Broyeurs à glaçons - Hache-viande - Coupe-légumes
MODELES DEPOSES FRANCE ET INTERNATIONAL
INTERNATIONALLY PATENTED MODELS
SANTOS
SAS:
140-150 AVENUE ROGER SALENGRO
69120 VAULX-EN-VELIN (LYON) - FRANCE
TEL. [phone] - FAX [phone]
FAX [phone]
E-Mail: [e-mail] www.santos.fr
SHOP COFFEE GRINDER # 4
COFFEE GRINDER # 1 and # 1PS
!
Model # 1
Model # PS
Model # 4

SANTOS : User and maintenance manual
98101 US 3.3 - 07 2013 2 / 20 www.santos.fr
CONTENTS
“CE” COMPLIANCE DECLARATION ........................................................................................3
IMPORTANT SAFEGUARDS ........................................................................................................4
IMPROPER USE .............................................................................................................................4
ELECTRICAL CONNECTION ........................................................................................................5
RECYCLING THE PRODUCT AT THE END OF ITS SERVICE LIFE..........................................5
YOUR COFFEE GRINDER # 1, # 1PS and # 4 .............................................................................6
USING THE APPLIANCE ...............................................................................................................7
ADJUSTING THE GRIND...............................................................................................................7
SERVICING .....................................................................................................................................7
MAINTENANCE ..............................................................................................................................7
Spare parts:..................................................................................................................7
Replacing the grindstones: ..............................................................................................................7
ADJUSTING THE MINIMUM GAP BETWEEN THE GRINDING-WHEELS ...............................8
FAULT FINDING..............................................................................................................................9
The machine will not start:............................................................................................9
The machine stops because the motor has overheated:..............................................9
The machine stops because of an overload:................................................................9
MACHINE TECHNICAL SPECIFICATIONS ...........................................................................10

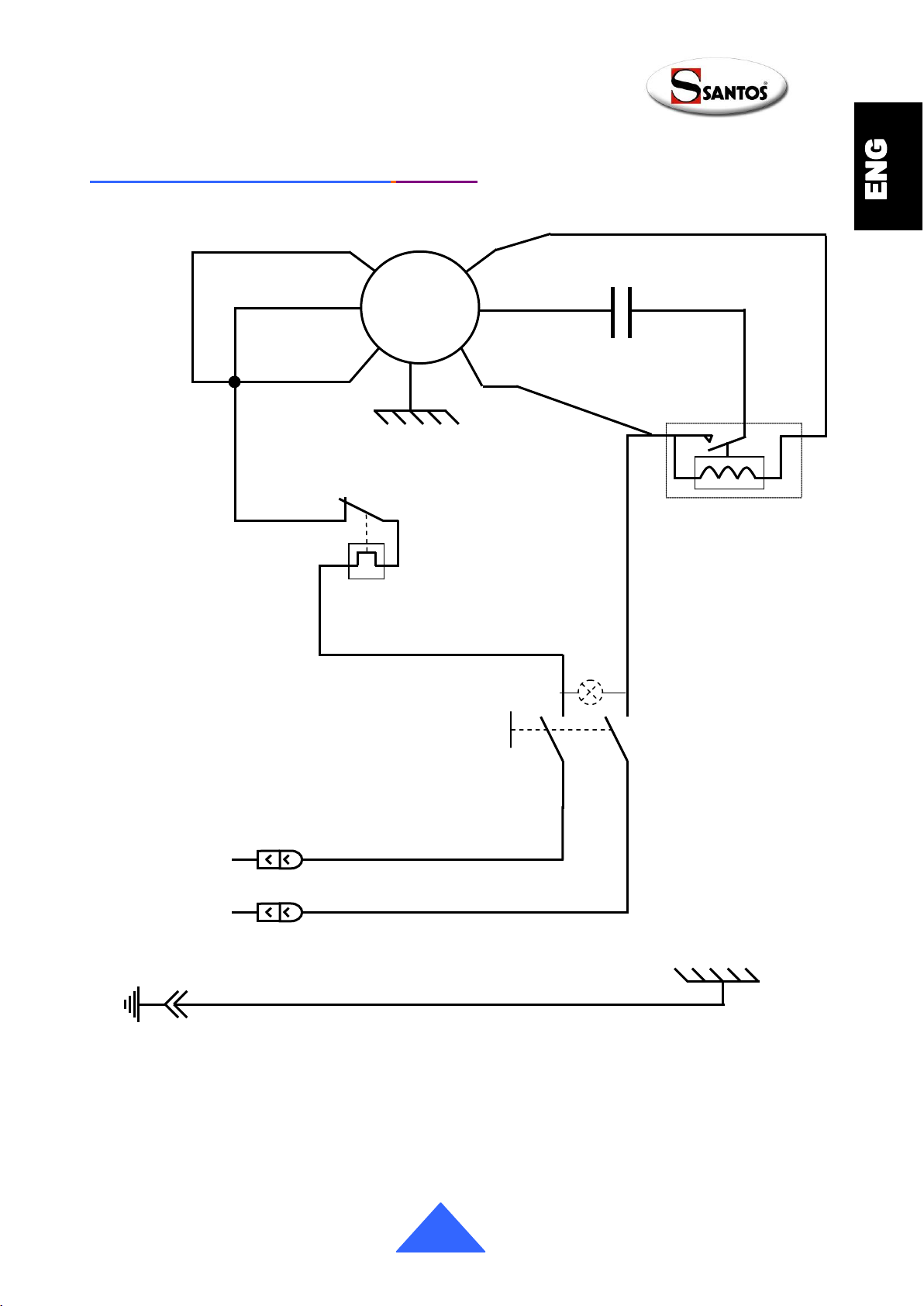

Wiring diagram 110-120V 50/60Hz Model #1, 1PS......................................................................11
Wiring diagram 220-240V 50Hz Model #1, 1PS...........................................................................12
Wiring diagram 220-240V 60Hz Model #1, 1PS...........................................................................13
Wiring diagram 100-120V 50/60Hz Model #4 ..............................................................................14
Wiring diagram 220-240V 50Hz Model #4 ...................................................................................15
Wiring diagram 220-240V 60Hz Model #4 ...................................................................................16
Figures ...........................................................................................................................................17
WARRANTY CERTIFICATE .....................................................................................................20
APPLIANCE IDENTIFICATION PLATE ................................................................................20

SANTOS : User and maintenance manual
98101 US 3.3 - 07 2013 3 / 20 www.santos.fr
“CE” COMPLIANCE DECLARATION
THE MANUFACTURER:
SANTOS SAS - 140-150, Av. Roger SALENGRO 69120 VAULX-EN-VELIN (LYON)
FRANCE
declares that the appliance intended for the professional market described below:
Description: Shop coffee grinder
Type number: 01, 01P, 01PS, 04
complies with:
•the statutory provisions defined in appendix 1 of the European "machines" directive
n°2006/42/CE and the national legislation transposing it
•the statutory provisions of the following European directives and regulations:
oN° 2006/95/CE (low voltage directive)
oN° 2004/108/CE (EMC directive)
oNo. 2002/95/CE (RoHS directive)
oNo. 2002/96/CE (WEEE directive)
oN° 1935/2004/CE (regulation) relating to materials and articles intended to
come into contact with foodstuffs
Harmonised European standards used to give presumption of conformity with the essential
requirements of the above-mentioned directives:
•NF EN ISO 12100 -1 and 2:2004: Safety of machinery - General principles for
design
•NF EN 60204-1: 2006 : Safety of machinery - Electrical equipment of machines-
General requirements
•NF EN 1672-2: 2005, Food processing machinery – Basic concepts – Hygiene
requirements
•NF EN 60335-1: 2003 : Household and similar electrical appliances. Safety.
•NF EN 60335-2-64 :2004 : Particular requirements for commercial electric kitchen
machines
Drawn up in VAULX-EN-VELIN on: 01/10/2010
Signatory’s position: CHIEF EXECUTIVE OFFICER
Signatory’s name: Aurélien FOUQUET
Signature:

SANTOS : User and maintenance manual
98101 US 3.3 - 07 2013 4 / 20 www.santos.fr
IMPORTANT SAFEGUARDS
When using, cleaning or maintaining the machine, always follow these instructions:
Read all instructions
IMPROPER USE
1. Do not use this appliance for grinding anything other than roasted coffee beans.
2. Never operate the appliance with no coffee beans in the bean container.
3. Remove from the coffee beans any foreign bodies which may damage the
grinding wheels (metal staples, stones, etc.).
4. For electrocution risk protection reasons, never plunge the base into water or
any other liquid.
5. Use a hose nor a pressure hose for cleaning: this is forbidden
6. Never touch the moving parts.
7. Unplug the appliance before carrying out any work on it: cleaning, maintenance
or repair.
8. Use the appliance if the power cord is damaged. It must be replaced by a
special assembly available from an approved SANTOS dealer or from SANTOS
itself.
9. The use of spare parts other than certified SANTOS original parts is prohibited.
10.Turn the On/Off switch (11) to "0" when the appliance is not operating.
11.Connect several appliances to the same power socket.
12.Use the appliance outdoors.
13.Never place the appliance close to or on a source of heat.
14.This appliance is a professional machine designed exclusively for professional
use. It is not designed for household use.
15.This appliance is not designed for use by people (including children) whose
physical, sensorial or mental capacities are impaired or by people with no
experience or knowledge, unless they have been supervised or given training in
the use of the appliance beforehand by a person responsible for their safety.
Supervise children to ensure they do not play with the appliance.
Note: You will find it easier to understand the next few paragraphs if you refer to
the diagrams at the end of this manual.
!

SANTOS : User and maintenance manual
98101 US 3.3 - 07 2013 5 / 20 www.santos.fr
ELECTRICAL CONNECTION
•The electric power supply for the machine is available in 3 single-phase voltages:
-110-120 V 50/60 Hz:
-220-240 V 50 Hz:
-220-240 V 60 Hz:
Line protection: the machine should be connected to a standard 2-pole + earth electric
socket. The system should be fitted with an RCD and a fuse rated at 16A. The appliance
must be earthed.
CARE:
•Before connecting the machine, check that the mains electrical voltage is the same
as the voltage for your appliance. Its value is shown:
either on the identification plate under the machine.
or on the identification plate on the last page of this manual.
•If the power cable is damaged, it should be replaced by a special assembly available
from approved SANTOS dealers or from SANTOS.
CARE: Check that the On / Off switch (13) is in the 0 position before
connecting the power cable plug to your mains electric
power socket (fig. A).
RECYCLING THE PRODUCT AT THE END OF ITS SERVICE LIFE
This equipment is marked with the selective sorting symbol relating to
wastes from electrical and electronic equipment. It signifies that this product
should be taken over by a selective collection system conforming to the
Guideline 2002/96/EC (WEEE) – part Professional Equipment – so that it
can be either recycled or dismantled in order to reduce any impact on the
environment.
For more information, please contact your Retailer or the SANTOS.
For eliminating or recycling components of equipment, please contact a specialized
company or contact SANTOS.
The electronic products not undergoing a selective sorting are potentially dangerous for
the environment.
The damaging materials should be eliminated or recycled according to the regulations in
force.
!
!

SANTOS : User and maintenance manual
98101 US 3.3 - 07 2013 6 / 20 www.santos.fr
YOUR COFFEE GRINDER # 1, # 1PS and # 4
•The coffee grinder is designed especially for hotels, restaurants, community catering,
for the drawer version, and for coffee roasters.
•The robust frame of the appliance is made of cast aluminum and painted metal. The
transparent hopper is made of transparent polycarbonate transparent and contains 1
kg beans.
oModel # 1 and # 1PS: The appliance is usually supplied with a grind-collector
drawer (with a capacity of 800 g). But the bag- grip model can also be
supplied on request (maximum bag depth of 150 mm)
oModel # 4: The appliance is delivered with a "bag grip" system as standard
(maximum bag height: 280 mm),
•A button for adjusting the fineness of the grind caters for all types of coffee grind (fine
grind, espresso, filter coffee, medium or coarse grind).
•The special hardened steel grinding wheels (Ø 63.5 mm) guarantee a fine and even
grind.

SANTOS : User and maintenance manual
98101 US 3.3 - 07 2013 7 / 20 www.santos.fr
USING THE APPLIANCE
ADJUSTING THE GRIND
•Turn the grinding-wheel gap adjuster button 6 clockwise for a coarser grind and
anticlockwise for a finer grind. The factory setting is for the finest grind, the grinding-
wheels nearly touching each other.
SERVICING
•Clean the coffee outlet, the coffee-bean holder and the grinding mechanism from
time to time. Always turn the appliance off (switch 13 on position 0) and unplug it.
MAINTENANCE
Before carrying out any work on the appliance, it must in all cases be unplugged from the
mains power supply and the motor start capacitor discharged:
Discharging the capacitor:
Use a screwdriver with insulated handle to touch the 2 connectors on the capacitor
(13). The appearance of an electric arc shows that the capacitor has discharged.
Spare parts:
This machine requires no specific maintenance. The bearings are lubricated for life.
If work is required to replace worn parts such as the grindstones or the electric or other
components, refer to the parts list (see exploded view at the end of the manual).
IMPORTANT: It is prohibited to use spare parts other than those certified
made by SANTOS
For all spare part orders (see references in the exploded view at the end of the manual),
state:
the type,
the machine serial number and
the electrical specifications ()
recorded under the machine.
Replacing the grindstones:
IMPORTANT: always change both 2 grindstones (17) at the same
time. (use SANTOS reference 00001B)
!
!

SANTOS : User and maintenance manual
98101 US 3.3 - 07 2013 8 / 20 www.santos.fr
The 2 grinding wheels are identical and can be fitted equally either on the moving plate
(18) (moving grinding wheel) or on the cast metal adjustment block (19) (fixed grinding
wheel).
1. Stop the machine by putting the switch (13) to "0" and disconnect the power supply
cord.
2. Close the shutter (3) on the bean hopper (2). Take off the bean hopper (2).
3. Turn the grinding wheel gap adjuster button (6) clockwise until it comes to a halt at
the “COARSE” setting."
4. Unscrew the nuts (16) and remove the whole grinding unit (15), to gain access to the
grinding wheels.
5. Change the grinding wheels (3 fastening screws) after carefully cleaning the
supporting surfaces.
TAKE CARE: The slightest small coffee particle under the grinding wheel may
prevent the machine from operating correctly. It is recommended that the grinder
body is cleaned with a compressed air jet or a dry brush.
6. Reassemble the grinding unit (15) and adjust the grinding gap to its minimum setting.
TAKE CARE
•Before tightening the fastening nuts (16) on the grinding unit (15), check that the dial
(4) of the grinding wheel adjuster button (6) is set to “COARSE”"
This precaution is essential to prevent any risk of the grinding wheels being brought
too close to each other, which could cause damage to the grinding unit.
ADJUSTING THE MINIMUM GAP BETWEEN THE GRINDING-WHEELS
This should be done after replacing the grinding wheels.
1. Plug the appliance in and run it empty.
2. Unscrew hexagon socket screw (7) on the dial (4) using a 2-mm Allen wrench.
Check that the dial (4) is free to rotate without turning button (6).
3. Turn button (6) anticlockwise until the grinding wheels come into contact (a slight
sound of friction will be heard) then back one notch in the reverse direction.
ATTENTION
This is a delicate operation, and prolonged contact between the grinding wheels
should be avoided, since this could damage them.
4. Turn the appliance off by placing switch (13) on "0".
5. Without moving the button (6), place the dial (4) on the "FINE" position then tighten
the hexagon socket screw (7) fully home.
6. Run the machine empty to check that the grinding wheels rotate without touching
each other on the finest setting. If this is not the case, repeat the above procedure.
!
!

SANTOS : User and maintenance manual
98101 US 3.3 - 07 2013 9 / 20 www.santos.fr
FAULT FINDING
Identify the exact reason the appliance stopped.
In every case: If the problem persists, switch off the power supply to the machine
(unplug the cord from the mains socket) and call in the maintenance service or
contact a SANTOS approved dealer.
The machine will not start:
•Check: the mains power supply and the condition of the power supply cord,
•Note: the switch should be lit when on the "1" position.
•Check that there are no foreign bodies stuck between the grinding wheels.
The machine stops because the motor has overheated:
(the metal casing around the motor unit is hot)
Models110-120V 50/60Hz only
In the event of overheating, the motor stops.
The overheating protection system resets automatically; wait for the motor to cool (15 to
30 minutes), before restarting the machine.
The machine stops because of an overload:
If the motor is blocked (foreign body, something too hard), the excess current protection
system (14), located under the appliance will be triggered automatically and cut off the
electrical power to the motor.
•Set the On / Off switch (13) to "0" position, disconnect the appliance.
•Correct the fault then press the excess current protection button (14)
•Press the On/Off switch (13) (position I).
If the problem persists, check the following points:
•Check that the grinding wheels do not touch each other.
•Check the state of wear of the grinding wheels (grinding too fine with worn grinding
wheels can result in a motor overload like this)
•If there are no foreign bodies preventing the appliance from working, then check
and replace the motor starter relay then the capacitor.

SANTOS : User and maintenance manual
98101 US 3.3 - 07 2013 10 / 20 www.santos.fr
MACHINE TECHNICAL SPECIFICATIONS
ELECTRICAL SPECIFICATIONS (1)
Model
# 1, # 1PS
# 4
Supply voltage
.(V)
220-240 100-120 220-240
Frequency
(Hz)
50 50/60 60
Motor:
Power input
(W)
600 650 650
Speed
(rpm)
1500 1500/1800 1800
Average capacity
(kg/h)
14
14
Hopper capacity
(kg)
1
1
Grind drawer capacity
(kg)
0.800
Maximum bag height
(mm)
150
280
Dimensions: Height
(mm)
550
700
Width
(mm)
250
220
Depth
(mm)
320
320
Weight: Net weight
(kg)
15
19
Packaged weight
(kg)
16
20,4
Noise : (2) L
pA
incertitude K pA = 2.5dB
(dBA)
74
74
(1) These ratings are provided as a rough guide. The exact electrical specifications can be found
on the rating plate.
(2) Noise level measured with sound pressure appliance in operation 1 m from its centerline in
accordance with standard EN 31201.
