Santos 63 Operating instructions

SANTOS: User and maintenance manual
98163 US 1.1 - 07 2013 1 / 19 www.santos.fr
USER AND MAINTENANCE MANUAL
IMPORTANT: documents included in this manual to be kept:
•"CE" COMPLIANCE DECLARATION
•WARRANTY CERTIFICATE
Translation of the original version
Coffee grinders - Fruit juicers - Mixers - Blenders - Drinks dispensers - Planetary mixers
Cheese graters - Ice crushers - Mincers - Vegetable slicers – Dough mixer
Moulins à café - Presse-fruits - Mixers - Blenders - Distributeurs de boissons - Batteurs mélangeurs
- Pétrin - Râpes à fromage - Broyeurs à glaçons - Hache-viande - Coupe-légumes
MODELES DEPOSES FRANCE ET INTERNATIONAL
INTERNATIONALLY PATENTED MODELS
SANTOS SAS :
140-150 AVENUE ROGER SALENGRO
69120 VAULX-EN-VELIN (LYON) - FRANCE
TEL. [phone] - FAX [phone]
E-Mail:[e-mail] www.santos.frTO
COFFEE SHOP GRINDER # 63
!

SANTOS: User and maintenance manual
98163 US 1.1 - 07 2013 2 / 19 www.santos.fr
CONTENTS
“CE” COMPLIANCE DECLARATION ..................................................................................3
SAFETY RULES..................................................................................................................4
INSTALLATION AND HANDLING....................................................................................4
DO NOT: ..........................................................................................................................4
ELECTRICAL CONNECTION:.........................................................................................5
RECYCLING THE PRODUCT AT THE END OF ITS SERVICE LIFE .............................6
YOUR COFFEE GRINDER .................................................................................................7
USING THE APPLIANCE ....................................................................................................7
USE..................................................................................................................................7
Starting up ....................................................................................................................7
Stopping the machine...................................................................................................8
CHOICE OF TYPE OF GRIND ........................................................................................8
SERVICING .....................................................................................................................8
Cleaning the grinder body outlet tube:..........................................................................8
MAINTENANCE...............................................................................................................9
Spare parts:..................................................................................................................9
REPLACING GRINDING-DISCS .....................................................................................9
Dismantling:..................................................................................................................9
Reassembling:............................................................................................................10
ZERO ADJUSTMENT OF GRADUATED RING.............................................................11
FAULT FINDING ...............................................................................................................12
The machine will not start:..........................................................................................12
The appliance stops after the motor has overheated:.................................................12
The appliance stops following an overload:................................................................12
APPLIANCE TECHNICAL SPECIFICATIONS ..................................................................13
Wiring diagram...............................................................................................................14
Wiring diagram 220-240V 50/60Hz.............................................................................14
Wiring diagram 100-120V 50/60Hz.............................................................................15
Figures ...........................................................................................................................16
WARRANTY CERTIFICATE ............................................................................................19
APPLIANCE IDENTIFICATION PLATE ..........................................................................19

SANTOS: User and maintenance manual
98163 US 1.1 - 07 2013 3 / 19 www.santos.fr
“CE” COMPLIANCE DECLARATION
THE MANUFACTURER:
SANTOS SAS - 140-150, Av. Roger SALENGRO 69120 VAULX-EN-VELIN (LYON) FRANCE
Declares that the appliance to be released on to the professional market, described below:
Description: Coffee shop grinder
Type number: 63
complies:
•with the statutory provisions laid down in appendix 1 of the European "machines" directive
n°2006/42/EC and the national laws transposing the directive.
•with the statutory provisions of the following directives and regulations:
oNo. 2006/95/EC (Low voltage directive)
oNo. 2004/108/CEE (EMC directive)
oNo. 2002/95/EC (RoHS directive)
oNo. 2002/96/EC (WEEE directive)
oN° 1935/2004/EC (Regulation) on materials and articles intended to come into
contact with food
Harmonised European standards used for giving presumption of conformity to the essential
requirements of the above-mentioned directives:
•NF EN ISO 12100 -1 and 2:2004: Machine safety devices - General design principles
•NF EN 60204-1: 2006 : Machine safety devices - Machine electrical equipment -General
regulations
•NF EN 1672-2: 2005, Food processing machinery – Basic concepts - Hygiene requirements.
•NF EN 60335-1: 2003: Household and similar electrical appliances. Safety.
•NF EN 60335-2-64 :2004: Particular requirements for commercial electric kitchen machines
Drawn up in VAULX-EN-VELIN on: 01/07/2012
Title of signatory: CHIEF EXECUTIVE OFFICER
Name signatory: Aurélien FOUQUET
Signature:

SANTOS: User and maintenance manual
98163 US 1.1 - 07 2013 4 / 19 www.santos.fr
SAFETY RULES
At the time of use, maintenance or scrapping of the appliance, always ensure that the
following elementary precautions are adhered to.
Read the explanatory instructions in full
Keep this user manual
INSTALLATION AND HANDLING
TAKE CARE: for all handling operations including unpacking the
machine, the coffee bean hopper or its cover must not be used to hold
or lift the appliance.
You are advised to have 2 people to handle the machine to avoid any risk of back injury. For
ease of use, it is recommended that the machine is placed on a table or work surface so as
to have the bag grip (13) in front of you (recommended height: 90 cm, to be adapted as
required to the user).
DO NOT:
1. Never operate the machine with no coffee beans in the bean hopper.
2. Never use this machine to grind anything other than roasted coffee beans.
3. Remove from the coffee beans any foreign bodies which may damage the
grindstones (metal staples, stones, etc.).
4. Turn the On/Off switch (8) to "0" when the appliance is not in operation.
5. Cleaning in a jet of water or a high pressure spray is prohibited.
6. The base must not be immersed in water.
7. Never use the appliance if the power cord is damaged. It must be replaced by
a special unit available from an approved SANTOS dealer or from SANTOS
itself.
8. The appliance must be unplugged before any intervention on it: cleaning,
general care, maintenance.
9. It is forbidden to operate the appliance on a surface with a slope in excess of
10° with respect to the horizontal plane. The feet of the machine must always
be resting on this surface. The machine motor centre line must always be
vertical with respect to the surface on which it is placed.

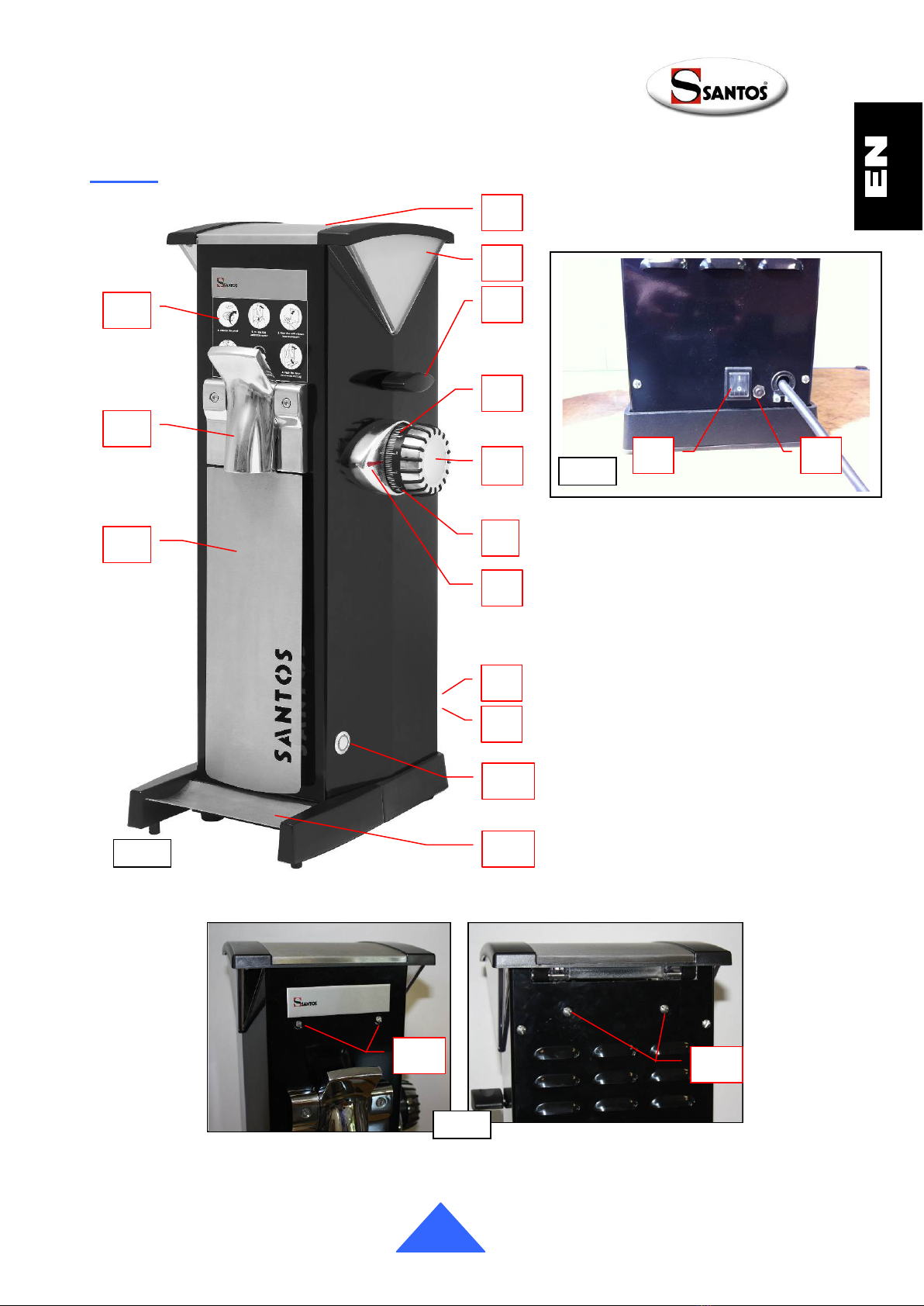

Note: for easier understanding of the sections below, please refer to the diagrams
at the end of the manual.
!
!

SANTOS: User and maintenance manual
98163 US 1.1 - 07 2013 5 / 19 www.santos.fr
10.The use of spare parts other than certified original SANTOS parts is
prohibited
11.Never connect several appliances to the same power socket.
12.Never use the machine outdoors.
13.Never place the appliance close to or on a source of heat.
14.This appliance is a professional machine designed exclusively for
professional use. It is not designed for household use.
15.This appliance is not designed for use by people (including children) whose
physical, sensorial or mental capacities are impaired or by people with no
experience or knowledge, unless they have been supervised or given training
in the use of the appliance beforehand by a person responsible for their
safety.
Supervise children to ensure they do not play with the appliance.
ELECTRICAL CONNECTION:
•The appliance's power supply is available in two single-phase voltages:
-110-120 V 50/60 Hz:
-220-240 V 50/60 Hz:
Line protection: the appliance must be connected to a standard 2 pole + earth socket. The
set-up must be fitted with a differential circuit breaker and a 16A fuse. Earthing of the
appliance is compulsory.
TAKE CARE:
•Before connecting the appliance, check that the mains electrical voltage is the same
as the voltage for your appliance. Its value is shown:
either on the identification plate under the appliance.
or on the identification plate on the last page of this manual.
•If the power cord is damaged, it should be replaced with a special unit available from
SANTOS or a SANTOS-approved dealer.
TAKE CARE: Check that the on / off switch (8) is in position 0 before plugging the power
cord in to the mains power socket. (fig. B)
!
!

SANTOS: User and maintenance manual
98163 US 1.1 - 07 2013 6 / 19 www.santos.fr
RECYCLING THE PRODUCT AT THE END OF ITS SERVICE LIFE
This appliance is marked with the symbol of the selective waste sorting
system relating to waste electrical and electronic equipment. This means that
this product should be disposed of as per the selective sorting system in
compliance with the 2002/96/EC directive (WEEE) – Professional Appliances
section – so as to be either recycled or dismantled with a view to reducing any
impact on the environment.
For further information, you can contact SANTOS or your local dealer.
For the disposal or recycling of the appliance components, please refer to a specialist
company or contact SANTOS.
Electronic products not covered by a selective sorting system are potentially dangerous for
the environment.
The packaging material should be disposed of or recycled in accordance with the
regulations in force.
Table showing the proportions of materials making up the appliance (percentage of weight)
Total steel Total
aluminum Total plastic Total copper
Weight of
miscellaneous
materials*
78,5 %
11,1%
4,8%
5,1%
0,5 %
* Weight of miscellaneous materials, e.g.: switches, electronic boards, capacitors, electric cables, etc

SANTOS: User and maintenance manual
98163 US 1.1 - 07 2013 7 / 19 www.santos.fr
YOUR COFFEE GRINDER
•The coffee grinder is particularly suitable for coffee shops, communal kitchens,
roasting shops,
•The robust frame of the appliance is made of cast aluminum and painted metal. The
transparent plastic coffee bean hopper has a capacity of 1.2 kg:
•The appliance is fitted with the "bag grip" system (maximum bag height: 400 mm).
•A button for adjusting the size of the grind caters for all types of coffee grind (Turkish,
fine, espresso, filter coffee, medium or coarse grind).
•The special hardened steel grinding-discs (Ø 120 mm) guarantee an even and fine
grind.
USING THE APPLIANCE
USE
This coffee grinder can be used to grind and dispense the pre-dosed coffee into the bag
corresponding to the desired quantity (250, 500g and 1kg).
Starting up
1. With the hopper (2) empty and push button (10) not pressed, start up the appliance
by putting the main ON/Off switch (8) to position 1. (fig. A) (fig. B)
2. Turn the adjusting button (6) to select the type of grind desired.
IMPORTANT: It is prohibited to select a grind finer than the current setting if
the hopper is not fully emptied by running the motor (the grinder body must be
empty in order to perform this operation). If not, there is a risk of blocking the
motor.
The adjusting button must be set to position "9" in order to release the motor.
3. Place the coffee beans in the hopper (2).
4. Pull the hopper shutter (3) to open the tube
5. Push the lever of the bag grip (13) and position the bag so that the tube of the bag
grip is inside the bag.
6. Press the On/Off button (10) to start the motor
7. When the hopper is empty, press the On/Off push button (10) to stop the motor
8. Hold the bag with one hand and lift up the bag grip with the other and release it
quickly in order for the remaining grind contained in the tube of the bag grip to fall
inside the bag.
!

SANTOS: User and maintenance manual
98163 US 1.1 - 07 2013 8 / 19 www.santos.fr
Stopping the machine
The machine will stop either:
•By pressing the On/Off push button (10) (fig. A) (fig. B)
•Or putting the main O/Off switch (8) to position 0
CHOICE OF TYPE OF GRIND
Turn the grind adjusting button (6) clockwise for a finer grind and anticlockwise for a
coarser grind. The factory setting is for the finest grind with the grinding-discs nearly
touching each other.
SERVICING
Clean the coffee bean hopper (2), the grinder body tube (23) and the inside of the bag
grip (13) from time to time. Always turn the appliance off (switch (8) in position "0") and
unplug it.
Cleaning the grinder body outlet tube:
The tube is behind the bag grip
Take care: the bag grip is held on its 2 side supports by 2 springs. You are advised to
hold the 2 side supports with one hand when dismantling so that these 2 springs do not
come out of their housing.

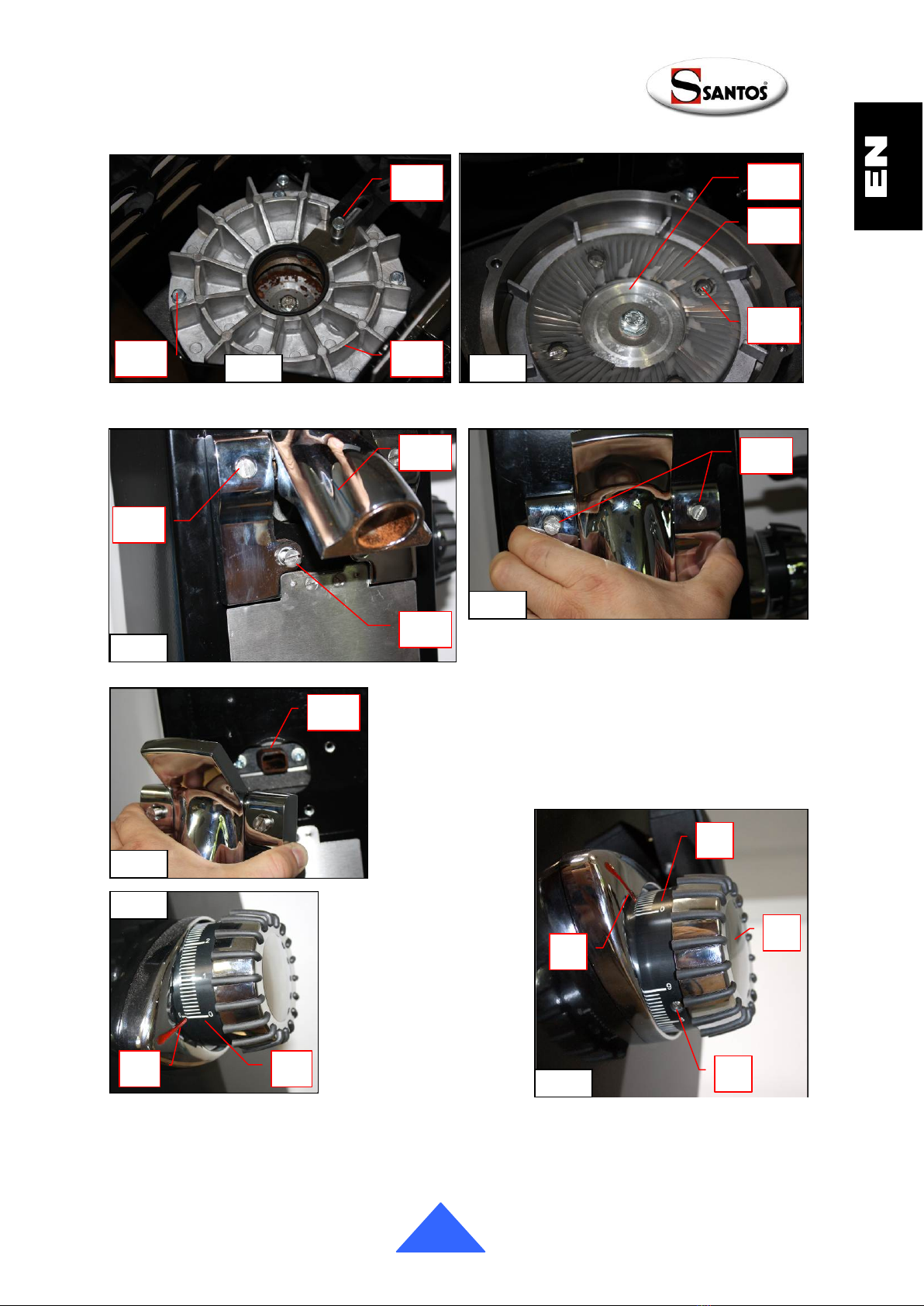

1. Press the lever of the bag grip (13) to
access the 2 lower bag grip fixing screws
(25), unscrew the 2 screws (fig. F)
2. Release the bag grip while holding the 2
side supports and unscrew the 2 top bag
grip fixing screws (24). (fig. G)
25
13
24
24
Fig. F
Fig. G

SANTOS: User and maintenance manual
98163 US 1.1 - 07 2013 9 / 19 www.santos.fr
3. Place the “bag grip + support" assembly gently
on a flat surface
4. Clean the tube (23) with a small brush or
non-abrasive object. (fig. H)
Reassembling: proceed in reverse order
MAINTENANCE
Prior to carrying out any intervention on the appliance, it must be disconnected from the
mains without fail.
Spare parts:
This machine requires no specific maintenance. The bearings are lubricated for life.
If work is required to replace worn parts such as the grinding-discs or the electric or other
components, refer to the parts list (see exploded view at the end of the manual).
IMPORTANT: use of spare parts other than certified original SANTOS parts is
prohibited
Whenever ordering spare parts (see references in the exploded view at the end of this
manual), please quote the following:
the type
the appliance serial number and
the electrical specifications
shown at the rear of the machine.
REPLACING GRINDING-DISCS
IMPORTANT: always replace both 2 grindstones (21) at the same time. (Use
SANTOS grinding-discs ref 00063).
The 2 grinding-discs are identical and can be fitted equally either on the moving plate (20)
(moving grinding-disc) or on the top plate (19) (fixed grinding disc).
Dismantling:
1. Empty the coffee bean hopper completely.
2. Stop the machine by putting the main switch (8) on "0" and unplug the power supply
cable.
!
!
23
Fig. H

SANTOS: User and maintenance manual
98163 US 1.1 - 07 2013 10 / 19 www.santos.fr
15
16
17
18
19
Fig. C
Fig. D
20
22
21
Fig. E

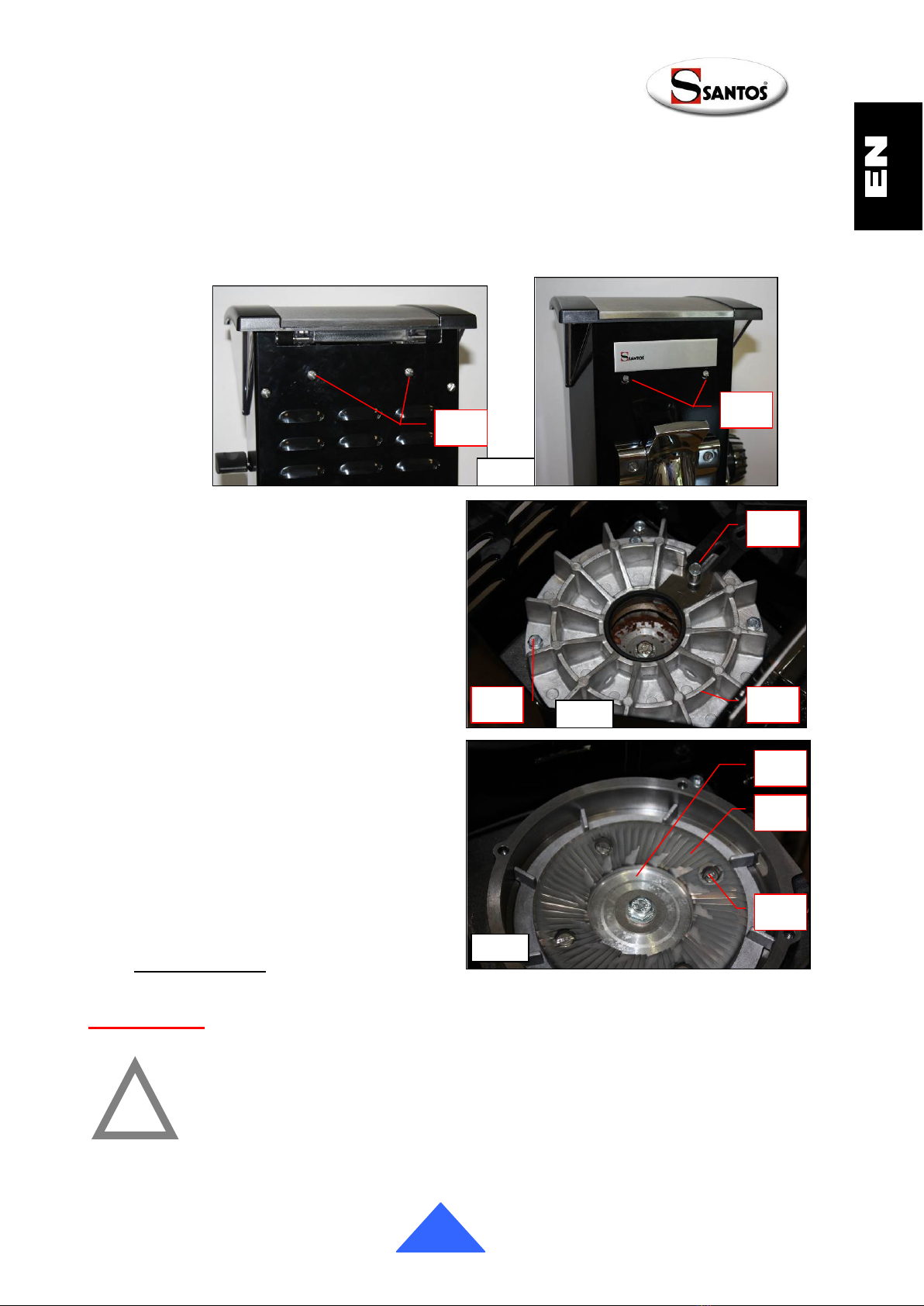

3. Turn the grinding-disc adjusting button (6) as far as it will go to position "9".
4. Lift up the magnetic operating indication plate (14),
5. Unscrew and remove the 2 front (15) and 2 rear (16) screws, then remove the hopper
(2) by pulling it upwards, (fig. C)
6. Unscrew and remove the retaining
screw (17) of the shutter of the coffee
bean hopper (2), being careful not to
drop the spring and washer inside the
machine. (fig. D)
7. Unscrew and remove the 4 fixing
screws of the top plate (18).
8. Remove the top plate (19). to access
the grinding-discs.
9. Change the two grinding-discs (21)
(four screws (22)) after carefully
cleaning the bearing surfaces. (fig. E)
BE CAREFUL: The slightest small
coffee particle under the grinding-disc
may prevent the machine from
operating correctly. You are advised to
clean the grinder body with a
compressed air jet or a dry brush.
Reassembling:
TAKE CARE
Operation n° 1 below must be performed before tightening the 4 fixing
screws (18) of the top plate (19). This precaution is essential to prevent
any risk of the grinding-discs being brought too close to each other,
which could deform to grinder body.
!
