VML 5 Instruction Manual

WARNING:This product contains a magnet. If an implanted medical device such as a pacemaker or implantable cardioverter defibrillator (ICD) is in use, magnetic fields may aect the operation of
those devices, resulting in serious injury or death. If you have an implanted medical device, keep at least 13 cm (5in.) between your device and the magnet. Please consult with your physician or medical
professional prior to using this product.
SANUS MAGNETIC STUD FINDER Designed to find your studs and make life easier– included in hardware kit.
TWO SIMPLE STEPS TO FINDING YOUR STUDS:
Holding it vertically, lightly move the SANUS
Magnetic Stud Finder up and down while
sliding across your wall. The magnet within
will be attracted to the screws in the stud.
Once the magnet has landed on a screw,
place a pencil mark on the wall
directly below the magnet.
You can verify this is a stud by moving the
Magnetic Stud Finder up or down to find
a second or third screw within the wall.
Pull apart the SANUS Magnetic Stud Finder to
expose the probing pin within. Starting about
1/2inch away from the first pencil mark insert
the probing pin into the wall every 1/8inch until
it inserts completely into the wall. Once that
happens, you know you've found one edge of
your stud. Repeat this process till you have
found the stud edges and center of the stud.
Step 1 Step 2
magnet
locates screws in drywall
to show exactly where
your studs are
probing pin
helps find the edges of
your stud within the wall
level
attaches to your wall plate
for hands free leveling

3

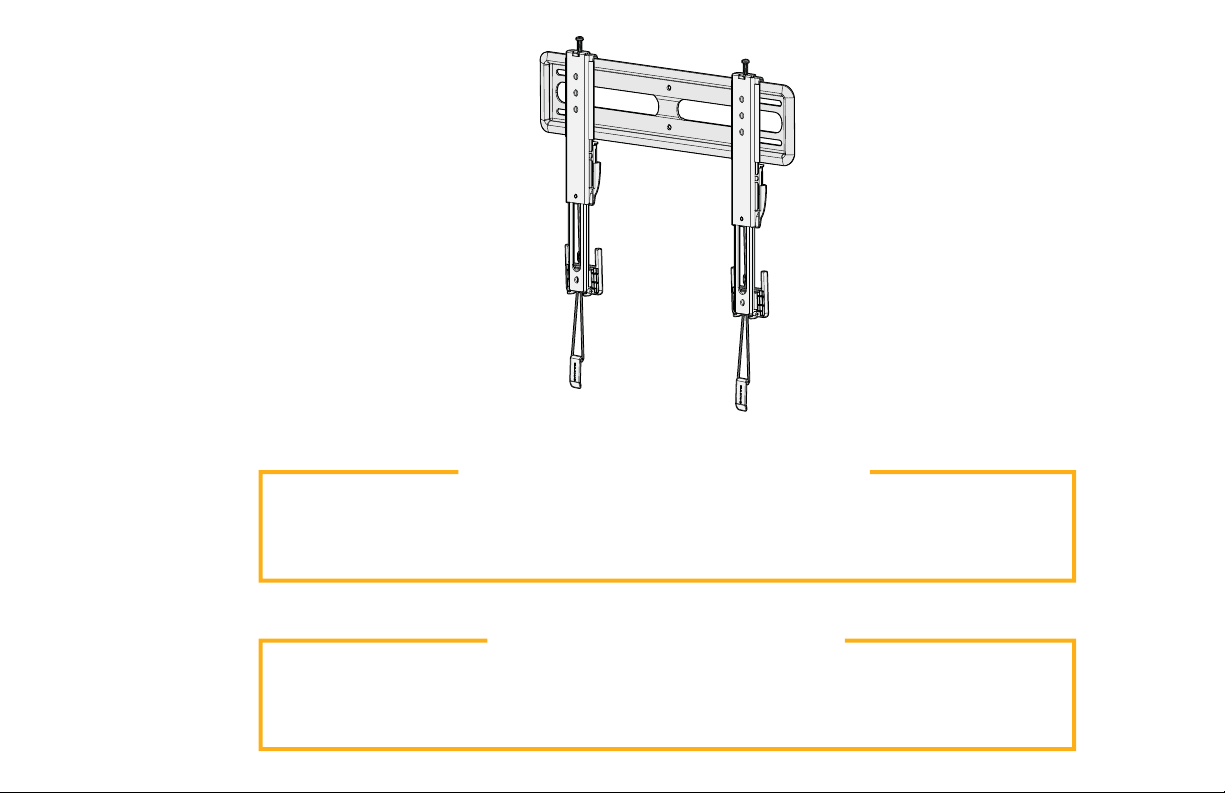

VML5
Lo haremos sin estrés
Si tiene preguntas mientras realiza la instalación, llámenos.
1-800-359-5520 (Reino Unido: 0800-056-2853) Estamos listos para ayudarlo.
We’ll Make It Stress-Free
If you have any questions along the way, just give us a call.
1-800-359-5520 (UK: 0800-056-2853) We’re ready to help!

4
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
Also check your TV owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use
of this product, contact Customer Service at 1-800-359-5520 (UK: 0800-056-2853).
Do you have
all the tools
needed?
Before getting started, let’s make sure this mount is perfect for you!
1
2
3
4
What is your
wall made of?
Drywall
with wood
studs?
Solid concrete
or concrete
block?
75 lb
(34 kg)
CAUTION: Avoid potential personal injuries and property damage!
●This product includes directions and hardware for use with wood stud, solid concrete and concrete block walls –
DO NOT install into drywall alone. For information on how to use this product with steel stud walls contact Customer
Service and ask about the steel stud mounting kit.
●The wall must be capable of supporting five times the weight of the TV and mount combined.
●Do not use this product for any purpose not explicitly specified by manufacturer.
●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
Perfect! Perfect!
Ready to
begin?
CAUTION:
DO NOT install
into drywall alone
Does your TV weigh
(including accessories)
more than 75 lbs.
(34 kg)?
Para Español ver página 28
No — Perfect!
Yes — This mount is NOT compatible. Visit MountFinder.Sanus.com or call
1-800-359-5520 (UK: 0800-056-2853) to find a compatible mount.
Wood Stud Install
Steel Stud Install
Concrete Install
Pencil Screwdriver
Tape
Measure
7/32 in.
(5.5 mm)
Wood
1/2 in.
(13 mm)
Steel
Drill Bit Drill Bit
Electric Drill Hammer
1/2 in.
(13 mm)
Socket
Wrench Drill Bit
3/8 in.
(10 mm)
Concrete
Drywall
with steel
studs?
Unsure?
Call Customer Service: 1-800-359-5520 (UK: 0800-056-2853)
Steel stud kit required [NOT INCLUDED]

5
NOTE: Not all hardware included will be used.
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged
item to your dealer; contact Customer Service. Never use damaged parts!
Parts and Hardware for STEP 1
STEP 1 Attach Brackets to TV
M6 x 25mm
M8 x 50mm
M8 x 30mm
M8 x 25mm
2.5mm
22 mm
TV Screws
TV Washers
Spacers
TV Brackets
02 x4
03 x4
04 x4
05 x4
06 x4
07 x4
08 x4
01 x2

6
M6 M8
1.1 Select TV Screw Diameter 1.2 Select TV Screw Length
Hand thread screws into the threaded inserts
on the back of your TV to determine which
screw diameter (M6 or M8) to use.
FLAT BACK ROUND BACK CABLESINSET HOLES
If your TV has a flat back AND you want your TV closer to the
wall, use the shorter screws.
Spacers and longer screws are supplied to accommodate:
●Round/irregular back TVs
●TVs with inset mounting holes
●Extra space needed for cables
Standard configurations
are shown. For special
applications, or if you
are uncertain about your
hardware selection, contact
Customer Service at
1-800-359-5520.
Too Short
Too Long
CAUTION:
Verify adequate thread
engagement with the screw or
screw/spacer combination.
-Too short will not hold the TV.
-Too long will damage the TV.
Correct
If your TV included inset spacers or wall mount
adapters, see Troubleshooting on PAGE 18.

7
IMPORTANT:
For ease of access,
straps should
be level with the
bottom of the TV.
1.3 Attach TV Brackets
Center the TV brackets 01 over your TV hole pattern as shown. Be sure to use the same holes and that the brackets are level.
NOTE: Loosen the adjustment screws Aon TV brackets 01 to extend the mounting holes over your TV hole pattern.
Install using the spacer, TV screw and washer combination you selected for your TV.
IMPORTANT: Tighten the adjustment screws Aon TV brackets 01 when finished.
CAUTION: Avoid potential personal injuries and property damage! DO NOT use a
power screwdriver for this step. Tighten screws only until TV Bracket is secured in place.
01
Loosen
Tighten
A
Standard
configurations are
shown. For special
applications, or if
you are uncertain
about your hardware
selection, contact
Customer Service at
1-800-359-5520 .
01 aScrew and washer
bSpacer, screw and washer
07 08
06
06
02
04
03
05

8
For wood stud (Single Stud) installations,
follow STEP 2B on PAGE 13
For wood stud (Double Stud) installations,
follow STEP 2A on PAGE 10
For concrete installations,
follow STEP 2C on PAGE 16
For steel stud installations,
follow STEP 2D on PAGE 18
STEP 2 Attach Wall Plate to Wall

9
Parts and Hardware for STEP 2
NOTE: Not all hardware included will be used.
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged
item to your dealer; contact Customer Service. Never use damaged parts!
*WARNING:This product contains a magnet. If an implanted medical device such as a pacemaker or implantable cardioverter defibrillator
(ICD) is in use, magnetic fields may aect the operation of those devices, resulting in serious injury or death. If you have an implanted medical device,
keep at least 13 cm (5 in.) between your device and the magnet. Please consult with your physician or medical professional prior to using this product.
5⁄16 x 2 ¾ in.
For concrete installations ONLY
Sanus Magnetic Stud Finder*
Wall Plate
Wall Plate
Template Lag Bolt
Concrete Anchor UX10 x 60R
CAUTION: Do not use in drywall or wood
11 x1
12 x4
13 x4
09 x1
10 x1

10
CAUTION: Avoid potential
personal injuries and property damage!
●Drywall covering the wall must not
exceed 5/8 in. (16 mm)
●Minimum wood stud size:
nominal 2 x 4 in. (51 x 102 mm)
actual 1½ x 3½ in. (38 x 89 mm)
●Minimum horizontal space between
fasteners: 16 in. (406 mm)
●Stud centers must be verified – not all
walls have conventional 16 in. (406 mm)
or 24 in. (610 mm) stud spacing
1. Locate a nail/screw in the studs
using the Sanus magnetic stud
finder 11 provided.
2. Find the edges of the studs using the
probe of the stud finder 11 .
3. Mark the centers of the studs with
a pencil.
1 2 3
11
11
Max. 5/8 in. (16 mm)
Min. 16 in. (406 mm) Min. 3 1/2 in. (89 mm)
Min. 1 1/2 in. (38 mm)
STEP 2A Wood Stud Option (Double Stud Install)

11

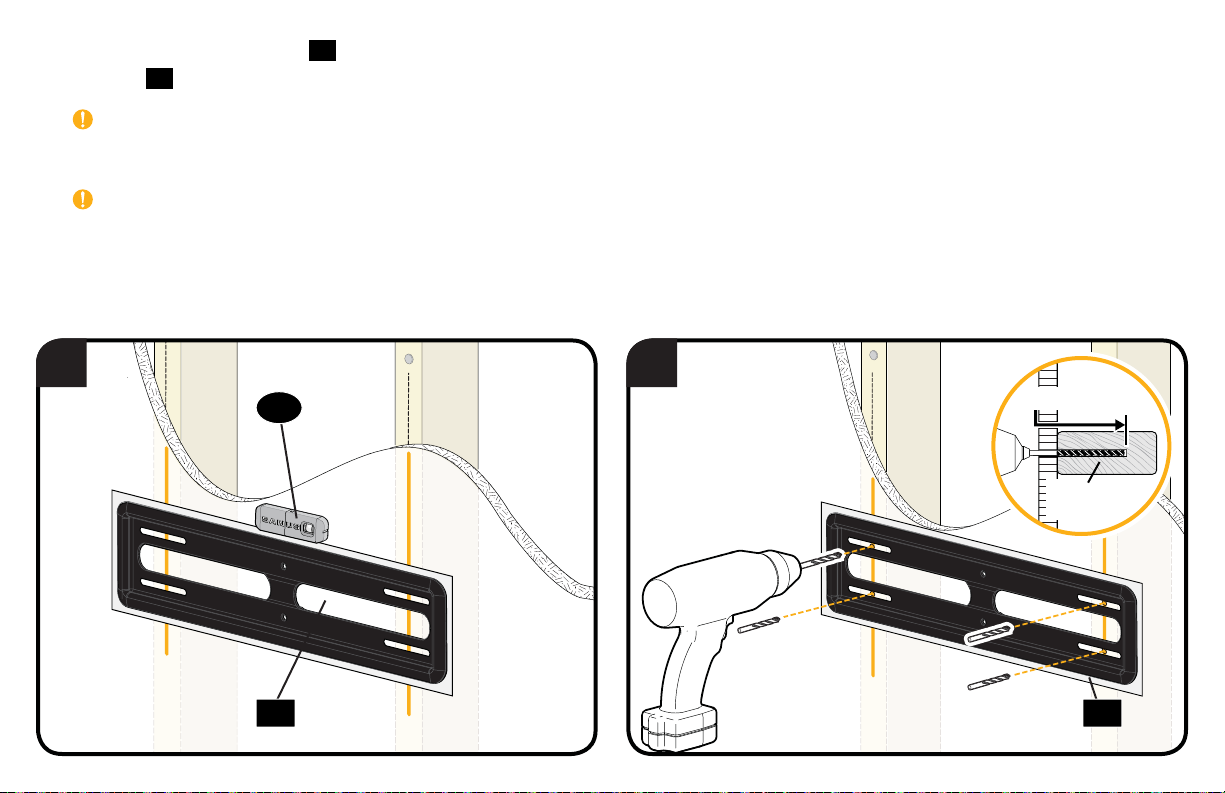

4. Place the wall plate template 09 at your desired height and position the slotted holes over your stud center lines. Level the wall plate
template 09 and tape in place.
IMPORTANT: Be sure you mark and drill into the center of the stud.
5. Drill the four pilot holes using a 7/32 in. (5.5 mm) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm).
0909
11
4 5 3 in. (75 mm)
7/32 in.
(5.5 mm)

12
12
6. Remove the wall plate template 09 .
7. Install the wall plate 10 using four lag bolts 12 . Firmly tighten all four lag bolts 12 until they are pulled flush against the wall plate 10 .
NOTE: Hold the wall plate 10 in place when tightening the first lag bolt 12 to keep the plate from shifting out of place.
CAUTION: Avoid potential personal injury or property damage! All four lag bolts 12 MUST BE firmly tightened to prevent unwanted
movement of the wall plate 10 .Ensure the wall plate is securely fastened to the wall before continuing on to the next step.
Go to STEP 3 on PAGE 22.
09 10
67

13
Max. 5/8 in. (16 mm)
Min. 1 1/2 in. (38 mm)
Min. 3 1/2 in. (89 mm)
1 2 3
11
11
CAUTION: Avoid potential
personal injuries and property damage!
●Drywall covering the wall must not
exceed 5/8 in. (16 mm)
●Minimum wood stud size:
nominal 2 x 4 in. (51 x 102 mm)
actual 1½ x 3½ in. (38 x 89 mm)
●Minimum horizontal space between
fasteners: 16 in. (406 mm)
●Stud center must be verified
1. Locate a nail/screw in the stud
using the Sanus magnetic stud
finder 11 provided.
2. Find the edges of the stud using the
probe of the stud finder 11 .
3. Mark the center of the stud with
a pencil.
STEP 2B Wood Stud Option (Single Stud Install)

14
4. Place the wall plate template 09 at your desired height and position the MIDDLE HOLES over your stud center lines. Level the wall plate
template 09 and tape in place.
CAUTION: Avoid potential personal injury or property damage! You MUST install using the center holes in the stud as shown
IMPORTANT: Be sure you mark and drill into the center of the stud.
5. Drill the middle two pilot holes (into the stud) using a 7/32 in. (5.5 mm) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm).
09 09
11
4 5 3 in. (75 mm)
7/32 in.
(5.5 mm)

15
6. Remove the wall plate template 09 .
7. Install the middle two lag bolts 12 (into the stud), and firmly tighten until they are pulled flush against the wall plate 10 .
CAUTION: Avoid potential personal injury or property damage! Both lag bolts 12 MUST BE firmly tightened to prevent unwanted
movement of the wall plate 10 . Ensure the wall plate is securely fastened to the wall before continuing on to the next step.
CAUTION: Avoid potential personal injury or property damage! The middle two lag bolts MUST be installed into a wood stud – this
product was not designed to be used in drywall alone.
Go to STEP 3 on PAGE 22.
1209 10
6 7

16
CAUTION: Avoid potential personal injuries and property damage!
●Mount the wall plate 10 directly onto the concrete surface
●Minimum solid concrete thickness: 8 in. (203 mm)
●Minimum concrete block size: 8 x 8x 16 in. (203 x 203 x 406 mm)
●Minimum horizontal space between fasteners: 16 in. (406 mm)
1. Position the wall plate template 09 on the wall at your desired height. Level the wall plate template and mark the hole locations.
2. Drill four pilot holes using a 3/8 in. (10 mm) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm). Never drill into the mortar between blocks.
09
09
11
1 2
3/8 in.
(10 mm)
3 in. (75 mm)
Min.
16 in.
(406 mm)
STEP 2C Solid Concrete or Concrete Block Option

17
12
3. Remove the wall plate template 09 and insert four anchors 13 .
CAUTION: Be sure the anchors 13 are seated flush with the concrete surface.
4. Install the wall plate 10 using four lag bolts 12 . Firmly tighten all four lag bolts 12 until they are pulled flush against the wall plate 10 .
NOTE: Hold the wall plate 10 in place when tightening the first lag bolt 12 to keep the plate from shifting out of place.
CAUTION: Avoid potential personal injury or property damage! All four lag bolts 12 MUST BE firmly tightened to prevent unwanted
movement of the wall plate 10 .Ensure the wall plate is securely fastened to the wall before continuing on to the next step.
Go to STEP 3 on PAGE 22.
09
10
13
36

18
Steel Stud Anchor Kit [NOT INCLUDED]
1/4-20 x 1.75
1/4-20 Snap Toggle BB
.734 x .312 x .065 in.
Min. 16 in.
(406 mm)
CAUTION: Avoid potential personal
injuries and property damage!
●Studs must be at least 2x4 / 25 ga.
●If back side of wall is unfinished, drywall
must be installed to a minimum of one stud
left and right of the stud(s) being used to
install the mount.
●Drywall must be a minimum of 1/2 in. (13 mm)
thick on each side of the studs, and a
minimum clearance of 1 7/8 in. (48 mm)
behind the wall is required.
●This product must be centered on the studs.
●Stud type and structural strength
must conform to the North American
Specification for the Design of Cold-Formed
Steel Structural Members
[362 S 125 18, C-Shape, S - Stud Section].
●Drywall must be secured to studs with
screws 12 in. (304.8 mm) on center.
STEP 2D Steel Stud Option (Double and Single Stud Install)
S1 x4
S2 x4
S3 x4
Screw
Washer
Anchor
Contact Customer Service at
1-800-359-5520 to have this
additional hardware shipped
directly to you.
1 2 3
11
11
1. Locate a nail/screw in the stud using the Sanus magnetic stud finder 11 provided.
2. Find the edges of the stud using the probe of the stud finder 11 .
3. Mark the center of the stud with a pencil.

19
4. Place wall plate template 09 at your desired height and position over your stud center line(s). Level wall plate template 09 and tape in place.
CAUTION: Avoid potential personal injury or property damage! SINGLE STUD installs MUST use the center holes in the stud as shown.
NOTE: For assistance in determining wall plate location, see HeightFinder at sanus.com.
IMPORTANT: Be sure you mark and drill into the center of the stud.
5. Drill the four pilot holes using a 1/2 in. (13 mm) diameter drill bit in the locations illustrated for double stud or single stud installs.
IMPORTANT: Pilot holes must be drilled to a depth of 1 in. (25 mm).
4
STUD
STUD
STUD
STUD
STUD
STUD
DRYWALL
DRYWALL
5
1 in. (25 mm)
1/2 in.
(13 mm)
09 09
09 09
DOUBLE STUD DOUBLE STUD
SINGLE STUD SINGLE STUD

20
6
8
7
9
6. Insert the four anchors S1 *into the drilled holes (DOUBLE STUD installs = four in studs. SINGLE STUD installs = two in studs / two in dryway).
7. Pull to rotate the anchor S1 *inside the wall.
8. Hold the end of the anchor S1 *, while sliding the cap Pagainst the drywall.
9. Snap off the ends of the anchor S1 *to lock in place.
CAUTION: Be sure the cap Pis seated against the drywall surface and the ends of the anchor do not extend beyond the cap P- cut if neccessary.
S1 S1
S1 S1
PP
