Sanyo DC-DA1400M User manual

Service Manual
FILE NO.
REFERENCE No. SM5810776
PRODUCT CODE No.
129 716 01
Micro Component System DC-DA1400M (AU)
CONTENTS
Laser Beam Safety Precaution ........................................ 1
Tuner Adjustment ............................................................. 2
Tape eck Adjustment ....................................................... 3
Exploded View (Accessories & Packing) ......................... 4
Exploded View (Cabinet & Chassis) ................................ 5
Parts List .......................................................................... 6
Wiring Connection ............................................................ 9

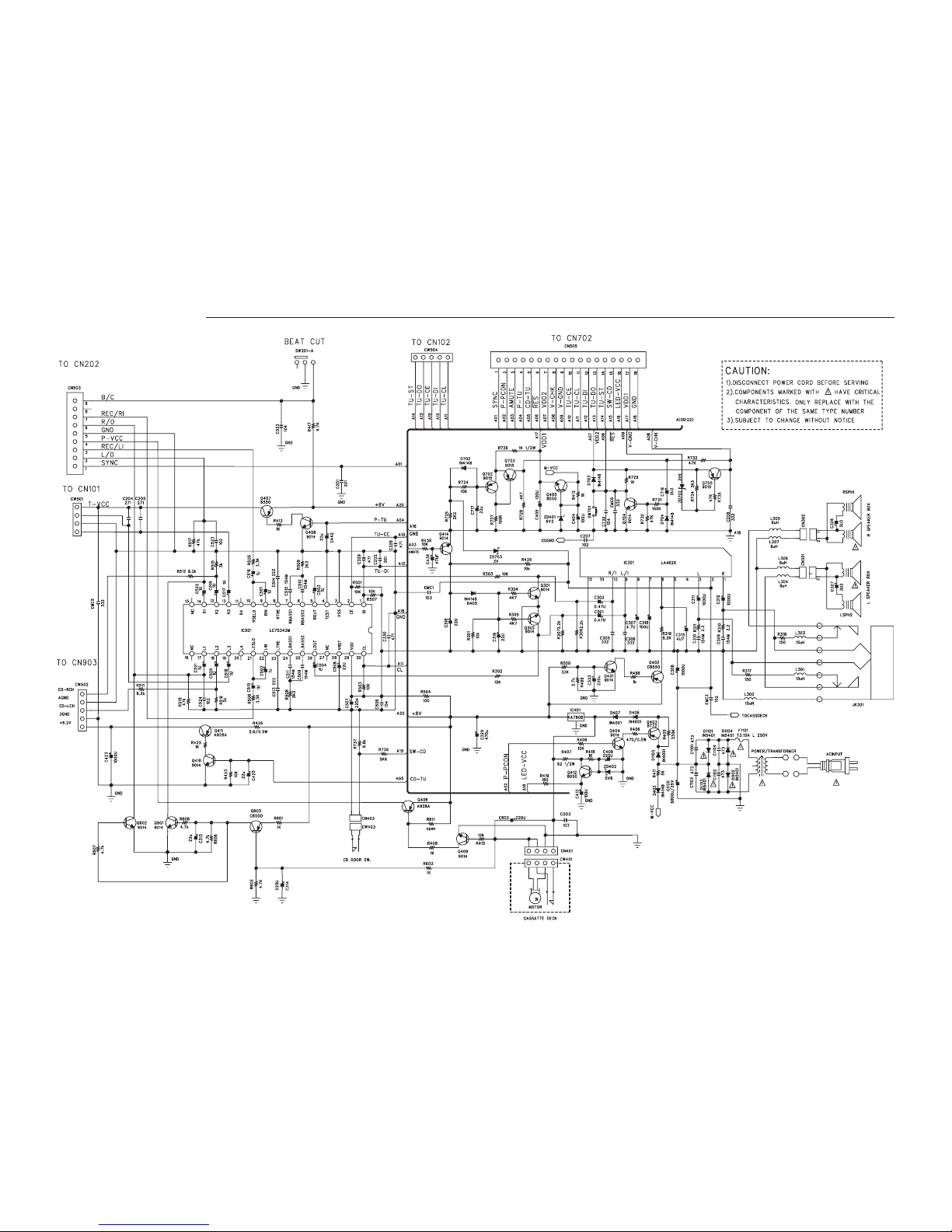

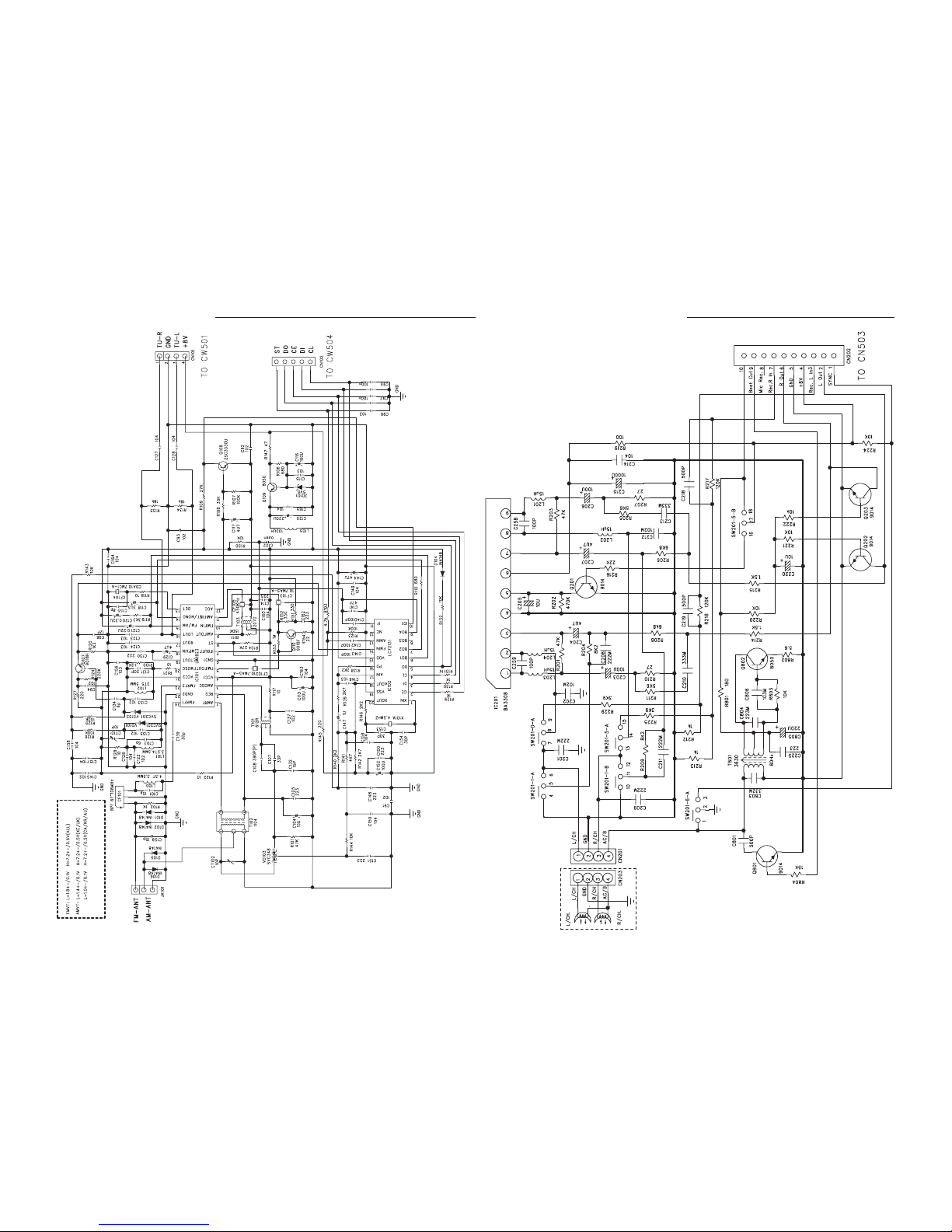

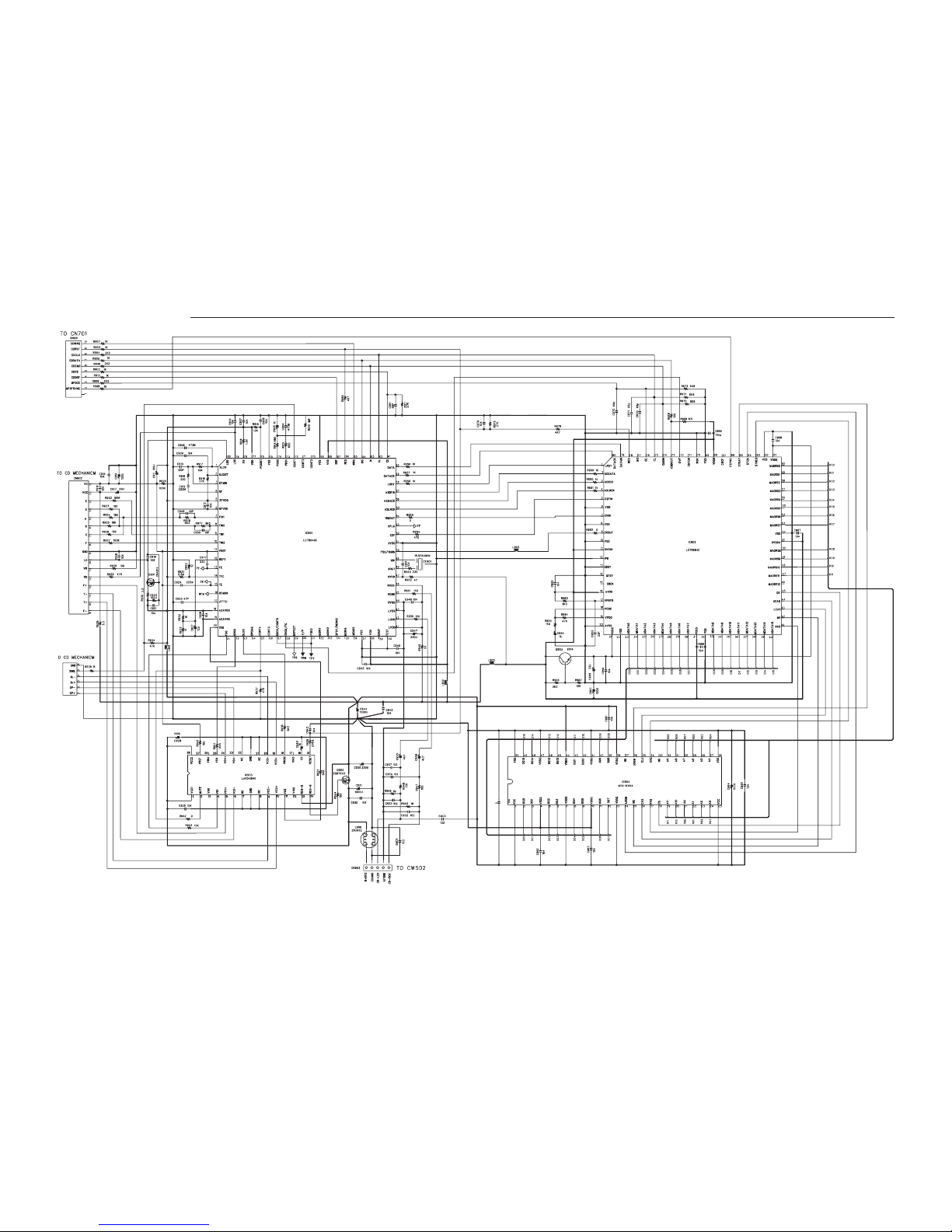

Schematic Diagram .......................................................... 10
Wiring Diagram ................................................................ 18

- 1 -
• Pickup that emits a laser beam is used on this CD section.
CAUTION :
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY RESULT
IN HAZARDOUS RADIATION EXPOSURE.
LASER OUTPUT................ 0.6 mW Max. (CW)
WAVE LENGTH ................. 790 nm

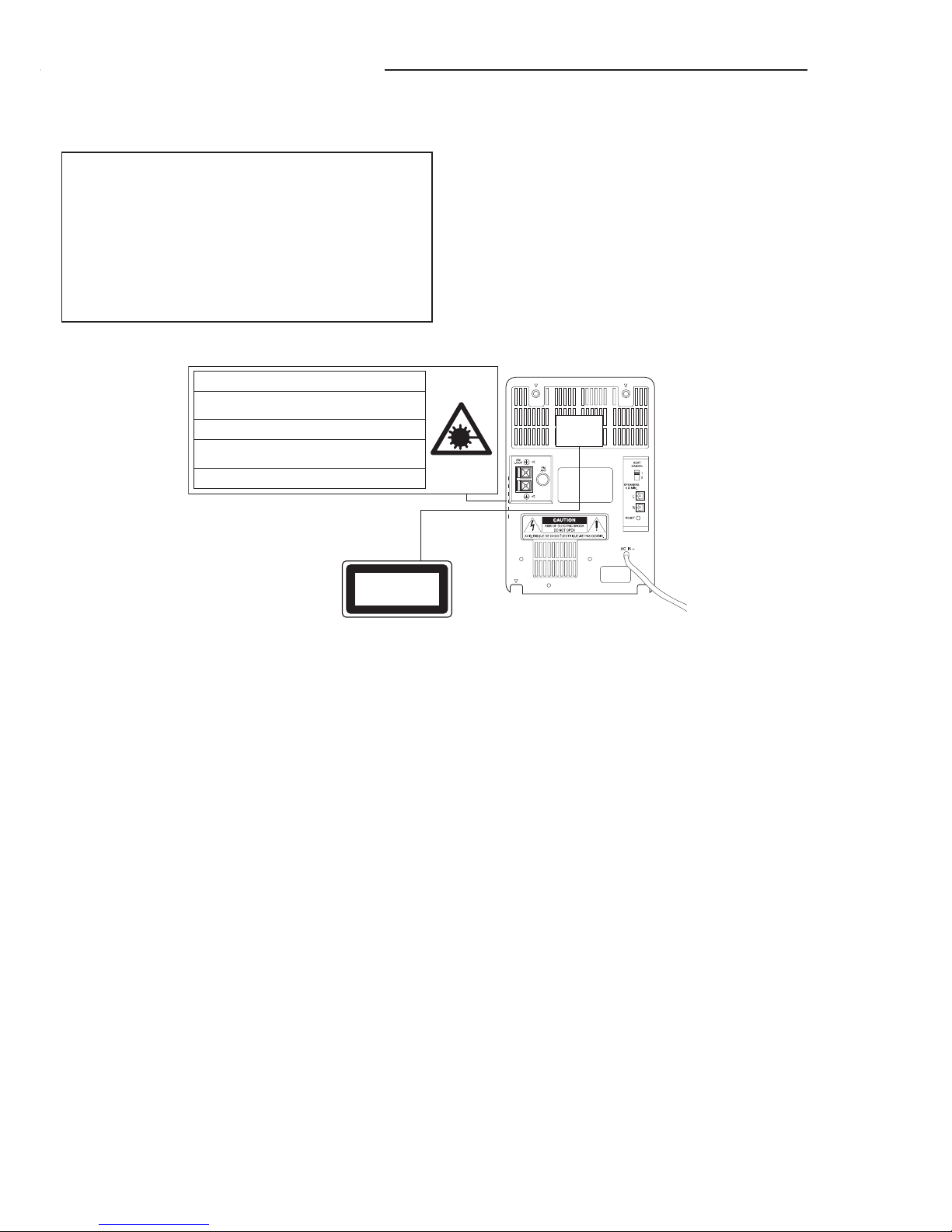

LASER BEAM SAFETY PRECAUTION
CAUTION – INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM.
ADVARSEL – USYNLIG LASER STRÅLING VED ÅBNING, NÅR
SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION, UNDGÅ UDS ÆTTELSE
FOR STRÅLING.
VARNING – OSYNLIG LASER STRÅLNING NÄR DENNA DEL ÄR ÖPPNAD
OCH SPÄRR ÄR URKOPPLAD. STRÅLEN ÄR FARLIG.
VORSICHT – UNSICHTBARE LASERSTRAHLUNG TRITT AUS, WENN
DECKEL GEÖFFNET UND WENN SICHERHEITSVERRIEGELUNG
ÜBERBRÜCKT IST. NICHT, DEM STRAHL AUSSETZEN.
VARO – AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA
NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.
CLASS 1 LASER PRODUCT
LUOKAN 1 LASERLAITE
KLASS 1 LASERAPPARAT

- 2 -
TUNER ADJUSTMENTS
Use a plastic screw driver for adjustments.
Adjust the intermediate frequency of AM to the frequency of ceramic filter.
Set of unit
Supply voltage
:
AC 230V
speaker impedance
:
4 ohms
standard output
:
50 mW
Function select:
:
TUNER R144
a. Parts Locatio
n
L101
CT102
CT101
T102
T101
C129
L102
R125
T103
a.AM Adjustment Band :AM
SG Position of VTVM
Input Output Frequency Tuning dial Oscilloscope
Closed the output
termial by sweep
generator,it place
to AM ANT
Connect AM SG to Connect VTVM to 522 KHz 522 KHz T101 VT: 1.4+-/0.1V
test loop R144 1611 KHz 1611 KHz VT: 7.2+-/0.5V
Connect AM SG to Connect VTVM to 603 KHz 603 KHz T102
test loop speaker terminals. 1404 KHz 1404KHz TC102
b.FM Adjustment Band :FM FM Dummy antenna: 75 ohms unbalance
SG Position of VTVM
Input Output Frequency Tuning dial Oscilloscope
Connect FM SG to Connect VTVM to 87.50 MHz 87.50 MHz L102 VT: 1.8+-/0.1V
D102(+) & D101(-) R125 108.00 MHz 108.00 MHz VT: 7.2+-/0.5V
Connect FM SG to Connect VTVM to 90.00 MHz 90.00 MHz L101
D102(+) & D101(-) speaker terminals. 106.00 MHz 106.00 MHz TC101
3
2
3
Step
1
cover range
Adjusting
Circuit
2
1
Step Adjustment
IF T103
Tuning
522 KHz450 KHz
Connections
10.7 MHz
Adjusting Connection
Max.
Adjustment
Circuit
Tracking
Tracking Max.
Connect VTVM to
C129(-)
90.00 MHz
Tuning
cover range
IF
Connect sweep
generator to
C139
Connect VTVM to
C129(-)
This is a basic tuner adjustment.

- 3 -
TAPE DECK ADJUSTMENTS
1. HEAD REPLACEMENT
After replacement, demagnetize. The heads by using a degausser.
Be sure to clean the heads before attempting to make any adjustments.
All wiring should be returned to the original position after work is completed.
2. HEAD AZIMUTH ADJUSTMENT
(1) Load the test tape(STT-113CN,etc., 8KHz) for azimuth
adjustment.
(2) Press the PLAY button.
(3) Use a cross-tip screwdriver to turn the screw for azimuth
adjustment so that left and right output are maximized
(4) Press the STOP button.
(5) After completion of the adjustment, use thread lock (TB-1401B)
to secure the azimuth-adjustment screw.
3. MOTOR REPLACEMENT
4. AC BIAS FREQUENCY ADJUSTMENTS
(1) connect counter to T801(BS);
(2) R/P swith in recording state;
(3) Adjusting T801 use a plastic screw, AC bias frequency: 82KHz.
5. MOTOR SPEED ADJUSTMENT
(1) Insert the test tape(MTT-111N,etc., 3,000 Hz)
(2) Press the PLAY button.
(3) Use a flat-tip screwdriver to turn the SVR(located inside the
rear of the motor) to adjust SVR so that the frequency counter
become 3,000 Hz .
6. CHECKING THE MECHANISM TORQUSE AND TENSION
REW 55 gf or more ------ ------
F.FWD 55 gf or more ------ ------
PLAY 30-70 gf.cm 1.5 - 5 gf.cm 70 gf or more
Cassette of
measurement
PLAY:TW-2111A
F.FWD/REW:TW-2231 PLAY:TW-2111A Drive-power cassette TW-2412
Measurement Take-up torqe Back tension Tape tension
This is a basic tape deck adjustment.

- 4 -
EXPLODED VIEW(ACCESSORIES & PACKING)
1
2
3
4
5
6
7
9
2
2

- 5 -
EXPLODED VIEW(CABINET & CHASSIS)
51
50
35-1 35-2 35-3 35-4 35-5 35-6
52

- 6 -
PARTS LIST
CAUTION : Regular type resistors and capacitors are not listed. To know those values, refer to the schematic diagram.
Regular type resistors are less than 1/4W carbon type and 0 ohm chip resistors.
Regular type capacitors are less than 50V and less than 1000µF of Ceramic type and Electrolytic type.
PRODUCT SAFETY NOTICE
EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH
THE IEC SYMBOL !
!! IN THE PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATE COMPONENTS IN WHICH SAFETY
CAN OF SPECIAL SIGNIFICANCE. WHEN REPLACING A COMPONENT IDENTIFIED , USE ONLY THE REPLACEMENT
PARTS DESIGNATED, OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WATTAGE OR VOLTAGE THAT ARE
DESIGNATED IN THE PARTS LIST IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST
BE MADE TO DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT
BEFORE RETURNING THE PRODUCT TO THE CUSTOMER.
REF.NO. PART NO. DESCRIPTION
PACKING & ACCESSORIES
REF.NO. PART NO. DESCRIPTION
1645 084 2566 GIFT BOX
2645 069 7357 POLY BAG,SPEAKER
3 645 027 2080 POLY BAG,AM LOOP ANT
4645 061 6297 ANTENNA LOOP
5645 080 5714 REMOTE CONTROL,
RC29-X000S3-030
6645 070 9296 POLY BAG,REMOTE CONTROL
7645 081 5287 INSTRUCTION MANUAL
9645 080 5516 POLY FOAM,KIT
!
!! 645 084 2078 POWER CORD,SAA
645 080 5370 WIRE JOIN UL/CSA APPROVAL,
AC CORD TO PWR TRAN
CABINET & CHASSIS
REF.NO. PART NO. DESCRIPTION
1645 080 5691 ASSY CASS DOOR
3 645 080 5424 CASS DOOR BRACKET
4645 080 5547 CABINET FRONT
5645 042 1181 CASS DOOR SPRING
6645 080 5660 CD CONTROL KNOB
7 645 080 4991 LCD DISPLAY
8 645 080 5394 PAPER BACK LIGHT
9645 080 5462 LENS BACK LIGHT
10 645 080 5448 DISPLAY BEACKET
11 645 080 5479 VOLUME KNOB RING
12 645 080 5417 KNOB VOLUME
13 645 080 5363 HEAT SINK,FOR IC301
15 645 069 6961 CD MECKANISM COVER
16 645 033 3446 RUBBER SILICON,CD DECK
17 645 043 0145 CD DOOR LOCK
19 645 080 5356 CD DECK MECHANISM
21 645 033 0407 CD LID GEAR
22 645 080 5400 CD DOOR SPRING
23 645 080 5646 CD TRAY
24 645 080 5653 CD DOOR
25 645 033 3989 CD CHUCK A
26 645 080 5639 CD DOOR COVER
27 645 033 3972 CD MAGNET RING
28 645 033 3996 CD CHUCK M
29 645 069 6657 LEAF SWITCH
31 645 080 5684 FUNCTION.BAND KNOB,RIGHT
32 645 080 5677 FUNCTION.BAND KNOB,LEFT
33 645 080 4977 CASS DECK MECHANISM
35-1 645 080 5622 KNOB CASS RECORD
35-2 645 080 5615 KNOB CASS PLAY
35-3 645 080 5608 KNOB CASS REWIND
35-4 645 080 5592 KNOB CASS FFWD
35-5 645 080 5585 KNOB CASS STOP/EJECT
35-6 645 080 5578 KNOB CASS PAUSE
36 645 033 0407 CASS LID GEAR
37 645 080 5387 CASS KNOB PLATE
38 645 080 5493 RECORDING BD BRACKET
39 645 062 1161 ANTENNA JACK
41 645 076 1843 LINE CORD HOLDLE
42 645 080 5554 CABINET BACK
43 645 080 5486 DISPLAY LENS
44 645 080 5431 DISPLAY BEACKET COVER
45 645 035 0580 RUBBER FOOT, DIA. 2.,FOR UNIT
46 645 080 5509 SPEAKER BOX
47 645 080 4953 SPEAKER 1.5",SMALL
48 645 080 4960 SPEAKER 3.5",LARGE
49 645 076 1515 SANYO LOGO
50 645 080 5721 ASSY SPEAKER BOX L,LEFT
51 645 080 5738 ASSY SPEAKER BOX R,RIGHT
52 645 080 5707 ASSY CABINET FRONT
FIXINIG PARTS
REF.NO. PART NO. DESCRIPTION
S1 645 023 6594 SCREW ST 3X8,CONTROL BD
S2 645 023 6594 SCREW ST 3X8,TUNER BD
S3 645 069 6770 SCREW 2.6X8,CD DECK
S4 645 023 6617 SCREW ST 3X10,CD DOOR GEAR
S5 645 023 6617 SCREW ST 3X10,
BACK CAB TO CD TRAY
S6 645 069 6831 SCREW 2.6X6,
CD CHUCK M TO CD CHUCK A
S7 645 069 6824 SCREW 2X6,LEAF SWITCH
S8 645 023 6617 SCREW ST 3X10,CASS DECK
S9 645 023 6594 SCREW ST 3X8,
RECORDING BD BRACKET
S10 645 027 1182 SCR 3X20,POWER TRANSFORMER
S11 645 023 6594 SCREW ST 3X8,
LINE CORD HOLDLE
S12 645 027 3841 SCR 3X2.5,
BACK CAB TO FRONT CAB
S13 645 023 6617 SCREW ST 3X10,
CASS DOOR GEAR
S14 645 023 6594 SCREW ST 3X8,CASS KNOB PLATE
S15 645 023 6617 SCREW ST 3X10,CD TRAY
S16 645 027 1144 SCR 2.8X12,ANT JACK
S17 645 035 0405 SCREW ST 3 X 8 MM KB,
BACK CAB TO FRONT CAB
S18 645 023 6594 SCREW ST 3X8,AUDIO BD
S19 645 023 6617 SCREW ST 3X10,SPEAKER LARGE
ELECTRICAL-PARTS
REF.NO. PART NO. DESCRIPTION
40 !
!! 645 080 4946 POWER TRANSFORMER,V1423FS
645 080 5127 FFC CABLE 18P,
CONTROL CN702 TO AUDIO C
645 055 7255 16P FFC CABLE,
CD BD CN902 TO CD DECK
645 080 5110 FFC CABLE 10P,
CONTROL CN701 TO CD BD C
645 080 5097 HSG 4P,
CASS DECK TO AUDIO CN401
645 080 5103 HSG 2P,CD DOOR SW TO CN403
645 073 8234 4P HSG,
CN201 TO CASS DECK HEAD
645 076 1034 CE 3.3U 50V,FOR SPEAKER SMALL
645 080 5080 HSG 2P,TO SPEAKER
645 055 7095 FERRITE BEAD,
CN202 TO CN503 WIRE
645 051 6474 FERRITE BEAD,CN401 WIRE
645 080 5011 FERRITE BEAD,CW502 WIRE
645 027 1328 SOLDERING SLUG,ANT

- 7 -
PARTS LIST
REF.NO. PART NO. DESCRIPTION
CONTROL P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
14 614 334 4285 ASSY,PWB CONTROL(Only initial)
C0744 645 055 6784 GOLD CAP DX-5R5H104
CN701 645 080 5042 10P FFC HEADER
CN702 645 080 5059 18P FFC HEADER
D0701 645 055 6821 DIODE 1N4148
D0706 645 055 6821 DIODE 1N4148
IC701 645 076 1454 IC LC877148A-54K14JK05
L0701 645 034 7160 INDUCTOR 10UH
L0702 645 034 7160 INDUCTOR 10UH
L0705 645 080 5349 INDUCTOR 47UH
LD701 645 080 4991 LCD DISPLAY,LCD701
LE701 645 062 0881 LED,LED701
Q0701 645 072 3162 TRANSISTOR 9014C
RM701 645 033 3477 DIODE RPM-6938-V4,REM701
SW702 645 042 0023 SW TACT,POWER
SW703 645 042 0023 SW TACT,TUNER/BAND
SW704 645 042 0023 SW TACT,SOUND
SW705 645 042 0023 SW TACT,MEMORY
SW706 645 042 0023 SW TACT,STOP
SW707 645 042 0023 SW TACT,REW/TUN DOWN
SW708 645 042 0023 SW TACT,PLAY/PAUSE
SW709 645 042 0023 SW TACT,FF/TUN UP
SW710 645 042 0023 SW TACT,SLEEP
SW711 645 042 0023 SW TACT,TAPE
VR701 645 055 7309 ROTARY ENCODER,
EC12E24L104F7V
X0701 645 062 0911 CRYSTAL 32.768KHZ
X0702 645 076 1096 CRYSTAL 6MHZ
645 080 5394 PAPER BACK LIGHT
645 080 5462 LENS BACK LIGHT
645 080 5431 DISPLAY BEACKET COVER
645 080 5448 DISPLAY BEACKET
CD P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
18 614 334 4308 ASSY,PWB CD(Only initial)
CF901 645 052 4837 RESONATOR 16.934MHZ
CN901 645 076 1102 10P FFC HEADER
CN902 645 055 7163 16P FFC HEADER
CN903 645 054 0660 5P HEADER
IC901 645 076 1423 IC LC78646E
IC902 645 076 1430 IC LC78684E
IC903 645 076 1416 IC LA6548
IC904 645 076 1447 IC M12L16161A
L0906 645 042 0108 CHOKE COIL 26UH
Q0901 645 073 8579 TRANSISTOR 2SA812
Q0902 645 033 3514 TR 2SB764D
Q0903 645 072 3162 TRANSISTOR 9014C
SW901 645 069 6657 LEAF SWITCH
645 070 9050 HEAT SINK,FOR IC903
TUNER P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
20 614 334 4261 ASSY,PWB TUNER(Only initial)
C0108 645 055 6791 POLY CAP 390PF
CF101 645 051 6467 BAND PASS FILTER
CF102 645 055 1130 CERAMIC FILTER
CF103 645 055 1130 CERAMIC FILTER
CF104 645 055 6906 CERAMIC FILTER
CF105 645 055 6920 CERAMIC FILTER
CN101 645 054 0653 4P HEADER
CN102 645 054 0660 5P HEADER
CT101 645 023 6310 TRIMMER 10PF
CT102 645 023 6310 TRIMMER 10PF
D0101 645 080 5288 DIODE 1N4148
D0102 645 080 5288 DIODE 1N4148
D0104 645 080 5288 DIODE 1N4148
D0105 645 080 5288 DIODE 1N4148
D0106 645 080 5288 DIODE 1N4148
IC101 645 080 5325 IC LA1823
IC102 645 080 5332 IC LC72131
JK101 645 062 1161 ANTENNA JACK
L0100 645 049 9913 FM COIL 4.5T
L0101 645 023 6297 VHF COIL
L0102 645 023 6280 FM COIL
L0104 645 027 0352 CHOKE COIL 100UH
Q0107 645 080 5318 TRANSISTOR 9018H
Q0108 645 034 7078 TR 2SC3330U
Q0109 645 080 5301 TRANSISTOR 8050C.D
Q0110 645 080 5318 TRANSISTOR 9018H
T0101 645 055 6944 IFT,IFT OSC 1A612R
T0102 645 062 0775 IFT,IFT OSC OA10-871104
T0103 645 033 3866 AM COIL,IFT IF 2070
VD101 645 055 6807 DIODE SVC201
VD102 645 055 6807 DIODE SVC201
VD103 645 055 6814 DIODE SVC348
X0101 645 062 0904 CRYSTAL
ZD101 645 080 5295 ZENER 5.6V
645 042 0344 CONTACT PIN
AUDIO P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
30 614 334 4278 ASSY,PWB AUDIO(Only initial)
C0308 645 070 4642 CE 1000U 25V
C0309 645 073 8067 POLYESTER 0.15U 100V
C0310 645 073 8067 POLYESTER 0.15U 100V
C0311 645 080 4915 ELECT 1000U 16V
C0312 645 080 4915 ELECT 1000U 16V
C0423 645 080 4915 ELECT 1000U 16V
C0509 645 073 8067 POLYESTER 0.15U 100V
C0510 645 073 8067 POLYESTER 0.15U 100V
C0511 645 073 8067 POLYESTER 0.15U 100V
C0512 645 073 8067 POLYESTER 0.15U 100V
C0513 645 073 8005 POLYESTER 0.0022U 100V
C0514 645 073 8005 POLYESTER 0.0022U 100V
C0523 645 073 7992 POLYESTER 0.001U 100V
C0524 645 073 7992 POLYESTER 0.001U 100V
C1105 645 080 4922 ELECT 6800U 25V
CN301 645 042 9545 HEADER 2PINS
CN302 645 042 9545 HEADER 2PINS
CN401 645 027 0611 WAFER 4P
CN403 645 034 6798 HEADER 2PINS
CN503 645 080 5073 9P HEADER
CN505 645 080 5066 18P FFC HEADER
D0403 645 055 6821 DIODE 1N4148
D0405 645 055 6821 DIODE 1N4148
D0406 645 023 6112 RECTIFIER 1N-4001
D0407 645 023 6112 RECTIFIER 1N-4001
D0702 645 055 6821 DIODE 1N4148
D0703 645 055 6821 DIODE 1N4148
D0704 645 055 6821 DIODE 1N4148
D1101 645 027 0932 RECTIFIER 1N-5401
D1102 645 027 0932 RECTIFIER 1N-5401
D1103 645 027 0932 RECTIFIER 1N-5401
D1104 645 027 0932 RECTIFIER 1N-5401
D1105 645 023 6112 RECTIFIER 1N-4001
FS1101 645 080 5035 GLASS FUSE
IC301 645 080 4984 IC LA4628
IC401 645 066 5790 IC KA7808
IC501 645 055 7026 IC LC75342
JK301 645 062 1147 ST PHONEJACK
L0301 645 080 5004 CHOKE COIL 15UH
L0302 645 080 5004 CHOKE COIL 15UH
L0303 645 080 5004 CHOKE COIL 15UH
L0304 645 080 5028 CHOKE COIL 8UH
L0305 645 062 0867 CHOKE COIL 10UH 2A
L0306 645 062 0867 CHOKE COIL 10UH 2A
L0307 645 062 0867 CHOKE COIL 10UH 2A
Q0301 645 023 6129 TR 9014C
Q0302 645 023 6129 TR 9014C
Q0401 645 023 6129 TR 9014C
Q0402 645 055 6869 TR 8550B C
Q0403 645 076 1058 TRANSISTOR KSB772Y
Q0404 645 023 6129 TR 9014C
Q0405 645 027 0420 TR 8050C
Q0406 645 055 6883 TR KSA928A
Q0407 645 055 6869 TR 8550B C

- 8 -
PARTS LIST
REF.NO. PART NO. DESCRIPTION
Q0408 645 023 6129 TR 9014C
Q0409 645 023 6129 TR 9014C
Q0410 645 023 6129 TR 9014C
Q0411 645 055 6883 TR KSA928A
Q0412 645 027 0420 TR 8050C
Q0414 645 023 6129 TR 9014C
Q0601 645 023 6129 TR 9014C
Q0602 645 023 6129 TR 9014C
Q0603 645 055 6869 TR 8550B C
Q0702 645 032 9890 TR KTC-9015C
Q0703 645 032 9890 TR KTC-9015C
Q0704 645 023 6129 TR 9014C
Q0705 645 032 9890 TR KTC-9015C
R0725 645 080 4878 RESISTOR 220 OHM 1/8W
R0726 645 080 4847 RESISTOR 1K OHM 1/2W
SW201 645 024 1048 SW SLIDE SK22F03G6,
BEAT CANCEL
SW701 645 055 7064 SW TACT,RESET
W101 645 076 1911 HOUSING 5P,
CW502 TO CD BD CN903
W102 645 080 5158 5P HSG,CW504 TO TUNER CN102
W103 645 080 5141 4P HSG,CW501 TO TUNER CN101
ZD401 645 062 0737 ZENER 6.2V
ZD402 645 055 6838 ZENER 5.6V
ZD702 645 044 6924 ZENER DIODE 3.9V
ZD703 645 073 8135 ZENER 3V
645 035 0511 FUSE HOLDER MW1010K,FS1101
645 080 5363 HEAT SINK,FOR IC301
STDS RECORDING P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
34 614 334 4292 ASSY,
PWB STDS RECORDING(Only initial)
C0201 645 073 8005 POLYESTER 0.0022U 100V
C0202 645 073 7992 POLYESTER 0.001U 100V
C0208 645 073 8005 POLYESTER 0.0022U 100V
C0209 645 073 8005 POLYESTER 0.0022U 100V
C0210 645 073 8050 POLYESTER 0.033U 100V
C0211 645 073 8005 POLYESTER 0.0022U 100V
C0212 645 073 7992 POLYESTER 0.001U 100V
C0213 645 073 8050 POLYESTER 0.033U 100V
C0803 645 073 8012 POLYESTER 0.0033U 100V
C0804 645 073 8043 POLYESTER 0.022U 100V
C0806 645 073 8029 POLYESTER 0.01U 100V
IC201 645 032 9906 IC BA3308
L0201 645 079 6937 INDUCTOR 15UH
L0202 645 079 6937 INDUCTOR 15UH
L0203 645 079 6937 INDUCTOR 15UH
L0204 645 079 6937 INDUCTOR 15UH
Q0201 645 072 3162 TRANSISTOR 9014C
Q0202 645 072 3162 TRANSISTOR 9014C
Q0203 645 072 3162 TRANSISTOR 9014C
Q0801 645 072 3162 TRANSISTOR 9014C
Q0802 645 027 0420 TR 8050C
SW201 645 023 6327 SW RECORDING PS62D01-S(SH
T0801 645 027 0307 BIAS COIL,AC BIAS 3630
W104 645 073 8302 9P HSG,CN202 TO AUDIO CN305

- 9 -
WIRING CONNECTION
AM ANT FM ANT
AC CORD POWER TRANSFORMER
This is a basic wiring connection.

- 11 -- 10 -
This is a basic schematic diagram.
SCHEMATIC DIAGRAM (AUDIO)

- 13 -- 12 -
This is a basic schematic diagram.
SCHEMATIC DIAGRAM (CD)

- 15 -- 14 -
SCHEMATIC DIAGRAM (CONTROL)
This is a basic schematic diagram.

- 17 -- 16 -
SCHEMATIC DIAGRAM (TUNER) SCHEMATIC DIAGRAM (STD RECORDING)
This is a basic schematic diagram.
This is a basic schematic diagram.

- 19 -- 18 -

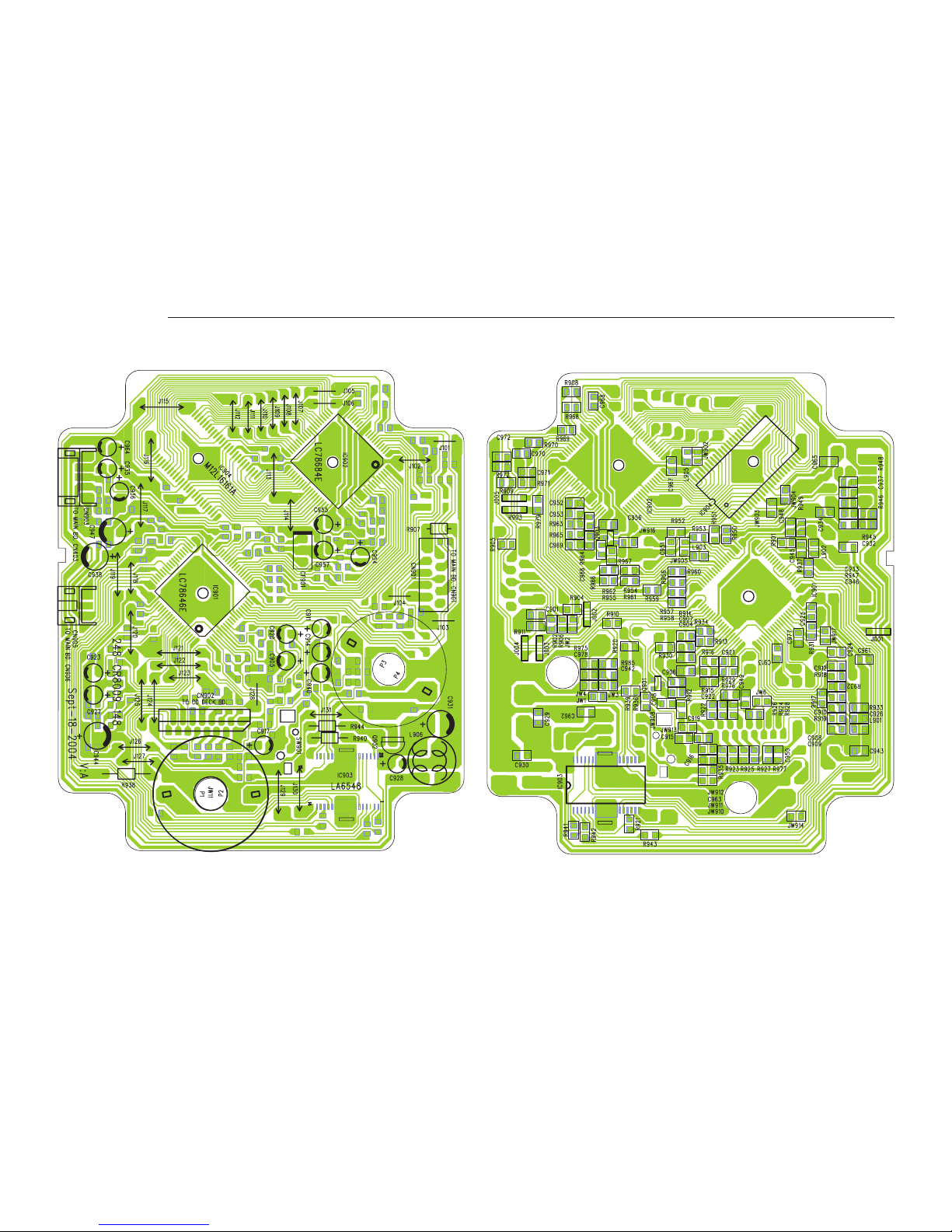

WIRING DIAGRAM (CD)

- 21 -- 20 -
WIRING DIAGRAM (CONTROL)

- 23 -- 22 -
WIRING DIAGRAM (TUNER)

- 25 -- 24 -
WIRING DIAGRAM (STDS RECORDING) WIRING DIAGRAM (AUIDIO)
Sep./ '05 / BB Printed in Japan
SANYO Electric Co., Ltd.
Osaka, Japan
