SERIES PM172 POWERMETERS
COMMUNICATIONS
DNP3-2000 Communications Protocol
REFERENCE GUIDE

2
Every effort has been made to ensure that the material herein is complete and accurate. However, the
manufacturer is not responsible for any mistakes in printing or faulty instructions contained in this
book. Notification of any errors or misprints will be received with appreciation.
For further information regarding a particular installation, operation or maintenance of equipment,
contact the manufacturer or your local representative or distributor.
This book is copyrighted. No part of this book may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise
without the prior written permission of the manufacturer.
Rev.A7 (F/W Version 4.88.8 or later):
1. Added DNP 16-bit BC scaling option.
Rev.A6 (F/W Version 4.88.3 or later):
2. Added DNP Binary Output Object 10 Variation 01 (packed bit read).
3. Added DNP points BC:4, BC:5 for kvarh imp/exp energy counters.
Rev.A5 (F/W Version 4.88.2 or later):
1. Added the Broken Delta wiring configuration.
2. Communication protocol is changeable through communications.
3. DNP event setpoints are configurable for High and Low thresholds and Delta triggers.
4. Removed DNP Class 0 group assignments.
5. The battery status is reported in the device self-check register.
Rev.A4 (F/W Version 4.86 or later):
1. Added DNP Class 0 point assignments.
2. Separated the DNP Class 0 assignment and DNP Events setup.
3. Control Relay Output Block point #100 allows assigning Relay status Points to the Class 0 polling.
4. The Frozen Counter points have the same numbers as the corresponding Binary Counters.
BG0273 Rev. A7

3
Table of Contents
GENERAL........................................................................................................................... 4
DNP PROTOCOL ............................................................................................................... 5
Introduction....................................................................................................................... 5
PM172 Deviation from Standard ...................................................................................... 5
DNP Implementation ........................................................................................................ 5
Scaling 16-bit Analog Inputs............................................................................................. 6
Scaling 16-bit Binary Counters......................................................................................... 7
PM172 REGISTERS ........................................................................................................... 8
Basic Data Registers ........................................................................................................ 8
Basic Setup Registers ...................................................................................................... 9
User Selectable Options Setup ...................................................................................... 10
Firmware Version and Device Options........................................................................... 10
Communications Setup .................................................................................................. 11
DNP Options Setup ........................................................................................................ 12
DNP Event Definition Registers ..................................................................................... 13
Freeze Requests on Binary Counter Objects................................................................. 14
Resetting Energy, Demands, Counters and Min/Max log .............................................. 15
Status Registers ............................................................................................................. 16
Alarm Status Registers................................................................................................... 16
Extended Data Registers ............................................................................................... 17
Analog Output Setup ...................................................................................................... 22
Analog Expander Channels Allocation Registers .......................................................... 23
Digital Inputs Allocation Registers.................................................................................. 24
Pulsing Setpoints Registers ........................................................................................... 24
Relay Operation Control................................................................................................. 25
Pulse Counter Setup ...................................................................................................... 26
Class 0 Point Assignment .............................................................................................. 26
APPENDIX A DNP APPLICATION MESSAGES............................................................ 28
APPENDIX B DNP DEVICE PROFILE............................................................................ 30

4
1 GENERAL
GENERAL
This document specifies a subset of the DNP3-1999 serial communications protocol used to transfer data
between a master computer station and the Series PM172 Powermeters.The document provides all necessary
information for developing third-party communications software capable of communicating with the PM172.
Additional information concerning communications operation, configuration of communications parameters, and
communications connections is found in the Series PM172 Installation and Operation Manual.
IMPORTANT
1. The voltage parameters throughout the protocol can represent line-to-neutral or line-to-line voltages
depending on the wiring mode selected in the instrument. When the 4LN3, 3LN3 or 3BLN3 wiring mode is
selected, the voltages will be line-to-neutral; for any other wiring mode, they will be line-to-line voltages. In
4LN3, 4LL3, 3LN3, 3LL3, 3BLN3 and 3BLL3 wiring modes, harmonic voltages will represent line-to-neutral
voltages. In a 3-wire direct connection, harmonic voltages will represent line-to-neutral voltages as they
appear on the instrument's input transformers. In a 3-wire open delta connection, harmonic voltages will
comprise L12 and L23 line-to-line voltages.
2. In 3-wire connection schemes, the unbalanced current and phase readings for power factor, active power,
and reactive power will be zero, because they have no meaning. Only the total three-phase power values can
be used.
3. Most of the instrument’s advanced features are configured using multiple setup parameters that can be
accessed in contiguous registers. When writing the setup registers, it is recommended to write all the
registers at once using a single request, or to clear (zero) the setup before writing into separate registers.
Each written value is checked for compatibility with the other setup parameters, and if the new value does not
conform to them, the request will be rejected.

5
2 DNP PROTOCOL
DNP PROTOCOL
Introduction
DNP3-2000 (Distributed Network Protocol) is an open standard designed by Harris Control Division. DNP defines
a command-response method of communicating digital information between a master and slave device. Detailed
information regarding DNP3-2000is available in the “Basic 4 Document Set” which can be obtained from the DNP
User Group. This document describes a LEVEL 2 DNP3-2000 communication protocol implemented between a
master station and a slave PM172 instrument.
PM172 Deviation from Standard
The PM172 does not support unsolicited requests or hardware collision avoidance.
The data link layer differs from the Basic 4 specifications because of the master-slave relationship between
devices. When the Powermeter receives a request, no further requests can be sent until after the Powermeter
makes the appropriate response.
DNP Implementation
Overview
The PM172, like most devices, retrieves regular analog and binary data from the instrument by executing directed
(non-broadcast) Read requests.
Binary-Output-Status objects and Analog-Output-Status objects are sent with flags that always indicate ONLINE.
A Binary-Output-Status object that indicates the current state of a control digital point (relay) uses remote forced
data as well as local forced data bits. The value of a state bit indicates the current state of the digital output point.
The PM172 executes the parameter clear function and demands resets using the Direct-Operate (or SBO/Operate
or Direct-Operate-No-Acknowledge) command to specified points of the Control-Relay-Output-Block object.
Issuing the Direct-Operate (or SBO/Operate or Direct-Operate-No-Acknowledge) command to appropriative points
of the Analog-Output-Block object can change the setup parameters. The DNP functions Write, Cold-Restart and
Delay Measurement are also supported by the PM172. Refer to Appendix A for specific requests and responses.
Appendix B contains the standard DNP Device Profile Document.
The Powermeter attempts to respond with the same object variation and qualifier as those in the request.
Exceptions to this rule include changing variation 0 to a specific variation and changing qualifier code 6 to 1.
If the Powermeter receives an invalid request, it sets the internal indication to the error code. The following
internal indication bits are supported:
Octet
Position
Bit
Position
Description
0 0 Set when a request received with a broadcast destination address. Cleared after next
response.
0 7 Device restart - set when the instrument powers up or after executing Cold Restart, cleared
by writing zero to object 80.
0 4 Time-synchronization required from the master. Cleared when master sets the time.
0 5 Set when the instrument is in the Local state(is being programmed via the front panel).
Cleared when the instrument is in the Remote state.
1 5 Set when the current configuration in the instrument is corrupted. May also be set as a result
of the legal changes in the setup configuration whenever another setup is affected by the
changes made. Cleared when either setup is reloaded.
Class 0 Response
The PM172 DNP implementation supports a wide variety of messages. The most common method to extract DNP
static object information is to issue a Read Class-0 request.
There is an option for assigning objects to be polled via Class 0 requests. When this option is used, the Class 0
response includes all static object points specified by the Class 0 Point Assignment Setup Registers (see Table 3-

6
30). By default, the following points are specified by the Class 0 Point Assignment setup: 32 first Analog Input
points from Table 3-1, 3 Analog Output first 3 points from Table 3-2, 2 Binary Input points represented Status
Inputs and 2 Binary Input points represented Relay Status (see Table 3-13).
Object Point Mapping and Event Objects
The PM172 has a special mapping mechanism allowing you to map either static object point onto predefined point
range. A total of 32 points are available for mapping. DNP static objects can be accessed directly by using the
dedicated object point number. DNP event objects can be generated and accessed only through a mapping
mechanism.
You can map any of the 32 mapping points to either Analog Input, Binary Input or Binary Counter object point. By
default those are factory mapped to the first 32 points of the Analog Input object: 32 points from the Basic Data
Registers (see Table 3-1). To re-map these, you must define the required number of points for each allowable
DNP object in the DNP Options Setup (see Table 3-8), and then configure each point individually to be polled as
an event source, via the DNP Event Setpoints Setup (see Table 3-9). For any mapped static object point, you can
enable a corresponding event object point. Note that any changes made to the DNP Options Setup cause a reset
of the DNP Event Options Setup points to their defaults.
All event options are disabled by default. Since a mapped static point is configured to create DNP Event objects,
events are generated for this point as its value or state changes. Two different scan time rates are used for polling
events:
- 200 ms for Binary Counter and Analog Input points;
- 50 ms for Binary Input points.
The memory consumption for keeping events depends on the event objects variation (DNP object size). The
maximum buffer size (MBS) per DNP Event Object/ Event Class is 256 byte. The maximum number of events that
the instrument can hold can be calculated as follows:
Maximum Events Number = MBS / (DNP Event Object Size + 1)
For example, the instrument can hold up to 21 measures of the 32-bit Analog Change Event With Time Object:
(256 / 12) or up to 32 measures of the 8-bit Binary Change Event With Time Object: (256 / 8).
To suppress mapping, explicitly set all registers that specify the number of the Analog Input, Binary Input and/or
Binary Counter objects to 0. In this case PM172 supports Static Operation Polling only.
DNP Address
The instrument on a DNP link must have a unique address. The PM172 allows one of 256 addresses to be
selected. The selectable addresses have a range of 0-255. DNP uses the address 65535 for broadcast function.
Note that a broadcast request never generates a DNP response.
Transaction Timing
To allow the master to switch the communication link, the Powermeter minimum response time must be at least
3.5 character time (depending on the baud rate) and at least 5 ms. Table 2-1 shows the actual response time
measured at 9600 bps.
Table 2-1 Response Time
No. of Parameters Typical response time, ms Maximum response time, ms
1 10 12
5 15 16
10 21 22
43 (Object 30:3) 45 62
Note that Direct-Operate (or SBO/Operate or Direct-Operate-No-Acknowledge) requests for reset/clear registers
and setpoint changing are immediately confirmed.
Scaling 16-bit Analog Inputs
With the Analog-Input objects, any of variations 1 through 4 can be used. Variations specified in the tables in
Section 3 show those that should be used to read a full-range value without a possible over-range error when no
scaling is used to accommodate the value to the requested object size.
When over-range occurs, a positive value is reported as 32767 and a negative value as -32768, with the over-
range bit being set to 1 in the flag octet if a variation 2 is requested. To avoid over-range errors when a variation 2
or 4 is required, a liner scaling may be used (see Section 3, DNP Options Setup) to scale 32-bit analog readings
to 16-bit Analog Input objects. By default, scaling is disabled.

7
When scaling is enabled, either analog input requested with variation 2 or 4 will be scaled to the range of -32768
to 32767 for bi-directional parameters (such as power and power factor), and to the range of 0 to 32767 for single-
ended positive parameters (voltage, current, frequency, etc.). To get a true reading, the reverse conversion should
be done using the following formula:
Y = ((X – DNP_LO) ×(HI - LO)) /(DNP_HI – DNP_LO) + LO
where:
Y - the true reading in engineering units
X - the raw input data in the range of DNP_LO – DNP_HI
LO, HI - the data low and high scales in engineering units (specified for each Analog-Input point, Section 4)
DNP_LO - DNP low conversion scale: DNP_LO = -32768 for a point with a negative LO scale, DNP_LO = 0 for
a point with a zero or positive LO scale
DNP_HI - DNP high conversion scale: DNP_HI = 32767
EXAMPLE
Suppose you have read a value of 201 for point 3 that reports a current reading (see Table 3-1). If your instrument
has CT primary current 5000 A, then the current high scale is HI = 2.0×5000 = 10000, and the current reading in
engineering units will be as follows:
(201 - 0) ×(10000 - 0)/(32767 - 0) + 0 = 61.34A
Scaling 16-bit Binary Counters
Binary counters are stored in the device in 32-bit integer format. Using 16-bit Binary Counter objects can cause
over-range errors if the counter value exceeds 32767. Scaling binary counters (see DNP Options setup in Section
3.9) allows changing a binary counter unit from 1 to 1000 in powers of 10 to accommodate a 32-bit counter value
to 16-bit object format. If the scaling unit is greater than 1, the counter value is reported being divided by the
scaling unit. To get the actual value, multiply the counter reading by the selected scaling unit.

8
3 PM172 Registers
PM172 Registers
Basic Data Registers
These registers are used to retrieve a predefined set of the data measured by the Powermeter. All electrical
parameters are averaged values over the specified number of real-time measurements.
Table 3-1 Basic Data
Object:Var 5Parameter Object:Point Unit
2Value range 1
30:3 Voltage L1/L12
4AI:0 V 0 to Vmax
30:3 Voltage L2/L23
4AI:1 V 0 to Vmax
30:3 Voltage L3/L31
4AI:2 V 0 to Vmax
30:3 Current L1 AI:3 A 0 to Imax
30:3 Current L2 AI:4 A 0 to Imax
30:3 Current L3 AI:5 A 0 to Imax
30:3 kW L1 AI:6 kW -Pmax to Pmax
30:3 kW L2 AI:7 kW -Pmax to Pmax
30:3 kW L3 AI:8 kW -Pmax to Pmax
30:3 kvar L1 AI:9 kvar -Pmax to Pmax
30:3 kvar L2 AI:10 kvar -Pmax to Pmax
30:3 kvar L3 AI:11 kvar -Pmax to Pmax
30:3 kVA L1 AI:12 kVA 0 to Pmax
30:3 kVA L2 AI:13 kVA 0 to Pmax
30:3 kVA L3 AI:14 kVA 0 to Pmax
30:4 Power factor L1 AI:15 0.001 -999 to 1000
30:4 Power factor L2 AI:16 0.001 -999 to 1000
30:4 Power factor L3 AI:17 0.001 -999 to 1000
30:4 Total Power factor AI:18 0.001 -999 to 1000
30:3 Total kW AI:19 kW -Pmax to Pmax
30:3 Total kvar AI:20 kvar -Pmax to Pmax
30:3 Total kVA AI:21 kVA 0 to Pmax
30:3 Neutral (unbalanced) current AI:22 A 0 to Imax
30:4 Frequency AI:23 0.01Hz 0 to 10000
30:3 Maximum sliding window kW demand 4(E) AI:24 kW 0 to Pmax
30:3 Accumulated kW demand (E) AI:25 kW 0 to Pmax
30:3 Maximum sliding window kVA demand 4(E) AI:26 kVA 0 to Pmax
30:3 Accumulated kVA demand (E) AI:27 kVA 0 to Pmax
30:3 Maximum ampere demand L1 AI:28 A 0 to Imax
30:3 Maximum ampere demand L2 AI:29 A 0 to Imax
30:3 Maximum ampere demand L3 AI:30 A 0 to Imax
30:3 Present sliding window kW demand 3(E) AI:31 kW 0 to Pmax
30:3 Present sliding window kVA demand 3(E) AI:32 kVA 0 to Pmax
30:4 PF import at maximum kVA sliding window
demand (E)
AI:33 0 to 1000
30:4 Voltage THD L1/L12 AI:34 % 0 to 9999
30:4 Voltage THD L2/L23 AI:35 % 0 to 9999
30:4 Voltage THD L3 AI:36 % 0 to 9999
30:4 Current THD L1 AI:37 % 0 to 9999
30:4 Current THD L2 AI:38 % 0 to 9999
30:4 Current THD L3 AI:39 % 0 to 9999
30:4 Current TDD L1 AI:40 % 0 to 1000
30:4 Current TDD L2 AI:41 % 0 to 1000
30:4 Current TDD L3 AI:42 % 0 to 1000
20:5 kWh import (E) BC:0 kWh 0 to 999,999,999
20:5 kWh export (E) BC:1 kWh 0 to 999,999,999
20:5 kvarh net (E) BC:2 kvarh -999,999,999 to 999,999,999
20:5 kVAh (E) BC:3 kVAh 0 to 999,999,999

9
Object:Var 5Parameter Object:Point Unit
2Value range 1
20:5 kvarh import (E) 6BC:4 kvarh 0 to 999,999,999
20:5 kvarh export (E) 6BC:5 kvarh 0 to 999,999,999
AI indicates Analog-Input point, BC - Binary Counter point.
1The parameter limits are as follows:
Imax (200% over-range) = 2 ×CT primary current [A]
Direct wiring (PT Ratio = 1):
Vmax (690 V input option) = 828.0 V
Vmax (120 V input option) = 144.0 V
Pmax = (Imax ×Vmax ×3) [kW x 0.001] if wiring mode is 4LN3, 3LN3 or 3BLN3
Pmax = (Imax ×Vmax ×2) [kW x 0.001] if wiring mode is 4LL3, 3OP2, 3DIR2, 3OP3, 3LL3 or 3BLL3
Wiring via PTs (PT Ratio > 1):
Vmax (690 V input option) = 144 ×PT Ratio [V]
Vmax (120 V input option) = 144 ×PT Ratio [V]
Pmax = (Imax ×Vmax ×3)/1000 [MW x 0.001] if wiring mode is 4LN3. 3LN3 or 3BLN3
Pmax = (Imax ×Vmax ×2)/1000 [MW x 0.001] if wiring mode is 4LL3, 3OP2, 3DIR2, 3OP3, 3LL3 or 3BLL3
2When using direct wiring (PT Ratio = 1), voltages are transmitted in 0.1 V units, currents in 0.01 A units, and powers in
0.001 kW/kvar/kVA units. For wiring via PT (PT Ratio > 1), voltages are transmitted in 1V units, currents in 0.01 A units,
and powers in 1 kW/kvar/kVA units.
3To get block interval demand readings, set the number of demand periods equal to 1 (see Table 3-4).
4When the 4LN3 or 3LN3 wiring mode is selected, the voltages will be line-to-neutral; for any other wiring mode, they will be
line-to-line voltages.
5Variations specified in the table show those that should be used to read a full-range value without a possible over-range
error when no scaling is used to accommodate the value to the requested object size (see Section 3, Scaling Analog Input
Objects).
6Available starting with F/W Version 4.88.3 or later.
E Available in the PM172E
Basic Setup Registers
These registers are used to access the basic setup parameters. In the event that the modulus field is not equal to
1, the value received from the Powermeter must be multiplied by the modulus. When written, such a number
should be divided by the modulus.
Table 3-2 Basic Setup Registers
Object:
Variation
Parameter Object:
Point
Range Comment
40:2 (read)
41:2 (write)
Wiring mode 1AO:0 0 = 3OP2, 1 = 4LN3, 2 = 3DIR2,
3 = 4LL3, 4 = 3OP3, 5 = 3LN3,
6 = 3LL3, 8 = 3BLN3, 9 = 3BLL3
40:1 (read)
41:1 (write)
PT ratio AO:1 10 to 65000 ×0.1
40:1 (read)
41:1 (write)
CT primary current AO:2 1 to 5000 A
40:2 (read)
41:2 (write)
Power demand period (E) AO:3 1,2,5,10,15,20,30,60 min
255 = external synchronization
40:2 (read)
41:2 (write)
Volt/ampere demand period AO:4 0 to 1800 sec
40:2 (read)
41:2 (write)
Averaging buffer size AO:5 8, 16, 32
40:2 (read)
41:2 (write)
Reset enable/disable AO:6 0 = disable, 1 = enable
40:1 (read) Reserved AO:7 Read as 65535
40:2 (read)
41:2 (write)
The number of demand periods (E) AO:8 1 – 15
40:1 (read) Reserved AO:9 Read as 65535
40:1 (read) Reserved AO:10 Read as 65535
40:2 (read)
41:2 (write)
Nominal frequency AO:11 50, 60 Hz
40:2 (read)
41:2 (write)
Maximum demand load current AO:12 0 to 10000 A (0 = CT primary current)

10
AO indicates Analog-Output-Status (Read) and Analog-Output-Block (Write) points.
1The wiring mode options are as follows:
3OP2 - 3-wire open delta using 2 CTs (2 element)
4LN3 - 4-wire WYE using 3 PTs (3 element), line-to-neutral voltage readings
3DIR2 - 3-wire direct connection using 2 CTs (2 element)
4LL3 - 4-wire WYE using 3 PTs (3 element), line-to-line voltage readings
3OP3 - 3-wire open delta using 3 CTs (2 1/2 element)
3LN3 - 4-wire WYE using 2 PTs (2 1/2 element), line-to-neutral voltage readings
3LL3 - 4-wire WYE using 2 PTs (2 1/2 element), line-to-line voltage readings
3BLN3 - 3-wire Broken Delta (2 1/2 element), line-to-neutral voltage readings
3BLL3 - 3-wire Broken Delta (2 1/2 element), line-to-line voltage readings
E Available in the PM172E
User Selectable Options Setup
Table 3-3 User Selectable Options Registers
Object:
Variation
Parameter Object:
Point
Range
40:2 (read)
41:2 (write)
Power calculation mode AO:92 0 = using reactive power,
1 = using non-active power
40:2 (read)
41:2 (write)
Energy roll value (E) AO:93 0 = 1×104
1 = 1×105
2 = 1×106
3 = 1×107
4 = 1×108
5 = 1×109
40:2 (read)
41:2 (write)
Phase energy calculation mode (E) AO:94 0 = disabled, 1 = enabled
40:2 (read)
41:2 (write)
Analog output option AO:95 0 = none, 1 = 0-20 mA,
2 = 4-20 mA, 3 = 0-1 mA
4 = ±1 mA
40:2 (read)
41:2 (write)
Analog expander output 1AO:96 0 = none, 1 = 0-20 mA,
2 = 4-20 mA, 3 = 0-1 mA
4 = ±1 mA
1Do not enable the analog expander output if the analog expander is not connected to the instrument, otherwise the
computer communications will become garbled.
E - Available in the PM172E (in the PM172P read as 65535)
Firmware Version and Device Options
The registers shown in Table 3-4 are used to retrieve the firmware version number and instrument options.
Table 3-4 Firmware and Instrument Options Registers
Object:
Variation
Parameter Object:
Point
Read/
Write
Range
30:4 Firmware build number 1AI:1023 Read 0-65535
30:4 Firmware version number AI:1024 Read 0-65535
30:3 Instrument option 1 AI:1025 Read See Table 3-5
30:3 Instrument option 2 AI:1026 Read See Table 3-5
30:4 Active serial port number AI:1027 Read 0 = COM1,
1 = COM2
AI indicates Analog-Input points. Scaling mechanism is not supported for these registers.
1Available starting with F/W Version 4.88.2 or later.
Table 3-5 Instrument Options
Point Bit number Description
Options 1 0 120V option
(AI:1025) 1 690V option

11
Point Bit number Description
2-3
4
5
Reserved
100% current over-range
Reserved
6 Analog output 0/4-20 mA
7
8
Analog output 0-1 mA
Analog output ±1 mA
9 Relays option
10 Digital inputs option
11-13 Reserved
14 Analog expander output ±1 mA
15 Reserved
Options 2 0-2 Number of relays – 1
(AI:1026) 3-6 Number of digital inputs – 1
7-8 Number of analog outputs –1
9-15 Reserved
Communications Setup
These registers are used to access the communications setup parameters.
NOTE
When changing the instrument address, baud rate or data format, the new communications parameters will take
effect 100 ms after the instrument responds to the master’s request.
Table 3-6 Communications Setup Registers
Comm.
Port
Object:
Variation
Parameter Object:
Point
Range
Port #1 40:1 (read) Protocol AO:64 0 = ASCII
1 = Modbus RTU
2 = DNP3.0
40:2 (read)
41:2 (write)
Interface AO:65 0 = RS-232, 1 = RS-422, 2 = RS-485
40:2 (read)
41:2 (write)
Address AO:66 0 to 255
40:2 (read)
41:2 (write)
Baud rate AO:67 0 = 110 bps
1 = 300 bps
2 = 600 bps
3 = 1200 bps
4 = 2400 bps
5 = 4800 bps
6 = 9600 bps
7 = 19200 bps
40:2 (read)
41:2 (write)
Data format AO:68 1 = 8 bits/no parity
2 = 8 bits/even parity
40:2 (read)
41:2 (write)
Incoming flow
control
(handshaking)
AO:69 0 = no handshaking
1 = software handshaking (XON/XOFF protocol)
2 = hardware handshaking (CTS protocol)
40:2 (read)
41:2 (write)
Outgoing flow
control (RTS/DTR)
AO:70 0 = RTS signal not used
1 = RTS permanently asserted (DTR mode)
2 = RTS asserted during the transmission
Port #2 40:1 (read) Protocol AO:80 0 = ASCII
1 = Modbus RTU
2 = DNP3.0
40:2 (read)
41:2 (write)
Interface AO:81 1 = RS-422, 2 = RS-485
40:2 (read)
41:2 (write)
Address AO:82 0 to 255
40:2 (read)
41:2 (write)
Baud rate AO:83 0 = 110 bps
1 = 300 bps
2 = 600 bps
3 = 1200 bps
4 = 2400 bps
5 = 4800 bps
6 = 9600 bps
7 = 19200 bps
40:2 (read)
41:2 (write)
Data format AO:84 1 = 8 bits/no parity
2 = 8 bits/even parity
40:1 (read) Reserved AO:85 Read as 65535
AO indicates Analog-Output points.

12
DNP Options Setup
This section describes the general DNP setup registers related to DNP timing and events processing. The
following static objects generate the corresponding DNP change events:
Table 3-7 DNP Static, Frozen and Event Objects
Static Object Change Object
Name Obj:Var Name Obj:Var
Single-Bit Binary Input
Binary Input With Status
01:1
01:2
Binary Input Change Without Time
Binary Input Change With Time
02:1
02:2
32-bit:
Binary Counter
Binary Counter Without Flag
16-bit:
Binary Counter
Binary Counter Without Flag
20:1
20:5
20:2
20:6
32-bit:
Counter Change Event Without Time
Counter Change Event With Time
16-bit
Counter Change Event Without Time
Counter Change Event With Time
22:1
22:5
22:2
22:6
32-bit:
Frozen Counter
Frozen Counter Without Flag
Frozen Counter With Time of Freeze
16-bit:
Frozen Counter
Frozen Counter Without Flag
Frozen Counter With Time of Freeze
21:1
21:9
21:5
21:2
21:10
21:6
32-bit:
Analog Input
Analog Input Without Flag
16-bit:
Analog Input
Analog Input Without Flag
30:1
30:3
30:2
30:4
32-bit:
Analog Change Event Without Time
Analog Change Event With Time
16-bit:
Analog Change Event Without Time
Analog Change Event With Time
32:1
32:3
32:2
32:4
The following registers are used to access the DNP Options Setup parameters. The value range of points 32 to 41
reflects the elements number of the corresponding DNP object/variation list described above. For instance, the
default value for the frozen Binary Counter is the Frozen Counter Without Flag Obj21:Var10.
Table 3-8 DNP Options Setup Registers
Object:
Variation
Parameter Object:
Point
Range
40:2 (read)
41:2 (write)
Binary Input Static Object AO:32 0 to 1, 0 by default
40:2 (read)
41:2 (write)
Binary Input Change Object AO:33 0 to 1, 1 by default
40:2 (read)
41:2 (write)
Binary Counter Object AO:34 0 to 3, 3 by default
40:2 (read)
41:2 (write)
Frozen Binary Counter Object AO:35 0 to 5, 4 by default
40:2 (read)
41:2 (write)
Reserved AO:36
40:2 (read)
41:2 (write)
Binary Counter Change Event Object AO:37 0 to 3, 2 by default
40:2 (read)
41:2 (write)
Analog Input Object AO:38 0 to 3, 3 by default
40:2 (read)
41:2 (write)
Reserved AO:39
40:2 (read)
41:2 (write)
Reserved AO:40
40:2 (read)
41:2 (write)
Analog Input Change Event Object AO:41 0 to 3, 2 by default
40:1 (read)
41:2 (write)
Re-mapping static point indices for event
objects
AO:42 0 – disabled (default)
1 – enabled
40:1 (read)
41:2 (write)
16-bit Binary Counter Scaling 2AO:43
0=×1 (default), 1=×10, 2=×100,
3=×1000
40:1 (read)
41:2 (write)
16-bit Analog Input Scaling AO:44 0 – disabled
1 – enabled (default)
40:2 (read)
41:2 (write)
Number of the Analog Input points to
generate events 1
AO:45 0 to 32 (default 32)
40:2 (read)
41:2 (write)
Number of the Binary Input points to
generate events 1
AO:46 0 to 32(default 0)

13
Object:
Variation
Parameter Object:
Point
Range
40:2 (read)
41:2 (write)
Number of the Binary Counter points to
generate events 1
AO:47 0 to 32 (default 0)
40:2 (read)
41:2 (write)
Select/Operate Timeout AO:48 2 to 30 seconds (the default 10
seconds)
40:2 (read)
41:2 (write)
Multi Fragment Interval AO:49 50 to 500 ms (the default 50 ms)
40:2 (read) Reserved AO:50-52 Read as 65535
40:2 (read)
41:2 (write)
Time Synch Period (E) AO:53 1 to 86400 seconds (the default
86400 sec)
AO indicates Analog-Output points.

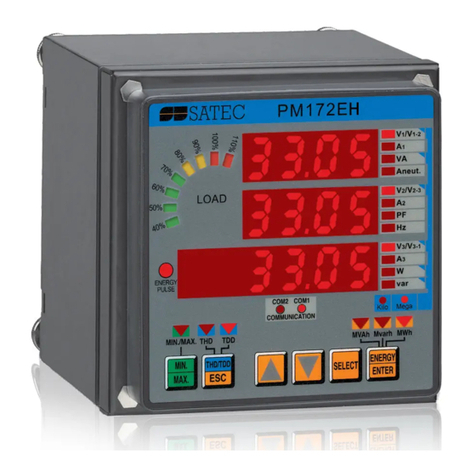

E Available in the PM172E
1The total number of points for generating events may not exceed 32. If the total number of the points is set to 0, the
report-by-exception mode is not supported.
2Available with F/W version 4.88.8 or later.
The Analog Input object variation sets the default variation for the Analog Input objects, which will be used if no
specific variation is requested by a master station with the qualifier code 06 (variation 0). By default, it is set to the
16-bit Analog Input object without flag (object 30, variation 4).
The Analog Input Scaling is used to control the scaling of the 16-bit analog input points. By default, the scaling is
ON. Choosing 32-bit objects (object 30, variations 1, 3) for analog input points disables this setting.
The meter supports up to 32 Analog Input, Binary Input and Binary Counter points that can generate events. By
default, 32 Analog Input points 0 through 31 are configured for generating events. To re-map the current setting,
write desired values into Analog Output points 45-47.
The Select Before Operate command causes the PM172 to start a timer. The Operate command must be sent
before the timeout defined by the Select/Operate Timeout expires.
The meter requests time synchs when the time specified by the Time Synch Period parameter has elapsed. The
bit 4 of the first octet in the internal indication word will be set. The master synchronizes the time by writing the
Time and Date object to the meter.
DNP Event Definition Registers
These registers are used to define the DNP Event Setup parameters.
Table 3-9 DNP Event Definition Registers
DNP Map
Group
Object:Var Register Contents Object:Point Range/Scale
#0 40:2(read)
41:2(write)
DNP point number AO:896 Any actual DNP point number of the selected
object 1
40:1(read)
41:1(write)
Dead band AO:897 -2147483848 to 2147483647 (not used for BI
change events)
40:2(read)
41:2(write)
Event option control field AO:898 See Table 3-10
….. ….. ….. …..
#31 40:2(read)
41:2(write)
DNP point number AO:989 Any actual DNP point number of the selected
object 1
40:2(read)
41:2(write)
Dead band AO:990 -2147483848 to 2147483647 (not used for BI
change events)
40:2(read)
41:2(write)
Event option control field AO:991 See Table 3-10
1Selected object: Analog Input (AI), Binary Input (BI) or Binary Counter (BC)

14
Table 3-10 DNP Event Control Field
Bits Name Range
0-1 DNP object 0 = none, 1 = AI chan
g
e event, 2= BI chan
g
e event, 3=
BC change event
2 Object change event scan 0 = disabled, 1 = enabled
3-4 Not used
5-6 DNP event poll class 0 = Class 1, 1 = Class 2, 2 = Class 3
7 Event log on an event 1,2 0 = disabled, 1 = enabled
8-9 Threshold/Deadband relation 0 = Delta, 1 = More than (over threshold) 1, 3 = Less
than (under threshold) 1
10-15 Not used
1Available starting with F/W Version 4.88.2 or later.
2The source of the DNP events recorded to the device Event log is identified as the general Setpoint #17.
Either an operating threshold, or deadband should be specified to generate events for numeric (AI and BC)
objects, using one of the three allowable relations:
1. Delta – a new event is generated when the absolute value of the difference between the last reported value of
the point and its current value exceeds the specified deadband value.
2. More than (Over) - a new event is generated when the point value rises over the specified threshold, and then
when the point value returns below the threshold taking into consideration a predefined hysteresis.
3. Less than (Under) - a new event is generated when the point value drops below the specified threshold, and
then when the point value returns above the threshold taking into consideration a predefined hysteresis.
A hysteresis for the point return threshold is 0.05 Hz for frequency and 2% of the operating threshold for all other
points.
The scan time for binary input change events is 50 ms with a timestamp precision at +/-10 ms. The scan time for
analog input and binary counter change events is 200 ms.
Freeze Requests on Binary Counter Objects
Acceptable object variation and qualifier combinations included in the device response are specified in Table 3-7.
The Immediate Freeze, Immediate Freeze-No Acknowledgement, Freeze and Clear, Freeze and Clear-No
Acknowledgement DNP commands can be applied to all Binary Counters objects supported by the PM172. These
registers are used to access the Frozen Binary Counters.
Table 3-11 Frozen Binary Counters
Object:Var
(See Table 3-7)
Parameter Object:
Point
Unit Value range
Total energies (E)
21:var kWh import FBC:0 kWh 0 to 999,999,999
21:var kWh export FBC:1 kWh 0 to 999,999,999
21:var kvarh net FBC:2 kvarh -999,999,999 to 999,999,999
21:var kVAh FBC:3 kVAh 0 to 999,999,999
21:var kvarh import
1FBC:4 kvarh 0 to 999,999,999
21:var kvarh export
1FBC:5 kvarh 0 to 999,999,999
Pulse counters (E)
21:var Pulse counter #1 FBC:35328 n/a 0 to 999999
21:var Pulse counter #2 FBC:35329 n/a 0 to 999999
21:var Pulse counter #3 FBC:35330 n/a 0 to 999999
21:var Pulse counter #4 FBC:35331 n/a 0 to 999999
Total energies(E)(Extended Registers)
21:var kWh import FBC:38656 kWh 0 to 999,999,999
21:var kWh export FBC:38657 kWh 0 to 999,999,999
21:var Reserved FBC:38658 0
21:var Reserved FBC:38659 0
21:var kvarh import FBC:38660 kvarh 0 to 999,999,999
21:var kvarh export FBC:38661 kvarh 0 to 999,999,999
21:var Reserved FBC:38662 0
21:var Reserved FBC:38663 0
21:var kVAh total FBC:38664 kVAh 0 to 999,999,999
Phase energies (E)
21:var kWh import L1 FBC:38912 kWh 0 to 999,999,999
21:var kWh import L2 FBC:38913 kWh 0 to 999,999,999
21:var kWh import L3 FBC:38914 kWh 0 to 999,999,999

15
Object:Var
(See Table 3-7)
Parameter Object:
Point
Unit Value range
21:var kvarh import L1 FBC:38915 kvarh 0 to 999,999,999
21:var kvarh import L2 FBC:38916 kvarh 0 to 999,999,999
21:var kvarh import L3 FBC:38917 kvarh 0 to 999,999,999
21:var kVAh total L1 FBC:38918 kVAh 0 to 999,999,999
21:var kVAh total L2 FBC:38919 kVAh 0 to 999,999,999
21:var kVAh total L3 FBC:38920 kVAh 0 to 999,999,999
1Available with F/W Version 4.88.3 or later.
FBC indicates Frozen-Binary-Counter points.
Warning
Any attempt to issue a freeze and clear (or freeze and clear - No acknowledgement) to object 20
variation 0 using function code 0x09 (or 0x10) and the data qualifier 0x06 causes all counters
specified in this manual to be reset to zero.
Resetting Energy, Demands, Counters and Min/Max log
The energy value can be reset to zero by issuing the Direct-Operate (or SBO/Operate or Direct-Operate-No-
Acknowledge) command using the Control-Relay-Output-Block object to point 0. The request must use the
operation Pulse-On. Issuing the same parameters and Direct-Operate (or SBO/Operate or Direct-Operate-No-
Acknowledge) command to points 1-3 can reset the maximum demands.
Table 3-12 Reset/Clear Registers
Object/
Var.
Register function Object/
Point
Read/
Write
Description
10:2
12:1
Clear total energy registers (E) BO:0
CROB:0
Read
Write
Return zero
PULSE ON
10:2
12:1
Clear total maximum demand registers (all
demands)
BO:1
CROB:1
Read
Write
Return zero
PULSE ON
10:2
12:1
Clear power demands (E) BO:2
CROB:2
Read
Write
Return zero
PULSE ON
10:2
12:1
Clear volt/ampere demands BO:3
CROB:3
Read
Write
Return zero
PULSE ON
10:2
12:1
Reserved BO:4-11
CROB:4-11
Read
Write
Return zero
10:2
12:1
Clear pulse counters (all counters) (E) BO:12
CROB:12
Read
Write
Return zero
PULSE ON
10:2
12:1
Clear pulse counter #1 (E) BO:13
CROB:13
Read
Write
Return zero
PULSE ON
10:2
12:1
Clear pulse counter #2 (E) BO:14
CROB:14
Read
Write
Return zero
PULSE ON
10:2
12:1
Clear pulse counter #3 (E) BO:15
CROB:15
Read
Write
Return zero
PULSE ON
10:2
12:1
Clear pulse counters #4 (E) BO:16
CROB:16
Read
Write
Return zero
PULSE ON
10:2
12:1
Reserved BO:17-20
CROB:17-20
Read
Write
Return zero
10:2
12:1
Clear Min/Max log BO:21
CROB:21
Read
Write
Return zero
PULSE ON
BO indicates Binary Output Status. CROB indicates Control-Relay-Output-Block point.
E Available in the PM172E
The following restriction should be noted when using object 12 to control the listed points.
The Count byte is ignored. The Control Code byte is checked for the following:
- Pulse On (1) is valid for all points
- All other codes are invalid and will be rejected.
The On Time and Off Time fields are ignored.
The status byte in the response will reflect the success or failure of the control operation:
- Request Accepted (0) will be returned if the command was accepted
- Request not Accepted due to Formatting Errors (3) will be returned if the Control Code byte was incorrectly
formatted or if an invalid code was present in the command
- Control Operation not Supported for this Point (4) will be returned if the Control Point was out of control (for
instance, reset is disabled via Basic Setup)

16
Issuing the same parameters and Direct-Operate (or SBO/Operate or Direct-Operate-No-Acknowledge) command
to point 12-16 can clear the Pulse Counters.
Issuing the same parameters and Direct-Operate (or SBO/Operate or Direct-Operate-No-Acknowledge) command
to point 21 can reset the Min/Max log.
Status Registers
These registers are used to retrieve the status of digital input/output points (hardware or software) from the
instrument.
Table 3-13 Status Registers (Read)
Object/
Var.
Description Object/
Point
Bit meaning
01:1 Relay #1 status BI:0 Relay status:
01:1 Relay #2 status BI:1 0 = released, 1 = operated
01:1 Status input #1 BI:16 Contact: 0 = open, 1 = closed
01:1 Status input #2 BI:17
01:1 Battery status BI:48 0 = low, 1 = normal
BI indicates Single-Bit Binary-Input points (Read).
Alarm Status Registers
These registers are used to retrieve the status alarm parameters from the instrument.
NOTE
The PM172 provides the self-check alarm register.
The self-check alarm points indicate possible problems with the instrument hardware or setup configuration. The
hardware problems are indicated by the appropriate points, which are set whenever the instrument fails self-test
diagnostics, or in the event of loss of power. The dedicated binary point indicates the setup configuration
problems, which is set when either configuration register is corrupted. In this event, the instrument will use the
default configuration. The configuration corrupt bit may also be set as a result of the legal changes in the setup
configuration since the instrument might implicitly change or clear other setups if they are affected by the changes
made.
Issuing the Direct-Operate (or SBO/Operate or Direct-Operate-No-Acknowledge) command using the Control-
Relay-Output-Block object (with the code operation Latch-Off) to points from range 64 to 75 can reset hardware
fault points. The configuration corrupt status point is also reset automatically when you change setup either via the
front panel or through communications.
Table 3-14 Alarm Status Registers
Object/
Var.
Description Object/
Point
Bit meaning
Self-check Alarm Register 1 = alarm has been asserted
0 = alarm hasn’t been asserted
10:2(read)
12:1(write)
Reserved B0:64
CROB:64
Reading returns 0
10:2(read)
12:1(write)
ROM error B0:65
CROB:65
10:2(read)
12:1(write)
RAM error B0:66
CROB:66
10:2(read)
12:1(write)
Watchdog timer reset B0:67
CROB:67
10:2(read)
12:1(write)
Sampling failure B0:68
CROB:68
10:2(read)
12:1(write)
Out of control trap B0 :69
CROB:69
10:2(read)
12:1(write)
Reserved BI :70
CROB:70
Reading returns 0

17
Object/
Var.
Description Object/
Point
Bit meaning
10:2(read)
12:1(write)
Timing failure B0 :71
CROB:71
10:2(read)
12:1(write)
Loss of power (power up) B0:72
CROB:72
10:2(read)
12:1(write)
External reset (Cold Restart) 1B0:73
CROB:73
10:2(read)
12:1(write)
Configuration corrupted 1B0:74
CROB:74
10:2(read)
12:1(write)
Time synchronization required 1B0:75
CROB:75
10:2(read)
12:1(write)
Low battery 2B0:76
CROB:76
10:2(read)
12:1(write)
Reserved 77-79
77-79
Reading returns 0
BO indicates Binary-Output -Status (Read) or Control-Relay-Output Block (Write) points.
1These self-check alarms are doubled with the corresponding internal indication bits.
2Available with F/W version 4.88.2 or later.
The following restrictions should be noted when using object 12 to control the listed points:
The Count byte is ignored.
The Control Code byte is checked:
- Latch Off is valid for all points
- All other codes are invalid and will be rejected.
The On Time and Off Time fields are ignored.
The status byte in the response will reflect the success or failure of the control operation:
- Request Accepted (0) will be return if the command was accepted;
- Request not Accepted due to Formatting Errors (3) will be returned if the Control Code byte was incorrectly
formatted or if an invalid Code was present in the command.
Extended Data Registers
These registers are used to retrieve any data measured by the instrument. A list of the extended data
parameters, their points and value ranges are shown in Table 3-15.
Table 3-15 Extended Data Registers
Obj:Var 6Parameter Object:Point Unit
2Value/Range 1Comment
30:4 None AI:32768 n/a 0
Status inputs
01:1 Status input #1 BI:34304 n/a 0/1
01:1 Status input #2 BI:34305 n/a 0/1
Relay status
01:1 Relay #1 status BI:34816 n/a 0/1
01:1 Relay #2 status BI:34817 n/a 0/1
Pulse counters (E)
20:5 Pulse counter #1 BC:35328 n/a 0 to 999999
20:5 Pulse counter #2 BC:35329 n/a 0 to 999999
20:5 Pulse counter #3 BC:35330 n/a 0 to 999999
20:5 Pulse counter #4 BC:35331 n/a 0 to 999999
Real-time values per phase
30:3 Voltage L1/L12
5AI:35840 0.1V/1V 0 to Vmax
30:3 Voltage L2/L23
5AI:35841 0.1V/1V 0 to Vmax
30:3 Voltage L3/L31
5AI:35842 0.1V/1V 0 to Vmax
30:3 Current L1 AI:35843 0.01A/1A 0 to Imax
30:3 Current L2 AI:35844 0.01A/1A 0 to Imax
30:3 Current L3 AI:35845 0.01A/1A 0 to Imax
30:3 kW L1 AI:35846 0.001kW/1kW -Pmax to Pmax
30:3 kW L2 AI:35847 0.001kW/1kW -Pmax to Pmax

18
Obj:Var 6Parameter Object:Point Unit
2Value/Range 1Comment
30:3 kW L3 AI:35848 0.001kW/1kW -Pmax to Pmax
30:3 kvar L1 AI:35849 0.001kvar/1kvar -Pmax to Pmax
30:3 kvar L2 AI:35850 0.001kvar/1kvar -Pmax to Pmax
30:3 kvar L3 AI:35851 0.001kvar/1kvar -Pmax to Pmax
30:3 kVA L1 AI:35852 0.001kVA/1kVA 0 to Pmax
30:3 kVA L2 AI:35853 0.001kVA/1kVA 0 to Pmax
30:3 kVA L3 AI:35854 0.001kVA/1kVA 0 to Pmax
30:4 Power factor L1 AI:35855 0.001 -999 to 1000 ×0.001
30:4 Power factor L2 AI:35856 0.001 -999 to 1000 ×0.001
30:4 Power factor L3 AI:35857 0.001 -999 to 1000 ×0.001
30:4 Voltage THD L1/L12 AI:35858 0.1% 0 to 9999 ×0.1
30:4 Voltage THD L2/L23 AI:35859 0.1% 0 to 9999 ×0.1
30:4 Voltage THD L3 AI:35860 0.1% 0 to 9999 ×0.1
30:4 Current THD L1 AI:35861 0.1% 0 to 9999 ×0.1
30:4 Current THD L2 AI:35862 0.1% 0 to 9999 ×0.1
30:4 Current THD L3 AI:35863 0.1% 0 to 9999 ×0.1
30:4 K-Factor L1 AI:35864 0.1 10 to 9999 ×0.1
30:4 K-Factor L2 AI:35865 0.1 10 to 9999 ×0.1
30:4 K-Factor L3 AI:35866 0.1 10 to 9999 ×0.1
30:4 Current TDD L1 AI:35867 0.1% 0 to 1000 ×0.1
30:4 Current TDD L2 AI:35868 0.1% 0 to 1000 ×0.1
30:4 Current TDD L3 AI:35869 0.1% 0 to 1000 ×0.1
30:3 Voltage L12 AI:35870 0.1V/1V 0 to Vmax
30:3 Voltage L23 AI:35871 0.1V/1V 0 to Vmax
30:3 Voltage L31 AI:35872 0.1V/1V 0 to Vmax
Real-time total values
30:3 Total kW AI:36608 0.001kW/1kW -Pmax to Pmax
30:3 Total kvar AI:36609 0.001kvar/1kvar -Pmax to Pmax
30:3 Total kVA AI:36610 0.001kVA/1kVA 0 to Pmax
30:4 Total PF AI:36611 0.001 -999 to 1000 ×0.001
30:4 Reserved AI:36612 n/a 0
30:4 Reserved AI:36613 n/a 0
Real-time auxiliary values
30:4 Reserved AI:36864 0
30:3 Neutral current AI:36865 0.01A 0 to Imax
30:4 Frequency
3AI:36866 0.01Hz 0 to 10000 ×0.01
30:4 Voltage unbalance AI:36867 1% 0 to 300
30:4 Current unbalance AI:36868 1% 0 to 300 ×0.01
Average values per phase
30:3 Voltage L1/L12
5AI:37120 0.1V/1V 0 to Vmax
30:3 Voltage L2/L23
5AI:37121 0.1V/1V 0 to Vmax
30:3 Voltage L3/L31
5AI:37122 0.1V/1V 0 to Vmax
30:3 Current L1 AI:37123 0.01A/1A 0 to Imax
30:3 Current L2 AI:37124 0.01A/1A 0 to Imax
30:3 Current L3 AI:37125 0.01A/1A 0 to Imax
30:3 kW L1 AI:37126 0.001kW/1kW -Pmax to Pmax
30:3 kW L2 AI:37127 0.001kW/1kW -Pmax to Pmax
30:3 kW L3 AI:37128 0.001kW/1kW -Pmax to Pmax
30:3 kvar L1 AI:37129 0.001kvar/1kvar -Pmax to Pmax
30:3 kvar L2 AI:37130 0.001kvar/1kvar -Pmax to Pmax
30:3 kvar L3 AI:37131 0.001kvar/1kvar -Pmax to Pmax
30:3 kVA L1 AI:37132 0.001kVA/1kVA 0 to Pmax
30:3 kVA L2 AI:37133 0.001kVA/1kVA 0 to Pmax
30:3 kVA L3 AI:37134 0.001kVA/1kVA 0 to Pmax
30:4 Power factor L1 AI:37135 0.001 -999 to 1000 ×0.001
30:4 Power factor L2 AI:37136 0.001 -999 to 1000 ×0.001
30:4 Power factor L3 AI:37137 0.001 -999 to 1000 ×0.001
30:4 Voltage THD L1/L12 AI:37138 0.1% 0 to 9999 ×0.1
30:4 Voltage THD L2/L23 AI:37139 0.1% 0 to 9999 ×0.1
30:4 Voltage THD L3 AI:37140 0.1% 0 to 9999 ×0.1
30:4 Current THD L1 AI:37141 0.1% 0 to 9999 ×0.1
30:4 Current THD L2 AI:37142 0.1% 0 to 9999 ×0.1

19
Obj:Var 6Parameter Object:Point Unit
2Value/Range 1Comment
30:4 Current THD L3 AI:37143 0.1% 0 to 9999 ×0.1
30:4 K-Factor L1 AI:37144 0.1 10 to 9999 ×0.1
30:4 K-Factor L2 AI:37145 0.1 10 to 9999 ×0.1
30:4 K-Factor L3 AI:37146 0.1 10 to 9999 ×0.1
30:4 Current TDD L1 AI:37147 0.1% 0 to 1000 ×0.1
30:4 Current TDD L2 AI:37148 0.1% 0 to 1000 ×0.1
30:4 Current TDD L3 AI:37149 0.1% 0 to 1000 ×0.1
30:3 Voltage L12 AI:37150 0.1V/1V 0 to Vmax
30:3 Voltage L23 AI:37151 0.1V/1V 0 to Vmax
30:3 Voltage L31 AI:37152 0.1V/1V 0 to Vmax
Average total values
30:3 Total kW AI:37888 0.001kW/1kW -Pmax to Pmax
30:3 Total kvar AI:37889 0.001kvar/1kvar -Pmax to Pmax
30:3 Total kVA AI:37890 0.001kVA/1kVA 0 to Pmax
30:4 Total PF AI:37891 0.001 -999 to 1000 ×0.001
30:4 Reserved AI:37892 0
30:4 Reserved AI:37893 0
Average auxiliary values
30:4 Reserved AI:38144 0
30:3 Neutral current AI:38145 0.01A 0 to Imax
30:4 Frequency
3AI:38146 0.01Hz 0 to 10000 ×0.01
30:4 Voltage unbalance AI:38147 1% 0 to 300
30:4 Current unbalance AI:38148 1% 0 to 300 ×0.01
Present demands
30:3 Volt demand L1/L12 5AI:38400 0.1V/1V 0 to Vmax
30:3 Volt demand L2/L23 5AI:38401 0.1V/1V 0 to Vmax
30:3 Volt demand L3/L31 5AI:38402 0.1V/1V 0 to Vmax
30:3 Ampere Demand L1 AI:38403 0.01A 0 to Imax
30:3 Ampere Demand L2 AI:38404 0.01A 0 to Imax
30:3 Ampere Demand L3 AI:38405 0.01A 0 to Imax
30:3 Block kW import demand (E) AI:38406 0.001kW/1kW 0 to Pmax
30:3 Block kvar import demand (E) AI:38407 0.001kvar/1kvar 0 to Pmax
30:3 Block kVA demand (E) AI:38408 0.001kVA/1kVA 0 to Pmax
30:3 Sliding window kW import demand
(E)
AI:38409 0.001kW/1kW 0 to Pmax
30:3 Sliding window kvar import
demand (E)
AI:38410 0.001kvar/1kar 0 to Pmax
30:3 Sliding window kVA demand (E) AI:38411 0.001kVA/1kVA 0 to Pmax
30:4 Reserved AI:38412 0
30:4 Reserved AI:38413 0
30:4 Reserved AI:38414 0
30:3 Accumulated kW import demand
(E)
AI:38415 0.001kW/1kW 0 to Pmax
30:3 Accumulated kvar import demand
(E)
AI:38416 0.001kvar/1kvar 0 to Pmax
30:3 Accumulated kVA demand (E) AI:38417 0.001kVA/1kVA 0 to Pmax
30:3 Predicted sliding window kW
import demand (E)
AI:38418 0.001kW/1kW 0 to Pmax
30:3 Predicted sliding window kvar
import demand (E)
AI:38419 0.001kvar/1kvar 0 to Pmax
30:3 Predicted sliding window kVA
demand (E)
AI:38420 0.001kVA/1kVA 0 to Pmax
30:4 PF (import) at maximum sliding
window kVA demand (E)
AI:38421 0.001 0 to 1000 ×0.001
30:3 Block kW export demand (E) AI:38422 0.001kW/1kW 0 to Pmax
30:3 Block kvar export demand (E) AI:38423 0.001kvar/1kvar 0 to Pmax
30:3 Sliding window kW export demand
(E)
AI:38424 0.001kW/1kW 0 to Pmax
30:3 Sliding window kvar export
demand (E)
AI:38425 0.001kvar/1kvar 0 to Pmax
30:3 Accumulated kW export demand
(E)
AI:38426 0.001kW/1kW 0 to Pmax

20
Obj:Var 6Parameter Object:Point Unit
2Value/Range 1Comment
30:3 Accumulated kvar export demand
(E)
AI:38427 0.001kvar/1kvar 0 to Pmax
30:3 Predicted sliding window kW
export demand (E)
AI:38428 0.001kW/1kW 0 to Pmax
30:3 Predicted sliding window kvar
export demand (E)
AI:38429 0.001kvar/1kvar 0 to Pmax
Total energies(E)
20:5 kWh import BC:38656 kWh 0 to 999,999,999
20:5 kWh export BC:38657 kWh 0 to 999,999,999
20:5 Reserved BC:38658 0
20:5 Reserved BC:38659 0
20:5 kvarh import BC:38660 kvarh 0 to 999,999,999
20:5 kvarh export BC:38661 kvarh 0 to 999,999,999
20:5 Reserved BC:38662 0
20:5 Reserved BC:38663 0
20:5 kVAh total BC:38664 kVAh 0 to 999,999,999
Phase energies(E)
20:5 kWh import L1 BC:38912 kWh 0 to 999,999,999
20:5 kWh import L2 BC:38913 kWh 0 to 999,999,999
20:5 kWh import L3 BC:38914 kWh 0 to 999,999,999
20:5 kvarh import (inductive) L1 BC:38915 kvarh 0 to 999,999,999
20:5 kvarh import (inductive) L2 BC:38916 kvarh 0 to 999,999,999
20:5 kvarh import (inductive) L3 BC:38917 kvarh 0 to 999,999,999
20:5 kVAh total L1 BC:38918 kVAh 0 to 999,999,999
20:5 kVAh total L2 BC:38919 kVAh 0 to 999,999,999
20:5 kVAh total L3 BC:38920 kVAh 0 to 999,999,999
Fundamental (H01) real-time values per phase
30:3 Voltage L1/L12 AI:43264 0.1V/1 V 0 to Vmax
30:3 Voltage L2/L23 AI: 43265 0.1V/1 V 0 to Vmax
30:3 Voltage L3/L31 AI: 43266 0.1V/1 V 0 to Vmax
30:3 Current L1 AI: 43267 0.01A/1A 0 to Imax
30:3 Current L2 AI: 43268 0.01A/1A 0 to Imax
30:3 Current L3 AI: 43269 0.01A/1A 0 to Imax
30:3 kW L1 AI: 43270 0.001kW/1kW -Pmax to Pmax
30:3 kW L2 AI: 43271 0.001kW/1kW -Pmax to Pmax
30:3 kW L3 AI: 43272 0.001kW/1kW -Pmax to Pmax
30:3 kvar L1 AI: 43273 0.001kvar/1kvar -Pmax to Pmax
30:3 kvar L2 AI: 43274 0.001kvar/1kvar -Pmax to Pmax
30:3 kvar L3 AI: 43275 0.001kvar/1kvar -Pmax to Pmax
30:3 kVA L1 AI: 43276 0.001kVA/1kVA 0 to Pmax
30:3 kVA L2 AI: 43277 0.001kVA/1kVA 0 to Pmax
30:3 kVA L3 AI: 43278 0.001kVA/1kVA 0 to Pmax
30:4 Power factor L1 AI: 43279 0.001 -999 to 1000 ×0.001
30:4 Power factor L2 AI: 43280 0.001 -999 to 1000 ×0.001
30:4 Power factor L3 AI: 43281 0.001 -999 to 1000 ×0.001
Fundamental (H01) real-time total values
30:3 Total kW AI:43520 0.001kW/1kW -Pmax to Pmax
30:3 Total kvar AI: 43521 0.001kvar/1kvar -Pmax to Pmax
30:3 Total kVA AI: 43522 0.001kVA/1kVA 0 to Pmax
30:4 Total PF AI: 43523 0.001 -999 to 1000 ×0.001
Minimum real-time values per phase (M)
30:3 Voltage L1/L12
5AI:44032 0.1V/1V 0 to Vmax
30:3 Voltage L2/L23
5AI:44033 0.1V/1V 0 to Vmax
30:3 Voltage L3/L31
5AI:44034 0.1V/1V 0 to Vmax
30:3 Current L1 AI:44035 0.01A 0 to Imax
30:3 Current L2 AI:44036 0.01A 0 to Imax
30:3 Current L3 AI:44037 0.01A 0 to Imax
Minimum real-time total values (M)
30:3 Total kW AI:44288 0.001kW/1kW -Pmax to Pmax
30:3 Total kvar AI:44289 0.001kvar/1kvar -Pmax to Pmax
30:3 Total kVA AI:44290 0.001kVA/1kVA 0 to Pmax
30:4 Total PF
4AI:44291 0.001 -999 to 1000 ×0.001
