Savaria K2 User manual

OWNER’S MANUAL
(To Be Retained by Owner After Installation
by Authorized Savaria Dealer)
Part No. 001022
23-m10-2015
K2
Stairlift

2
K2 Stairlift Owner’s Manual Part No. 001022, 23-m10-2015
IMPORTANT
Ensure that only an authorized Savaria Dealer installs and services the Savaria
K2 Stairlift. Under no circumstances is anyone other than a dealer with Savaria
training and authorization to install, adjust, or service any mechanical or
electrical device on this equipment. Failure to follow this warning can result in
safety system compromises or defeat; this can result in serious injury or death.
Savaria accepts no liability for property damage, warranty claims or personal
injury, including death, in this circumstance.
Passenger safety is the result of countless details in the equipment’s design,
manufacture, and installation. After installation, reliable operation and
continual safe operation requires regular service and inspection at least twice
per year, or more frequently where usage, environment, or local jurisdiction
requires. As the Owner, you are responsible for ensuring that regular service
and inspections occur in a timely manner.
Refer to this manual for specifications, operating instructions and maintenance
of the Savaria K2 Stairlift.
Upon completion of installation, the dealer must provide you with the
information below and ensure it is recorded in this manual. In addition, either
the dealer or you must keep any service and/or maintenance records in the
Maintenance Record section of this manual.
WARRANTY
Ensure your Savaria Dealer provides you with a copy of the manufacturer’s
limited parts warranty and documentation relating to any Dealer labour
warranty.
-------------------------------------------------------------------------------------------------
FOR OWNER’S RECORDS
Customer Name: _________________________________________
Installing Dealer: _________________________________________
Dealer’s Telephone Number: _______________________________
Date Installed: ___________________________________________
Serial/Job Number: _______________________________________

3
Part No. 001022, 23-m10-2015 K2 Stairlift Owner’s Manual
Table of Contents
TO ENSURE SAFE OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
1. DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
2. SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
3. FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Seating Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Safety Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Footrest and Carriage Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Safety Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Emergency Stop Button (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Overspeed Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Key Switch and Power Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
4. OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Before Operating the Stairlift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Operating the Stairlift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Emergency Stop (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Emergency Manual Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
5. TROUBLESHOOTING AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Operator Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Stairlift Will Not Operate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Stairlift Emits Beeping Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Diagnostic LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Maintenance Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

4
K2 Stairlift Owner’s Manual Part No. 001022, 23-m10-2015
TO ENSURE SAFE OPERATION
To ensure safe operation of this equipment, pay careful attention to the
important notes below.
• Read this manual carefully before using the equipment.
• To prevent accidents, adhere strictly to the instructions and keep clear
of moving parts at all times.
• Follow instructions on all equipment labels at all times. Replace any
damaged labels immediately.
• Ensure that only qualified personnel perform maintenance and service
on the unit.
• This unit is intended for use by a mature person who understands its
proper operation as set out in this manual.
• Prior to operation, make sure that all areas in and around the lift are
clear of any obstructions.
• We recommend that you test your keys and emergency stop button (if
equipped) every month.

5
Part No. 001022, 23-m10-2015 K2 Stairlift Owner’s Manual
1. DESCRIPTION
Figure 1 shows the exterior components of the K2 Stairlift.
Figure 1
Backrest
Adjustable armrests Flip-up seat
(swivel out, up/down
adjustable)
UP/DOWN
toggle switch
Retractable
seat belt
Folding
Carriage
footrest
Seat swivel
handle
Key switch
Diagnostic
LEDs (behind
folded footrest)
ON/OFF
switch

6
K2 Stairlift Owner’s Manual Part No. 001022, 23-m10-2015
2. SPECIFICATIONS
K2 Specifications
Applications Residential, indoor, straight-run stairway
Load capacity 300 lb (136 kg)
Maximum travel 32 ft (9.75 m)
Travel speed 15 ft/min (0.08 m/s)
Range of incline 30° to 55°
Drive system Rack and pinion
Operator controls Constant-pressure type (rocker switch and remote
control call/send units)
Seat belt Retractable
Motor 24 VDC, 1/3 HP, 2500 RPM
Fold-up width 10 3/4” (27 .3cm)
Fold-out width 20 1/2” (52 cm)
Rail Aluminum extrusion
Charging Charges on standard household power (110 VAC)
Charge stations positioned at top and bottom of rail
Emergency operation Full up and down travel on power interruption (full
battery backup)
Warranty 36 months

7
Part No. 001022, 23-m10-2015 K2 Stairlift Owner’s Manual
3. FEATURES
Seating Features
The seat assembly swivels in one direction only for transfer in/out of the seat at
the top of the stairs. Lift up and hold the swivel handle to swivel the seat. Let go
of the handle and the seat will lock in place. For your safety, do not swivel the
seat until the unit has stopped.
When the stairlift is not in use, the seat, armrests, and footrest can be folded up
to allow for more space on the stairway.
Always use the retractable seat belt to ensure that you are safely secured in the
chair during travel.
Safety Features
Footrest and Carriage Sensors
There are safety edge sensors on the sides of the footrest and the carriage, and
an underpan sensor on the bottom of the footrest. These sensors will stop the
stairlift if an obstruction is encountered on the stairway.
If you encounter an obstruction, press the opposite side of the toggle switch to
run the stairlift in the opposite direction. Remove the obstacle from the
pathway and proceed in the original direction of travel.
Safety Switches
There are upper and lower safety limit switches to stop the stairlift when it
reaches the top or bottom of the stairway. There are also mechanical stops at
the top and bottom of the rail to stop the lift from running off the rail.
There is also a safety switch for the swivel seat that will prevent the stairlift from
running if the seat is not locked in the riding position.
Emergency Stop Button (Optional)
There may be an optional emergency stop button located on the left arm.
Pressing this button will stop the unit immediately.
Overspeed Brake
The overspeed brake that will engage and stop the lift if the normal downward
travel speed is exceeded.

8
K2 Stairlift Owner’s Manual Part No. 001022, 23-m10-2015
Key Switch and Power Switch
The stairlift is equipped with a key switch and cannot be operated unless the
key is inserted and turned a quarter turn clockwise to the on position. Once the
key switch is turned on, flip the ON/OFF power switch to the ON position.
Do NOT turn off the power switch after each trip. Turning off the
power switch stops the batteries from charging and this action
will eventually drain the batteries.
NOTE

9
Part No. 001022, 23-m10-2015 K2 Stairlift Owner’s Manual
4. OPERATION
Before Operating the Stairlift
1Ensure the stairway is clear of any obstructions and the stairlift charger is
plugged in at the wall.
2Insert the key and turn it a quarter turn clockwise. Flip the ON/OFF power
switch to the ON position.
3Check that the seat is locked in the riding position for up/down travel.
Operating the Stairlift
1Use one of the remote control CALL/SEND units to move the stairlift to the
required end of the rail. Be sure to point the remote at the lift when pressing
the button.
2If necessary, fold down the seat, armrests, and footrest.
3Lift up the seat swivel handle, rotate the seat to a comfortable boarding
position, and then release the swivel handle to lock the seat in place.
4Position yourself in the seat and fasten the seat belt.
5Lift up and hold the seat swivel handle and rotate the seat so you are parallel
to the rail (with your back against the stairway wall). Release the swivel
handle to lock the seat in the riding position.
6Place your feet securely on the footrest and your arms on the armrests.
7Press and hold one end of the toggle switch to move the stairlift in the
desired direction.
8The stairlift will stop automatically at the upper or lower end of the rail, or if
the toggle switch is released.
9Once the stairlift has come to a complete stop, swivel the seat as required.
When the seat is locked in place, unfasten the seat belt and get out of the
chair.
10 To allow for more room on the stairway when the stairlift is not in use, swivel
the seat back to the riding position, and then fold up the seat, armrests, and
footrest.
Emergency Stop (Optional)
In the event of an emergency, you can press the optional red Emergency Stop
button located on the arm of the chair. The stairlift will stop immediately. Once
the emergency is dealt with, release the button to restore normal operation.

10
K2 Stairlift Owner’s Manual Part No. 001022, 23-m10-2015

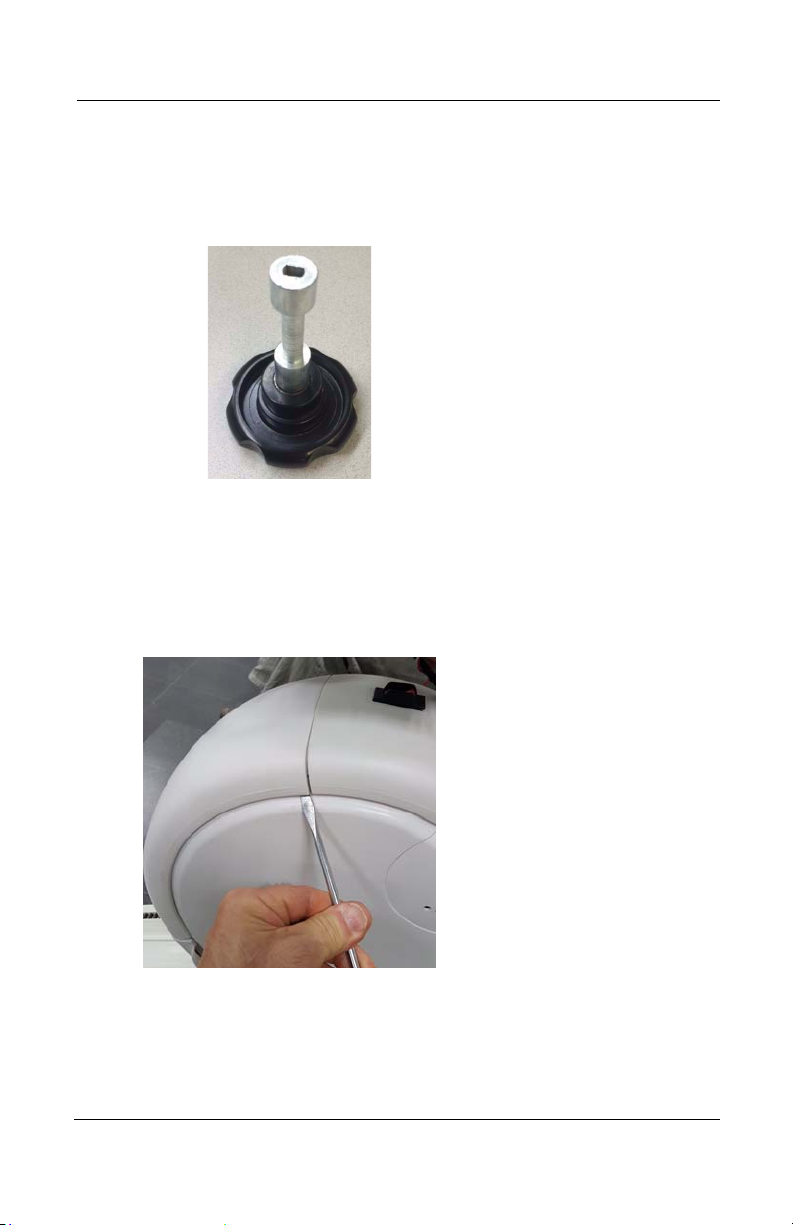

Emergency Manual Operation
If necessary, you can operate the lift manually using the manual operation
tool (handwheel).
Figure 2
1Turn OFF the main power switch.
2Remove the access cover on the lower side of the unit. To do this, place a flat
blade screwdriver carefully under the corner of the cover and gently pry out
to pop the cover off.
Figure 3

11
Part No. 001022, 23-m10-2015 K2 Stairlift Owner’s Manual

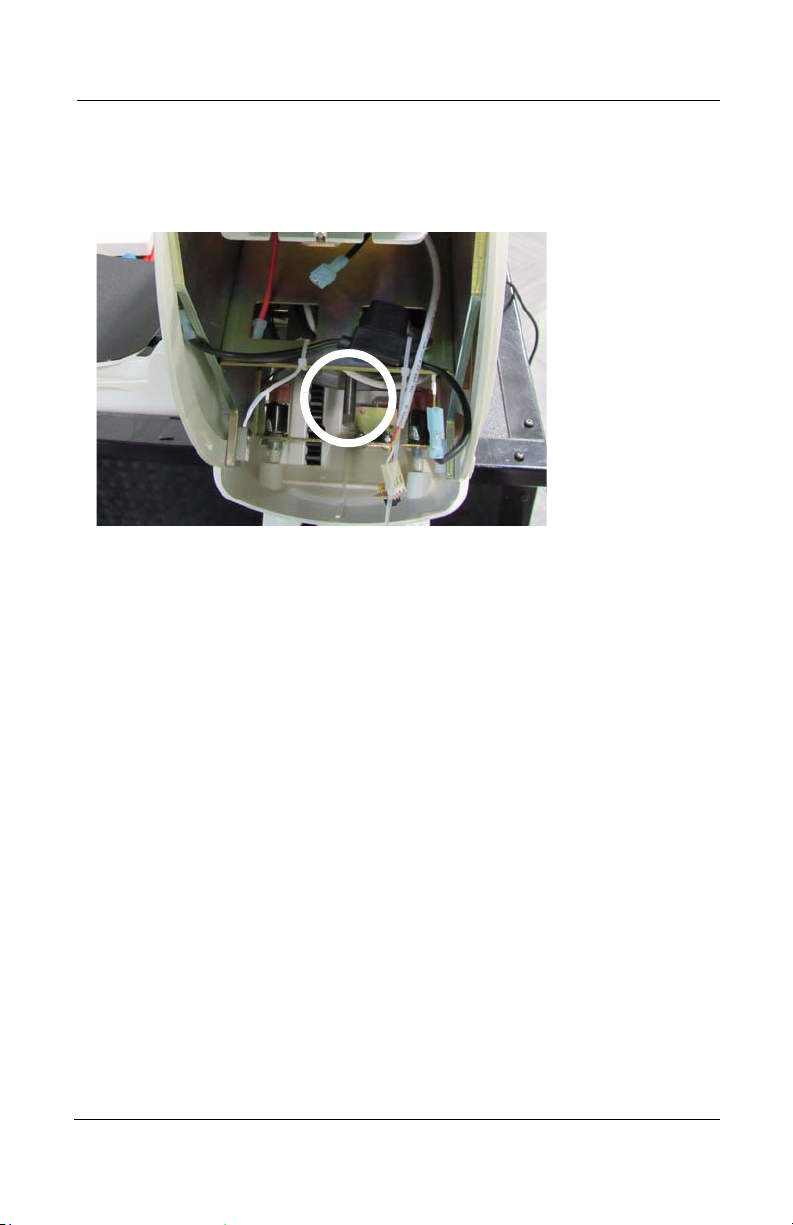

3Fit the shaft of the manual operation tool onto the motor output shaft. The
shaft is located below the battery tray in the carriage (circled below).
Figure 4 
4For a left-hand unit, turn the handle clockwise for the unit to travel up the
stairs and counter-clockwise for the unit to travel down the stairs.
5For a right-hand unit, turn the handle clockwise for the unit to travel down
the stairs and counter-clockwise for the unit to travel up the stairs.
6When movement of the carriage is complete, call your Authorized Dealer for
service assistance. DO NOT turn the main power back on.
Batteries not
installed in
this view

12
K2 Stairlift Owner’s Manual Part No. 001022, 23-m10-2015
6. TROUBLESHOOTING AND MAINTENANCE
Operator Troubleshooting
Stairlift will not run
If your stairlift will not run and no lights are on, check the items listed below.
1Make sure the stairlift charger is plugged in at the wall.
2Make sure the key switch is turned ON and the power switch is ON.
3Check the residence main circuit breaker (or fuse) panel for a tripped
breaker tripped or blown fuse?
If your stairlift does not operate and all of the lights are on, check the items
listed below.
1Make sure the seat is swiveled and locked in the riding position.
2Check around the footrest and carriage for any obstructions.
If the stairlift does not operate after checking the above items, contact your
authorized Savaria dealer.
Stairlift is beeping
If the stairlift beeps for approximately 20 seconds while not moving, this means
the stairlift is not charging.
Check that the stairlift cord is plugged in to the wall outlet.
Make sure the stairlift is either all the way up or all the way down at the charging
contact. It will beep continuously if it is not at a charging contact.
If the beeping continues, contact your authorized Savaria dealer.
Stairlift stops and won’t restart
If the stairlift runs to either end of the stairway and then stops and won’t restart,
this means that the battery charge is low.
Charge the stairlift.
If the problem continues, contact your authorized Savaria dealer.

13
Part No. 001022, 23-m10-2015 K2 Stairlift Owner’s Manual
Diagnostic LEDs
There are three diagnostic LEDs located on the carriage front panel.
Figure 5
LED Status
LEDs Meaning
Middle and right LEDs on Left-hand obstruction (or ready to run right)
Middle and left LEDs on Right-hand obstruction (or ready to run left)
Middle LED on Obstruction, both right-hand and left-hand
All LEDS off Safety circuit fault
All LEDs on Ready to run left or right
SAFETY CIRCUIT FAULT (SEE OWNER’S MANUAL)
LH OBSTRUCTION (OR READY TO RUN RIGHT)
RH OBSTRUCTION (OR READY TO RUN LEFT)
OBSTRUCTION, BOTH RH AND LH
READY TO RUN LEFT OR RIGHT

14
K2 Stairlift Owner’s Manual Part No. 001022, 23-m10-2015
Maintenance
The owner can perform the 3-month checks; 6-month checks
must be performed by a qualified technician. Contact your
Savaria dealer.
Units installed in adverse environments will require additional
maintenance on a monthly basis.
Maintenance Schedule
Verification by owner Frequency
Check that the swivel seat switch is working.
Ensure the unit will not travel until the swivel seat is locked in
the riding position.
Every 3 months
Check that the footrest and carriage sensors are working.
Ensure the unit stops when it contacts an obstacle. Every 3 months
Check that the emergency stop button is working (if
equipped).
Ensure the unit stops immediately when the button is
pressed.
Every 3 months
Verification by technician Frequency
Check the operation of the limit switches.
Ensure the unit stops at the required position at the top and
bottom of the stairway.
Every 6 months
Check the operation of the overspeed brake. Every 6 months
Lubricate the trolley rollers with silicone spray or WD
lubricant.
As required (if
squeaking occurs)
Lubricate the seat swivel system using wheel bearing grease. As required
NOTE

15
Part No. 001022, 23-m10-2015 K2 Stairlift Owner’s Manual
Maintenance Record
Date Time Reason for Call Comments Dealer

Savaria™ K2 Stairlift
OWNER’S MANUAL
Part No. 001022
Copyright 2015
Savaria Corporation
Elevators and Lifts
www.savaria.com
Sales
2 Walker Drive
Brampton, Ontario, L6T 5E1, Canada
Tel: [phone]
Fax: [phone]
Toll Free: 1-800-661-5112
Authorized Savaria Dealer
