SCAN 65 User guide

65
ASSEMBLY AND INSTRUCTIONS MANUAL SCAN 65
UK SCAN
UK - ASSEMBLY AND INSTRUCTIONS MANUAL
SCAN 65

2
65
UK SCAN

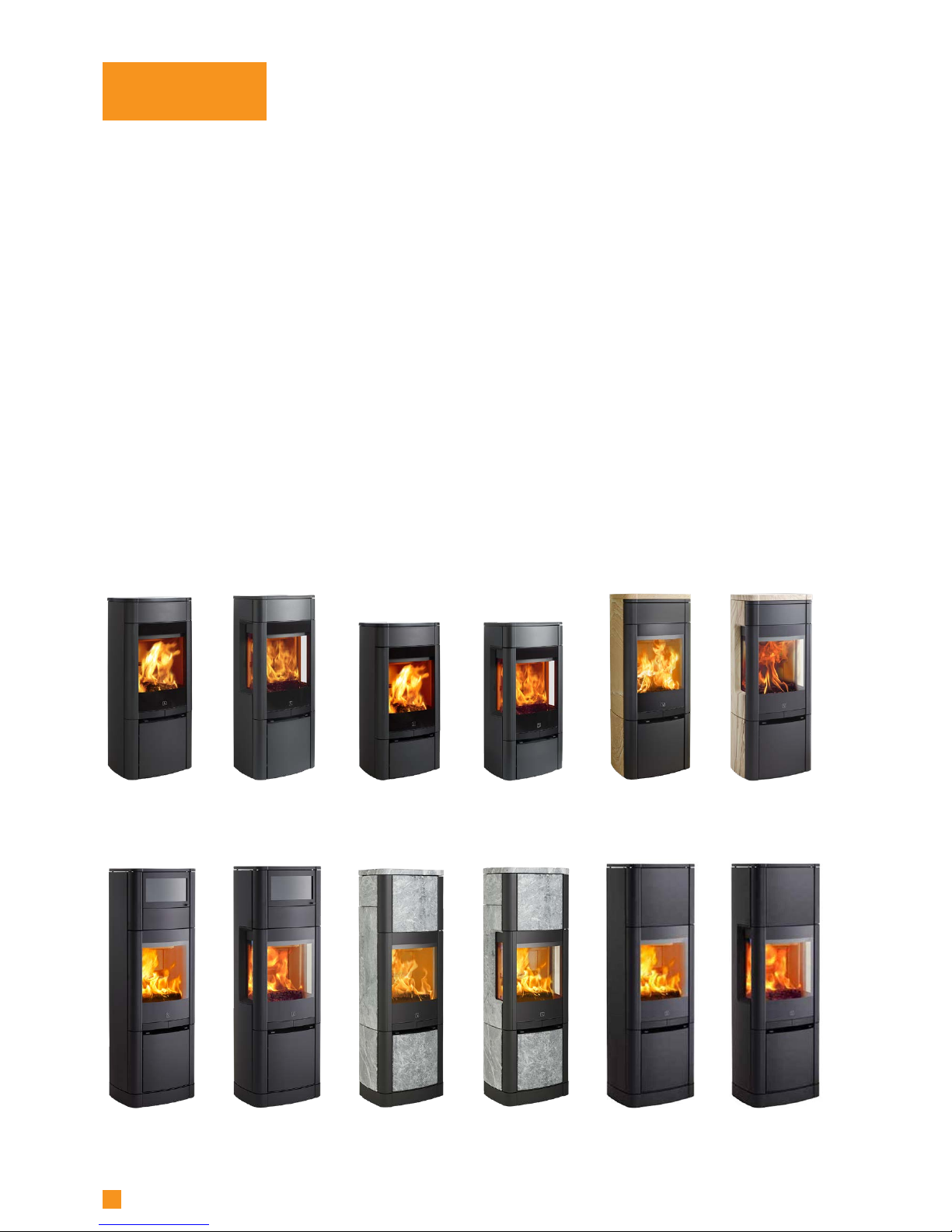

Scan 65-1
Steel sides
Scan 65-2
Steel sides
and side windows
Scan 65-1 LB
Lowbase,
steel sides
Scan 65-2 LB
Low base, steel
sides and side
windows
Scan 65-3
Natural stones
Scan 65-4
Natural stones,
and side windows
Scan 65-5
Steel sides,
baking oven
Scan 65-6
Steel sides,
baking oven
and side windows
Scan 65-7
High Top,
natural stones
Scan 65-8
High Top,
natural stones
and side windows
Scan 65-9
High Top,
steel sides
Scan 65-10
High Top,
steel sides
and side windows
You have purchased a product by one of Europe’s leading manufacturers of
wood-burning stoves, and we are sure that you will have years of pleasure from your
purchase.
To make the best possible use of your stove, it is important that you
follow our advice and instructions. Read through this Assembly and Instruction
Manual carefully before you start to assemble your stove.
CONGRATULATIONS
ON YOUR NEW SCAN
WOOD-BURNING STOVE

3
TABLE OF CONTENTS
¬¬ TECHNICAL DATA 4
Installation 4
Safety 4
The clean air act 1993 and smoke control areas 4
Technical data and dimensions 5
Dimension sketch 6

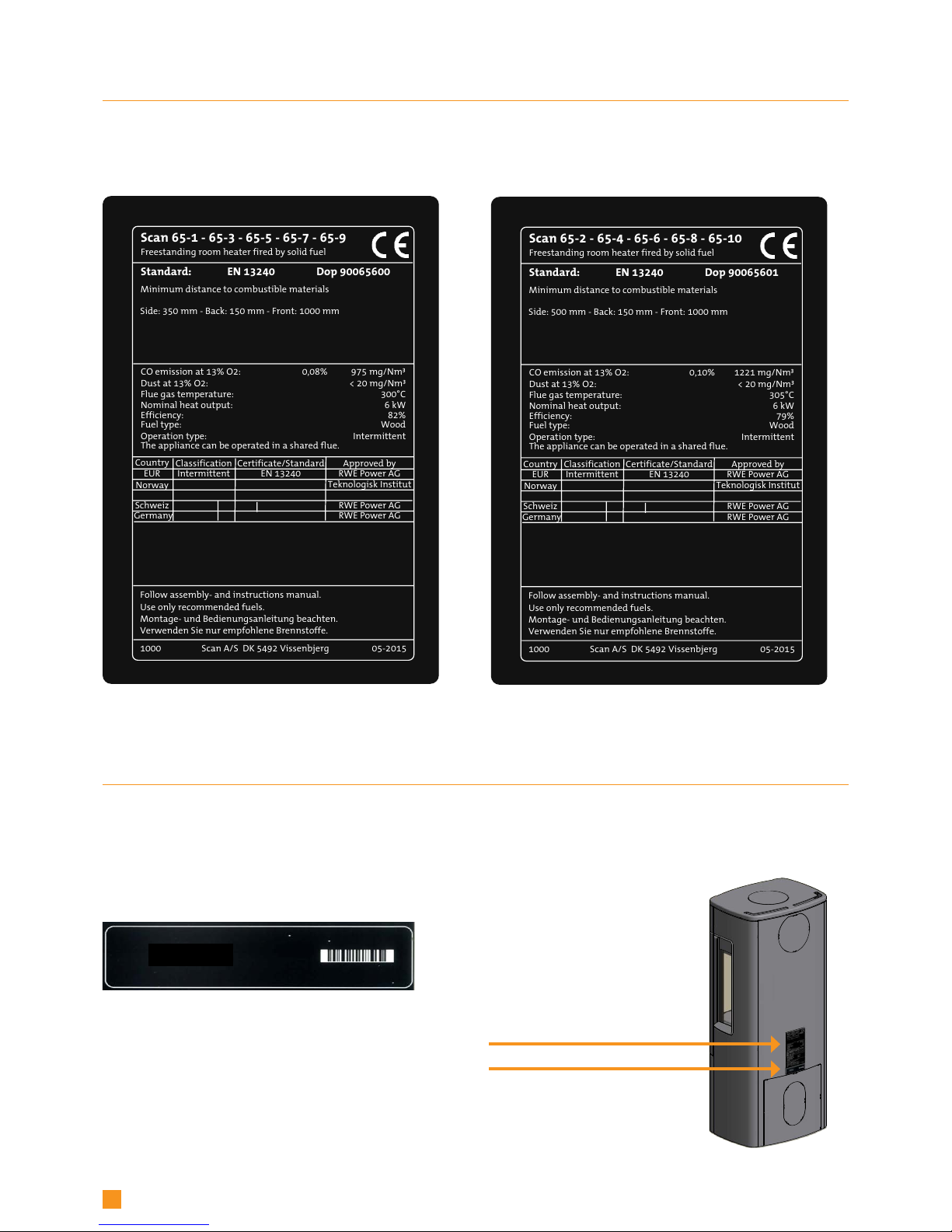

Type plate 10
Product registration number 10
¬¬ ASSEMBLY 11
Tools needed for mounting of the stove 11
Loose parts 11
Additional accessories 11
Disposal of packaging 11
Fresh air intake 11
Closed combustion system 12
Existing chimney and pre-fabricated element chimney 12
Connection between built-in stove and steel chimney 12
Requirements for chimney 12
Positioning the stove at a non-flammable wall 12
Distance to furniture 12
Safety distance 13
Removal of packaging 15
Handle and door 15
Height adjustment of stove 16

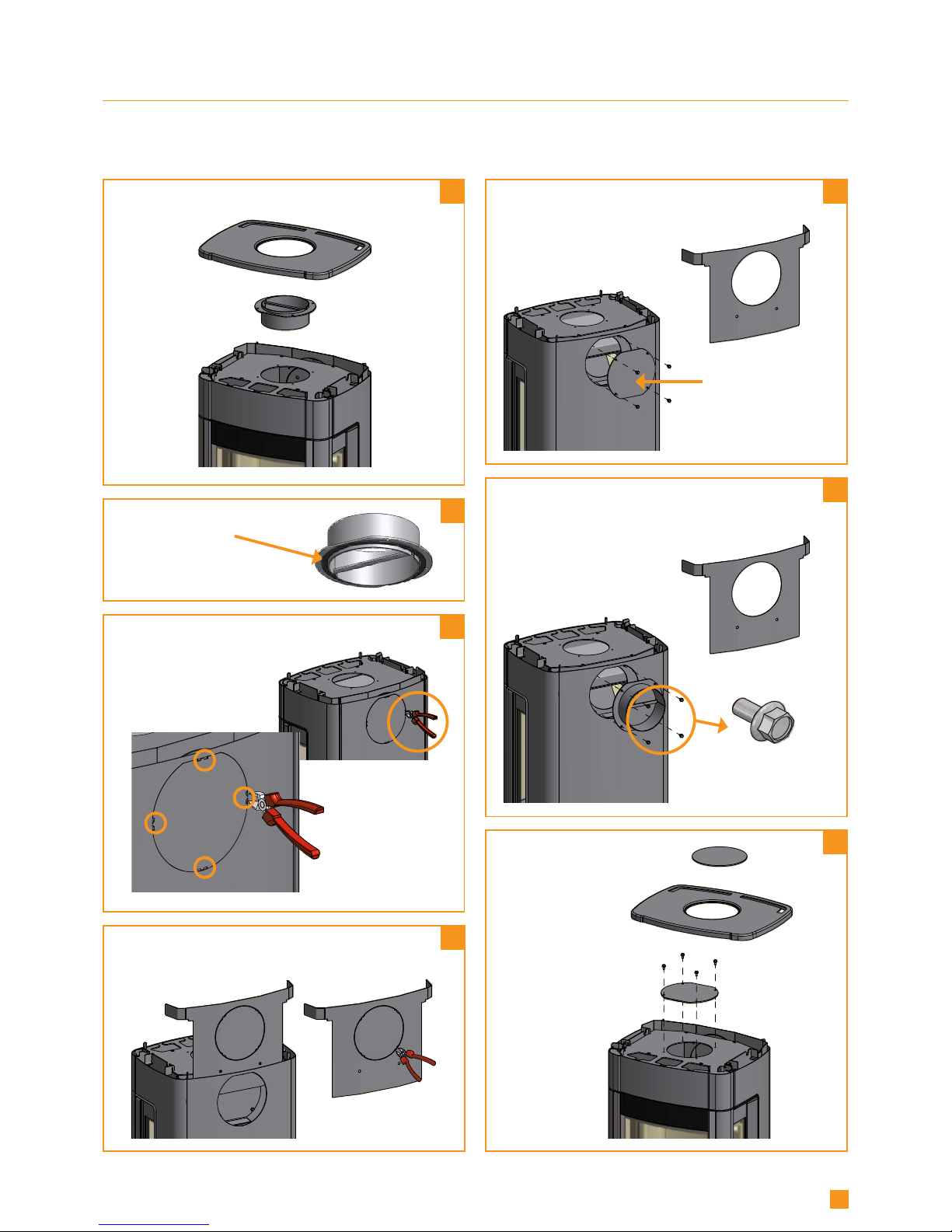

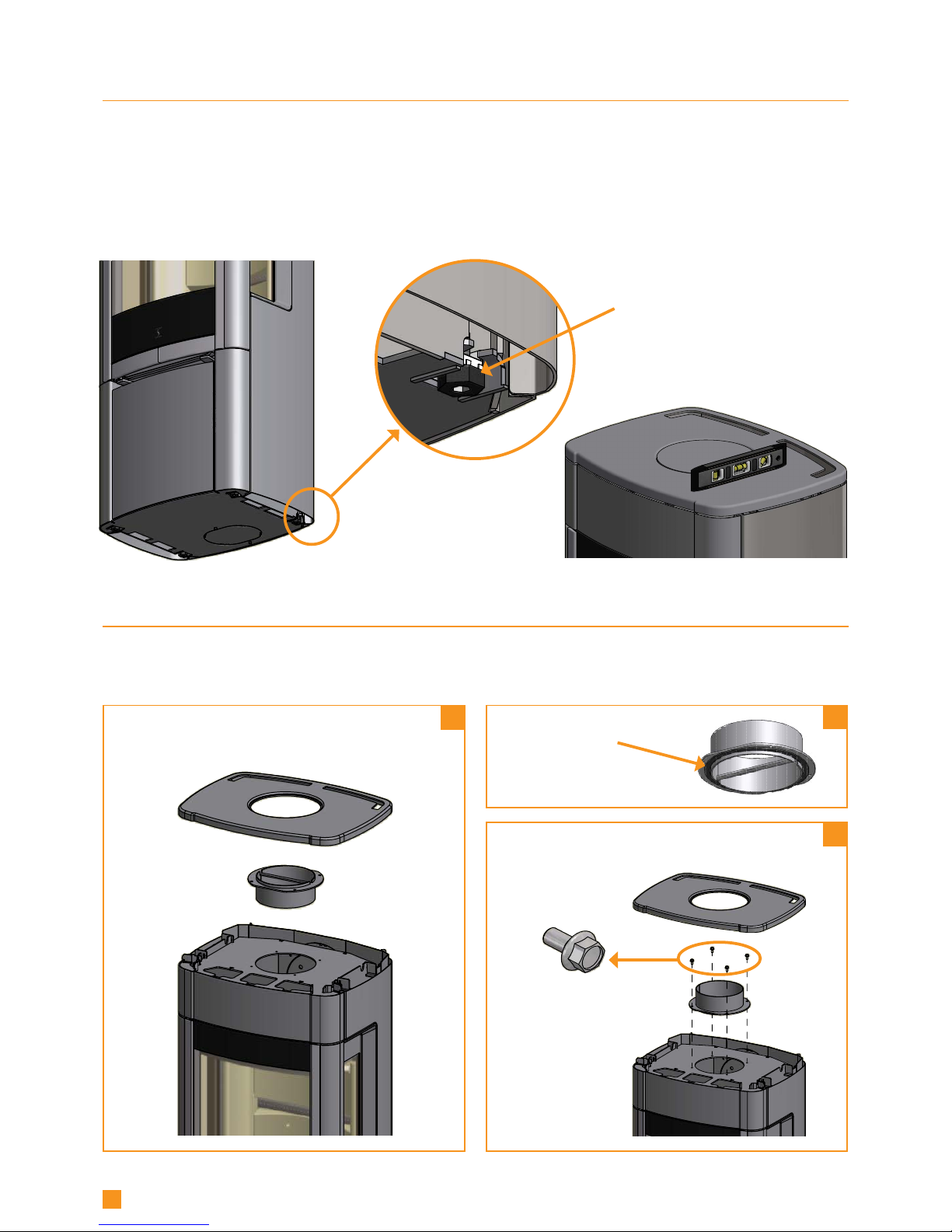

Fitting the flue connection piece 16

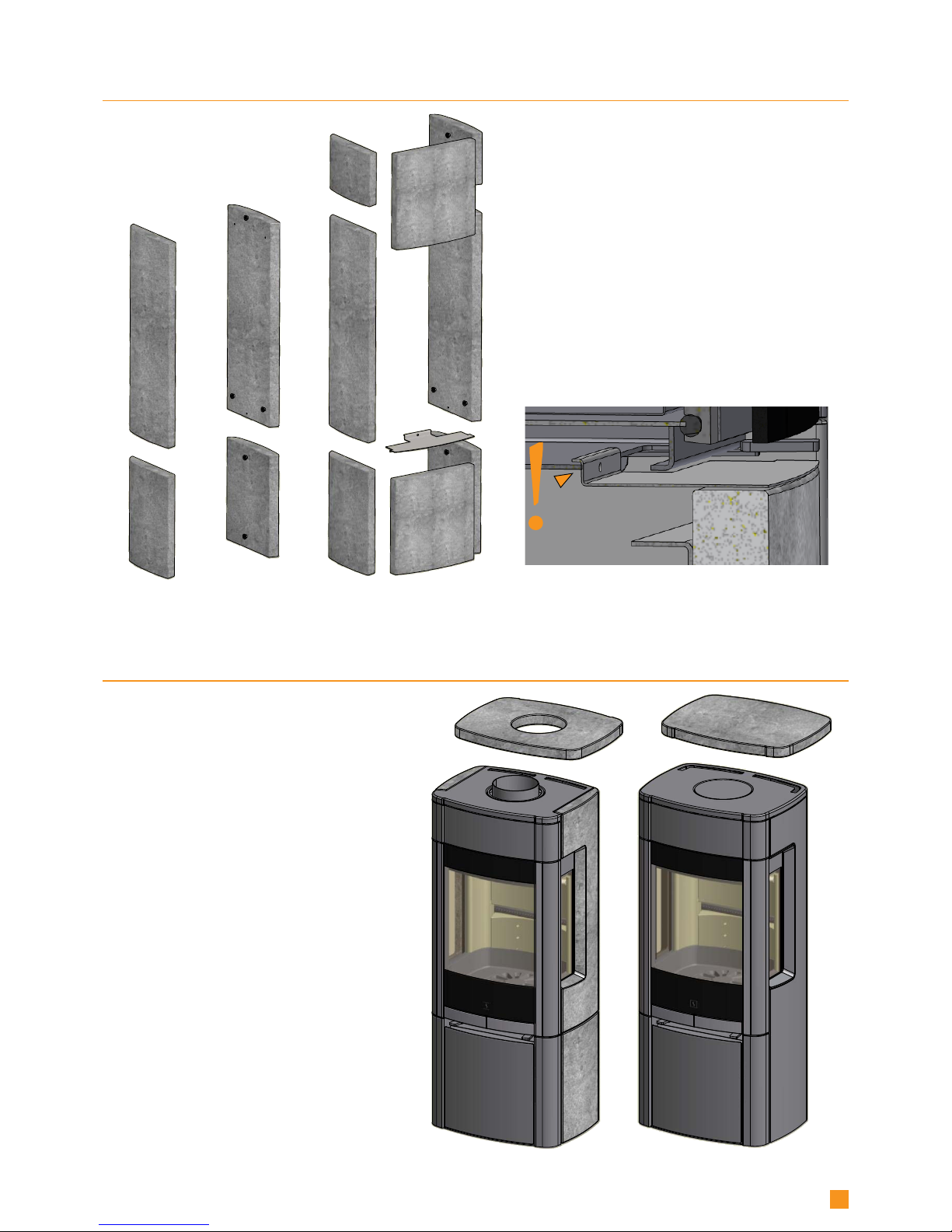

Fitting the natural stones 18
Fitting the natural stone top 19
Open plinth 20

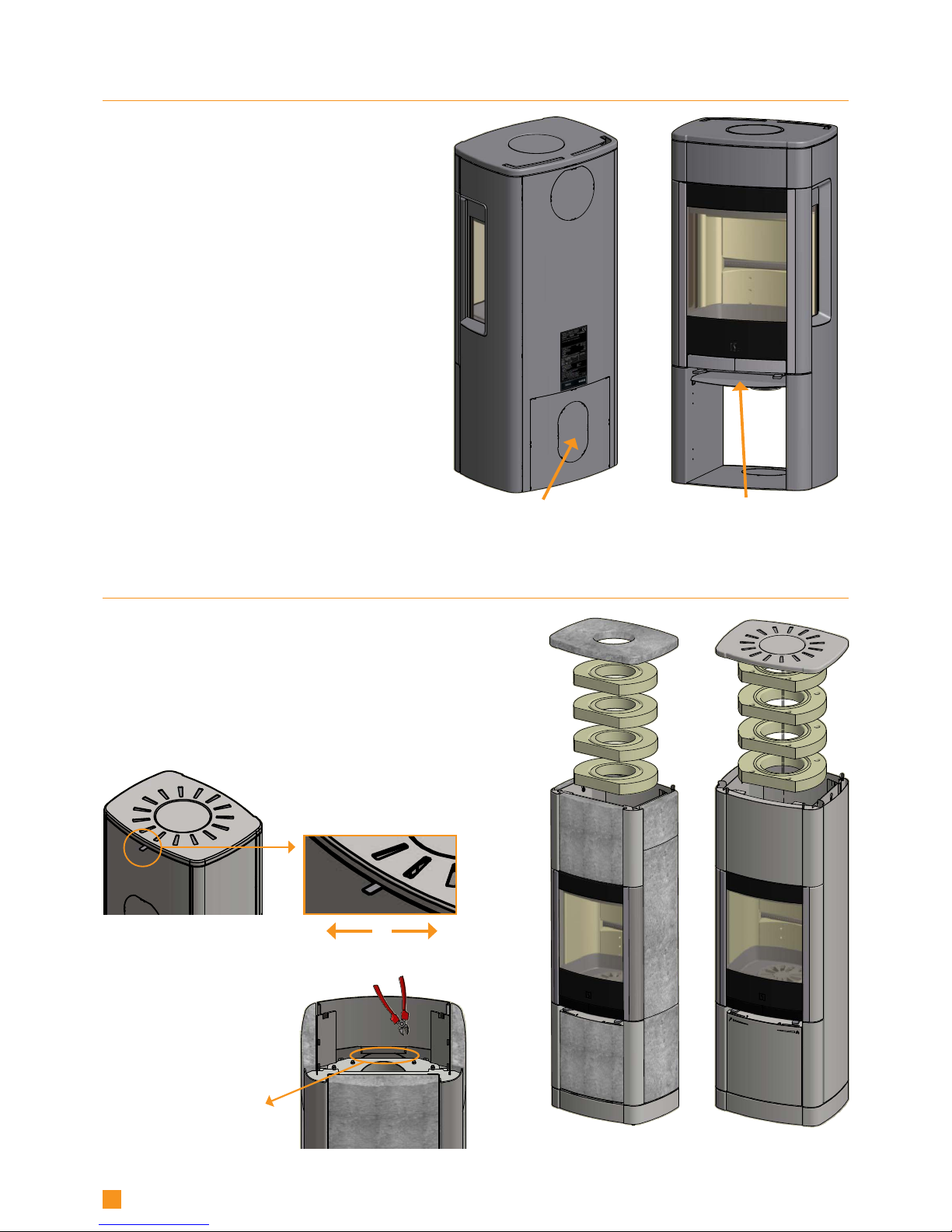

Heat-storage system 20
Load-bearing foundation 21
Floor plate 21
Mounting the UK - screw 21
¬¬ INSTRUCTIONS FOR USE 22
CB-technology (Clean Burn) 22
Primary air 22
Secondary air 22
Baffle plate 22
Ash container 22
Handle for riddling grate 22
¬¬ INSTRUCTIONS FOR HEATING 24
Environmentally-friendly firing 24
Lighting 24
Continuous operation 25
Warning about over-firing 25
Firing in the spring or autumn 25
The function of the chimney 25
Using your stove in various weather conditions 25
General notes 26
Chimney fire 26
¬¬ HANDLING OF THE FUEL 27
Selecting wood/fuel 27
Preparation 27
Storing 27
Moisture 27
Use of the following as fuel is illegal 27
Calorific value of the wood 27
¬¬ MAINTAINANCE 28
Sweeping the chimney and cleaning the stove 28
Checking the stove 28
Servicing 28
Combustion chamber lining 28
Gaskets 28
Painted surfaces 28
Baffle plates and combustion chamber lining 29
Cleaning the glass 30
Disposal of stove parts 30
¬¬ TROUBLESHOOTING 31
¬¬ WARRANTY 32

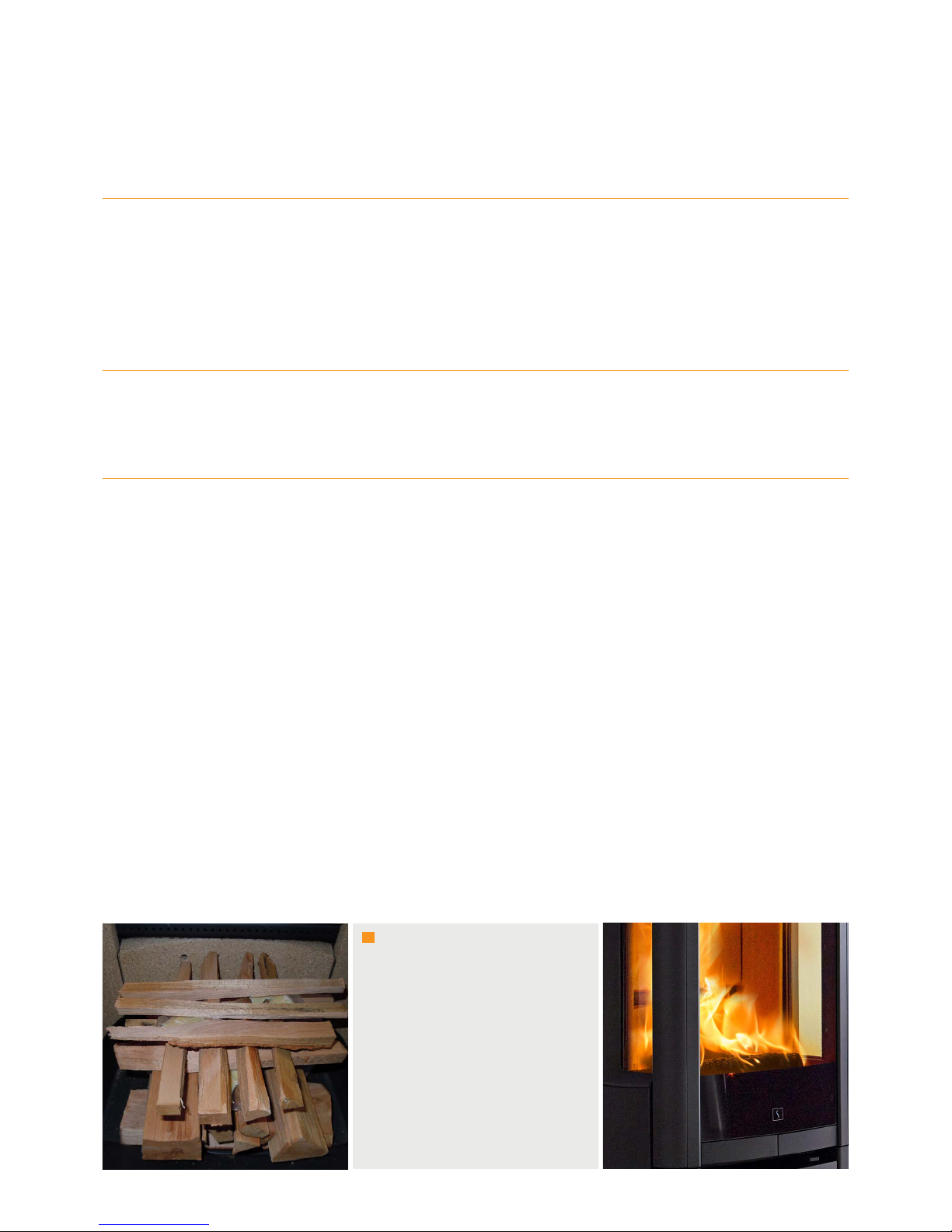

YOU GET THE BEST USE OF
THE STOVE BY USING
A TOP-DOWN
LIGHTING METHOD
SEE
"INSTRUCTIONS FOR HEATING"
PLEASE NOTE!
TECHNICAL DATA
INSTALLATION
¬ The house owner is responsible for ensuring that installation and assembly are in accordance with national and local
building regulations as well as the information provided in this Assembly and Instructions Manual.
¬ When you install any kind of fireplace or stove, you must inform the local building and housing authorities. In addition
you are obliged to have the installation inspected and approved by a local chimney sweep prior to commissioning.
¬ To ensure best-possible functionality and safety for your installation, we advise you to call a professional fitter. Your Scan
dealer will be able to recommend a qualified fitter in your area. For information on Scan Dealers, please go to www.scan.dk.
SAFETY
Any changes made to the product by the dealer, fitter or user could result in the product and safety functions not functioning as
intended. The same applies to the fitting of accessories or extra equipment not supplied by Scan A/S. This could also be the case
if parts that are necessary for the operation and safety of the stove are dismantled or removed.
THE CLEAN AIR ACT 1993 AND SMOKE CONTROL AREAS
Under the Clean Air Act local authorities may declare the whole or part of the district of the authority to be a smoke control area.
It is an offence to emit smoke from a chimney of a building, from a furnace or from any fixed boiler if located in a designated smoke
control area. It is also an offence to acquire an "unauthorized fuel" for use within a smoke control area unless it is used in an "ex-
empt" appliance ("exempted" from the controls which generally apply in the smoke control area).
The Secretary of State for Environment, Food and Rural Affairs has powers under the Act to authorize smokeless fuels or ex-
empt appliances for use in smoke control areas in England. In Scotland and Wales this power rests with Ministers in the devolved
administrations for those countries. Separate legislation, the Clean Air (Northern Ireland) Order 1981, applies in Northern
Ireland. Therefore it is a requirement that fuels burnt or obtained for use in smoke control areas have been "authorized" in Regu-
lations and that appliances used to burn solid fuel in those areas (other than "authorized" fuels) have been exempted by an Order
made and signed by the Secretary of State or Minister in the devolved administrations.
¬ Further information on the requirements of the Clean Air Act can be found here: www.smokecontrol.defra.gov.uk
¬ Your local authority is responsible for implementing the Clean Air Act 1993 including designation and supervision of smoke
control areas and you can contact them for details of Clean Air Act requirements”
¬ The secondary air valve has been modified, so that is does not close completely but has an opening corresponding to the
position used at the lowest emission test (See page 21).
¬ You can use any type of wood as fuel.
¬ This stove has been recommended as suitable for use in smoke control areas when burning wood.

5
TECHNICAL DATA AND DIMENSIONS
Intermittent operation in this context means normal use
of a wood-burning stove. In other words, you should let
the fire die down until only the embers are left before
refueling.
This stove is produced in accordance with type approval
for the product, which also covers the product’s Assembly
and Instruction Manual.
The Declaration of Performance (DoP) is available from
www.scan.dk
*
65-1, 65-3, 65-5, 65-7 & 65-9
-Test in compliance with EN 13240
CO Emission at 13% O20,08 %
CO Emission at 13% O2975 mg/Nm3
Dust @ 13% O2<20 mg/Nm3
Nox@ 13% O2104 mg/Nm3
Efficiency 82 %
Energy efficiency index 110
Energy efficiency class A+
Nominel output 6 kW
Chimney temperature EN 13240 221 °C
Temperature in flue conn. piece 300 °C
Amount of smoke 5 g/sek
Sub-pressure EN 13240 12 Pa
Recommended sub-pressure in
connecting piece 15-18 Pa
Required combustion air supply 13,3 m3/h
Fuel Wood
Fuel consumption 2 kg/h
Amount of fuel required to light 1,5 kg
65-2, 65-4, 65-6, 65-8 & 65-10
-Test in compliance with EN 13240
CO Emission at 13% O20,1 %
CO Emission at 13% O21221 mg/Nm3
Dust @ 13% O2<20 mg/Nm3
Nox@ 13% O2117 mg/Nm3
Efficiency 79 %
Energy efficiency index 106
Energy efficiency class A
Nominel output 6 kW
Chimney temperature EN 13240 240 °C
Temperature in flue conn. piece 305 °C
Amount of smoke 6 g/sek
Sub-pressure EN 13240 12 Pa
Recommended sub-pressure in
connecting piece 15-18 Pa
Required combustion air supply 12,5 m3/h
Fuel Wood
Fuel consumption 2 kg/h
Amount of fuel required to light 1,5 kg
Materials
Steel plate
Cast iron,
Galvanised sheet
Vermicolite
Surface treatment Senotherm
Max. wood length 30 cm
Weight Scan 65-1 /2 ca. 123 kg
Weight Scan 65-1 /2 Low base ca. 118 kg
Weight Scan 65-3 ca. 180 kg
Weight Scan 65-4 ca. 168 kg
Weight Scan 65-5/6 ca. 162 kg
Weight Scan 65-7 ca. 258 kg
Weight Scan 65-8 ca. 246 kg
Weight Scan 65-9/10 ca. 162 kg
Connecting piece internal diameter 144 mm
Connecting piece external diameter 148 mm
Approval type Intermittent fuelling*

6
A-A ( 1 : 10 )
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 65\90065016.idw
90065016
Målskitse, Scan 65-3/4 Fedtsten
17-01-2017 SR
Scan 65
VÆGT:
AREAL:
N/A
N/A
Top Bund
1132
72210****
1012*
490
190
380
154
90***
114
1111**
A-A ( 1 : 10 )
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 65\90065016.idw
90065016
Målskitse, Scan 65-3/4 Fedtsten
17-01-2017 SR
Scan 65
VÆGT:
AREAL:
N/A
N/A
Top Bund
1132
72210****
1012*
490
190
380
154
90***
114
1111**
A-A ( 1 : 10 )
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 65\90065016.idw
90065016
Målskitse, Scan 65-3/4 Fedtsten
17-01-2017 SR
Scan 65
VÆGT:
AREAL:
N/A
N/A
Top Bund
1132
72210****
1012*
490
190
380
154
90***
114
1111**
A-A ( 1 : 10 )
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 65\90065016.idw
90065016
Målskitse, Scan 65-3/4 Fedtsten
17-01-2017 SR
Scan 65
VÆGT:
AREAL:
N/A
N/A
Top Bund
1132
72210****
1012*
490
190
380
154
90***
114
1111**
A-A ( 1 : 10 )
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 65\90065015.idw
90065015
Målskitse, Scan 65-1/2 Standard
17-01-2017 SR
Scan 65
VÆGT:
AREAL:
N/A
N/A
Top Bund
1132
490
210****
72
1012*
1111**
380
190
154
114
90***
A-A ( 1 : 10 )
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 65\90065015.idw
90065015
Målskitse, Scan 65-1/2 Standard
17-01-2017 SR
Scan 65
VÆGT:
AREAL:
N/A
N/A
Top Bund
1132
490
210****
72
1012*
1111**
380
190
154
114
90***
B
A
C
A-A ( 1 : 10 )
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 65\90065015.idw
90065015
Målskitse, Scan 65-1/2 Standard
17-01-2017 SR
Scan 65
VÆGT:
AREAL:
N/A
N/A
Top Bund
1132
490
210****
72
1012*
1111**
380
190
154
114
90***
A-A ( 1 : 10 )
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 65\90065015.idw
90065015
Målskitse, Scan 65-1/2 Standard
17-01-2017 SR
Scan 65
VÆGT:
AREAL:
N/A
N/A
Top Bund
1132
490
210****
72
1012*
1111**
380
190
154
114
90***
C
D
B
A
D
DIMENSION SKETCH SCAN 65-3 AND 65-4 (NATURAL STONES)
DIMENSION SKETCH
ACentre rear outlet
BHeight to the beginning of the
connecting piece at top outlet
CFresh air intake bottom
DFresh air intake at the back
of the stove
All measurements are in millimeters
SCAN 65-1 AND 65-2
ACentre rear outlet
BHeight to the beginning of the
connecting piece at top outlet
CFresh air intake bottom
DFresh air intake at the back
of the stove
All measurements are in millimeters

7
NAVN:
STI:
M3 NR.:
MATERIALE: DATO: SIGN:
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 65\90065028.idw
90065028
Målskitse Scan 65-1/2 Low Base
27-06-2017 pcj
Scan 65
VÆGT:
AREAL:
798,50 kg
66175237 mm^2
DIM.: Scan A/S
490
1000
12150
979
880
154
114
90
190
380
B
A
C
A-A ( 1 : 10 )
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 65\90065015.idw
90065015
Målskitse, Scan 65-1/2 Standard
17-01-2017 SR
Scan 65
VÆGT:
AREAL:
N/A
N/A
Top Bund
1132
490
210****
72
1012*
1111**
380
190
154
114
90***
A-A ( 1 : 10 )
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 65\90065015.idw
90065015
Målskitse, Scan 65-1/2 Standard
17-01-2017 SR
Scan 65
VÆGT:
AREAL:
N/A
N/A
Top Bund
1132
490
210****
72
1012*
1111**
380
190
154
114
90***
D
DIMENSION SKETCH SCAN 65-1 AND 65-2 (LOW BASE)
ACentre rear outlet
BHeight to the beginning of the
connecting piece at top outlet
CFresh air intake bottom
DFresh air intake at the back
of the stove
All measurements are in millimeters

8
A-A ( 1 : 10 )
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 65\90065018.idw
90065018
Målskitse, Scan 65-7/8 High top, fedtsten
17-01-2017 SR
Scan 65
VÆGT:
AREAL:
N/A
N/A
Top Bund
490
154
114
92***
1201**
192
384
1448
158210****
1098*
A-A ( 1 : 10 )
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 65\90065018.idw
90065018
Målskitse, Scan 65-7/8 High top, fedtsten
17-01-2017 SR
Scan 65
VÆGT:
AREAL:
N/A
N/A
Top Bund
490
154
114
92***
1201**
192
384
1448
158210****
1098*
A-A ( 1 : 10 )
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 65\90065018.idw
90065018
Målskitse, Scan 65-7/8 High top, fedtsten
17-01-2017 SR
Scan 65
VÆGT:
AREAL:
N/A
N/A
Top Bund
490
154
114
92***
1201**
192
384
1448
158210****
1098*
A-A ( 1 : 10 )
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 65\90065018.idw
90065018
Målskitse, Scan 65-7/8 High top, fedtsten
17-01-2017 SR
Scan 65
VÆGT:
AREAL:
N/A
N/A
Top Bund
490
154
114
92***
1201**
192
384
1448
158210****
1098*
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 65\90065017.idw
90065017
Målskitse, Scan 65-5/6 Bagerum
17-01-2017 SR
Scan 65
VÆGT:
AREAL:
N/A
N/A
Top Bund
1433
490
154
114
92***
158210****1415**
382
192
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 65\90065017.idw
90065017
Målskitse, Scan 65-5/6 Bagerum
17-01-2017 SR
Scan 65
VÆGT:
AREAL:
N/A
N/A
Top Bund
1433
490
154
114
92***
158210****1415**
382
192
C
A-A ( 1 : 10 )
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 65\90065015.idw
90065015
Målskitse, Scan 65-1/2 Standard
17-01-2017 SR
Scan 65
VÆGT:
AREAL:
N/A
N/A
Top Bund
1132
490
210****
72
1012*
1111**
380
190
154
114
90***
B
C
D
D
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 65\90065017.idw
90065017
Målskitse, Scan 65-5/6 Bagerum
17-01-2017 SR
Scan 65
VÆGT:
AREAL:
N/A
N/A
Top Bund
1433
490
154
114
92***
158210****1415**
382
192
B
A
BHeight to the beginning of the
connecting piece at top outlet
CFresh air intake bottom
DFresh air intake at the back
of the stove
All measurements are in millimeters
ACentre rear outlet
BHeight to the beginning of the
connecting piece at top outlet
CFresh air intake bottom
DFresh air intake at the back
of the stove
All measurements are in millimeters
DIMENSION SKETCH SCAN 65-7 AND 65-8 (HIGH TOP + NATURAL STONES)
DIMENSION SKETCH SCAN 65-5 AND 65-6 (HIGH TOP + BAKING OVEN)
In order to get full use of the baking oven, this model must be connected with a top outlet.

9
A-A ( 1 : 10 )
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 65\90065019.idw
90065019
Målskitse, Scan 65-9/10 High top, stål
17-01-2017 SR
Scan 65
VÆGT:
AREAL:
N/A
N/A
Top Bund
490
154
114
92***
1433
382
192
158210****
1098*
1196**
A-A ( 1 : 10 )
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 65\90065019.idw
90065019
Målskitse, Scan 65-9/10 High top, stål
17-01-2017 SR
Scan 65
VÆGT:
AREAL:
N/A
N/A
Top Bund
490
154
114
92***
1433382
192
158210****
1098*
1196**
A-A ( 1 : 10 )
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 65\90065019.idw
90065019
Målskitse, Scan 65-9/10 High top, stål
17-01-2017 SR
Scan 65
VÆGT:
AREAL:
N/A
N/A
Top Bund
490
154
114
92***
1433382
192
158210****
1098*
1196**
B
C
D
A-A ( 1 : 10 )
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 65\90065019.idw
90065019
Målskitse, Scan 65-9/10 High top, stål
17-01-2017 SR
Scan 65
VÆGT:
AREAL:
N/A
N/A
Top Bund
490
154
114
92***
1433
382
192
158210****
1098*
1196**
A
ACentre rear outlet
BHeight to the beginning of the
connecting piece at top outlet
CFresh air intake bottom
DFresh air intake at the back
of the stove
All measurements are in millimeters
DIMENSION SKETCH SCAN 65-9 AND 65-10 (HIGH TOP + STEEL SIDES)
In order to get full use of the heat accumulating stones, this model must be connected with a top outlet.

10
Scan 65-1 - 65-3 - 65-5 - 65-7 - 65-9
Freestanding room heater fired by solid fuel
Standard:
Fuel type:
Operation type:
The appliance can be operated in a shared flue.
Country
EN 13240 Dop 90065600
Wood
Intermittent
EUR
Norway
Classification
Intermittent
Certificate/Standard
EN 13240
Approved by
RWE Power AG
Teknologisk Institut
Dust at 13% O2: < 20 mg/Nm³
Flue gas temperature: 300°C
Nominal heat output: 6 kW
Efficiency: 82%
Scan A/S DK 5492 Vissenbjerg
Minimum distance to combustible materials
Side: 350 mm - Back: 150 mm - Front: 1000 mm
CO emission at 13% O2:
Follow assembly- and instructions manual.
Use only recommended fuels.
Montage- und Bedienungsanleitung beachten.
Verwenden Sie nur empfohlene Brennstoffe.
1000 05-2015
0,08% 975 mg/Nm³
Schweiz
Germany
RWE Power AG
RWE Power AG
Scan 65-2 - 65-4 - 65-6 - 65-8 - 65-10
Freestanding room heater fired by solid fuel
Standard:
Fuel type:
Operation type:
The appliance can be operated in a shared flue.
Country
EN 13240 Dop 90065601
Wood
Intermittent
EUR
Norway
Classification
Intermittent
Certificate/Standard
EN 13240
Approved by
RWE Power AG
Teknologisk Institut
Dust at 13% O2: < 20 mg/Nm³
Flue gas temperature: 305°C
Nominal heat output: 6 kW
Efficiency: 79%
Scan A/S DK 5492 Vissenbjerg
Minimum distance to combustible materials
Side: 500 mm - Back: 150 mm - Front: 1000 mm
CO emission at 13% O2:
Follow assembly- and instructions manual.
Use only recommended fuels.
Montage- und Bedienungsanleitung beachten.
Verwenden Sie nur empfohlene Brennstoffe.
1000 05-2015
0,10% 1221 mg/Nm³
Schweiz
Germany
RWE Power AG
RWE Power AG
6500000
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064010.idw
90064010
Typeskilt og registreringsnummer
21-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
Typeskilt 65-2, 65-4, 65-6, 65-8 og 65-10 (med sideglas)
Typeskilt 65-1, 65-3, 65-5,65-7og 65-9 (uden sideglas)
Product registration number
Type plate
Product registration number
TYPE PLATE
All Scan wood-burning stoves are fitted with a type plate that specifies the approval standards and the distance to flammable
materials.
The type plate is located at the rear of the stove.
PRODUCT REGISTRATION NUMBER
All Scan wood-burning stoves are provided with a product registration number. Please make a note of this number at the rear
page of this manual; you will always need to quote it when contacting your dealer or Scan A/S.
The product registration number is located at the rear of the stove.

11
ASSEMBLY
TOOLS NEEDED FOR MOUNTING OF THE STOVE
¬ Spirit level ¬ Open-end spanner
¬ Cutting nippers
LOOSE PARTS
The loose parts are located in the stove's ash drawer.
¬ Glove ¬ Seal for the connecting piece
¬ 4 pcs. screws for fastening the connecting piece ¬ Scan 65-3 and Scan 65-4: 4,5 m gasket
¬ Fresh air intake ¬ Scan 65-7 and Scan 65-8: 7 m gasket
¬ 1 pcs. screw M5x6, must be placed for United Kingdom
ADDITIONAL ACCESSORIES
¬ Small shaped floor plate in glass or steel ¬ Large shaped floor plate in glass or steel
¬ Natural stones top plate for stove with rear outlet ¬ Natural stones top plate for stove with top outlet
¬ Scan 65-7/8 and 65-9/10: Heat accumulating stones
DISPOSAL OF PACKAGING
Your Scan stove may come supplied with the following packaging:
Wood packaging The wood packaging can be reused and after final use can be incinerated as a CO2neutral
product or sent for recycling.
Polystyrene top Send for recycling or waste disposal
Foam Send for recycling or waste disposal
Plastic bags Send for recycling or waste disposal
Stretch/plastic film Send for recycling or waste disposal
FRESH AIR INTAKE
In a well-insulated house, the air used up by the burning process has to be replaced. This particularly applies to houses with
mechanical ventilation. There are different ways of making sure that an air exchange takes place. The most important thing is to
ensure that there is a supply of air to the room where the wood stove is located. The external wall vent must be located as close
to the wood stove as possible, and you must be able to close it when you are not using the wood stove.
National and local building regulations must be followed with regard to the connection of fresh-air intake.

12
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064051.idw
90064051
Frisklufttilførsel
29-08-12 bc
Scan 64
VÆGT:
AREAL:
N/A
N/A
External
combustion air
through the floor
External
combustion air
through the wall
CLOSED COMBUSTION SYSTEM
You should use the closed combustion system for the wood-burning stove if you live in a newly-built, airtight home.
External combustion air is connected through a ventilation pipe via the wall or floor.
It must be possible to shut off the ventilation pipe with a valve, when the stove is not in use. Minimum Ø 100 mm ventilation pipe,
maximum length: 6metres with a maximum of one bend. We recommend smooth steel pipes.
The connecting piece for fresh air inlet is delivered separately with the stove.
If you want external combustion air via a wall, remove the cover plate at the rear of the stove with a pair of cutting pliers.
NOTE: if the stove has a fresh air connexion or closed combustion,
the ventilation pipe must be open, when the stove is in use!
Remove the cover plate at the back of the stove or the
cover plate at the bottom of the wood compartment
store, as shown in "Fitting the flue connection piece in
the top outlet". Connect outside air to the connection
piece underneath the combustion chamber.
EXISTING CHIMNEY AND PRE-FABRICATED ELEMENT CHIMNEY
If you intend to connect your stove to an existing chimney, it makes sense to contact an authorised Scan dealer, or a local chim-
ney sweep, for advice. These experts will also let you know if your chimney needs renovating.
¬ When connecting a pre-fabricated element chimney, follow the manufacturer’s connection instructions for the
relevant chimney type.
CONNECTION BETWEEN BUILT-IN STOVE AND STEEL CHIMNEY
Your Scan dealer, or local chimney sweep, can advise you on choosing a make and type of steel chimney. This ensures that the
chimney will match your wood-burning stove.
REQUIREMENTS FOR CHIMNEY
The chimney must have a minimum internal diameter of 148 mm and have a T400 designation, with G for the soot fire test.
The requirements to the chimney and the flue pipe in terms of safety distances must be met.
¬ Choosing the wrong length or diameter of steel chimney could impair functionality.
¬ Always comply exactly with the instructions provided by the steel chimney supplier.
POSITIONING THE STOVE AT A NON-FLAMMABLE WALL
There are no demands concerning the distance to non-flammable materials, but we recommend a distance of 50 mm in order to
facilitate the cleaning of the stove, the flue pipes and the chimney and to prevent possible damages to the wall.
DISTANCE TO FURNITURE
Distance to furniture from glass: 1000 mm.
You should however assess whether furniture or other items might become excessively dry due to being too close to the stove.

13
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064047.iam
90064047
Brandmur og isoleret røgrør - Scan 64 uden sideglas
29-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
50
50
100
50
50
700
700
960
700
700
253
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064047.iam
90064047
Brandmur og isoleret røgrør - Scan 64 uden sideglas
29-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
50
50
100
50
50
700
700
960
700
700
253
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064047.iam
90064047
Brandmur og isoleret røgrør - Scan 64 uden sideglas
29-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
50
50
100
50
50
700
700
960
700
700
253
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064048.iam
90064048
Opstilling til brandmur, scan 64 med sideglas
25-08-11 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
800
760
700
860
860
100
100
50
300
50
324
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064048.iam
90064048
Opstilling til brandmur, scan 64 med sideglas
25-08-11 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
800
760
700
860
860
100
100
50
300
50
324
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064048.iam
90064048
Opstilling til brandmur, scan 64 med sideglas
25-08-11 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
800
760
700
860
860
100
100
50
300
50
324
Stove:
Path:
Articlenumber:
Material:
Date:
Constructed/Changed by:
SCAN A/S
DK-5492 Vissenbjerg©
Drawing
number:
Name:
C:\Working Folder\Designs\Scan 80\90580005.idw
90580005
afstand brandmur, hjørne, Scan 80 05-04-2017
sr
Scan 80
Weight: Area:
N/A N/A
400mm
50 mm
50mm
Møbleringsafstand: XXX mm.
Brandbart materiale
Brandmur
Flammable material
Fire wall, e.g. 50 mm Jøtul Firewall, 110 mm brick
or other material with corresponding fireproof and
insulating abilities
All distances are in mm.
All distances are minimum distances
SAFETY DISTANCE
European, national and local regulations concerning safety distances for wood-burning stoves must be complied with.
DISTANCE
These distances apply for an insulated flue pipe all the way down to the stove, having a minimum of 30 mm insulation.
TO FLAMMABLE WALL PROTECTED BY A FIRE WALL
65-2, 65-4, 65-6, 65-8 and 65-10 (with side windows)
65-1, 65-3, 65-5,65-7 and 65-9 (without side windows)

14
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064050.iam
90064050
brændbar + uisoleret røgrør - Scan 64 med sideglas
23-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
150
500
536
250
778
250
340
745
513
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064049.idw
90064049
Brændbar + uisoleret røgrør - Scan 64 uden sideglas
23-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
150
350
340
595
100
363
628
100
324
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064050.iam
90064050
brændbar + uisoleret røgrør - Scan 64 med sideglas
23-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
150
500
536
250
778
250
340
745
513
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064049.idw
90064049
Brændbar + uisoleret røgrør - Scan 64 uden sideglas
23-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
150
350
340
595
100
363
628
100
324
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064003.iam
90064003
Opstilling mod brændbar væg, ovn med sideruder
28-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
50
500
250
250
778
536
745
240
513
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064043.iam
90064043
Opstilling mod brændbar væg, ovn uden sideruder
22-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
50
350
253
595
240
50
50
313
578
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064003.iam
90064003
Opstilling mod brændbar væg, ovn med sideruder
28-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
50
500
250
250
778
536
745
240
513
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064043.iam
90064043
Opstilling mod brændbar væg, ovn uden sideruder
22-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
50
350
253
595
240
50
50
313
578
65-2, 65-4, 65-6, 65-8 and 65-10 (with side windows)
Parallel installation
65-2, 65-4, 65-6, 65-8 and 65-10 (with side windows)
Parallel installation
65-2, 65-4, 65-6, 65-8 and 65-10 (with side windows)
45° corner installation
65-2, 65-4, 65-6, 65-8 and 65-10 (with side windows)
45° corner installation
DISTANCE TO FLAMMABLE MATERIALS, WITH UNINSULATED FLUE PIPE
These distances apply for an insulated flue pipe all the way down to the stove, having a minimum of 30 mm insulation.
DISTANCE TO FLAMMABLE MATERIALS, WITH INSULATED FLUE PIPE
65-1, 65-3, 65-5,65-7 and 65-9 (without side windows)
Parallel installation
65-1, 65-3, 65-5,65-7 and 65-9 (without side windows)
Parallel installation
65-1, 65-3, 65-5,65-7 and 65-9 (without side windows)
45° corner installation
65-1, 65-3, 65-5,65-7 and 65-9 (without side windows)
45° corner installation

15
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064020.idw
90064020
Brændeovn påpalle
21-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064020.idw
90064020
Brændeovn påpalle
21-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
1
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064027.idw
90064027
Montage afdækningsknapper
11-07-11 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
2
3
4
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064044.idw
90064044
Justerskruer
10-08-11 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
REMOVAL OF PACKAGING
Check that the stove is not damaged before starting to install it.
Remove the screws securing the stove to the pallet Remove the protection between the baffle plates,
before taking the stove into use!
Put back the upper plate on the pins,
as the protection pushes the plate upwards
Fit the plastic plugs from the service box
into the transport protection holes
HANDLE AND DOOR
NOTE: When the stove is new, the door may stand out a little from the stove,
and the handle may feel tight, as the stove has to be fired a couple of times,
before the gasket “settles”. This is quite normal.
Handle

16
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064044.idw
90064044
Justerskruer
10-08-11 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064053.idw
90064053
Ovn med vatterpas
04-12-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 64\90064044.idw
90064044
Justerskruer
10-08-2011 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064013.idw
90064013
Afmontage topplade + røgstuds
30-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
1
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
I:\Udvikling\TEGNING\Scan62\90063020.idw
90063020
Røgstuds med pakning
03-06-09 BC
Scan 63
VÆGT:
AREAL:
0,70 kg
93327 mm^2
2
3
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064014.idw
90064014
Montage af røgstuds i topafgang
30-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064014.idw
90064014
Montage af røgstuds i topafgang
30-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
HEIGHT ADJUSTMENT OF STOVE
The stove has four adjustment screws under the stove. Use the adjustment screws to get the stove to stand straight and level.
If the floor plate is used, the stove must be adjusted so that the plate can be placed under the front of the stove.
NOTICE: It is very important that the stove is level to allow an optimal function of the door. Please note that once mounted the stove
can no longer be adjusted!
Ajustment screw
Fasten the connecting piece with screws from the ash
drawer and replace the top plate.
Lift the top plate and connecting piece off the stove Mount the ceramic gasket on the
connecting piece
4 pcs. M5X10 mm
screws
FITTING THE FLUE CONNECTION PIECE
The stove is prepared from the factory for top outlet.
The connecting piece is placed loosely in the top outlet of the stove. The gasket for the connecting piece and the screws for
fastening the connecting piece are in the stove’s ash drawer.
IN THE TOP OUTLET

17
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064025.idw
90064025
Afmontage dæksel for bagafgang
31-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
5
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064026.idw
90064026
Montage røgstuds bagafgang
11-07-11 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064052.idw
90064052
Varmeskjold løftes af ovn
31-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
4
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064024.idw
90064024
Afmontage dækplade i varmeskjold
31-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064028.idw
90064028
Montage af dæksel i topafgang
30-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
7
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064012.idw
90064012
Afmontage dækplade for bagafgang
30-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064012.idw
90064012
Afmontage dækplade for bagafgang
30-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
3
6
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064026.idw
90064026
Montage røgstuds bagafgang
11-07-11 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064026.idw
90064026
Montage røgstuds bagafgang
11-07-11 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064014.idw
90064014
Montage af røgstuds i topafgang
30-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064013.idw
90064013
Afmontage topplade + røgstuds
30-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
1
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
I:\Udvikling\TEGNING\Scan62\90063020.idw
90063020
Røgstuds med pakning
03-06-09 BC
Scan 63
VÆGT:
AREAL:
0,70 kg
93327 mm^2
2
Cover plate
Remove the cover. This is to be used later as a seal
and cover at the top of the smoke outlet.
Lift the heat shield off the stove and cut the cover
plate free using cutting pliers at the fastening points.
Remove the heat shield
Fit the cover and tighten it.
Replace the top plate
Cut off the cover plate from the rear plate with cutting
pliers at the fastening points
Fit the connecting piece with the four screws found in
the stove’s ash drawer. Hook the heat shield onto the
stove
4 pcs.
M5X10 mm screws
Lift the top plate and connecting piece off the stove
Mount the ceramic gasket on the
connecting piece
FITTING THE FLUE CONNECTION PIECE
The stove is prepared from the factory for top outlet.
The connecting piece is placed loosely in the top outlet of the stove. The gasket for the connecting piece and the screws for
fastening the connecting piece are in the stove’s ash drawer.
IN THE REAR OUTLET

18
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\CAD\Inventor 2015\Templates\Standard - Manual.idw
90065008
fedsten pakninger m ruder
24-08-2015 hms
Scan 65
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\CAD\Inventor 2015\Templates\Standard - Manual.idw
90065007
fedsten pakninger ht
24-08-2015 hms
Scan 65
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
90065009
fedsten pakninger m ruder
24-08-2015 hms
Scan 65
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064046.idw
90064046
Scan 64-3 og Scan 64-4 m. isoleringsbånd f. fedtsten
29-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064046.idw
90064046
Scan 64-3 og Scan 64-4 m. isoleringsbånd f. fedtsten
29-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
=
65-3 65-4
65-7 65-8
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064032.idw
90064032
Montage af fedtstenssider
29-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064032.idw
90064032
Montage af fedtstenssider
29-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
FITTING THE NATURAL STONES
Scan 65-3, 65-4, 65-7 and 65-8 are delivered with loose natural stone plates for mounting on the sides of the stove.
It is a natural material, wherefore there might be differences in structure and form.
Each natural stone must be mounted with distance bushings and screws which are already mounted in the stones.
The delivered gasket (4,5/7 m) should be cut in appropiate lengths and sticked onto the sides of the stove as shown below.
Gasket
Hook the natural stone
sides onto the stove

19
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\CAD\Inventor 2015\Templates\Standard - Manual.idw
90065006
fedsten u rude
24-08-2015 hms
Scan 65
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90065005.idw
90065005
fedtsten ht
24-08-2015 hms
Scan 65
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064017.idw
90064017
Scan 64 med fedtstensplade for topafgang
29-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064018.idw
90064018
Scan 64 med fedtstenstopplade for bagafgang
29-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
FITTING THE NATURAL STONES
FITTING THE NATURAL STONE TOP
You can buy a natural stone top as an accessory.
Place the stone top on the steel top plate.
(ACCESSORY)

20
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064041.idw
90064041
Låge med gennemsynssokkel
29-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064010.idw
90064010
Typeskilt og registreringsnummer
21-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\90065005.idw
90065005
varmeakkumulerende sten
15-10-2015 hms
Scan 65
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 65\10065900_Manual.iam
10065900_Manual
22-05-2015 jwa
VÆGT:
AREAL:
N/A
N/A
NAVN: STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068058.idw
90068058
klargøring til vægbeslag
12-05-2015 hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
Stove:
Path:
Articlenumber:
Material:
Date:
Constructed/Changed by:
SCAN A/S
DK-5492 Vissenbjerg©
Drawing
number:
Name:
C:\Working Folder\Designs\Scan 65\90065025.idw
90065025
Lukket spjæld 26-01-17
jm
Jotul F230
Weight: Area:
N/A N/A
Stove:
Path:
Articlenumber:
Material:
Date:
Constructed/Changed by:
SCAN A/S
DK-5492 Vissenbjerg©
Drawing
number:
Name:
C:\Working Folder\Designs\Scan 65\90065026.idw
90065026
Åben spjæld 26-01-17
jm
Jotul F230
Weight: Area:
N/A N/A
NAVN:
STI:
M3 NR.:
MATERIALE: DATO: SIGN:
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 65\90065014.idw
90065014
Scan 65 high varm akk.
17-01-2017 jm
Scan 65
VÆGT:
AREAL:
N/A
N/A
DIM.: Scan A/S
OPEN PLINTH
If you want an open plinth, remove the wood compartment
door and its stop as well as the large cover plate at
the back of the stove.
Cover plate
to be removed
Do not remove
the radiation plate
65-9 and 65-1065-7and 65-8
Cut off this plate from
the heat shield in order to
make place for the heat
accumulating stones
The vent for adjustment
of the convection air is
placed at the back of the
high top
Open Closed
(ACCESSORY)HEAT-STORAGE SYSTEM
Heat-storage stones are available for Scan 65-7, 65-8, 65-9 and 65-10.
Heat-storage stones are made from a special material with a high
heating capacity. The stones are heated up during the firing and gives
off the heat again after the firing, which means that the stove stays
warm for a longer time.
¬ Firing with the vent open will give a quicker heating. Firing with the
vent closed will extend the heating time of the stove.
