Schaffner Ecosine FN34 Series User manual

Maintenance Manual
Passive Harmonic Filters
Ecosine® Full Performance HV Line Frame Size Small

© All rights reserved, even and especially in cases of proprietary rights applications.
We also retain sole power of disposal, including all rights relating to copying, transmission and dissemination.
Revision: 01 (May 2018)
The most current edition of these instructions (PDF format) can be obtained from your contact of the Schaffner
organization.
Other technical documentation of our products is also available in the download area of our website
www.schaffner.com
Document name:
Maintenance Manual Full Performance HV Line –Frame Size Small
Version history
Revision
Date
Description
01
May 2018
Initial version

Schaffner International
Maintenance Manual
Ecosine®Full Performance HV Line –Frame Size Small
May 2018
3/19
Ecosine® Full Performance HV Line (690 VAC)
Schaffner Ecosine® harmonic filters represent an economical solution to the challenge of load-applied
harmonics mitigation in three-phase power systems. With a plug-and-play approach and more compact
dimensions than comparable products, they can be quickly installed and easily commissioned. They
increase the reliability and service life of electric installations, help utilize electric system capacity better,
and are the key to meet Power Quality standards such as IEEE Std 519-2014. Ecosine® filters help to
reduce the costly waste of electric power.
This installation manual is intended to support designers, installers, and application engineers with filter
selection, installation, application, and maintenance. It provides helpful tips to overcome harmonics
mitigation challenges and answers frequently asked questions.
If you require additional support, please feel free to contact your local Schaffnerpartner.

Schaffner International
Maintenance Manual
Ecosine®Full Performance HV Line –Frame Size Small
May 2018
4/19
Important user notice
Schaffner Ecosine® harmonic filters are designed for the operation on the input (grid) side of power
electronic equipment with six-pulse rectifier front-ends in balanced three-phase power systems, like
typically used in AC or DC motor drives and high-power DC supplies. Filter suitability for agiven
application must be determined by the user on a case by case basis. Schaffner will not assume liability
for any consequential downtimes or damages resulting from use or application of Ecosine® filters
outside of their specifications. Ecosine® filters are not designed for single-phase or split-phase
applications.
Ecosine® filters with protection category IP20/NEMA1 must be mounted in a clean, dry location.
Contaminants such as oils, corrosive vapors and abrasive debris must be kept out of the enclosure.
These filter enclosures are intended for indoor use, primarily to provide a degree of protection against
contact with enclosed equipment. These enclosures offer no protection against airbornecontaminants.
Important safety considerations
Note: Filter installation has to be carried out by a trained and certified electrician or technician, who is
familiar with installation and safety procedures in three-phase powersystems.
Warning: High voltage potentials are involved in the operation of Ecosine® filters. Always remove power
before handling energized parts of the filter and let ample time elapse (> 1 minute) for the capacitors to
discharge to safe levels.
Warning: Follow the installation instructions closely. Ensure that fans and cooling slots are free from
obstructions that could inhibit efficient air circulation. Do not operate the filter in ambient conditions
outside of specifications.
Note: Do not operate Ecosine® filters on unsymmetrical loads, on linear loads, or with single-phase
equipment.
Note: Always use an upstream disconnect or protection device as required by most national and
international electric codes.
Note: Always connect the filter to protective earth (PE) first, then continue with the wiring of the trap-
disconnect (if needed) and phase connectors.
Note: Follow the Schaffner instructions closely when doing maintenance work. Use exclusively spare
parts recommended and approved by Schaffner.
Note: Always practice the safety instructions defined by your company when handling, installing,
operating, or maintaining Ecosine® harmonic filters.
Note: In case of uncertainty and questions please contact your local Schaffner partner for assistance.

Schaffner International
Maintenance Manual
Ecosine®Full Performance HV Line –Frame Size Small
May 2018
5/19
Part number coding
FN 34xx xx –xxx –xx
Connection style
33 = safety terminal block 10mm2
34 = safety terminal block 25mm2
35 = safety terminal block 50mm2
40 = safety terminal block 95mm2
44 = safety terminal block 6mm2
53 = safety terminal block 16mm2
99 = copper bus bars in different sizes
Rated, unfiltered load (drive input) current [A]
Blank = standard voltage rating
HV = 690V/50Hz rating (FN3410HV)
Filter family
3410 = filter for 50Hz
Schaffner standard filter

Schaffner International
Maintenance Manual
Ecosine®Full Performance HV Line –Frame Size Small
May 2018
6/19
1. Frame Size Small
Valid for:
FN3410HV-xx-xxx

Schaffner International
Maintenance Manual
Ecosine®Full Performance HV Line –Frame Size Small
May 2018
7/19
2. Maintenance Schedule
Year after start
operation
Maintenance job
1
2
3
4
5
6
7
8
9
10
11
12
Check and clean fans / air flow area
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
Check el. value of capacitors
✓
✓
✓
✓
✓
✓
Replace Fan Module
✓
✓
Replace capacitor module
✓
Table 1: Maintenance schedule Frame Size Small

Schaffner International
Maintenance Manual
Ecosine®Full Performance HV Line –Frame Size Small
May 2018
8/19
3. Replacement Instruction
Attention!
Before starting to work on the device, ensure that it is switched off, disconnected from the
grid and capacitors are discharged
Check and clean fans / air flow area

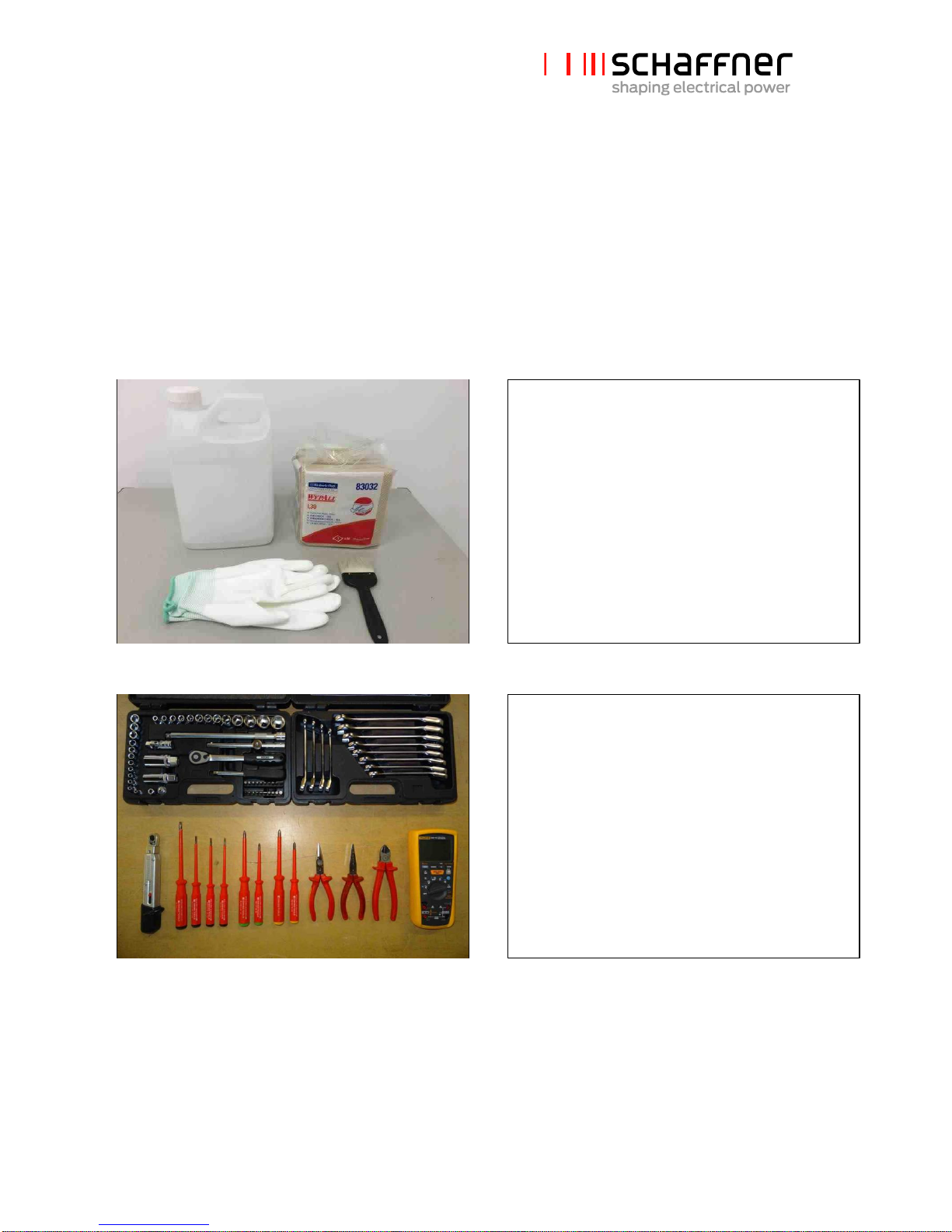

1. Tool List
CLEANING MATERIAL LIST
1. Gloves
2. Brush
3. Cleaning paper
4. Alcohol
MAINTENANCE TOOL LIST
1. Socket wrench set
2. Torque wrench
3. Screw driver set
4. Combination wrench set
5. Pliers set
6. Multimeter with capacitance test (for
example Fluke 175)

Schaffner International
Maintenance Manual
Ecosine®Full Performance HV Line –Frame Size Small
May 2018
9/19
2. Work instruction –Dismantling process

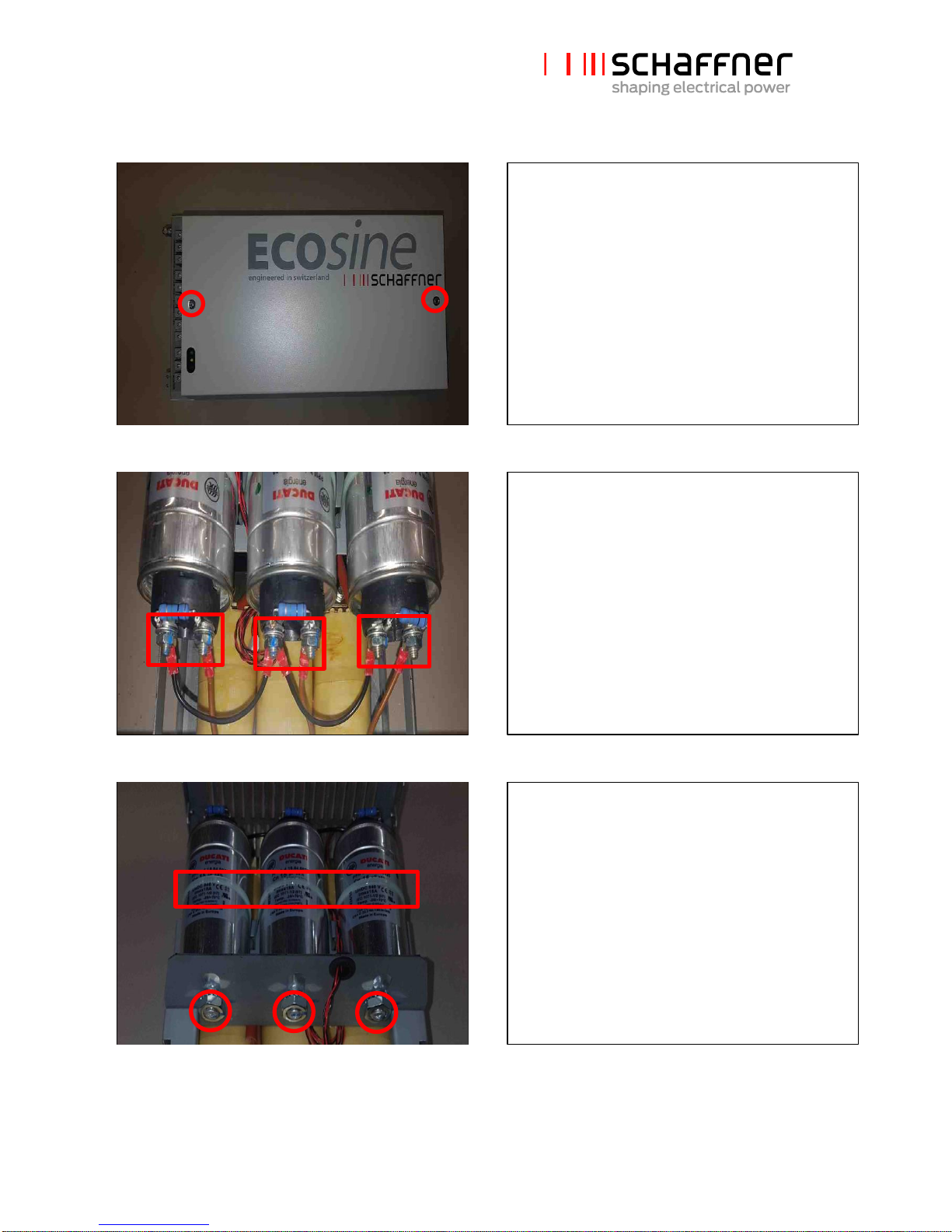

Remove the 2 screws with a socket wrench
and a 5,5 mm socket and remove the cover
Remove the 4 screws with a socket wrench
and a 5,5 mm socket and open the fan
module
After removing the fan module, check the area
of pollution.
For cleaning use the brush and cleaning
paper with alcohol. Clean the fan area

Schaffner International
Maintenance Manual
Ecosine®Full Performance HV Line –Frame Size Small
May 2018
10/19

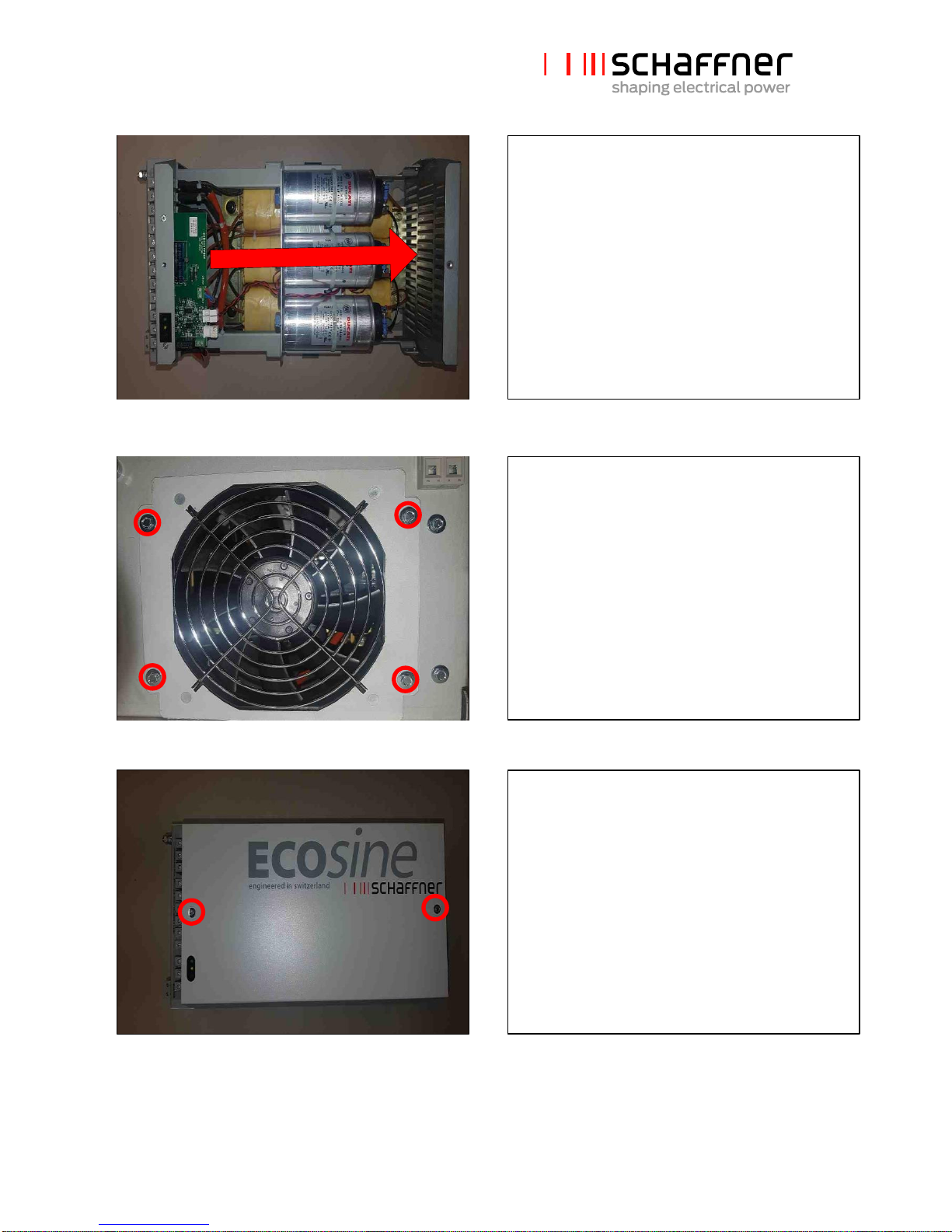

Clean the heat exchange area from both side
with the brush and cleaning paper with alcohol
3. Work instruction –Reassembly process
Mount the fan module and tighten the 4
screws with a torque wrench and a 5,5 mm
socket, with 1,7 Nm

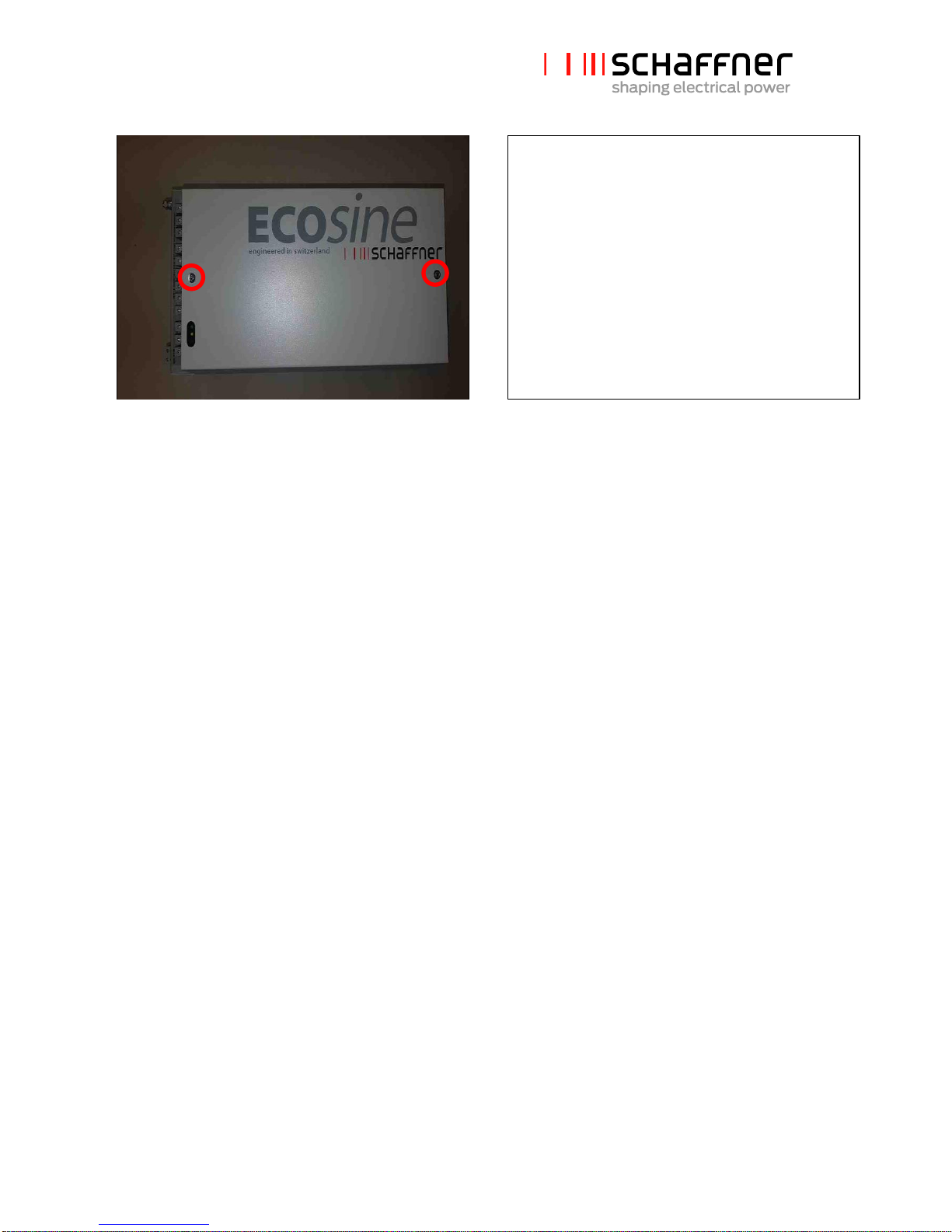

Mount the cover and tighten the 2 screws with
a torque wrench and a 5,5 mm socket, with
1,7 Nm

Schaffner International
Maintenance Manual
Ecosine®Full Performance HV Line –Frame Size Small
May 2018
11/19
Check el. value of capacitors

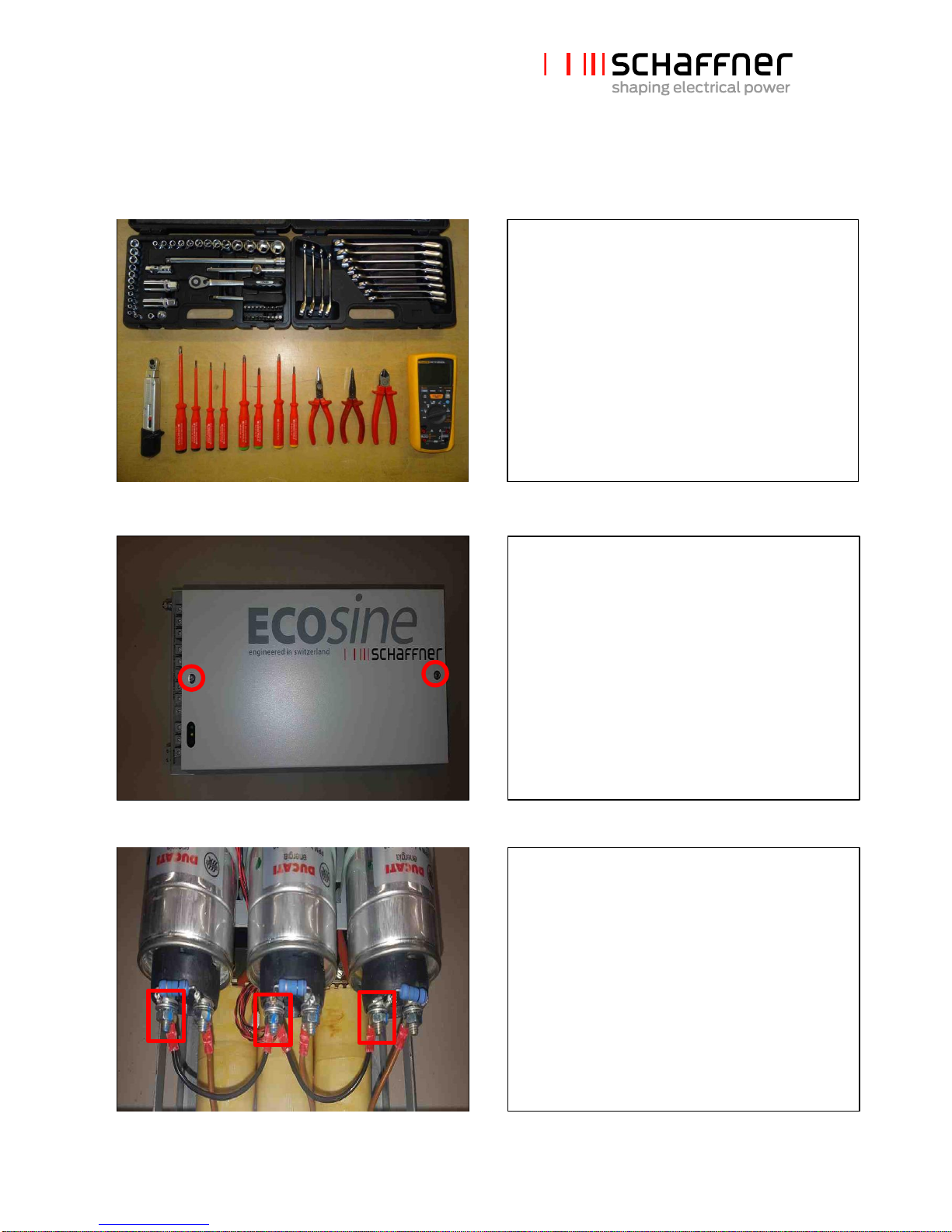

1. Tool List
MAINTENANCE TOOL LIST
1. Socket wrench set
2. Torque wrench
3. Screw driver set
4. Combination wrench set
5. Pliers set
6. Multimeter with capacitance test (for
example Fluke 175)
2. Work instruction –Dismantling process
Remove the 2 screws with a socket wrench
and a 5,5 mm socket and remove the cover
Disconnect the cable bridges between the
capacitors

Schaffner International
Maintenance Manual
Ecosine®Full Performance HV Line –Frame Size Small
May 2018
12/19

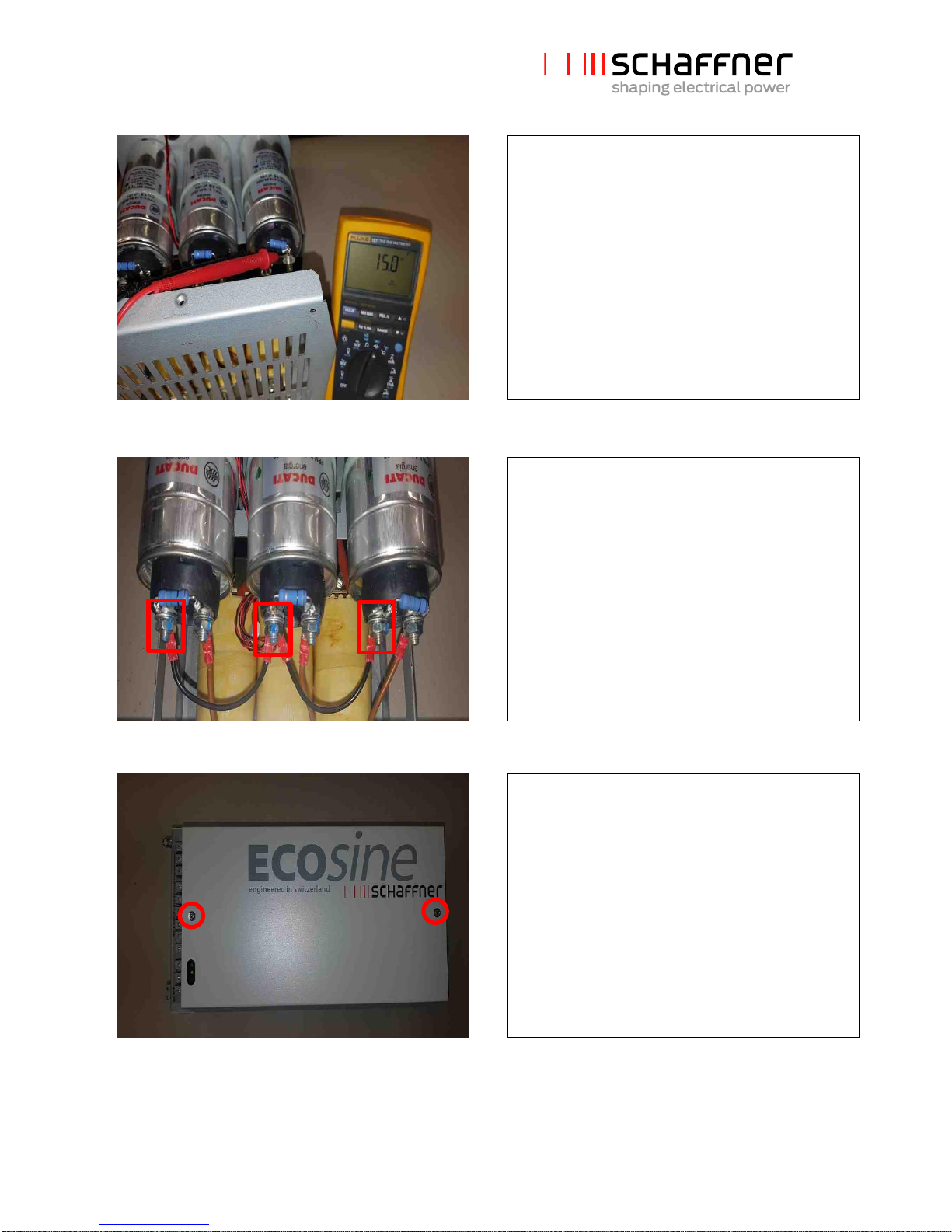

Check all capacitors with the capacitance
meter.
Choose capacitor test and connect the RED +
and the BLACK – probe to the capacitor.
Compare the result with the expected value of
the capacitor.
Attention!
If the result is less than –10% contact
Schaffner Service
3. Work instruction –Reassembly process
Connect all cables on the capacitors to the
initial state. Tighten the nuts with a torque
wrench with 3 Nm
Mount the cover and tighten the 2 screws with
a torque wrench and a 5,5 mm socket, with
1,7 Nm

Schaffner International
Maintenance Manual
Ecosine®Full Performance HV Line –Frame Size Small
May 2018
13/19
Replace Fan Module
1. Tool List
MAINTENANCE TOOL LIST
1. Socket wrench set
2. Torque wrench
3. Screw driver set
4. Combination wrench set
5. Pliers set
6. Multimeter with capacitance test (for
example Fluke 175)
2. Spare Parts
Spare part
Fan Module
3. Work instruction –Dismantling process
Remove the 4 screws with a socket wrench
and a 5,5 mm socket and open the fan
module

Schaffner International
Maintenance Manual
Ecosine®Full Performance HV Line –Frame Size Small
May 2018
14/19
Disconnect the fan cable and remove the fan
module
Replace the fan module
4. Work instruction –Reassembly process
Connect the fan cable and place the new fan
module

Schaffner International
Maintenance Manual
Ecosine®Full Performance HV Line –Frame Size Small
May 2018
15/19

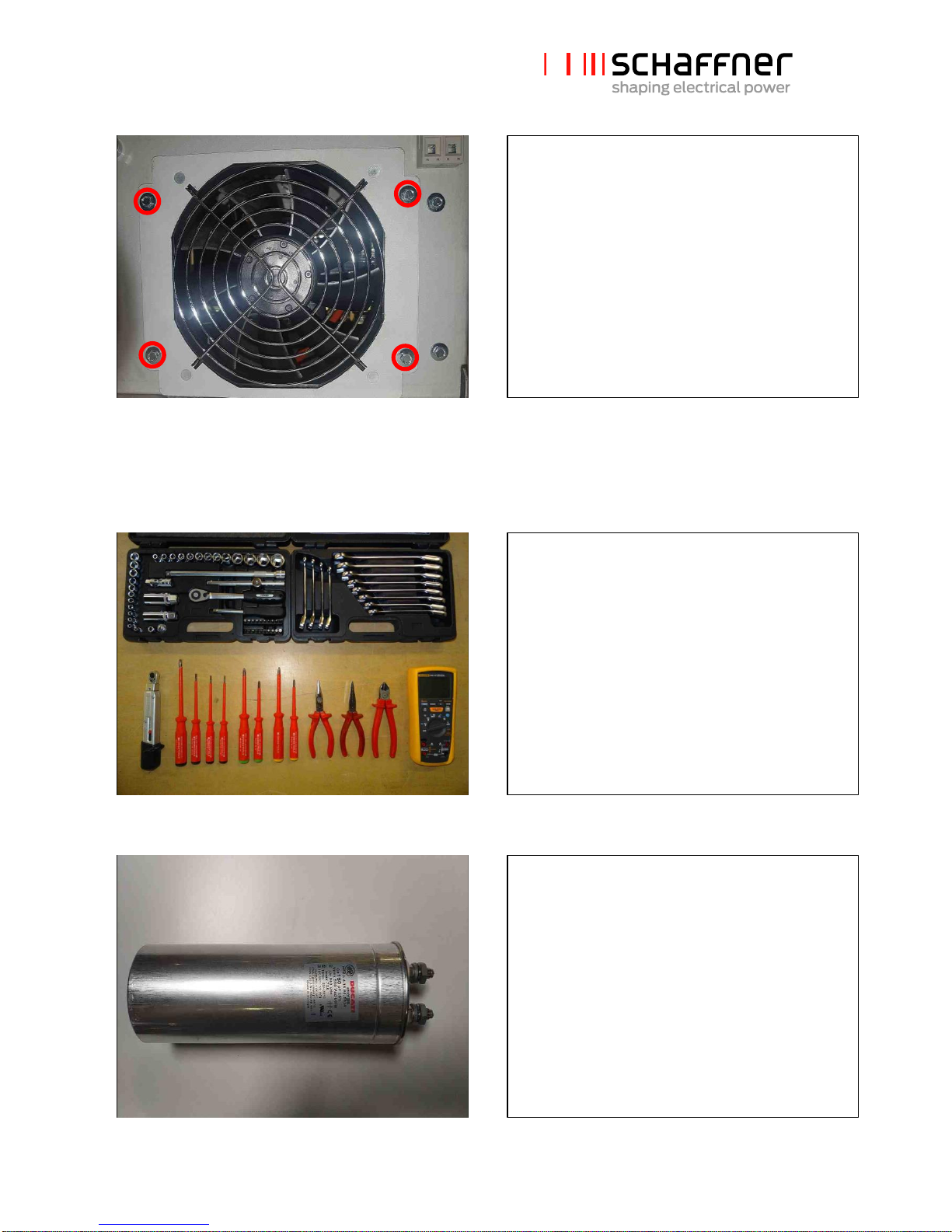

Tighten the 4 screws with a torque wrench
and a 5,5 mm socket, with 1,7 Nm
Replace capacitor module
1. Tool List
MAINTENANCE TOOL LIST
1. Socket wrench set
2. Torque wrench
3. Screw driver set
4. Combination wrench set
5. Pliers set
6. Multimeter with capacitance test (for
example Fluke 175)
2. Spare Parts
Spare part
Capacitor

Schaffner International
Maintenance Manual
Ecosine®Full Performance HV Line –Frame Size Small
May 2018
16/19
3. Work instruction –Dismantling process
Remove the 2 screws with a socket wrench
and a 5,5 mm socket and remove the cover
Disconnect all cables bridges from the
capacitors
Remove the cable tie, unscrew the nuts with a
combination wrench 18 mm and remove the
capacitors

Schaffner International
Maintenance Manual
Ecosine®Full Performance HV Line –Frame Size Small
May 2018
17/19

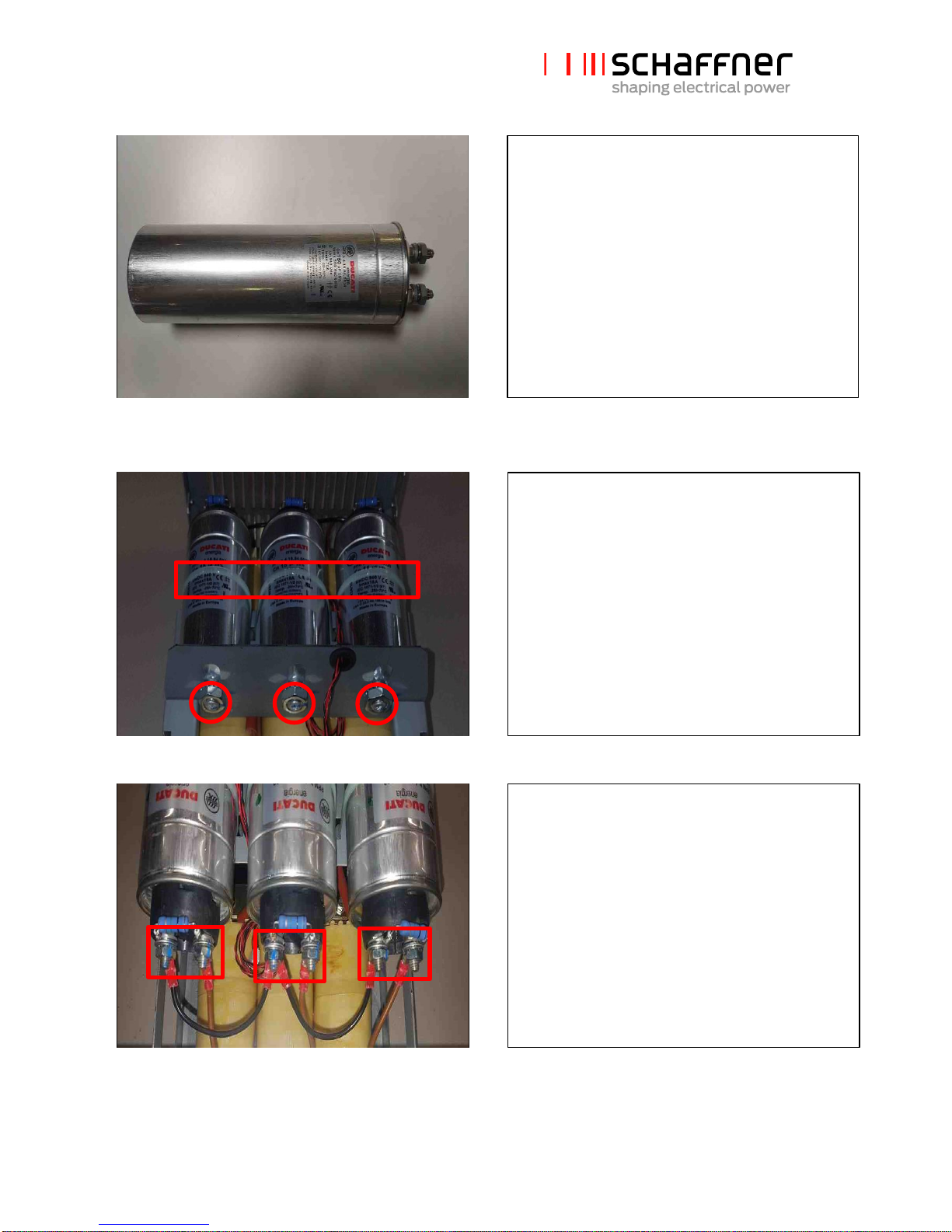

Replace the capacitor
4. Work instruction –Reassembly process
Place the new capacitors, tighten the nuts with
a torque wrench and a 18 mm socket with 10
Nm, use the new cable tie for the fixation of
the capacitors.
Connect all cables on the capacitors to the
initial state. Tighten the nuts with a torque
wrench with 3 Nm

Schaffner International
Maintenance Manual
Ecosine®Full Performance HV Line –Frame Size Small
May 2018
18/19
Mount the cover and tighten the 2 screws with
a torque wrench and a 5,5 mm socket, with
1,7 Nm

Schaffner International
Maintenance Manual
Ecosine®Full Performance HV Line –Frame Size Small
May 2018
19/19
Schaffner Service Centers
APAC
Schaffner EMC Ltd. Shanghai
T20-3, No 565 Chuangye Road
Pudong New Area
Shanghai 201201
China
EMEA
Schaffner EMC S.A.S.
Rue du Luxembourg 16
68310 Wittelsheim
France
India
Schaffner India Pvt. Ltd
“ShriNivas” 26, 2nd Street,
Kasthuri Nagar Extension,
Ondipudur, Coimbatore - 641 016
Tamil Nadu
India
North America
Schaffner EMC Inc.
52 Mayfield Avenue
Edison
New Jersey 08837
United State of America
Schaffner International Ltd
Nordstrasse 11
4542 Luterbach
Switzerland
T [phone]
F [phone]
[e-mail]
www.schaffner.com
To find your local partner within
Schaffner‘s global network, please go to
www.schaffner.com
®2014 Schaffner Group
The content of this document has been
carefully checked and understood.
However, neither Schaffner nor its
subsidiaries assume any liability
whatsoever for any errors or
inaccuracies of this document and the
consequences thereof. Published
specifications are subject to change
without notice. Product suitability for any
area of application must ultimately be
determined by the customer. In all
cases, products must never be operated
outside their published specifications.
Schaffner does not guarantee the
availability of all published products.
This disclaimer shall be governed by
substantive Swiss law and resulting
disputes shall be settled by the courts at
the place of business of Schaffner
Holding AG. Latest publications and a
complete disclaimer can be downloaded
from the Schaffner website. All
trademarks recognized.
