KING COBRA/KING COBRA-2
NARROW STILE SERIES
57041-D 04-11-2007
KC9232/KC9232-2 KC9233/KC9233-2
Keypad Programmable
and SNAP Compatible Trim
For Narrow Stile Doors

KC9232/KC9232-2 & KC9233/KC9233-2 INSTALLATION
Contents of the Box
57041-D Page 2 04-11-2007
KC9232/KC9232-2 & KC9233/KC9233-2 INSTALLATION
Contents of the Box

KC9232/KC9232-2 & KC9233/KC9233-2 INSTALLATION
Introduction / Tools and Materials Needed / Contact Info
57041-D Page 3 04-11-2007
Introduction / Tools and Materials Needed / Contact Info
Introduction:
The KC9232/KC9232-2 and KC9233/KC9233-2 are designed to replace existing
exterior cylinders or trim on Adams Rite® deadlatches. The trim will retract the
deadbolt or latch when an access code or iButton is entered and the knob is turned.
Mechanical key override is standard. The trim is compatible with interior devices
such as a thumbturn or mortise cylinder. Adams Rite® deadbolt accessories 4015
threshold bolt and 4016 header bolt are also compatible with these models of the
KC9000 series trim. With existing or new Adams Rite® trim on the inside the
‘hold back’ feature is still possible for a continued unlatched function (see Adams
Rite® instructions where applicable). An Audit Trail feature is available on the
KC9232-2 and the KC9233-2 models.
The KC9232/KC9232-2 (trim w/knob & MS Cam interface) is compatible
with Adams Rite®MS1850, MS1850-050, MS1950, 4070 Deadbolts, 4710
Deadlatch locks and 8400 mortise exit devices.
The KC9233/KC9233-2 (trim w/knob and 4070 Cam interface) is compatible
with Adams Rite®4070 Short Throw Deadbolt.
Tools and Materials Needed:
Contact Information:
Schlage Lock Company
575 Birch Street
Forestville, CT 06010
technical support: 866-322-1237
fax: [phone]
web: http://www.irsupport.net
1
.F
l
at
h
ea
d
screw
d
r
i
ver w
/
stra
i
g
h
t,
1/8”
w
id
e
bl
a
d
e.
2. Small Philips head screwdriver
3. 3/32” Allen wrench
4. 1/16” Allen wrench
5. Center punch
6. Hammer
7. Pencil
8. Drill & Tap for 10-32 threads

KC9232/KC9232-2 & KC9233/KC9233-2 INSTALLATION
Door Preparation
57041-D Page 4 04-11-2007
Door Prepar ation
Door Conditions:
Installation may require the use of a cover plate (a) to cover the holes left in the door.
If the existing pull (b) must be removed, Ives offers a compatible pull.
>Schlage Cover Plate P/N: KC9000-KRP
>Ives Pull P/N: 8190-18-xxx (xxx = finish) b
a
For factory prepped doors, use dimensions
shown. Dimensions are referenced from center
of 1-1/4” cylinder hole. Backset is determined
by the Adams Rite® lock.
When installing new Adams Rite® locks, do
not install outside cylinder because this trim
replaces it. Do not install face plate at this time
because access to the cylinder set screw in the
lock will be required during installation.
3-31/32”
(3.962”)
2-45/64”
(2.697”)
Backset is determined by
the Adams Rite® lock.
6-21/32”
(6.656”)

KC9232/KC9232-2 & KC9233/KC9233-2 INSTALLATION
Cams, Cores, Cylinders and Blocking Rings
57041-D Page 5 04-11-2007
Cams, Cores, Cylinders and Blocking Rings
Cams For Mechanical Override Cylinder:
IC Cores:
Cylinders / Blocking Rings:
T
h
e K
C9000
tr
i
m requ
i
res t
h
e use o
f
a c
l
over
l
ea
f
cam
(
a
)
. T
hi
s
is a list of compatible Schlage parts. For other manufacturers,
consult cross-reference charts.
> Cam for Standard Mortise cylinder: Schlage Everest: L583-153
Schlage Classic: L583-254
> Cam for Interchangeable Core: Schlage IC Cam: L583-255
a
>
S
ma
ll
Format I
C
core w
/
cam:
S
c
hl
age:
80
-
108
-<FINI
S
H>
NOTE: This core requires the use of 1/4” blocking ring:
Schlage: 36-079-025-<FINISH>
> Fu
ll
Si
ze I
C
core w
/
cam:
S
c
hl
age:
30
-
016
-<FINI
S
H>
NOTE: This core requires the use of 3/8” blocking ring:
Schlage: 36-079-037-<FINISH>
T
h
e K
C9000
can use a
1
-
1/8”
mort
i
se cy
li
n
d
er w
i
t
h
out t
h
e use
of a blocking ring. For cylinders longer than 1-1/8” a blocking
ring is required. The blocking ring thickness is equal to the cyl-
inder length, minus 1-1/8”. For example, if you use a 1-1/2” cyl-
inder you need a 3/8” blocking ring. Compression rings can be
ordered from a Schlage distributor:
Thickness: Schlage Part Number:
N
o compression ring: 1/8” 36-079-012-<FINISH>
1/4” 36-079-025-<FINISH>
3/8” 36-079-037-<FINISH>
1/2” 36-079-050-<FINISH>

KC9232/KC9232-2 & KC9233/KC9233-2 INSTALLATION
Installing the KC9232/KC9232-2 or KC9233/KC9233-2
57041-D Page 6 04-11-2007
Installing the KC92 32/KC9232-2 or KC92 33/KC9233-2
Installing the KC9232/KC9232-2 or KC9233/KC9233-2
If your trim has a key cylinder already installed, skip to Position the Dead Latch’s Set Screw
Hole: on page 10. Otherwise, continue with Loosen the Baseplate Screws: on this page .
1) Loosen the Baseplate Screws:
2) A Key Cylinder That Is At Least 1-1/8” Long Must Be Installed:
IMP
O
RT
A
NT: Do not remove any o
f
t
h
e screws
i
n t
h
e
f
o
l
-
lowing step or it will be difficult to reinstall them.
• Using a small Philips head screwdriver, loosen
screws a& bin baseplate, around key cylinder
hole, one turn.
NOTE: Screws a, b, c & d are set at the factory.
Screws a & b are tightened and screws c & d are left loose.
b
d
a
c
> T
h
e
k
ey cy
li
n
d
er t
h
at you
i
nsta
ll
must
b
e
1
-
1/8”
l
ong or
l
onger.
>>>> Do not attempt to install a key cylinder that is shorter than 1-1/8”
> The two illustrations below show the difference between a 1” and a 1-1/8” key cylinder.
1” long key cylinder.
DO NOT ATTEMPT TO INSTALL A 1”
LONG KEY CYLINDER.
1-1/8” long key cylinder
ONLY INSTALL A KEY CYLINDER
THAT IS AT LEAST 1-1/8” LONG.

KC9232/KC9232-2 & KC9233/KC9233-2 INSTALLATION
Installing the KC9232/KC9232-2 or KC9233/KC9233-2
57041-D Page 7 04-11-2007
3) Make Room for Key Cylinder:
4) Hold Dead Latch in Place:
5) Verify Placement of Dead Latch:
Due to the d
i
ameter o
f
the key cyl
i
nder,
i
t
i
s necessary
to have dead latch (a) placed out of the way when
installing the key cylinder. Therefore...
• Using your finger or a pair of needle-nose
pliers, push dead latch towards the top end
of trim as indicated by arrow in photo.
NOTE: As indicated by arrow in photo, you’ll notice
that when you push the dead latch forward, it will
swing a little bit in a counterclockwise direction.
a
T
o
i
nsure that dead latch
i
s placed
f
ar enough out
o
f the way to allow key cylinder to be threaded in
p
roperly:
• Insert a finger into key cylinder hole and
hold dead latch firmly in place.
• Carefully turn the trim over while keep-
ing the dead latch in position.
Two holes on dead latch (a) should be showing
within the two holes (b) in baseplate.
Fig. 1
a
b

KC9232/KC9232-2 & KC9233/KC9233-2 INSTALLATION
Installing the KC9232/KC9232-2 or KC9233/KC9233-2
57041-D Page 8 04-11-2007
6) Install the Key Cylinder:
Table 1: Blocking Rings
Table 2: Recommended Cams
7) Align Key Cylinder:
Key Cylinder Length Blocking Ring (Schlage P/N; XXX = finish)
• 1-1/4” 1/8” (36-079-012-XXX)
• 1-3/8” 1/4” (36-079-025-XXX)
• 1-1/2” 3/8” (36-079-037-XXX)
• 1-5/8” 1/2” (36-079-050-XXX)
Cylinder/Core Schlage Type Part Number
• Standard Mortise Cyl Everest L583-153
• Standard Mortise Cyl Classic L583-254
• Interchangeable Core IC Cam L583-255
• Insta
ll
.
0
5
0”
cy
li
n
d
er was
h
er.
IMPORTANT: A .050” cylinder washer must be used IN ALL CASES,
regardless of the key cylinder length.
• If you are installing a cylinder that is longer than 1-1/8”, you
must also install a blocking ring (see Table 1: Blocking
Rings, on page 8).
A simple formula for determining blocking ring thickness is:
Blocking ring thickness = length of cylinder minus 1-1/8”
• If not already done, install cam onto cylinder. Cam must be clo-
ver leaf design (see Table 2: Recommended Cams, on page 8).
• Tilt top of trim down at a sharp angle.
• Screw in key cylinder until it stops. Use mechanical key as a han-
dle for turning if necessary.
•
Af
ter screw
i
ng
i
t a
ll
t
h
e way
i
n,
b
ac
k
o
ff
on
k
ey cy
li
n
d
er
(no more than one turn) until key is at the bottom. If key
cylinder has a logo (a), logo should be at the top of key
cylinder. a

KC9232/KC9232-2 & KC9233/KC9233-2 INSTALLATION
Installing the KC9232/KC9232-2 or KC9233/KC9233-2
57041-D Page 9 04-11-2007
8) Alignment of Interchangeable Cores:
9) Tighten the Four Screws in the Baseplate:
10) The Dead Latch’s “Critical Edge:”
• I
f
an I
C
C
ore
i
s use
d
, center t
h
e
i
nter
f
ace towar
d
t
h
e
bottom.
• T
i
g
h
ten t
h
e
f
our
b
asep
l
ate screws
i
n t
h
e
f
o
l
-
lowing order:
> Tighten aand buntil snug.
> Tighten c and duntil snug.
> Fully tighten aand b.
> Fully tighten cand d.
> Check all four screws to make sure that
all four are completely tight.
b
c
a
d
• For c
l
ar
i
ty purposes on
l
y, p
h
oto on t
h
e
right is a view of deadlatch with escutch-
eon removed.
• Edge (a) is referred to as the dead latch’s
“critical edge.”
IMPORTANT: In the next step, the “critical
edge” on deadlatch will have to be lined up with
hole (b) in baseplate. See Position the Dead
Latch’s Set Screw Hole: on page 10
a
b

KC9232/KC9232-2 & KC9233/KC9233-2 INSTALLATION
Installing the KC9232/KC9232-2 or KC9233/KC9233-2
57041-D Page 10 04-11-2007
11) Position the Dead Latch’s Set Screw Hole:
• T
il
t t
h
e tr
i
m unt
il
you see t
h
e
“
cr
i
t
i
ca
l
edge” align with the larger hole in the
baseplate as shown in photo on right.
Look closely at edge of dead latch’s
“critical edge” (a) when doing this.
IMPORTANT: When the dead latch’s “critical
edge” is correctly aligned, the dead latch’s set
screw hole will likewise be correctly aligned.
Photos A, B and C below illustrate examples of an
incorrectly aligned critical edge. Photo D is an
example of a correctly aligned critical edge.
a
NOT CORRECTLY
ALIGNED
NOT CORRECTLY
ALIGNED
NOT CORRECTLY
ALIGNED
CORRECTLY ALIGNED
ABC
D

KC9232/KC9232-2 & KC9233/KC9233-2 INSTALLATION
Installing the KC9232/KC9232-2 or KC9233/KC9233-2
57041-D Page 11 04-11-2007
12) Partially Tighten the Set Screw:
13) Fully Tighten the Set Screw:
• Us
i
ng a
1/16”
All
en wrenc
h
, part
i
a
ll
y turn
in the set screw until outer end of set
screw is about flush with surface of base-
plate.
• F
i
n
i
s
h
turn
i
ng
i
n t
h
e set screw unt
il
i
t
hi
ts t
h
e stop.
IMPORTANT: At this time, outer end of set screw should
be a little bit below the surface of the baseplate, as shown in
photo A. If you have turned in set screw as far as it will go
and it is protruding beyond the surface of baseplate, as
shown in photo B, the most probable cause is that dead
latch was not positioned properly (see Position the Dead
Latch’s Set Screw Hole: on page 10).
If you have turned the set screw in as far as it will go and it is
p
rotruding from the surface of the baseplate, do the following:
• Turn set screw back out so that about 1/4” is pro-
truding from surface of baseplate.
• Reposition critical edge on dead latch according to
the instructions on page 10).
• Turn set screw in until it just hits the stop.
IMPORTANT: Do not overtighten set screw because the
baseplate may start to bow outward resulting in a gap
between trim and door when trim is mounted.
CORRECT
INCORRECT
A
B

KC9232/KC9232-2 & KC9233/KC9233-2 INSTALLATION
Installing the KC9232/KC9232-2 or KC9233/KC9233-2
57041-D Page 12 04-11-2007
14) What To Do With the Adams Rite®Product:
Retro
fi
t Installat
i
on -
• Remove face plate (a).
• Loosen key cylinder set screw (b).
• Remove key cylinder (c).
• Remove any Adams Rite® trim if present.
NOTE: Key cylinder can be reused if refitted with
the proper cam. See Cams For Mechanical Over-
ride Cylinder: on page 5.
New Installation -
• Using the Adams Rite® installation instruc-
tions, install the Adams Rite® latch mecha-
nism (d).
• DO NOT INSTALL KEY CYLINDER (c).
• DO NOT INSTALL FACE PLATE (a).
a
b
c
d

KC9232/KC9232-2 & KC9233/KC9233-2 INSTALLATION
Installing the KC9232/KC9232-2 or KC9233/KC9233-2
57041-D Page 13 04-11-2007
If this is a retrofit installation, continue with, Prepare the Door: on this page . Otherwise, skip
to, Prepare the Exterior Gasket: on page 14.
15) Prepare the Door:
If you are installing a prep cover plate, continue with, Install the Interface Spacer: on page 13.
Otherwise, skip to, Install the Interface: on page 14
16) Install the Interface Spacer:
•
A
pp
l
y t
h
e se
lf
-a
dh
er
i
ng transparent temp
l
ate onto
d
oor as
follows:
> Line up template with existing cylinder hole.
> Vertical guidelines must be parallel with vertical edges
of door.
NOTE: The vertical lines are for vertical guidance only, Do not
overlap with edges of door. Make only parallel to door edges.
> If necessary, lift off template and reposition.
• Drill and tap holes.
NOTE: If optional blind nuts are used, see blind nut installation
instructions (Schlage Lock Company form number: 57057) for
correct hole size and mounting method.
IMP
O
RT
A
NT: T
hi
s step to
b
e per
f
orme
d
O
NLY
if
i
nsta
lli
ng
a prep cover plate.
• Place interface spacer (a) onto baseplate.
• Place prep cover plate onto door.
NOTE: Both parts are included in the prep cover plate kit.
a

KC9232/KC9232-2 & KC9233/KC9233-2 INSTALLATION
Installing the KC9232/KC9232-2 or KC9233/KC9233-2
57041-D Page 14 04-11-2007

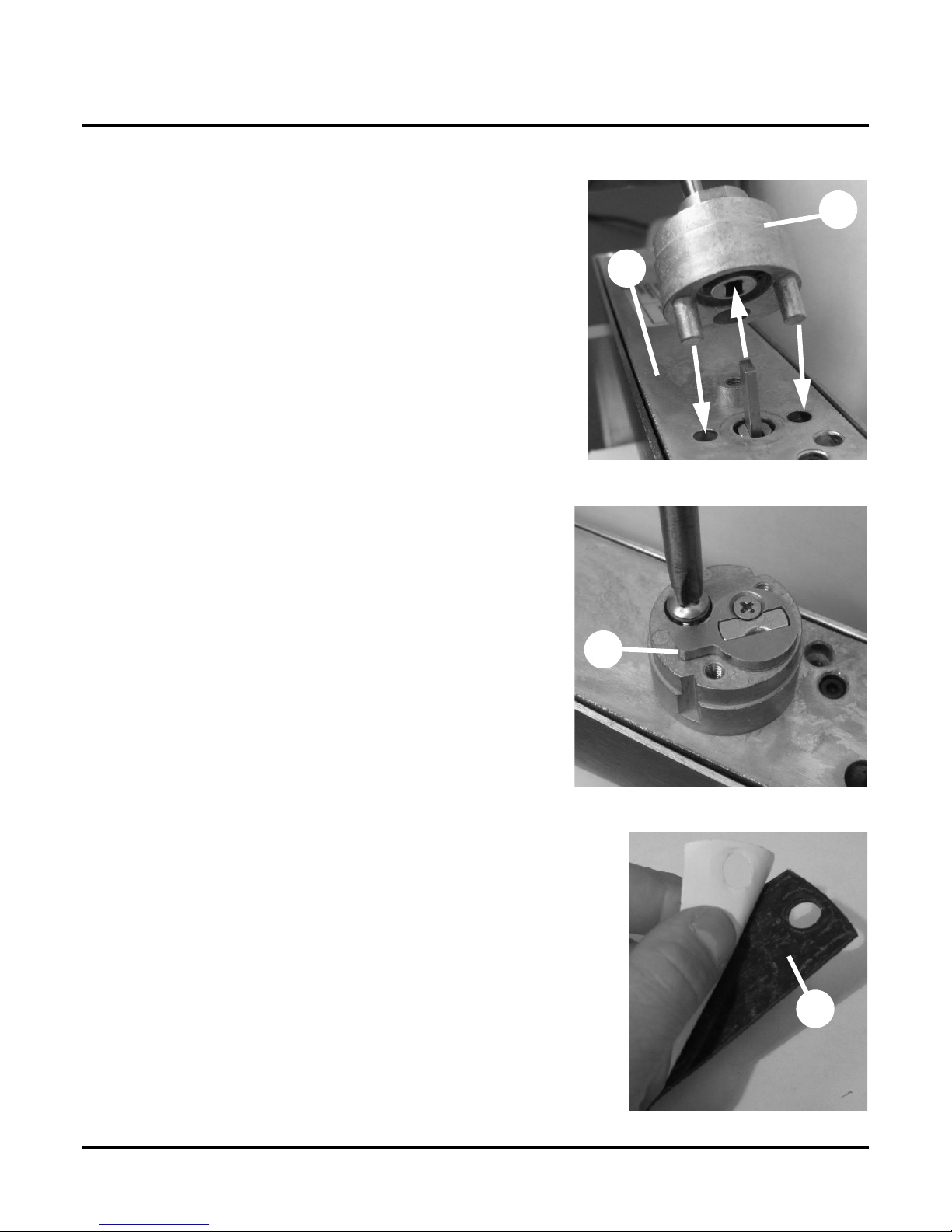

17) Install the Interface:
18) Secure the Interface:
19) Prepare the Exterior Gasket:
• Insta
ll
i
nter
f
ace
(
a
)
onto tr
i
m
’
s
b
asep
l
ate assem
bl
y
(b).
b
a
• W
i
t
h
cam
(
a
)
turne
d
a
li
tt
l
e out o
f
t
h
e way, secure
the interface with the supplied screw.
a
• Pee
l
paper
b
ac
ki
ng o
ff
o
f
exter
i
or gas
k
et
(
a
)
.
a

KC9232/KC9232-2 & KC9233/KC9233-2 INSTALLATION
Installing the KC9232/KC9232-2 or KC9233/KC9233-2
57041-D Page 15 04-11-2007
20) Apply the Exterior Gasket:
21) Place Trim On Door:
22) Tighten Top Mounting Screw:
•
A
pp
l
y gas
k
et to
b
ac
k
o
f
tr
i
m.
• W
i
t
h
k
ey
i
n cy
li
n
d
er, turn
k
ey counterc
l
oc
k
w
i
se unt
il
it stops.
• Line up parts for proper engagement.
• Carefully slide trim against door.
NOTE: Turning the key will make a part inside the trim
move, allowing access to the upper mounting and battery
cover screws in the next step. It must remain in this position
to continue with the installation. When the key is turned
back and removed, the part inside the trim will again restrict
access to the upper mounting and battery cover screws.
• Us
i
ng a
b
a
ll
-en
d
,
1/8”
All
en wrenc
h
, part
i
ally
tighten the top screw in trim.
NOTE: Do not completely tighten the top screw. Leave loose. a

KC9232/KC9232-2 & KC9233/KC9233-2 INSTALLATION
Installing the KC9232/KC9232-2 or KC9233/KC9233-2
57041-D Page 16 04-11-2007
23) Remove Battery Cover:
24) Install Lower Mounting Screws:
25) Install Batteries:
• I
f
not a
l
rea
d
y
d
one,
i
nsert
k
ey
i
nto cy
li
n
d
er an
d
turn
it counterclockwise.
• Using a small, flat blade screwdriver, loosen the
battery cover screw (a) ONLY TWO TURNS
COUNTERCLOCKWISE.
• Slide off battery cover (b) from bottom.
a
b
• Remove
b
attery pac
k
(
a
)
.
• Install and completely tighten both lower mounting screws (b) and
(c) located within battery compartment.
• Finish tightening top mounting screw.
b
c
a
• Remove an
d
reta
i
n
b
attery
b
ag.
IMPORTANT: DO NOT DISCARD BATTERY BAG. IT IS IMPORTANT
THAT IT IS REINSTALLED AFTER THE BATTERIES ARE
INSTALLED IN BATTERY HOLDER.
• Observe the polarity markings indicated on battery holder and install
four, AAA batteries accordingly.
• Slide battery bag onto battery holder.

KC9232/KC9232-2 & KC9233/KC9233-2 INSTALLATION
Installing the KC9232/KC9232-2 or KC9233/KC9233-2
57041-D Page 17 04-11-2007
26) Fold Battery Bag:
27) Install Battery Pack:
28) Install Battery Compartment Cover:
• Fo
ld
b
attery
b
ag over.
IMPORTANT: The battery bag is used to protect the batter-
ies from moisture and to insulate them electrically from
metallic parts.
• Insta
ll
b
attery pac
k
i
nto compartment w
i
t
h
b
ag open-
ing facing down.
• Tuck wiring neatly into compartment
•
Slid
e
b
attery compartment cover on
f
rom t
h
e
b
ottom.
IMPORTANT: Use caution not to pinch the battery wires.
• Tighten battery cover screw.
• Rotate key clockwise.
• Remove key.

KC9232/KC9232-2 & KC9233/KC9233-2 INSTALLATION
Installing the KC9232/KC9232-2 or KC9233/KC9233-2
57041-D Page 18 04-11-2007
29) Tighten Latch Mechanism Set Screws:
30) Install Face Plate:
31) Install Water Plug.
• T
i
g
h
ten set screw
i
n
Ad
ams R
i
te
®
l
atc
h
mec
h
an
i
sm.
• Verify that the other set screw in latch mechanism
(closest to inside of door) is fully tightened.
• Verify that both latch mechanism mounting screws
(top and bottom of latch mechanism) are fully tight-
ened.
• P
l
ace
f
ace p
l
ate
(
a
)
onto
l
atc
h
mec
h
an
i
sm.
• Secure with two screws.
• Insert water p
l
ug
(
a
)
i
nto top mount
i
ng screw
h
o
l
e.
• Using the end of a small Allen wrench or similar tool,
push plug into hole past surface.

KC9232/KC9232-2 & KC9233/KC9233-2 INSTALLATION
Testing the KC9232/KC9232-2 or KC9233/KC9233-2
57041-D Page 19 04-11-2007
Testing the KC9232/KC9232-2 or KC9233/KC9233-2
Testing:
1. Knob should rotate freely.
2. Insert key into cylinder and rotate knob in direction required to retract latch.
> Direction of knob rotation depends on door hand - if it doesn’t work in one direction, try
the other.
> You should be able to lock and unlock the deadbolt.
> For 4710 deadlatches, you should be able to retract the latch.
3. Rotate key back to original position and remove it.
> Knob should rotate freely and not retract the deadbolt/latch.
4. Using the keypad, enter the default access code: 1 3 5 7 9.
> The red LED should light each time the first four numbers are pressed and when the 9 is
pressed, the green LED should flash for five seconds.
> While the green light is flashing, the knob should be engaged and you should be able to
lock or unlock the deadlatch.
5. Test inside cylinder or thumbturn (for 4710/4730/8400 models: paddle/exit device, etc.) to insure that
it is operating properly.
SEE PROGRAMMING GUIDE FOR PROGRAMMING INFORMATION.

KC9232/KC9232-2 & KC9233/KC9233-2 INSTALLATION
Operational Recommendations / Dimensions
57041-D Page 20 04-11-2007
Operational Re commen dations / Dim ensions
Operational Recommendations:
The models with a knob operate the deadbolt much like a key, therefore more time to operate the dead-
bolt/latch might be desired. See programming guide to change the relock time delay to a longer time.
The Adams Rite® 4710 can be operated by the knob to achieve the ‘hold back’ condition where the latch
is held in the unlatched position for passage mode. To do this, enter a code/iButton, push the latch all the
way in and rotate the knob (counterclockwise if the latch is to your left or clockwise if the latch is to your
right). When you feel a little resistance, turn a little harder. This will move a part to keep the latch from
springing out. To reverse the condition and release the latch, enter a code/iButton again and turn the knob
(clockwise if the latch is to your left and counterclockwise if the latch is to your right). This will move the
part out of the way and release the latch.
