Commercial Grade Auxiliary Locks

Commercial Grade Auxiliary Locks
B600/700/800-Series are heavy duty commercial
deadlocks with a wide variety of keying and
security options.
BC100 Series is ideal for standard duty
commercial and heavy duty residential
applications, and also offers a wide variety of
keying and security options.
B250-Series deadlatches are ideal as the primary
lock on pool gates and doors to utility spaces.
Performance Features
BC160 and B600/700/800-Series locks have 1” throw
deadbolts and thumbturn levers designed for easy operation.
B250-Series products have a ⁹⁄₁₆˝ throw deadlatch for
self-latching applications, with hold-back thumbturn standard.
B600/700/800-Series deadlocks have solid brass or bronze
cylinder collars, a security shield to prevent “ice pick attacks” and
hardened steel ball bearings to protect the two heavy ¼”
mounting bolts from drilling attacks.
All B-Series standard strikes come with wood frame reinforcer
anchored with two heavy 3” screws to resist kick-in attacks and
free-spinning solid or reinforced collars to resist cylinder
wrenching.
See exploded views and more specific features on individual
product pages 4, 6 and 8.
SERIES
B
On our cover, the B660 in Bright Chrome.
Accessories and Parts 14
BC100-Series 6, 7
B250-Series 8, 9
B600/700/800-Series 4, 5
Cylinders 10, 11
Door Preparation 4, 6, 8
Door Handing 15
Exploded Views 4 , 6, 8
Finishes & Functions 5, 7, 9
How to Order 15
Interchangeable Cores 11
Latches and Bolts 12
Performance Features 4, 6, 8
Specifications 3
Strikes 13
INDEX

Certifications
ANSI:
BC100 and B250-Series meet or exceed A156.5 Grade 2
strength and operational requirements.
B600/700/800-Series meets or exceeds A156.5 Grade 1
strength and operational requirements.
UL / cUL:
B600/700/800-Series locks are UL10B listed auxiliary
locks for A label single doors, 4´ x 8´.
UL10B Listing optional for BC100-Series as auxiliary
locks. Letter F and UL symbol on latch front indicate
listing.
UL437 Listed locking cylinder optional: Specify Primus
20-500 Series cylinder for BC100 and B250-Series Grade
2 products, or specify B800-Series Grade 1 products.
3
SERIES
B
BC160 Deadlock 605
B250 IC Deadlatch 626
B660 Deadlock 625
Specifications
Handing:
B250-Series deadlatches are reversible. All other B-Series
locksets are non-handed.
Door Thickness:
BC100-Series, 5-pin: 1⅜˝ to 1¾˝ thick (35mm to 44mm)
standard. Available to 2¼˝ (57mm), assembled to order.
B250-Series, 5-pin: 1⅛˝ to 1¾˝ (35mm to 44mm) standard.
Available to 2¼˝ (57mm), assembled to order.
B600/700/800-Series: 1¾˝ to 2" (44mm to 51mm) standard.
Available for 1⅜˝ (35mm) and doors up to 2½˝ (63mm),
assembled to order. Door ranges may vary by function.
Backset:
BC100-Series: Adjustable for 2⅜˝ (60mm) or 2¾˝ (70mm)
standard.
B250-Series: 2⅜˝ (60mm) standard. 2¾˝ (70mm) optional.
B600/700/800-Series: 2¾˝ (70mm) standard, 2⅜˝ (60mm),
3¾˝ (95mm), 5" (127mm) optional.
Front:
Brass, bronze or stainless steel. 1⅛˝ x 2¼˝ (29 mm x
57mm) square corner, beveled. See page 12 for options.
Dead Bolt:
1” (25 mm) throw with saw-resistant hardened steel insert.
Latch Bolt:
Brass, ⁹⁄₁₆˝ (14mm) throw, deadlocking on keyed and exte-
rior functions.
Exposed Trim:
Wrought brass, bronze or stainless steel.
Thumbturn: Pressure cast zinc, plated to match finish
symbols.
Strike:
1¼˝ x 2³⁄₄˝ (32mm x 70mm) with steel reinforcer and two
3” screws to resist kick-in attacks standard.
Optional strikes, lip lengths and ANSI strike box avail-
able. See page 13.
Cylinder & Keys:
Commercial: 6-pin patented Everest C123 keyway stan-
dard with two nickel silver keys per lock.
Residential: 6-pin C keyway, keyed 5-pin.
Keying Options:
Interchangeable core and Primus®high security cylinders.
Master keying, grand master keying and construction key-
ing.
Warranty:
Commercial: Three-year limited.
Residential: Full mechanical lifetime.

4
B600/700/800-Series Exploded View
SERIES
B
Performance Features
1(25mm) throw high-strength steel alloy deadbolt with hardened steel roller resists sawing
and kick-in attacks.
Precision-built solid brass 6-pin cylinders with phosphor bronze springs and nickel silver pins
ensure long life and smooth operation.
Tough nickel silver keys for smooth, long lasting operation.
Exclusive wood frame reinforcer protects wood jamb against kick-in attacks. Reinforcer is
concealed under strike and is anchored to jamb by two 3(76mm) screws.
Free-spinning solid cylinder collar resists wrenching and prying.
Large inside thumbturn makes it easy to throw and retract deadbolt.
Metal shield protects bolt from ice-pick attack through door.
Hardened steel balls protect mounting bolts from drill attack.
Door Preparation
See templates.
Hardened steel
ball bearings
Security shield
Steel mounting plate
Outside cylinder
housing
B600-Series cylinder
6-pin Everest patented key cylinder
B700-Series cylinder
Primus Controlled Access
B800-Series cylinder
Primus High Security, UL437 Listed
Cylinder retaining screw
Wood frame reinforcer
With #12 x 3´´ wood
screws, standard for
all B-Series deadbolts
Box
Strike
Deadbolt
1´´ Throw
high-strength,
steel alloy
with anti-saw pin
Thumbturn
mounting
screws
⁷|₈´´ Cylinder collar
Solid Brass or Bronze
B660P
Thumbturn
¹|₄´´ mounting bolts

Functions
ANSI A156.5 BORED DEADBOLT LOCKS
Single Cylinder Double Cylinder Cylinder x Plate Classroom Cylinder Only Thumbturn Only
Deadlock Deadlock Deadlock Deadlock Deadlock Deadlock
Schlage B660P B662P* B661P B663P B664P
B760P B762P* B761P B763P B764P B680
B860P B862P* B861P B863P B864P
ANSI E2151 E2141 E2161 E2171 E2101 E2191
5
SERIES
B
B600/700/800-Series Finishes & Functions
B600-SERIES
Schlage’s toughest heavy duty Grade 1 commercial deadlock.
Furnished with conventional cylinder standard.
Also available with full size interchangeable core cylinder or
small format interchangeable core (SFIC) cylinder.
Requires 2⅛´´ (55mm) prep. UL10B listing standard for
auxiliary lock on A Label fire doors.
B700-SERIES
Same lock as B600-Series but furnished with Primus
Controlled Access cylinder for patented key control, geo-
graphical exclusivity and resistance to picking and impres-
sioning.
Also available with Primus interchangeable core cylinder.
B800-SERIES
Same lock as B700-Series but Primus high security cylinder is
UL437 Listed to resist drilling and other forms of physical
attack.
Not available in interchangeable core.
613
605
625
626
*Caution: Double cylinder locks on doors that are used for exits are a safety hazard in times of emergency. Schlage does
not recommend double cylinder locks in these situations. Installation should comply with local life safety codes.
Finishes
605 Bright Brass
606 Satin Brass
609 Antique Brass
612 Satin Bronze
613 Oil Rubbed Bronze
625 Bright Chromium Plated
626 Satin Chromium Plated
Deadbolt thrown or
retracted by key out-
side or thumbturn
inside.
Deadbolt thrown or
retracted by key either
side.
Deadbolt thrown or
retracted by key out-
side. Blank plate with
exposed screws
inside.
Deadbolt thrown only
by key outside;
retracted by key out-
side or thumbturn
inside.
Deadbolt thrown or
retracted by key one
side. No trim on
other side.
Deadbolt thrown or
retracted by thumb-
turn inside. No out-
side trim.
B660, B661, B662, B663
available with full size or
small format IC cylinders.
B760, B761, B762, B763
available with Primus full
size IC cylinders.

6
BC100-Series Exploded View
SERIES
B
Performance Features
1" (25mm) throw bolt with hardened steel roller pin resists sawing and kick-in attacks.
Precision-built solid brass 6-pin cylinder with phosphor bronze springs and nickel silver pins ensure
long life and smooth operation.
Tough nickel silver keys for smooth, long lasting operation
Exclusive wood frame reinforcer protects wood jamb against kick-in attacks. Reinforcer is
concealed under the strike and anchored to jamb by two 3" (76mm) screws.
Available in three cylinder formats: standard 6-pin, Schlage interchangeable core and small
format (Best and Falcon style) interchageable core for maximum flexibility and versatility.
Adjustable bolt fits both 2⅜´´(60mm) and 2¾´´ (70mm) backsets.
Free-spinning cylinder collar with security insert resists crushing, wrenching and prying.
Door Preparation
See templates.
Thumbturn
¹|₄´´ Mounting bolts
Steel mounting plate
2 ¹|8´´ adapter ring
Security insert
Free-spinning collar
6-Pin Everest patented
key cylinder
Tailpiece
Cylinder housing
Cylinder retaining screw
Wood frame reinforcer
With #12 x 3´´ wood
screws, standard for
all B-Series products
Box
Strike
Thumbturn
mounting
screws
Adjustable backset
deadbolt
1´´ Throw, with
concealed hardened
steel roller
BC160P

BC100-Series Finishes & Functions
7
626
SERIES
B
626
Finishes
605 Bright Brass
609 Antique Brass
612 Satin Bronze
613 Oil Rubbed Bronze
625 Bright Chromium Plated
626 Satin Chromium Plated
BC100-SERIES
A versatile and economical Grade 2 deadlock for medium
duty commercial and heavy duty residential applications.
Furnished with conventional cylinder standard.
Available with Primus high security cylinder, Primus UL437
Listed high security cylinder, full size interchangeable core
cylinder, Primus interchangeable core cylinder, or small for-
mat interchangeable core (SFIC) cylinder.
Designed for 1½´´ (38mm) prep and includes adapter(s) for
2⅛´´ (55mm) prep standard. UL10B listing optional for
auxiliary lock on A Label fire doors.
Functions
ANSI A156.5 BORED DEADBOLT LOCKS
Single Cylinder Double Cylinder Thumbturn Only Dummy
Deadlock Deadlock Deadlock Trim
Schlage BC160P BC162P* BC180 22-073
ANSI E2152 E2142 E2192 -----
Descripton
*Caution: Double cylinder locks on doors that are used for exits are a safety hazard in times of emergency. Schlage does
not recommend double cylinder locks in these situations. Installation should comply with local life safety codes.
Deadbolt thrown or
retracted by key out-
side or thumbturn
inside.
Deadbolt thrown or
retracted by key
either side.
Deadbolt thrown or
retracted by thumb-
turn inside. No out-
side trim.
Dummy cylinder out-
side, blank plate
inside.
All keyed functions are available for full size and
small format interchangeable cores.

8
B250-Series Exploded View
SERIES
B
Performance Features
⁹|₁₆´´(14mm) throw deadlatch resists pry-in attacks and "shimming" of the latch.
Precision-built solid brass 6-pin cylinders with phosphor bronze springs and nickel silver pins
ensure long life and smooth operation.
Tough nickel silver keys for smooth, long lasting operation
Exclusive wood frame reinforcer protects wood jamb against kick-in atacks. The reinforcer is
conceales under the strike and is anchored to the jamb by two 3" (76mm) screws.
Cylinder collar reinforced with security inserts to resist wrenching and prying.
Thumbturn "holdback" feature retains the deadlatch in a retracted position when desired.
Door Preparation
See templates.
B250PD
Mounting Bolts
Thumbturn with holdback standard
Security insert
Cylinder collar
Security insert
Cylinder collar
Cylinder retaining screw
Cylinder housing
Tailpiece
Box
Strike
Deadlatch
⁹|₁₆´´ Throw
Wood frame reinforcer
With #12 x 3´´ wood
screws, standard for
all B-Series deadbolts
6-Pin Everest patented
key cylinder

Finishes & Functions
9
613
SERIES
B
Finishes
605 Bright Brass
613 Oil Rubbed Bronze
626 Satin Chromium Plated
B250-SERIES
For decades considered the industry standard for tubular
deadlatches, the B250-Series is ideal for pool, apartment and
condominium gates, utility panels and pipe chases.
Furnished with conventional cylinder standard.
Available with Primus high security cylinder, Primus UL437
Listed high security cylinder, full size interchangeable core
cylinder and Primus interchangeable core cylinder.
Designed for 1½´´ (38mm) prep. Optional adapter plates
allow easy installation in 2⅛´´ (55mm) prep.
Functions
ANSI A156.5 BORED DEADLOCKS
Single Cylinder Double Cylinder Dummy
Deadlatch Deadlatch Trim
Schlage B250PD B252PD* 22-015
ANSI E2122 E2112 -----
Description
*Caution: Double cylinder locks on doors that are used for exits are a safety hazard in times of emergency. Schlage does
not recommend double cylinder locks in these situations. Installation should comply with local life safety codes.
Deadlatch retracted by key out-
side or thumbturn inside.
Holdback feature standard.
Deadlatch retracted by key
either side.
No holdback.
Dummy cylinder outside, blank
plate inside.
All keyed functions are available with
Schlage full size IC cylinders.
626

Conventional Cylinders
Schlage®locks are provided with cylinders precision built to
extremely close tolerances and the highest standards of accuracy.
Using only solid brass plugs, extruded brass shells, phosphor
bronze springs, and nickel silver keys and bottom pins, ensures
long life and ease of operation.
Conventional cylinders are available in Classic keyways or
in the newly patented Everest®keyways. Specify keyway
to differentiate between Everest and Classic. Example:
C (Classic) vs. C123 (Everest).
Primus®Cylinders
Primus high security cylinders are available to add patented key
control and varying degrees of geographical exclusivity to either
Everest or Classic Schlage 6-pin key systems.
In addition to a conventional pin tumbler mechanism, Primus
cylinders incorporate a patented finger pin and sidebar design
providing a “dual-locking” cylinder that is virtually pick-proof.
Resistance to drilling and other physical attack is optional by
specifying 20-500 Series UL437 Listed cylinders.
Classic Primus cylinders are recommended for upgrading existing
Classic key systems. Due to its extended patent life, the newly
designed Everest Primus is recommended for new key systems
and for upgrading existing Everest®key systems. Specify keyway
to differentiate between Everest and Classic. Example:
CP (Classic) vs. C123 (Everest).
10
SERIES
B
Number Description
B610-024 B600/700/800-Series
Dummy Cylinder (simulates cylinder in housing)
Specify finish.
To order BC100 and B250-Series dummy trim, see Function pages.
B660, B663 22-644 1³⁄₈”- 2¹⁄₂”
B661, B664 Conventional
B662
B760, B763 20-744 1³⁄₈”- 2¹⁄₂”
B761, B764 Primus
B762
B860, B863 20-544 1³⁄₈”- 2¹⁄₂”
B861, B864 Primus UL437 Listed
B862
Lockset Cylinder Door
Function Number Thickness Cylinder Mechanism
22-642 1³⁄₈”- 2”
22-643 2”- 2¹⁄₂”
22-645 1³⁄₈” - 2”
22-646 2”- 2¹⁄₂”
20-742 1³⁄₈”- 2”
20-743 2”- 2¹⁄₂”
20-745 1³⁄₈” - 2”
20-746 2”- 2¹⁄₂”
20-542 1³⁄₈”- 2”
20-543 2”- 2¹⁄₂”
20-545 1³⁄₈” - 2”
20-546 2”- 2¹⁄₂”
Available 606 and 626 finish only. Everest C123 keyway standard.

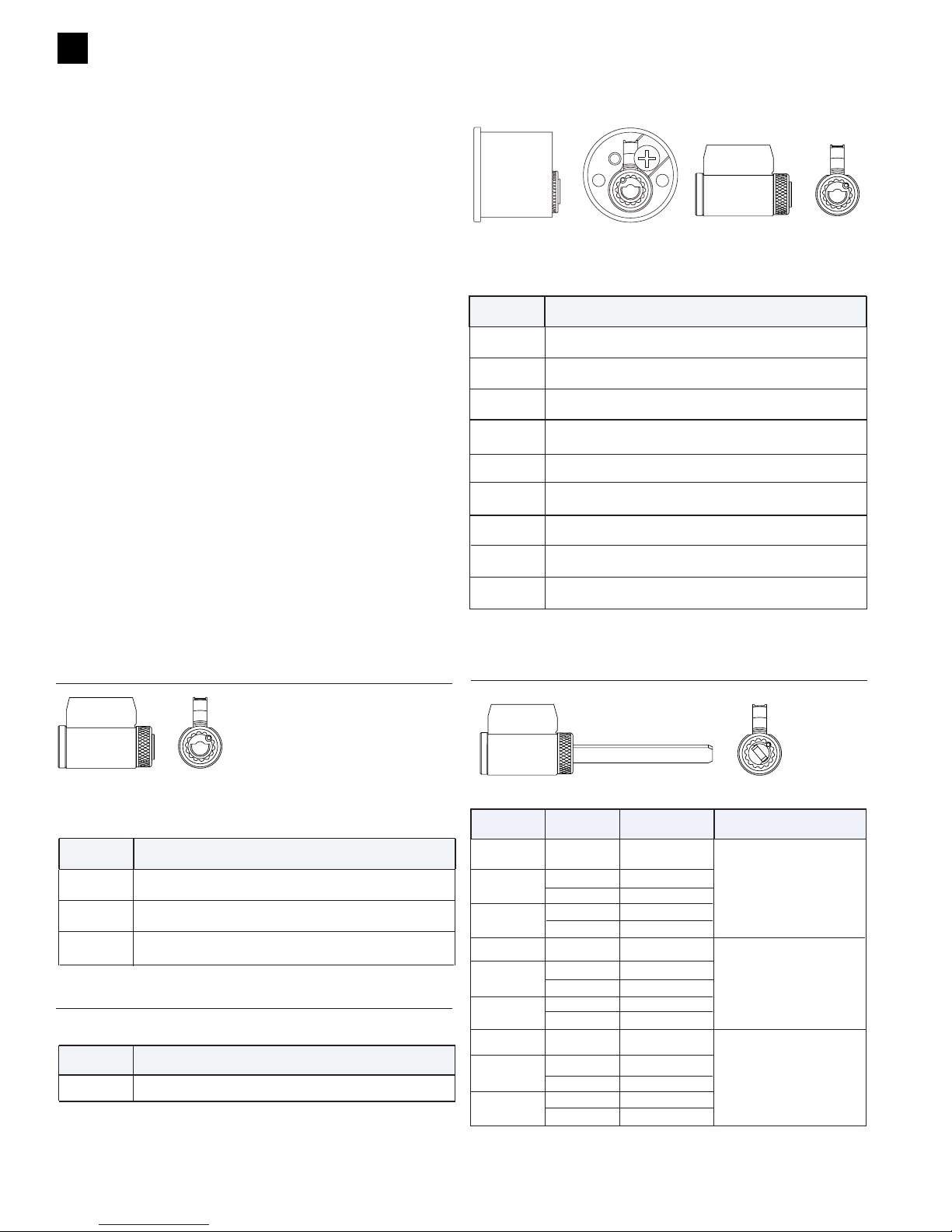

Cylinders for B600/700/800-Series Deadlocks (Housing not included)
Number Description
22-002 Conventional cylinder only
20-729 Primus cylinder only
20-529 Primus UL437 Listed high security cylinder only
Cylinders for BC100-Series (Order tailpiece and housing separately.)
This table also applies to discontinued B100, B200 and B400-Series
deadlocks.
Available 606 and 626 finish only. Everest C123 keyway standard.
Number Description
22-002 6-Pin conventional cylinder only
20-729 Primus cylinder only
20-529 Primus UL437 Listed high security cylinder only
22-019 6-Pin conventional cylinder in outside housing
20-730 Primus cylinder in outside housing
20-530 Primus UL437 Listed high security cylinder in outside housing
22-020 6-Pin conventional cylinder in inside housing
20-731 Primus cylinder in inside housing
20-531 Primus UL437 Listed high security cylinder in inside housing
Cylinders for B250-Series (Order tailpieces separately.)
This table also applies to discontinued B100, B200 and B400-Series
deadlocks.
Cylinder itself available 606 and 626 finish only. Housing is available in all
B250-Series finishes.
Everest C123 keyway standard.
Cylinder
& Housing Cylinder
Only

11
SERIES
B
* Inside housing has no finish. Order finished faceplateB610-031 separately.
Cores available 606 and 626 finish only. Housings available in the same finish-
es as corresponding complete locks.
Everest C123 keyway standard.
Full Size Interchangeable Core
Schlage®figure-8 interchangeable core (IC) locksets allow imme-
diate rekeying at the door simply by using the special control key
to replace the core in seconds.
Available in BC100, B250, B600 and B700-Series, full size inter-
changeable cores can be integrated into any 5 or 6-pin Schlage
key with no adverse affects on keying capacity.
To order complete locks with full size cores, change suffix
from Pto R. Example: BC160R, B250RD, B662R. To order
locks less core, change suffix to J. To order with full size construc-
tion core, change suffix to T.
626
B600/700-SERIES
Finishes: 605, 606, 609, 612,
613, 625, 626
626
B250-SERIES
Finishes: 605, 613, 626
626
BC100-SERIES
Finishes: 605, 609, 612, 613,
625, 626
Number Description
23-030 Conventional core
20-740 Primus core
B220-203 BC100-Series outside housing less core
B220-201* BC162 inside housing less core
22-061 B250-Series outside housing less core
22-062 B252 inside housing less core
B610-027 B600/700-Series outside housing less core
B610-028* B662/762 inside housing less core
Full Size Interchangeable Cores and Housings
Small Format Interchangeable Core (SFIC)
Available in BC100 and B600-Series, the small format IC option
is designed for Schlage Everest B Family restricted keyway cores
and is also completely compatible with Best®, Falcon, etc. small
format cores.
To order complete locks with Everest B Family restricted keyway
cores, change product suffix from Pto GD and provide letter of
authorization from end user. Example: B660GD. To order locks
less core, change suffix to BD.
To order with keyed brass construction cores, change suffix
to HD. To order with disposable plastic construction cores,
change suffix to BDC.
Number Description
80-036 7-Pin uncombinated Everest B Family restricted keyways
80-037 7-Pin combinated Everest B Family restricted keyways
80-043 6-pin uncombinated Falcon / Best keyways
80-033 7-pin uncombinated Falcon / Best keyways
M204-152 Disposable plastic construction core
B610-282 BC100, B600/700-Series outside housing less core
B610-281* BC162, B662/772 inside housing less core and faceplate
Small Format Core
* Inside housing has no finish. Order finished faceplate B610-014 separately.
Cores available 606 and 626 finish only. Housings available in the same finishes
as corresponding complete locks.
80-033 and 80-043 cores are available in Best A, D, E, F, G, H, J, K, L, and M key-
ways. Specify keyway by suffixing “B” to keyway letter, e.g. “AB”.
80-036 and 80-037 restricted keyway cores require a letter of authorization from
the end user. Schlage assigns the keyway when establishing new Everest
restricted key systems.
Disposable Construction
Core

12
SERIES
B

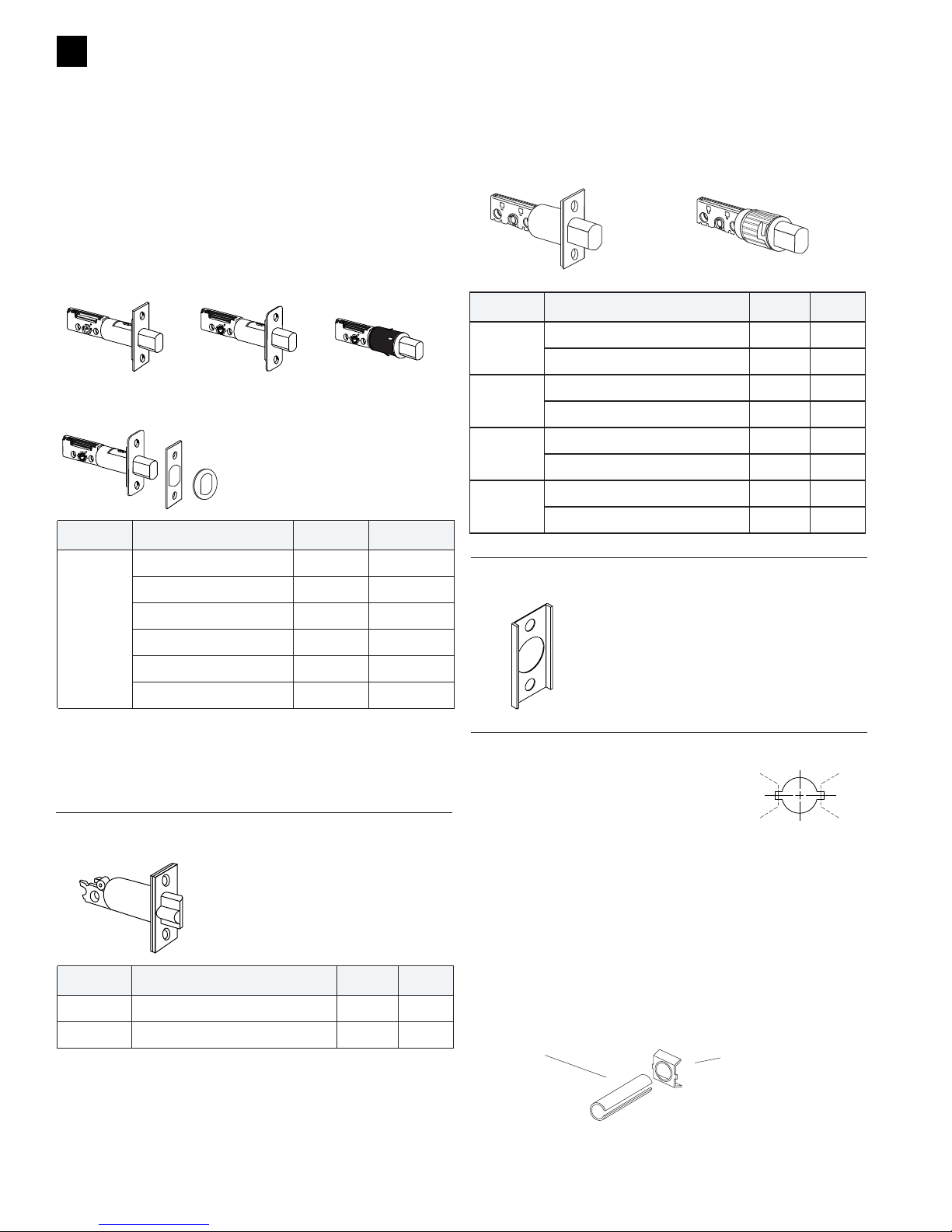

Latches and Bolts
B-Series bolt and latch fronts are adjustable for flt or beveled
edge doors and furnished in brass, bronze or chrome finishes
compatible with the lock finish. When ordering separately, speci-
fy quantity, part number and finish.
Backset Description Housing Number
1x2¹⁄₄ - square corner ⁷⁄₈12-274
1x2¹⁄₄ - ¹⁄₄ radius corner ⁷⁄₈12-269
Triple option* ⁷⁄₈12-270
Circular / drive-in (626 only) 112-268
1¹⁄₈x2¹⁄₄ - square corner 112-280**
1x2¹⁄₄ - square corner UL ⁷⁄₈12-255
BC100-Series Bolts
Square Corner Bolt Radius Corner Bolt Circular / Drive in Bolt
Triple Action Bolt
Adjustable:
2³⁄₈
or
2³⁄₄
Backset Description Housing Number
2³⁄₈1¹⁄₈x2¹⁄₄ - square corner standard 112-100
2³⁄₄1¹⁄₈x2¹⁄₄ - square corner 112-103
B250-Series Deadlatches
Backset Description Housing Number
2³⁄₈
1¹⁄₈x2¹⁄₄ - square corner 112-630
Circular / drive-in (626 only) 1¹⁄₁₆12-640
2³⁄₄
1¹⁄₈x2¹⁄₄ - square corner 112-631
Circular / drive-in (626 only) 1¹⁄₁₆12-641
3³⁄₄
1¹⁄₈x2¹⁄₄ - square corner 112-632
Circular / drive-in (626 only) 1¹⁄₁₆12-642
5
1¹⁄₈x2¹⁄₄ - square corner 112-633
Circular / drive-in (626 only) 1¹⁄₁₆12-643
B600-Series Bolts
Square Corner Bolt Circular / Drive-in Bolt
Latch Front Adapter
A501-878 Used to convert 1" wide square front
faceplates for 1⅛" wide door preparations.
Furnished in black plastic. Order in units
of 100 each.
* Includes: square corner, ¼´´ radius and drive-in faceplates
** Includes A501-878 faceplate adapter and G506-815 sleeve.
Reinforcement
Sleeve
A501-567 A501-566 for 13/4˝ doors
or
A501-565 for 13/8˝ doors
Door Reinforcement
Schlage 37-001 reinforcing unit is used to
reinforce and help prevent the collapse of
hollow metal doors when locksets are tightly
mounted.
This kit should be used with long backsets in
hollow metal doors to prevent lateral move-
ment of the latchbolt.
Specify door thickness, 1⅜ or 1¾, when
ordering reinforcement kits.
Reinforcement Kit
37-001

Furnished with standard and round corner deadbolt strikes, this
reinforcer significantly strengthens a jamb against "kick-in"
attack and greatly increases the security of the lock. The
reinforcer is concealed under the strike and is anchored to the
jamb with two 3" long screws.
13
SERIES
B
Strikes
All B-Series strikes are fully reversible for right handed and left
handed doors and are furnished complete with screws. Strike
boxes are also included with all standard strikes. B-Series
deadbolt strikes are also packed with our exclusive wood frame
reinforcer for added protection against "kick-in" attack.
The rabbeted latch and strike kit adapts square corner latches
and strikes for ⅛" rabbeted door and frame preparations.
Finishes: 605 and 626 only.
Number Lip Length Description
10-001 1, 1¹⁄₈, 1¹⁄₄, 1¹⁄₂1¹⁄₈ x 2³⁄₄ Square Corner
1³⁄₁₆, 1³⁄₄
10-004 1¹⁄₈ 1¹⁄₈ x 2³⁄₄ Radius round corner
10-025 1³⁄₁₆, 1³⁄₈1¹⁄₄ x 4⁷⁄₈ ANSI
C603-623 — Box for T-strike
K510-066 — Box for ANSI strike
Strikes for Deadlatches
Standard Strike Strike Box Drive-In Strike
Rabbeted Latch
and Strike Kit
39-030
3Screws
(76mm)
Strike
Jamb
Stud
Wood Frame
Reinforcer
Wood Frame Reinforcer
37-016
Number Lip Length Description
10-055 — 1¹⁄₈ x 2³⁄₄ x ³⁄₃₂ Square Corner, B600/700/800
10-064 — 1³⁄₁₆ Circular drive-in
10-087 1³⁄₁₆ 1¹⁄₄ x 4⁷⁄₈ ANSI
10-092 1¹⁄₈ 1⁵⁄₈ x 2¹⁄₄ Radius round corner
10-094 — 1¹⁄₈ x 2³⁄₄ x ³⁄₃₂ Square Corner, BC100
10-095 1¹⁄₈ 1⁵⁄₈ x 2¹⁄₄ Full lip, no box
B250-283 — Box for standard strike
Strikes for Deadbolts
Thumbturn Assemblies and Inside Plate
B202-671
B250 without holdback
B220-004
BC160
12-617 for B660/760/860
12-618 for B663/763/863 12-626
B661/761/861
B202-672
B250 with holdback
(standard)

Accessories and Other Parts Tailpieces
14
SERIES
B
Function Door Range
B660/760/860, B663/763/863 1³⁄₈–2¹⁄₂(35mm– 64mm) B610-044 B610-084
1³⁄₈–2(35mm –51mm) B610-045 B610-085
B662/762/862 (dbl. cylinder) >2–2¹⁄₂(>51mm–64mm) B610-046 B610-086
1³⁄₈–2(35mm –51mm) B610-042 B610-082
B661/761/861, B664/764/864 >2–2¹⁄₂(>51mm– 64mm) B610-043 B610-083
B600/700/800-Series Tailpiece & Retainer Packs (Non-IC)
Function Door Range Tailpiece
1³⁄₈–1³⁄₄(35mm– 44mm) B202-557
BC160P >2–2¹⁄₄(>51mm –58mm) B502-999
1³⁄₈–1³⁄₄(35mm– 44mm) B202-269
BC162P >2–2¹⁄₄(>51mm –58mm) B220-036
BC100-Series Tailpieces (Non-IC Models)
B-Series Interchangeable Core Tailpieces
Function Pins Door Range Tailpiece
B250 5 or 6 1³⁄₈–2³⁄₄(35mm –70mm) B202-558
5 or 6 1³⁄₈–1³⁄₄(35mm–44mm)
62, 2³⁄₄(51mm, 70mm)
B202-370
B252 62¹⁄₄, 2¹⁄₂(58mm, 64mm) B202-269
52¹⁄₂(64mm) B202-453
B250-Series Tailpieces (Non-IC Models)
Two each required for BC162P.
Two each required for B252
Two each required for double cylinder locks
Classic
Convent’l
All
Others
Function Tailpiece
BC160BD B202-957
BC160J, B660J, B661J, B663J B600-041
BC162BD B202-453
BC162J, B662J (two tailpieces required) B600-040
B660BD, B663BD B202-557
B661BD B220-032
B662BD (two tailpieces required) B202-370
B662BD thick door (two tailpieces required) B202-453
B600R and B700R-Series use the same tailpieces as listed for B600J-Series.
Inside Cylinder Faceplates for BC162 and B662/762/862 (Specify finish.)
Cylinder Collars and Security Inserts
Adapters for BC100 and B250-Series in 2 1/8” Prep (Specify finish.)
B100, B200, B400-Series
36-066* ¹⁄i” collar
36-068 ¹⁄i” security insert
36-070* ¹⁄i” collar with insert
36-067* ⁷/₁₆” collar
36-069 ⁷/₁₆” security insert
36-071* ⁷/₁₆” collar with insert
B600/700/800-Series
B600-015* ⁷/₈” for non-IC cylinders on doors 1⁵/₈”
and thicker
B600-016* 1¹/₈” for all other applications
B250-Series IC and all BC160-Series
36-086* 1” collar
36-084 1” security insert
36-085* 1” collar with insert
38-031
For cylinder
38-016 Kit for BC162 and B252 contains two 38-031 adapters
38-017 Kit for B250 contains one 38-031 and one 38-032 adapter
38-032
For B250 thumbturn
38-018
Thin door spacer fits under
38-031 adapter for BC100 and
B250-Series.
Number Cylinder Type
B600-092 Non-IC
B610-031 Full size IC
B610-014 Small format IC
* Specify finish.

BC160PStandard
BC160LLess standard cylinder (For BC100 and B250-Series with Primus cylinder, specify this option and order
Primus cylinder separately.)
B250JD Prepared for full size interchangeable core, less core (For BC100 and B250-Series with Primus core, specify
this option and order Primus core separately.)
B250RD With full size conventional interchangeable core installed. Order control keys separately.
B250TD With full size (temporary) construction core installed. Order all keys separately.
B660BD Prepared for small format (Falcon, Best, etc.) interchangeable core (SFIC), less core.
B660GD With Everest B Family restricted keyway small format core installed. Order control keys separately.
B660HD With small format keyed brass (temporary) construction core installed. Order all keys separately.
B660BDC With small format disposable plastic construction core installed.
Door Handing
Schlage BC160 and B600/700/800-Series locks are non-handed.
B250-Series deadlatches are reversible. Hand information is only
necessary to ensure proper finish of latchbolt and strike for split-
finish locks. Follow the diagram to correctly determine the hand
of the door.
How to Order
To order Schlage products, descriptive data should be in the same sequence as shown.
Example
15
SERIES
B
LH
Left Hand
INSIDE
OUTSIDE
OUTSIDE
INSIDE
LRB
Left Hand
Reverse Bevel
RH
Right Hand
RRB
Right Hand
Reverse Bevel
Note: Schlage order forms are available at no charge by contacting your IR Security & Safety Consultant or Customer Service.
1Line item number
2Quantity
3Complete model number with function and cylinder type
4Outside finish.
5Inside finish. Leave blank if same as outside.
6 Hand (Required only for split-finish locks)
7 Latch or bolt. Leave blank for standard or specify part number for optional latch or bolt. LLL=Less Latch.
8 Strike. Leave blank for standard or specify part number for optional strike. LLL=Less Strike.
9Door thickness. For B-Series thick door applications, door must be extended equally.
10 Dimension for strike lip lengths. See strike page for availability of specific dimensions with specific strikes.
100 = 1138 = 1⅜ 134 = 1¾
118 = 1⅛ 112 = 1½ 200 = 2
114 = 1¼
11 Additional details (e.g. key symbol, keyway, bitting) and other special requirements.
To order cylinder options, change “P” at the end of the model number as follows:
Line Outside Inside Door
Item Finish Finish Thickness
12 3 4 5 6 7 8 9 10 11
Product
Qty Latch
Hand Strike Additional Details
Dim
Line Outside Inside Door
Item Finish Finish Thickness
1 100 B660P 626 12-630 2” KA4
Product
Qty Latch
Hand Strike Additional Details
Dim

Administrative Offices
1915 Jamboree Drive, Suite 165
Colorado Springs, CO 80920
[phone]
FAX [phone]
Commercial Customer Service
2315 Briargate Parkway, Suite 700
Colorado Springs, CO 80920
[phone]
FAX [phone]
Order Entry
FAX [phone]
Residential Customer Service
1010 West Santa Fe
Olathe, KS 66061
[phone]
International Division
Ingersoll-Rand Architectural Hardware
1076 Lakeshore Road East
Mississauga, Ontario, L5E 1E4, Canada
[phone]
FAX [phone]
Internet
http://www.schlage.com
Fax-On-Demand
[phone]
Copyright © 2003 Ingersoll-Rand MS-M/B600 Rev. 4/03 Printed in USA
IR Security & Safety Americas
111 Congressional Boulevard
STE 200
Carmel, IN 46032
800-847-1864
800-452-0663 Fax
www.irsecurityandsafety.com
