INSTRUCTIONS FOR:
RACKING UNIT WITH 5 SHELVES
(150KG CAPACITY PER LEVEL)
MODEL No: AP6150
Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
1. SAFETY INSTRUCTIONS
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE OR PERSONAL INJURY, AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1.1 GENERAL SAFETY
WARNING! Ensure Health & Safety, and local authority
regulations are adhered to when assembling and using this
rack.
Locate rack in a suitable area where they will not be an
obstruction.
Keep the general area clean, uncluttered and ensure there is
adequate lighting.
WARNING! Erect rack on a level and solid surface such
as concrete.
Keep children and unauthorised persons away from the
storage area.
DO NOT use the rack for any purpose other than that for
which it is are designed.
DO NOT site the rack out of doors.
DO NOT get the rack wet or use in damp or wet locations
or areas where there is condensation.
DO NOT clean the shelf supports with any solvents which
may damage the coated surface.
Ensure that the rack is properly assembled before
loading them with heavy items.
Maximum load for each shelf is 150kg.
Where possible the rack should be fixed to the wall with
suitable fixings
Place heavier items on the lower shelves.
Heavier items should be evenly distributed across the shelves.
3. CONTENTS
2. INTRODUCTION
Carefully unpack the product and check the contents against the
list below. Should any items be missing or damaged make
immediate contact with your Sealey dealer.
Part Description No. Off
LEG ANGLE SECTIONS 8
LEG ANGLE JOINERS 8
PLASTIC FLOOR PROTECTORS 8
SHELF SUPPORT, LONG 10
SHELF SUPPORT, SHORT 10
MDF SHELF 5
FASTENER KIT (Nuts & bolts for joining side by side sections) 4
01284 757500
01284 703534
[e-mail]
Sole UK Distributor
Sealey Group,
Bury St. Edmunds, Suffolk.
www.sealey.co.uk
Web
email
4. ASSEMBLY

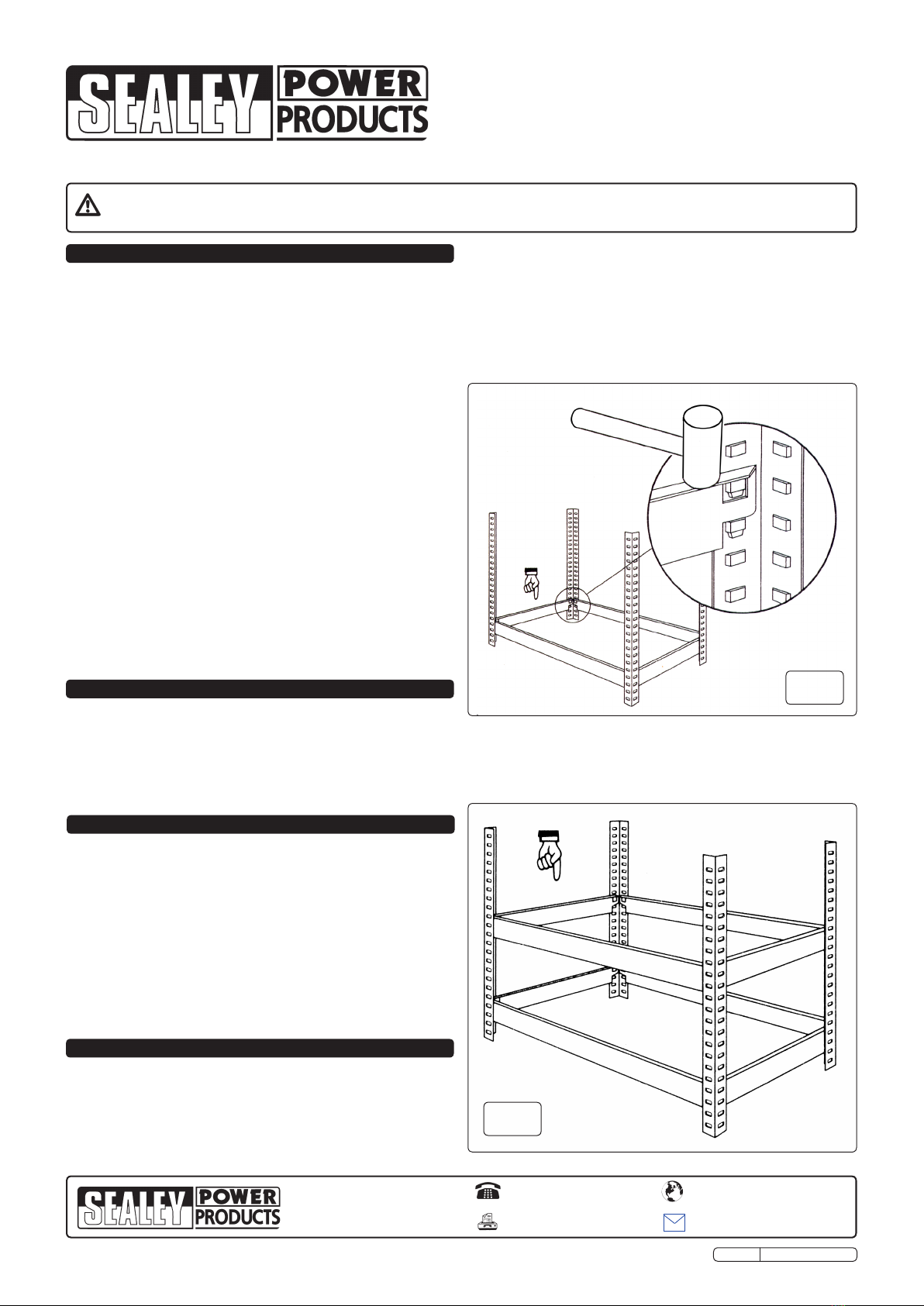

4.1 Assemble the frame using a soft faced hammer or mallet as
shown in Fig.1. If only a hard faced hammer is available
hammer onto a piece of wood to avoid damaging the paint
surface. Always hammer gently as close as possible to the
uprights. Make sure that the shelf support tabs are in line with
the leg angle slots. If the tabs and slots are not lining up do not
Fig.1
4.3 See Fig.2. Decide on the height of the second shelf. Fit another
2 short shelf supports at the desired height then fit 2 long shelf
supports at the same height.
Fig.2
use force as this may damage the tabs. If the tabs are out of line
bend them slightly to line up with the slots.
4.2 See Fig.1. Decide on the position/height of the bottom shelf.
Make an end frame by fitting 1 short shelf support between 2 leg
angle sections. Make a second end frame ensuring that the shelf
support is at the same height as the first end frame. Join the two
end frames together using 2 long shelf supports fixed at the
same height as the short shelf supports.
Fully painted steel frame with five MDF shelves. 150kg capacity
per level giving a maximum capacity of 750kg per rack. No nuts
and bolts means no tools required to assemble. Clips together in
minutes. Rack can be used as a single bay rack or split into two
separate shelf systems or workstations.
Height: 1805mm Width: 810mm Depth: 310mm
AP6150 Issue No:1 28/04/09

4.4 Decide the shelf positions for the upper section of the shelves
and assemble two more end frames, each using 2 leg angle
sections and 3 short shelf supports ensuring that the shelf
supports are at the same height on both frames. The upper half
can be joined to the lower half by using the lower shelf supports
as shown in Fig.3. If the lower shelf is not positioned at the
centre of the frame use the special joining pieces supplied as
shown in Fig.4.
4.5 When both upper end frames are in place join them together
with the remaining 6 long shelf supports ensuring that they are
at the same height as the short shelf supports.
4.6 See Fig.5. When the frame is complete attach the plastic floor
protectors to the bottoms of the angle sections. Get a second
person to steady the frame while this is done.
4.7 See Fig.6. Move the frame into position in the chosen area.
Place the 5 MDF shelves onto the shelf supports.
4.8 See Fig.7. To assemble as a bench/low level shelving unit make
up two separate frames following steps 4.1 to 4.3 but with
different shelving positions. Make up one frame with 3 shelves
and one frame with two shelves as shown below. Ensure that the
middle and top shelves on both frames are at the same height.
Fix the frames together with the four nuts and bolts supplied.
Place the 5 MDF shelves into position in the frames.
4.9 See Fig.8. To assemble as a corner unit make up two separate
frames following steps 4.1 to 4.3 but with different shelving
positions. Make up one frame with 3 shelves and one frame with
two shelves as shown below. Ensure that the middle and top
shelves on both frames are at the same height. Fix the frames
together with the four nuts and bolts supplied. Place the 5 MDF
shelves into position in the frames.
Fig.3
Fig.6
Fig.4 Fig.5
Fig.7
Fig.8
AP6150 Issue No:1 28/04/09
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
