INSTRUCTIONS FOR
INDUSTRIAL CABINET 5 DRAWER, 3 SHELF 1800MM
MODEL NO: APICCOMBO5
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this cabinet.
9Locate cabinet in a suitable work area.
9Keep the work area clean, uncluttered and ensure there is adequate lighting.
WARNING! Use cabinet on level and solid ground, preferably concrete.
9Keep the cabinet clean and tidy in accordance with good workshop practice.
9Keep children and unauthorised persons away from the work area.
8DO NOT use the cabinet for any purpose other than that for which it is designed.
8DO NOT use the cabinet outdoors.
8DO NOT place the cabinet in a damp or wet location or an area where there is condensation.
8DO NOT clean the cabinet with any solvents which may damage the surfaces or the protective coating.
8DO NOT move the cabinet when there are items placed inside.
8DO NOT overload the cabinet.
2. INTRODUCTION
Four variants of industrial quality, double door, freestanding cabinets with a range of internal shelving and drawer options. Easily assembled
with minimal tool use. Durable scuff resistant, adjustable shelving each with a weight limit of 150kg. Drawers run on heavy duty ball bearing
slides each with a weight limit of 75kg, tted with safety locking catches preventing inadvertant opening. Reinforced steel doors with zinc
plated locking bars, provide 3 point locking. Supplied with two coded keys. Ideal for home, ofce, garage or workshop use.
3. SPECIFICATION
Model no: ..................................... APICCOMBO5
Width x Depth x Height
Overall size: ......................... 900 x 450 x 1800mm
Medium drawer (x3): .............. 775 x 330 x 100mm
Large drawer (x2):..................775 x 330 x 200mm
Shelf size (x3): .........................840 x 380 x 30mm
Internal cabinet overall size:. 850 x 420 x 1710mm

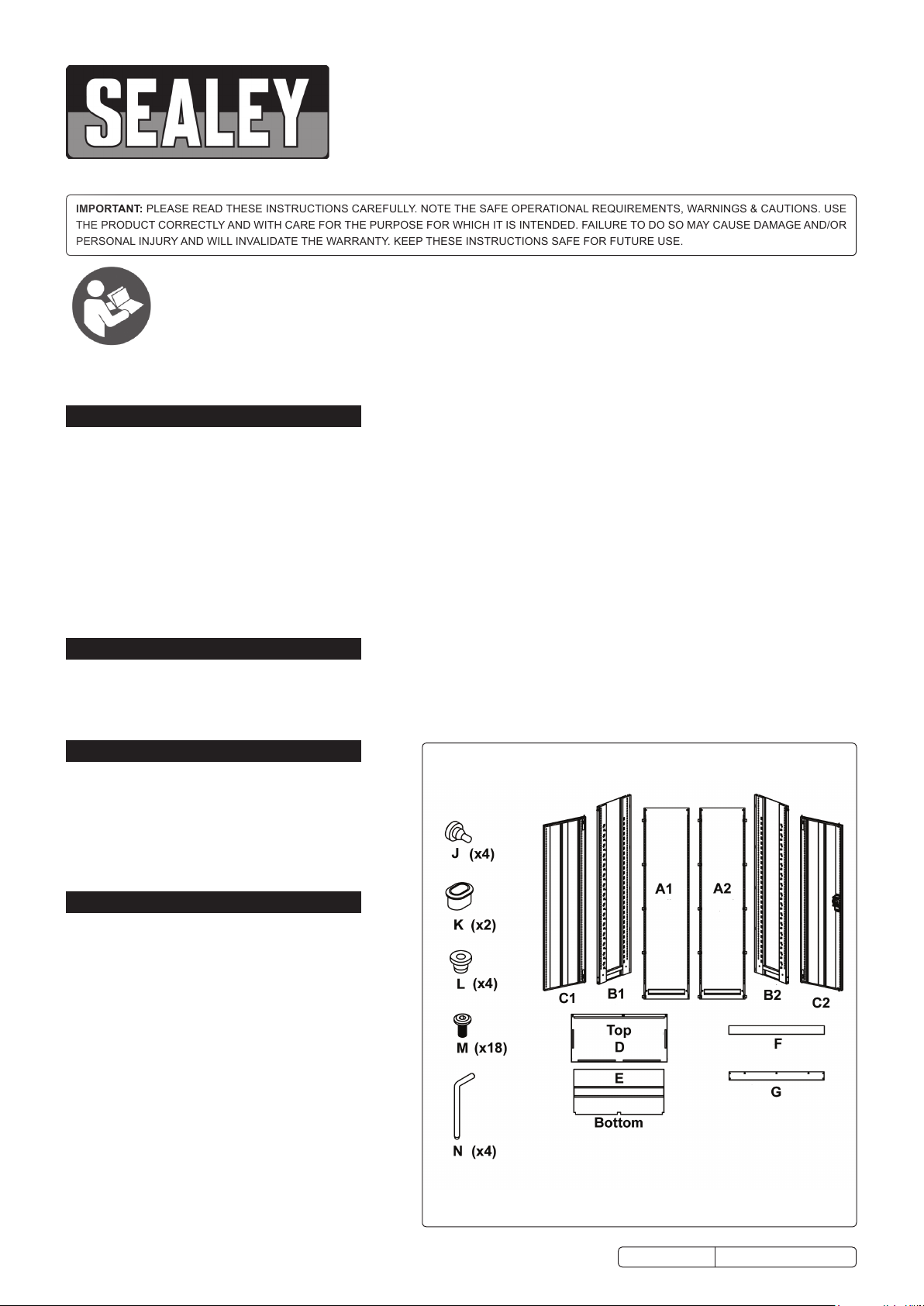

4. CABINET CONTENTS
Unpack the contents of the boxes and check against the parts
lists/diagrams. If there are any parts missing, contact your local
Sealey dealer.
Part No. Part Name No.
A1 Rear Panel 1
A2 Rear Panel 1
B1 Left Side Panel 1
B2 Right Side Panel 1
C1 Left Door 1
C2 Right Door 1
DTop 1
EBottom 1
FInner Face Plate 1
GOuter Face Plate 1
JPlastic Stop 4
KLocking Pin Locator2
LHinge Pin Locator 4
MScrew 18
NHinge Pin 4
Refer to
instruction
manual
APICCOMBO5 Issue 2(SP) - 26/07/16
Original Language Version
© Jack Sealey Limited

5. CABINET ASSEMBLY
5.1. Assemble the cabinet following the numbered sequence below, referencing the parts list and diagram overleaf. Use a trestle table or a
workbench if required.
APICCOMBO5 Issue 2(SP) - 26/07/16
Original Language Version
© Jack Sealey Limited

6. DRAWER CONTENTS
Part No. Part Name No. of:
Aor B APICD100/APICD200 1
Cor D APICD100/200 Dividers 10
EScrew 16
FBracket 4
GSliders 2
APICCOMBO5 Issue 2(SP) - 26/07/16
Original Language Version
© Jack Sealey Limited

7. DRAWER ASSEMBLY
APICCOMBO5 Issue 2(SP) - 26/07/16
Original Language Version
© Jack Sealey Limited

8. SHELVES CONTENTS/ASSEMBLY
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
Sole UK Distributor, Sealey Group.
Kempson Way, Suffolk Business Park,
Bury St. Edmunds, Suffolk.
IP32 7AR
www.sealey.co.uk
[e-mail]
01284 757500
01284 703534
Web
Environmental Protection
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be
sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment.
When the product becomes completely unserviceable and requires disposal, drain off any fluids (if applicable)
into approved containers and dispose of the product and the fluids according to local regulations.
