Sealey SA20/S User manual

Thank you for purchasing a Sealey Product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT:PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS,
WARNINGS AND CAUTIONS. USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH
IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE OR PERSONAL INJURY AND WILL INVALIDATE THE
WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
3Employ all workshop safety rules, regulations, and conditions when using wrench.
pWARNING! Disconnect from air supply before changing accessories or servicing.
3Maintain the wrench in good condition and replace any damaged or worn parts. Use
genuine parts only. Non-authorised parts may be dangerous and will invalidate the warranty.
pWARNING! Check correct air pressure is maintained and not exceeded. Recommended 70-90psi
3Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each
use and ensure that all connections are secure.
3Only use impact sockets which are specifically designed for use with a ratchet/impact wrench.
3Maintain correct balance and foot ing. Ensure the floor is not slippery and wear non-slip shoes.
3Keep children and unauthorised persons away from the working area.
7DO NOT use the ratchet for a task it is not designed to perform.
pWARNING! DO NOT use wrench if damaged or thought to be faulty. (Contact Service Agent).
7DO NOT use wrench unless you have been instructed in its use by a qualified person.
7DO NOT drop, throw or abuse the wrench as it is a precision tool.
7DO NOT carry the wrench by the hose, or yank the hose from the air supply.
7DO NOT operate wrench if you are tired, under the influence of alcohol, drugs or intoxicating medication.
7DO NOT carry wrench with your hand on the power lever in order to avoid unintentional starting.
7DO NOT direct air from the air hose at yourself or others.
3When not in use disconnect from air supply and store in a safe, dry, childproof location.
SA20/S, SA21/S - 0016 - (1) -090500
INSTRUCTIONS FOR
AIR RATCHET WRENCH
Models: SA20/S & SA21/S
01284 757500 E-mail: [e-mail]
01284 703534
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component
parts without prior notice. IMPORTANT: No liability is accepted for incorrect use of this equipment. WARRANTY: Guarantee is 12
months from purchase date. proof of which will be required for any claim. INFORMATION: Call us for a copy of our latest catalogue
and promotions on 01284 757525 and leave your full name and address including your postcode.
Sole UK Distributor, Sealey Group, Bury St. Edmunds, Suffolk.
2. INTRODUCTION & SPECIFICATIONS
MODEL . . . . . . . . . . . .SA20/S
Drive size . . . . . . . . . . .3/8Sq
Max torque . . . . . . . . . . .50ft/lb
Air consumption . . . . . . . .4cfm
Operating pressure . . . . .90psi
Air inlet size . . . . . . . .1/4 BSP
Weight . . . . . . . . . . . . . .1.2kg
MODEL . . . . . . . . . . . .SA21/S
Drive size . . . . . . . . . . .1/2Sq
Max torque . . . . . . . . . . .60ft/lb
Air consumption . . . . . . . .4cfm
Operating pressure . . . . .90psi
Air inlet size . . . . . . . .1/4 BSP
Weight . . . . . . . . . . . . . .1.2kg
The air powered ratchet wrench has a hardened steel anvil and twist-to-reverse mechanism.
With trigger operated power control the wrench is suitable for use in the engine bay where there
is limited space for hand operated rachets.

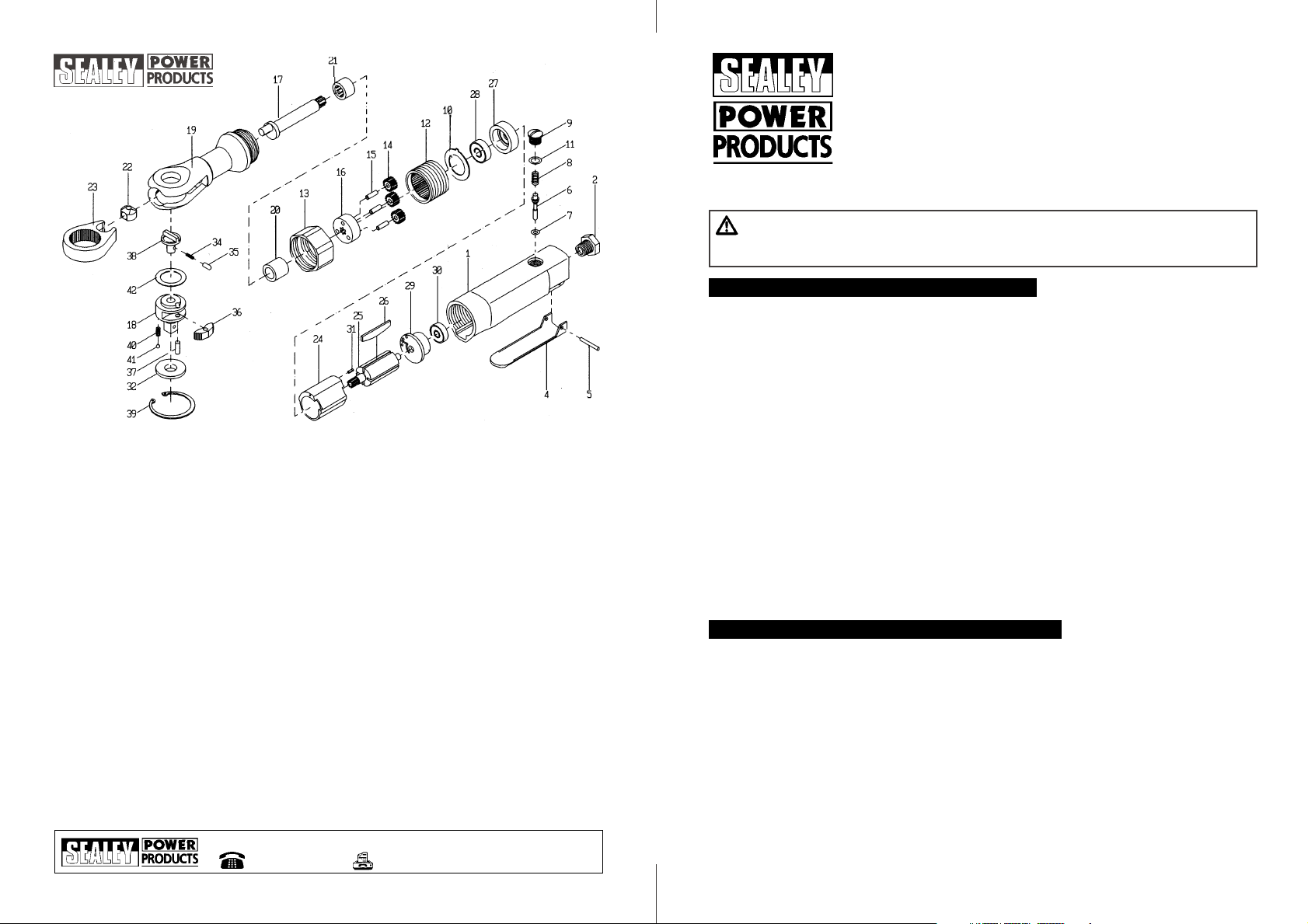

Item Model & Model & Description
Part No Part No
1SA20/S-01 SA21/S-01 HOUSING
2SA20/S-02 SA21/S-02 AIR INLET
4SA20/S-04 SA21/S-04 TRIGGER
5SA20/S-05 SA21/S-05 PIN
6SA20/S-06 SA21/S-06 VALVE STEM
7SA20/S-07 SA21/S-07 O-RING
8SA20/S-08 SA21/S-08 SPRING
9SA20/S-09 SA21/S-09 VALVE PLUG
10 SA20/S-10 SA21/S-10 WASHER
11 SA20/S-11SA21/S-11O-RING
12 SA20/S-12 SA21/S-12 THREAD RING GEAR
13 SA20/S-13 SA21/S-13 CAP
14 SA20/S-14 SA21/S-14 GEAR
15 SA20/S-15 SA21/S-15 PIN
16 SA20/S-16 SA21/S-16 GEAR PLATE
17 SA20/S-17 SA21/S-17 CRANK SHAFT
18 SA20/S-18 SA21/S-18 RATCHET ANVIL
19 SA20/S-19 SA21/S-19 RATCHET HOUSING
20 SA20/S-20 SA21/S-20 BUSHING
21 SA20/S-21 SA21/S-21 NEEDLE BEARING
Item Model & Model & Description
Part No Part No
22 SA20/S-22 SA21/S-22 DRIVE BUSHING
23 SA20/S-23 SA21/S-23 RATCHET YOKE
24 SA20/S-24 SA21/S-24 CYLINDER
25 SA20/S-25 SA21/S-25 ROTOR
26 SA20/S-26 SA21/S-26 ROTOR BLADE
27 SA20/S-27 SA21/S-27 FRONT PLATE
28 SA20/S-28 SA21/S-28 BEARING
29 SA20/S-29 SA21/S-29 END PLATE
30 SA20/S-30 SA21/S-30 BEARING
31 SA20/S-31 SA21/S-31 PIN
32 SA20/S-32 SA21/S-32 WASHER
34 SA20/S-34 SA21/S-34 SPRING
35 SA20/S-35 SA21/S-35 LOCK PIN
36 SA20/S-36 SA21/S-36 RATCHET PAWL
37 SA20/S-37 SA21/S-37 PIN
38 SA20/S-38 SA21/S-38 REVERSE BUTTON
39 SA20/S-39 SA21/S-39 RETAINER RING
40 SA20/S-40 SA21/S-40 SPRING
41 SA20/S-41 SA21/S-41 STEEL BALL
42 SA20/S-42 SA21/S-42 WASHER
Original Date: 090500
Issue Date: 090500
Version No: 0
Date Modified: N/A

3.1. Air Supply
3.1.1. Ensure wrench air valve (or trigger) is in the "off" position before connecting to the air supply.
3.1.2. You will require an air pressure of 90psi, and an air flow according to specification.
3.1.3. pWARNING! Ensure the air supply is clean and does not exceed 90 psi while operating the
wrench. Too high an air pressure and unclean air will shorten the product life due to excessive
wear, and may be dangerous causing damage and/or personal injury.
3.1.4. Drain the air tank daily. Water in the air line will damage the wrench.
3.1.5. Clean air inlet filter weekly. Recommended hook-up procedure is shown in fig 1.
3.1.6. Line pressure should be increased to compensate for unusually long air hoses (over 8
metres). The minimum hose diameter should be 1/4 I.D. and fittings must have the same
inside dimensions.
3.1.7. Keep hose away from heat, oil and sharp edges. Check hoses for wear, and make certain
that all connections are secure.
3.2. Couplings.
Vibration may cause failure if a quick change coupling is connected directly to the wrench. To
overcome this, connect a leader hose to the wrench. A quick change coupling may then be used to
connect the leader hose to the air line recoil hose. See fig 1 & 2.
pWARNING! Disconnect wrench from air supply before changing accessories, servicing or
performing maintenance. Replace or repair damaged parts. Use genuine parts only. Non-
authorised parts may be dangerous and will invalidate the warranty.
5.1. Lubricate the air wrench daily with a few drops of Sealey air tool oil dripped into the air inlet to
prolong its life.
5.2. Clean the wrench after use. DO NOT use worn, or damaged sockets.
5.3. Loss of power or erratic action may be due to the following:
a) Excessive drain on the air line. Moisture or restriction in the air pipe. Incorrect size or
type of hose connectors. To remedy check the air supply and follow instructions in
chapter 3.
b)Grit or gum deposits in the wrench may also reduce performance. If your model has an air
strainer (located in the area of the air inlet), remove the strainer and clean it. Flush the
wrench out with gum solvent oil or an equal mixture of SAE No 10 oil and paraffin.
Allow to dry before use. If you continue to experience problems, contact your local
Sealey service agent.
5.4. For a full service contact your local Sealey service agent.
5.5. When not in use, disconnect from air supply, clean wrench and store in a safe, dry,
childproof location.
3. PREPARING WRENCH FOR USE
4. OPERATING INSTRUCTIONS
5. MAINTENANCE
pWARNING! Ensure you read, understand and apply safety instructions before use.
4.1. Only use sockets specifically designed for use with a ratchet wrench.
4.2. Connect the wrench to the air hose as in chapter 3.
4.3. Place the socket over the subject nut and depress the trigger to operate the wrench.
4.4. To change ratchet direction turn the switch on the tool head. F = Forward R = Reverse.
DO NOT use any additional force upon the wrench in order to remove a nut.
4.5. The flow of air may be regulated by turning the screw above the trigger.
DO NOT allow wrench to run in idle rotation for an extended period of time as this will
shorten its life.
fig 1
We, the sole importer into the UK, declare that the products listed here are in conformity with the
following EEC standards and directives. The construction files for these products are held by the
Manufacturer and may be inspected, by a national authority, upon request to Jack Sealey Ltd.
For Jack Sealey Ltd. Sole importer into the UK
of Sealey Power Products.
Air Ratchet Wrench
Models: SA20/S & SA21/S
98/37/EC Machinery Directive
93/68/EEC Marking Directive
09th May 2000
Declaration of Conformity
Signed by Mark Sweetman
SA20/S, SA21/S - 0016 - (1) - 090500
fig 2
