Sealey ES500.V2 User manual

ENGINE SUPPORT BEAM 500KG
MODEL NO: ES500.V2
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
9Ensure that the engine support is in good working order. Take action for immediate repair or replacement of damaged parts. Use
genuine parts only. The use of unauthorised parts may be dangerous and will invalidate the warranty.
9Locate the vehicle in a suitable, well lit work area.
9Keep work area clean and tidy and free from unrelated materials.
9Ensure the vehicle handbrake is engaged and the engine/motor is switched off.
9Ensure all non-essential persons keep a safe distance whilst the engine support is in use.
8DO NOT use the engine support if damaged.
8DO NOT allow untrained persons to operate the engine support.
8DO NOT use the engine support for purposes other than that for which it is designed.
8DO NOT exceed the rated capacity of the engine support.
9When not in use, store engine support in a safe, dry, childproof area.
2. INTRODUCTION
Designed to support and accurately position engines during maintenance operations such as replacing anti-vibration mountings and
certain body panels. Also used as an aid for the removal of gearboxes and transmissions. Beams supported on rubber feet and
fine adjustment control is obtained by using screw/hook mechanism. Supplied with a short length of chain.
3. SPECIFICATION
Maximum Capacity..........................................................500kg
Minimum Width............................................................1120mm
Maximum Width...........................................................1910mm
Screw Travel..................................................................230mm
Weight ..........................................................................14.02kg
4. CONTENTS
Item Description
1 Grip (handle bar)
2 Operating clamp assy.
3 Washer 22mm internal Ø
4 Grip
5 Washer 11mm internal Ø
6 Telescopic beam
7 Standing block
8 Washer 21mm internal Ø
9 Bolt & Locknut 16mm
10 Grip (small)
11 Foot
12 Rubber block
13 Adjustable screw
14 Chain
15 Beam
ES500.V2 Issue 4 (HF) 22/08/18
Original Language Version
© Jack Sealey Limited
Refer to
instructions
g.1
Wear protective
gloves
Wear safety
footwear
Wear protective
clothing

5. ASSEMBLY
Note: Numbers in brackets refer to item numbers shown in the parts diagram.
5.1. Insert the telescopic beam (6) into the beam (15) and secure using the grip (10).
5.2. Remove the grip (4) and washer (5) from the standing block (7), pass the threaded section of the standing block through the hole in
the telescopic beam (6) and secure using the washer (5) and grip (4).
5.3. Remove the bolt and locknut (9) from the standing block (7), insert the foot assembly (11) and secure using the bolt and locknut (9).
5.4. Repeat paragraphs 5.1 to 5.3 at the other end of the beam (15).
5.5. Slot the threaded section of the adjustable screw (13) up through the centre hole in the beam (15), fit the washer (3) and secure using
the operating clamp assembly (2).
5.6. The engine support is now ready for use.
Note: Ensure all grips and nuts are tightened before applying a load.
6. OPERATION
Note: Numbers in brackets refer to item numbers shown in the parts diagram.
6.1. Ensure the adjustable screw (13) is wound to its highest position to prevent damage whilst locating
the engine support over an engine bay.
6.2. Ensure the grips (4 & 10) are loose and locate the rubber blocks (12) in the gutters of the vehicle’s
front wing panels or close to the suspension strut towers.
6.3. Attach the ends of the chain to the lifting brackets on the engine.
Note: Refer to manufacturer’s handbook to identify lifting brackets.

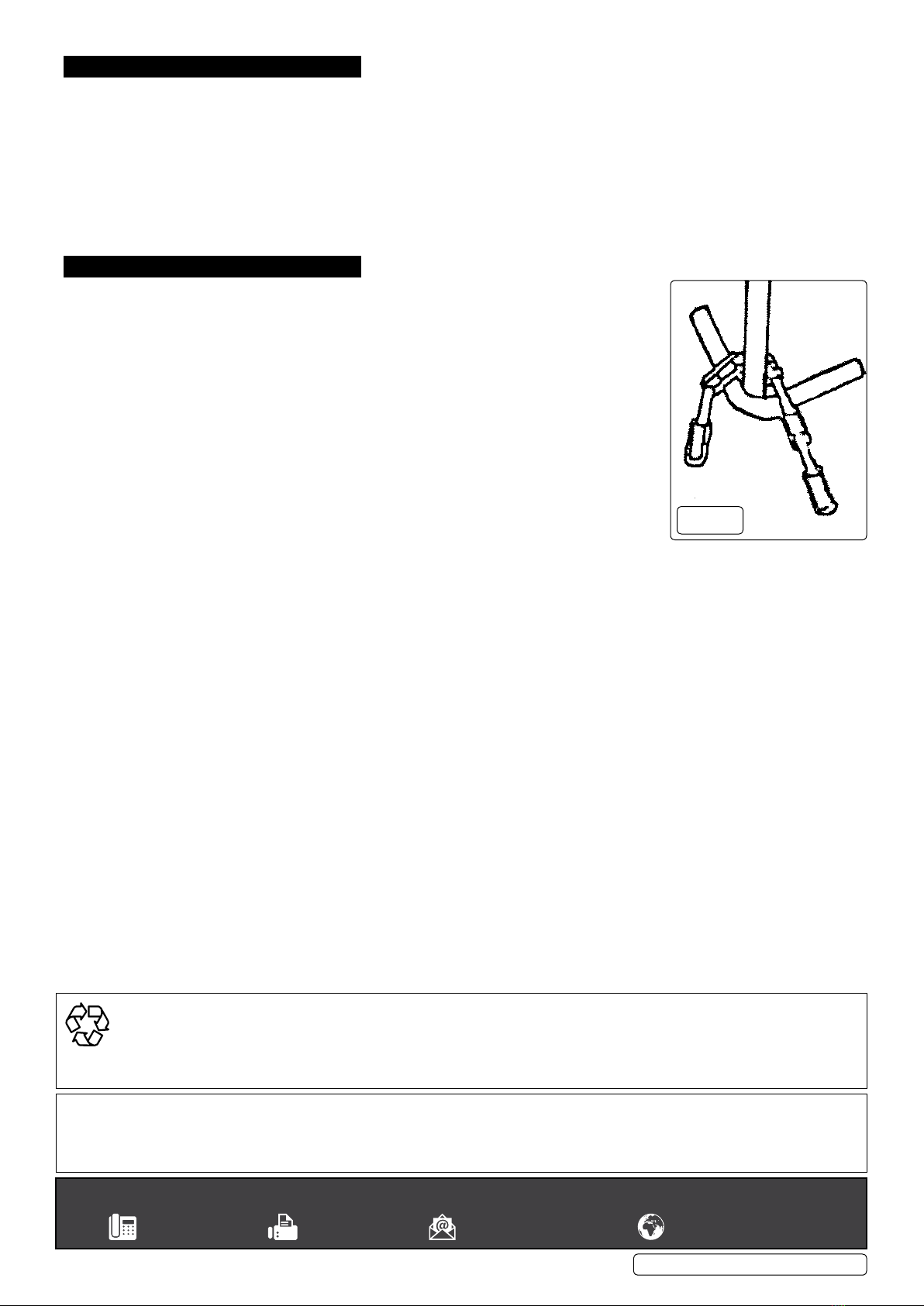

6.4. Lower the adjustable screw and hook the chain around the hook as shown in fig.2.
6.5. Tighten all four grips (4 & 10) and all nuts.
6.6. Rotate the operating clamp assembly to tighten the chain and support the engine.
6.7. On completion of the maintenance task, rotate the operating clamp assembly to release the tension
on the chain.
6.8. Unhook the chain, loosen both grips (4 & 10) and remove the engine support from the vehicle.
6.9. Remove the chain from the engine lifting points.
