Sealey W50T.V2 User manual

INSTRUCTIONS FOR:

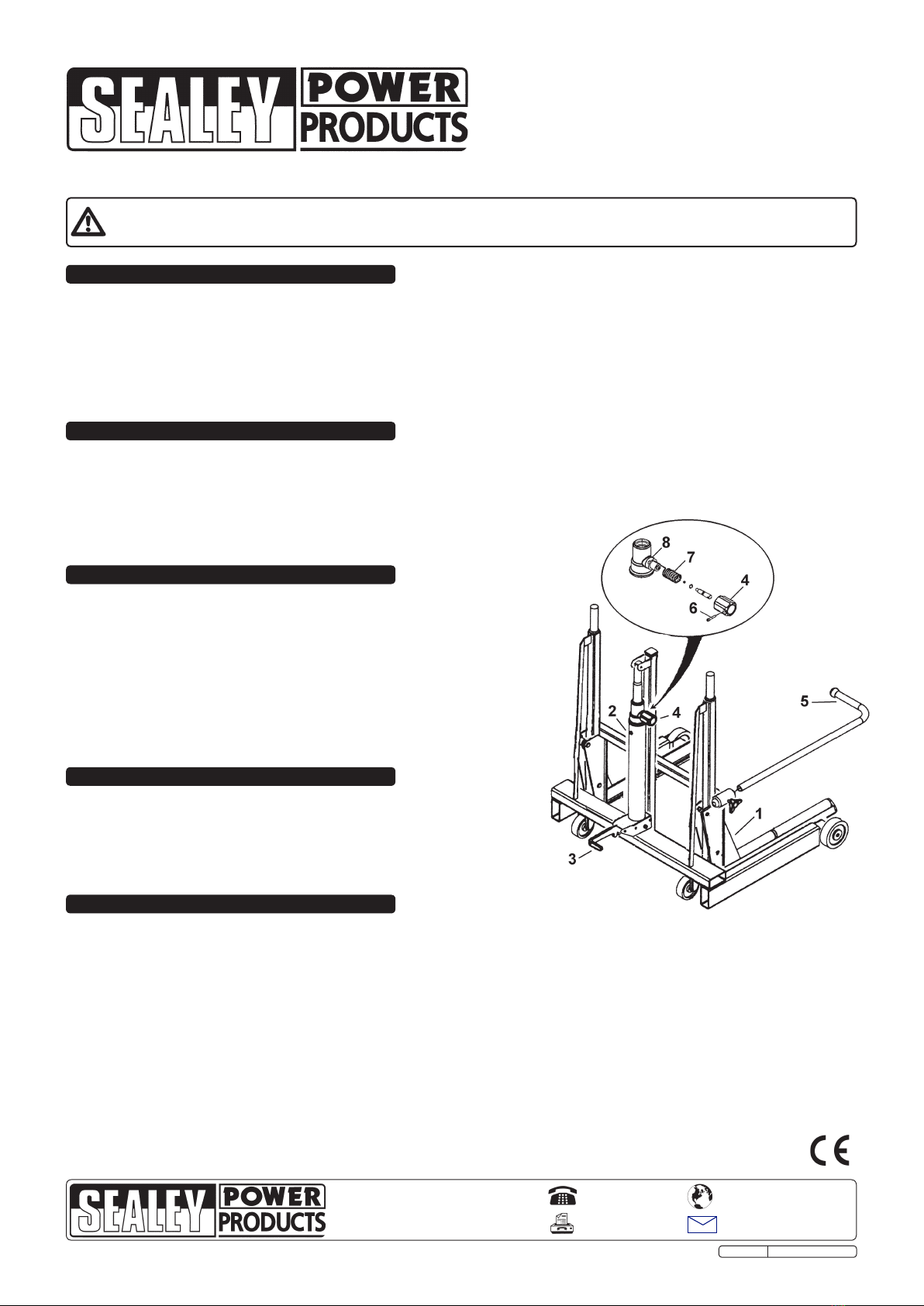

WHEEL REMOVAL TROLLEY
MODEL No: W50T.V2
Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
1. SAFETY INSTRUCTIONS
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND
CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY
CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
2. INTRODUCTION & SPECIFICATION
4.1. Daily Check for damage and oil leaks.
4.2. Monthly Oil moving parts and grease pedal-to-piston faces.
Check for abnormal wear and tear.
With lifting frame (1) at lowest point, check hydraulic oil level by
removing filler plug (2). Level should be at bottom of filler hole. Top up,
or allow to drain, as necessary. Replace plug.
 Always lower, centre and chain wheel before attempting to move trolley.
 Only use the trolley on firm, level, unobstructed surfaces which are capable of supporting the trolley and wheel.
 Do not overload the trolley - maximum capacity is 500kg.
 Do not allow others to ride on the trolley.
 Do not use on tarmacadam. The trolley must only be used on a concrete surface.
 Replace or repair damaged parts. Use only recommended parts. Unauthorised parts may be dangerous and will invalidate the warranty.
 Use a qualified person to lubricate and maintain the trolley. DO NOT use brake fluid to top up hydraulic unit. Use Sealey hydraulic oil only.
 Warning! Failure to comply with these instructions may result in loss of load, damage to trolley or other property and/or personal injury.
Load bearing arms split and mounted on smooth roller bearings to allow wheel to be rotated for lining up on studs. Foot operated hydraulic mechanism with ‘dead
man’ control release. Mounted on 2 swivel and 2 fixed castors for manoeuvrability. Supplied with safety arm.
Maximum Load...................500kg
Min. Lift Height ...................37mm
Max. Lift Height .................505mm
Width Between Rollers............762mm
Roller Length ...................653mm
Hydraulic Oil Capacity ...........0.7 litres
Specification
3. OPERATING INSTRUCTIONS
3.1. Before first use:
(a) Oil all moving parts.
(b) With lifting frame (1) at lowest point check hydraulic oil level by removing filler
plug (2). Oil should be at bottom of filler hole. Top up, or allow to drain, as
necessary and replace plug.
3.2. Lifting - centre the trolley around the wheel, as close in as possible, and raise the
lifting frame by operating the foot pedal (3).
3.3. Lowering - turn valve (4) anticlockwise, against spring load, for controlled lowering of
the lifting frame.
3.4. Movement - before moving the laden trolley ensure that the wheel is centred on the
rollers and restrained by the safety arm (5) and that the lifting frame is as low as
possible whilst still allowing clearance between tyre and floor.
4. MAINTENANCE
5.1. Lifting frame does not reach full height - low oil level, check and fill (see 4.2.).
5.2. Foot pump ineffective - oil level too high, check and drain (see 4.2.).
5.3. Lifting frame drops - reset release valve spring as follows:
Turn release valve handle (4) fully clockwise. Remove handle locating screw (6) and pull handle (4) from valve spindle. Ensure that spring (7) tang is
engaged with valve cylinder nut (8). Align screw hole in handle with hole in spindle and, with spring tang engaged in appropriate hole inside handle, push
handle onto spindle. Rotate handle (4) 1/2 turn anticlockwise, to tension spring, and refit locating screw (6).
5. FAULTS
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
INFORMATION: For a copy of our latest catalogue and promotions call us on 01284 757525 and leave your full name and address, including postcode.
01284 757500
01284 703534
[e-mail]
Sole UK Distributor, Sealey Group,
Kempson Way, Suffolk Business Park,
Bury St. Edmunds, Suffolk,
IP32 7AR
www.sealey.co.uk
Web
email
Original Language Version W50T.V2 Issue: 2 - 19/10/09

Sole UK Distributor,
Sealey Group,
Bury St. Edmunds, Suffolk. 01284 757500 E-mail: [e-mail]
Web: www.sealey.co.uk
01284 703534
PARTS LIST FOR:
WHEEL REMOVAL TROLLEY
Model: W50T.V2
Issue: 1
Date Issued: 041002
Item Part No. Description
1 100/60011 Bottom Frame
2 100/60012 Lifting Frame
3 100/60013 Extracting Tube
4 100/60014 Wheel Support
5 100/6001500 Roller
6 100/60016 Wing Bolt
7 100/1700700 Pin, Front Lifting Frame/Hyd.
8 100/6000700 Axle, Roller
9 100/1600800 Axle, Wheel
10 100/90830 Pump Complete
11 100/02005 Nut
12 100/02121 Washer
13 100/02204 Circlip
14 100/02224 Circlip
15 100/02369 Plug
16 100/02372 Plug
17 100/02390 Handle
18 100/02443 Wheel
19 100/0253300 Pivoting Wheel
20 100/02549 Bolt
21 100/0255500 Bushing
- 100/0903800 Repair Kit
