DIESEL INJECTOR PULLER
CITROEN/PEUGEOT
Model no: VS2005.V2
1. SAFETY
WARNING! Ensure Health and Safety, local authority and general workshop practice regulations are adhered to when using tools.
WARNING! Always use caution when working around fuel systems. The fuel in the fuel rail may be pressurised even if the engine is not
running.
IMPORTANT: These instructions are provided as a guide only. Always refer to the vehicle manufacturer’s service instructions,or a
proprietary manual, to establish the current procedure and data, also any warnings or cautions particular to the vehicle.
8DO NOT use the set if any parts are missing or damaged.
8DO NOT use this tool for any purpose other than that for which it is designed.
9Switch off vehicle’s ignition and disconnect the battery before commencing work under the bonnet.
8Never lay tools on the vehicle’s battery. This may short the terminals
together, causing harm to yourself, the tools, or the battery.
9Operate in a well ventilated area. DO NOT inhale fuel vapours.
9Wear approved eye protection. A full range of personal
safety equipment is available from your Sealey stockist.
9Wear suitable clothing to avoid snagging. DO NOT wear
jewellery and tie back long hair.
9Keep children and other unauthorised persons away from
the working area.
9Keep yourself, tools, and test equipment away from hot engine parts.
9Always keep a re extinguisher close by, that is suitable for
fuel/electrical/chemical res.
8NEVER smoke or have open ames near vehicle.
9Always relieve fuel pressure before disconnecting fuel
lines from injectors.
9Use a rag to cover fuel line ttings, when connecting or
disconnecting fuel lines. Avoid contact with fuel.
9Clean up all fuel spills immediately and dispose of all rags properly.
9Maintain the tool components in good and clean condition
for best and safest performance.
9When work on the vehicle is nished, ensure all connections
on vehicle are restored, and that there are no tools left in the
engine bay.
9Replace tools in the carrying case and store in a safe, dry,
childproof location.
2. INTRODUCTION
Comprehensive set for removing Citroen/Peugeot 2.0/2.2HDi 16v
fuel injectors. Allows the removal of seized injectors without the need
to remove the cylinder head. Bridge ts perfectly on the cylinder head
preventing damage to the area surrounding the injector.

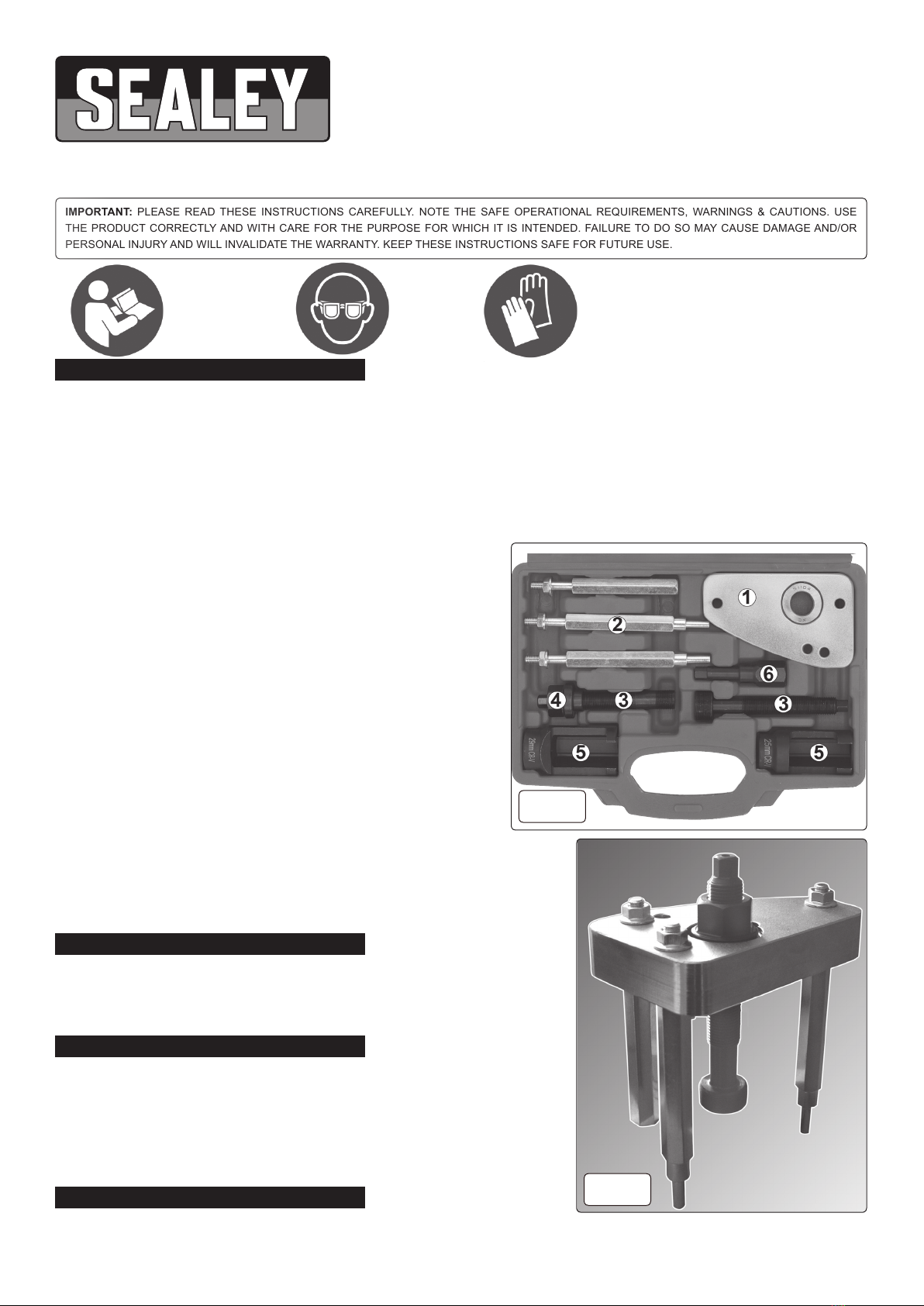

3. CONTENTS (g.1)
1 Bridge
2 3 x Bridge Legs
3 2 x Force Screws - Thread 17mm, 25mm x Pitch 1mm
4 Force Screw Nut
5 Injector Sockets 25mm, 29mm
6 Security Hex Key - ½”sq. drive
4. ASSEMBLY
4.1. Referring to the individual components in g.1. assemble the Injector Puller minus the force screw as shown in g.2. overleaf.
A different conguration of the bridge legs may be needed depending on engine.
g.1
g.2
