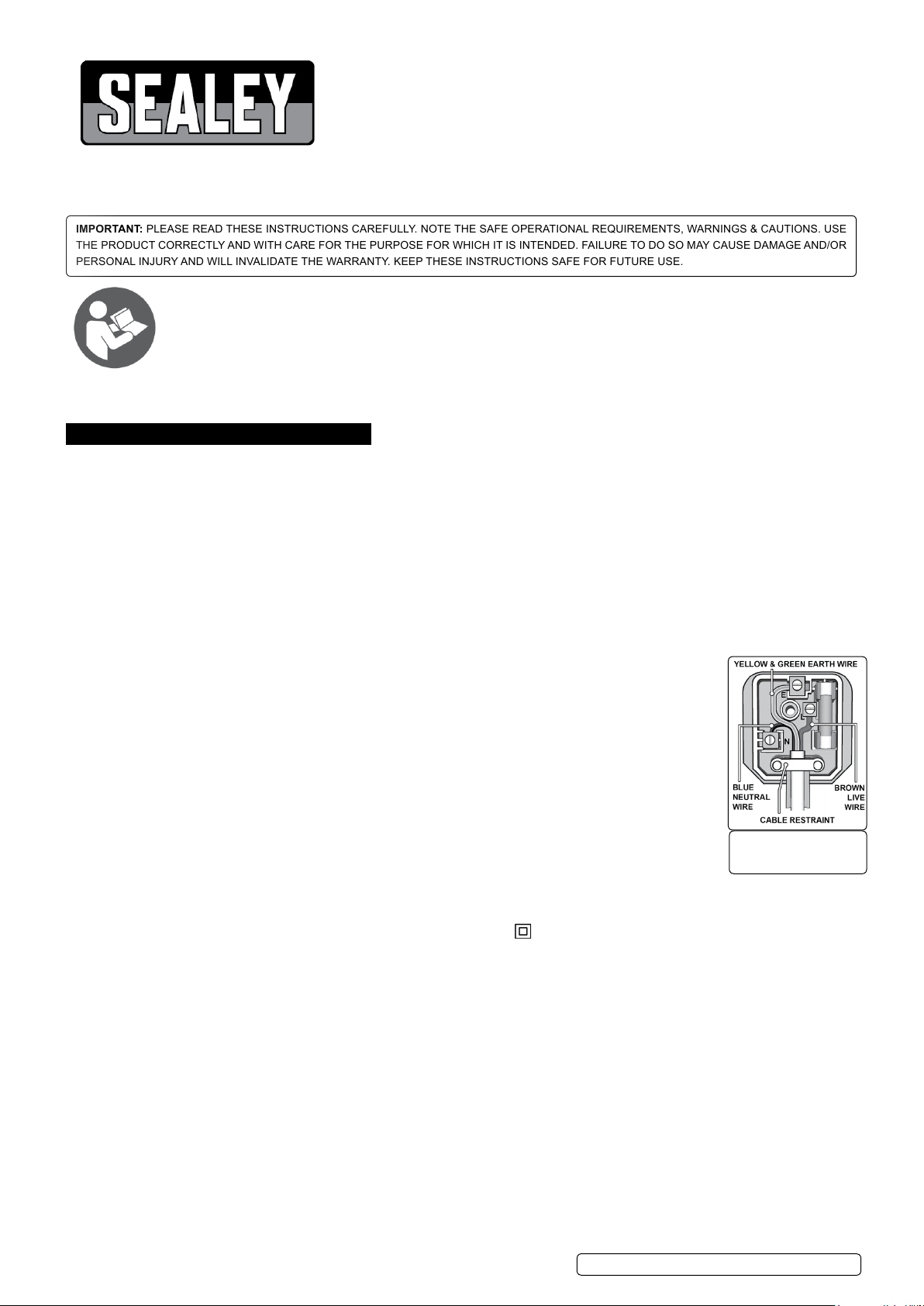

INSTRUCTIONS FOR
VACUUM CLEANERS AND FRONT MOUNTED
SQUEEGEES
MODEL NO: PC477,PC477AK1
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
1.1. ELECTRICAL SAFETY
WARNING! It is the responsibility of the owner and the operator to read, understand and comply with the following:
You must check all electrical products, before use, to ensure that they are safe. You must inspect power cables, plugs, sockets and
any other connectors for wear or damage. You must ensure that the risk of electric shock is minimised by the installation of appropriate
safety devices. A Residual Current Circuit Breaker (RCCB) should be incorporated in the main distribution board. We also recommend
that a Residual Current Device (RCD) is used. It is particularly important to use an RCD with portable products that are plugged into a
supply which is not protected by an RCCB. If in any doubt consult a qualified electrician. You may obtain a Residual Current Device by
contacting your Sealey dealer. You must also read and understand the following instructions concerning electrical safety.
The Electricity at Work Act 1989 requires all portable electrical appliances, if used on business premises, to be tested by a qualified
electrician, using a Portable Appliance Tester (PAT), at least once a year.
The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of those appliances
and the safety of the appliance operators. If in any doubt about electrical safety, contact a qualified electrician.
Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply and use a Portable
Appliance Tester.
9Ensure that cables are always protected against short circuit and overload.
9Regularly inspect power supply cables and plugs for wear or damage and check all
connections to ensure that none are loose.
9Ensure that the voltage marked on the appliance matches the power supply to be used and that the plug is
fitted with the correct fuse - see fuse rating.
8DO NOT pull or carry the appliance by the power cable.
8DO NOT pull the plug from the socket by the cable.
8DO NOT use worn or damaged cables, plugs or connectors. Immediately have any faulty
item repaired or replaced by a qualified electrician. When an ASTA/BS approved UK
3 pin plug is damaged, cut the cable just above the plug and dispose of the plug safely.
Fit a new plug according to the following instructions (UK only).
a) Connect the GREEN/YELLOW earth wire to the earth terminal ‘E’.
b) Connect the BROWN live wire to the live terminal ‘L’.
c) Connect the BLUE neutral wire to the neutral terminal ‘N’.
d) After wiring, check that there are no bare wires, that all wires have been correctly connected, that the cable outer insulation extends
beyond the cable restraint and that the restraint is tight.
Double insulated products, which are always marked with this symbol , are fitted with live (brown) and neutral (blue) wires only.
To rewire, connect the wires as indicated above - DO NOT connect either wire to the earth terminal.
Products which require more than 13 amps are supplied without a plug. In this case you must contact a qualified electrician to
ensure that a suitably rated supply is available.
1.2. GENERAL SAFETY
9Disconnect the cleaner from the power supply before servicing, changing accessories, or performing any maintenance.
9Use only genuine parts and accessories. Unauthorised parts and accessories may be dangerous and will invalidate your warranty.
9Maintain the cleaner in good condition. Use an authorised agent for servicing. Keep machine clean, but DO NOT use solvents.
8DO NOT operate the unit without a filter in place as this will cause machine faults and will invalidate your warranty.
9Use only the paper cartridge filter specified for dry vacuuming.
9Use only the cloth filter specified for wet vacuuming.
9Wear protective clothing and gloves.
8DO NOT allow children or untrained persons to operate the cleaner.
8DO NOT place attachments close to your face (especially eyes, ears).
8DO NOT point the hose end at other persons or animals.
▲DANGER! DO NOT vacuum very fine powders,hot or glowing ash, inflammable,explosive, corrosive or other dangerous substances.
8DO NOT leave the machine running unattended, turn power supply OFF.
8DO NOT leave the vicinity until motor has come to a complete stop.
8DO NOT operate the cleaner when you are tired or under the influence of alcohol, drugs or intoxicating medication.
8DO NOT use the cleaner in the rain or in very damp conditions.
PC477,PC477AK1.V2 | Issue 4 05/12/16
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Recommended fuse rating
13 Amp

8DO NOT use the cleaner for a task it is not designed to perform.
8DO NOT tilt or drop the cleaner.
8DO NOT place the cleaner close to a heat source.
9When not in use, store the cleaner in a safe, dry, childproof location.
2. INTRODUCTION
High powered, lightweight industrial units. Stainless steel drum with dual
ltration system for superior performance. Features safety shut-off for wet
operation. Trolleys with swivel bin and two rear locking wheels for easy
emptying plus front swivel castors for added maneuverability. Foot operation
for squeegee adjustment. Supplied with Ø38mm accessory kit, 3.2mtr cable
with 3 pin plug, cloth and cartridge lters. PC477 is tted with twin motors
offering superior vacuuming power to collect any type of solid from dust to
rubble and is particularly suitable for industrial and commercial applications
where extra capacity and power are required to clean large areas or large
volumes of waste. PC455 features blower facility. Optional front mounting
squeegee available, as illustrated in g.9.
3. SPECIFICATION
Model No.............................................................................PC477
Motor Power........................................................................2400W
Supply....................................................................................230V
Air Flow............................................................................174m³/hr
Drum Size...............................................................................77ltr
Weight....................................................................................39kg
Vacuum Accessories Ø........................................................38mm
Filter Type...................................................................Paper, Cloth
Replacement Paper Filter...............................................PC477.PF
Replacement Cloth Filter Basket....................................PC477.CF
Optional Squeegee......................................................PC477AK1
Overall Squeegee Length....................................................670mm
4. ASSEMBLY
4.1. Hose Installation. Fig. 1.
4.1.1. Fully insert the hose into the suction coupler on the main drum.
It will automatically snap into place.
4.1.2. To release the hose, slide the release knob in the direction of the
arrow and pull the hose out of the suction coupler.
4.2. Filter Removal. Fig. 2a/2b
4.2.1. To access the lter, unclip and remove the upper part of the
4.2.2. cleaner from the metal tank.
4.2.3. To change the paper cartridge lter push the retaining clip in the
direction of the arrow (g.2b) and remove the lter from the motor
unit.
4.2.4. For wet vacuuming remove the paper cartridge lter and install
the fabric lter over the lter basket. The lter basket (g.2a) sits
in the top of the drum and is held in place when the upper part of
the vacuum cleaner is clipped onto the tank.
4.3. Locking and Unlocking the Tank. Fig. 4.
4.3.1. Lock the tank to the frame support by pushing the knobs DOWN.
4.3.2. Unlock the tank from the frame support by pushing the knobs UP.
4.3.3. When the tank is unlocked it can be lifted from the frame.
4.3.4. The tank must only be tipped for emptying in the locked position.
g.13.
5. OPERATION
5.1. Nozzles
5.1.1. The brush nozzle is used on large, dry areas such as a oor
or a bed. Fig. 5.
5.1.2. The squeegee nozzle is used on water, cement or other
non-volatile substances. Fig. 6.
5.1.3. The round brush is used on small areas such as a sofa, window
or the corner of a oor. Fig. 7.
5.1.4. The crevice tool is used on narrow grooves or windows. Fig. 8.
g.1 g.2a
g.2b
g.4
g.5
g.6
g.7
g.8
PC477,PC477AK1.V2 | Issue 4 05/12/16
Original Language Version
© Jack Sealey Limited

5.2. Optional Squeegee. Figs. 9, 10 and 11.
5.2.1. The optional squeegee should be attached to the underside of the vacuum cleaner Fig. 11.
5.2.2. Depress the operating pedal. The squeegee will drop on to the surface to be cleaned. Fig. 10.
5.2.3. If necessary, adjust the height of the squeegee using the buttery nut at the front of the cleaner. This sets the height of the front guide
wheel. Fig. 9.
5.2.4. With the squeegee in contact with the surface to be cleaned, lock the guide in position.
5.2.5. Operate the squeegee by pushing the vacuum cleaner across the area to be cleaned.
5.2.6. When cleaning is completed, raise and lock the squeegee by depressing the rest and lock pedal.
6. CLEANING AND MAINTENANCE
6.1. Cleaning
NOTE: If the suction is weak, remove the paper or fabric lter and remove the dust by hand patting the lter.
6.1.1. Remove the vacuum cleaner head to access the lter. Fig. 12.
6.1.2. Remove all dust on the lter. Clean and if necessary air-dry the lter for further use.
6.2. Emptying the Tank
6.2.1. Position the cleaner next to a suitable container or drain. Lock tank onto frame. Fig.4. Put the rear wheel locks on. Hold the frame handle
with one hand and lift the tank to the emptying position using the tank handle. Fig. 13.
7. TROUBLESHOOTING
Cleaner will not operate. No power supply.
Faulty power cable, switch or motor.
Container full of liquid.
Check supply.
Check and repair or replace faulty item.
Empty container.
Dust comes from the motor cover. Filter missing or damaged. Fit or replace.
Reduced efciency and increased
motor speed/vibration.
Filter clogged.
Nozzle, hose or bin inlet blocked.
Replace or clean lter.
Check nozzle, hose and bin inlet for
blockage.
g.9
g.10
g.11
g.13
g.12
PC477,PC477AK1.V2 | Issue 4 05/12/16
Original Language Version
© Jack Sealey Limited

NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
Sole UK Distributor, Sealey Group.
Kempson Way, Suffolk Business Park,
Bury St. Edmunds, Suffolk.
IP32 7AR
www.sealey.co.uk
[e-mail]
01284 757500
01284 703534
Environmental Protection
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be
sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment.
When the product becomes completely unserviceable and requires disposal, drain off any fluids (if applicable)
into approved containers and dispose of the product and the fluids according to local regulations.
WEEE Regulations
Dispose of this product at the end of its working life in compliance with the EU Directive on
Waste Electrical and Electronic Equipment (WEEE). When the product is no longer required, it must be disposed
of in an environmentally protective way. Contact your local solid waste authority for recycling information.
Parts support is available for this product. To obtain a parts listing and/or diagram,
please log on to www.sealey.co.uk, email [e-mail] or telephone [phone].
