Sebo duo User manual

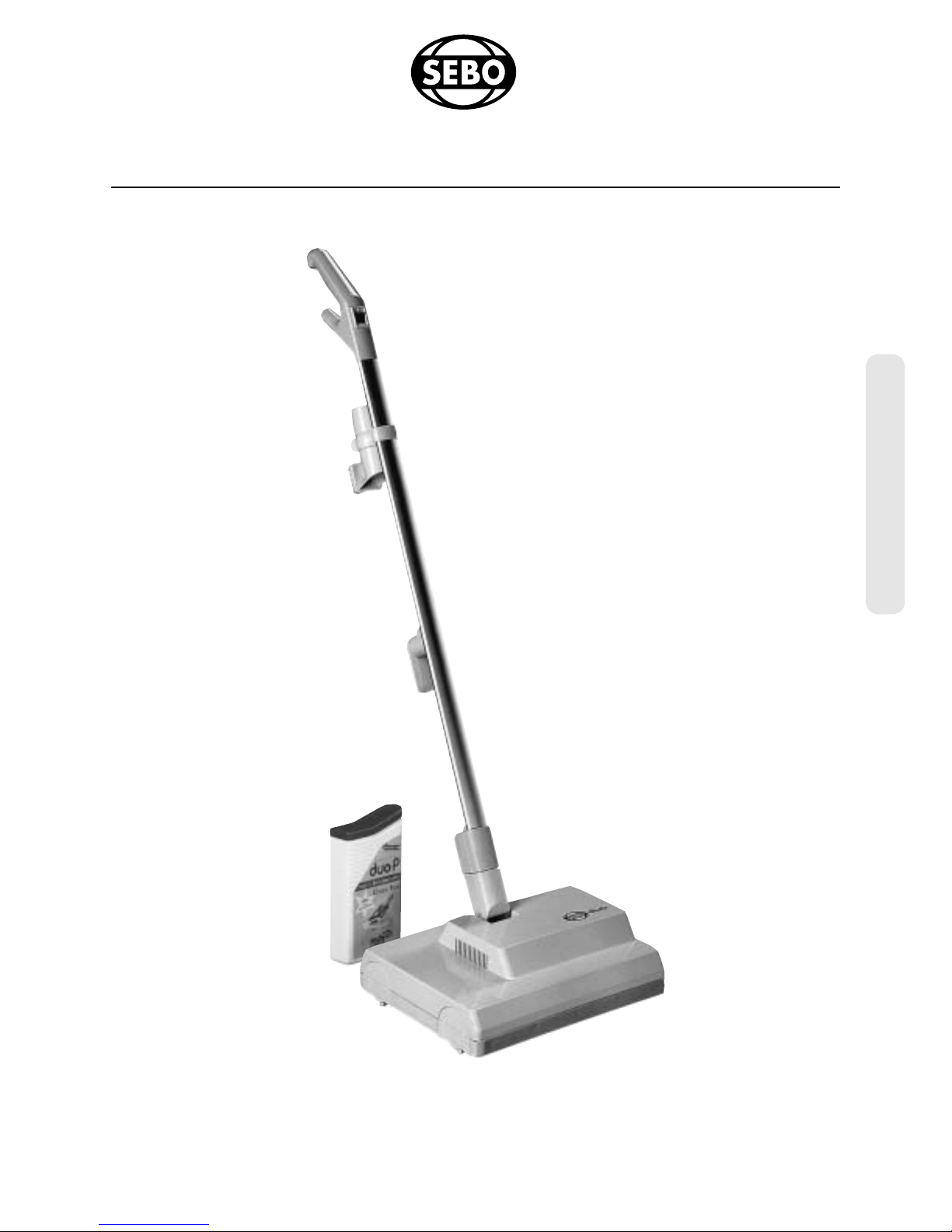

SEBO duo Brush Machine
For Household Use Only
©Copyright SEBO America, LLC • All rights reserved.
ENGLISH

Wiring Diagram
Brush motor 1.8 amps
Width 14 inches
Height 4-11/16 inches
Body weight 11 lbs.
Brush speed 400 rpm
Cord length 40 feet
120 VAC 50-60 Hz
Technical Details
Technical Details 2
Wiring Diagram 2
Important Safety Instructions 3
SEBO duo Carpet Cleaning System Product Features 4
The Advantages of using the SEBO duo Cleaning System 4
How it Works 4
The SEBO duo-P Powder 4
Identification of Parts 5
Standard Accessories 5
Assembly 5
Operating Instructions 6
How to Use the duo Cleaning System 7
To Clean the Entire Carpet 7
To Spot Clean Stains 7
Important Product Tips 7
Maintenance 8
Removing the Brushes 8
Cleaning the Brushes 8
Replacing the Brushes 8
Trouble-Shooting Guide 8

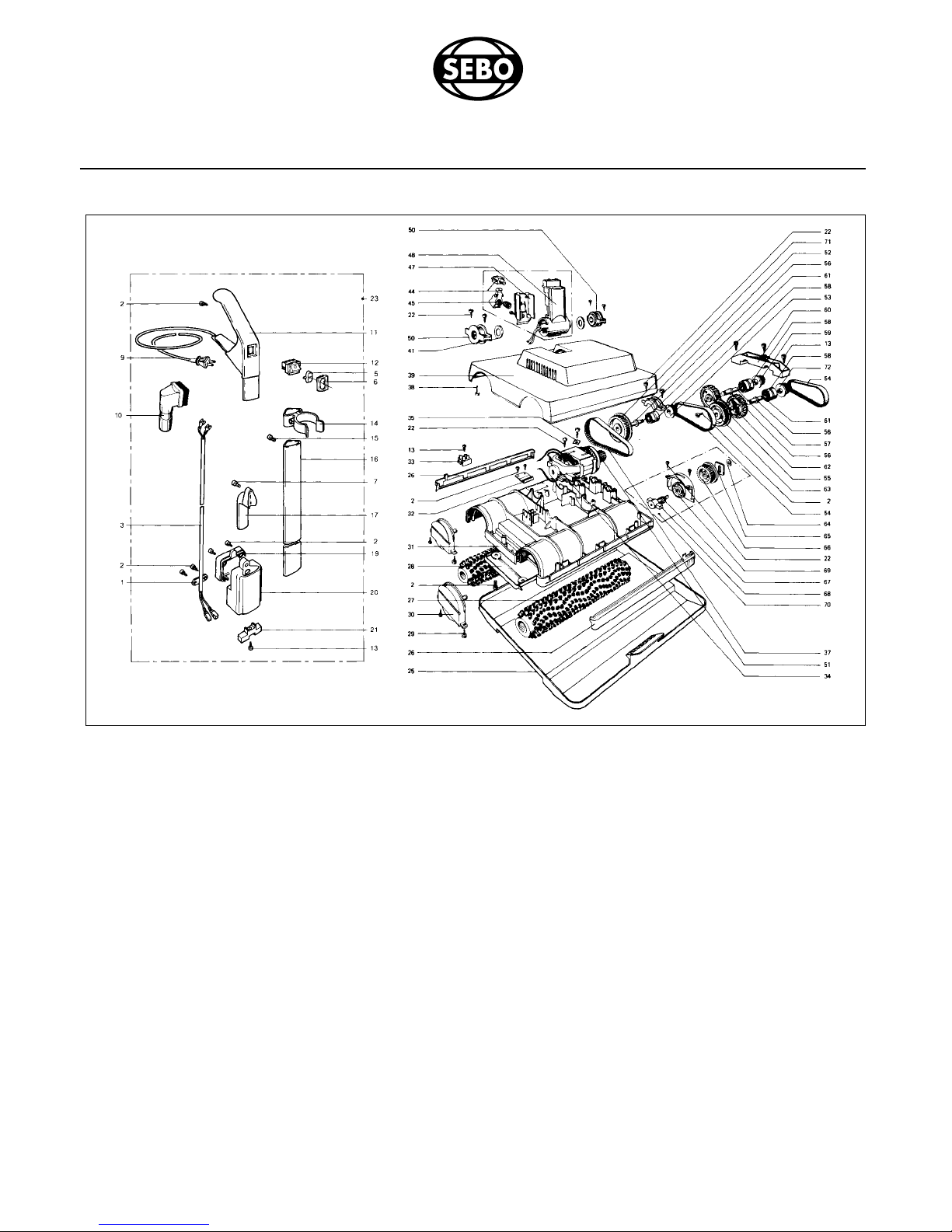

duo Brush Machine Schematic and Part Numbers 9
Warranty 10
HowTo Contact SEBO 10
Recommended Upright Vacuums 11
Recommended Canister Vacuums 12
Page 2
SEBO duo Brush Machine Owner’s Manual
Table of Contents

Page 3
1. Do not leave brush machine while plugged in. Unplug
from outlet when not in use and before servicing.
2. Do not use outdoors or on wet surfaces.
3. Do not use near small children or pets. Do not allow
to be used as a toy. Use of this product by children
should always be supervised by an adult.
4. Use only as described in this manual. Use only
manufacturer-recommended attachments.
5. Do not use with a damaged cord or plug. If brush
machine is not working as it should, has been
dropped, damaged, left outdoors, or dropped into
water, take it to a SEBO service center.
6. Do not pull or carry by cord, use cord as a handle,
close a door on cord, or pull cord around sharp
edges or corners. Do not run machine over cord.
Keep cord away from heated surfaces.
7. Do not unplug by pulling on cord. To unplug, grasp
the plug – not the cord.
8. Do not plug in if switch is in the “I” (ON) position.
9. Do not use outlets above counters to plug in brush
machine – damage to items in the surrounding area
could occur.
10. Always carry the machine over steps and sills.
11. Do not handle plug or vacuum handle with wet hands.
12. Donot put any object into machine openings. Do not use
machine with any openings blocked. Keep openings
free of lint, hair, and anything that may reduce air flow.
13. Do not remove any screws from machine.
14. Do not run machine over anything that is burning or
smoking, such as cigarettes, matches, or hot ashes.
15. Turn off all machine controls before unplugging.
16. Use extra care when cleaning on stairs.
17. Do not turn on the machine with the storage tray still
attached.
18. Do not use machine to clean up flammable or
combustible liquids such as gasoline or use in areas
where they may be present.
19. Machines can cause a fire when operated near
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE
!
When using an electrical appliance, basic precautions must always be followed.
To reduce the risk of electric shock, this brush machine has a polarized plug;one blade is wider than the other.
This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If
it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.
Connect only to the outlet type specified on the serial number plate underneath the machine.
SAVE THESE INSTRUCTIONS.
WARNING: To reduce the risk of fire, electric shock, or injury:
flammable vapors or materials. Do not operate this
machine near flammable fluids, dust or vapors.
20. Maintenance and repairs must be done by qualified
personnel.
21. Use only original SEBO replacement parts.
22. Do not use machine as a step.
23. Do not leave machine standing in one place with
machine turned on. This may damage carpet.
24. Keep hair, loose clothing, fingers, and all parts of body
away from machine openings and moving parts. Do not
place fingers or other body parts under machine, unless
it is unplugged.
25. Do not place the brush head over fringes on a carpet or rug.
26. Store the brush machine in a dry place at room temper-
ature. When the machine is not in use, you should wrap
the cord on the cable hooks.
27. Any other servicing should be performed by an
authorized service representative.
The quality, condition, coating, texture, age and manu-
facturing technique of all floor surfaces vary. Therefore,
machines with rotating brushes, including your SEBO
duo brush machine, may damage some floor coverings
or surfaces.Berber carpets, long shag, specialty and del-
icate or hand-woven carpets are particularly vulnerable to
damage by rotating brushes. Always consult the materi-
als supplied by your floor’s manufacturer for information
on proper upkeep and cleaning. To ensure that your
new SEBO duo brush machine is compatible with
your floor coverings, please test the duo-P cleaner
and brush machine on each type of carpeting in a
small inconspicuous area to determine if any dam-
age occurs. If damage occurs, stop using the brush
machine and powder immediately!
An operating machine should not stand stationary on
the floor for inappropriate periods of time. Damage
could occur. Do not run the machine on flooring not
covered by carpet.
WARNING! !

Page 4
Your SEBO duo Cleaning System is formulated to deep clean your entire carpet or spot clean stubborn stains
without soaking your carpet. Dry cleaning is safer for most carpets – it will not shrink the carpet or cause water
staining if applied unevenly. SEBO
duo- PCleaning Powder leaves no detergent residue to cause your car-
pet to resoil, and the carpet can be used immediately after cleaning.
Because this is a DRY cleaning process, the SEBO
duo- PCleaning Powder will not promote the growth of
mold and fungus in your carpet and pad that wet extraction systems may cause. In addition, the GAF aller-
gy research center in Germany found in a long term test that, six months after a single cleaning with duo-P,
seven out of ten carpets remained free of dust mite allergens.
The Advantages of using the SEBO duo Cleaning System are:
• No detergent residue • No shrinkage or mildew
• Alleviates house dust allergies • No need to move furniture
• Easy spot cleaning • Cleans most types of carpets
• A built-in fiber protector helps to protect • Immediate use of the carpet
your carpet against future stains and soil
How it Works:
The SEBO duo-P Cleaning Powder is made up of granules that are moistened with detergent and is envi-
ronmentally friendly and safe to use.When the granules are worked into the carpet fiber, soil and stains are
lifted out of the carpet by the duo-P powder.The duo Brush Machine lifts the carpet pile ensuring all surfaces
of the fiber are cleaned, leaving your carpet revived and softer. After vacuuming, the
duo-P powder is
removed, and your carpet is left clean, dry and ready for use.
An added advantage in using duo-P Cleaning Powder on your carpet is that once applied, a built-in fiber pro-
tector will help to protect against future damage from soiling or staining.
The duo-P Cleaning Powder:
SEBO duo Carpet Cleaning System Product Features
Refill boxes are available as a single (1.1 lb.) or a multiple with five (1.1 lb
each) packs. Each single pack can cover up to 250 square feet of carpet.
The SEBO duo-P Clean Box contains a 1.1 lb. pack in an environ-
mentally friendly refillable container, and the underside of the lid
has a built-in brush for spot cleaning! When you have used the
contents, you can replace the inner bag with an inexpensive refill
pack of duo-P Cleaning Powder.
The SEBO duo Accessory Brush is perfect for cleaning small areas
such as entryways and stairs.

Page 5
1. Handle
2. On/Off switch
3. Cable hooks
4. Handle connector
5. Swivel neck
6. Brushes
7. Storage tray
8. Spot cleaning brush
Identification of Parts
Press the plunger button (10) and insert the handle (1) into the swiv-
el neck (5). With the plunger button released, the handle should
remain firmly engaged. Pushing the handle forward sets the handle
into the storage position. Pulling back releases the handle into the
operating position.
Assembly
7
8
3
2
8
1
4
5
6
7
5
10
6
3
7. Storage tray
8. Spot cleaning brush
9. duo-P Cleaning Powder
Standard Accessories
9

Page 6
A. Before turning on your brush machine, remove the machine from
the storage tray (7) by pressing down the catch (15) and lifting the
machine upwards by the handle (figure 1).
To replace the machine into the storage tray after use, first unplug the
machine, then lower the head onto the tray until the tray snaps into place
(figure 2).
Starting The Machine
B. Before turning on your brush machine, make sure that the storage
tray has been removed (see above) and that you have a firm hold on the
handle grip to keep the machine from moving forward.
1. Turn the quick release cable hook (14) to the up position
by moving it to the left or right.
2. Release the power cord plug from the power cord
and lift the cord (13) off of the upper cord hook.
3. With the switch (2) in the “O” (OFF) position, plug the
polarized power cord into a 120 volt outlet located
near the floor.
Switch Position
O = OFF
I=ON
Operating Instructions
Figure 1
Figure 2
15
7
13
14
2

Page 7
• For best results, vacuum carpet prior to applying duo-P powder.
• Check a small, inconspicuous area of the carpet for colorfastness.
• Absorb any moisture from carpet using white paper towels before applying duo-P
powder.
• Open window to speed drying.
• Reseal package after opening to maintain moisture.To ensure longer life of the
powder, seal all opened packages inside of a zip-lock bag.
• Only moist powder will effectively clean. If powder becomes dry before it is used
(e.g. powder left in an opened package), it will no longer work.
• Before using the SEBO duo-P Powder on your carpets, please read all instructions
and warnings provided with the powder and all the instructions and warnings in this
manual.
• Limited suitability for berber and needlepunch carpets.
• Use caution if cleaning berber or looped pile carpeting with the brushing
machine or when using the hand brushes.Test an inconspicuous area to
determine suitability. Do not used on hand-woven or dyed carpeting. Check
with the carpeting manufacturer for approved cleaning methods.
Important Product Tips:
First, vacuum your carpet prior to applying duo-P Powder.Then, spread duo-P Cleaning
Powder evenly over the carpet. This can be done by spreading the powder directly out of
the bag, or by spreading the powder by hand.Distribute the powder lightly, but evenly, over
the area to be cleaned (figure 1). You need not use an excessive amount of powder for
effective cleaning.
Work the powder into the carpet using the SEBO duo Brush Machine, which opens the
carpet pile enabling the duo-P powder to clean around each separate fiber (figure 2).
Once the duo-P powder has absorbed all of the dirt and the area is dry to the touch
(approximately 30 minutes), simply vacuum the area thoroughly (figure 5).
To Clean the Entire Carpet - Figures 1, 2 & 5
Figure 1
Figure 2
Figure 3
Figure 5
How to use the duo Cleaning System
Vacuum any loose dirt or debris from area. If soiled area is wet, use white paper towels to
absorb all moisture from the carpet.This will prevent the powder from “caking up” on the
carpet and the brush.Then, spread a small amount of duo-P powder onto the soiled area.
Gently work the powder into the carpet using the spot cleaning brush (page 5, #8), the
brush provided with the SEBO Clean Box (figure 3), or the the accessory brush (figure 4).
Older or more stubborn stains may require further treatments. Simply repeat the process
until the stain is completely removed.
Once the duo-P powder has absorbed all of the dirt and the area is dry to the touch
(approximately 30 minutes), simply vacuum the area thoroughly (figure 5).
To Spot Clean Stains - Figures 3, 4 & 5
Figure 4

PROBLEM
Does not turn on
or machine shuts off
intermittently
REASON
1. Handle not fully inserted into the
housing, causing a faulty connection.
2. Not plugged into good outlet.
3. Cable worn.
4. Brush has not been reinserted
properly.
5. Defective switch.
SOLUTION
1. See page 5 for how to insert
handle.
2. Use another outlet.
3. Replace cable.
4. See page 8 for how to replace
brush.
5. Return to your authorized SEBO
dealer for repair.
Trouble-Shooting Guide
Always unplug brush machine from outlet before dismantling any part of the machine!
!
Page 8
Removing the Brushes to Change or Clean -
Figures 7 & 8
Remove the brushes (6), by unscrewing the two screws (17) at
the end of each brush from the bearing block (18). Do not
remove the screws that are recessed.Push the top of the brush
and the block forward at the same time. Take the block off the
brush, then, lift the brush upwards out of the brush housing.
Cleaning the Brushes
The brushes must be removed from the machine to be
thoroughly cleaned.See instructions above for removing the
brushes. Clean by running your SEBO vacuum’s suction hose,
with crevice tool attached, up and down each brush to remove
dirt and powder. Some carpet fibers, dirt and debris may
require removal by hand. Replace the brushes - see instruc-
tions below.
A cursory cleaning of the brushes may be done without remov-
ing them, by unplugging the machine, turning the brush rollers
upright, and using your vacuum’s suction hose, with crevice
tool attached, to remove the loose dirt or powder.
Replacing the Brushes - Figures 8 & 9
To replace each brush, insert the end with the slots into the
housing and locate the slots over the drive cog (19) by turning
the brush. Push the brush forward slightly to enable the bear-
ing block (18) to be replaced, then push the block back into
place in the brush housing and replace the two screws (17).
Figure 7
Figure 8
Figure 9
Always unplug brush machine from outlet
before dismantling any part of machine!
!
One Replacement Brush
Part #3005 ER
Maintenance
17 18
19
6

Page 9
SEBO duo Brush Machine
Pos. Part # Description
11030 UL Cable clamp
20106 Screw 3.9 x 13 A2
33125 Handle cable
53137 DG Switch cap
63136 HG Switch cap holder
70127 Screw taptite M4 x 10
95353 HG Cable
10 3055 HG Spot cleaning brush
11 3142 HG Handle grip
12 0532 ER Rocker switch
13 0105 Screw 3.9 x 19
14 5352 HG Clamp
15 0129 Screw taptite M4 x 12
16 3115 Handle
17 3118 HG Cable hook
19 3027 HG Handle connector cover
20 3113 HG Handle connector
21 1020 UL Contact cover
22 0103 Screw 3.9 x 16
23 3122/H Handle cpl.
25 3033 Storage tray
26 2007 MG Bumper
27 3005 ER Brush assembly
28 3002 SW Base plate
29 0112 Screw M4 x 10 A2
30 3010 HG Bearing block RH
31 3001 HG Brush housing
32 3032 Handle stop spring
33 0502 Terminal block
34 3049 ER Motor 120 V
05084 S Carbon brush set
35 0141 Locking washer
Pos. Part # Description
37 3038 Drive belt
38 0116 Screw M4 x 30 A2
39 3004 SE Cover
41 0149 Spacer washer
44 2438 HG Plunger button, complete
45 2423 Spring
47 2022 HG Swivel neck cover
48 3111 HG Swivel neck complete
50 3051 Swivel neck support
51 3014 Motor pulley
52 3030 Clamp
53 3013 Pulley
54 3042 Drive belt
55 3022 Gear wheel
56 3036 Spacer
57 3037 Shaft RH
58 0222 Ball bearing
59 3015 Pulley
60 3039 Bridge
61 3035 Shaft LH
62 3021 Gear wheel
63 3018 Pulley
64 3071 Clip
65 3040 End plate
66 3009 Pulley
67 3028 Spring
68 3007 Brush drive cog
69 3074 HG Bearing block
70 3052 HG Bearing block assembly LH
71 3017 Pulley
72 3056 Pulley 12R/Ms
Schematic and Parts List

Page 10
SEBO duo Brush Machine Warranty
Three Years Non-Wear Parts - One Year Labor
EXCLUSIVE REMEDY:
The remedies provided under the terms of this Warranty are the purchaser’s exclusive remedies and are in lieu of any
other remedies otherwise available.
THE WARRANTY DOES NOT COVER:
• Used or secondhand products.
• Products outside of the warranty period.
• Items not manufactured by SEBO.
• Normal maintenance service.
• Equipment damaged by improper use,
accident, other casualty or negligence.
• Machines equipped with nonauthorized
attachments or modifications.
•Machines on which the serial number has
been altered or removed.
LIMITATIONS AND EXCLUSIONS:
SEBO MAKES NO OTHER REPRESENTATIONS OR WAR-
RANTIES, EXPRESSED OR IMPLIED AND SPECIFICALLY
EXCLUDES THE IMPLIED WARRANTIES OF MER-
CHANTABILITY AND FITNESS FOR PARTICULAR
PURPOSE.
SEBO WILL NOT BE LIABLE FOR INCIDENTAL OR CONSE-
QUENTIAL DAMAGES OF ANY KIND OR NATURE.
THIS DISCLAIMER OF IMPLIED WARRANTIES SHALL NOT
APPLY TO THE EXTENT SAID DISCLAIMER IS NOT
ALLOWED BY APPLICABLE STATE/PROVINCIAL LAW.
To contact SEBO in the United States of America:
SEBO America, LLC
Telephone: [phone] • [phone]
Fax: [phone]
E-mail: [e-mail]
Website: www.sebo.us
To contact SEBO in Canada:
Floor Care Equipment, Ltd.
Telephone: [phone] • [phone]
Fax: [phone]
E-mail: [e-mail]
1. Your authorized SEBO dealer or SEBO will provide
the original product purchaser with replacement of
Non-Wear Parts which fail due to a material or work-
manship defect for a period of three (3) years from
the original date of purchase of new product.
2. Your authorized SEBO dealer or SEBO will repair (or
SEBO will cover labor charges associated with
repair) a defective SEBO Brush machine at no
cost to the original purchaser, within one (1) year of
original purchase of new product.
3. SEBO America, Floor Care Equipment, Ltd., or an
authorized SEBO dealer must complete all warranty
repairs.
4. To locate an authorized SEBO dealer in your area,
or to register a warranty claim in the United States
of America, please call SEBO America at
[phone].
5. To locate an authorized SEBO dealer or to register a
warranty claim in Canada, please call Floor Care
Equipment, Ltd. at [phone].
6. The warranties provided for above apply exclusively
to SEBO Brush Machines which are used residen-
tially. No warranty is provided for SEBO Brush
Machines used commercially.
7. The Wear Parts excluded from warranty coverage
include the cable (external cord), the brush rollers
and the spot cleaning brush.
8. This warranty applies only while your SEBO Brush
Machine is physically located within the United
States of America and its territories or Canada.
9. The purchase receipt showing the date, price, and
item of purchase is the initial document of proof of
purchase and determines the validity of warranty.To
be certain that your warranty claim can be
processed as quickly and efficiently as possible,
please retain your original purchase receipt and mail
in the warranty card provided with your new SEBO
Brush Machine.
10. This warranty gives you specific legal rights.You may
also have other legal rights, which vary from
state/province to state/province.
11. SEBO America will not process nor will it accept
responsibility for warranty claims for machines
purchased from dealers located in Canada.
Floor Care Equipment, Ltd. will not process nor will it
accept responsibility for warranty claims for
machines purchased from dealers located in the
United States.
