SECO-LARM SD-997A-GBQ User manual

Electric Deadbolts
Installation Manual
SD-997B series shown
Model Operating Voltage Fail-Safe/Secure Delay Timer
SD-997A-GBQ 12/24 VDC Fail-secure 0/3/5/9 secs
SD-997BQ 12VDC Fail-safe 0/2.5/5/9 secs
SD-997B-GBQ 12/24 VDC Fail-safe 0/2.5/5/9 secs
SECO-LARM Electric Deadbolts add concealed deadbolt security to most wood or hollow metal
doors, with the convenience of electrical operation. They are designed for hollow metal door frames
and not recommended for wooden door frames, though the door can be wood or metal.
 Stainless steel for strength and long life with stainless steel bolt, 5/8" diameter, 5/8" throw
 Magnetic switch senses door position for positive locking
 Door open/close monitor (NO/NC/COM)
 Adjustable door lock delay timer
 Shallow design for use with most metal door jambs
 Powered by a solenoid
SD-997A-GBQ & SD-997B-GBQ includes all the above features plus:
 Attempts to relock multiple times if the door is not closed properly
 Dual voltage – 12/24 VDC

SECO-LARM Electric Deadbolts
2 SECO-LARM U.S.A., Inc.
Parts List
1x Electric deadbolt 2x Mounting tabs (small) 1x Strike plate 4x Templates 1x Manual
1x
6
-
Pin connector*
2x
Mounting tabs (large)
1Pkg
Mounting screws
1x
Faceplate
3x
Keys
†
1x 3-Pin connector*† 1x Manual lock cylinder† 2x Oval cylinder plate†
*Do not cut the plugs from the wiring connectors as this will void the warranty †SD-997A-GBQ only
Specifications
Model SD-997A-GBQ SD-997BQ SD-997B-GBQ
Operation type Fail-secure Fail-safe
Operating voltage 12/24 VDC 12VDC 12/24 VDC
Current
draw
Standby 330mA@12VDC, 205mA@24VDC 340mA@12VDC, 180mA@24VDC
Active 880mA@12VDC, 470mA@24VDC 900mA@12VDC, 440mA@24VDC
Door status sensor SPDT 250mA@12VDC (NO/NC/COM)
Lock delay timer 0/3/5/9 sec (adjustable) 0/2.5/5/9 sec (adjustable)
Operating humidity 0~85% non-condensing
Operating temperature 32~194° F (0~90° C)
Dimensions
Lock 77/8"x11/4"x19/16" (200x31.8x40.5 mm)
Strike plate 39/16"x1"x1/8" (90x25.7x3 mm)
Weight 2-lb 5-oz (1kg) 1-lb 13-oz (0.8kg)
Overview
Mounting Location
The deadbolt can be mounted opposite the door hinges, or on
the header or on top of the door away from the hinges (see
Fig. 1). Mounting on the bottom of the door is not recommended
because of the possibility of dirt and dust buildup.
NOTE: If mounted vertically, the SD-997B series must be
mounted so the wires exit from the top of the device.
1"
25.7mm)
15/16"
(24.5mm)
Dimensions originally taken
in millimeters. Inches are
closest 1/16" approximation.
39/16"
(90mm)
11/4"
(31.8mm)
3/4" (19.3mm)
21/4"
(57.5mm)
3/4" (19mm)
5/8"
(16mm)
Throw
1/8"
(3.5mm)
63/8" (162mm)
11/2"
(37.5mm)
SD-997A-GBQ
11/16" (18mm)
SD-997B Series
17/16" (37mm)
31/8"
(80mm)
21/4"
(57.5mm)
15/16" (24.5mm)
5/8"
(16mm)
Throw
1/8"
(3mm)
51/2" (140mm)
11/2"
(37.5mm)
77/8" (200mm)
7/32" (5.6mm) 5/8" (16mm) Bolt
41/8"
(105mm)
Fig. 1

SECO-LARM Electric Deadbolts
SECO-LARM U.S.A., Inc. 3
Installation
1. Tape the templates to the door frame and door (see Fig. 2).
a. Align the templates so that the deadbolt of the lock body template is
centered on the deadbolt hole of the strike plate template.
b. For metal doors, make sure to leave enough space at the ends of the
lock body and strike plate templates for the mounting tabs.
2. In the door frame, cut out the space for the lock body (see Fig. 3) and, for
SD-997A-GBQ, the holes for the manual lock cylinder (see Manual
Lock/Unlock Cylinder, pg. 4).
3. Test the fit. The lock body should fit snugly inside the space.
4. Drill two 3/16" (5mm) screw holes as on the
template, one for each mounting tab, and use
screws to affix the mounting tabs inside the door
jamb.
5. For wood doors (For metal doors, skip to step 6),
a. Drill a 1/2" (12mm) magnet hole 3/8" (9mm) deep.
b. Use a chisel to knock out the 1/8" (3mm) deep
space as shown on the template.
c. Use 4 wood screws to mount the strike plate in
the chiseled space. The magnet should fit in the
magnet hole.
d. Drill the deadbolt hole to 5/8" (16mm) depth.
6. For hollow metal doors,
a. Cut out the space for the strike plate.
b. Drill 2 screw holes for each of the mounting tabs.
c. Use screws to fix the mounting tabs inside the hollow metal door.
d. Screw the strike plate to the mounting tabs.
7. Set the door lock delay timer (see Setting the Door Lock Delay Timer, pg. 4).
8. Connect the wires (see Wiring Diagram, pg. 4) and insulate them.
9. Carefully push the wires into the door frame and insert the lock body, taking care not to crimp any
wires. Insert the manual lock cylinder for SD-997A-GBQ (see Manual Lock/Unlock Cylinder, pg. 4).
Remove the faceplate's vinyl covering and place the faceplate over the face of the lock body. Screw
the faceplate and lock body to the mounting tabs.
IMPORTANT NOTES (SD-997A-GBQ & SD-997B-GBQ ONLY)
 The lock body and strike plate must be properly aligned and in close proximity for the product to
function properly. The gap between the two should be within 3/8" (10mm) or less. The lock body has a
sensor to detect when the strike plate is near to determine whether the door is closed. If the door is not
opened within 4 seconds after an egress button is triggered, the deadbolt automatically relocks.
 If the strike plate is not properly aligned, the sensor may indicate the door is closed, and yet the deadbolt is
unable to extend. In this case, the lock repeatedly tries to relock and, if unsuccessful, eventually stops to
prevent solenoid burnout.
 If the lock body and strike plate are too far apart, the sensor cannot detect it and the lock body will not
attempt to lock the door.
Fig. 2
Lock body
template
Strike plate
template
Fig. 3 Max. 1" (50mm) (SD-997A-GBQ)
13/4" (44mm)
13/16" (20mm)
39/16"
(91mm)
15/16" (33mm)
17/8" (48mm)
Secure manual lock cylinder
to lock body after installation,
SD
-
997A
-
GBQ only

SECO-LARM Electric Deadbolts
IMPORTANT:
Users and installers of this product are responsible for ensuring that the installation and configuration of this product com
plies with all national, state,
and local laws and codes. SECO-LARM will not be held responsible for the use of this product in violation of any current laws or codes.
California Proposition 65 Warning:
These products may contain chemicals which are known to the State of California to cause cancer and birth defects or other
reproductive harm. For more information, go to www.P65Warnings.ca.gov.
WARRANTY:
This SECO
-
LARM product is warranted against defects in material and workmanship while used in normal service for
one
(
1
)
year from the date of sale
to the original customer. SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepa
id, to
SECO-LARM. This Warranty is void if damage is caused by or attributed to acts of God, physical or e
lectrical misuse or abuse, neglect, repair or alteration, improper
or abnormal usage, or faulty installation, or if for any other reason SECO-
LARM determines that such equipment is not operating properly as a result of causes other
than defects in material and workmanship. The sole obligation of SECO-
LARM and the purchaser’s exclusive remedy, shall be limited to the replacement or repair
only, at SECO-LARM’s option. In no event shall SECO-LARM be liable for any special, collateral, incidental, or consequent
ial personal or property damage of any
kind to the purchaser or anyone else.
NOTICE:
The SECO
-
LARM policy is one of continual development and improvement. For that reason,
SECO
-
LARM
reserves the right to change specifications without
notice. SECO-LARM is also not responsible for misprints. All trademarks are the property of SECO-LARM U.S.A., Inc. or their respective owners. Copyright © 2023
SECO-LARM U.S.A., Inc. All rights reserved.

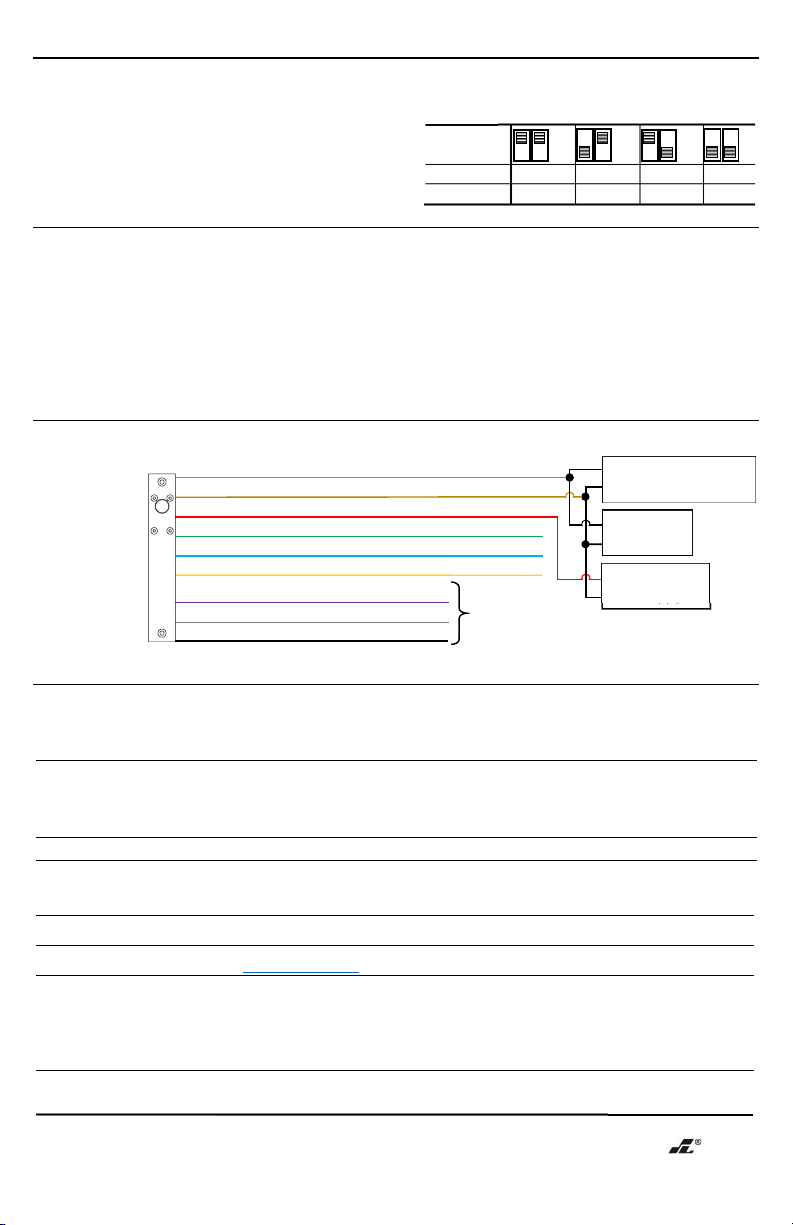

Setting the Door Lock Delay Timer
The door lock delay is set using a pair of
DIP switches on the side of the lock body.
Refer to the diagram in Fig. 4 to determine the
settings for your model and your desired delay.
Manual Lock/Unlock Cylinder
Because the SD-997A-GBQ offers fail-secure operation, the door locks if power to the unit is cut. For
such a situation, a separate manual lock/unlock cylinder is provided for manual operation.
1. Use the manual door lock cylinder templates provided to cut the required holes (see Fig. 3, pg. 3).
2. Insert the manual door lock cylinder, secure with the long screw through the lock body, and affix the
oval cylinder plates.
Wiring Diagram
Troubleshooting
Deadbolt does not activate
when door closes
 Try adjusting the strike plate, lock body position, or shims to reduce the distance
between the lock body and the magnet in the strike plate.
Deadbolt activates when
door is closed, but does not
lock the door
 Make sure the deadbolt is going into the deadbolt hole and not hitting the strike plate.
Reposition the strike plate if necessary.
 If the deadbolt is going into the hole, it may be hitting the bottom of the hole (if it is in a
wooden door). In this case, drill a deeper hole.
Need to reset the unit  When testing, if necessary, reset by grounding the orange wire momentarily.
Other problem  Replace the unit, and test again. A problem unit can also be substituted for a working
unit in another door frame to see if it works there.
NOTE: Cutting the wire connectors will void the warranty.
Black
–
N.O. (active when door is unlocked)
Gray
–
Manual lock/unlock (COM)
Purple
–
N.C. (active when door
is l
ocked)
Yellow
–
door monitor output, N.C. (active when door closed)
Blue
–
door monitor output, N.O. (active when door open)
Green
–
door moni
tor output, COM
Red
Brown
Orange
N.O. Keypad/Reader
COM Entry Device
Request to
Exit Button
+ Power
– Supply
SD
-
997A
-
GBQ only
Connect to an alarm control panel to show if door is
locked or unlocked.
IMPORTANT
Polarity of the
red and brown
wires is critical.
Incorrect polarity
will burn out the
solenoid.
SECO-LARM ® U.S.A., Inc.
16842 Millikan Avenue, Irvine, CA
92606
Website:
www.seco
-
larm.com
Phone: [phone] | [phone] Email: [email protected]m
PITSW2
MI_SD-997x-GBQ_230928.docx
Series
SD-997A 0s 3s 5s 9s
SD-997B 0s 2.5s 5s 9s
Fig. 4
