1. GENERAL POINTS
1.1 Modes
1.2 Pushbuttons
1) Pushbutton C (Crown)
2) Pushbutton A
3) Pushbutton B
4) Pushbutton D
2. MODES DESCRIPTION
2.1 TIME mode
2.2 Select city mode
2.3 Alarm mode
3. BATTERY AND SYNCHRONIZING HANDS
3.1 Synchronizing hands
3.2 Changing the battery
INDIX
210 mascalzone latino ingl 4-06-2007 12:52 Pagina 2

The ISA Swiss Made movement 9003 is composed by an analogical part
for the hour display and of a digital module for several functions which
are detailed in the chapter Modes.
The analogical time is displayed through 2 hands (hours and minutes)
driven in independent ways. The rotation of hands is only in one direc-
tion.
The digital display is done through a LCD screen. It is composed of 2
alphanumerical characters, 2 numerical characters and 3 pictograms, 60
dots for second indication and 24 dots for cities selection.
The analogical and the digital times are synchronised.
The LCD display is lightened through an electro luminescent cell pla-
ced under it.
The movement is driven through 3 buttons and 1 crown which descrip-
tion is defined in the chapter pushbuttons.
The program includes a perpetual calendar between 2000 and 2049.
WARNING: From each mode, local time (TIME1) can be adjusted by
pulling the crown (C).
1GENERAL POINTS
210 mascalzone latino ingl 4-06-2007 12:52 Pagina 3

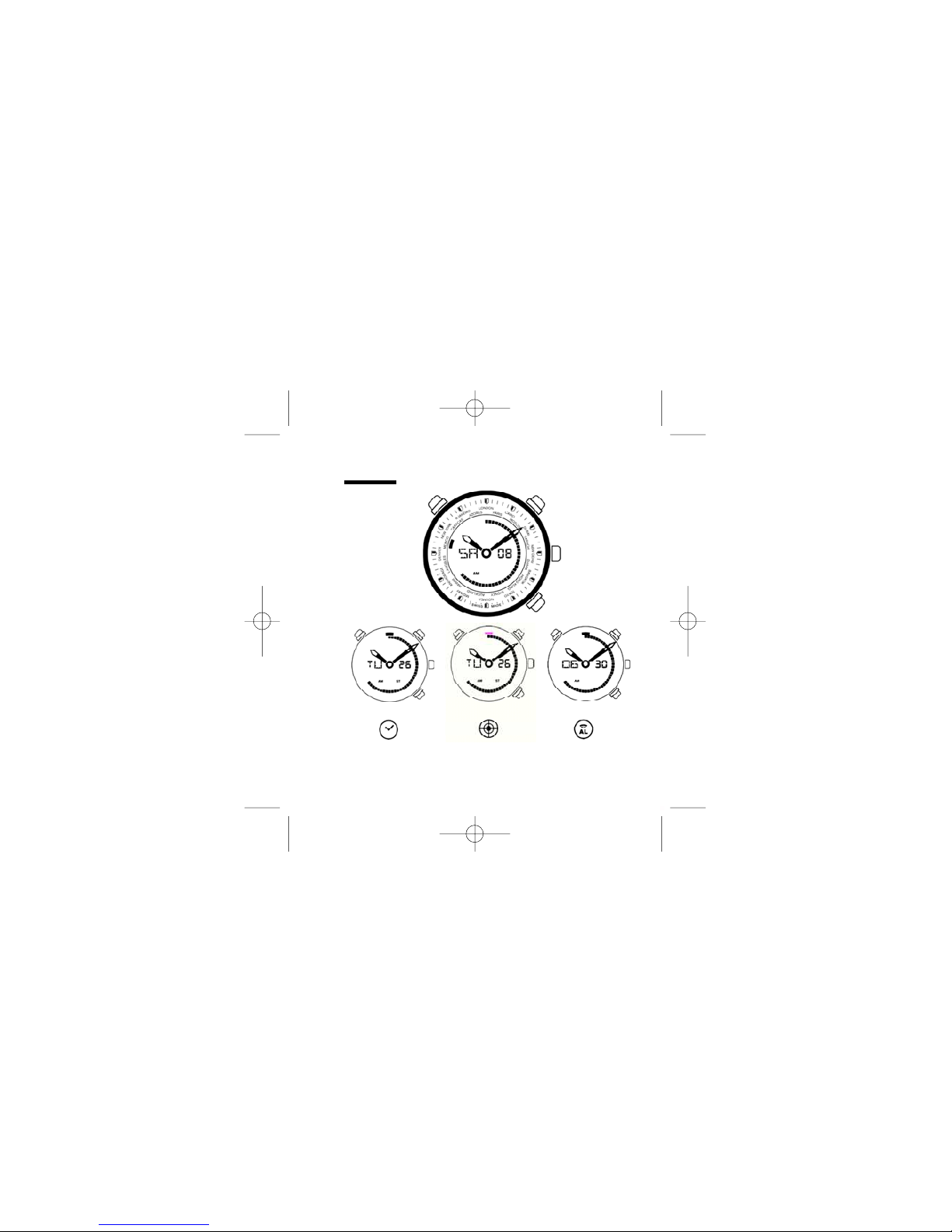

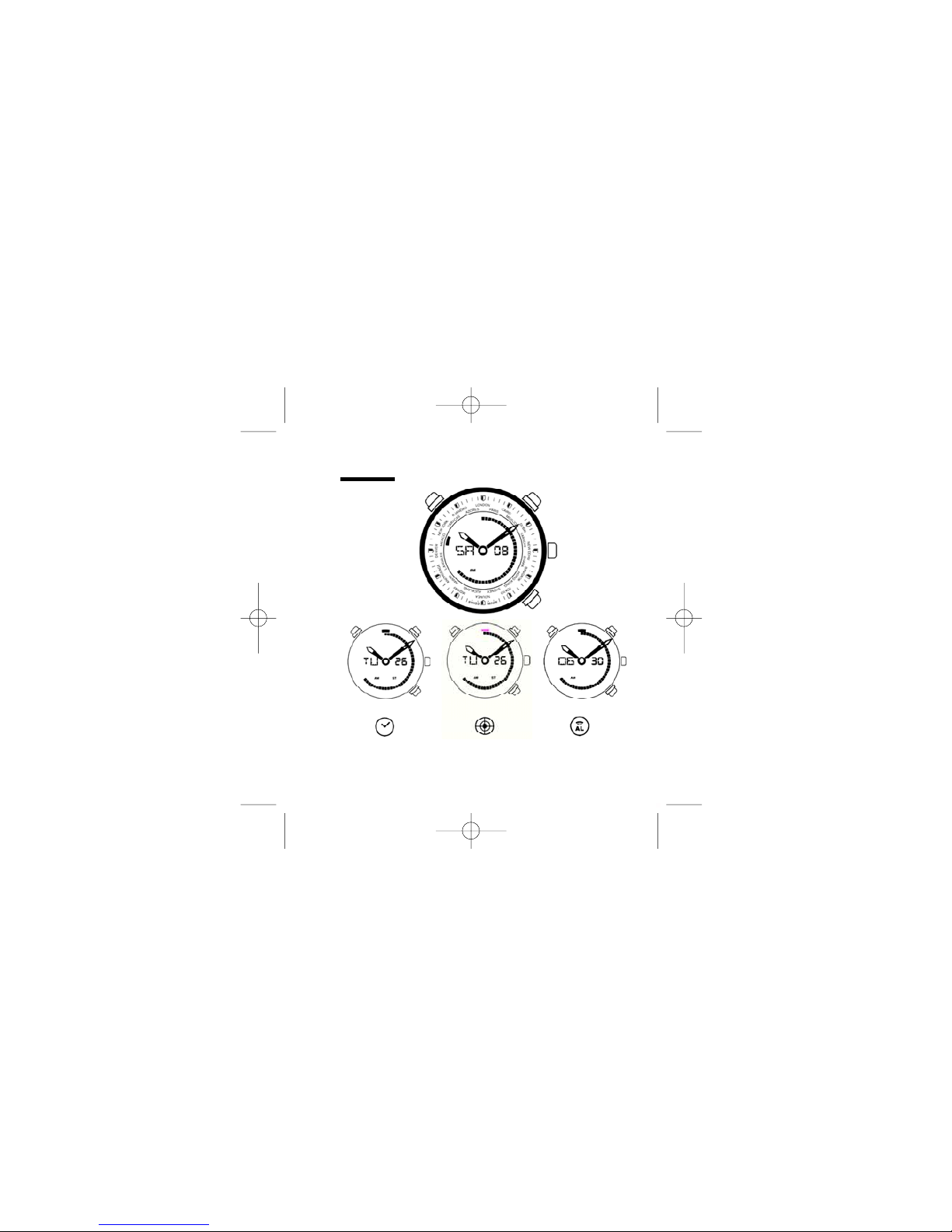

MODES
1.1
TIME MODE •2.1 SELECT CITY MODE •2.2 ALARM MODE •2.3
210 mascalzone latino ingl 4-06-2007 12:52 Pagina 4

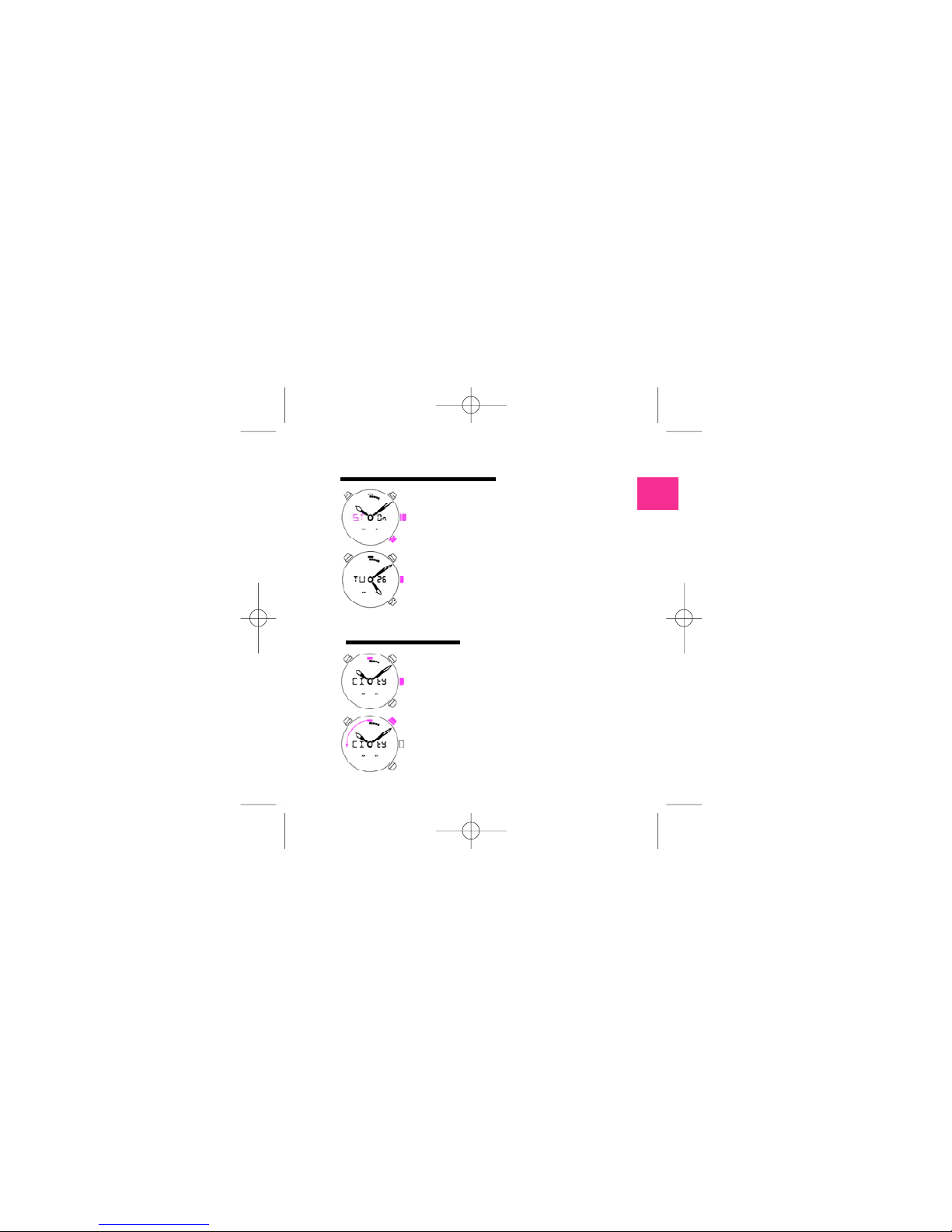

PUSH A
The displayed value can be modified step by
step or in accelerated speed respectively
through short or maintained push on A when
the watch is in setting mode.
holding push 12 –> 28
12 28
step by step push 12, 13, 14, 15..
12 13
1.2PUSHBUTTONS
1) Pushbutton C (Crown)
2) Pulsante A
PULL C
Change mode.
PULL C
Get in TIME hour correction directly from any
mode.
210 mascalzone latino ingl 4-06-2007 12:52 Pagina 5

3) Pushbutton B
PUSH B
Allows to enter in setting mode and to
select sub-modes.
4) Pushbutton D
PUSH D
Allows to switch on the EL. A timer keeps
the EL on for 3 seconds after the push-
button release.
When EL is on: Any action on A, B or C
will switch on EL for 3 sec. more.
210 mascalzone latino ingl 4-06-2007 12:52 Pagina 6

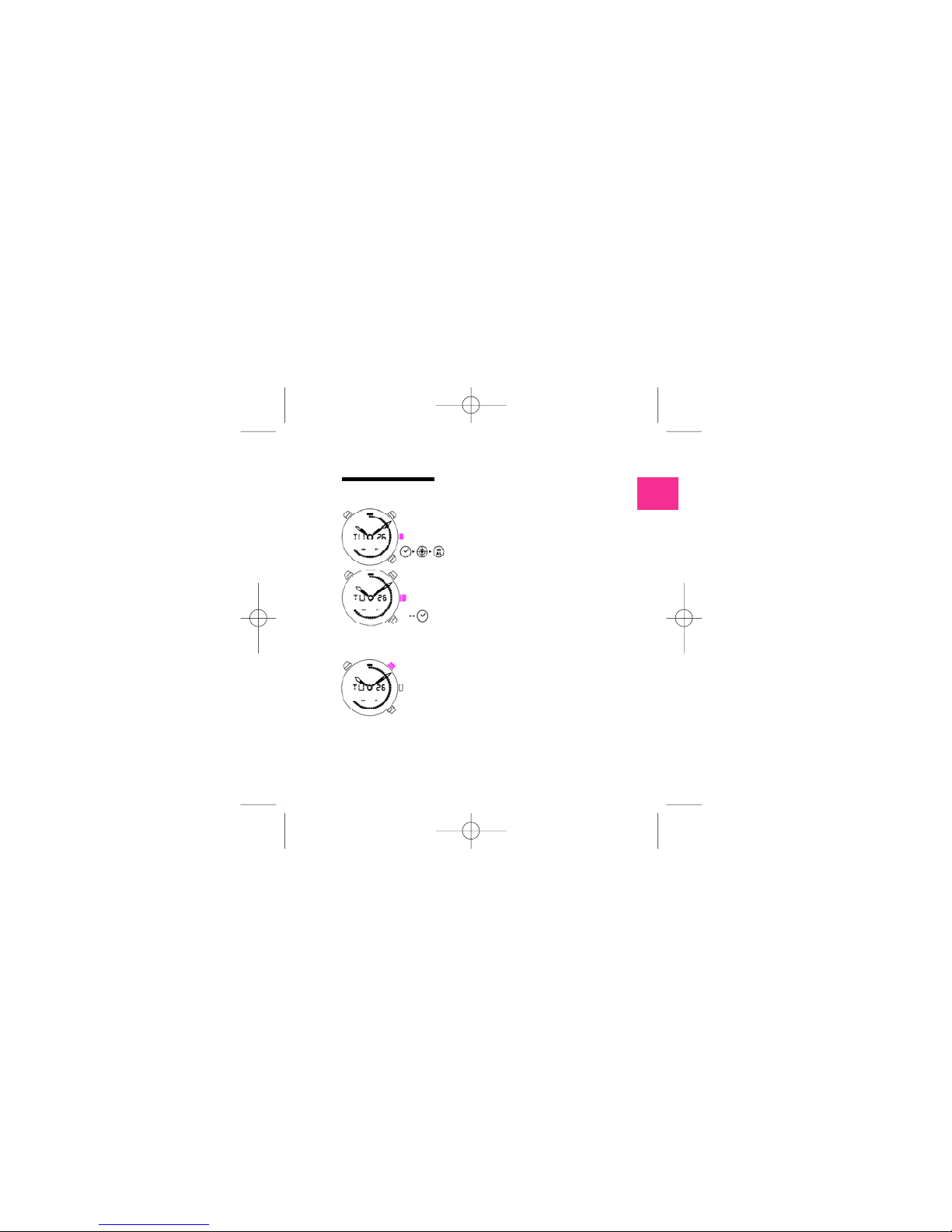

2MODES DESCRIPTION
2.1TIME MODE
PULL C
From each mode, TIME can be adjusted by
pulling the crown (C).
Summer Time ST indication starts blinking.
PUSH A
Select Summer Time ST between ON and
OFF, this selection is valid for selected city
only, and have to be repeated for any city
with summer time option.
210 mascalzone latino ingl 4-06-2007 12:52 Pagina 7

PUSH B
Confirm Summer time.
Adjust h o u r.HR starts
blinking.
PUSH A
Select hour.
PUSH B
Confirm hour and adjust
minute.MN st arts
blinking.
PUSH A
Select minute.
PUSH B
Confirm m i n u t e. Adjust
se c o n d.S E sta rts
blinking.
PUSH A
Reset second.
PUSH B
Confirm second and adju-
st year. YE starts blinking.
PUSH A
Select year.
PUSH B
Co n firm y ear . Adjust
mont h.MO s tart s
blinking.
PUSH A
Select month.
PUSH B
Confirm month and adjust
date.D T startsblinking.
PUSH A
Select date.
210 mascalzone latino ingl 4-06-2007 12:53 Pagina 8

PUSH C
Push the crown to enter in the select city
mode. The city index will blink. In this mode
you can select the city that you would like to
have the time.
PUSH A
Select city in counterclockwise.
PUSH B
Push Bfor going on the beginning.
PUSH C
Go out of time adjust. The new day is calculated.
The two hands are going in the new position to
indicate news hour and minute.
SELECT CITY MODE
2.2
210 mascalzone latino ingl 4-06-2007 12:53 Pagina 9

PUSH C
Push the crown to enter in alarm mode.
PUSH B
Select city in clockwise.
To go out this mode you can push the crown or wait for 5 seconds without
pushing any button. When you go out this mode, the hands go on the new
position (time of new select city), and you go on time mode.
ALARM MODE
2.3
PUSH B
Push B more than 1
second. Adjust hour.HR
starts blinking.
PUSH A
Select hour.
210 mascalzone latino ingl 4-06-2007 12:53 Pagina 10

PUSH B
Go out of alarm adjust.
ALARM 0N
PUSH B
Confirm hour and adjust
mi nu te.M N starts
blinking.
PUSH A
Select minute.
Alarm will start when alarm is ON and when there is coincidence
between TIME showed byhands and by display in alarm mode. Alarm
is characterised by 20 double-bips, one per second (frequency 4kHz),
repeated after 2 minutes if the first alarm is not stopped. Alarm will
automatically switch OFF after alarm (alarm being stopped or not).
Alarm time willnot be reset.
ALARM 0FF
To go out this mode you can push the crown or wait for 5 seconds without push any button.
If you have any action on button, during
3 seconds, you go out alarm adjust.
bip bip
210 mascalzone latino ingl 4-06-2007 12:53 Pagina 11

3BATTERY AND SYNCHRONIZING HANDS
3.1SYNCHRONIZING HANDS

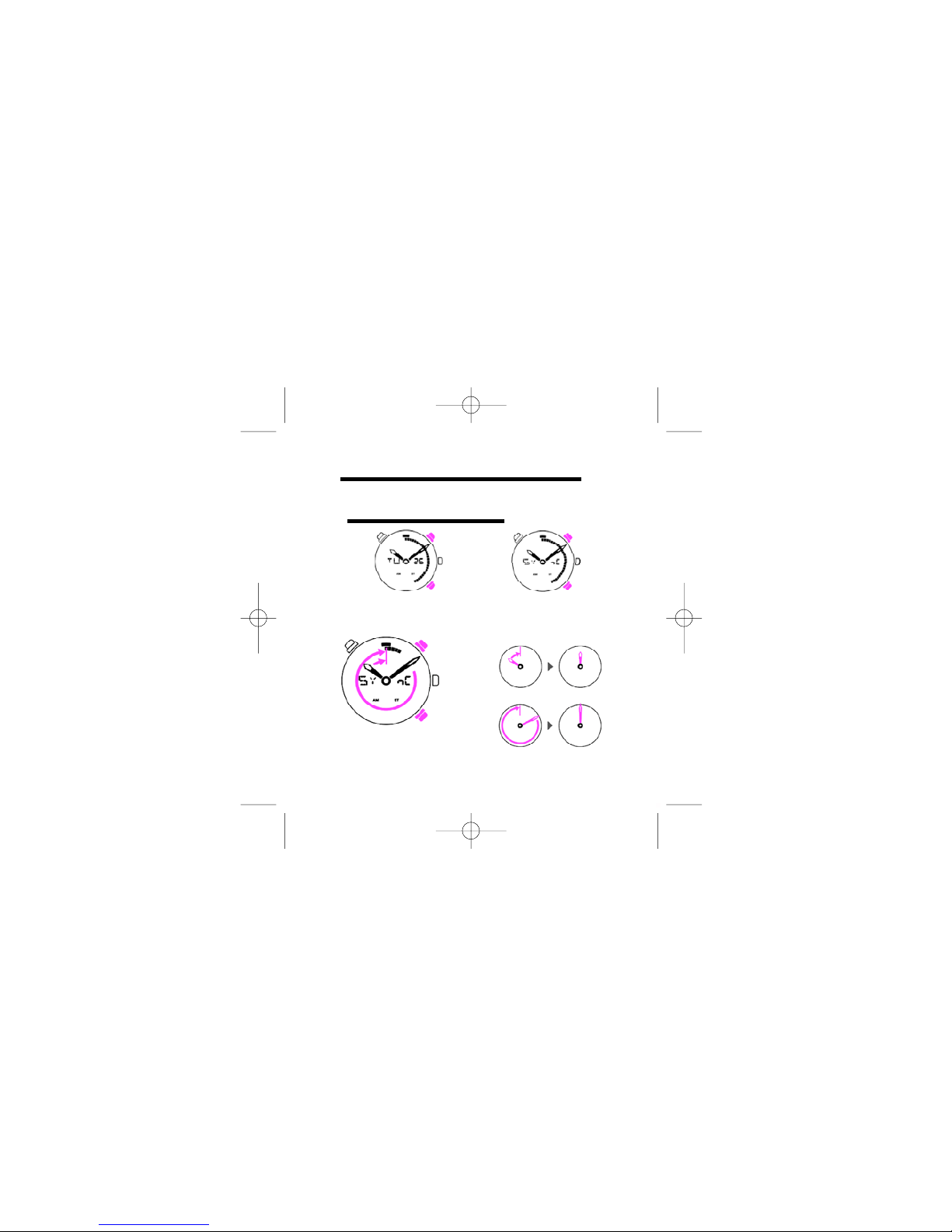

In time mode, push on Aand Btogether (hold for 2 seconds), hands go on position 12h. The
movement is in mode hands synchronisation.SYnc appears on the display.
PUSH A to set hour hand on 12.
When hoding push button, hands move in fast
mode. When pushing by pulses, hands move step
by step.
Push on Cto go out mode hands synchronisation.
PUSH B to set minute hand on 12.
210 mascalzone latino ingl 4-06-2007 12:53 Pagina 12

When the detection of low battery is dectected, BAtt and date are blinking alternatively.
CHANGING THE BATTERY
3.2
Remove the case back and remove the battery.
PUT THE NEW BATTERY (CR2016 - 3.00V).
The 2 hands turn 360°.
The 2 hands have to be on 12. Put the case back.
If the 2 hands are not at 12: enter in synchronisation mode
according to 3.1 to set it.
Adjust time, date and other functions.
210 mascalzone latino ingl 4-06-2007 12:53 Pagina 13

Nous vous remercions de la
confiance que vous nous
accordez en ayant choisi la
marque SECTOR. Afin d’utili-
ser votre montre de manière
approprié e, nous vous
recommandos de lire attenti-
vement les instructions con-
tenues dans ce document.
E N G L I S H
F R A N Ç A I S
D E U T S C H
I T A L I A N O
P O R T U G U Ê S
210 mascalzone latino fra 4-06-2007 13:03 Pagina 1

1. GENERALITES
1.1 Modes
1.2 Poussoirs
1) Poussoir C (couronne)
2) Poussoir A
3) Poussoir B
4) Poussoir D
2. DESCRIPTION DES MODES
2.1 Mode TIME
2.2 Mode de sélection de la ville
2.3 Mode alarme
3. PILE ET SYNCHRONISATION DES AIGUILLES
3.1 Synchronisation des aiguilles
3.2 Changement de la pile
INDICE
210 mascalzone latino fra 4-06-2007 13:03 Pagina 2

Le mouvement 9003 Swiss Made de ISA se compose d'un module analogi-
que pour l'affichage de l'heure et d'un module numérique pour l'aff i c h a-
ge de plusieurs autres fonctions, détaillées dans le chapitre Modes.
L'affichage du temps analogique est réalisé par deux aiguilles (heures
et minutes) entraînées indépendamment l'une de l'autre. La rotation
des aiguilles se fait dans une seule direction.
L'affichage numérique se fait sur un écran à cristaux liquides.Celui-cisecom-
posede 2 caractères alphanumériques, 2 caractères numériques, 3 pictogrammes,
60 points pour l'indication des secondes et 24 points pour la sélection desvilles.
Les temps analogique et numérique sont synchronisés.
L'écran à cristaux liquides est éclairé par une pastille électrolumi-
nescente placée sous celui-ci.
Le mouvement est actionné par 3 poussoirs et 1 couronne, décrits dans
le chapitre Poussoirs. Le programme intègre un calendrier perpétuel
entre 2000 et 2049.
ATTENTION: Dans chaque mode, l'heure locale (TIME1) peut être
réglée en tirant la couronne (C).
1GENERALITES
210 mascalzone latino fra 4-06-2007 13:03 Pagina 3

MODES
