Seeley CP12CW2 User manual

(English) (CP12CW2)
CP12CW2
®
OWNER’S MANUAL
Portable Refrigerated Air Conditioner

iCP12CW2 Portable Refrigerated Air Conditioner
INTRODUCTION
1
CONTENTS
Please read these instructions prior to using the appliance and
save them for future reference.

iCP12CW2 Portable Refrigerated Air Conditioner
INTRODUCTION
1
CONTENTS
Please read these instructions prior to using the appliance and
save them for future reference.

2
1
2CP12CW2 Portable Refrigerated Air Conditioner
4
3
Remote
Control
Air Outlet
Display Panel
Handle
Control
Panel
Exhaust Hose
Hose Ends (x 2)
Exhaust Fitting and cover
(window end)
3
Screws (8)
Air Filter
Drain
Air Intake
Power
Cord
Rating
Label
Air Intake
(Condenser)
ON/OFF
SPEED
TIMER
MODE
UP
DOWN
+
Hose End
Hose Exhaust Nozzle
(window end)
SAFETY
For indoor use only.
Transport the air conditioner in an upright
position only, or leave it in an upright position
for at least 2 hours before use (Fig 1).
Use only in the upright position on a flat level
surface and at least 50cm from any objects.
Do not place objects on the air conditioner, or
through the ventilating slots or restrict the air
inlets & outlets (Fig 2).
Closely supervise any children and pets
when the air conditioner is in use.
Do not store or operate the appliance near
any flammable substances.
During operation, water will collect in the
bottom tank of the air conditioner. Be careful
when moving the unit to prevent water from
spilling.
Electrical Safety
Ensure the appliance has been installed in
accordance with national wiring regulations.
Window Attachment
(2 pieces)

2
1
2CP12CW2 Portable Refrigerated Air Conditioner
4
3
Remote
Control
Air Outlet
Display Panel
Handle
Control
Panel
Exhaust Hose
Hose Ends (x 2)
Exhaust Fitting and cover
(window end)
3
Screws (8)
Air Filter
Drain
Air Intake
Power
Cord
Rating
Label
Air Intake
(Condenser)
ON/OFF
SPEED
TIMER
MODE
UP
DOWN
+
Hose End
Hose Exhaust Nozzle
(window end)
SAFETY
For indoor use only.
Transport the air conditioner in an upright
position only, or leave it in an upright position
for at least 2 hours before use (Fig 1).
Use only in the upright position on a flat level
surface and at least 50cm from any objects.
Do not place objects on the air conditioner, or
through the ventilating slots or restrict the air
inlets & outlets (Fig 2).
Closely supervise any children and pets
when the air conditioner is in use.
Do not store or operate the appliance near
any flammable substances.
During operation, water will collect in the
bottom tank of the air conditioner. Be careful
when moving the unit to prevent water from
spilling.
Electrical Safety
Ensure the appliance has been installed in
accordance with national wiring regulations.
Window Attachment
(2 pieces)

4CP12CW2 Portable Refrigerated Air Conditioner
5
6B
50cm
To avoid damage to the control panel, do not operate with sharp objects.
NOTE!
7
5
6A
CONTROL AND DISPLAY PANEL
Press to turn the air
conditioner on and off
Press to cycle the fan
speed between low,
medium and high
Press to enter the
timer setting mode
and time
Press to cycle from
Cooling,Dehumidifying
and Fan modes.
Press to increase,
to decrease the
set temperature
In Timer mode, press
to increase, to
decrease the timer
from 01-24 hours
In Cooling mode, press
at same time to toggle
between °C and °F
Power ON / OFF
button
Fan Speed
control button
Timer Set
button
Mode Select
button
Set
Temperature
and Timer
Display
Remote
Control
Receiver
Fan Speed
Indicator Lights
Low - 1 Light
Medium - 2 Lights
High - 3 Lights
Mode
Indicator
Light
Blue - Cooling
Yellow - Dehumidify
Green - Fan
Water Full
Indicator
Timer
Indicator

4CP12CW2 Portable Refrigerated Air Conditioner
5
6B
50cm
To avoid damage to the control panel, do not operate with sharp objects.
NOTE!
7
5
6A
CONTROL AND DISPLAY PANEL
Press to turn the air
conditioner on and off
Press to cycle the fan
speed between low,
medium and high
Press to enter the
timer setting mode
and time
Press to cycle from
Cooling,Dehumidifying
and Fan modes.
Press to increase,
to decrease the
set temperature
In Timer mode, press
to increase, to
decrease the timer
from 01-24 hours
In Cooling mode, press
at same time to toggle
between °C and °F
Power ON / OFF
button
Fan Speed
control button
Timer Set
button
Mode Select
button
Set
Temperature
and Timer
Display
Remote
Control
Receiver
Fan Speed
Indicator Lights
Low - 1 Light
Medium - 2 Lights
High - 3 Lights
Mode
Indicator
Light
Blue - Cooling
Yellow - Dehumidify
Green - Fan
Water Full
Indicator
Timer
Indicator

!
NOTE:
WASTE BATTERIES SHOULD
BE DISPOSED OF CORRECTLY
REMOTE CONTROL
Signal
transmission point
Power ON / OFF
button
Fan speed
adjust button
Mode buttons
(Cool-Dehumidify-Fan)
Battery
compartment
6CP12CW2 Portable Refrigerated Air Conditioner
Important! During cooling mode, water will
collect in the air conditioner’s tank. This
water is reticulated and some will be
exhausted out with the hot air, but will
slowly fill up the tank. This occurs more
quickly in humid conditions. If the tank
should fill, the ‘water full’ indicator will be lit
on the control display and the unit will shut
down. The cooler cannot be restarted until
the water tank is drained. Refer to the
Maintenance section for draining the tank
should this occur.
10
11
7
ON/OFF
SPEED
TIMER
MODE
UP
DOWN
+
Step.4
Step.5
Step.3
Step.6
Step.8
ON/OFF
SPEED
TIMER
MODE
UP
DOWN
+
1.5V
1.5V
Battery cover
89
Signal
transmission point
Power ON / OFF
button
Fan speed
adjust button
Mode buttons
(Cool-Dehumidify-Fan)
Battery
compartment
Battery cover
Temperature /Timer
adjust buttons
Tip! Do not set the temperature too low.
This will consume more power. 24°C is
the recommended set temperature, with
high fan speed.
The set temperature range is 16°C-32°C
Step 6: Press the FAN SPEED button
on the Control Panel or remote control to
adjust the fan speed. Each press will cycle
the fan speed between low, medium and
high.
or

!
NOTE:
WASTE BATTERIES SHOULD
BE DISPOSED OF CORRECTLY
REMOTE CONTROL
Signal
transmission point
Power ON / OFF
button
Fan speed
adjust button
Mode buttons
(Cool-Dehumidify-Fan)
Battery
compartment
6CP12CW2 Portable Refrigerated Air Conditioner
Important! During cooling mode, water will
collect in the air conditioner’s tank. This
water is reticulated and some will be
exhausted out with the hot air, but will
slowly fill up the tank. This occurs more
quickly in humid conditions. If the tank
should fill, the ‘water full’ indicator will be lit
on the control display and the unit will shut
down. The cooler cannot be restarted until
the water tank is drained. Refer to the
Maintenance section for draining the tank
should this occur.
10
11
7
ON/OFF
SPEED
TIMER
MODE
UP
DOWN
+
Step.4
Step.5
Step.3
Step.6
Step.8
ON/OFF
SPEED
TIMER
MODE
UP
DOWN
+
1.5V
1.5V
Battery cover
89
Signal
transmission point
Power ON / OFF
button
Fan speed
adjust button
Mode buttons
(Cool-Dehumidify-Fan)
Battery
compartment
Battery cover
Temperature /Timer
adjust buttons
Tip! Do not set the temperature too low.
This will consume more power. 24°C is
the recommended set temperature, with
high fan speed.
The set temperature range is 16°C-32°C
Step 6: Press the FAN SPEED button
on the Control Panel or remote control to
adjust the fan speed. Each press will cycle
the fan speed between low, medium and
high.
or

CP12CW2 Portable Refrigerated Air Conditioner
8
Draining the Air Conditioner
To drain the air conditioner, place it over a
drain point before unscrewing the cap and
removing the drain plug, as water will flow
out as soon as the plug is removed.
Remove the plug at the bottom rear of the
appliance and allow the tank to
completely drain (Fig 12B).
Note! Always replace the drain plug
immediately after draining.
End of season storage:
• Drain any water from the unit.
• Operate the unit in fan only mode for a few hours, to thoroughly dry the inside.
• Clean or change the filter.
• Unplug and carefully store the power cord and plug end.
• Replace in the original carton or cover for storage.
MAINTENANCE
B
12 A
Remove filter from the
air conditioner and
clean every 2 weeks.
9
12
Timer Function
The air conditioner is fitted with a timer
function. This can be set up to 24 hours in
advance. To use this function, the cooler
must be plugged in and ready to operate.
Step 8: Setting the timer
With the air conditioner ON, press the
TIMER button on the Remote Control or
Control Panel to set the number of hours
before the air conditioner powers off.
The Control Panel display will flash and
show the time setting. Press the or
buttons to increase or decrease the time in
1 hour increments from 1 - 24hrs. After 10
seconds the display will stop flashing and
the TIMER indicator will be lit on the display
panel (Fig 7).
When the air conditioner is OFF (but still
plugged in), repeat the above to set the
number of hours before the cooler powers
ON. The air conditioner will start up with the
last settings used.
Note! When the air conditioner is working,
only the TIMER OFF can be set. When the
air conditioner is off, only the TIMER ON
can be set.
How to cancel the timer
To cancel the timer, set the timer to ‘00'. The
TIMER indicator will stop glowing.

CP12CW2 Portable Refrigerated Air Conditioner
8
Draining the Air Conditioner
To drain the air conditioner, place it over a
drain point before unscrewing the cap and
removing the drain plug, as water will flow
out as soon as the plug is removed.
Remove the plug at the bottom rear of the
appliance and allow the tank to
completely drain (Fig 12B).
Note! Always replace the drain plug
immediately after draining.
End of season storage:
• Drain any water from the unit.
• Operate the unit in fan only mode for a few hours, to thoroughly dry the inside.
• Clean or change the filter.
• Unplug and carefully store the power cord and plug end.
• Replace in the original carton or cover for storage.
MAINTENANCE
B
12 A
Remove filter from the
air conditioner and
clean every 2 weeks.
9
12
Timer Function
The air conditioner is fitted with a timer
function. This can be set up to 24 hours in
advance. To use this function, the cooler
must be plugged in and ready to operate.
Step 8: Setting the timer
With the air conditioner ON, press the
TIMER button on the Remote Control or
Control Panel to set the number of hours
before the air conditioner powers off.
The Control Panel display will flash and
show the time setting. Press the or
buttons to increase or decrease the time in
1 hour increments from 1 - 24hrs. After 10
seconds the display will stop flashing and
the TIMER indicator will be lit on the display
panel (Fig 7).
When the air conditioner is OFF (but still
plugged in), repeat the above to set the
number of hours before the cooler powers
ON. The air conditioner will start up with the
last settings used.
Note! When the air conditioner is working,
only the TIMER OFF can be set. When the
air conditioner is off, only the TIMER ON
can be set.
How to cancel the timer
To cancel the timer, set the timer to ‘00'. The
TIMER indicator will stop glowing.

Never try to dismantle the air conditioner yourself.
Problem Check
The air conditioner does not
run.
Is the air conditioner plugged in?
Is there a power failure?
Is the "WATER FULL" error code flashing?
Drain the tank as shown (Fig 12).
Is there direct sunshine? Remember to close
curtains or blinds.
Are windows or doors open?
More people in the room will generate more
heat.
Is there something in the room producing
excessive heat?
Is the exhaust fitted correctly or obstructed?
All exhaust air needs to be completely
removed from the room.
The air conditioner is not as
cool as it once was.
Is the filter dusty or dirty, restricting the
airflow?
Is the air inlet or outlet blocked?
Is the room temperature below the set
temperature?
The air conditioner is too
noisy.
Is the air conditioner positioned unevenly, so
as to create vibration?
Is the floor beneath the air conditioner
uneven?
The compressor will not run.
In case of problems that cannot be fixed by using the above guide, or if service
on your air conditioner is required, please contact your dealer or designated
service agent.
TROUBLESHOOTING
Is the room temperature below the set
temperature?
CP12CW2 Portable Refrigerated Air Conditioner
10
As a policy of continual product improvement, this manual, its contents and specifications are subject to change without notice.

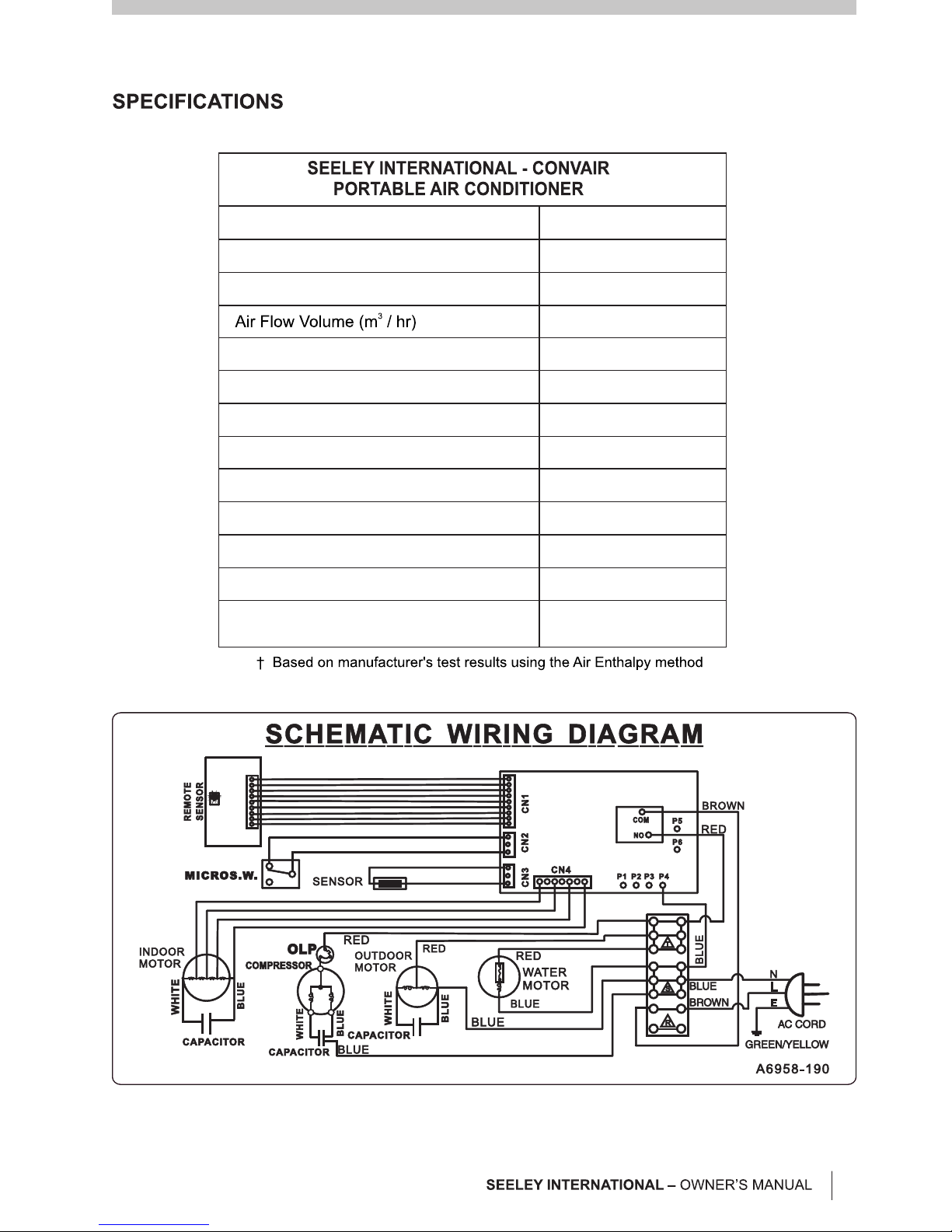

Model
Function
Cooling Capacity (Watts) †
Power Supply
Rated Input Power (Watts)
Fuse Type
Refrigerant Type / Charge (kg)
Water Ingress Protection Rating
Weight (kg)
Dimensions (mm)
(width / depth / height)
CP12CW2
Personal Cooling
3500
300
220-240V ~ 50Hz
1100
3.15A / 250V
R410A / 0.6
3.53
1.77
IPX0
450 / 393 / 746
High Side Pressure - Maximum (MPa)
Low Side Pressure - Maximum (MPa)
31.5
11

Never try to dismantle the air conditioner yourself.
Problem Check
The air conditioner does not
run.
Is the air conditioner plugged in?
Is there a power failure?
Is the "WATER FULL" error code flashing?
Drain the tank as shown (Fig 12).
Is there direct sunshine? Remember to close
curtains or blinds.
Are windows or doors open?
More people in the room will generate more
heat.
Is there something in the room producing
excessive heat?
Is the exhaust fitted correctly or obstructed?
All exhaust air needs to be completely
removed from the room.
The air conditioner is not as
cool as it once was.
Is the filter dusty or dirty, restricting the
airflow?
Is the air inlet or outlet blocked?
Is the room temperature below the set
temperature?
The air conditioner is too
noisy.
Is the air conditioner positioned unevenly, so
as to create vibration?
Is the floor beneath the air conditioner
uneven?
The compressor will not run.
In case of problems that cannot be fixed by using the above guide, or if service
on your air conditioner is required, please contact your dealer or designated
service agent.
TROUBLESHOOTING
Is the room temperature below the set
temperature?
CP12CW2 Portable Refrigerated Air Conditioner
10
As a policy of continual product improvement, this manual, its contents and specifications are subject to change without notice.
Model
Function
Cooling Capacity (Watts) †
Power Supply
Rated Input Power (Watts)
Fuse Type
Refrigerant Type / Charge (kg)
Water Ingress Protection Rating
Weight (kg)
Dimensions (mm)
(width / depth / height)
CP12CW2
Personal Cooling
3500
300
220-240V ~ 50Hz
1100
3.15A / 250V
R410A / 0.6
3.53
1.77
IPX0
450 / 393 / 746
High Side Pressure - Maximum (MPa)
Low Side Pressure - Maximum (MPa)
31.5
11

12 CP12CW2 Portable Refrigerated Air Conditioner 13

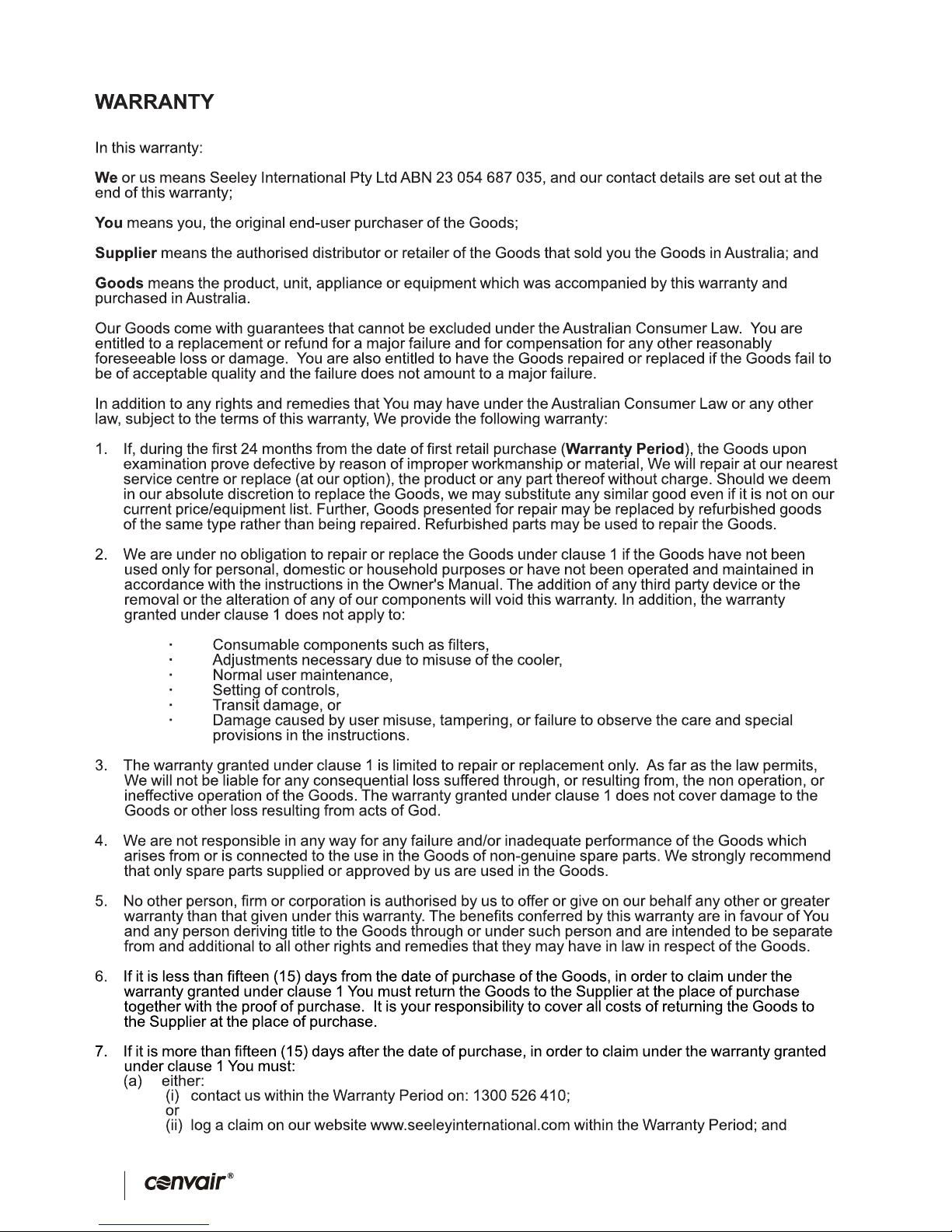

(b) return the Goods to your nearest service centre (or to us at the address below) by prepaid freight
within the Warranty Period, together with (i) the legible and unmodified proof of purchase, which
clearly indicates the name and address of the original retailer, the date and place of purchase, the
product name or other product serial number, and (ii) a copy of the completed Warranty
Information below. (If you choose to return the Goods to us, there is an additional requirement -
they will also need to be accompanied by a covering letter which states your name and address
and daytime telephone number, and the model and serial number of the goods.)
8. This warranty does not cover the cost of claiming under the warranty, it is your responsibility to cover all
forwarding and return freight costs incurred in sending the Goods to and from your nearest service centre
or us.
9. This warranty is only valid and enforceable in Australia.
Our liability under this warranty is limited to the extent permitted by law. That is, to the extent that it is fair and
reasonable, if the Goods are not of a kind ordinarily acquired for personal, domestic or household use or
consumption, your remedies associated with any failure or defect of the Product will be limited to:
(a) the replacement of the Goods or the supply of equivalent goods;
(b) the repair of the Goods;
(c) the payment of the cost of replacing the Goods or of acquiring equivalent goods; or
(d) the payment of the cost of having the Goods repaired
and subject to the terms and conditions included in this warranty.
To ensure that service either pursuant to the above warranty or otherwise is readily available, we have
established in all States authorised service centres, which are available to deal with service requirements.
For further information about your nearest service centre and other enquiries please call our Service Centre
on: 1300 526 410

12 CP12CW2 Portable Refrigerated Air Conditioner 13
(b) return the Goods to your nearest service centre (or to us at the address below) by prepaid freight
within the Warranty Period, together with (i) the legible and unmodified proof of purchase, which
clearly indicates the name and address of the original retailer, the date and place of purchase, the
product name or other product serial number, and (ii) a copy of the completed Warranty
Information below. (If you choose to return the Goods to us, there is an additional requirement -
they will also need to be accompanied by a covering letter which states your name and address
and daytime telephone number, and the model and serial number of the goods.)
8. This warranty does not cover the cost of claiming under the warranty, it is your responsibility to cover all
forwarding and return freight costs incurred in sending the Goods to and from your nearest service centre
or us.
9. This warranty is only valid and enforceable in Australia.
Our liability under this warranty is limited to the extent permitted by law. That is, to the extent that it is fair and
reasonable, if the Goods are not of a kind ordinarily acquired for personal, domestic or household use or
consumption, your remedies associated with any failure or defect of the Product will be limited to:
(a) the replacement of the Goods or the supply of equivalent goods;
(b) the repair of the Goods;
(c) the payment of the cost of replacing the Goods or of acquiring equivalent goods; or
(d) the payment of the cost of having the Goods repaired
and subject to the terms and conditions included in this warranty.
To ensure that service either pursuant to the above warranty or otherwise is readily available, we have
established in all States authorised service centres, which are available to deal with service requirements.
For further information about your nearest service centre and other enquiries please call our Service Centre
on: 1300 526 410

00249101-A convair.net.au AU 1305
Warranty Service
Australia 1-300-526-410
seeleyinternational.com
