Seiko 8X22 Series User manual

GPS Solar
Cal. 8X22
World-Time
INSTRUCTIONS
INSTRUCCIONES
Copyright © 2016 by SEIKO WATCH CORPORATION
JSE8X22 2016-06

Cal. 8X22
INSTRUCTIONS
INSTRUCCIONES
( P. 2)
( P. 32)

32
English
Please carefully read the instructions in this Complete User
Guide before using the watch.
Length adjustment service for metallic bands is available at the retailer from whom the watch
was purchased. If you cannot have your watch repaired by the retailer from whom the watch
was purchased because you received the watch as a gift, or you moved to a distant place,
please contact SEIKO WORLDWIDE SERVICE NETWORK.The service may also be available on
a chargeable basis at other retailers, however, some retailers may not perform the service.
If your watch has a protective film for preventing scratches, make sure to peel it off before
using the watch. If the watch is used with the film on it, dirt, sweat, dust, or moisture may be
attached under the film and may cause corrosion.
1 Features............................................................................................ 4
2 Names of the parts ......................................................................... 7
3 Check the charging status.............................................................. 8
4 Time zone ...................................................................................... 10
5 Time zone display and list of time zones around the world ..... 11
6 Time Zone Adjustment ................................................................. 13
7 Manual time zone selection ......................................................... 16
8 DST setting .................................................................................... 18
9 How to manually adjust the time................................................ 20
10 When boarding (in-flight mode ( ))............................................ 23
11 Leap second (Automatic leap second reception function)........ 25
12 Reception result display ............................................................... 27
13 How to check when the time zone information was
configured for your watch............................................................ 29
CONTENTS

54
1 Features
This is a GPS solar watch.
GPS signal reception
This watch can be set to the precise local time anywhere in the world by
pushing just one button.
DST (Daylight SavingTime) can be set manually.
This watch quickly adjusts the time by receiving GPS signals from GPS
satellites.
This watch responds to a total of 40 time zones around the world.
When the region or time zone where the watch is used is changed, please
carry out operation of “time zone adjustment.”
Solar charging function
This watch operates by solar charging.
Expose the dial to light to charge the watch. Once fully charged, the watch
runs for approximately 6 months.
When the energy stored in the watch runs out completely, it takes time
to fully charge the watch, so please keep in mind to charge the watch
regularly.
Automatic time adjustment function
This watch automatically adjusts the time in accordance with
action patterns during use.
When the watch has sensed sufficient brightness under an open
sky, it automatically receives GPS signals from GPS satellites.
This function enables the watch to automatically adjust the time
precisely even while you are using the watch.
This watch is unable to receive GPS signals when the energy stored in
the watch is low.

76
Standard Charging Time
GPS signal reception consumes a lot of energy. It is necessary to charge the watch by exposing
it to light so that the indicator hand points to the “middle” or “full” position. (If the charging
status is displayed as “low,” the reception will not start even with manual GPS signal reception.)
Illumination
lx (LUX)
Light
source
Condition
(Example)
From the state where the watch
is stopped (not charged)
In the state where
the hand moves (the
watch is charged)
To fully
charged
To one-second
interval movement
is secured
To move for one day
700 Fluorescent light General offices － － 3.5 hours
3,000 Fluorescent light 30W 20cm 420 hours 12 hours 1 hours
10,000 Fluorescent light
Sunlight
Cloudy day
30W 5cm 115 hours 4 hours 15 minutes
100,000 Sunlight
Sunny day (Under
the direct sunlight
on a summer day)
50 hours 1.5 hours 10 minutes
The figures of “Time required for charging the watch to start moving at one- second intervals”
are estimations of time required to charge the stopped watch by exposing it to light until it
moves at steady one-second intervals. Even if the watch is partially charged for a shorter period,
the watch will resume one-second- interval movement. However, it may shortly return to two-
second-interval movement. Use the charging time in this column as a rough guide for sufficient
charging time.
The required charging time slightly varies depending on the design and the dial color of the watch.
2 Names of the parts
Crown
Minute hand
Date
Button B
Hour hand
Button A
Second hand
Indicator hand
Position of each display may differ depending on the model (design).

98

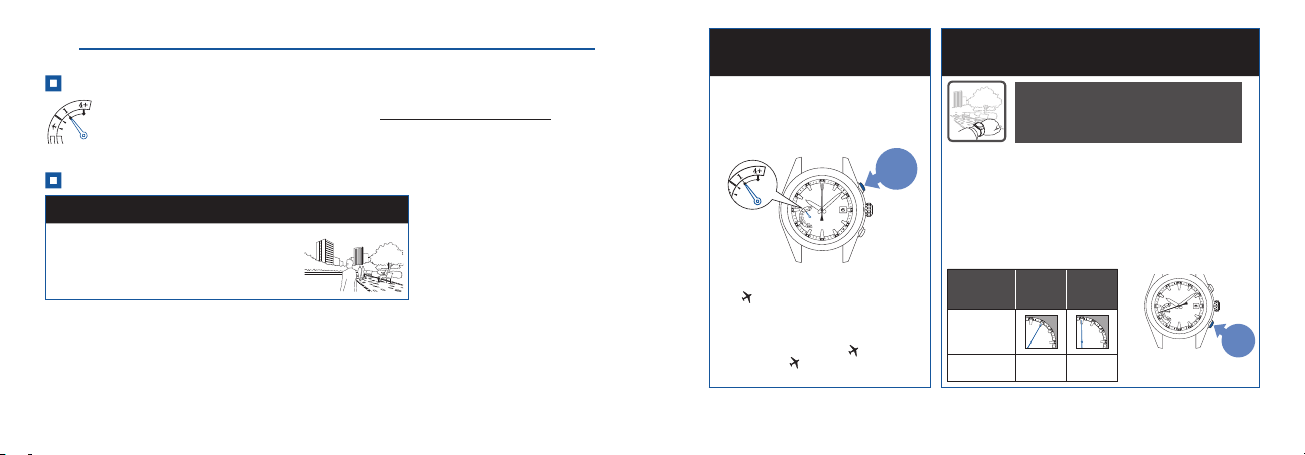

3 Check the charging status
The indicator hand position shows whether this watch is able or unable to receive GPS signals.
In addition, if the charging status is low, the position of the second hand shows the energy
depletion status in further detail.
Reception
is allowed
Indicator display Charging status Solution
full Reception is
allowed.
middle Reception is
allowed.
Reception
is not
allowed
Indicator
display
Movement of second
hand Charging status Solution
1-second
interval
movement
low
The watch is unable
to receive GPS
signals, but has
energy to operate.
Charge the watch at
least until the indicator
hand points to “middle”
so that the watch is able
to receive GPS signals.
2-second
interval
movement
The watch is unable
to receive GPS
signals, and does
not have energy
to operate. (The
energy depletion
forewarning
function is
activated.)
Continue to charge the
watch at least until the
indicator hand points
to “middle” so that
the watch is able to
continuously operate
and receive GPS signals.
5-second
interval
movement
The charging status is
not displayed for in-flight
mode ( ).
Change from in-flight to
normal mode.
When the indicator hand
points to “low,” charge
the watch.
GPS signal reception requires a lot of energy. It is necessary to regularly charge the watch by exposing
it to light.

1110
4 Time zone
Time zone
Based on Coordinated Universal Time (UTC), the standard time commonly used is adopted by
countries and regions around the world.The standard time is determined by each country or
region, and the region where the same standard time is adopted is referred to as the time zone,
and presently, the time zone is divided into 40 zones as of March 2015.
DST (Daylight SavingTime)
Depending on the area, DST (Daylight SavingTime) is individually set.
Daylight SavingTime, or summer time, is a system to lengthen daylight time by advancing 1
hour when daylight time is longer during summer. Daylight saving time has been adopted in
about 80 countries, mainly in Europe and North America.The adoption and duration of daylight
saving time varies depending on the country.
Daylight SavingTime is subject to change due to circumstances of the country or region.
Coordinated Universal Time (UTC)
UTC is the universal standard time coordinated through an international agreement. UTC is the
primary time standard for recording time around the world. The time obtained by adding a leap
second to the “International Atomic Time (TAI)” is determined based on the atomic clock around
the world. It is coordinated in order to compensate for deviations from universal time (UT)
which is astronomically determined by the UTC.
5 Time zone display and list of time zones around
the world
The following list shows the relationship between displays of the bezel and dial ring and time
difference from the UTC.
Please refer to the second hand positions below to set the time zone or to check the time zone
setting.
DST (Daylight SavingTime) is used in time zones with a mark.
In the Lord Howe Island time zone in Australia with a mark, the time is advanced by 30
minutes while Daylight SavingTime (SummerTime) is in effect.
This watch corresponds to DST in the Lord Howe Island time zone.
The time zone of each region and DST (Daylight SavingTime) are as of March 2015.
The displays of city code and the time difference from UTC are subject to
change depending on model.
“·” between figures of the display of time difference shows that there is a
time zone in that place.
Display of time zone
Display of time difference
Representative city names…28 cities among the total of 40 time zones
around the world
Time difference…+14 hours ~ –12 hours

1312
City
code
Display
of time
difference
City name UTC
± hours
LON UTC London 0
PAR 1Paris/Berlin +1
CAI 2 Cairo +2
JED 3 Jeddah +3
— • Tehran +3.5
DXB 4 Dubai +4
— • Kabul +4.5
KHI 5 Karachi +5
DEL • Delhi +5.5
— • Kathmandu +5.75
DAC 6 Dhaka +6
— • Yangon +6.5
BKK 7 Bangkok +7
BJS 8 Beijing +8
— • Eucla +8.75
TYO 9 Tokyo +9
ADL • Adelaide +9.5
SYD 10 Sydney +10
— • Lord Howe Island +10.5
NOU 11 Nouméa +11
— • Norfolk Island +11.5
City
code
Display
of time
difference
City name UTC
± hours
WLG 12 Wellington +12
— • Chatham Islands +12.75
TBU 13 Nuku’alofa +13
CXI 14 Kiritimati +14
— –12 Baker Island –12
MDY –11 Midway islands –11
HNL –10 Honolulu –10
— • Marquesas Islands –9.5
ANC –9 Anchorage –9
LAX –8 Los Angeles –8
DEN –7 Denver –7
CHI –6 Chicago –6
NYC –5 New York –5
— • Caracas –4.5
SDQ –4 Santo Domingo –4
— • St. John’s –3.5
RIO –3 Rio de Janeiro –3
FEN –2 Fernando de
Noronha –2
PDL –1 Azores –1
6 Time Zone Adjustment
Time zone adjustment
The time zone can be adjusted to the local time anywhere in the world with just one
button operation.
DST (Daylight SavingTime) can be set manually.
How to adjust the time zone
1
Go to a place
where GPS signals
can be easily
received
2Continue to press Button A (6 seconds), and then release it when the second
hand moves to the 30-second position.
Move to the
outdoors under an
open sky with good
visibility.
Although the second hand moves to the
0-second position 3 seconds after
pressing Button A, continue to press it.
When the second hand has reached
the 30-second position, reception is
started.
The indicator hand points to “4+.”
While the indicator hand points to “low”
or , reception is not started even with
operation for reception.
When the hand points to “low,” charge the watch by exposing it to light.
Check whether the watch is able/unable to receive GPS signals
When the hand points to , reset the in-flight mode ( ).
Press for
6 seconds

1514
3Direct the watch face upward and wait 4When the second hand points to “Y” or “N,”
reception is completed.
Please note that it may be difficult to receive GPS
signals while you are in motion.
It takes a maximum of 2
minutes to complete reception.
It depends on the receiving
conditions.
< Display during reception (= satellites
acquisition status) >
The second hand indicates ease of receiving
(= number of GPS satellites from which GPS
signals are received).
The larger the number of
acquired satellites, the
easier it is to receive GPS
signals.
Second hand position
25-second
Number of satellites
5 units
Even when the hand points to
4 units or more, reception
may not be allowed.
To cancel the reception, press
Button B.
The reception result is displayed for 5
seconds.
Then, the hour and minute hands move, and
the time and date are adjusted. (The time
zone is also adjusted to the local time zone.)
Reception
result display Y: Successful N: Failed
Display
Check that the reception is successful after
the watch returns to the time display mode.
During movement of the hands and the date, the
buttons cannot be operated.
Manually set Daylight SavingTime (DST).
B
P
C
JJY
May receive
C
a
n
n
o
t
r
e
c
e
i
v
e
3 units
4 units
5 units
6 units
・
・
・
・
・
・
2 units
0 units
E
a
s
y
t
o
r
e
c
e
i
v
e
Press
Precautions on time zone adjustment
If the time zone is adjusted near a time zone boundary, the time of the adjacent time zone
may be displayed.
In some areas the boundaries observed by the watch may not exactly correlate to the actual
time zone markers on the land.
This does not indicate a malfunction. In this case, set the time zone in the manual time zone
setting mode.
When the time zone is adjusted while traveling on land, avoid doing so near time zone
boundaries. In addition, when the watch is used near time zone boundaries, make sure to
check the time zone setting, and manually set the time zone as necessary.

1716
7 Manual time zone selection
Manual time zone selection
In places where the time zone cannot be adjusted, the time zone can be set manually.
How to manually set the time zone
1Pull out the crown to the
first click 2Turn the crown and set the second hand to the time zone of the destination
The second hand moves
to display the currently
set time zone.
Pull out
to the
1st click
0 1 2
When the crown is turned,
the second hand moves to the
next zone.
Turn the crown
clockwise to
advance 1 time
zone.
Turn the
crown counter
clockwise to
set back 1 time
zone.
< Display of the indicator hand >
Displays ON/OFF setting of DST
(Daylight SavingTime).
DST OFF ON
Display
Hand position • DST
3Push the crown back in
The second hand returns to
the time display mode.
The indicator hand returns
to the display of charging
status.
During movement of the date,
the buttons and crown cannot
be operated.
Push
back in
0 1 2

1918
8 DST setting
Turn ON DST (Daylight SavingTime)
DST (Daylight SavingTime) can be manually set.
DST (Daylight SavingTime) is not automatically changed.
ON/OFF of the DST (Daylight SavingTime) is not automatically changed with operation of time zone
adjustment/manual time zone selection.
When traveling to a region where DST (Daylight SavingTime) is not adopted from a region where it is
adopted, turn off the DST (Daylight SavingTime) setting.
1Pull out the crown to the first click
The indicator hand moves
to indicate the current DST
(Daylight SavingTime)
setting.
< When DST (Daylight Saving
Time) setting is OFF >
Pull out
to the first
click
0 1 2
2Continue to press Button A (3 seconds) within 5
seconds after operation of ①3Push the crown back in
The indicator hand moves to point to “DST
(ON),” and the hour and minute hands
advance by one hour.
Press for
3 seconds
0 1 2
In the Lord Howe Island time zone in Australia,
the time is advanced by 30 minutes while DST
(Daylight SavingTime) is in effect.
The second hand returns to the time display
mode.
The indicator hand returns to the display of
charging status.
Push
back in
0 1 2
Turn OFF DST (Daylight SavingTime)
Carry out steps ①to ③in the state where DST (Daylight SavingTime)
setting is ON.
In step ②, adjust the indicator hand to the “OFF” position as shown in the
figure at the right. The hour and minute hands return by one hour.

2120
9 How to manually adjust the time
Manual time adjustment
The watch can be set to the precise current time of the currently set time zone.
(The time zone is not changed.)
How to manually adjust the time
1Go to a place where GPS signals can be easily received
Move to the outdoors under an open sky
with good visibility.
2Continue to press Button A (3 seconds),
and then release it when the second
hand moves to the 0-second position. 3Direct the watch face upward and wait
When the second hand has reached
the 0-second position, reception is
started. The indicator hand points
to “1.”
Press for
3 seconds
While the indicator hand points to “low”
or , reception is not started even with
operation for reception.
When the hand points to “low,” charge
the watch by exposing it to light.
When the hand points to , reset in-
flight mode ( ).
It takes up to one minute to complete
reception.
The reception time depends on the
reception conditions.
< Display during reception (= satellites acquisition
status) >
The second hand indicates ease of receiving (=
number of GPS satellites from which GPS signals are
received).
To acquire only time information,
the number of satellites necessary
for reception is one.
Number of
acquired
satellites
1 0
Display
State Easy to
receive
Cannot
receive
To cancel the
reception, press
Button B.
Press

2322
4When the second hand points to “Y” or “N,” reception is completed.
The reception result is displayed for 5 seconds.
Then, the hour and minute hands move, and the time and
date are adjusted.
Reception
result
display
Y: Successful N: Failed
Display
Check that the reception is successful after the watch returns
to the time display mode.
When the time is not correct even if “Y” is displayed, the time
zone may not correspond to the region where you are. Check
the time zone or DST (Daylight SavingTime) selection.
During movement of the hands and the date, the buttons cannot be
operated.
Manually set DST (Daylight SavingTime).
10 When boarding (in-flight mode ( ))
In-flight mode ( )
Set to in-flight mode ( ) where the reception may influence operation of other electronics
devices in an airplane, etc.
In in-flight mode ( ), the GPS signal reception (time zone adjustment, manual time adjustment,
and automatic time adjustment) does not function.
< In-flight mode ( ) >
The indicator hand points to .
When in-flight mode has been
deactivated the indicator hand
indicates the charging status.

2524
Set to in-flight mode ( ).
1Press and hold Button B (3 seconds)
The indicator hand indicates the charging
status.
Press for
3 seconds
The indicator hand points to .
When in-flight mode ( ) is set, the indicator
hand does not indicate the charging status.
Return to normal mode
Carry out operation ①.
When the indicator hand points to “the charging status as shown”
in the figure at the right, in-flight mode can be deactivated.
The display when the
charging status is “full”
11 Leap second (Automatic leap second reception
function)
Leap second
The leap second is to compensate for deviations from the universal time (UT) which is
astronomically determined and the “International Atomic Time (TAI).
“1 second” may be added (deleted) once a year or every few years.
Automatic leap second reception function
A leap second is automatically added by receiving “leap second data” from GPS signals at the
time of leap second addition.
“Leap second data” includes information about future leap second addition and current leap second
data.

2726
Receiving Leap Second Data
When the GPS signal reception is performed on or after December
1st and June 1st, the indicator hand displays as shown at the right.
When the leap second data reception is completed, the indicator
hand returns to display the charging status. Use the watch as it is.
The leap second data reception is performed every half a year
regardless of leap second addition.
It takes up to 18 minutes to receive the leap second data.
Receiving the leap second data
When GPS signals are received under the following conditions, the leap second data reception
is also started.
• GPS signals are received after the system reset
• GPS signals have not been received for a long time
• Leap second data reception has failed
(Leap second data reception is performed again during the next GPS signal reception. It is
repeated until the leap second data reception is successful.)
12 Reception result display
Check whether the leap second data reception was successful
The successful / failed reception result of the regular leap second data reception is displayed for
5 seconds.
1Press Button A and then
release it 2The result of the reception is displayed
The second hand and
indicator hand display the
reception result.
Press and
release
When Button A is kept
pressed, the watch
enters the Manual time
adjustment operation.
The second hand displays
the result of the GPS signal
reception (time adjustment or
time zone adjustment).
The indicator hand points to
“1” or “4+” which shows “time
adjustment” or “time zone
adjustment”.
The indicator hand points to
“4+” as a result of time zone
adjustment.
Second hand: Reception
result (successful / failed)
Result Successful Failed
Display
Position Y 8-Second
Position
N
22-Second
Position
After 5 seconds have elapsed
or when Button B is pressed,
the watch returns to the time
display mode.

2928
3Press Button A and then release it while the result of the reception is displayed (for 5 seconds) in step 2
The second hand displays the
result of the leap second data
reception (successful / failed).
The indicator hand points to “0”
when leap second data reception
is occurring.
Press and
release
When Button A is kept pressed,
the watch enters the Manual time
adjustment operation.
After 5 seconds have elapsed,
or when Button B is pressed, the
watch returns to the time display
mode.
Second hand: Reception result (successful / failed)
Result Successful Failed
Display
Position Y 8-second position N 22-second position
When the leap second data reception result isY
(successful)
• The leap second data reception was successful.
Use the watch as it is.
When the leap second data reception result is N (failed)
• The leap second data reception, periodically performed, has
not been successful.
It will be performed automatically with the next GPS
signal reception (automatic time adjustment/manual time
adjustment).
Use the watch as it is.
The leap second data is received on or after December 1st
and June 1st.
Even when the leap second data reception has not been
successful, the time is correct until the leap second data is
added (deleted).
13 How to check when the time zone information
was configured for your watch
The case back shows the caliber-
case number of your watch.
8
X
2
2
-
0
A
A
0
-
2
8
X
2
2
-
0
A
A
0
-
2
Caliber-case number
The number to identify the watch type
Display may vary depending on the model.
By referring to caliber-case number shown on the
case back, you will be able to determine when the
time zone data was configured.
For more details, refer to the URL below.
http://www.seikowatches.com/
gpstimezonedatainfo/
If the official time zone has changed in a region
after the watch’s time zone data was configured,
the correct time will not be displayed even
after receiving GPS signals. Please perform the
following operations to display the correct time:

3130
< To set the time of this watch in a region where the official time zone has changed >
1. Select the time zone appropriate for the current time in the target region by manual time zone
setting.
→For details, please refer to “7. Manual time zone selection” P. 16
2. Next, adjust the time by manual time adjustment.
→For details, please refer to “9. How to manually adjust the time” P. 20
3. When using the watch within the same time zone, the correct time will be displayed after
automatic (GPS) or manual time adjustments.
4. When moving from a region where the official time zone has changed to a different time
zone, then back to the region where the official time zone has changed, carry out the same
operations from 1. - 3. as indicated above to display the correct time in the region where the
official time zone has changed.
SPECIFICATIONS
1. Basic function ...
Main-dial; three hands (hour/minute/second hands), date, indicator hand, world time function
(40Time zones)
2. Frequency of crystal oscillator ... 32,768 Hz (Hz = Hertz ... Cycles per second)
3. Loss/gain (monthly rate) ...
Loss / gain ±15 seconds on a monthly rate (When the watch is used without automatic time
setting by receiving GPS signal and when it is worn on the wrist within a normal temperature
range between 5°C and 35°C (41°F and 95°F)).
4. Operational temperature range ... Between −10°C and +60°C (14°F and 140°F)
5. Driving system ... Step motor (hour/minute/second hands of main-dial), date, indicator hand.
6. Power source ... Secondary battery, 1 piece
7. Duration of operation ...
Approximately 6 months (Fully charged, and the Power Save is not activated).
If the Power Save is activated after it is fully charged, the watch continues to run for approximately
2 years at maximum.
8. GPS signal reception function ...
Time zone adjustment, manual time adjustment, automatic time adjustment
9. IC (Integrated Circuit) ... Oscillator, frequency divider and driving circuit C-MOS-IC, 4 pieces
The specifications, as noted above, are subject to change without prior notice for product improvement
purposes.

3332
Español
Por favor lea detenidamente las instrucciones de la presente
guía completa para el uso correcto y seguro de su reloj SEIKO
antes de usarlo.
El servicio de ajuste de longitud de los brazaletes se encuentra disponible en el
establecimiento donde adquirió su reloj. En caso usted no pueda solicitar la reparación de
su reloj en el establecimiento de venta porque lo recibió como obsequio, o porque se mudó
a un lugar lejano, póngase en contacto con la RED MUNDIAL DE SERVICIO DE SEIKO. Dicho
servicio también está disponible en otros establecimientos mediante pago, aunque algunos
establecimientos no están en condiciones de prestar dicho servicio.
Si su reloj cuenta con una película de protección para evitar rasguños, asegúrese de retirarla
antes de usar el reloj. Si el reloj se usa sin retirar dicha película, se podría adherir polvo, sudor
o humedad debajo de la misma y causar oxidación.
1 Características ............................................................................... 34
2 Nombres de las piezas.................................................................. 37
3 Compruebe el estado de carga .................................................... 38
4 Zona horaria................................................................................... 40
5 Indicación de zona horaria y lista de zonas horarias
alrededor del mundo..................................................................... 41
6 Ajuste de la zona horaria .............................................................. 43
7 Configuración manual de la zona horaria ................................... 46
8 Configure el Horario de verano (DST).......................................... 48
9 Cómo ajustar la zona manualmente ........................................... 50
10 Cuando está a bordo (modo de vuelo ( )) ................................. 53
11 Segundo intercalar (función de recepción automática del
segundo intercalar) ....................................................................... 55
12 Indicación del resultado de recepción......................................... 57
13 Cómo comprobar si la información de la zona horaria fue
configurada para su reloj.............................................................. 59
CONTENIDO

3534
1 Características
Este es un reloj solar GPS.
Recepción de señales GPS
Este reloj puede ajustarse a la exacta hora local en cualquier parte del
mundo, pulsando solo un botón.
El DST (Horario de Verano) se puede configurar de manera manual.
El reloj ajusta la hora rápidamente al recibir las señales GPS de los satélites
GPS.
El reloj responde a un total de 40 zonas horarias alrededor del mundo.
Cuando cambie la región o zona horaria donde esté usando el reloj, por
favor realice la operación de “ajuste de zona horaria”.
Función de carga solar
Este reloj funciona por carga solar.
Exponga la esfera a la luz para cargar el reloj. Cuando está completamente
cargado, el reloj funciona alrededor de 6 meses.
Cuando se agota toda la energía almacenada en el reloj, toma tiempo
volver a cargar el reloj por completo, por lo que debe recordar cargarlo
regularmente.
Función de ajuste horario automático
Este reloj ajusta automáticamente la hora de acuerdo con patrones
de acción durante el uso.
Cuando el reloj detecta suficiente luminosidad bajo el cielo abierto,
automáticamente recibe señales GPS de los satélites GPS. Esta
función permite al reloj ajustar la hora de manera automática y
exacta incluso durante el uso del reloj.
Este reloj no puede recibir las señales GPS cuando la energía
almacenada no es suficiente.
