Seiko KINETIC 7L22A Installer manual

1
PARTS CATALOGUE /TECHNICAL GUIDE
Cal. 7L22A

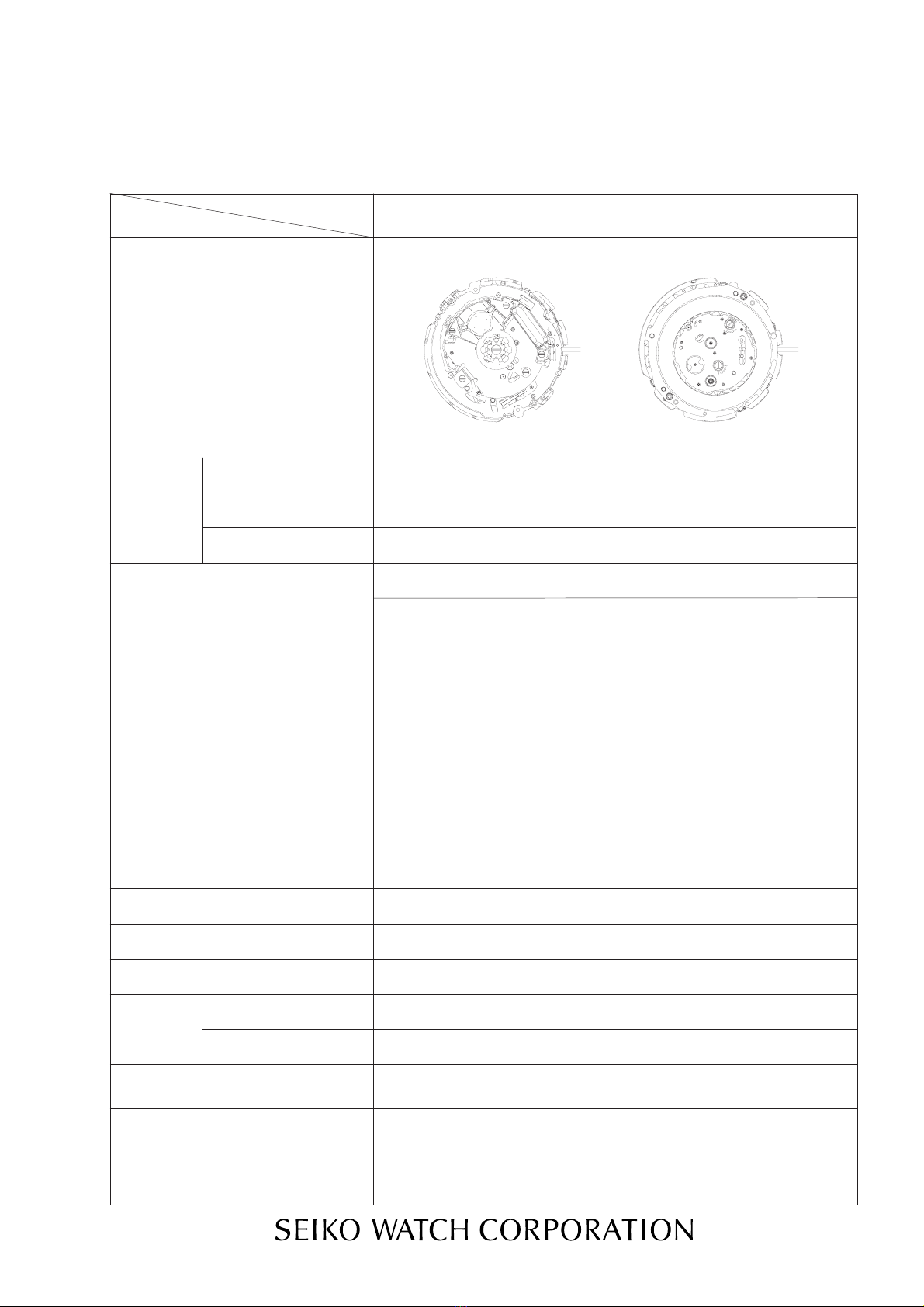

[SPECIFICATIONS]
Cal. No.
Item
Movement
7L22A
(x 1.0)
Movement
size
ø32.0 mm
ø30.0 mm
Time indication
Main time : Hour, minute and small second hands ( 1second)
Outside diameter
Casing diameter
Height 6.4 mm
Driving system
Additional mechanism
Loss/gain Monthly rate within normal temperature range: less than 15 seconds
Regulation system Nil
Measuring gate by quartz tester 10-second gate
Titaniume lithium ion rechargeable battery
Power
Supply
Automatic generating system
Operating voltage range 0.45 ~ 2.5 V
Duration of operation From full charge to stoppage : Approximately 5 months
Jewels 8 jewels
Step motor, 2 pieces (Load compensated driving pulse type)
•Electronic circuit reset switch
•Train wheel setting device
•Date calendar
•Instant setting device for day
calendar
Power generator
KINETIC E.S.U
Stopwatch : Stopwatch minute and 1/5 second hands (0.2 second)
( Movement intervals)
•Automatic generating system
•Energy depletion forewarning
function
•Overcharge prevention
function
•Stopwatch function
45 minutes measurement in 1/5 second increments
Accumulated elapsed time measurement
Heartcam fly-back Reset

2
Before starting repairs, read this manual carefully to understand the features of this watch and strictly
observe the instructions regarding how to perform repairs and checks in order to ensure appropriate
work is carried out.
Features of Cal. 7L22A
The Cal. 7L22A is a fully-fledged chronograph featuring a Kinetic Automatic Generating System.
5M6 series parts are used for the Automatic Generating System and 7N series parts are used for the
wheels and motors.
1. Stopwatch functions
◆The stopwatch is designed to time up to 45 minutes in 1/5 second increments.
◆The measured time is indicated by two stopwatch hands.
◆After timing for 45 minutes, it continues timing up until 48 minutes before automatically stopping.
◆The stopwatch can be reset even while it is currently timing.
◆Stopwatch Operation:
Button A : Start/ Stop
Button B : Reset
BEFORE STARTING REPAIR WORK ON 7L22A
◆Heartcam Chronograph Reset:
The two stopwatch hands are instantaneously reset to the zero position.
◆Measuring methods:
Standard measurement
Accumulated elapsed time measurement
2. Kinetic features
◆The watch will keep operating for approximately 5 months when fully charged under the condition
that the stopwatch is used for no longer than for 45 minutes per day.
◆Energy Depletion Forewarning Function
When energy is running low, the small second hand will start moving in two-second intervals to
indicate recharging is required. If the watch is not recharged at this time, it will run down within
approximately 12 hours after the initial forewarning.
◆Gently swing the stopped watch from side to side at least five hundred times until it returns to its
normal one-second intervals from the two-second intervals.
A
B

PARTS CATALOGUE Cal. 7L22A
3
Please see the remarks on the following pages.
Lubricating of some parts is shown in “II. REMARKS ON DISASSEMBLING AND REASSEMBLING”.
Disassembling procedures Figs. :
Reassembling procedures Figs. :
Lubricating : Types of oil Oil quantity
Moebius A
Moebius F
SEIKO Watch Oil S-6
Normal quantity
Large quantity
When removing the movement from the case or releasing the setting stem during repairs, make sure
that the crown is pushed in to the zero position (its original position) and then gently push down on the
setting lever to remove the movement from the setting stem.
Remarks
To comply with the new structure of the Cal.7L22, an exclusive movement holder should always be used
for dissembly and reassembly.
1
1
85
85
Oscillating weight
0500 700
(0500 702 for special model)
Stopwatch 1/5 second
hand
Stopwatch minute hand
Small second hand
Minute hand
Hour hand
Dial
Oscillating weight screw
0022 490
Oscillating weight wheel
1002 662
Case back
Case back gasket
Case
1
3
4
5
6
7
8
9
2

PARTS CATALOGUE Cal. 7L22A
4
Please see the remarks on the following pages.
Lubricating of some parts is shown in “II. REMARKS ON DISASSEMBLING AND REASSEMBLING”.

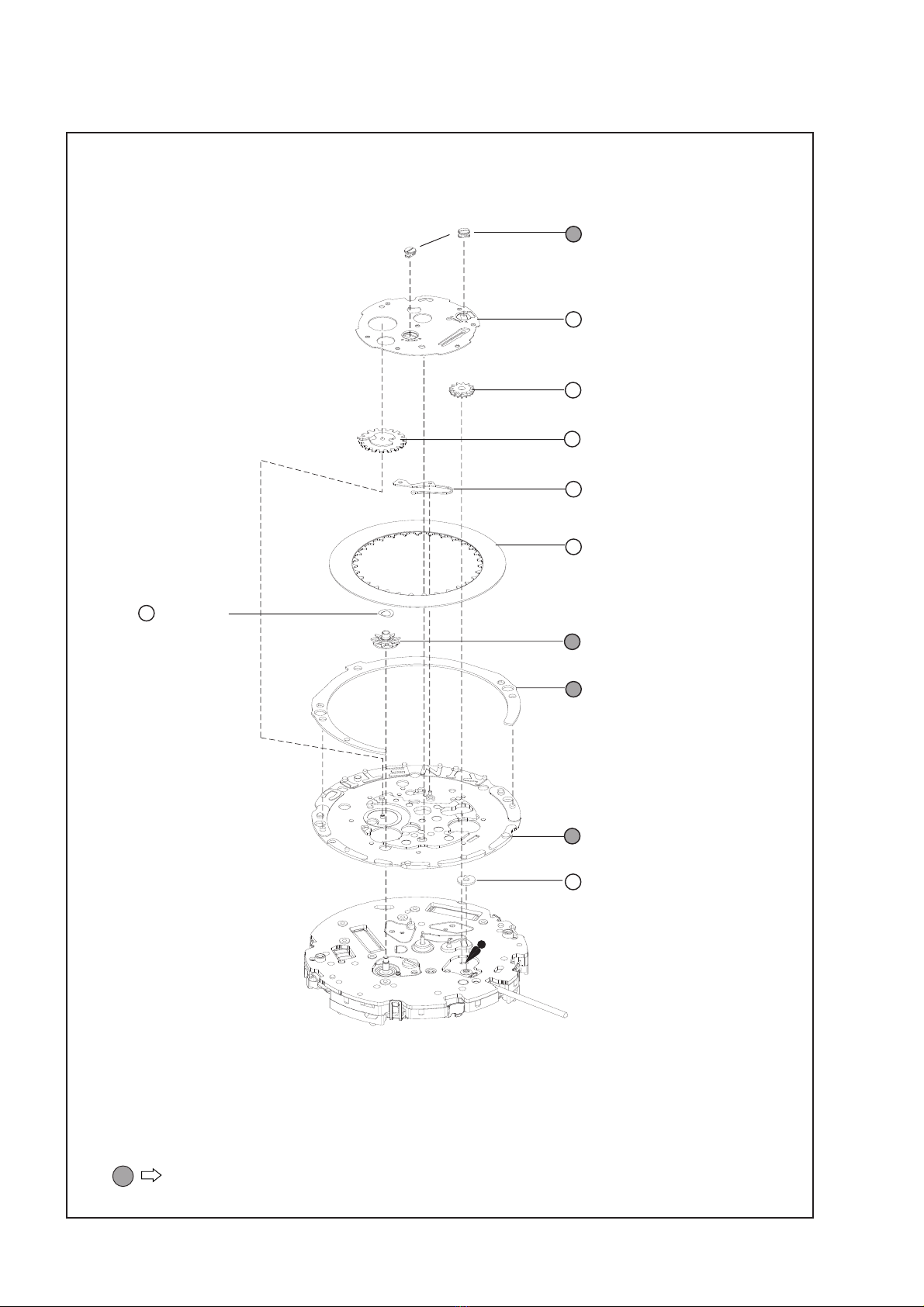

Pin for date dial guard
0027 973 (2 pcs.)
Date dial guard
0808 508
Date corrector setting wheel
0737 500
Date driving wheel
0802 502
Dial washer
0491 735
Date jumper
0810 701
Date dial
(0878 A38)
Hour wheel
0271 514
Anti magnetic shield plate
4259 504
Date dial guide spacer
4408 533
2nd intermediate wheel
for calendar correction
0962 891
10
11
12
13
14
15
17
18
19
20
16

PARTS CATALOGUE Cal. 7L22A
5
Please see the remarks on the following pages.
Lubricating of some parts is shown in “II. REMARKS ON DISASSEMBLING AND REASSEMBLING”.
Rechargeable battery clamp screw
0022 247 (2 pcs.)
Rechargeable battery clamp
4225 529
Insulator for rechargeable battery
4216 519
Rechargeable battery unit
3023 24T
Oscillating weight bridge screw
0022 247 (2pcs.)
Oscillating weight bridge
0198 501
Intermediate wheel for generating rotor
1002 660
Generating rotor
4146 518
Hammer guide spacer
4283 503
21
22
23
24
25
26
27
28
29

PARTS CATALOGUE Cal. 7L22A
6
Please see the remarks on the following pages.
Lubricating of some parts is shown in “II. REMARKS ON DISASSEMBLING AND REASSEMBLING”.
Hammer guard screw
0022 247
Hammer guard
0839 503
Generating lead board
4200 515
Generating lead contact spring
4281 505 (4 pcs.)
Generating coil block
4002 514
Generating stator
4239 519
Transmission lever
0733 700
Hammer
0585 700
Operating lever
0571 700
Transmission lever for hammer
0587 700
Rechargeable battery
connection (+) spacer
4408 531
Rechargeable battery
connection (+)
4271 515
33
36
37
30
31
32
34
35
38
39
40
41

PARTS CATALOGUE Cal. 7L22A
7
Please see the remarks on the following pages.
Lubricating of some parts is shown in “II. REMARKS ON DISASSEMBLING AND REASSEMBLING”.
Circuit block plate
4050 500
Chronograph wheel setting lever
0391 502
Coil block guard
0839 501
Circuit block
4000 563
Minute counting wheel
0902 700
Second counting wheel
0888 700
Second counting wheel washer
0491 501
Coil block guard screw
0022 247 (2pcs.)
Minute counting wheel washer
0491 501
48
50
44
42
45
46
43
47
49

PARTS CATALOGUE Cal. 7L22A
8
Please see the remarks on the following pages.
Lubricating of some parts is shown in “II. REMARKS ON DISASSEMBLING AND REASSEMBLING”.

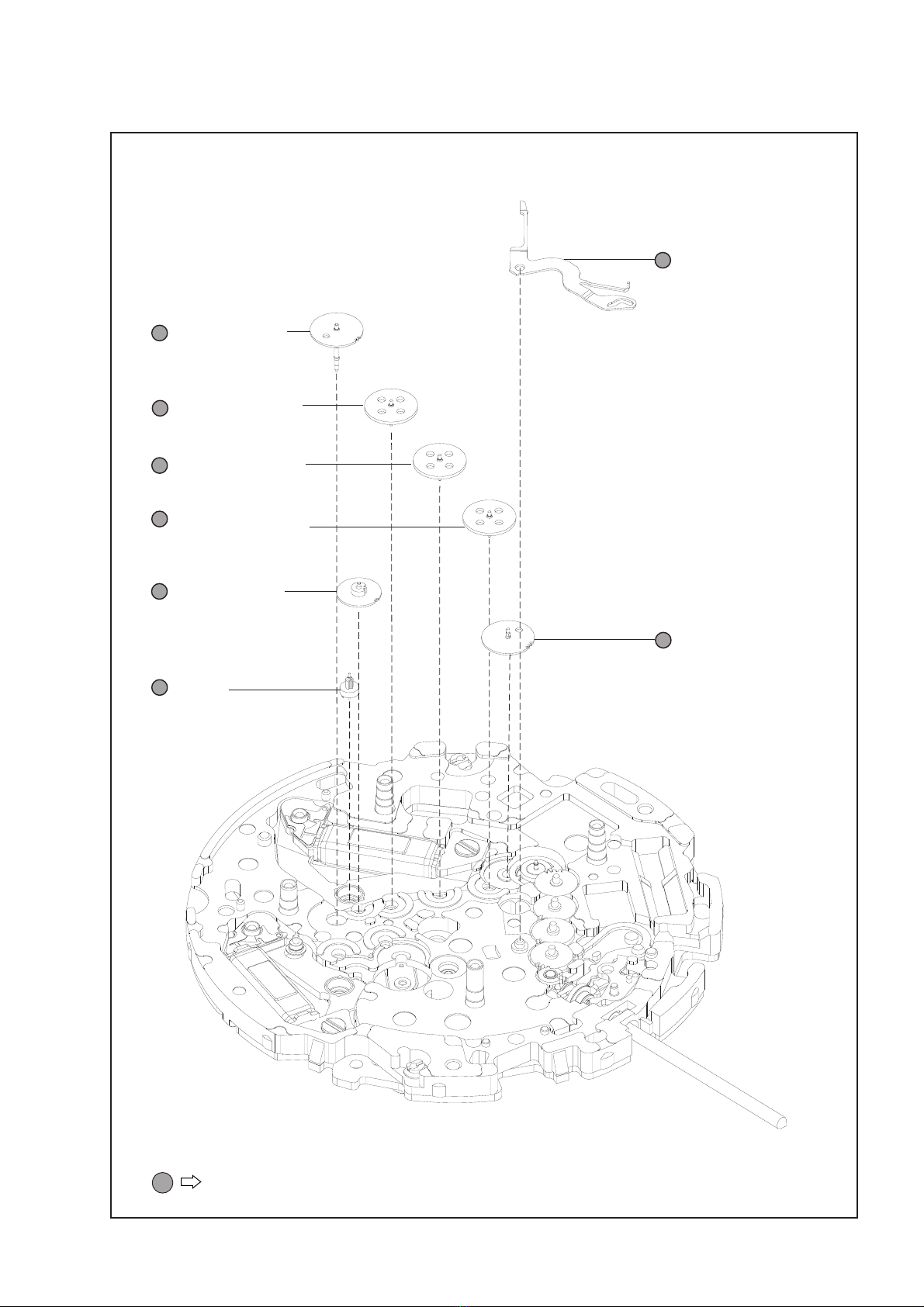

Pin for train wheel bridge
0027 974
Train wheel bridge
0125 504
3rd intermediate wheel
for second-counting
0701 904
2nd intermediate wheel
for second-counting
0817 505
1st intermediate wheel
for second-counting
0885 701
2nd intermediate wheel
for minute-counting
0231 904
1st intermediate wheel
for minute-counting
0885 700
Rotor for chronograph
4146 886
51
52
53
54
55
56
57
58

PARTS CATALOGUE Cal. 7L22A
9
Please see the remarks on the following pages.
Lubricating of some parts is shown in “II. REMARKS ON DISASSEMBLING AND REASSEMBLING”.

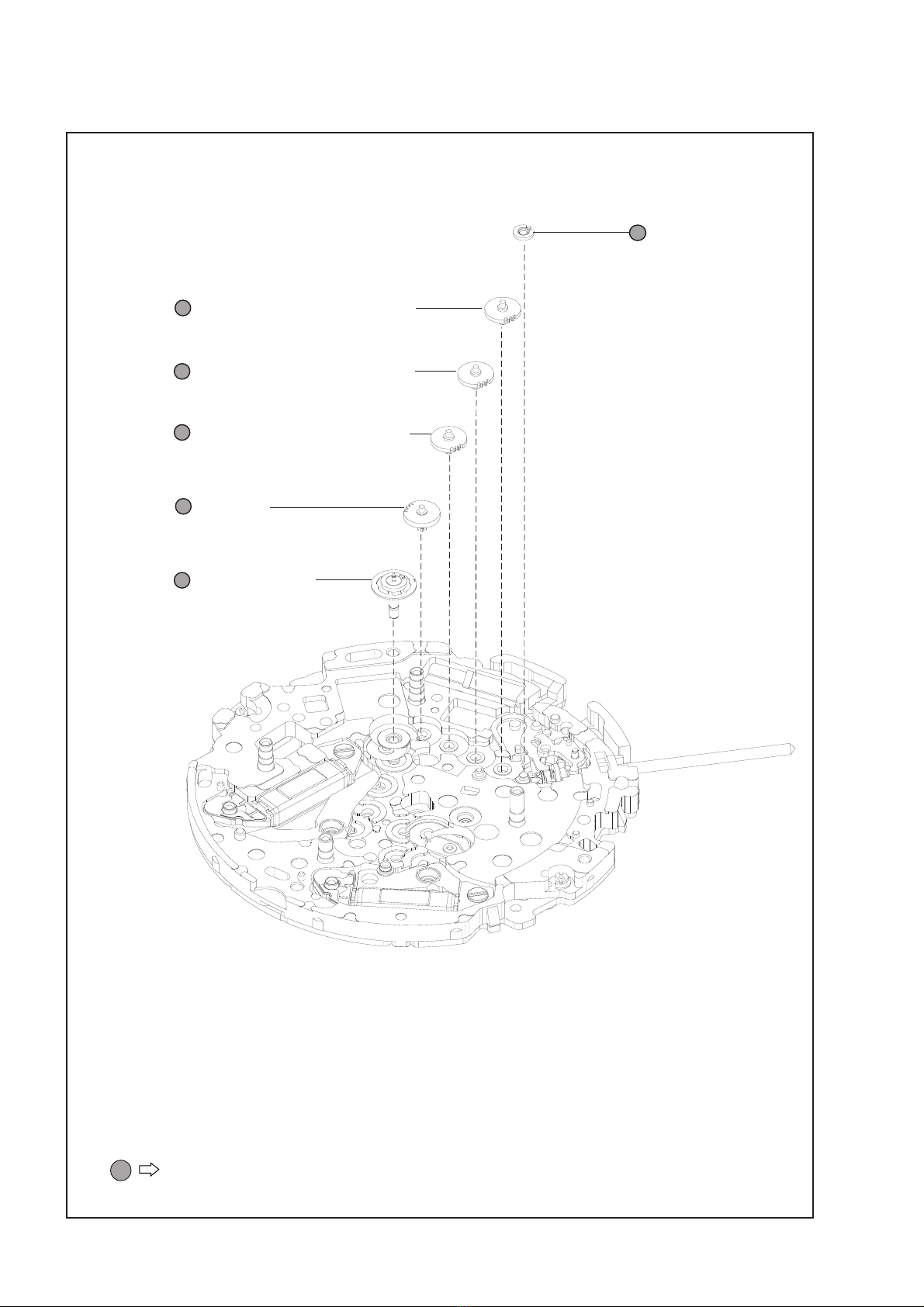

Rotor
4146 886
Train wheel setting lever
0391 501
Third wheel & pinion
0231 904
Small second wheel
0240 500
3rd intermediate wheel
for fourth wheel & pinion
0817 505
2nd intermediate wheel
for fourth wheel & pinion
0817 505
1st intermediate wheel
for fourth wheel & pinion
0817 505
Fifth wheel & pinion
0701 904
59
60
61
62
63
64
65
66

PARTS CATALOGUE Cal. 7L22A
10
Please see the remarks on the following pages.
Lubricating of some parts is shown in “II. REMARKS ON DISASSEMBLING AND REASSEMBLING”.
3rd intermediate wheel for minute wheel
0766 501
Setting wheel
0281 904
2nd intermediate wheel for minute wheel
0766 501
1st intermediate wheel for minute wheel
0766 501
Minute wheel
0261 904
Center wheel & pinion
0221 563
68
69
70
71
72
67

PARTS CATALOGUE Cal. 7L22A
11
Please see the remarks on the following pages.
Lubricating of some parts is shown in “II. REMARKS ON DISASSEMBLING AND REASSEMBLING”.

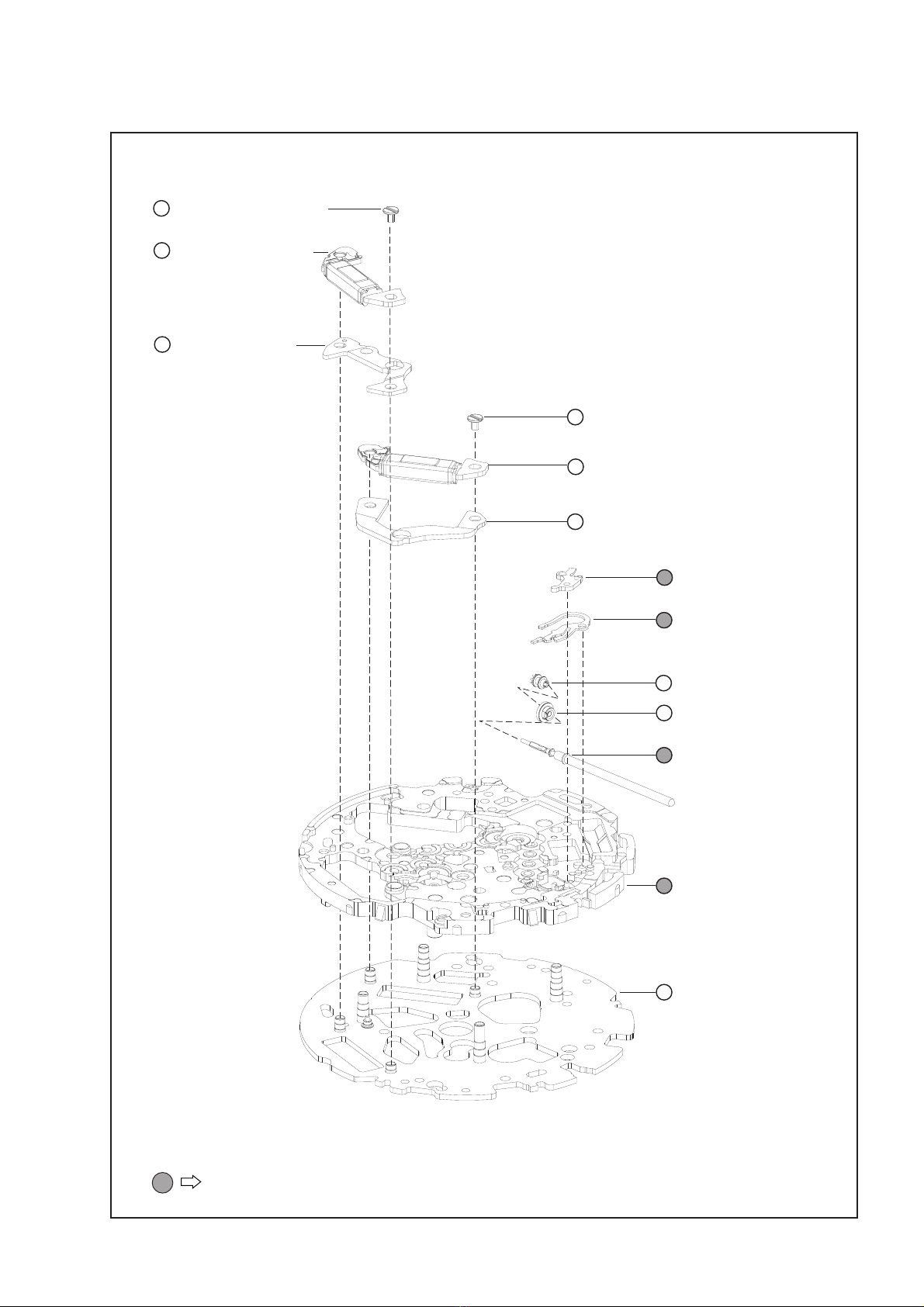

.Chronograph coil block screw
0022 247
Coil block for chronograph
4002 923
Stator for chronograph
4239 902
Coil block screw
0022 247
Coil block
4002 923
Stator
4239 507
Setting lever
0383 891
Yoke
0384 890
Clutch wheel
0282 890
1st intermediate wheel
for calendar correction
0962 890
Setting stem
0351 892
Circuit block spacer
4408 529
Main plate
0100 511
79
80
81
82
83
84
85
73
74
75
76
77
78

PARTS CATALOGUE Cal. 7L22A
12
2
Oscillating weight 0500 700
Unless otherwise specified, use the oscillating weight (0500 700) for ordinary models.
For some particular models, the oscillating weight for special model (0500 702) are provided. (Refer to the
illustration below.)
*Never use the oscillating weight for special model (0500 702) for models other than the specified ones.
Remarks
15 Date dial
Setting stem 0351 892
The type of date dial and setting stem are determined based on the case design.
Check the case number and refer to “SEIKO Casing Parts Catalogue” to choose the appropriate ones.
Pin for date dial guard 0027 973
Pin for train wheel bridge 0027 974
For distinction between those pins, see the illustration below.
Pin for train wheel bridge
0027 974
Pin for date dial guard
0027 973
15
83
10
51
Parts code Crown position Calendar frame
position Color of figure Color of
background
0878 A37
0878 A38
3 o’clock
3 o’clock
around 4 o’clock
around 4 o'clock
white
black
black
white

Cal. 7L22
INSTRUCTIONS (P. 3)
BEDIENUNGSANLEITUNG (S. 16)
INSTRUCTIONS (P. 29)
ISTRUZIONI (P. 42)
INSTRUCCIONES (P. 57)
INSTRUÇÕES (P. 70)
用法説明 (83 頁)

English
2
You are now the proud owner of a SEIKO KINETIC®Cal. 7L22. For best results, please read the
instructions in this booklet carefully before using your SEIKO KINETIC®. Please keep this manual
handy for ready reference.
Sie sind jetzt stolzer Besitzer einer SEIKO KINETIC®Kal. 7L22. Lesen Sie diese Bedienungsanleitung
vor der Verwendung Ihrer SEIKO KINETIC®aufmerksam durch, um die optimale Nutzung dieser
Uhr zu gewährleisten. Heben Sie diese Bedienungsanleitung gut auf, um jederzeit wieder nachlesen
zu können.
Vous voici l’heureux propriétaire d’une montre SEIKO KINETIC®Cal. 7L22. Pour en obtenir de
bonnes performances, veuillez lire attentivement les explications de ce mode d’emploi avant
d’utiliser votre montre SEIKO KINETIC®. Conservez ce mode d’emploi pour toute référence ultérieure.
Grazie per aver acquistato questo orologio SEIKO KINETIC®Cal. 7L22. Per ottenerne i migliori
risultati leggere attentamente le istruzioni di questo libretto prima di passare all’uso dell‘orologio
stesso. Tenere poi il manuale a portata di mano, per ogni eventuale futura, ulteriore consultazione.
Usted es ahora un orgulloso propietario de un Reloj SEIKO KINETIC®Cal. 7L22. Para los mejores
resultados, por favor lea las instruciones de este librito cuidadosamente antes de utilizar su Reloj
SEIKO KINETIC®. Le rogamos que guarde este conveniente manual para pronta referencia.
Você pode sentir-se orgulhoso de ter adquirido um SEIKO KINETIC®Cal. 7L22. Para obter dele os
resultados máximos, solicitamos-lhe que, antes de usar o seu SEIKO KINETIC®, leia atentamente
as instruções contidas neste opúsculo. E guarde este manual para referências futuras.

ENGLISH
3
CONTENTS
Page
FEATURES .................................................................................................................. 4
HOW TO CHARGE AND START THE WATCH ........................................................... 4
POWER RESERVE IN YOUR SEIKO KINETIC WATCH............................................... 5
REMARKS ON THE KINETIC E.S.U. ........................................................................... 6
ENERGY DEPLETION FOREWARNING FUNCTION................................................... 6
TIME/CALENDAR SETTING ........................................................................................ 7
FOR MODELS WITH SCREW LOCK TYPE CROWN .................................................. 7
STOPWATCH .............................................................................................................. 8
TACHYMETER ............................................................................................................ 11
NOTES FOR USING THE WATCH .............................................................................. 13
SPECIFICATIONS........................................................................................................ 15
✩
For the care of your watch, see “TO PRESERVE THE QUALITY OF YOUR
WATCH” in the attached Worldwide Guarantee and Instruction Booklet.

English
4
Swing the watch from side to side approximately 500 times.
*Swing rhythmically at a rate of twice a second.
* 500 swings will start the watch and the second hand will move at one-second intervals.
Swing the watch approximately 200 times further to reserve one day of power.
Set the time/calendar and put on the watch.
HOW TO CHARGE AND START THE WATCH
1
2
3
FEATURES
SEIKO KINETIC Cal. 7L22 is an analogue quartz watch equipped with an Automatic
Generating System developed by SEIKO. It generates the electric energy to power the
watch, utilizing the movement of the arm, and stores it in the KINETIC ELECTRICITY
STORAGE UNIT (KINETIC E.S.U.), which requires no periodical replacement unlike
conventional button-type batteries.

English
5
POWER RESERVE IN YOUR SEIKO KINETIC WATCH
●The electric energy generated while the watch is worn on your wrist is stored in the
KINETICELECTRICITYSTORAGEUNIT(KINETICE.S.U.). Itisapowersourcecompletely
differentfromconventionalbatteriesforwatches,andtherefore,doesnotrequireany
periodicalreplacement.
●TheKINETICE.S.U.isacleanandenvironmentallyfriendlypowersource.
●PowerreserveguidelinesfortheKINETICE.S.U.
YoucanestimatethepowerreserveaccumulatedintheKINETICE.S.U.fromthemanner
inwhichyouwearthewatch.
Wearing the watch continuously for 12 hours will accumulate approximately two
additionaldaysofpowerreserve.
Ifyouwearthewatcheverydayfor12hoursforamonth,forexample,twoadditional
monthsofpowerwillbereserved.
●Fullcharge
When the watch is fully charged, the watch will keep operating for approximately
5months. Thedurationofchargedecreasesgraduallyovertime. Theextentofdecrease,
however,variesdependingontheenvironmentandconditionofuse.
●Precautionsforthoseonlywearingthewatchoccasionally
Ifyou use thewatchonlyoccasionally, it is likelythatyouwill find the watchrunning
downwhenyoudecidetouseit. Beforewearingthewatch,besuretochargeitsufficiently
followingtheprocedurein“HOWTOCHARGEANDSTARTTHEWATCH”.

English
6
CAUTION
Never install a silver oxide battery for conventional watches in place of the KINETIC
E.S.U. The battery may burst, become very hot or catch fire. Even if the battery
is installed, electricity will not be conducted.
ENERGY DEPLETION FOREWARNING FUNCTION
●When the second hand starts moving at two-second intervals instead of the normal
one-secondintervals,thewatchwillrundowninapproximately12hours.
*If the second hand starts moving at two-second intervals while the stopwatch is in use, the watch will
run down in approximately 45 minutes assuming the stopwatch remains in use. (Refer to “HOW TO
CHARGE AND START THE WATCH”.)
Inthiscase,swingthewatchfromsidetosidetosufficientlychargetheKINETICE.S.U.
REMARKS ON THE KINETIC E.S.U.
●Donotpullthecrown outtothesecondclickwith the intentionofstoppingthesecond
hand just to save energy. By doing so, a large amount of current flows through the
built-in IC. Therefore, pulling out the crown to the second click will not save energy
but,infact,consumemoreenergythanusual.

English
7
➠➠
TIME/CALENDAR SETTING
Minute hand
Date
Second hand
Hour hand
a. Screwed-in position c. First click
b. Unscrewed position d. Second click
1. Pull out the crown to the first click and
turn it counterclockwise to set the
previous day’s date.
2. Pull out the crown to the second click
when the second hand is at the 12 o’clock
position, and advance the hands by
turning the crown counterclockwise to
set the desired date.
3. Turn the hands to set the desired time.
4. Push back the crown completely in
accordance with a time signal.
Ifyour watchhas ascrew locktype crown,
turnthecrowncounterclockwisetounscrew
it, andthen, pullit out.
Afterusing thecrown, pushit backin tothe
unscrewedposition.
Screwinthecrowncompletelybyturningit
clockwisewhilepressingit.
FOR MODELS WITH SCREW LOCK TYPE CROWN
a b c d
➠➠

English
8
STOPWATCH
●Thestopwatchcanmeasureupto45minutesin1/5secondincrements.
●Themeasuredtime isindicatedbytwo STOPWATCHhandsthatmoveindependently
ofthehandsfortimeindication.
●After48minutes,thestopwatchwillstopautomatically.
TIPS ON READING THE HANDS
●TheSTOPWATCHsecondhandturnsafullcirclein60seconds.
●TheSTOPWATCHminutehandmovesinone-minute increments upto45minutes. It
moves accordingly as the STOPWATCH second hand moves. Please note that the
measured time may be misread if you only see the time shown by the STOPWATCH
minutehand.
STOPWATCH
Second hand STOPWATCH
Minute hand
