Senco SCN125 Application guide

FASTENING SYSTEMS

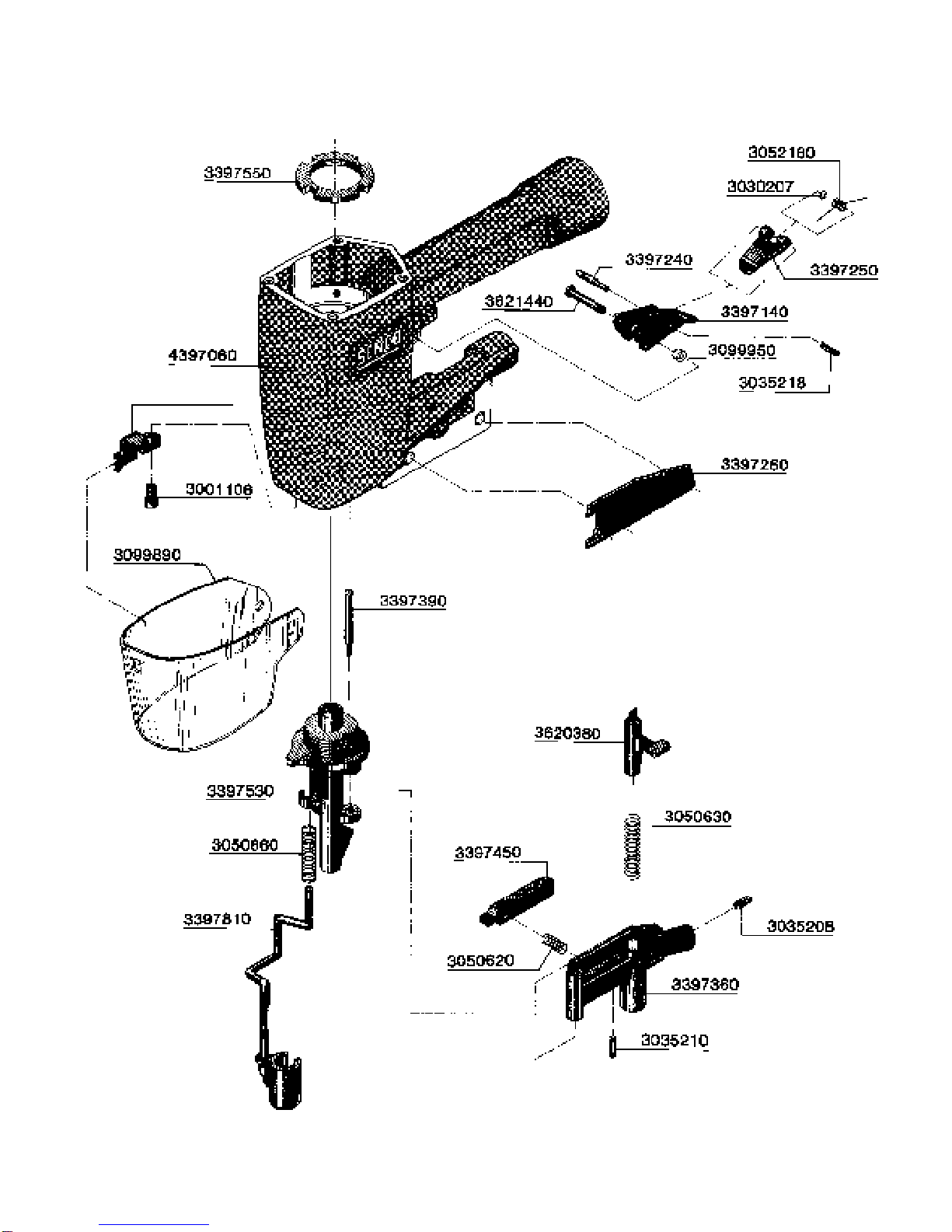

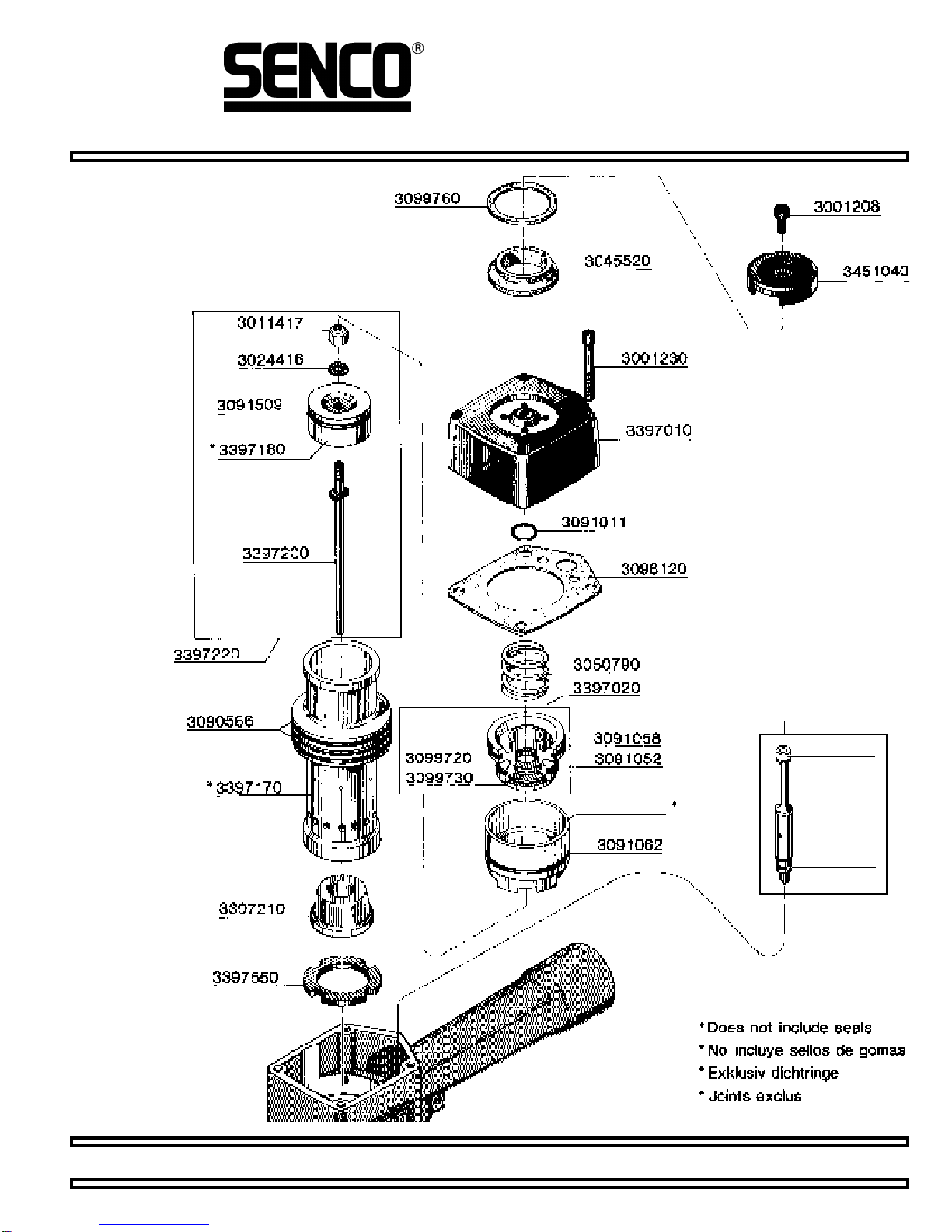

REPLACEMENT PARTS CHART
SCN125/SCN32
Nailers
3397031
3090518
3099740
3397110
NFC125 Revised March 8, 1989 ©1989 by Senco Products, Inc. Cincinnati, Ohio 45244-U.S.A.

3397560

3001210
3397570
3001220
3090639
(SCN32) HC0063
(SCN125) HC0055
(SCN32) 3397840
(SCN125) GB0224

SCN125/SCN32 Coil Nailers
REPLACEMENT PARTS LIST
LISTA DE PARTES DE REPUESTO•ERSATZTRILE-LISTE•LISTE DE PIÉCES DE RECHANGE
PART # DESCRIPTION DESCRIPCIÓN BESCHREIBUNG DÉSIGNATION
3001106---------- SCREW -------------------------------- TORNILLO -------------------------------------------- SCHRAUBE -----------------------------------------------VIS
3001108---------- SCREW -------------------------------- TORNILLO -------------------------------------------- SCHRAUBE -----------------------------------------------VIS
3001208---------- SCREW -------------------------------- TORNILLO -------------------------------------------- SCHRAUBE -----------------------------------------------VIS
3001210---------- SCREW -------------------------------- TORNILLO -------------------------------------------- SCHRAUBE -----------------------------------------------VIS
3001216---------- SCREW -------------------------------- TORNILLO -------------------------------------------- SCHRAUBE -----------------------------------------------VIS
3001230---------- SCREW -------------------------------- TORNILLO -------------------------------------------- SCHRAUBE -----------------------------------------------VIS
3010208---------- NUT ------------------------------------ TUERCA -----------------------------------------------MUTTER --------------------------------------------------ÉCROU
3011217---------- NUT ------------------------------------ TUERCA -----------------------------------------------MUTTER --------------------------------------------------ÉCROU
3011417---------- NUT ------------------------------------ TUERCA -----------------------------------------------MUTTER --------------------------------------------------ÉCROU
3024416---------- WASHER ------------------------------ ARANDELA-------------------------------------------- SCHEIBE --------------------------------------------------RONDELLE
3026208---------- WASHER ------------------------------ ARANDELA-------------------------------------------- SCHEIBE --------------------------------------------------RONDELLE
3030106---------- RETAINER ----------------------------- JUNTA TÓRICA --------------------------------------- SICHERUNGSRING--------------------------------------RETENUE
3030207---------- RETAINER ----------------------------- JUNTA TÓRICA --------------------------------------- SICHERUNGSRING--------------------------------------RETENUE
3033311---------- RETAINER ----------------------------- JUNTA TÓRICA --------------------------------------- SICHERUNGSRING--------------------------------------RETENUE
3035208---------- PIN ------------------------------------- PASADOR --------------------------------------------- STIFT------------------------------------------------------GOUPILLE
3035210---------- PIN ------------------------------------- PASADOR --------------------------------------------- STIFT------------------------------------------------------GOUPILLE
3035218---------- PIN ------------------------------------- PASADOR --------------------------------------------- STIFT------------------------------------------------------GOUPILLE
3045520---------- MUFFLER ------------------------------ SILENCIADOR ---------------------------------------- DÄMPFER ------------------------------------------------SILENCIEUX
3050620---------- SPRING -------------------------------- MUELLE ----------------------------------------------- FEDER ----------------------------------------------------RESSORT
3050630---------- SPRING -------------------------------- MUELLE ----------------------------------------------- FEDER ----------------------------------------------------RESSORT
3050640---------- SPRING -------------------------------- MUELLE ----------------------------------------------- FEDER ----------------------------------------------------RESSORT
3050660---------- SPRING -------------------------------- MUELLE ----------------------------------------------- FEDER ----------------------------------------------------RESSORT
3050790---------- SPRING -------------------------------- MUELLE ----------------------------------------------- FEDER ----------------------------------------------------RESSORT
3052160---------- SPRING -------------------------------- MUELLE ----------------------------------------------- FEDER ----------------------------------------------------RESSORT
3090331---------- SEAL ----------------------------------- SELLO ------------------------------------------------- DICHTUNG -----------------------------------------------JOINT
3090503---------- SEAL ----------------------------------- SELLO ------------------------------------------------- DICHTUNG -----------------------------------------------JOINT
3090621---------- SEAL ----------------------------------- SELLO ------------------------------------------------- DICHTUNG -----------------------------------------------JOINT
3090639---------- SEAL ----------------------------------- SELLO ------------------------------------------------- DICHTUNG -----------------------------------------------JOINT
3091011---------- SEAL ----------------------------------- SELLO ------------------------------------------------- DICHTUNG -----------------------------------------------JOINT
3091052---------- SEAL ----------------------------------- SELLO ------------------------------------------------- DICHTUNG -----------------------------------------------JOINT
3091055---------- SEAL ----------------------------------- SELLO ------------------------------------------------- DICHTUNG -----------------------------------------------JOINT
3091058---------- SEAL ----------------------------------- SELLO ------------------------------------------------- DICHTUNG -----------------------------------------------JOINT
3091062---------- SEAL ----------------------------------- SELLO ------------------------------------------------- DICHTUNG -----------------------------------------------JOINT
3091509---------- SEAL ----------------------------------- SELLO ------------------------------------------------- DICHTUNG -----------------------------------------------JOINT
3098120---------- SEAL ----------------------------------- SELLO ------------------------------------------------- DICHTUNG -----------------------------------------------JOINT
3099720---------- SEAL ----------------------------------- SELLO ------------------------------------------------- DICHTUNG -----------------------------------------------JOINT
3099730---------- SEAL ----------------------------------- SELLO ------------------------------------------------- DICHTUNG -----------------------------------------------JOINT
3099740---------- SEAL ----------------------------------- SELLO ------------------------------------------------- DICHTUNG -----------------------------------------------JOINT
3099890---------- COVER --------------------------------- CUBIERTA--------------------------------------------- ABDECKUNG ---------------------------------------------COUVERCLE
3099950---------- RETAINER ----------------------------- JUNTA TÓRICA --------------------------------------- SICHERUNGSRING--------------------------------------RETENUE
3395390---------- PIN ------------------------------------- PASADOR --------------------------------------------- STIFT------------------------------------------------------GOUPILLE
3397010---------- CAP ------------------------------------ CABEZA ----------------------------------------------- KAPPE ----------------------------------------------------BOUCHON
3397020---------- VALVE --------------------------------- VÁLVULA---------------------------------------------- VENTIL ----------------------------------------------------VALVE
3397031---------- SLEEVE -------------------------------- MANGA ------------------------------------------------BUCHSE --------------------------------------------------CHEMISE
3397110---------- VALVE ASSY. ------------------------- ASAMBLE DE VÁLVULA -----------------------------VENTIL-ZUSAMMENBAU-------------------------------VALVE D’ASSEMBLÉE
3397140---------- TRIGGER ------------------------------ GATILLO ---------------------------------------------- AUSLÖSER -----------------------------------------------GACHETTE
3397170---------- CYLINDER ----------------------------- CILINDRO --------------------------------------------- ZYLINDER ------------------------------------------------CYLINDER
3397180---------- PISTON -------------------------------- PISTON ------------------------------------------------ KOLBEN --------------------------------------------------PISTON
3397200---------- DRIVER -------------------------------- PERCUTOR ------------------------------------------- TRIEBER --------------------------------------------------COUTEAU
3397210---------- STOP ----------------------------------- TOPE --------------------------------------------------- PUFFER ---------------------------------------------------ARRÊT
3397220---------- PISTON ASSY. ------------------------ ASAMBLE DE PISTON ------------------------------- KOLBEN-ZUSAMMENBAU------------------------------PISTON D’ASSEMBLÉE
3397240---------- PIN ------------------------------------- PASADOR --------------------------------------------- STIFT ------------------------------------------------------GOUPILLE
3397250---------- TRIGGER ------------------------------ GATILLO ---------------------------------------------- AUSLÖSER -----------------------------------------------GACHETTE
3397260---------- PLATE---------------------------------- PLACA ------------------------------------------------- PLATTE ---------------------------------------------------PLAQUE
3397341---------- PUSHER ------------------------------- EMPUJADOR ----------------------------------------- VORSCHIEBER-------------------------------------------POUSSOIR
3397360---------- DOOR ---------------------------------- PUERTA ----------------------------------------------- ABDECKSCHIEBER --------------------------------------PORTE
3397390---------- PIN ------------------------------------- PASADOR --------------------------------------------- STIFT ------------------------------------------------------GOUPILLE
3397410---------- PIN ------------------------------------- PASADOR --------------------------------------------- STIFT ------------------------------------------------------GOUPILLE
3397430---------- SUPPORT ----------------------------- SOPORTE ---------------------------------------------TRÄGER --------------------------------------------------SUPPORT
3397450---------- DETAINER ----------------------------- RETENEDOR ------------------------------------------ SPERRE --------------------------------------------------ARRÊT
3397470---------- GUIDE ---------------------------------- GUÍA --------------------------------------------------- FÜHRUNG ------------------------------------------------GUIDE
3397480---------- BUSHING ------------------------------ CASQUILLO ------------------------------------------- HÜLSE ----------------------------------------------------DOUILLE
3397490---------- PISTON -------------------------------- PISTON ------------------------------------------------ KOLBEN --------------------------------------------------PISTON
3397530---------- GUIDE BODY -------------------------- PLACA DE NARIZ ------------------------------------ NAGELFÜHRUNG----------------------------------------FRONT
3397550---------- NUT ------------------------------------ TUERCA ----------------------------------------------- MUTTER --------------------------------------------------ÉCROU
3397560---------- SUPPORT ----------------------------- SOPORTE ---------------------------------------------TRÄGER --------------------------------------------------SUPPORT
3397570---------- SPACER ------------------------------- SEPARADOR ------------------------------------------ DISTANZSTÜCK -----------------------------------------ENTRETOISE
3397750---------- PLATE---------------------------------- PLACA ------------------------------------------------- PLATTE ---------------------------------------------------PLAQUE
3397660---------- SUPPORT ----------------------------- SOPORTE ---------------------------------------------TRÄGER --------------------------------------------------SUPPORT
3397810---------- SAFETY -------------------------------- SEGURO ----------------------------------------------- SICHERHEITSVORRICHTUNG -------------------------SÉCURITÉ
3397840---------- MAGAZINE ASY (SCN32)------------ ASAMBLE DE CARGADOR (SCN32) ---------------MAGAZIN-ZUSAMMENBAU (SCN32) -----------------MAGASIN D’ASSEMBLÉE (SCN32)
3451040---------- DEFLECTOR --------------------------- DEFLECTOR -------------------------------------------ABWEISER -----------------------------------------------DÉFLECTEUR
3551440---------- CAP ------------------------------------ CABEZA ----------------------------------------------- KAPPE ----------------------------------------------------BOUCHON
3620380---------- LATCH --------------------------------- UÑETA ------------------------------------------------- VERSCHLUSS--------------------------------------------DOIGT DE RETENUE
3621440---------- PIN ------------------------------------- PASADOR --------------------------------------------- STIFT ------------------------------------------------------GOUPILLE
4397060---------- BODY ---------------------------------- CARCASA ---------------------------------------------GEHÄUSE -------------------------------------------------CORPS
GB0224----------- MAGAZINE ASSY. (SCN125)-------- ASAMBLE DE CARGADOR (SCN125)-------------- MAGAZIN-ZUSAMMENBAU (SCN125) ---------------MAGASIN D’ASSEMBLÉE (SCN125)
HC0055----------- LABEL (SCN125) --------------------- ETIQUETA (SCN125)--------------------------------- AUFKLEBER (SCN125) ---------------------------------ÉTIQUETTE (SCN125)
HC0063----------- LABEL (SCN32)----------------------- ETIQUETA (SCN32) ----------------------------------AUFKLEBER (SCN32) -----------------------------------ÉTIQUETTE (SCN32)
