Seneca Z-PC Z-TWS5 User manual

ENGLISH 1/8
MI003651-E
EN
EN
EN
EN
Z-PC Line
Z-PC Line
Z-PC Line
Z-PC Line
Z-PC Line
Z-PC Line
Z-PC Line
Z-PC Line
SENECA
S
Z-TWS5
Z-TWS5
Advanced Multifunction Control unit
IEC 61131 Codesys embedded
Advanced Multifunction Control unit
IEC 61131 Codesys embedded
Installation
Manual
Contents:
- General specifications
- Technical features
- Modbus and CANopen connections
- Installation rules
- Electrical connections
- LEDs signallings
- Default conditions
- Module layout
- Accessories
- Decommissioning and disposal
Installation
Manual
SENECA s.r.l.
Via Austria, 26 – 35127 – PADOVA – ITALY
Tel. [phone] - Fax [phone]
For manuals and configuration software, please see www.seneca.it
This document is property of SENECA srl. Duplication and reproduction are forbidden, if not authorized.
Contents of the present documentation refers to products and technologies described in it. All technical data
contained in the document may be modified without prior notice. Content of this documentation is subject to
periodical revision.

MI003651E ENGLISH 2/8
General Specifications
CPU ARM Cortex A8 600 MHz.
Flash memory: 128 Mbytes
RAM memory: 256 Mbytes DDR2
Ferroelectric RAM Memory (FeRAM) 64 Kbytes
Two Ethernet ports on front panel (internal Hub switch)
One CAN communication port
Three RS485 ports
One RS232 port (as an alternative to an RS485 port)
One USB On The Go port
One USB HOST port
One slot for Micro SD card, max 32 GB
Real Time Clock with backup battery
1500 V isolation between power supply and other low voltage circuits
Easy wiring of power supply and serial communication port through Seneca bus for
DIN rail IEC EN 60715.
2 Removable screw terminals with section of 2.5 mm
Technical Features
Communication ports
RS232 e RS485
Switchable
Maximum Baud rate 115 k
COM 1 (mini B 4 pin connector)
RS485
Maximum Baud rate 115 k
COM2 (screw terminals 1-2-3 or IDC10 connector)
COM3 (screw terminals 10-11-12) isolated
COM 4 (screw terminals 4-5-6)
CAN
CANopen bus port COM0
(IDC10 connector as an alternative of RS485 terminals 1-2-3)
Ethernet 1 e Ethernet 2
Fast Ethernet 10/100 Mbps,
Communication port: On frontal from RJ45
Maximum connection length 100 m
USB #1 HOST
Plug-in: USB type A
USB #2 OnTheGo
Plug-in: micro USB
CPU & memory
CPU
CPU ARM Cortex A8 600 MHz
Memory
Plug-in for external memory
256 MBytes RAM
128 MBytes FLASH
Micro SD card: max. 32 Gbyte

ENGLISH 3/8
MI003651-E
Power supply
Supply voltage
10 – 40 V;19 – 28 V 50 – 60 Hz
Power consumption
Typical: 4 W , Max: 6 W @ 24V
Environmental conditions
Temperature
-0 – +55°C
Humidity
30 – 90% a 40°C not condensing
Altitude
Fino a 2000 m a.s.l.
Storage Temperature
-20 – +85°C
Protection degree
IP20
Connections
Removable 3-way screw terminals, 5 mm pitch
Rear IDC10 connector for DIN IEC EN 60715 rail
5 pin connector type miniB, two RJ45 connectors, USB and micro USB connectors
Slot for micro SD card
Box / Dimensions
Dimensions
L: 100 mm; H: 112 mm; W: 35 mm
Box
PA6, Black color
Standards
The module complies with the following standards:
EN61000-6-4 (electromagnetic emission,
industrial environment).
EN61000-6-2 (electromagnetic immunity,
industrial environment).
EN61010-1 (safety).
Isolation
1500 V
ADDITIONAL NOTES :
You must install a fuse from at least 1 A, delayed, on the power supply line, near the
module.
USB OTG
1500 V
POWER SUPPLY
4
5
6
IDC10
RS485
RJ45
500 V
10 11 12
IDC10
RJ45
ETH1
ETH2
3
1
2
RS485
RS485
RS485 RS232
MiniB
USB Host
RS485
CAN

MI003651-E ENGLISH 4/8
MODBUS and CANOPEN connection standards
1) Install the module into the DIN rail.
2) Please use a cable with a suitable length to connect the remote modules.
The following table show the cables length.
- Bus Length: Modbus network maximum length as a function of the Baud rate.
This is the length of the cables which connect the two bus terminators modules.
- Derivation Length: Derivation line Maximum length as a function of the Baud Rate
(see Scheme 1).
In order to obtain maximum performances it’s recommended to use a specific shielded
cable, as an example BELDEN 9841.
Scheme 1
Module2
Module1
Module3
Module4
Module5
BUS length
DL= Derivation Length
DL
Terminator Terminator
BUS
Length
Derivation
Length
Baud
rate
M
o
d
b
u
s
1200 m
2 m
115 kbps
C
A
N
2500 m
1000 m
500 m
250 m
100 m
50 m
25 m
150 m
60 m
5 m
5 m
5 m
3 m
0.3 m
20 kbps
50 kbps
125 kbps
250 kbps
500 kbps
800 kbps
1 Mbps
Installation Rules
The module is designed to be installed, in vertical position, on rail. In DIN IEC EN 60715
order to ensure optimum performance and a longest working life, the module(s) must be
provided with adequate ventilation and no raceways or other objects that obstruct the
ventilation slots. Never install the modules near heat sources.
We recommend installation in the lower part of the control panel.
Inserting on the DIN rail
As the picture shows:
1) Insert the module rear IDC10 connector
on a DIN rail free slot (there’s only one
way to insert the module because of
polarized connector).
2) Push the two locks placed at the sides
of the rear IDC10 connector to fix the
module.
Z-TWS5
Multi-function
control unit
RJ10
USB #2
USB #1
Z-TWS5
ETH1
ETH2
USB #2
On The Go
RS 485 (COM 4)
123
RS 485 (COM 2)
456
CANopen
101112
Micro SD Card
ARM
Meaning
RS485 signal: B
RS485 signal: GND
RS485 signal: A
RS485 signal: GND
RS485 signal: B
RS485 signal: A
CANopen signal: S-GND
CANopen signal: CAN L
CANopen signal: CAN H
1
3
4
5
6
10
11
12
Screw
terminals
2
RS 232
(COM 0)
ETHERNET 1
ETHERNET 2
Rear bus
connector
(COM 2/CANopen)
USB #1 HOST
Power supply
(from rear bus
connector):
11..40 Vdc
19..28 Vac (50..60 Hz)
Power consumption:
max 6 W
PWR
LINK1
ACT1
LINK2
ACT2
RUN
RX1
TX1
RX2
TX2
RX4
TX4

ENGLISH 5/8
MI003651-E

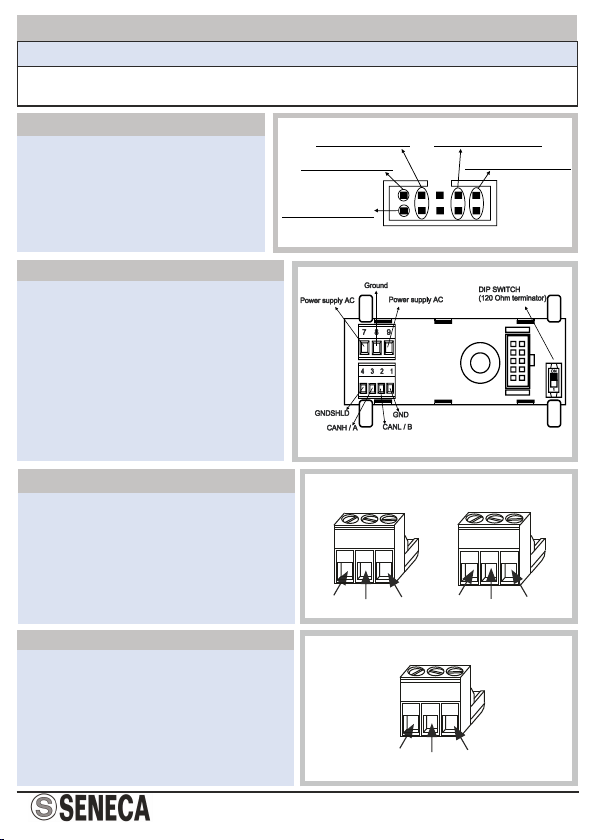

Rear IDC10 Connector
The picture shows the meaning of the
IDC10 connector pins. Power supply
is av a i l a b l e on l y from rear
connector.
CAN/RS485 GND
CAN H / RS485 A
CAN L / RS485 B
Power Supply AC / +
Power Supply AC / -
IDC 10
1
Electrical Connections
Power supply, MODBUS and CAN interface
Power Supply and Modbus interface are available by using the bus for the Seneca
DIN rail, by the rear IDC10 connector or by Z-PC-DINAL1-35 accessory.
Z-PC-DINAL 1-35 Possible Use
If Z-PC-DINAL1-35 accessory is used, the
power supply signals and communication
signals may be provided by the terminals
block into the DIN rail support. The figure
shows the meaning and the position of the
terminal blocks. The DIP-switch that set
the 120 Ω terminator is used only for CAN
communication.
GNDSHLD: Shield to protect the
connection cables against interference
(recommended).
RS485 COM 2 and RS485 COM 4 Ports
The Z-TWS5 has two serial ports RS 485:
COM2 and COM4.
The RS485 COM2 port can be connected
through corresponding screw terminals or
by IDC10 connector.
To select RS 485 on the IDC10 connector,
switch the SW1 to OFF position.
CANopen Port
The Z-TWS5 has a RS485 COM3 isolated
port available at screw terminals 10-11-12.
B (-) GND A (+)
RS 485 ( )COM2
321
RS 485 ( )COM4
654
B (-) GND A (+)
B(-)
S-GND A(+)
101112
RS 485 ( )COM3

ENGLISH 6/8
MI003651-E

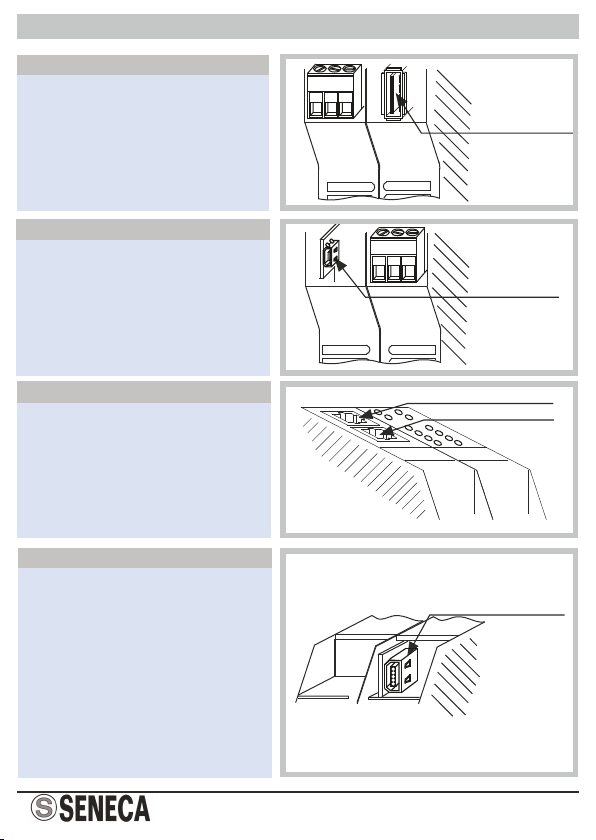

Other Z-TWS5 Ports
USB #1 HOST Port
The Z-TWS5 has a USB HOST type A
connector, that can be used as
additional serial port (using a Seneca
S117P1, for example) or to connect an
external USB memory.
USB #1 HOST
321
USB #2 On The Go Port
The Z-TWS5 has a USB On The Go
connector, with micro-USB plug-in, that
can be used as Ethernet connection for
Samba (through a driver before installed
on PC). The MAC ID of this port is
different than the MAC ID of the two
Ethernet ports on the front panel.
USB #2
On The Go
10
11
12
Ethernet RJ45 ports (frontal panel)
The Z-TWS5 has two ethernet ports,
with RJ45 connector, on front panel, for
easy PC connection.
The two ports are internally connected
in HUB/SWITCH modality.
The two ports have the same MAC ID.
RS232 or RS485 COM1 Port
The Z-TWS5 on miniB connector, has a
serial RS232 COM1 port or, as an
alternative, has a third RS485 COM1
port.
In order to select the RS232 port or the
RS485 port you can use the Z-TWS5
configuration software.
The cable length for the RS232 interface
must be less than 3 meters.
Ethernet 1 RJ45
Ethernet 2 RJ45
RS485/RS232 COM1

ENGLISH 7/8
MI003651-E
Default Conditions
Module factory settings parameters:
SW1 Switch position
ON
LED Signallings
LED
STATE
Meaning of LEDs
PWR Green
On
The module is power on
Stop/Run
On
The module is ready for use
Fault Red
On
O.S. boot loading
Run1-2 Yellow
Blinking
There is data activity (Ethernet 1-2)
Lnk1-2 Green
On
Ethernet 1-2 connection detected
TX1-2-3 Red
Blinking
Signaling Data Transmitting (COM 1-2-3)
RX1-2-3 Red
Blinking
Signaling Data Receiving (COM 1-2-3)
TX1-2-3 Red
On
Verify the connection (COM 1-2-3)
RX1-2-3 Red
On
Verify the connection (COM 1-2-3)

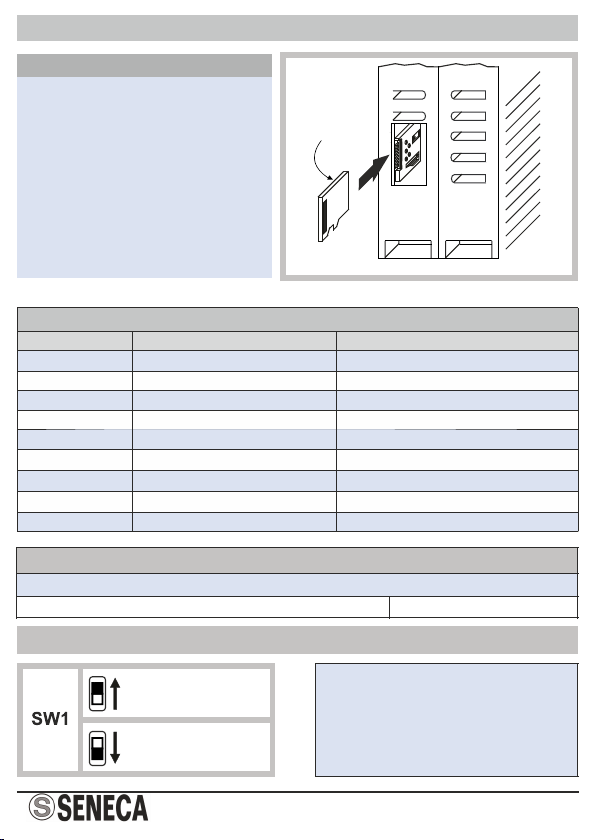

Plug-in Connector for Micro SD Card
Micro SD card
The Z-TWS5 has a slot for micro SD
card placed on the side of the case
Before pushing the SD card in this slot,
please be sure that the SD card metal
contacts are facing towards left (Please
see the figure on side).
SD card
metal
contacts
Micro SD Card
DIP-Switch SW1
ON RS485 COM2
OFF CANopen COM0
On the module side there are one switch.
With this switch you can choose between
RS485 or CANopen serial interfaces,
from screw terminals 1-2-3 or from the
rear side 10 pin connector. We suggest
to turn off the module before setting
the switches.

MI003651-E ENGLISH 8/8

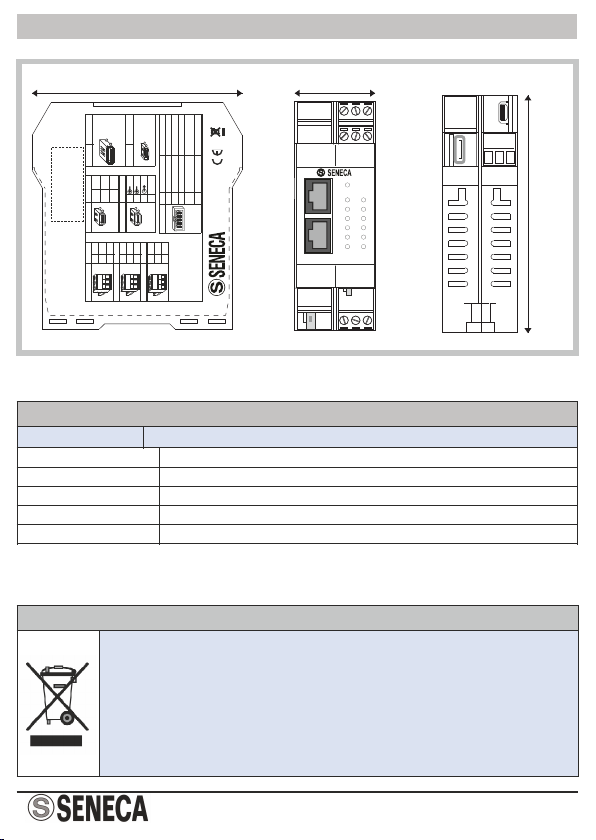

Module layout
Accessories
CODE
DESCRIPTION
Z-PC-DINAL1-35
DIN rail support with screw terminals 1 slot pitch=35 mm
Z-PC-DIN1-35
DIN rail support: 1 slot for rear connector pitch=35 mm
Z-PC-DIN4-35
DIN rail support: 4 slot for rear connector pitch=35 mm
CS-DB9M-MICROB
Communication serial cable RS232 miniB
CS-TIP-MICROB
Communication serial cable RS485 miniB
Decommissioning and Disposal
Disposal of Electrical & Electronic Equipment (Applicable throughout the European Union
and other European countries with separate collections programs). This symbol, found on
your producr or on its packaging, indicates that this product should not be treated as
household waste when you wish to dispose of it. Instead, it should be handed over to an
applicable collection point for the recycling of electrical & electronic equipment. By ensuring
this product is disposed of correctly, you will help prevent potential negative consequences to
the environment and human health, which could otherwise be caused by inappropriate
disposal of this product. The recycling of materials will help to conserve natural resources.
For more detailed information about the recycling of the product, please contact your local
city office, waste disposal service of the retail store where you purchased this product.
1 2 3
45 6
10 11 12
COM 1
Z-TWS5
USB OTG
USB HOST
ETH 2 ETH 1
PWR
Stop
Run
Fault
Rx3
Tx3
Rx2
Tx2
Rx1
Tx1
x
x
x
x
x
x
x
x
x
x
x
x
x
111,0 mm
35 mm
100 mm
1112
10
ET004852B
MADE IN ITALY
Z-TWS5
Multi-function Control Unit
Max load
500 mA
A Type
Mini B
Type
Mini B
Type
1
2
9
10
Rear Bus
connector
* Software configurable * *See SW1
on the other side
COM2
RS485
1
Gnd
2
B
3
A
COM3
RS485
10
Gnd
11
A
12
B
COM4
RS485
4
Gnd
5
B
6
A
USB
HOST
USB
On The Go
COM1 *
RS485
1+3
B
2+4
A
5
Gnd
COM1 *
RS232
1
RX
2
CTS
3
TX
5
Gnd
321
654
12 11 10
1 1
IDC10 **
RS485 CO M2
CANopen C OM0
1,2
AC+
AC+
3,4
AC-
AC-
7,8
Gnd
Gnd
9
A
Can H
10
B
Can L
Micro AB
Type
Run1
Lnk1
Run2
Lnk2
