Shad BC03 User manual

1

22

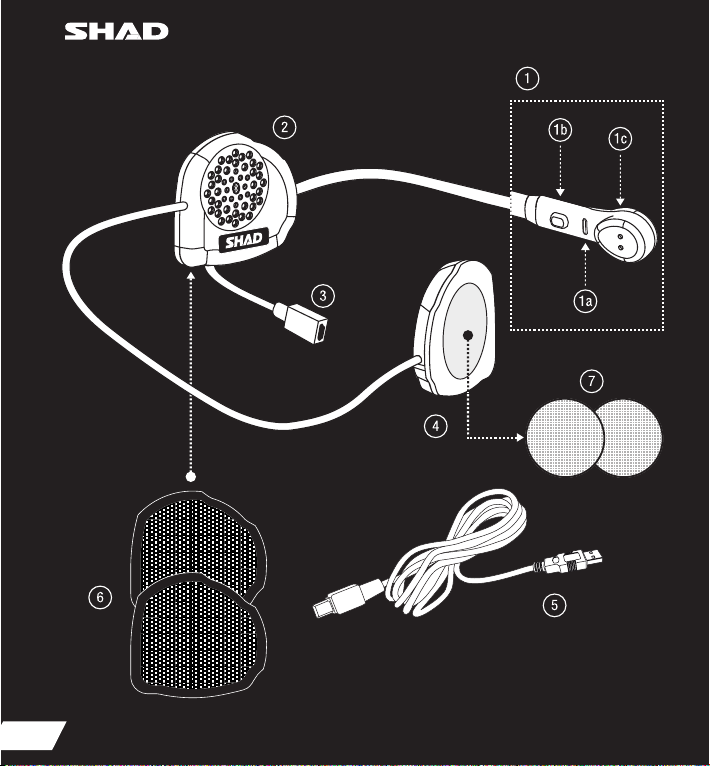

COMPONENTS
BC03

3
3
INSTALLATION
BC03

10
Installation
The SHAD BC03 is very easy to install into a helmet.

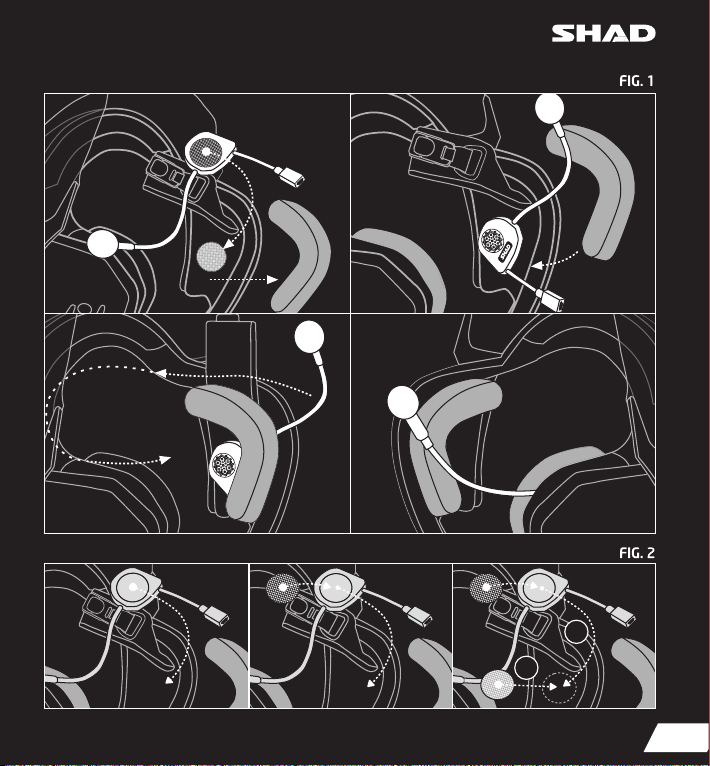

Remove the side padding from the inside of the helmet
(if it can be removed) and place the devices (2) and
(4) at the height of your ears. The device is designed
so that the main unit with the boom microphone is
placed on the left side, as shown in gure 1, and so
that the second speaker is placed on the right side.
The wire between devices (2) and (4) must be stored
inside the helmet, under the padding. In order to affix
the headphones, two hook and loop fastener pads
are provided (male and female) with an adhesive
backing (7). In case you need to use the hook and
loop fastener, stick the male part of the pad onto the
device and the female part onto the inside of the
helmet.
Depending on the internal configuration of each type of
helmet, it may be necessary to use the entire hook and
loop fastener pad or only a part of it (see figure 2). In
some cases, it may only be necessary to stick the male
part onto the device as the inside of the helmet may
have padding that can serve as hook and loop fastener
(female). If needed, comfort pads (6) to place on the
headphones are also provided, in order to improve
comfort against your skin.
The charging cable (3) must be placed on the lateral-
back section of the helmet so as to facilitate access to
charge the device.
Place the microphone (1) on the front section of the
helmet (close to and oriented towards your mouth,
always protecting the microphone with the padding).
Linking/Pairing
To use the SHAD BC03, it’s necessary to pair it to the
Bluetooth®device you wish to connect it to (mobile
phone, GPS navigator). While the device is switched
off, hold the control button (1b) until the LED indicator
(1a) begins flashing in Red and Blue. The mobile phone
or GPS navigator will find the device under the name
BC03. Select the BC03 device and, if necessary, enter
the access code: 0000.
NOTE: Pairing is a process that only needs to be
completed once. When the SHAD BC03 is paired to
a specific device, both devices will pair automatically
when switched off and on.
SHAD BC03
INSTRUCTION MANUAL
Welcome
Congratulations and thank you for purchasing a SHAD
BC03 device. Thanks to the intercom function, you
can talk to your passenger, listen to your favourite
music and answer your calls while travelling on your
scooter or motorcycle.
The SHAD BC03 system is compatible with all
Bluetooth®devices that transmit audio (mobile
phones, smartphones, GPS navigators and other
devices) using the proles specied in the manual.
It can be paired with any other product in the SHAD
range or to a different Bluetooth®audio receiver,
thanks to its UNIVERSAL connectivity feature.
This device is designed so that it may be wholly
integrated into your helmet. It can be operated and
paired
easily through a single control button (1b).
A single red/blue LED indicator (1a) serves to display
connection status, pairing, battery charging and low
battery. The SHAD BC03 device weighs only 55 g.
Charging the SHAD BC03
Before using your SHAD BC03 device for the first time,
you must charge the device completely.
Connect the terminal (3) to the provided USB cable (5)
and then connect the cable to a USB charging port.
While charging, the red LED light will switch on (1a) and it
will switch off once charging has been completed.
NOTE:Don’t pull on the cable to disconnect it from the USB port
NOTE: As time goes by, batteries gradually lose their
charge. This is why it’s important to charge the battery
fully before using the device and allow the battery to
use almost all of it’s charge in between charging cycles.
WARNING: If you plan to store your SHAD device
for a long period of time, be sure to recharge it at
least once every six months to ensure perfect battery
function.

11
Switching on/off
Switching on: press and hold the button (1b) for a few
seconds until the speaker provides an acoustic signal
and the LED indicator (1a) begins to ash in Blue.
Switching off: press and hold the control button (1b) for
a few seconds until the speaker provides an acoustic
signal and the LED indicator (1a) begins ashing in red
before the device powers off.
Call functions
When there is an incoming call, the speaker will provide
an acoustic signal.
Answering by pressing the button (1b): press the
control button (1b) only once
Answering through a voice command: answer the call
by speaking any word out loud (e.g. “Answer!”)
Ending a call: press the control button (1b) only once or
wait until the other person hangs up
Rejecting an incoming call: press the control button
(1b) twice, as soon as you hear the acoustic signal for
an incoming call
Redialling: press the control button (1b) twice. This
depends on the features and conguration of your
mobile phone.
Adjusting the volume
The SHAD BC03 device is pre-programmed with a
volume level that allows for optimal listening at speeds
of up to 80 km/h (50 mph). To adjust the volume, use
the volume controls on the connected device.
Volume perception may vary depending on the position
and separation of the speakers from your ears, as
well as the type of helmet and motorcycle, external
conditions and other factors.
Playing music from your mobile phone
Once the SHAD BC03 is paired to a mobile phone
capable or transmitting music through Bluetooth®A2DP,
activate music on the phone and it will immediately
be heard through the SHAD BC03 device. Music
and volume can only be controlled from the phone or
device, depending on its features and conguration.
While you listen to music, all call features will remain
active. In case you receive an incoming call, music will
pause and, when the call ends, playback will resume.
Likewise, music will resume after making a call.
Behind the case of the SHAD BC03, you’ll find a
switch that allows you to select between Mono or
Stereo audio output. Refer to current legislation in
your country and make the appropriate selection.
SHAD shall not be held responsible for misuse of this
feature.
Intercom pairing with a different SHAD
BC03.
Dual Link: Pairing as an intercom while maintaining
hands-free functionality:
• Complete pairing with the phone as described in the
paragraph above “Pairing to a mobile phone or GPS
navigator”.
• Switch off Bluetooth®on both phones.
• Make sure both SHAD BC03 devices are switched off.
• Press and hold the control buttons (1b) of both SHAD
BC03 devices until the LED indicators of both devices
begin ashing in Red and Blue.
• Briey press the control button of one of the SHAD
BC03 devices. After a few seconds, both devices will
pair and intercom functions will be activated.
• Activate Bluetooth®on the phones again. Depending
on your phone model, it will automatically detect the
device paired. Otherwise, you will need to select it
manually.
Single Link: Pairing as an intercom only (without
hands-free features):
• Make sure both SHAD BC03 devices are switched off.
• Press and hold the control buttons (1b) of both SHAD
BC03 devices until the LED indicators of both devices
begin ashing in Red and Blue.
• Briey press the control button of one of the SHAD
BC03 devices. After a few seconds, both devices will
pair and intercom functions will be activated.
Intercom functions:
Activating and deactivating intercom functions
between two SHAD BC03 devices: once both SHAD
BC03 devices have been paired and switched on, press
the control button (1b) for two seconds to activate or
deactivate intercom functionality.
Adjusting the volume for intercom functions: you
can adjust the volume by briey pressing the control

12
button (1b). It will then cycle through three levels: LOW
< MEDIUM < HIGH < LOW…
Intercom pairing with a different SHAD
BC01, SHAD BC02 or a different
Bluetooth®audio receiver.
Dual Link: Pairing as an intercom while maintaining
hands-free functionality:
• Complete pairing with the phone as described in the
paragraph above “Pairing to a mobile phone or GPS
navigator”.
• Switch off Bluetooth®on the phones.
• Make sure both devices to be paired are switched off.
• Press and hold the control button (1b) of the SHAD
BC03 device until the LED indicator begins ashing in
Red and Blue.
• Press and hold the control button (1b) of the SHAD
BC01 or SHAD BC02 device until the LED indicator
begins ashing in Red and Blue. If you are using a
different device, put it in pairing mode.
• Briey press the control button (1b) of the SHAD BC03
device once. After a few seconds, both devices will pair
and intercom functions will be activated. Once paired,
it is recommended for you to switch off the SHAD
BC03 device and switch it back on so that it operates
correctly with your phone and as an intercom.
The other intercom device will receive an acoustic
warning signal.
• Activate Bluetooth®on the phones again. Depending
on the phone, it will automatically detect the device
paired. Otherwise, you will need to select it manually.
NOTE: When two SHAD devices are in intercom mode,
incoming call functionality with their respective mobile
phones will be maintained. In case a call is received,
intercom functionality will stop and resume once the call
has ended.
Single Link: Pairing as an intercom only (without
hands-free features):
• Make sure both devices are switched off.
• Press and hold the control button (1b) of the SHAD
BC03 device until the LED indicator begins ashing in
Red and Blue.
• Press and hold the control button (1b) of the SHAD
BC01 or SHAD BC02 device until the LED indicator
begins ashing in Red and Blue. If you are using a
different device, put it in pairing mode.
• Briey press the control button (1b) of the SHAD BC03
device once. After a few seconds, both devices will pair
and intercom functions will be activated. Once paired,
it is recommended for you to switch off the SHAD
BC03 device and switch it back on so that it operates
correctly with your telephone and as an intercom.
The other intercom device will receive an acoustic
warning signal.
Intercom functions:
Activating and deactivating intercom functions
between two SHAD devices: once both SHAD devices
have been paired and switched on, press the control
button (1b) of the SHAD BC03 for two seconds to
activate or deactivate intercom functionality.
Adjusting the volume for intercom functions: you
can adjust the volume by briey pressing the control
button (1b). It will then cycle through three levels: LOW
< MEDIUM < HIGH < LOW…
Technical Specifications
Bluetooth®: 2.1 Class 2
Proles: A2DP stereo, HSP, HFP, EDR
Intercom frequency: 2.4 GHz
Battery: Lithium polymer, allowing for up to 7 hours of
talk time and 200 hours of standby time (depending on
use and conguration of the device)
Care and maintenance
The SHAD BC03 device uses components with
the latest technology and is manufactured to high
standards.
To keep your device from inadvertently becoming
damaged, please read the following recommendations
carefully:
• Do not attempt to open any of the system
components, since the electronic parts inside it may
become damaged. Do not attempt to open or change
the battery as it may be dangerous.
• Keep the SHAD BC03 out of the reach of children.
• Keep the SHAD BC03 in a dry place. Humidity and
condensation may damage the electronic circuits.
• Avoid exposing the device to extreme temperatures.
Intense cold may create condensation inside the

13
components as these warm up. Extreme heat may
damage the battery, circuits or casings.
• Do not drop, hit or bend the components as the
internal circuits may become damaged.
• Do not paint or decorate the SHAD BC03 as the
casings may become damaged or impede correct
operation.
• Do not use chemical products, solvents or detergents
to clean the SHAD BC03 as these may damage the
device.
Troubleshooting
If you cannot connect your SHAD BC03 device to your
mobile phone:
• Make sure the SHAD BC03 is switched on
• Make sure your mobile phone is switched on and
Bluetooth®has been turned on
• Make sure both devices are paired
• Make sure the SHAD BC03 device and your mobile
phone are fewer than 10 metres (32 ft.) apart
If, after this, you’re still not able to pair or use the SHAD
BC03 with your mobile phone, please contact the
retailer where you purchased the product.
If you are unable to connect your SHAD BC03 device
in intercom operation:
• Make sure both devices are switched on
• Make sure the batteries have been charged
• Make sure the devices are fewer than 10 metres (32 ft) apart
If you are still unable to pair them, please contact the
retailer where you purchased the product.
Shortcuts
The SHAD BC03 device allows you to receive calls
automatically (as long as this feature is supported by
your mobile phone). To do this, you need to activate
the automatic response feature in your mobile phone.
Press the control button (1b) to activate the voice
dialling function in the paired phone (the phone must be
congured to allow voice dialling, as long as the phone
supports this feature).
Guarantee
The guarantee is valid upon presenting the original
purchase receipt or invoice issued by the SHAD retailer,
showing the date of purchase.
This guarantee does not cover defects caused by
natural wear and tear due to use or misuse of the
device, including but not limited to the general care and
maintenance conditions supplied by SHAD BC03.
This guarantee does not cover damages caused to the
device due to accidents, manipulation, modications,
repairs, corrosive materials, liquids, inadequate venting
or force majeure.
The guarantee does not cover defects caused by the
use of third-party accessories not provided by SHAD
BC03. Removing any of the labels or seals from the
product shall void the guarantee.
This product is covered by the guarantee established by
current legislation.
This guarantee does not cover defects caused by
natural wear and tear due to use or misuse of the
product.
Warnings
Treatment of electronics at the end of their
useful life (applicable in the European Union and
other European countries with separate waste
collection systems). This symbol on the device or the
package indicates that this product cannot be treated
as normal house trash, but must be delivered to the
correct electronics collection point. By ensuring this
product is disposed of correctly, you will help prevent
negative consequences for the environment and human
health that could arise from improper handling when
disposing of this product. Recycling helps conserve
natural resources. To receive detailed information about
recycling this product, please contact your city hall, the
nearest recycling collection point or the establishment
where you purchased the product.
Statement from the Federal
Communications Commission (FCC)
Any change or modication not expressly approved by
the party responsible for the compatibility may void the
right of the user to use the device.
This device complies with Section 15 of the FCC
regulations. The use is subject to the two following
conditions: 1) This device must not cause interference,

14
and 2) this device must accept any interference
received, including those that may cause unwanted
functioning.
The tests carried out with this equipment demonstrate
its suitability to the stipulated limits for a digital class B
device, according to Part 15 of the FCC regulations.
These limits have been designed to provide reasonable
protection against interference in a residential location.
This equipment generates, uses and could radiate
radiofrequency energy and, if it is not installed and used
in accordance with the instructions provided, it may
cause harmful interferences for radio communications.
However, there is no guarantee that this interference
may not occur, on rare occasion, in a particular location.
If this device interferes with the reception of radio or
television programs, which can be determined by
turning it on and off, try correcting the interference by
applying one or more of the following measures:
• Re-orient or re-install the reception antenna.
• Increase the separation between the receiver and the
equipment.
•Connect the equipment to a circuit terminal that is
different from the terminal to which the receiver is
connected.
• Contact the distributor or a radio and television
technician.
Product approved under reference D2 HSAi.

15
SWITCHING ON
SWITCHING OFF
ANSWERING A CALL
ENDING A CALL
REJECTING A CALL
ACTIVATING VOICE DIALLING (DEPENDING ONTHE PHONE MODEL)
REDIALLING (LAST NUMBER DIALLED)
CONNECTING/ACTIVATING INTERCOM OPERATION
DISCONNECTING/ENDING INTERCOM OPERATION
INTERCOM VOLUME
SUMMARY TABLE
Press and hold the control button (1b) until an acoustic signal is heard and the LED indicator begins flashing
in BLUE.
Press and hold the control button (1b) until the LED indicator begins flashing in RED.
Press the control button for 2 seconds until you hear an acoustic signal.
Press the control button for 2 seconds until you hear an acoustic signal.
By pressing the control button (1b) you can change the intercom volume.The volume cycles through three levels
each time you press the button (low < medium < high < low < …)
Say any word out loud or press the control button (1b) only once.
During a call, press the control button (1b) only once.
Press the control button (1b) twice.
Press the control button once, say the same of the person you wish to call after you hear acoustic signal.
Press the control button (1b) twice.
NOTE: to save battery, the device switches off automatically after four minutes if not connected to any Bluetooth®device.
This option is available with BC03
Guaranteed connexion up to 80km/h Assured comunication up to
10m distance

40 Find out more about communication we have.
