Shaper S01-EN User manual

shapertools.com
Product Manual
Guide d’utilisation
Bedienungsanleitung
S01-EN | SO1-SN | SO1-UN | SO1-ON

i
Congratulations on your Shaper Origin™
purchase! We know you’re excited to start cutting
and carving, but please make sure to read all of
the operating instructions, warnings, and safety
notes in this booklet before operating Origin.
Welcome
More languages available
Plus de langues disponibles
Weitere Sprachen
www.shapertools.com/productmanual
Patent Infomation
Information relative aux brevets
Patentinformationen
www.shapertools.com/patents
Bienvenue
Willkommen
Nous te félicitons d’avoir acheté une Shaper
Origin™! Nous savons que tu es impatient
de commencer à fraiser et graver, mais veille
à t’assurer de bien lire toutes les directives
d’utilisation, les avertissements et les notes de
sécurité de ce manuel avant d’utiliser Origin.
Herzlichen Glückwunsch zum Kauf deiner
Shaper Origin™! Wir wissen, dass du dich
schnellstmöglich dem Fräsen und Gravieren
widmen möchtest, jedoch solltest du zuerst
sämtliche Bedienungsanweisungen, Warnungen
und Sicherheitshinweise in dieser Betriebs-
anleitung durchzulesen, bevor du Origin nutzt.

shapertools.com ii
support.shapertools.com
Our support page has answers to frequently
asked questions about using Origin: choosing
router bits, working with different materials,
effectively clamping and securing your workpiece,
maintaining Origin, and more. We highly
recommend you read these tips before getting
started. You’ll also nd contact info for Shaper
customer support.
tutorials.shapertools.com
Visit our tutorials page for written and video
instructions about Origin’s many features and
capabilities. The tutorial videos will also walk you
through the creation of ShaperHub™ projects.
hub.shapertools.com
When you’re ready to make your rst project,
check out ShaperHub for ready-to-cut projects
with detailed instructions, material lists, and
design les.
Visit the link below for a complete walk-
through and some demos to get you familiar
with Origin:
shapertools.com/start
Quick Start
English

iii
interior cut
black stroke and white ll
exterior cut
black stroke and black ll
on-line cut
gray stroke
pocketing cut
gray ll
guide
blue stroke or blue ll
Designing for Origin

shapertools.com iv
support.shapertools.com
Notre page de soutien contient des réponses aux
questions fréquemment posées sur l’utilisation
d’Origin : le choix de fraises, le travail avec divers
matériaux, le serrage et la xation efcaces
de ta pièce, l’entretien d’Origin etc. Nous te
recommandons fortement de lire ces conseils
avant de te lancer. Tu trouveras également les
coordonnées de soutien à la clientèle de Shaper.
tutorials.shapertools.com
Rends-toi sur notre page de tutoriels pour des
directives écrites et vidéos quant aux nombreuses
fonctionnalités et capacités d’Origin. Les tutoriels
te guideront également à travers la création de
projets ShaperHub™.
hub.shapertools.com
Lorsque tu es prêt à réaliser ton premier projet,
consulte ShaperHub pour accéder à des projets
prêts à fraiser accompagnés de directives
détaillées, de listes de matériaux et de chiers de
conception.
Rends-toi sur le site indiqué ci-dessous
pour bénécier d’un tour d’horizon complet
et de quelques présentations pour te
familiariser avec Origin:
shapertools.com/start
Guide de démarrage rapide
Français

v
Fraisage intérieur
Contour noir et intérieur blanc
Fraisage intérieur
Contour noir et intérieur noir
Fraisage sur ligne
Contour gris
Fraisage de poche
Intérieur gris
Guide
Contour bleu ou intérieur bleu
Concevoir pour Origin

shapertools.com vi
support.shapertools.com
Unsere Support-Seite hat Antworten auf häug
gestellte Fragen rund um die Nutzung von
Origin: Die Auswahl des Fräsers, die Bearbeitung
unterschiedlicher Materialien, die effektive
Befestigung und Sicherung deines Werkstücks,
die korrekte Instandhaltung des Geräts und vieles
mehr. Am besten schaust du dir diese Tipps vor
Inbetriebnahme deiner Origin an. Auf dieser Seite
ndest du außerdem Kontaktinformationen zum
Shaper Support.
tutorials.shapertools.com
Unsere Tutorial-Seite beinhaltet Anleitungen und
Videos zu Origins Eigenschaften und Fähigkeiten.
hub.shapertools.com
Sobald du für dein erstes Projekt bereit
bist, ndest du auf ShaperHub eine große
Auswahl an vorgefertigten Projekten mit
ausführlichen Anleitungen, Materiallisten und
Konstruktionsdateien.
Um einen Überblick über die ersten
Schritte mit Origin zu erhalten, besuche
folgenden Link:
shapertools.com/start
Schnellstart
Deutsch

vii
Innenkontur
schwarze Linie und weiße Füllung
Außenkontur
schwarze Linie und schwarze Füllung
Auf der Kontur
graue Linie
Tasche
graue Füllung
Hilfskontur
blaue Linie oder blaue Füllung
Gestalten für Origin

shapertools.com 1
Table of Contents
2 What’s Included
4 Overview
6 Basics
10 Using ShaperTape™
13 Safety & Care
23 Compliance
User Guide
(English Version)

2
What's Included
Shaper Origin
Dust Collection Hose
ShaperTape™

shapertools.com 3

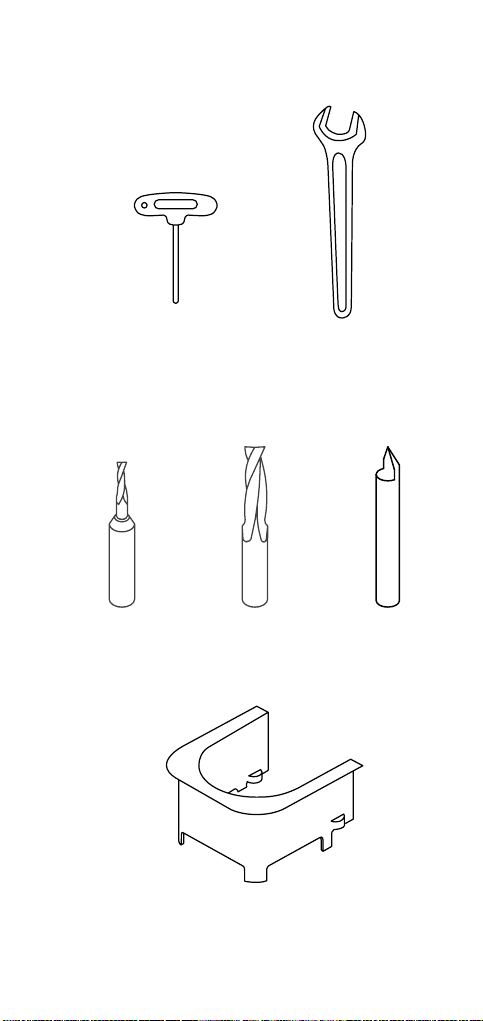

What's Included
4mm T Handle
Hex Wrench
3mm Upcut
Router Bit 6mm Upcut Router Bit
Finger Guard
Engraving
Bit
19mm Wrench

4
Overview
Touchscreen: Origin’s 5 inch multi-touch display
controls Origin’s many features.
SM1 Spindle: Origin is equipped with a powerful
720-Watt motor. It features variable speed control
and on-board electronics to deliver soft start,
thermal and overload protection, and constant
speed under load.
Dust Port: Origin is intended to be used with a
dust extraction system. Origin’s dust port accepts
many common vacuum hose sizes, or you may
use the hose that’s included with Origin.
Spindle Switch: You’re in control. For your
safety, Origin’s SM1 Spindle will never turn on
automatically. Use the spindle switch to turn on
the spindle when you’re ready to start cutting.
Spindle Mount: The SM1 Spindle is designed to
be removable for safe and easy router bit
changes. After loosening the spindle mount bolt,
simply remove or insert the SM1 Spindle.
Handles: Always rmly grasp both handles when
operating Origin. The buttons on each handle
map to the functions shown on the screen.
touchscreen
spindle
dust port
spindle switch
spindle mount
handle

shapertools.com 5
Overview
Speed Control: The SM1 Spindle has adjustable
speed from 10 000 to 26 000 RPM, with the lowest
speed mapped to 1 on the dial, and the highest
speed mapped to 6. Use this dial to adjust the
spindle rotation speed. For a list of recommended
cut speeds for various materials and applications,
visit support.shapertools.com.
Z-Axis: Origin’s Z-Axis is responsible for plunging
and retracting the SM1 Spindle.
Collet Lock: Press the collet lock and use the
included 19mm wrench to change router bits in
the SM1 Spindle.
Back Handle: On the go? Carry Origin using the
back handle.
Camera: Origin uses a computer vision system
to track its location on your workpiece. Keep the
camera unobstructed and the lens cover glass
clean to ensure the best cutting experience.
USB Port: No network? No problem. If your Origin
is not in range of a Wi-Fi network, you can also
transfer design les using a USB ash drive.
speed control
z-axis
collet lock
back handle
camera
usb port

6
Basics
2. Gently slide the spindle mount and spindle up.
3. Remove the red spindle lock by tilting it up
and pulling it forward.
Retain the shaft lock and spindle lock for
future use. Reinstall both locks to keep the
spindle stationary during transit or shipping.
1. Remove the red shaft lock by rmly pulling on
the circular handle.
Removing the Shaft Lock
and the Spindle Lock

shapertools.com 7
Basics

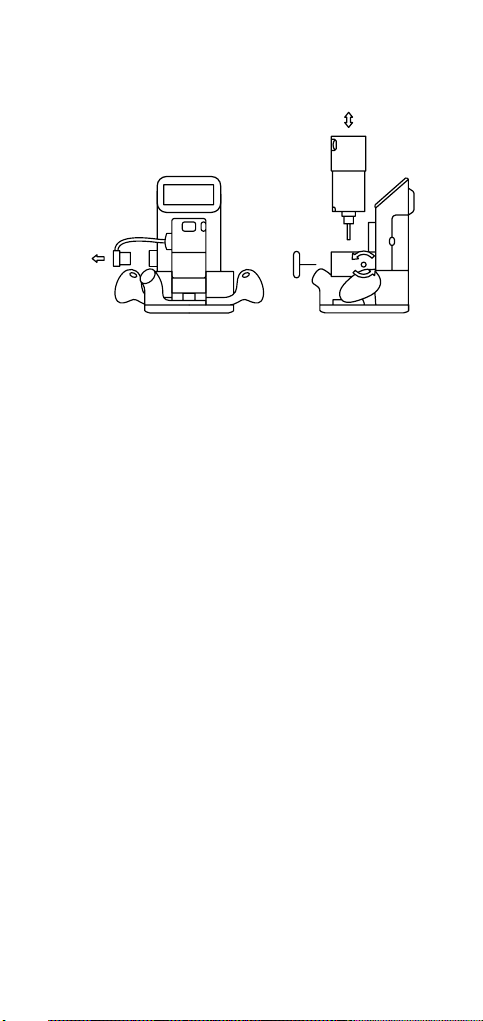

IMPORTANT: Always unplug the SM1 Spindle from
Origin before removing the spindle from the
spindle mount.
To enable unobstructed access to change the
router bit, the SM1 Spindle must be removed
from Origin. Use the included 4mm T-handle hex
wrench to loosen the spindle mount bolt. Once
loosened, lift the spindle to remove it.
To reinstall the spindle, slide it into the spindle
mount with the ON/OFF switch facing towards
you. A groove on the back of the spindle will only
allow it to be inserted in the correct orientation,
with the cable exiting on the left side. Gently
reinsert the spindle.
IMPORTANT: Be sure to tighten the spindle mount
bolt after fully inserting the spindle into the
spindle mount.
Finally, ensure the switch is in the “OFF” position
and plug the spindle cable back into the side
of Origin.
Removing and Installing the SM1 Spindle

8
Basics

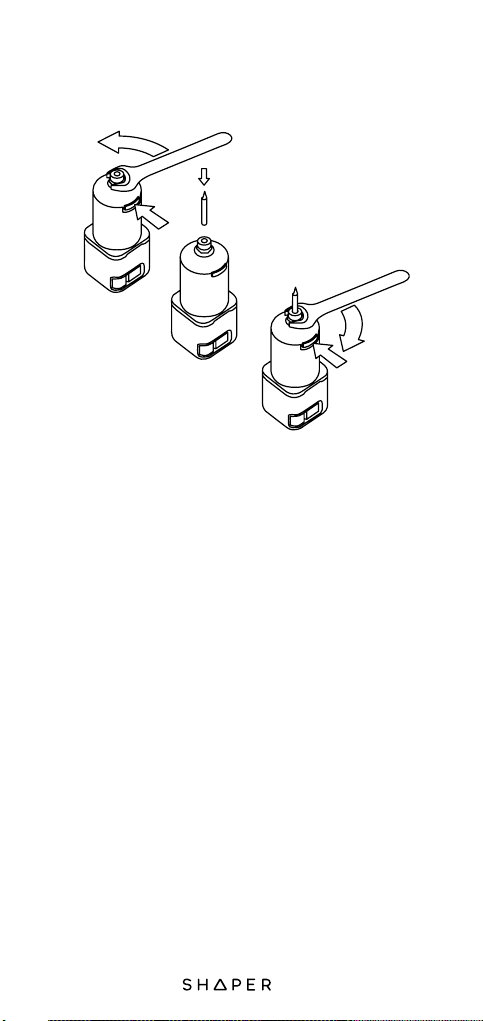

To change router bits, rst unplug the SM1 Spindle
from Origin and remove it from the spindle
mount, as described earlier. Press the collet lock
while loosening or tightening the collet locking
nut with the included 19mm wrench. Do not
tighten the collet locking nut until a router bit is
inserted.
WARNING: Maximum allowable cutter diameter is
1 inch (25 mm).
Powering Origin
Plug Origin into a grounded wall outlet, either
directly, or through a properly rated extension
cord, surge protector, or power strip.
WARNING: Do not plug Origin into the switched
outlet available on some dust extractors.
Unlike most power tools, Origin has an internal
computer, making these outlets unsuitable for
Origin.
Changing the Router Bit

shapertools.com 9
Basics
material
spoil board
table
When setting up your workpiece, use clamps,
adhesives, or other practical means to secure the
workpiece to a stable work table. It is
recommended to use a spoil board underneath
your material when doing a through-cut.
Safety rst. Always use eye and ear protection
when operating Origin. Always keep the nger
guard installed when the spindle is plugged in.
Keep ngers and other body parts away from the
collet and the router bit.

10
Using ShaperTape™
Using ShaperTape™
Origin uses ShaperTape to dene your workpiece.
When you’re ready to cut with Origin, lay down
ShaperTape on the workpiece. For best results,
place strips of ShaperTape every 3 inches (8 cm)
or closer. Strips need not be parallel.
Only apply ShaperTape on the same plane as
your cut surface. Placing ShaperTape at different
heights will impact cut accuracy and quality.
Origin should be able to glide across any
ShaperTape you’ve put down. Ensure that
ShaperTape covers the area that you plan to cut,
as well as the space a few inches (or about 15 cm)
in front of your cut area so that Origin can always
see some markers. For more details on optimal
ShaperTape placement, visit
tutorials.shapertools.com.

shapertools.com 11
Using ShaperTape™
Origin will operate correctly if there is
ShaperTape placed in the cutting area, as well
as the area in the eld of view of the camera.
Origin will also operate correctly if ShaperTape is
only placed in the eld of view of the camera.

12

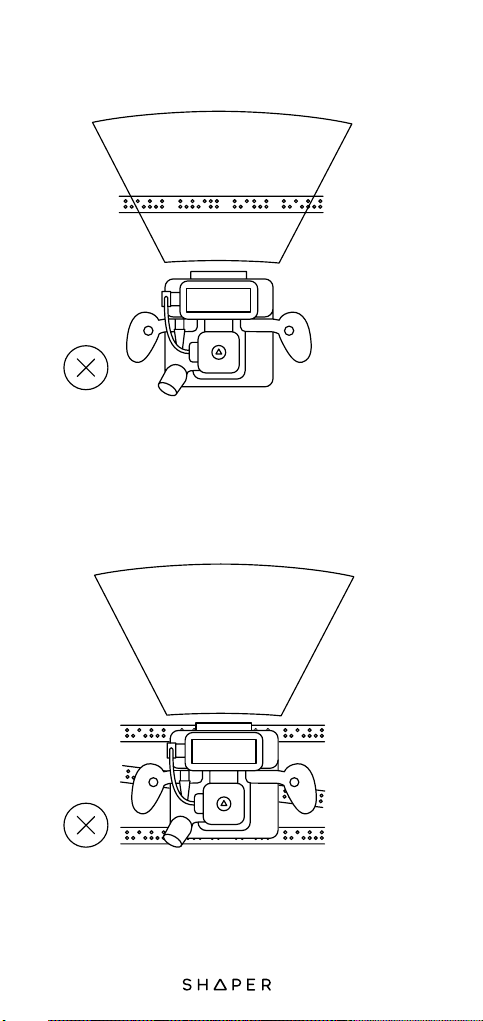

Using ShaperTape™
Origin may not be able to function properly
if there is not enough ShaperTape within
the camera’s eld of view. There should be a
minimum of two rows of tape in the eld of view.
Origin will not operate if there is no ShaperTape
within the camera’s eld of view.
