CHAPTER 1. SERVICE (SRV) MODE
The SRV key is used for operating in the SRV mode.
1. SRV. reset (Program Loop Reset)
Used to return the machine back to its operational state after a lock-
up has occurred.
Procedure
•Method 1
1) Turn off the AC switch.
2) Set the mode switch to (SRV′) position.
3) Turn on the AC switch.
4) Turn to (SRV) position from (SRV′) position.
•Method 2
1) Set the mode switch to PGM2 position.
2) Turn off the AC switch.
3) While holding down JOURNAL FEED key and RECEIPT FEED
key, turn on the AC switch.
Note: When disassembling and reassembling always power up us-
ing method 1 only. Method 2 will not reset the CKDC8.
Note: SRV programming job#926-B must be set to "4" to allow PGM
program loop reset.
PRG. RESET
2. Master reset (All memory clear)
There are two possible methods to perform a master reset.
•MRS-1
Used to clear all memory contents and return machine back to its
initial settings. return keyboard back to default. for default key-
board layout.
Procedure
1) Turn off the AC switch.
2) Set the MODE switch to the (SRV′) position.
3) Turn on the AC switch.
4) While holding down JOURNAL FEED key, turn to (SRV) position
from (SRV′) position.
•MRS-2
Used to clear all memory and keyboard contents.
This reset returns all programming back to defaults. The keyboard
must be entered by hand.
This reset is used if an application needs different keyboard layout
other than that supplied by a normal MRS-1.
Procedure
1) Turn off the AC switch.
2) Set the MODE switch to the (SRV′) position.
3) Turn on the AC switch.
4) While holding down JOURNAL FEED key and RECEIPT FEED
key, turn to (SRV) position from (SRV′) position.
5) Key position assignment:
After the execution of MRS-2, only the RECEIPT FEED and
JOURNAL FEED keys can remain effective on key assignment.
Any key can be assigned on any key position on the main key-
board.
[key setup procedure]
MASTER PRESET
NOTES:
1: When the 0 key is pressed, the key of the key number on
display is disabled.
2: Push the key on the position to be assigned. With this, the key
of the key number on display is assigned to that key position.
Key number Key name Key number Key name
1 Numeric key "0" 10 Numeric key "9"
2 Numeric key "1" 11 Numeric key "00"
3 Numeric key "2" 12 Numeric key "000"
4 Numeric key "3" 13 Decimal point key
5 Numeric key "4" 14 CL key
6 Numeric key "5" 15 @/FOR key
7 Numeric key "6" 16 SBTL key
8 Numeric key "7" 17 CA/AT key
9 Numeric key "8"
3. Reading of the SRV mode program
List of program reports
JOB# Report name
900 SRV-mode program full item report (not incl. keyboard
layout)
950 Keyboard layout report (on keys other than dept. keys
and direct PLU keys)
951 Keyboard layout report (on dept. keys and direct PLU
keys)
970 SRV file programming report
MRS-2 executed Key position set Free key
Disable
Free key setup
complete.
*2
*1
0
0
– 1 –

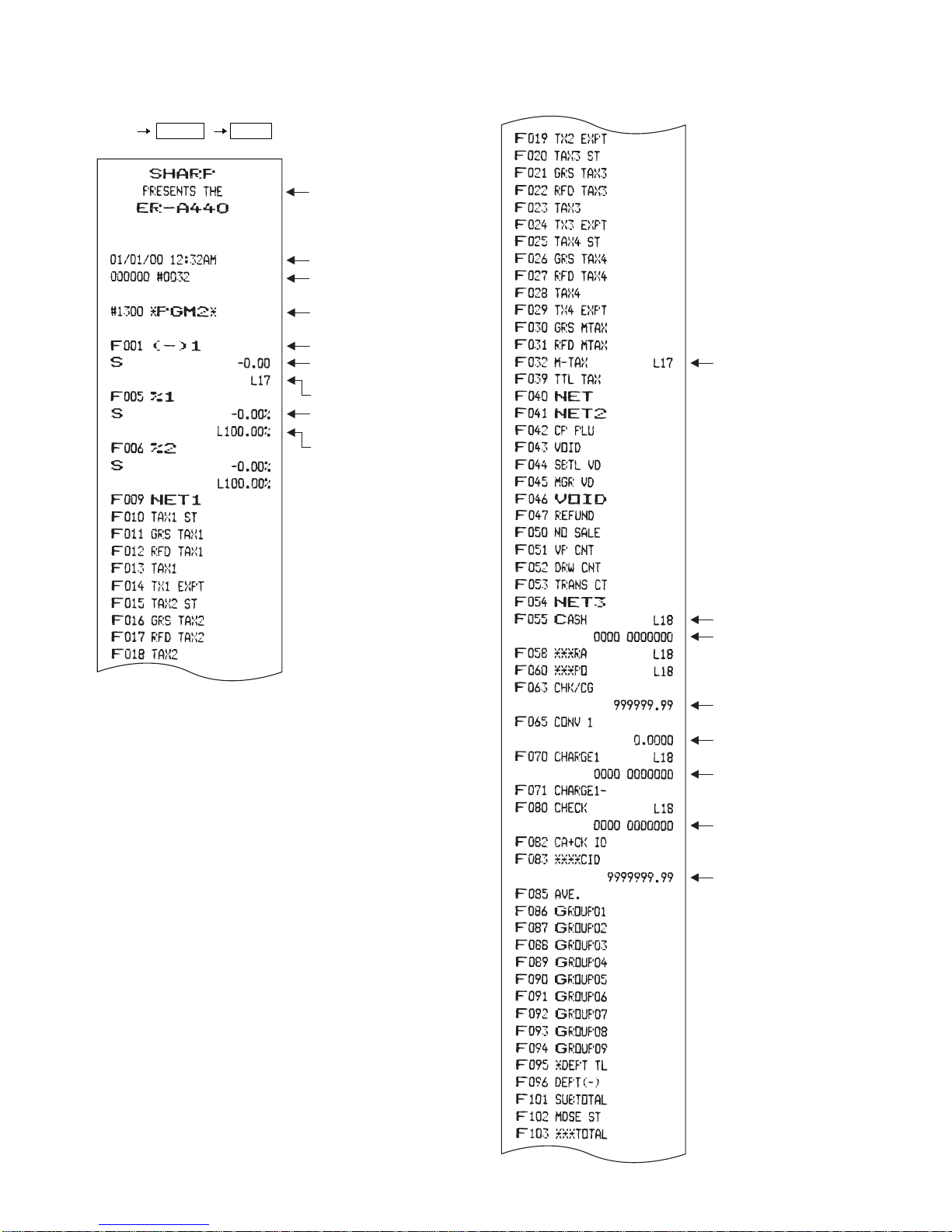

[JOB# 900]
All parameters contained for the SRV mode as listed
Key operation.
900 →@/FOR →CA/AT
Header logo
Data/ Time
Machine No./ Consective No.
JOB#
JOB#/ Programming
data(ABCD)
Z1 reset counter
Hourly Z1 counter
GT2 counter
Training GT
Secret code for PGM2 mode
Initial text mode programming
PLU Z1/Z2 reset counter
Cashier Z1/Z2 reset counter
Z2 reset counter
Daily net Z2 reset counter
GT3 counter
– 2 –

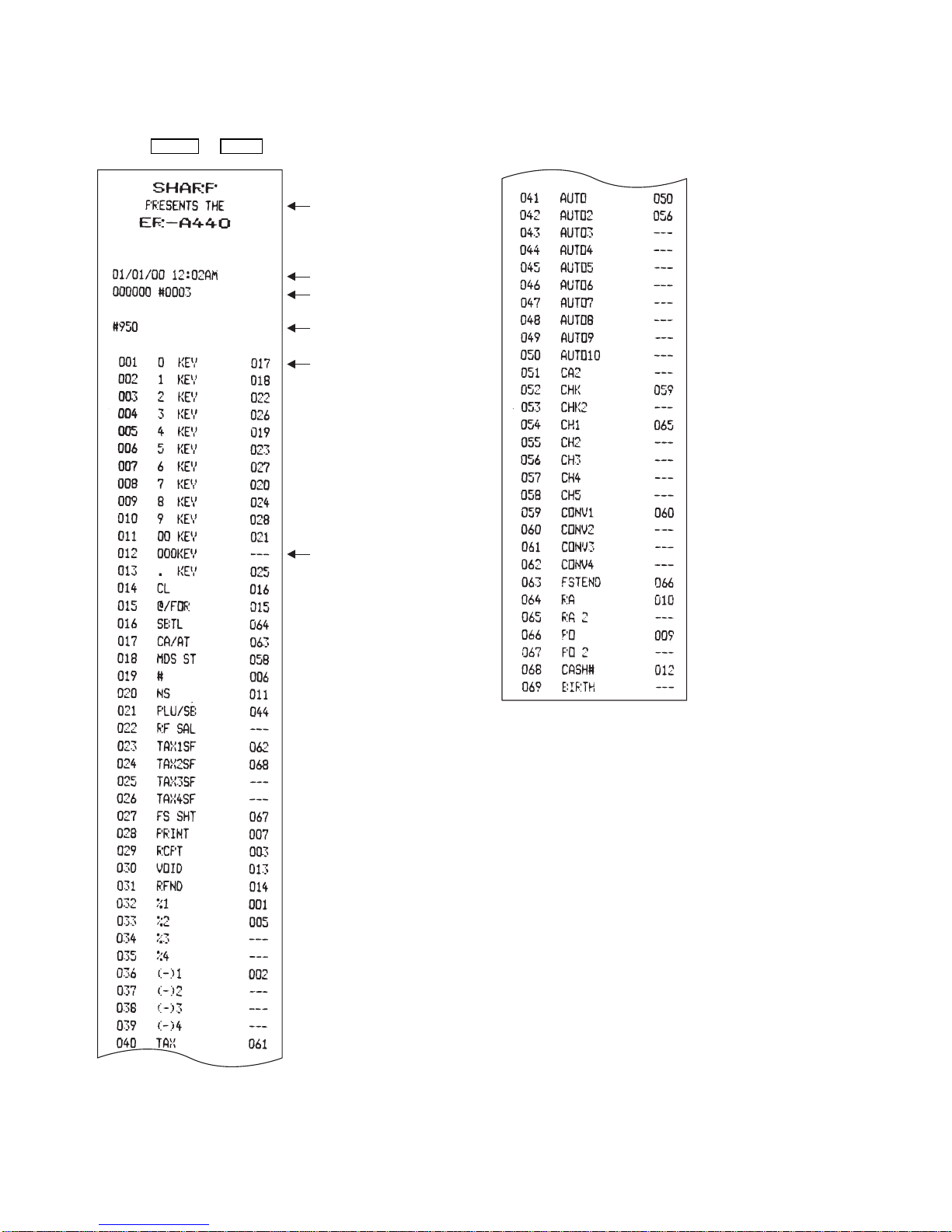

[JOB# 950]
The Key layout report is printed in SRV mode
Key operation
950 →@/FOR →CA/AT
Header logo
Data/ Time
Machine No./ Consective No.
JOB#
Key No./ Key label name/
Location No.
Key No./ Key label name/
Location No.(....: Not used)
– 3 –

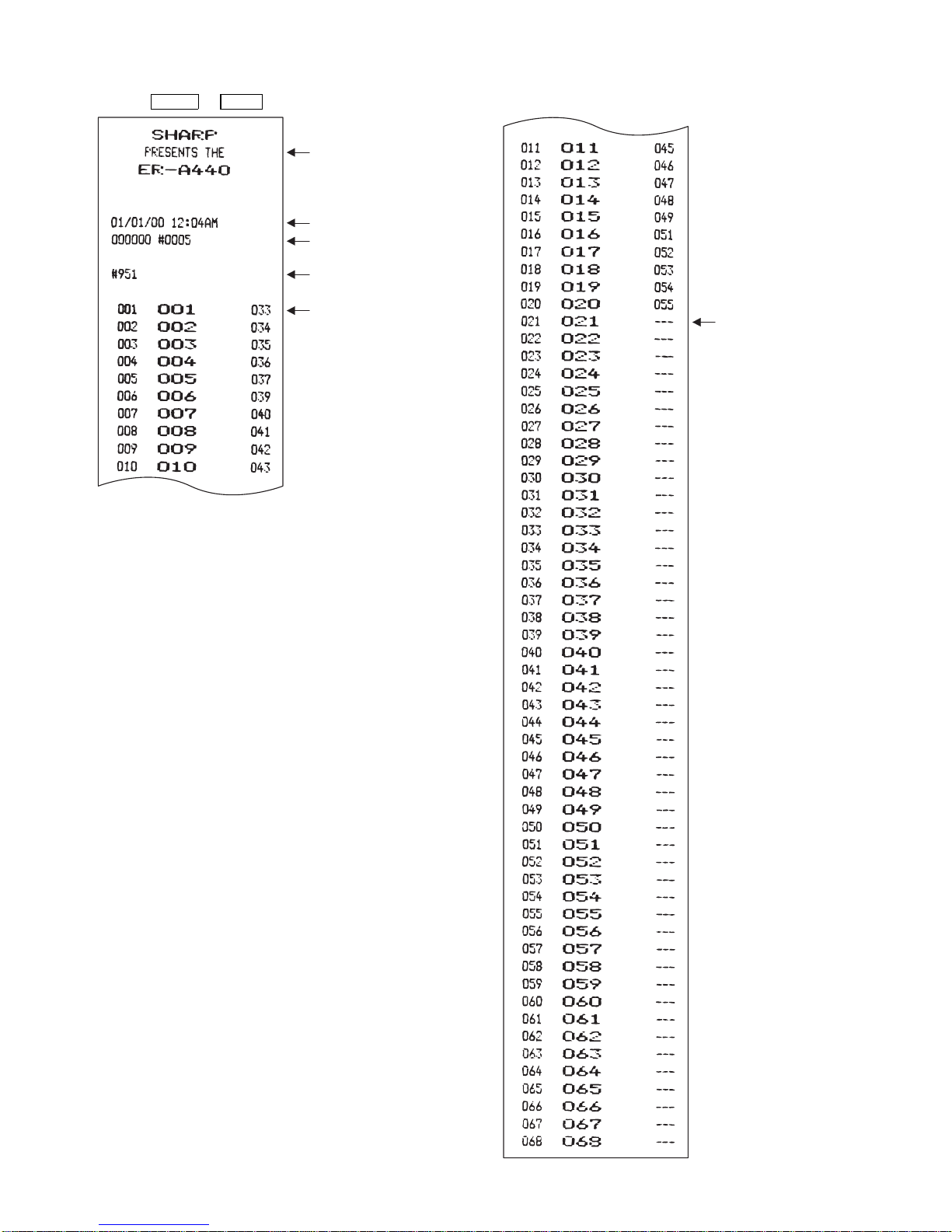

Key operation
951 →@/FOR →CA/AT
Header logo
Data/ Time
Machine No./ Consective No.
JOB#
Key No./ Key label name/
Location No.
Key No./ Key label name/
Location No.(....: Not used)
– 4 –

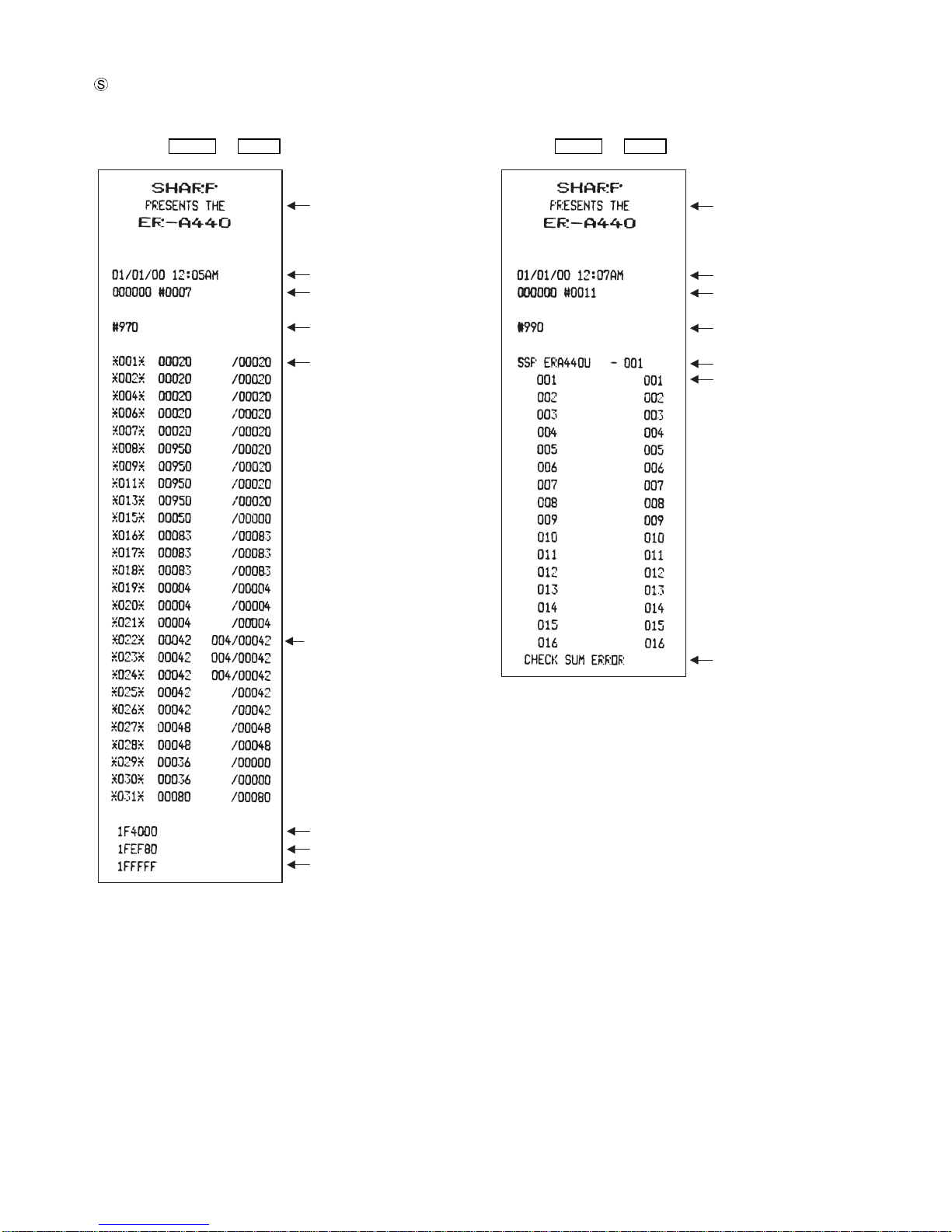

[JOB#970]
Files on the memory are listed.
Key operation
970 →@/FOR →CA/AT
[JOB#990]
Reading the Contents of the SRV-Mode Programming for SSP
Key operation
990 →@/FOR →CA/AT
Header logo
Data/ Time
Machine No./ Consective No.
JOB#
File table No./ No. of records/
No. of used records
File memory start address
Empty memory start address
Memory end address
File table No./ No. of records/
No. of blocks/ No. of used records
Header logo
Data/ Time
Machine No./ Consective No.
JOB#
SSP No.
Step No./ SSP data
Error message
– 5 –

4. Service mode programming
The following are the key operation required for programming.
Details of [A][B][C][D] will be discussed at each item description.
★mark is MRS setting.
[JOB #901]:MRS=0002 [For "U" version]
#901-A, B: Not used (Fixed at "00")
#901-C: 1. Rounding system
1. Rounding system 901-C
Normal 0 ★
SINGAPORE 8
#901-D: 1. TAB setting
1. TAB setting 901-D
0 0
0.0 1
0.00 2 ★
0.000 3
[JOB #901]: MRS=0002 [For "A" version]
#901-A: Not used (Fixed at "0")
#901-B: 1. Tax system
1. Tax system 901-B
Auto tax 1-4 & manual tax 0 ★
CANADIAN TAX 6
#901-C: 1. Rounding system
1. Rounding system 901-C
Normal 0 ★
SINGAPORE 8
#901-D: 1. TAB setting
1. TAB setting 901-D
0 0
0.0 1
0.00 2 ★
0.000 3
[JOB#902] NOT USED MRS=0000
[JOB#903] MRS=4000
#903-A: 1. ECR data copy baud rate
1. Baud rate (bps) 903-A
2400 2
4800 3
9600 4 ★
19200 5
38400 6
The communication speed with the ER-02FD is max.
19200 bps.
#903-B, C: Not used (Fixed at "00")
#903-D: 1. Type of food stamp
1. Type of food stamp 903-D ★
No food stamp 0
Tax not payable in food stamps 1
Tax payable in food stamps 2
Food stamp tax forgiveness 3
[JOB#904] MRS=0000
#904-A: 1. Printing of date
1. Printing of date 904-A ★
Yes 0
No 4
#904-B: 1. Printing of consecutive No.
1. Printing of consecutive No. 904-B ★
Yes 0
No 4
#904-C, D: Not used (Fixed at "00")
[JOB#905] MRS=0005 [For "U" version]
#905-A: 1. Taxable 4 subtotal print on X/Z report.
2. Gross Tax 4 and refund Tax 4 total print on X/Z report.
3. Net Tax 4 total print on X/Z report.
1. Taxable 4
SBTL 2. Gross Tax 4 and refund
Tax 4
3. Nex Tax 4 905-A
Print Print Print 0 ★
Skip 1
Skip Print 2
Skip 3
Skip Print Print 4
Skip 5
Skip Print 6
Skip 7
#905-B: 1. Tax printing when taxable subtotal is zero.
2. Tax printing when tax is zero.
1. Taxable subtotal is
zero 2. Tax is zero 905-B
Skip Print 0 ★
Skip 1
Print Print 4
Skip 5
#905-C, D: Not used (Fixed at "05")
XXX
CA/AT
(Job#)
[A] [B] [C] [D]
Numeric entry
4 digits max
0
@/FOR
– 6 –

[JOB#905] MRS=0005 [For "A" version]
#905-A: 1. Taxable 4 subtotal print on X/Z report.
2. Gross Tax 4 and refund Tax 4 total print on X/Z report.
3. Net Tax 4 total print on X/Z report.
1. Taxable 4
SBTL 2. Gross Tax 4 and refund
Tax 4
3. Nex Tax 4 905-A
Print Print Print 0 ★
Skip 1
Skip Print 2
Skip 3
Skip Print Print 4
Skip 5
Skip Print 6
Skip 7
#905-B: 1. Tax printing when taxable subtotal is zero.
2. Tax printing when GST is VAT.
3. Tax printing when tax is zero.
1. Taxable
subtotal is zero 2. GST is VAT 2. Tax is zero 905-B
Skip Print Print 0 ★
Skip 1
Skip Print 2
Skip 3
Print Print Print 4
Skip 5
Skip Print 6
Skip 7
#905-C: 1. GST EXPT print on X/Z report
1. GST EXPT 905-C
Print 0 ★
Skip 4
#905-D: 1. TAX METHOD
Tax4
method (GST) Tax3 method Tax2, 1 method (PST) 905-D
GST PST
Type VAT VAT Tax on Tax 0
Type Tax on Base 1
Type VAT Tax on Tax 2
Type Tax on Base 3
Type Add on Tax Tax on Tax 4
Type Tax on Base 5 ★
Type Add on Tax VAT Tax on Tax 6
Type Tax on Base 7
Type Add on Tax Add
on Tax Tax on Tax 8
Type Tax on Base 9
[JOB#906] MRS=0021
#906-A: 1. Print Dept. and PLU number on receipt.
1. Print Dept. and PLU number on receipt. 906-A
No 0 ★
Yes 4
#906-B: 1. Bottle return function
2. Hash department setting
1. Bottle return function 2. Hash department
setting 906-B
Disable Disable 0 ★
Enable 2
Enable Disable 4
Enable 6
#906-C: 1. Split pricing counting
2. Multiplication entry
1. Split pricing counting 2. Multiplication entry 906-C
Quantity
Multiplication 0
Successive
multiplication 1
Split pricing 2 ★
Package
Multiplication 4
Successive
multiplication 5
Split pricing 6
#906-D: 1. Presetting consecutive No.
2. Fractional quantity
1. Presetting
consecutive No. 2. Fractional quantity 906-D
Yes No 0
Yes (3 digit decimal
place) 1★
No No 2
Yes (3 digit decimal
place) 3
[JOB#907] MRS=0010
#907-A, B: Not used (Fixed at "00")
#907-C: 1. Minus Dept./PLU
1. Minus Dept./PLU 907-C
Disable 0
Enable 1 ★
#907-D: Not used (Fixed at "0")
[JOB#908] MRS=0740
#908-A: GT print on Z report
GT1 (NET) GT2 (+) GT3 (–) 908-A
Print Print Print 0 ★
Skip 1
Skip Print 2
Skip 3
Skip Print Print 4
Skip 5
Skip Print 6
Skip 7
– 7 –

#908-B: GT print on X report
GT1 (NET) GT2 (+) GT3 (–) 908-B
Skip Skip Skip 0
Print 1
Print Skip 2
Print 3
Print Skip Skip 4
Print 5
Print Skip 6
Print 7 ★
#908-C: 1. Add void-mode transaction data to hourly total report
2. X1/Z1 report in X2/Z2 mode
3. Resetting of consecutive number in Z1 resetting
1. Add
void-mode
transaction
to hourly
total report
2. X1/Z1 report
in X2/Z2
mode
3. Resetting of
consecutive
No.in Z1
resetting 908-C
No Enable No 0
Yes 1
Disable No 2
Yes 3
Yes Enable No 4 ★
Yes 5
Disable No 6
Yes 7
#908-D: 1. Printing X/Z report Journal only/Receipt & Journal (Ex-
cept the individual cashier report)
2. Z1 resetting, resets GT Enable/Disable
1. Printing X/Z report 2. GT resetting at Z1 908-D
Receipt & Journal Disable 0 ★
Enable 1
Journal Disable 4
Enable 5
[JOB#909] MRS=2000
#909-A: 1. Printing of training GT on the X report
2. Printing of training GT on the Z report
1. Printing of training
GT on the X report 2. Printing of training GT on the Z report 909-A
Skip Print 0
Skip 1
Print Print 2 ★
Skip 3
#909-B: 1. Printing of data on PLU resetting report
1. Printing of data on PLU resetting report 909-B
Print 0 ★
Skip 4
#909-C: 1. Printing of data in void-mode totalizer and manager
void totalizer on Z2 report
2. Printing of data in void-mode totalizer and manager
void totalizer on Z1 report
1. Void-mode totalizer
on Z2 printing 2. Void-mode totalizer on Z1 printing 909-C
Print Print 0 ★
Skip 2
Skip Print 4
Skip 6
#909-D: Not used (Fixed at "0")
[JOB#910] MRS=0004
#910-A: Not used (Fixed at "0")
#910-B: 1. Cashier # on display
2. Auto cashier sign off at the end of each transaction
1. Cashier # on display 2. Auto cashier sign off
at the end of each
transaction 910-B
Hidden No 0
Yes 1
Appear No 2 ★
Yes 3
#910-C, D: Not used (Fixed at "04")
[JOB#911] MRS=0100
#911-A: 1. Fraction treatment
1. Fraction treatment 911-A
Round off 0 ★
Round up 1
Round down 2
#911-B, C, D: Not used (Fixed at "000")
[JOB#912] MRS=0060
#912-A: 1. Date print format
Date format 912-A
Month/Day/Year 0 ★
Day/Month/Year 1
Year/Month/Day 2
#912-B: 1. Time system
1. Time system 912-B
12H 0 ★
24H 1
– 8 –

#912-C: 1. After transaction receipt format
2. Copy receipt
3. Footer print control
1. After
transaction
receipt
2. Copy
receipt 3. Footer print control 912-C
Total only
No
All receipt 0
On selected function
keys at the time of
finalization 1
Yes
All receipt 2
On selected function
keys at the time of
finalization 3
Detail
No
All receipt 4
On selected function
keys at the time of
finalization 5
★
Yes
All receipt 6
On selected function
keys at the time of
finalization 7
#912-D: 1. Logo message control
1. Logo/stamp message control 912-D
3-line header 0 ★
3-line footer 2
6-line header 3
3-line header and 3-line footer 5
(Logo/stamp message format)
[JOB#913] MRS = 0104
#913-A: 1. VP format on Receipt/Journal
2. Content of TOTAL VP amount
1. VP format on
Receipt/Journal 2. Content of TOTAL VP amount 913-A
Date & amount Total amount 0 ★
Tendered amount 1
Machine No. & amount Total amount 2
Tendered amount 3
Date & Consective No.
& amount Total amount 4
Tendered amount 5
#913-B: 1. Printing of SBTL
2. Printing of MDSE SBTL upon key depression
3. Escape the compulsion of VP
NOTE: Must turn to MGR mode and depress
••, PRINT keys to escape validation
1. SBTL Print 2. MDSE
SBTL print 3. Escape the compulsory
of VP 913-B
No No Disable 0
Enable 1 ★
Yes Disable 2
Enable 3
Yes No Disable 4
Enable 5
Yes Disable 6
Enable 7
#913-C: 1. Buzzer off 2sec. after lock error.
2. Buffered keyboard
1. Error beep 2. Buffered keyboard 913-C
2-sec. off Yes 0 ★
No 1
Constant Yes 2
No 3
#913-D: 1. Drawer closing operation
2. Error mode
3. Key catch sound
1. Drawer closed
compulsory 2. Error mode 3. Key catch sound 913-D
Non-compulsory All lock error Enable 0
Disable 1
Miss operation
(One shot error) Enable 2
Disable 3
Compulsory All lock error Enable 4 ★
Disable 5
Miss operation
(One shot error) Enable 6
Disable 7
[JOB#914] MRS = 1100
#914-A: 1. Receipt issuing at no-sale
2. [NS] key separation from [CA/AT] key for no sale func-
tion
3. Tax delete operation
1. Receipt issuing
at no-sale 2. [NS] key separation 3. Tax delete 914-A
Enable Yes Inhibit 0
Enable 1 ★
No Inhibit 2
Enable 3
Disable Yes Inhibit 4
Enable 5
No Inhibit 6
Enable 7
Header
Footer
Type : 0235
– 9 –

#914-B: 1. No-sale after NON ADD code entry
1. No-sale after # entry 914-B
Disable 0
Enable 1 ★
#914-C: 1. Action to be taken when the machine is locked by the
receipt/journal paper near end check
2. VOID mode
3. Non-add code entry at the beginning of a transaction
operation
1. Action to be
taken when
the machine
is locked by
the journal
paper near
end check
2. VOID mode 3. Non-add
code entry at
the beginning
of a
transaction
operation
914-C
Unloked by CL
key
Enable Non-compulsory 0 ★
Compulsory 1
Disable Non-compulsory 2
Compulsory 3
Enforcing of
paper roll
replacement
Enable Non-compulsory 4
Compulsory 5
Disable Non-compulsory 6
Compulsory 7
#914-D: 1. Manual tax
2. CHECK CASHING
3. Non-add code entry
1. Manual tax 2. CHECK
CASHING 3. Non-add code entry 914-D
Enable Disable Enable 0 ★
Disable 1
Enable Enable 2
Disable 3
Disable Disable Enable 4
Disable 5
Enable Enable 6
Disable 7
[JOB#915] MRS = 0000
#915-A: 1. Amount symbol
1. Amount symbol 915-A
" $ " 0 ★
" "1
" " 2
#915-B: Not used (Fixed at "0")
#915-C: 1. Paper near end check
2. ST%, ST(–) as many times needed/operation only once
1. Paper near end check 2. ST%, ST(–) as many
times
needed/operation
only once
915-C
Yes Unlimited 0 ★
Once only 2
No Unlimited 4
Once only 6
#915-D: Not used (Fixed at "0")
[JOB#916] MRS = 1400
#916-A: 1. Print format when text and amount overlaps each other
REG mode
1. Print format when text and amount
overlaps each other REG mode 916-A
Truncate text 0
2 line print 1 ★
#916-B: 1. Finalization by charge when SBTL 0
2. Food stamp subtotal entry before food stamp tender
1. Finalization by
charge when
SBTL 0
2. Food stamp subtotal
entry before food stamp
tender 916-B
RF type of sale only Non-compulsory 0
Compulsory 1
Always Non-compulsory 4 ★
Compulsory 5
#916-C: 1. Negative merchandise subtotal
2. Subtotal entry compulsory before tendering
3. Subtotal entry before direct non-tendering finalization
1. Negative
merchan-
dise
subtotal
2. Subtotal
entry
compulsory
before
tendering
3 .Subtotal
entry before
direct
non-tendering
finalization
916-C
Allow Noncompulsory Non-compulsory 0 ★
Compulsory 1
Compulsory Non-compulsory 2
Compulsory 3
Disallow Non-compulsory Non-compulsory 4
Compulsory 5
Compulsory Non-compulsory 6
Compulsory 7
#916-D: 1. Coupon PLU printing on X/Z report
2. Net sales subtotal (NET1) printing on X/Z report
3. CHECK change total printing on X/Z report
1. Print coupon
PLU’s on
general report
2. Print net
sales SBTL
(NET1) on
general report
3. Print CHK
CHANGE on
general report 916-D
Print Print Print 0 ★
Skip 1
Skip Print 2
Skip 3
Skip Print Print 4
Skip 5
Skip Print 6
Skip 7
– 10 –

[JOB#917] MRS = 0000
#917-A: 1. Printing of Taxable 1 subtotal on X/Z report
2. Printing of Gross Tax 1 and refund Tax 1 total on X/Z
report
3. Printing of Net Tax 1 total on X/Z report
1. Taxable 1
subtotal on
X/Z report
2. Gross Tax 1
and refund
Tax 1 total
on X/Z report
3. Net Tax 1
total on X/Z
report 917-A
Print Print Print 0 ★
Skip 1
Skip Print 2
Skip 3
Skip Print Print 4
Skip 5
Skip Print 6
Skip 7
#917-B: 1. Printing of Taxable 2 subtotal on X/Z report
2. Printing of Gross Tax 2 and refund Tax 2 total on X/Z
report
3. Printing of Net Tax 2 total on X/Z report
1. Taxable 2
subtotal on
X/Z report
2. Gross Tax 2
and refund
Tax 2 total
on X/Z report
3. Net Tax 2
total on X/Z
report 917-B
Print Print Print 0 ★
Skip 1
Skip Print 2
Skip 3
Skip Print Print 4
Skip 5
Skip Print 6
Skip 7
#917-C: 1. Printing of Taxable 3 subtotal on X/Z report
2. Printing of Gross Tax 3 and refund Tax 3 total on X/Z
report
3. Printing of Net Tax 3 total on X/Z report
1. Taxable 3
subtotal on
X/Z report
2. Gross Tax 3
and refund
Tax 3 total
on X/Z report
3. Net Tax 3
total on X/Z
report 917-C
Print Print Print 0 ★
Skip 1
Skip Print 2
Skip 3
Skip Print Print 4
Skip 5
Skip Print 6
Skip 7
#917-D: 1. Printing of Total Tax amount on X/Z report
2. Printing of Gross manual Tax and refund manual Tax
on X/Z
3. Printing of Net manual Tax total on X/Z report
1. Total Tax
Amount 2. Gross manual Tax
and Refund
manual Tax
on X/Z report
3. Net manual
Tax total on
X/Z report 917-D
Print Print Print 0 ★
Skip 1
Skip Print 2
Skip 3
Skip Print Print 4
Skip 5
Skip Print 6
Skip 7
[JOB#918] MRS = 2000
#918-A: 1. Dirrect non-tendering finalization after previous tender
entry
1. Dirrect non-tendering finalization after
previous tender entry 918-A
Disable 0
Enable 2 ★
#918-B, C, D: Not used (Fixed at "000")
[JOB#919] MRS = 0000
#919-A, B: Not used (Fixed at "00")
#919-C: 1. Amount printing when PLU unit price is 0
1. Amount printing when PLU unit price is
0919-C
No 0 ★
Yes 1
919-D: 1. Conversion SBTL printing of native SBTL
2. Foreign currency format
1. Conversion SBTL
print of native SBTL 2. Foreign currency 919-D
Yes Not 0 ★
Omit digits lower than
TAB position 1
No Not 4
Omit digits lower than
TAB position 5
[JOB#920] NOT USED MSR = 0000
[JOB#921] NOT USED MRS = 0000
[JOB#922] NOT USED MRS = 0000
[JOB#923] NOT USED MRS = 0000
[JOB#924] NOT USED MRS = 0000
[JOB#925] NOT USED MRS = 0000
– 11 –

[JOB#926] MRS = 0400
#926-A: Not used (Fixed at "0")
#926-B: 1. Program reset at PGM 2 mode
1. Program reset at PGM2 mode 926-B
Disable 0
Enable 4 ★
#926-C: 1. Open store/Close store with on-line
2. Send AT command string with JOB#500 (Open store)
3. Send AT command string with JOB#501 (Close store)
1. Open
store/Close
store with
on-line
2. Send AT
command
string with
JOB#500
(Open store)
3. Send AT
command
string with
JOB#501
(Close store)
926-C
No No No 0 ★
Yes 1
Yes No 2
Yes 3
Yes No No 4
Yes 5
Yes No 6
Yes 7
#926-D: 1. Receive on-line channel in close store
1. Receive on-line channel in close store 926-D
No 0 ★
Yes 4
[JOB#927] NOT USED: MRS = 0000
[JOB#928] NOT USED: MRS = 0000
[JOB#929] MRS = 0000
#929-A, B, C: Not used (Fixed at "000")
#929-D: 1. Taxable status of PLU which is set at "Non-taxable" by
PGM
1. Taxable status of PLU which is set at
"Non-taxable" by PGM 929-D
According to its associated Department 0 ★
Non-taxable 2
[JOB#930∼941] MRS = 0000
RESET REPORT COUNTER
JOB # Function
930 Z1 report counter
933 Hourly Z1 report counter
934 PLU Z1/Z2 report counter
935 Cashier Z1/Z2 report counter
937 Z2 report counter
939 31 day daily net Z2 report counter
[JOB#942, 943, 969] MRS = 0000000000000
GT COUNTER PRESETTING
JOB # Function
942 GT2 (Positive GT)
943 GT3 (Negative GT)
969 TRAINING GT
Note: GT1 is obtained by calculation
Equation: GT1=GT2-GT3
[JOB#944] MRS = 0000
PGM2 secret code presetting
NOTE: When the secret code "0" is programmed, the secret code
entry is be inhibited.
[JOB#950] MRS = STANDARD KEY LAYOUT
Free key layout (Except for department keys and direct PLU keys.)
[JOB#951] MRS = STANDARD KEY LAYOUT
Free key layout (department keys and direct PLU keys)
•Programming of the keys to be dept keys or direct PLU keys on
the keyboard.
•Key No. is assigned to each key which is supposed to be dept.
Key or direct PLU key by depressing the key after entering the key
No.
•Those keys programmed by this job No. will be dept. keys if dept.
code is assigned, and will be direct PLU keys if PLU code is
assigned in the PGM2 mode.
CA/ATJob# ABCD
Initial value of Z countr
@/FOR
"0000"
CA/ATJob# 0000000000000
13 digits
@/FOR
0
CA/AT944 XXXX
4 digits
@/FOR
0
Free key
@/FOR
CA/AT
@/FOR
Key number automatic
increment
Key number manual
increment
Initial setting
XXX
Key No.
To inhibit
SBTL
increment key No.
950
Free key
@/FOR
CA/AT
@/FOR
Key No.
Key number automatic
increment
Key number manual increment
To inhibit
SBTL
increment key No.
951 XXX
– 12 –

FUNCTION KEY LIST
Key No. KEY KEY TEXT
1 0 KEY 0 KEY
2 1 KEY 1 KEY
3 2 KEY 2 KEY
4 3 KEY 3 KEY
5 4 KEY 4 KEY
6 5 KEY 5 KEY
7 6 KEY 6 KEY
8 7 KEY 7 KEY
9 8 KEY 8 KEY
10 9 KEY 9 KEY
11 00 KEY 00 KEY
12 000 KEY 000KEY
13 DECIMAL POINT . KEY
14 CLEAR CLEAR
15 @/FOR @/FOR
16 SUB TOTAL SBTL
17 CA/AT CA/AT
18 MDSE SBTL MDS ST
19 # #
20 NO SALE NS
21 PLU/SUB PLU/SB
22 REFUND SALES RF SAL
23 TAX1 SHIFT TAX1SF
24 TAX2 SHIFT TAX2SF
25 TAX3 SHIFT TAX3SF
26 TAX4 SHIFT TAX4SF
27 FS SHIFT FS SHT
28 PRINT PRINT
29 RCPT RCPT
30 VOID VOID
31 REFUND RFND
32 %1 %1
33 %2 %2
34 %3 %3
35 %4 %4
36 (–)1 (–)1
37 (–)2 (–)2
38 (–)3 (–)3
39 (–)4 (–)4
40 TAX TAX
41 AUTO AUTO
42 AUTO2 AUTO2
43 AUTO3 AUTO3
44 AUTO4 AUTO4
45 AUTO5 AUTO5
46 AUTO6 AUTO6
47 AUTO7 AUTO7
48 AUTO8 AUTO8
49 AUTO9 AUTO9
50 AUTO10 AUTO10
51 CASH2 CA2
52 CHECK CHK
53 CHECK2 CHK2
54 CH1 CH1
55 CH2 CH2
56 CH3 CH3
57 CH4 CH4
58 CH5 CH5
59 CONV1 CONV1
Key No. KEY KEY TEXT
60 CONV2 CONV2
61 CONV3 CONV3
62 CONV4 CONV4
63 FS TEND FSTEND
64 RA RA
65 RA2 RA2
66 PO PO
67 PO2 PO2
68 CASHIER NO. CASH#
69 BIRTHDAY BIRTH
999 INHIBIT
ER-A440 KEY POSITION
[JOB#971]
SRV FILE PROGRAMMING. (File creation deletion and change of
record count or block count)
Key operation
•Normal file
Group
No. File name Type File table No. (Create/Erase)
1 Dept. 1 1, 2, 4, 6
2 Dept Text (8chra.) 0 3
3 Dept Text (12chra.) 0 4
4 Department Text (16chra.) 0 5
5 PLU 1 8, 9, 11, 13
6 PLU Text (8chra.) 0 10
7 PLU Text (12chra.) 0 11
8 PLU Text (16chra.) 0 12
9LinkPLU 1 16
10 Cashier 1 19, 20, 21, 22, 23
11 Hourly 1 27, 28
12 Daily net 1 29, 30
13 Reg. buffer 1 31
14 Term Dept. 0 7
15 Term PLU 0 14
16 Term Transaction 0 18
17 Term Cashier transaction 0 24
18 All of term files 0 7, 14, 18, 24
Type = 0 ; Create/Erase only
Type = 1 ; Create/Erase and Increase/decrease the number of
Records or blocks.
: The files which are created or erased by the entry of group
No.
04 08 12 16 20 24 28 32 36 42 48 54 60 66
03 07 11 15 19 23 27 31 35 41 47 53 59 65
02 06 10 14 18 22 26 30 34 40 46 52 58 64
01 05 09 13 17 21 25 29 34 39 45 51 57 63
43 49 55 61 67
44 50 56 62 68
37
38
RJ
:FIXED KEY (NO TO CHANGE)
971 @/FOR
abc
File group No.
@/FOR
delete
CA/ATXXXXX
Number of records
– 13 –

File table (In the ER-A610, the shaded section ( ) of the FUNCTION KEY LIST is not used.)
Table
No. File name RECORD BLOCK Label size Data size
MRS Max. #1 MRS Max. #2
1 Dept. Preset 20 50 1 1 1 6
2 Price 20 50 (1) 1 1 0 3
3 Text(8chra.) 0 50 (1) 0 1 0 8
4 Text (12chara.) 25 50 (1) 1 1 0 12
5 Text (16chara.) 0 50 (1) 0 1 0 16
6 Daily 20 50 (1) 1 1 0 9
7 Term 20 50 (1) 1 1 0 9
8 PLU Preset 950 11 5 6
9 Price 950 (8) 1 1 0 3
10 Text (8chra.) 0 (8) 0 1 0 8
11 Text (12chra.) 950 (8) 1 1 0 12
12 Text (16chra.) 0 (8) 0 1 0 16
13 Daily 950 (8) 1 1 0 9
14 Term 0 (8) 0 1 0 9
15 Link PLU 50 11 315
16 Transaction Label 83 83 1 1 2 0
17 Daily 83 83 (16) 1 1 0 8
18 Term 83 83 (16) 1 1 0 8
19 Cashier Preset 4 99 1 1 1 3
20 Flag 4 99 (19) 1 1 0 2
21 Text 4 99 (19) 1 1 0 8
22 Cashier transaction Label 42 42 4 99 (19) 2 0
23 Daily 42 42 (22) 4 99 (19) 0 8
24 Term 42 42 (22) 4 99 (19) 0 8
25 Total cashier (Buffer) Label 42 42 1 1 2 0
26 Total 42 42 (25) 1 1 0 8
27 Hourly Label 48 48 1 1 1 0
28 Daily 48 48 (27) 1 1 0 8
29 Daily net Label 36 36 1 1 3 0
30 Total 36 36 (29) 1 1 0 8
31 Reg. buffer 80 255 1 1 0 36
(#1) : Same as the number of record of table no. N
(#2) : Same as the number of block of table no. N
[JOB#996, 998] RAM DATA BACKUP function
(ECR↔ECR, ECR↔ER-02FD)
[JOB#996] RAM data send
X : SSP = 0
Standard RAM (64KB) = 1
Optional RAM: ER-03RA (512KB) = 2
[JOB#998] RAM data receive
996 X
@/FOR
All data
CA/AT
SBTL
Send to ECR or ER-02FD
(Baud rate setting:#903-A)
Send to ECR
(Auto baud rate setting)
998 @/FOR CA/AT
SBTL
Receive from ECR or ER-02FD
(Baud rate setting:#903-A)
Receive from ECR
(Auto baud rate setting)
– 14 –

CHAPTER 2. PROGRAM
(PGM2/PGM1) MODE
1.Reading of the PGM mode program

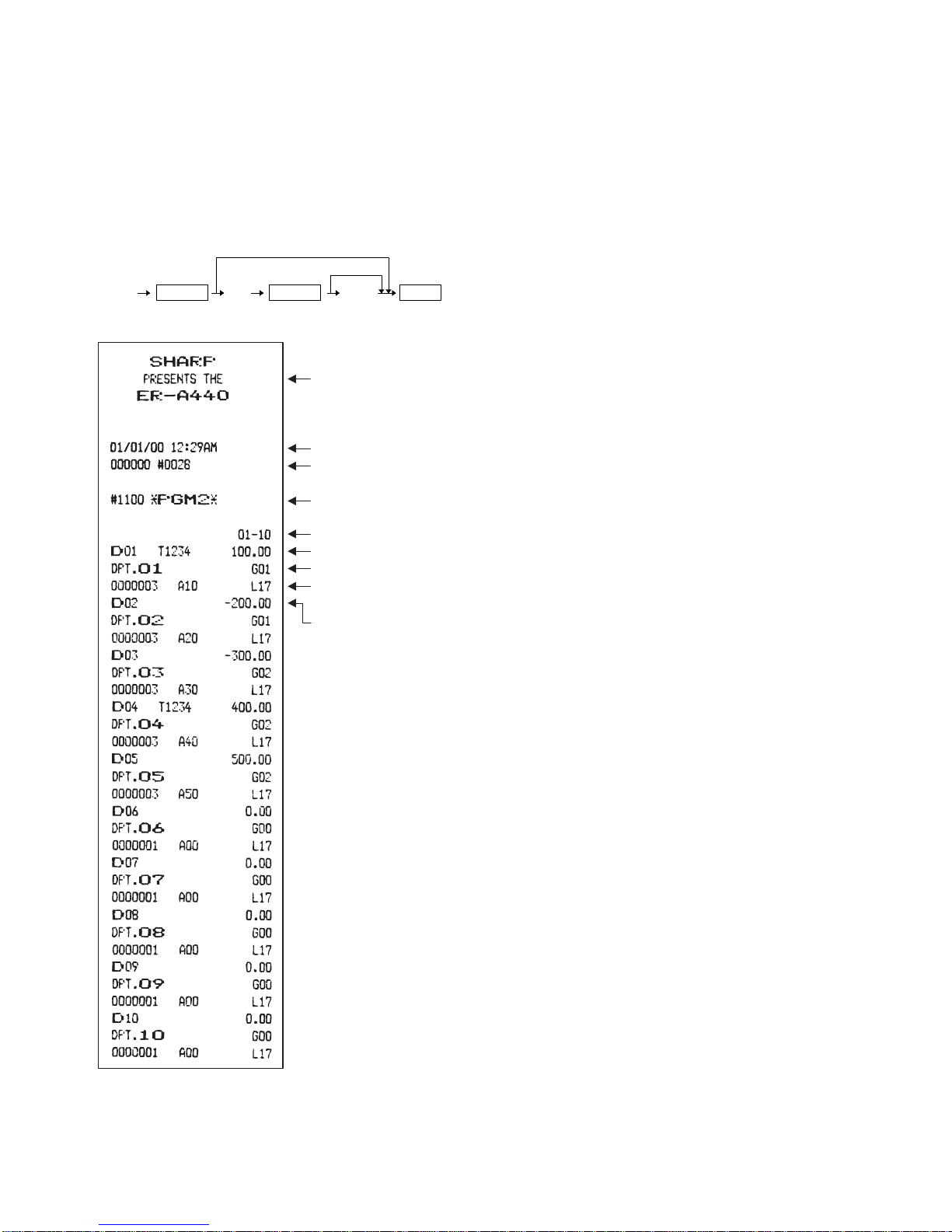

[JOB#1100]: DEPT reading
Key operation
1100 XX
Start No.
@/FOR CA/AT
XX
End No.
Single item
@/FOR
All
Header logo
Data/ Time
Machine No./ Consective No.
JOB#
Dept. code/ Taxable/Price
Text/ Group No.
Programming JOB#2110/
Age limitation/ HALO
Dept. code/ Sign/ Price
Range
– 15 –

[JOB#1200]: PLU reading
Key operation
1200
XXXX
Start No.
@/FOR CA/AT
End No.
Single item
@/FOR
XXXX
All
Header logo
Data/ Time
Machine No./ Consective No.
JOB#
Range
PLU code/ Associated Dept.
code/ Base Q'ty
Taxable/ Price
Text
Programming: JOB#2210/
Age limitation
Sign/ Price
PLU code/ Associated Dept.code/
Type: L=Link PLU,
(space)=Normal PLU/ Base Q'ty
– 16 –

[JOB#1300]: FUNCTION PRESET READING
Key operation
1300
@/FOR CA/AT
Header logo
Data/ Time
Machine No./ Consective No.
JOB#
Function No./ Text
Type: S=Subtotal, I=Item/
Sign/ Amount
HALO
Type: S=Subtotal, I=Item/
Sign/Rate
HALO
HALO
Function No./ Text/ HALO
Programming: JOB#2326/
Programming: JOB#2320
Rate
Sentinel
Function No./ Text/ HALO
Programming: JOB#2326/
Programming: JOB#2320
Programming: JOB#2326/
Programming: JOB#2320
– 17 –

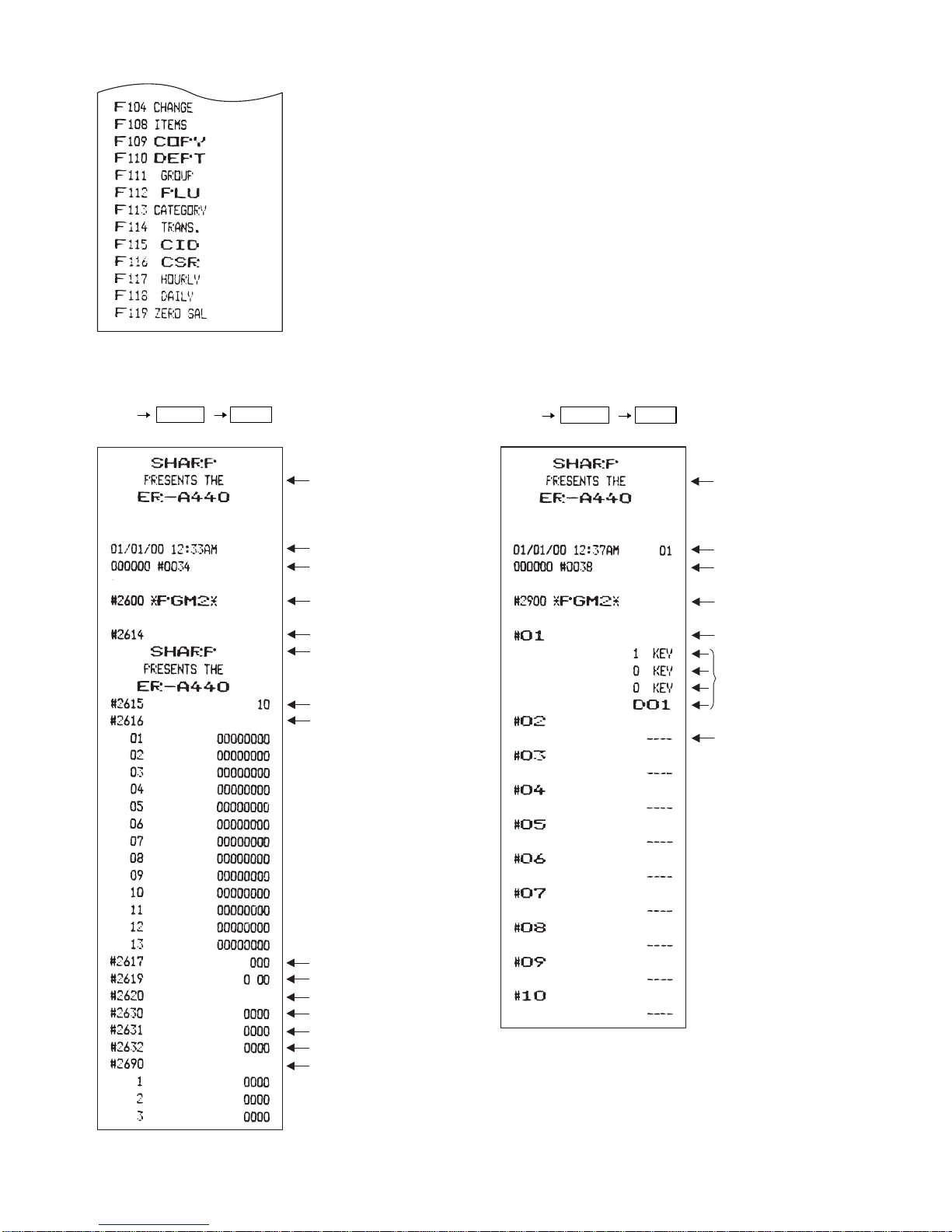

[JOB#2600]: READING OF OTHER
Key operation
[JOB#2900]: AUTO KEY READING
Key operation
2600
@/FOR CA/AT
Header logo
Data/ Time
Machine No./ Consective No.
JOB#
Programming: JOB#2615
Programming: JOB#2616
Programming: JOB#2617
Programming: JOB#2619
Programming: JOB#2620
Programming: JOB#2630
Programming: JOB#2631
Programming: JOB#2632
Programming: JOB#2690
Programming: JOB#2614
2900
@/FOR CA/AT
Header logo
Data/ Time
Machine No./ Consective No.
JOB#
Auto key No.
Not programmed
Programming: JOB#2900
– 18 –

[JOB#1500]: CASHIER READING REP.
Key operation
[JOB#2700]: TAX TABLE READING REP.
Key operation
[JOB#2119]: DIRECT KEY READING REP.
Key operation
[JOB#2220]:
Key operation
1500 @/FOR CA/AT
Header logo
Data/ Time
Machine No./ Consective No.
JOB#
Cashier No./ Cashier code
Cashier name/ Drawer No.
2700 @/FOR CA/AT
Header logo
Data/ Time
Machine No./ Consective No.
JOB#
Tax No./ Not programed
Rate
Lower tax Iimitation
2119 @/FOR CA/AT
Header logo
Data/ Time
Machine No./ Consective No.
JOB#
Key No./ Dept code or
PLU code
Inhibit
2220
@/FOR CA/AT
Header logo
Data/ Time
Machine No./ Consective No.
JOB#
PLU code/
PLU code(MAX 5)
– 19 –
