Sharp GX15 User manual

CONFIDENTIAL
SERVICING CONCERNS
CHAPTER 1. GENERAL DESCRIPTION
[1] Specifications ................................................ 1-1
[2] Names of parts .............................................. 1-2
[3] Operation manual.......................................... 1-3
CHAPTER 2. ADJUSTMENTS,
PERFORMANCE CHECK,
AND FIRMWARE UPGRADE
[1]
SHARP Programme Support Tool SPST) ........ 2-1
[2] Test points ................................................... 2-42
[3] Troubleshooting........................................... 2-44
CHAPTER 3. DISASSEMBLY AND REASSEMBLY
[1] Servicing Concerns ....................................... 3-1
[2] Disassembly and reassembly........................ 3-3
CHAPTER 4. DIAGRAMS
[1] Block diagram ................................................ 4-1
CHAPTER 5. SCHEMATIC DIAGRAM AND
WIRING SIDE OF P.W.BOARD
[1] Notes on schematic diagram ......................... 5-1
[2] Types of transistor and LED .......................... 5-1
[3] Waveforms of circuit ...................................... 5-2
[4] Schematic diagram/Wiring side of
P.W.Board ...................................................... 5-4
CHAPTER . OTHERS
[1] Function table of IC........................................ 6-1
[2] Function table of Camera ............................ 6-21
[3] Function table of Display ............................. 6-22
Parts Guide
SERVICE MANUAL
GX15
No. S5408TQGX5E//
DIGITAL MOBILE PHONE
GX15
MODEL
SHARP CORPORATION
CONTENTS
Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for
maintaining the safety and performance of the set.
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
(INTERNAL MODEL NAME:
TQ-GX5E/G/R/T/S/H/EP/PP/W/B/D/A/Z/Q/L/F/U/GP)
E :
R :
S :
EP:
W :
D :
Z :
L :
U :
G :
T :
H :
PP:
B :
A :
Q :
F :
GP:
• In the interests of user-safety the set should be restored to its
original condition and only parts identical to those specified
should be used.
• Caution
Risk of explosion if battery is replaced by an incorrect type,
dispose of used batteries according to the instruction.
For U.K.
For Ireland
For Spain
For U.K. (Prepaid)
For Sweden
For Greece
For New Zealand
For Malta
For Belgium
For Germany
For Italy
For Netherlands
For Portugal (Prepaid)
For Hungary
For Australia
For Egypt
For France
For Germany (Prepaid)

GX15
i
CONFIDENTIAL
PhoneGX15Service ManualService ManualMarketE
SERVICING CONCERNS
1. When requested, back up user’s handset data using SPST (SHA P Programme Support Tool). Otherwise, before servicing, warn the user that
data in the memory may be lost during repairs.
2. Upgrade the firmware to the latest version using SPST before returning the handset to the customer.
3. After repairs, inspect the handset (phone) according to the following flowchart.
4. When storing or transporting a PWB, put it into a conductive bag or wrap it in aluminum foil. (C-MOS IC may be damaged by electrostatic
charges.)
5. Do not leave fingerprints, etc. on ornamental parts including a cabinet, especially clear windows for main and sub displays. Wear fingerstalls to
avoid this.
Also, ensure not to leave fingerprints on the surface of display panel.
6. To prevent oxidation which causes connection problems, do not touch any terminals on the electric board, microphone, vibrator, earpiece and
speaker.
When handling these parts, wear fingerstalls. Should you touch these parts, clean them with a soft dry cloth.
Always wear fingerstalls when handling a shield case on the electric board. Otherwise oxidation may occur causing handset performance deterio-
ration.
7. The FPC is a precision device. Handle it carefully to prevent any damages.
8. Do not expose the moisture sensor to liquids.
If the sheet gets wet, red ink runs. In this case, replace the sheet with a new one.
Be careful about your perspiration.
9. Before you disassemble or reassemble handset, make sure to remove the Li-Ion battery.
10.Be sufficiently careful with static electricity of integrated circuits and other circuits. Wear static electricity prevention bands whilst servicing.
epairs are completed.
(Fixed parts have been checked for proper operation.)
Check IMEI NO./Operator code (Destination)/
Firmware version by Identity function of SPST.
Inspect each device using performance check
adjustment function of SPST.
Carry out F performance check with SPST.
All completed.

GX15
ii
CONFIDENTIAL
Employing lead-free solder
Lead-free solder is used for this model.
This is indicated by the “LF” symbol printed on the PWB and in the service manual.
The suffix letter indicates the alloy type of the solder.
Example:
Indicates lead-free solder of tin, silver and copper.
Using lead-free solder
When repairing a PWB with the “LF” symbol, only lead-free solder should be used. (Using normal tin/lead alloy solder may
result in cold soldered joints and damage to printed patterns.)
As the melting point of lead-free solder is approximately 40ºC higher than tin/lead alloy solder, it is recommended that a
dedicated bit is used, and that the iron temperature is adjusted accordingly.
Soldering
As the melting point of lead-free solder (Sn-Ag-Cu) is higher and has poorer wettability (flow), to prevent damage to the land
of the PWB, extreme care should be taken not to leave the bit in contact with the PWB for an extended period of time.
Remove the bit as soon as a good flow is achieved.
The high content of tin in lead free solder will cause premature corrosion of the bit.
To reduce wear on the bit, reduce the temperature or turn off the iron when it is not required.
Leaving different types of solder on the bit will cause contamination of the different alloys, which will alter their
characteristics, making good soldering more difficult.
It will be necessary to clean and replace bits more often when using lead-free solder. To reduce bit wear, care should be
taken to clean the bit thoroughly after each use.
PRECAUTIONS FOR USING LEAD-FREE SOLDER
1
2
3

GX15
1 – 1
CONFIDENTIAL
PhoneGX15Service ManualService ManualMarketE
CHAPTER 1. GENERAL DESCRIPTION
[1] Specifications
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE
REFER TO THE OPERATION MANUAL.
Genera : Tti - band GSM 900 MHz/DCS 1800 MHz/
PCS 1900MHz)
GPRS-enabled
WAP, MMS, SMS
Dimensions
(fo ded, exc ud-
ing the aeria )
(H x W x D): 105 x 45 x 17.8 mm
Weight: 84 g
Battery operating
temperature: 0°C - 40°C
Disp ay: Display dimensions: 160 x 120 pixels
LCD display: CGS 65,536 colours with backlight
LCD back light: LED back light white colour LEDs
Camera: CMOS 310K pixels built-in camera
Zoom: Wide and zoom mode
[4 x zoom supported when image size is
160 x 120 pixels)]
Lens: F2.8, f = 3.55 mm
Sound: 40-polyphonic ring melodies
Externa DC
supp y vo tage: 5.2 V
Battery: 3.7 V, 780 mAh, Li-Ion
Standby time: Up to 230 hours
Ta k time: Up to 230 minutes
Others: Side key
Infrared port 1.2 L/P maximum distance 20 cm)
Connector for AC charger and data cable
Standard hands free connector ø2.5)
Battery running time depends on the battery and SIM card as well as
the network conditions and usage.
Specifications for this model are subject to change without prior
notice.
Powered by JBlend Copyright 1997-
2004 Aplix Corporation. All rights reserved.
JBlend and all JBlend-based trade arks
and logos are trade arks or registered
trade arks of Aplix Corporation in Japan
and other countries.
Powered by Mascot Capsule /Micro3D Edition
Mascot Capsule is a registered trade ark of HI Corpora-
tion
2002-2004 HI Corporation. All Rights Reserved.
Licensed under U.S. Patent 4,558,302 and foreign counter-
parts.
T9 Text Input is licensed under one or ore of the following:
U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928,
and 6,011,554; Australian Pat. No. 727539; Canadian Pat.
No. 1,331,057; United Kingdo Pat. No. 2238414B; Hong
Bluetooth is a trade ark of the Bluetooth SIG, Inc.
The Bluetooth word ark and logos are owned by the
Bluetooth SIG, Inc. and any use of such arks by Sharp is
under license. Other trade arks and trade na es are
those of their respective owners.
CP8 PATENT
TM
TM
R
R
C
This product is licensed under the MPEG-4 Visual Patent
Portfolio License for the personal and non-co ercial use of
a consu er to (i) encode video in co pliance with the
MPEG-4 Video Standard (“MPEG-4 Video”) and/or (ii) decode
MPEG-4 Video that was encoded by a consu er engaged in
a personal and non-co ercial activity and/or was obtained
fro a licensed video provider. No license is granted or
i plied for any other use. Additional infor ation ay be
obtained fro MPEG LA. See http://www. pegla.co .
This product is licensed under the MPEG-4 Syste s Patent
Portfolio License for encoding in co pliance with the MPEG-
4 Syste s Standard, except that an additional license and
pay ent of royalties are necessary for encoding in
connection with (i) data stored or replicated in physical edia
which is paid for on a title by title basis and/or (ii) data which
is paid for on a title by title basis and is trans itted to an end
user for per anent storage and/or use. Such additional
license ay be obtained fro MPEG LA, LLC. See http://
www. pegla.co for additional details.
Licensed by Inter Digital Technology Corporation under one
or ore of the following United States Patents and/or their
do estic or foreign counterparts and other patents pend-
ing, including U.S. Patents: 4,675,863: 4,779,262:
4,785,450 & 4,811,420.
Kong Standard Pat. No. HK0940329; Republic of Singapore
Pat. No. 51383; Euro. Pat. No. 0 842 463 (96927260.8) DE/
DK, FI, FR, IT, NL,PT,ES,SE,GB; Republic of Korea Pat.
Nos. KR201211B1 and KR226206B1; and additional
patents are pending worldwide.

GX15
1 – 2
CONFIDENTIAL
[2] Names of parts
1
2
3
4
5
6
7
8
9
11
10
12
13
14
15
16
17
23
20
19
21
22
18
6. Voice Mail Key: Press and hold this key to
connect to the Voice mail
centre automatically.
(Depends on the SIM card.)
7. */Shift Key: Switches character case
among four modes: bc,
BC, 123 and abc.
8. Display
9. Right Soft Key: Executes the function at the
bottom right of the screen.
Used to access “Vodafone
live!” by opening the
browser in stand-by mode.
10.End/ ower Key: Ends a call, turns power on/
off.
11.Keypad
12.# Key: Switches symbol screens.
Press and hold this key on
the text entry screen to shift
text input method between
multi-tap and T9 mode.
Press and hold this key
during stand-by to switch
Profiles settings between
Normal and Silent mode.
Press , then during
stand-by to activate Voice
Recorder.
13.Side-Up/Side-Down Keys:
Moves cursor to select
menu items, adjusts
earpiece volume, etc.
14.External Connector:
Used to connect either the
charger or USB data cable.
15.Microphone
16.Infrared ort: Sends and receives data via
infrared.
17.Camera Key: Starts the digital camera in
stand-by mode.
Takes pictures or records
videos in viewfinder mode.
18.Handsfree Kit Connector
19.Built-in Aerial: Warning: Do not cover the
top of the phone with your
hand when in use as this
may interfere with the
performance of the built-in
aerial.
20.RF Connector
21.Camera
22.Self- ortrait Mirror: For taking a self-portrait.
23.Battery Cover
1. Earpiece
2. Navigation Keys (Arrow Keys):
Moves cursor to select
menu items, etc.
Up/Down arrow keys: Displays Contacts List
entries in stand-by mode.
Left arrow key:
Displays list of pplications
in stand-by mode.
Right arrow key: Displays list of Saved
Pictures in stand-by mode.
3. Centre Key: Displays Main menu in
stand-by mode and
executes functions.
4. Left Soft Key: Executes the function at the
bottom left of the screen.
5. Send Key: Makes or accepts calls,
views the call in stand-by
mode.

GX15
1 – 3
CONFIDENTIAL
[3] Operation manua
Page numbers refer to the user guide)
Li-ion Spare battery (XN-1BT30)
Cigarette lighter charger (XN-1CL30)
USB data cable (XN-1DC30)
AC charger (XN-1 C30, XN-1 C31, XN-1 C32)
Personal handsfree kit (XN-1ER20)
The above accessories may not be available in all regions.
For details, please contact your dealer.
[Optional Accessories]
[Quickstart Guide]

GX15
1 – 4
CONFIDENTIAL

GX15
1 – 5
CONFIDENTIAL

GX15
2 – 1
CONFIDENTIAL
PhoneGX15Service ManualService ManualMarketE
CHAPTER 2. ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE
UPGRADE
SPST (SHARP Programme Support Tool) allows you to adjust setti gs, co duct performa ce checks, a d upgrade the firmware.
[1] SHARP Progra e Support Tool (SPST)
1. Syste require ents
• IBM PC compatible perso al computer (sta dard COM1 115,200 bps serial port a d USB required)
Recomme ded OS: Wi dows 2000/XP
Operable OS: Wi dows 98/98SE/ME
I compatible OS: Wi dows 95/NT
(E glish, Germa , Italia , Spa ish, Fre ch a d Chi ese versio s)
• Data cable
<Duri g RF adjustme t>
• GSM tester: CMU200
• GPIB i terface: Natio al I strume ts USB-GPIB cable (Model No.: NI GPIB-USB-B)
2. Introduction
2.1. Functions
SPST offers seve key fu ctio s:
1) Firmware dow load
2) User data tra sfer (processes all data at o ce but ot i dividually.)
3) RF calibratio check a d test
4) Default setti g
5) Ide tificatio
6) Performa ce check a d adjustme t
7) User password reset
2.2. Installation
1. Use Wi dows Explorer to execute the “setup.exe” file o the CD-ROM.
2. The SPST GX15 setup wizard appears. Follow the i stallatio i structio s.
3. After the i stallatio is complete, shortcuts to SPST are created o the desktop a d u der the “Start” — “Programs” — “GX15” me u. Start SPST
from the shortcuts.

GX15
2 – 2
CONFIDENTIAL

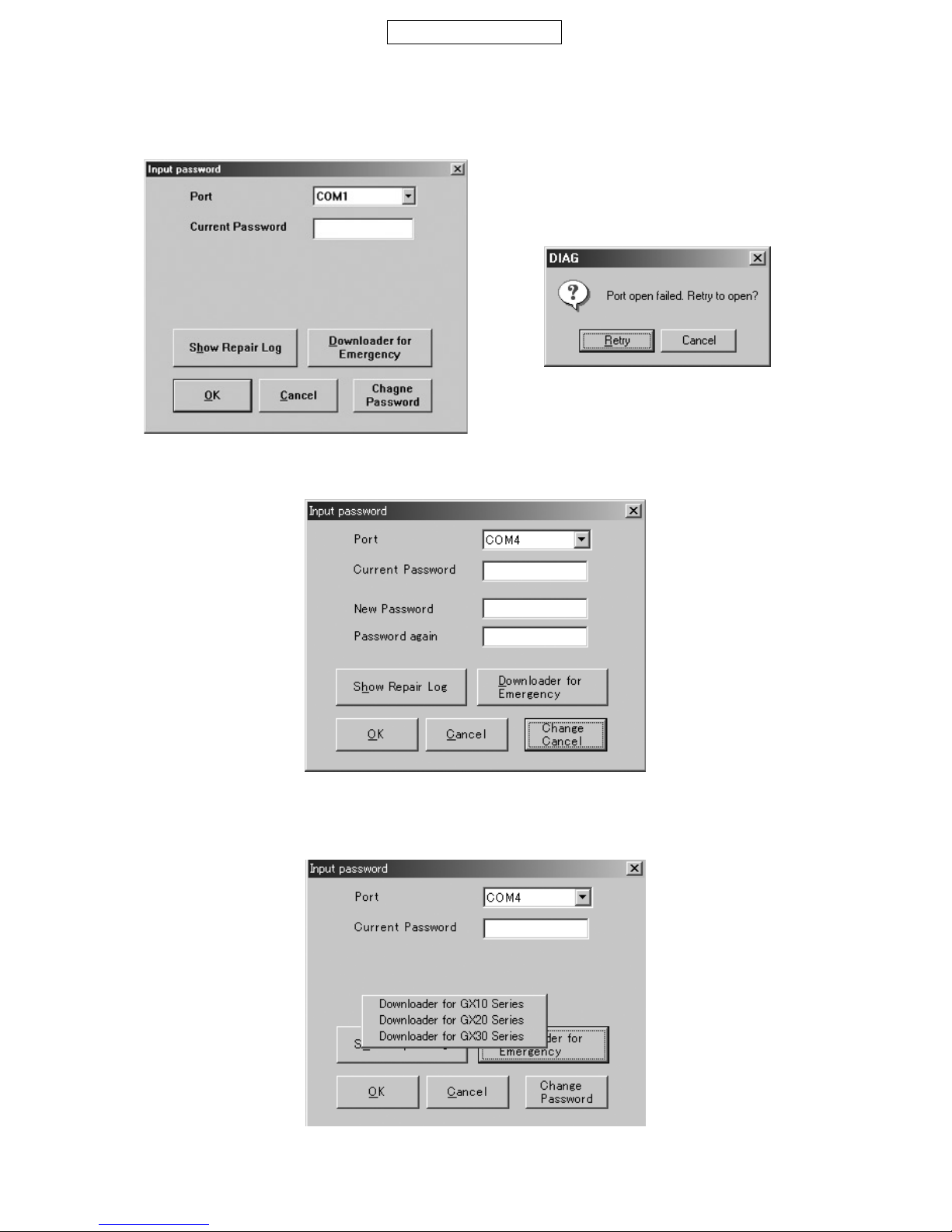

2.3. Starting up
Co ect GX15 to a operable serial port of the PC with the supplied data cable. Make sure that the battery is fully charged.
Start SPST from the desktop.
1. The I put password dialogue box appears. E ter the password, select “GX15” from Port list box (a co ected port is automatically detected), a d
click “OK”. If you do ot k ow SPC, click “Ca cel” to exit.
Figure 1
2. To cha ge the password, e ter the curre t password i Figure 1, a d the click “Cha ge Password”.
Figure 2
3. To check the usage status of tools, click “Show Repair Log” i Figure 1.
4. Click “Dow loader for Emerge cy”.
Figure 3
The above scree appears. Select a model to use a d execute the Dow loader. (Use this to i itialise the flash, etc.)
When using SPST for the first time, the driver installation
starts and the following dialogue box appears.
After the installation is complete, press "Retry".

GX15
2 – 3
CONFIDENTIAL
5. Whe the password is correct, a co ectio is established a d the followi g scree appears.
Figure 4
Butto s
Attachme t 1 Desti atio a d operator ame list
Default Set Refer to “4.1. Default setti g”. (see page 2-5)
User Data Back-up Refer to “4.2. User data back-up”. (see page 2-6)
User Data Restore Refer to “4.3. User data restore”. (see page 2-7)
Dow loader Refer to “4.4. Dow loader”. (see page 2-8)
RF Calibratio & Check Refer to “4.5. RF calibratio & check”. (see page 2-19)
RF Test Refer to “4.6. RF test tool”. (see page 2-27)
User Password Reset Refer to “4.7. Password reset”. (see page 2-33)
Performa ce check adjustme t Refer to “4.8. Performa ce check a d adjustme t”. (see page 2-34)
**** mode release Refer to “4.9. ****mode release”. (see page 2-41)
Exit E d SPST.
No. Operator na e Country Model na e
01 Vodafo e UK Post-Paid UK A4TQGX15E
02 Airtel Post-Paid Spai A4TQGX15S
03 SFR Post-Paid Fra ce A4TQGX15F
04 Vodafo e Om itel Post-Paid Italy A4TQGX15T
05 D2 Post-Paid Germa y A4TQGX15G
06 Vodafo e NL Post-Paid Netherla ds (Holla d) A4TQGX15H
08 Vodafo e Irela d Post-Paid Irela d A4TQGX15R
10 Vodafo e Greece Post-Paid Greece A4TQGX15D
11 Vodafo e Hu gary Post-Paid Hu gary A4TQGX15B
12 Vodafo e Australia Post-Paid Australia A4TQGX15A
13 Vodafo e New Zeala d Post-Paid New Zeala d A4TQGX15Z
14 Vodafo e Swede Post-Paid Swede A4TQGX15W
15 Vodafo e Egypt Post-Paid Egypt A4TQGX15Q
16 Vodafo e Malta Post-Paid Malta A4TQGX15L
17 Swisscom Post-Paid Switzerla d A4TQGX15C
45 D2 Pre-Paid Germa y A4TQGX15GP
48 Vodafo e PT Pre-Paid Portugal A4TQGX15PP
50 Vodafo e UK Pre-Paid UK A4TQGX15EP
Software version:
A02-007-0119-GX15
Refer to the attachment 1
for the destination and
operator name.

GX15
2 – 4
CONFIDENTIAL
3. Adjust ents for GX15
1. Adjustme ts are required after replaci g the followi g parts. ( )
Whe replaci g other parts i the RF sectio , carry out RF calibratio .
2. Click the butto s o the SPST scree for adjustme ts.
Figure 5
3. The followi g scree appears.
Figure 6
Parts Te perature
adjust ent
(Ca era)
Te perature
adjust ent
(Battery)
Display flicker
adjust ent
White defect
correction
Black defect
correction
TH102
Display u it
Camera u it
To adjust the device, click this button
(Performance check adjustment).
RF calibration
Temperature adjustment (Camera section)
Temperature adjustment (Battery section)
Display flicker adjustment
White defect correction
Black defect correction

GX15
2 – 5
CONFIDENTIAL
4. Functions

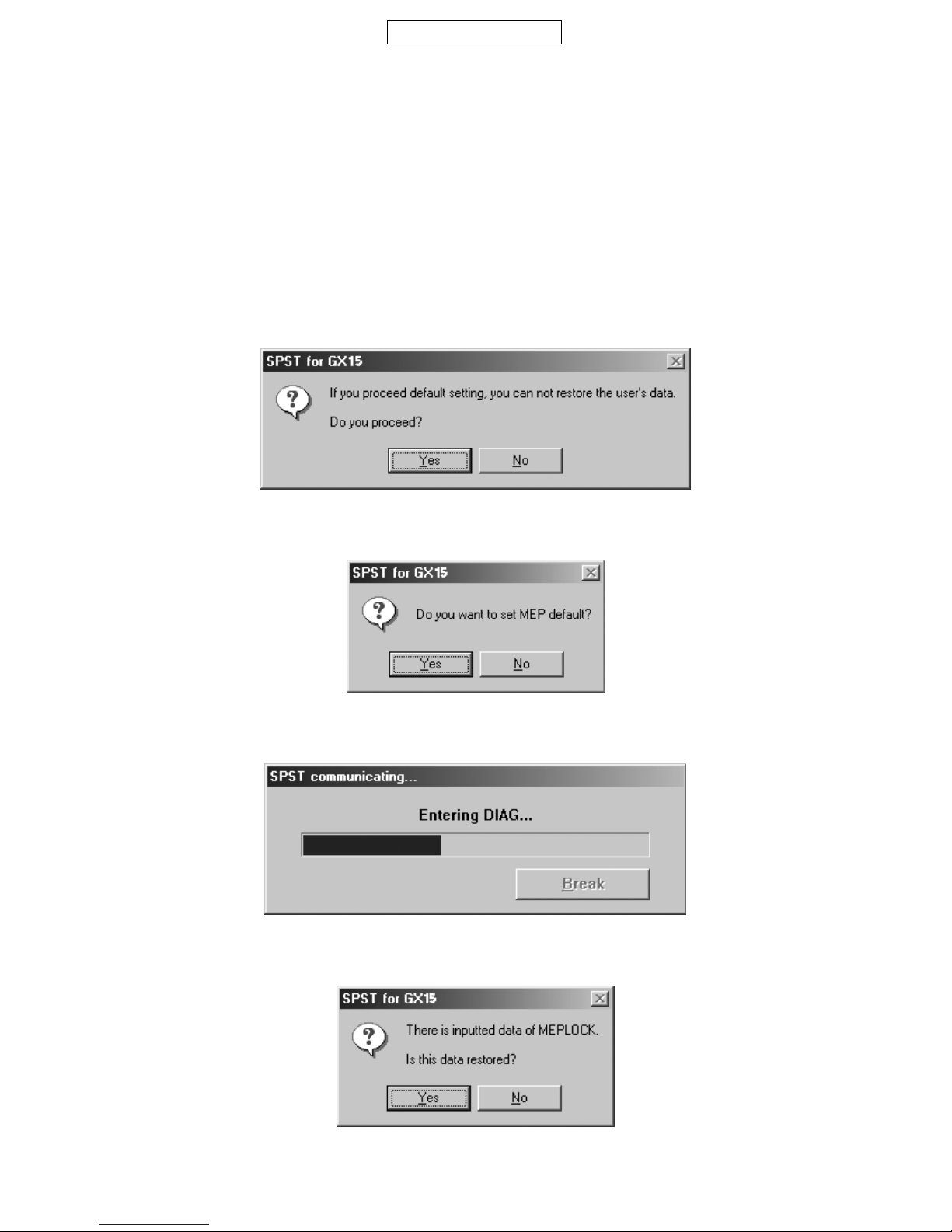

4.1. Default setting
SPST ca restore the factory setti gs.
This fu ctio
1. Deletes all user data i the file system;
2. Restores all WAP setti gs to default; a d
3. Restores the values set by the user to default.
(MEPLOCK setti gs, the desti atio a d operator ame do ot cha ge.)
<Operatio >
1) Set the COM port o the SPST i itial scree a d click “Default Set”.
2) Click “Yes” to proceed. Click “No” to exit.
Figure 7
3) Click “No” to back-up the MEPLOCK data. Click “Yes” to restore default setti gs.
Figure 8
4) Commu icatio starts.
Figure 9
5) The followi g appears whe you select “Yes” i step 3 a d MEPLOCK data exists. Click “Yes” to restore the data.
Figure 10

GX15
2 – 6
CONFIDENTIAL
6) After the ha dset (pho e) is tur ed o , the i itialisatio is complete.
Figure 11
4.2. User data back-up
SPST saves all the data stored o the ha dset (pho e).
1. Set the COM port o the SPST i itial scree a d click “User Data Backup”.
2. Specify the file ame i the followi g dialogue box a d click “Save”.
Figure 12
3. The commu icati g dialogue box appears whilst processi g.
Figure 13
4. Whe completed, the followi g message appears. Click “OK”.
Figure 14

GX15
2 – 7
CONFIDENTIAL
4.3. User data restore
SPST completely restores the backed up data.
1. Set the COM port o the SPST i itial scree a d click “User Data Restore”.
2. Specify the file ame i the followi g dialogue box a d click “Save”.
Figure 15
3. The commu icati g dialogue box appears whilst processi g.
Figure 16
4. Whe the restore is complete, click “OK”.
Figure 17

GX15
2 – 8
CONFIDENTIAL
4.4. Downloader
4.4.1 Introduction
Dow loader allows you to upgrade the firmware.
1) Required devices
• PC (Operati g System: Wi dows 2000, XP)
• GX15 ha dset (pho e)
Figure 18
• USB hub
You ca use a USB hub to dow load data to multiple ha dsets (pho es) at a time.
(Recomme ded product) USB hub from Adaptec: XHUB7PLUS
Figure 19
• USB dow load cable
Figure 20
* The USB dow load cable co sists of the GX15 USB dow load AC charger cable a d a USB data cable.
* A USB data cable is ot the existi g dow load cable.
* The USB dow load cable is exclusively for dow load, ot for a y other purpose.
GX15 USB download AC charger cable USB data cable

GX15
2 – 9
CONFIDENTIAL
2) Precautions
You ca preve t problems from usi g the GX15 upgradi g tool.
Please read the followi g before use.
* Dow load may fail depe di g o the versio of Wi dows.
It is recomme ded to update Wi dows to the latest versio before you start.
* Ha dsets (Pho es) may ot be recog ised depe di g o the PC.
Disco ect the USB dow load cable co ected with PC from the ha dset (pho e) a d reco ect.
If the ha dset (pho e) is still ot recog ised, repeat a few times.
* Make sure to remove the ha dset (pho e) battery.
(Dow load must be performed without a battery i serted.)
* Do ot start/restart a PC with a ha dset (pho e) co ected.
* If a PC is set to the power savi g mode, disable it before dow load.
* Whilst usi g a USB hub for dow load, do ot use the remai i g ports for other devices. Dow load may fail.

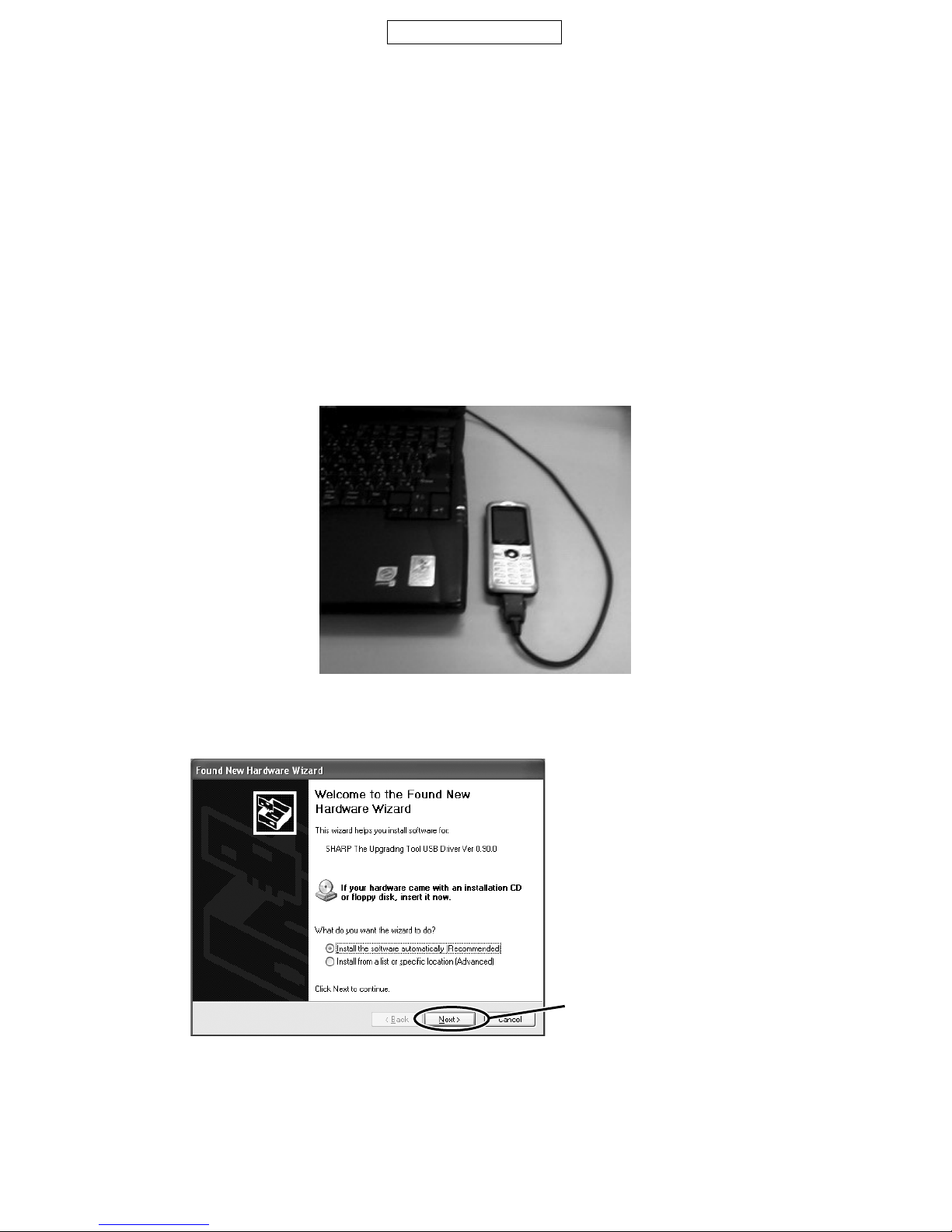

4.4.2 Installation of the device driver
I stall the device driver (SHARP The Upgradi g Tool USB Device Ver 0.90.0) o your PC.
1. Co ect a PC a d GX15 ha dset (pho e) with the USB dow load cable.
[Make sure to remove the ha dset (pho e) battery before co ecti g them.]
Figure 21
2. I stall the device driver followi g the Hardware Wizard.
(For Wi dows 2000, the driver is automatically i stalled.)
Figure 22
Press "Next >" button.

GX15
2 – 10
CONFIDENTIAL
Figure 23
Figure 24
Figure 25 Screen after installation
* I stall the device driver for all ha dsets (pho es) co ected to the PC (i cludi g those via a USB hub).
* If a ha dset (pho e) is ot recog ised whe co ected to a PC:
Disco ect a d reco ect the USB dow load cable.
[If the ha dset (pho e) is still ot recog ised, repeat a few times.]
Press "Continue Anyway" button.
Screen during installation.
Press "Finish" button.

GX15
2 – 11
CONFIDENTIAL
4.4.3 Download
1) Application startup and screen descriptions
The ico below is created o your desktop after i stallatio . Double-click it to start the Upgradi g tool. You ca also start the applicatio by selecti g
“The GX15 Upgradi gTool” from the Start me u.
Figure 26
The dow load setup scree appears after starti g the applicatio .
Figure 27
1. Select Device: Shows port umbers of ha dsets (pho es) recog ised by the PC.
2. Select Load File: Specify a file to dow load.
3. Select Load Area: Select data space to store files.
4. Start Loadi g Flash: Press to start dow load.
1
2
3
4

GX15
2 – 12
CONFIDENTIAL
2) Download
<<Make sure the followi g before starti g dow load>>
• The ha dset (pho e) battery is removed.
• The device driver is i stalled o your PC.
• Ha dset (Pho e) is co ected to a PC with the USB dow load cable.
Figure 28
2). 1 Selecting device
Check the correspo di g Port No. box for the ha dset (pho e) you wa t to dow load data to.
[Whe the ha dset (pho e) is co ected to a PC, the correspo di g box is checked.]
Make sure the ha dset (pho e) (without a battery) is co ected to a PC with the USB dow load cable.
If the correspo di g box ca ot be checked, the ha dset (pho e) may ot be recog ised correctly. Disco ect a d reco ect the USB dow load
cable.
<< Easy steps for dow load>>
1. Selecti g a ha dset (pho e)
Whe ha dset (pho e) is recog ised as a device, the correspo di g Port No. box is checked.
[If the box is u checked, data will ot be dow loaded to ha dset (pho e).]
2. Selecti g a dow load file
Select a file to dow load.
3. Selecti g dow load area
<Example>
Check “Program Dow load” a d “File System I itialize” a d start dow load.
4. Starti g dow load
Press “Start Loadi g Flash” butto to start dow load.
5. Completi g dow load
Whe dow load is successfully completed, “O” appears i the correspo di g Port No. boxes. Click “OK” to exit.
