Sharp FO-3150 User manual

FO-3150 FACSIMILE
MODEL
FO-3150
OPERATION MANUAL
FACSIMILE
1. Installation
2. Sending Faxes
3. Receiving Faxes
4. Making Copies
5. Answering Machine Connection
6. Special Functions
7. Printing Lists
8. Maintenance
9. Troubleshooting

WARRANTY
Facsimile Products
Congratulations onYour Purchase!
This Sharp product is warranted against manufacturing defects for a period of twelve (12) months from
the date of original purchase.
In the event of any defect arising in the equipment during the warranty period, such repairs should only
be carried out by the Dealer from which the unit was originally purchased or a Service Centre approved
by Sharp to service this type of equipment. These repairs would be carried out at no charge to the
owner, subject to the conditions specified herein.
The owner is responsible for any transportation and insurance costs if the product has to be returned
for repair.
This warranty does not extend to accessories or defects or injuries caused by or resulting from causes
not attributable to faulty parts or the manufacture of the product, including but not limited to, defect or
injury caused by or resulting from misuse, abuse, neglect, accidental damage, improper voltage, liquid
spillage, vermin infestation, software, use of consumables other than those approved by Sharp, or any
alterations made to the product which are not authorised by Sharp.
Please retain your sales documentation, as this should be produced to validate a warranty claim.
This warranty is in addition to and in no way limits, varies or excludes any express and implied rights
and remedies under any relevant legislation in the country of sale. However, to the extent permitted by
such legislation, Sharp excludes any liability for any indirect or consequential damages arising from the
purchase or use of the product.
To the extent permitted by law, Sharp excludes all implied warranties and conditions and where the
product is one that is not normally required for personal, domestic or household use, Sharp limits its
liability to the repair or replacement (at Sharp's option) of materials or workmanship which are found by
Sharp to be defective.
For your reference, please enter the particulars of your purchase below and retain, with your purchase
documentation.
Model No.
Serial No.
Date of Purchase
Place of Purchase SPform046 (Dec2001)
FOR LOCATION ENQUIRIES WITHIN
AUSTRALIA
REGARDINGYOUR LOCAL
SHARP APPROVED SERVICE CENTRE
CALL SHARP
LOCAL CALL: 1 300 135 022
FACSIMILE: (02) 9672 1210
WEB: www.sharp.net.au
SHARP CORPORATION OF AUSTRALIA PTY.LIMITED
A.B.N.40 003 039 405
1 Huntingwood Drive, Huntingwood NSW 2148
Important Notice: This warranty applies only to products sold in Australia
all.book Page 1 Friday, October 31, 2003 4:10 PM

1
Introduction
*Based on Sharp Standard Chart at standard resolution, excluding time for protocol signals
(i.e., ITU-T phase C time only).
**The yields may vary depending on coverage and operating conditions.
Automatic dialling Rapid Key Dialling: 10 numbers
Speed Dialling: 99 numbers
Memory size* 1.8 MB (approx. 100 average pages)
Modem speed 14,400 bps with auto fallback to lower speeds.
Transmission time* Approx. 6 seconds (only when ECM is on)
Toner cartridge yield**
(continuous printing,
4% page coverage,
A4 paper)
Initial starter cartridge (included with fax machine):
Approx. 1,800 pages
Replacement cartridge FO-29DC: Approx. 3,700
pages
Drum cartridge yield**
(continuous printing,
4% page coverage,
A4 paper)
Initial starter cartridge (included with fax machine):
Approx. 20,000 pages
Replacement cartridge (FO-29DR): Approx. 20,000
pages
Scanning Resolution Horizontal: 8 lines/mm
Vertical:
Standard: 3.85 lines/mm
Fine /Halftone: 7.7 lines/mm
Super fine: 15.4 lines/mm
Automatic document
feeder A4: 20 pages max. (80-g/m2paper)
Recording system Laser
Compatibility ITU-T (CCITT) G3 mode
Welcome, and thank you for
choosing a SHARP laser fax
machine! The features and
specifications of your laser fax
are shown below..
all.book Page 1 Friday, October 31, 2003 4:10 PM

2
Paper tray capacity A4: Approx. 200 sheets of 70 g/m2copier paper, or
180 sheets of 80 g/m2copier paper (at room
temperature; maximum stack height should not be
higher than the line on the tray)
Recommended paper weight: 70 g/m2Copy Bond
Halftone (grayscale) 64 levels
Compression scheme MR, MH, MMR
Input document size Automatic feeding:
Width: 148 to 216 mm
Length (20 pages): 140 to 297 mm
Length (5 pages): 140 to 356 mm
Manual feeding:
Width: 148 to 216 mm
Length: 140 to 600 mm
Effective scanning width 210 mm max.
Effective printing width 208 mm max.
Contrast control Automatic/Dark selectable
Reception modes TEL/FAX/AM
Copy function Single/Multi/Sort (50 copies/page)
Applicable telephone line Public switched telephone network
Display 16-digit LCD display
Power requirements 230 - 240 V AC, 50 Hz
Operating temperature 10 - 30°C
Humidity 20 - 85% RH
Power consumption Standby: 7.5 W
Maximum: 840 W
Dimensions (without
attachments) Width: 327 mm
Depth: 380 mm
Height: 173 mm
Weight (without
attachments) Approx. 6.0 kg
all.book Page 2 Friday, October 31, 2003 4:10 PM

3
As a part of our policy of continuous improvement, SHARP reserves the right to make design
and specification changes for product improvement without prior notice. The performance
specification figures indicated are nominal values of production units. There may be some
deviations from these values in individual units.
Important safety information
For your safety, if any of your equipment is not operating properly or should any physical
damage occur to the equipment where internal parts may become exposed, the equipment
should be immediately disconnected from the phone line and then the power line and returned
to a SHARP authorised Service Centre for inspection, repair, or disposal.
Installing or modifying telephone lines should only be done by an ACA licensed serviceman.
This facsimile machine is designed for use in Australia only.
Do not disassemble this machine or attempt any procedures not described in this manual.
Refer all servicing to qualified service personnel.
Do not install or use the machine near water, or when you are wet. For example, do not use the
machine near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a
swimming pool. Take care not to spill any liquids on the machine.
Unplug the machine from the power outlet and telephone socket and consult a qualified
service representative if any of the following situations occur:
- Liquid has been spilled into the machine or the machine has been
exposed to rain or water.
- The machine produces odors, smoke, or unusual noises.
- The power cord is frayed or damaged.
- The machine has been dropped or the housing damaged.
Do not allow anything to rest on the power cord, and do not install the machine where people
may walk on the power cord.
This machine must only be connected to a 230 - 240 V, 50 Hz, earthed (3-prong) outlet.
Connecting it to any other kind of outlet will damage the machine and invalidate the warranty.
Never insert objects of any kind into slots or openings on the machine. This could create a risk
of fire or electric shock. If an object falls into the machine that you cannot remove, unplug the
machine and consult a qualified service representative.
Do not place this machine on an unstable cart, stand or table. The machine could be seriously
damaged if it falls.
Never install telephone wiring during a lightning storm.
Never install telephone sockets in wet locations unless the socket is specifically designed for
wet locations.
Never touch bare telephone wires or terminals unless the telephone line has been
disconnected at the network interface.
Use caution when installing or modifying telephone lines.
all.book Page 3 Friday, October 31, 2003 4:10 PM

4
Avoid using a telephone (other than a cordless type) during an electrical storm. There may be
a remote risk of electric shock from lightning.
Do not use a telephone to report a gas leak in the vicinity of the leak.
The power outlet must be installed near the equipment and must be easily accessible.
WARNING NOTICE:
NO calls can be made to or from this fax machine during a mains power failure.
WARNING: Australian Communications Authority (ACA) regulations state that no unauthorised
changes or modifications to this equipment are permitted.
Note: Complies with ACA standard AS/NZS3548 regarding emission of electromagnetic
interference.
These limits are designed to provide reasonable protection against interference in an
installation. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause interference. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment to an outlet on a different circuit to that which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
The Ringer Equivalence Number (REN) for this equipment is written on the back of the
machine. The sum of all Ringer Equivalence Numbers (REN's) on your telephone line should
not exceed 3 to assure correct service from your telephone company.
all.book Page 4 Friday, October 31, 2003 4:10 PM

5
Table of Contents
A Look at the Operation Panel 7
1. Installation 9
Unpacking Checklist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installing the Toner Cartridge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Loading Printing Paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Entering Your Name and Fax Number. . . . . . . . . . . . . . . . . . . . . . . 21
Setting the Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Setting the Reception Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
2. Sending Faxes 29
Transmittable Documents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Loading the Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Adjusting the Resolution and Contrast. . . . . . . . . . . . . . . . . . . . . . . 32
Sending a Fax by Normal Dialling . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Sending a Fax by Automatic Dialling . . . . . . . . . . . . . . . . . . . . . . . . 36
Cover Sheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Batch Page Numbering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Broadcasting (Sending a Fax to Multiple Destinations) . . . . . . . . . . 50
3. Receiving Faxes 55
Using TEL/FAX Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Using A.M. Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Using FAX Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Using TEL Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Optional Reception Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Substitute Reception to Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
4. Making Copies 65
all.book Page 5 Friday, October 31, 2003 4:10 PM

Table of Contents
6
5. Answering Machine Connection 67
Connecting an Answering Machine . . . . . . . . . . . . . . . . . . . . . . . . .67
Using the Answering Machine Connection . . . . . . . . . . . . . . . . . . . .68
Optional A.M. Mode Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
6. Special Functions 73
Distinctive Ring (Requires Subscription to Service) . . . . . . . . . . . . .73
Blocking Reception of Unwanted Faxes. . . . . . . . . . . . . . . . . . . . . .75
Polling (Requesting a Fax Transmission). . . . . . . . . . . . . . . . . . . . .77
7. Printing Lists 84
8. Maintenance 89
Scanning glass and rollers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89
The housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
Replacing the toner cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
Replacing the drum cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91
Cleaning the drum cartridge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94
9. Troubleshooting 96
Problems and Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96
Messages and Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101
Clearing Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .104
Quick Reference Guide 108
Index 109
all.book Page 6 Friday, October 31, 2003 4:10 PM

7
Number keys
Use these keys to dial numbers, and enter numbers and letters when storing
auto-dial numbers.
Display
This displays messages and prompts to help you operate the machine.
Arrow keys
Use these keys to scroll through and select settings, and to search for auto-
dial numbers. Press the left arrow key (REDIAL) to select the last number
dialled.
PANEL RELEASE
Pull this release to open the operation panel.
Rapid Dial Keys
Press one of these keys to dial a fax number automatically.
STOP key
Press this key to cancel an operation before it is completed.
START key
Press this key after dialling to begin fax transmission. The key can also be
pressed in the date and time display to show the percentage of memory
currently used.
A Look at the Operation Panel
1
2
3
4
5
6
TEL FAX
TEL/FAX AM.
1 2 543
8
69
7
10 12
11 13
7
all.book Page 7 Friday, October 31, 2003 4:10 PM

8
COPY/HELP key
When a document is in the feeder, press this key to make a copy of a
document. At any other time, press this key to print out the Help List, a quick
reference guide to the operation of your fax machine.
RESOLUTION / RECEPTION MODE key
When a document is in the feeder, press this key to adjust the resolution for
faxing or copying. At any other time, press this key to select the reception
mode (an arrow in the display will point to the currently selected reception
mode).
FUNCTION key
Press this key followed by the arrow keys to select special functions and
settings.
SPEED DIAL key
Press this key to dial a fax or voice number using an abbreviated 2-digit
Speed Dial number.
HOLD key
Press this key to put the other party on hold during a phone conversation.
When this is done, they cannot hear you. You can put the handset back in the
cradle without breaking the connection. When you are ready to speak with the
other party again, pick up the handset. If you did not put the handset back in
the cradle, press the HOLD key again to resume conversation.
SPEAKER key
Press this key to listen to the line and fax tones through the speaker when
faxing a document.
Note: This is not a speakerphone. You must pick up the handset to talk with
the other party.
1
111
1
010
9
8
1
212
1
313
all.book Page 8 Friday, October 31, 2003 4:10 PM

9
1. Installation
1. Installation
Unpacking Checklist
Points to keep in mind when setting up
Do not place the
machine in direct
sunlight.
Do not place the
machine near
heaters or air
conditioners.
Keep dust away from
the machine. Keep the area
around the
machine clear.
About condensation
If the machine is moved from a cold to a warm place, it is possible that
condensation may form on the scanning glass, preventing proper scanning of
documents for transmission. To remove the condensation, turn on the power
and wait approximately two hours before using the machine.
Paper tray
Paper tray
cover
Operation
manual
Toner cartridge
Handset
Handset cord Telephone
line cord
Drum cartridge
(pre-installed in the
machine)
If any are missing,
contact your
dealer or retailer.
Before setting up,
make sure you
have all of the
following items.
Originaldocument
support Rapid Key
labels
Received
document tray
Adaptor
all.book Page 9 Friday, October 31, 2003 4:10 PM

Connections
10
Connections

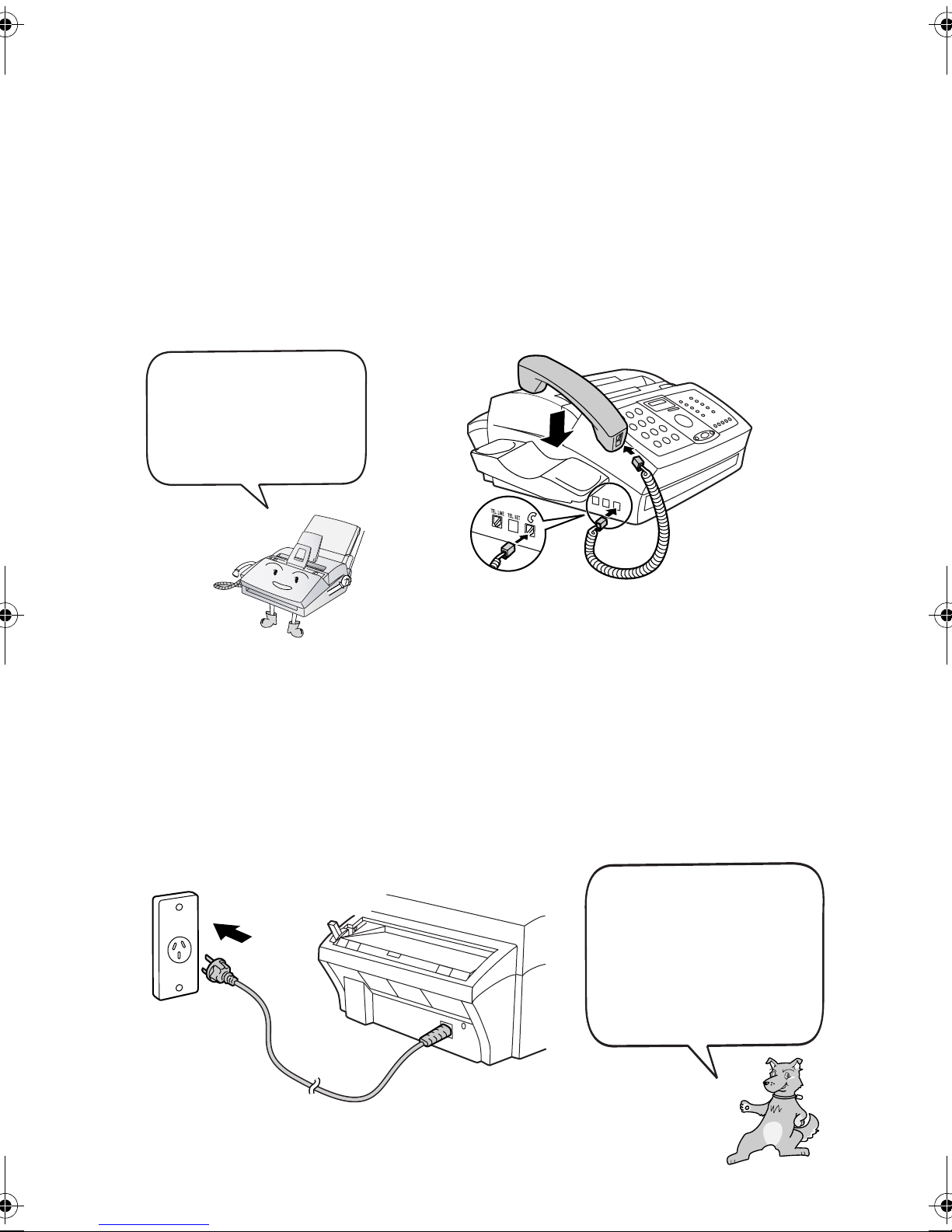

Connecting the handset
Connect the handset as shown and place it on the handset rest.
♦The ends of the handset cord are identical, so they will go into either
socket.
Make sure the handset
cord goes into the
socket marked with a
handset symbol on the
side of the machine!
Use the handset to make ordinary phone calls,
or to transmit and receive faxes manually.
Connecting the power cord
Plug the power cord into a 230 - 240 V, 50 Hz, earthed AC (3-prong) outlet.
♦When disconnecting the fax, unplug the telephone line cord before
unplugging the power cord.
♦Caution: The power outlet must be installed near the equipment and must
be easily accessible.
The machine does not
have a power on/off
switch, so the power is
turned on and off by
simply plugging in or
unplugging the power
cord.
all.book Page 10 Friday, October 31, 2003 4:10 PM

Connections
11
1. Installation

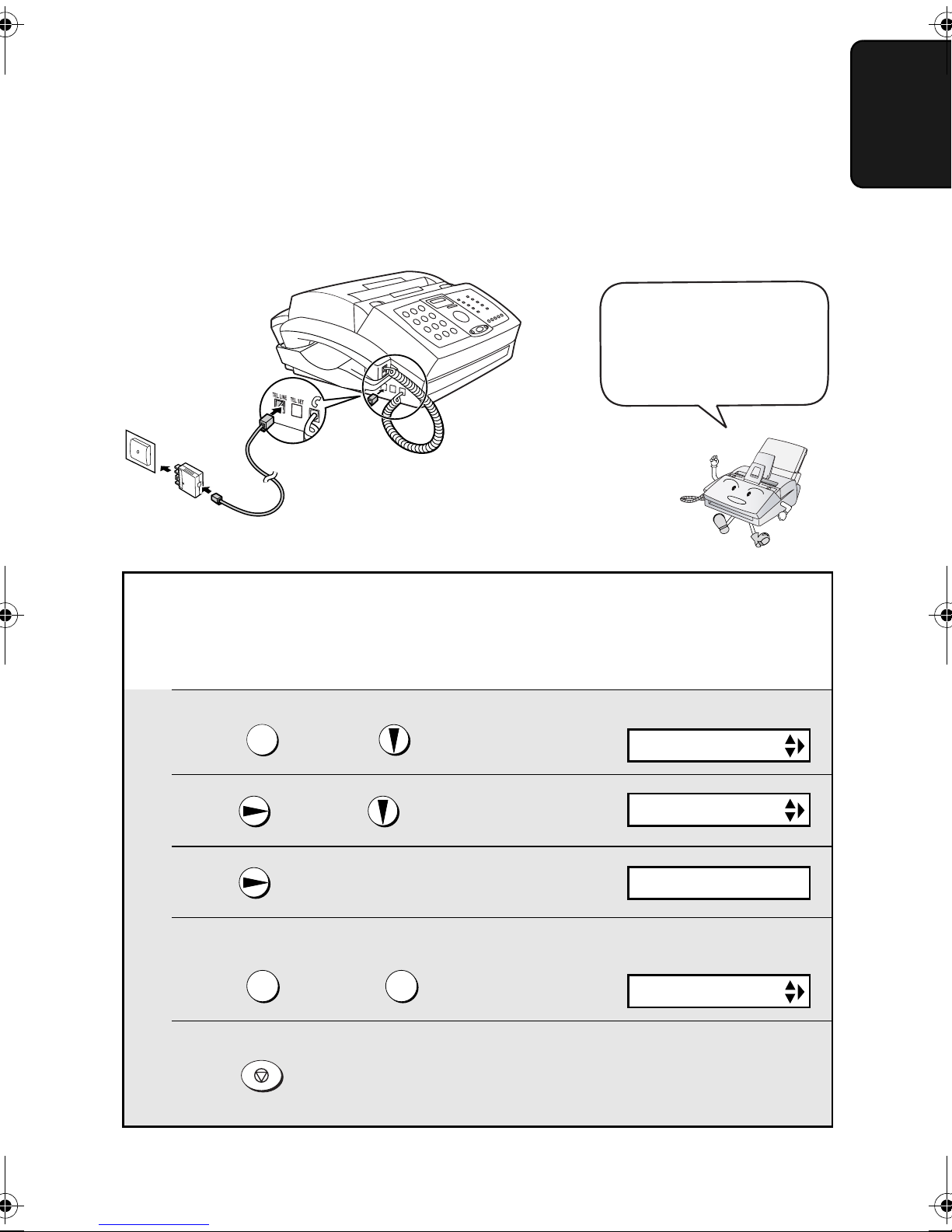

Connecting the telephone line cord
Insert one end of the telephone line cord into the adapter. Insert the other end
of the line cord into the socket on the back of the machine marked TEL. LINE.
Plug the adapter into the telephone socket on the wall.
Setting the dial mode:
The fax machine is set for tone dialling. If you are on a pulse dial line, you
must set the fax machine for pulse dialling. Press the keys on the operation
panel as follows:
1Press once and 3 times.
2Press once and 4 times.
3Press once.
4Select the dial mode:
TONE: PULSE:
5Press to exit.
F
UNCTIO
N
12
STOP
Display:
The display briefly shows
your selection, then:
OPTION SETTING
DIAL MODE
PSEUDO RING
1=TONE, 2=PULSE
Make sure that the line
cord is inserted into
the TEL LINE socket.
Do not insert it into the
TEL. SET socket!
all.book Page 11 Friday, October 31, 2003 4:10 PM

Connections
12
Comments:
♦The fax machine is not designed for use on a line which has call waiting,
call forwarding, or certain other special services offered by your telephone
company. If you attempt to use the fax machine in conjunction with any of
these services, you may experience errors during transmission and
reception of facsimile messages.
♦The fax machine is not compatible with digital telephone systems.
♦If your area experiences a high incidence of lightning or power surges, we
recommend that you install surge protectors for the power and telephone
lines. Surge protectors can be purchased from your dealer or at most
telephone specialty stores.
Moving your fax and reconnecting
Should it be necessary to move your fax to a new location, first disconnect the
telephone line cord before disconnecting the power lead. When reconnecting,
it is necessary to connect the power lead before connecting the telephone line
cord.

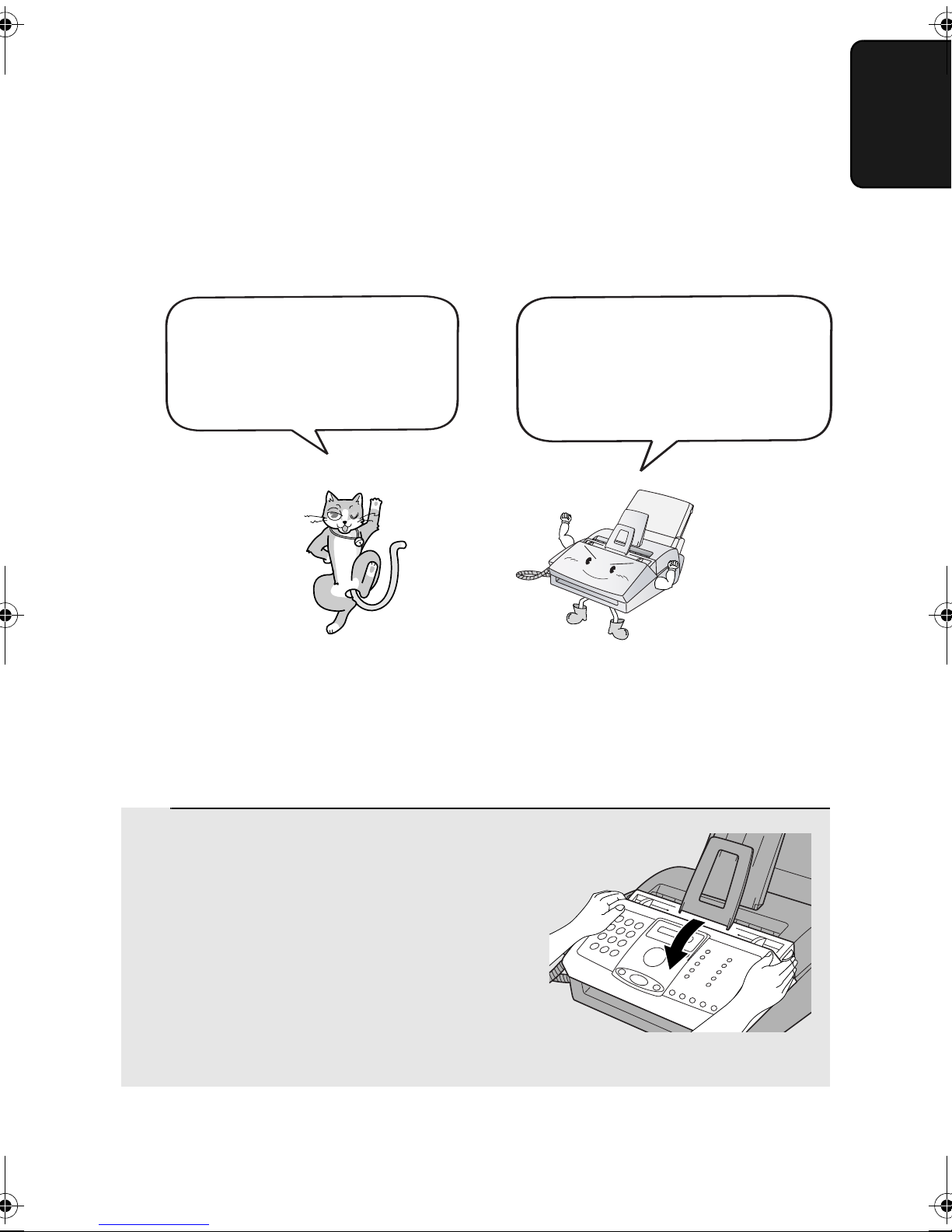

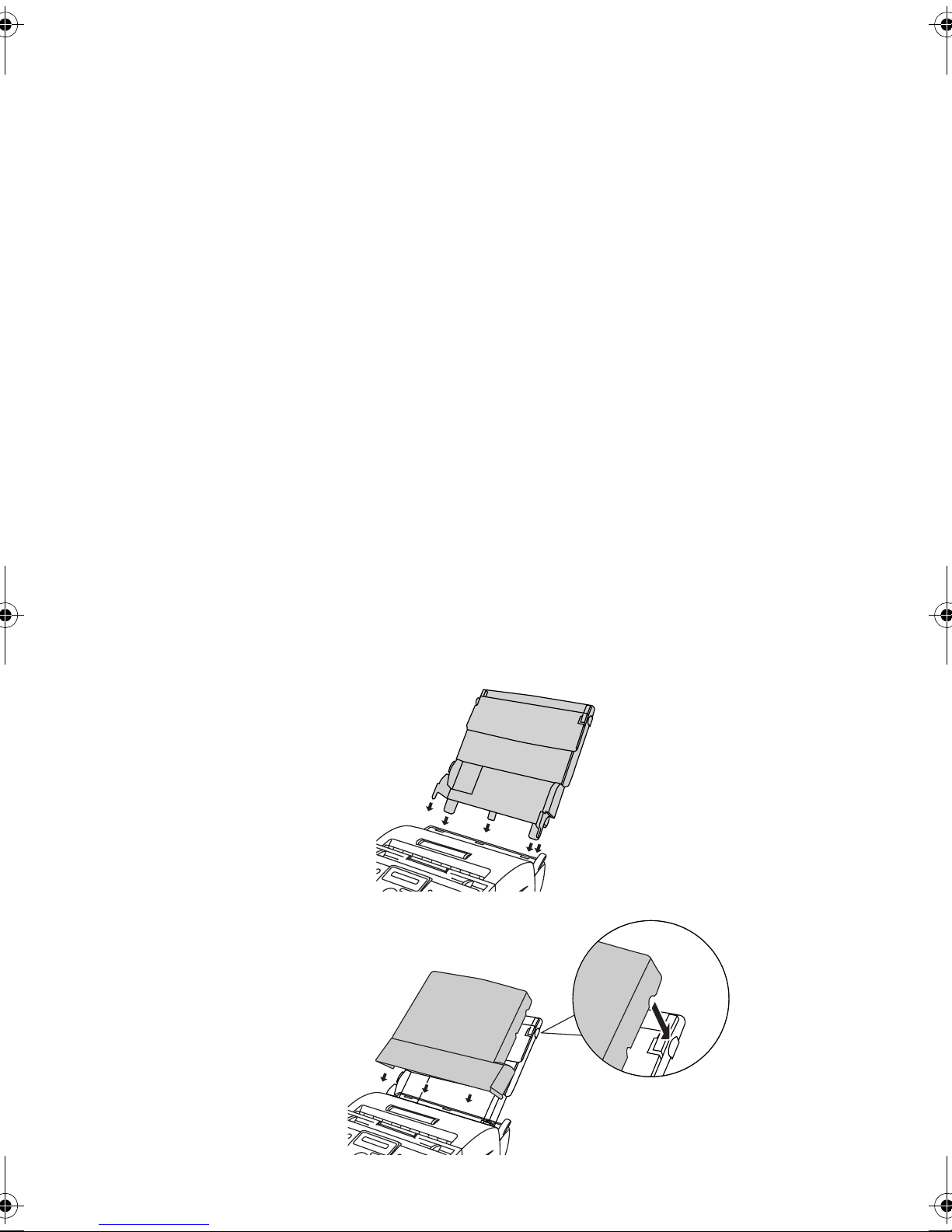

Attaching the paper trays
Attach the paper tray
cover
Attach the paper tray
all.book Page 12 Friday, October 31, 2003 4:10 PM

Connections
13
1. Installation
Attach the received
document tray
Attach the original
document support
Make sure that the
flanges face up
all.book Page 13 Friday, October 31, 2003 4:10 PM

Connections
14

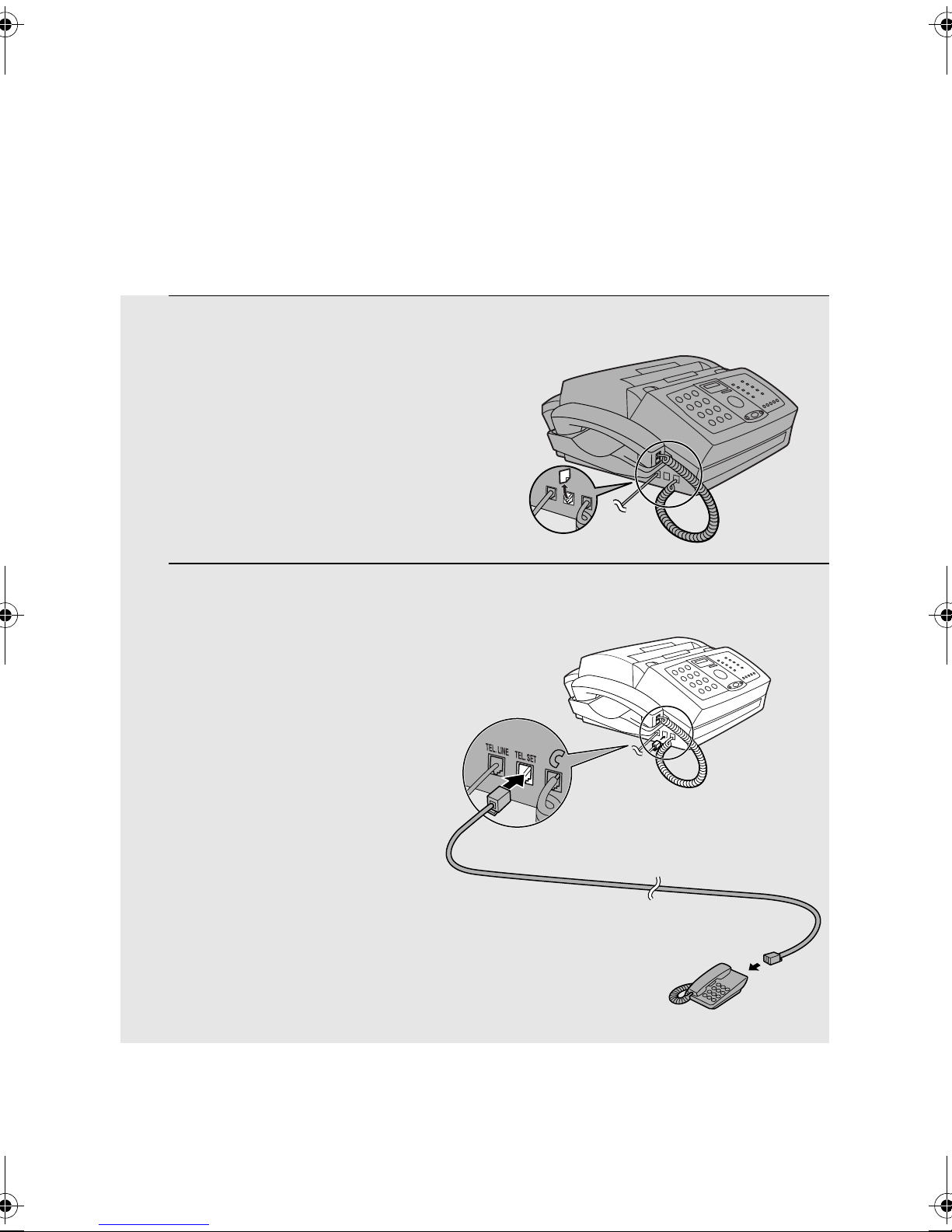

Extension phone (optional)
If desired, you can connect an extension phone to the TEL. SET socket on the
machine.
♦To connect an answering machine to the machine, see page 67.
1Remove the seal covering the TEL. SET
socket.
2Connect the extension phone line to
the TEL. SET socket.
all.book Page 14 Friday, October 31, 2003 4:10 PM

Installing the Toner Cartridge
15
1. Installation
Installing the Toner Cartridge
The laser printer in your fax machine uses a toner cartridge and a drum
cartridge. The drum cartridge comes pre-installed, and the toner cartridge
must be installed.
♦The drum cartridge can print approximately 20,000 A4-size pages. When
replacing the drum cartridge, use a Sharp FO-29DR drum cartridge.
Follow the steps below to install the toner cartridge and prepare the drum
cartridge.

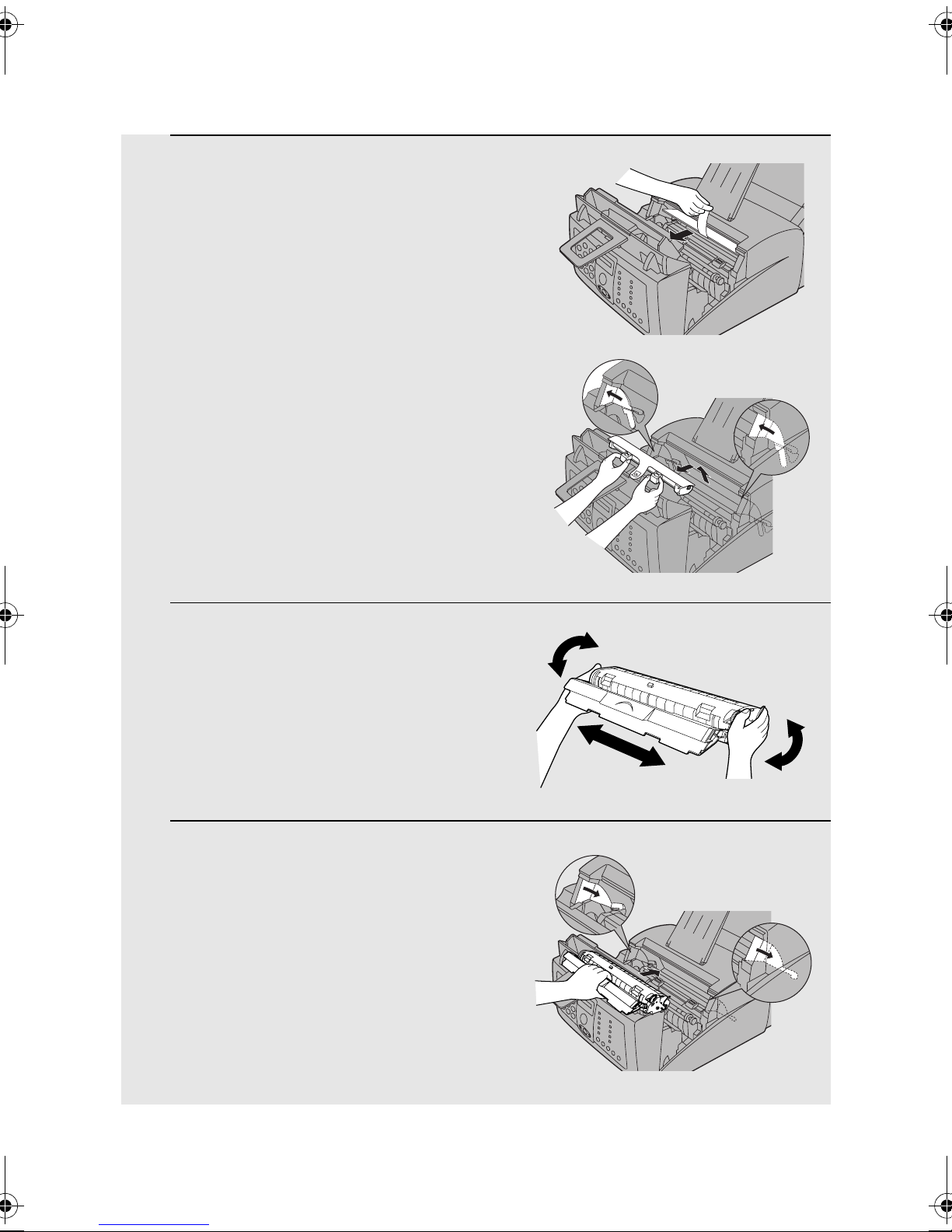

1Grasp the print compartment cover at
both sides as shown, and pull up to
open the cover.
•Caution!
The fusing unit inside the print
compartment becomes very hot during
operation. Do not touch the inside of
the compartment or the paper guide on
the underside of the print compartment
cover.
When replacing the toner
cartridge, use a Sharp FO-29DC
toner cartridge. One cartridge
can print about 3,700 A4-size
pages at 4% coverage.
The starter toner cartridge
included with your fax can print
approximately 1,800 A4-size
pages at 4% page coverage.
all.book Page 15 Friday, October 31, 2003 4:10 PM

Installing the Toner Cartridge
16
2The drum cartridge has been installed
at the factory. Remove the protective
board from above the drum cartridge,
and then grasp the tabs on the drum
cartridge handle with both hands and
gently pull the cartridge out of the
machine. Remove the sheet of
protective paper from the cartridge and
then insert it back into the machine.
•When removing the drum cartridge, be
careful not to the tear the paper or
leave any pieces of paper in the
machine.
3Remove the new toner cartridge from
its packaging. Shake the cartridge side
to side four or five times to distribute
the toner evenly within the cartridge.
4Hold the toner cartridge by the handle
with the stamped markings on the
cartridge facing upwards, and insert
the cartridge into the print
compartment.
all.book Page 16 Friday, October 31, 2003 4:10 PM

Installing the Toner Cartridge
17
1. Installation

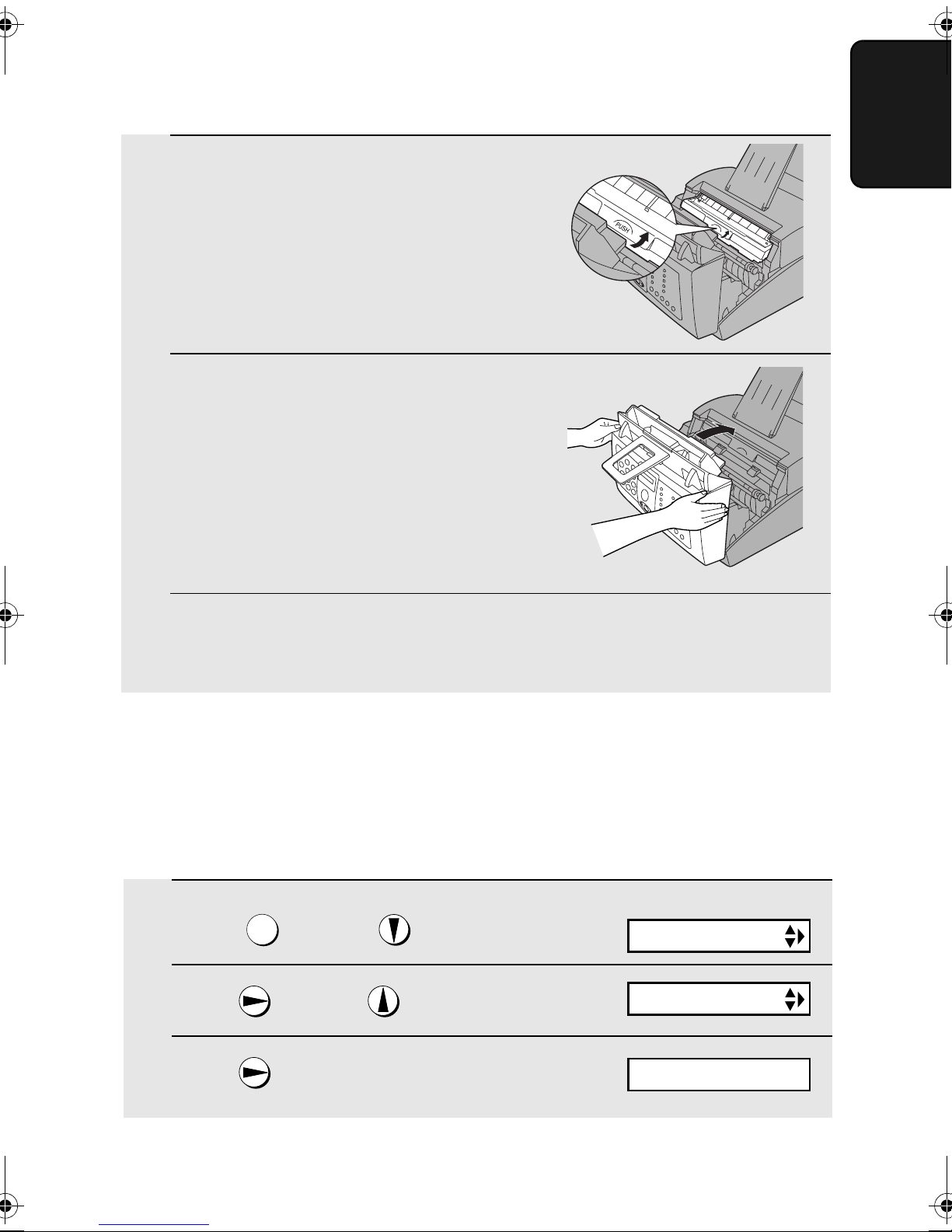

5Place your thumb on the centre of the
handle where it is marked PUSH, and
push the handle down and in so that
the cartridge fits into place.
6Close the print compartment cover,
pressing down firmly on each side to
make sure it is completely closed.
7Reset the toner counter and the drum counter as explained below and
on the following page.
Resetting the toner counter
Each time you install a new toner cartridge, follow the steps below to reset the
toner counter to zero. (The machine uses the toner counter to inform you
when the toner cartridge needs to be replaced.)
1Press once and 4 times.
2Press once and twice.
3Press once.
F
UNCTIO
N
Display:
PRESS START KEY
PRINT SET-UP
CLR TONER CNT.
all.book Page 17 Friday, October 31, 2003 4:10 PM

Installing the Toner Cartridge
18
Resetting the drum counter
Each time you install a new drum cartridge, follow the steps below to reset the
drum counter to zero.
1Press once and 4 times.
2Press once and once.
3Press once.
4Press .
5Press to exit.
F
UNCTIO
N
START
STOP
Display:
PRESS START KEY
PRINT SET-UP
CLR DRUM COUNT
RECEIVE RATIO
4Press .
5Press to exit.
START
STOP
CLR DRUM COUNT
all.book Page 18 Friday, October 31, 2003 4:10 PM
Other manuals for FO-3150
4
Table of contents
Other Sharp Fax Machine manuals

Sharp
Sharp MX-FXX1 User manual

Sharp
Sharp UX-B20 User manual

Sharp
Sharp UX-CL 220 User manual

Sharp
Sharp UX-D50 User manual

Sharp
Sharp FO-4ML User manual

Sharp
Sharp FO-2970M User manual

Sharp
Sharp UX-B700 User manual

Sharp
Sharp UX-340L User manual

Sharp
Sharp A260 - UX B/W Thermal Transfer User manual

Sharp
Sharp FO-6600 User manual
