Sharp HT-CN300W User manual

HOME CINEMA COMMAND
MODEL
HT-CN300W
OPERATION MANUAL
Thank you for purchasing this SHARP product. To obtain the best
performance from this product, please read this manual carefully.
It will guide you in operating your SHARP product.
HT-CN300WHomeCinemaCommandconsistingofHT-CN300W(main
unit), CP-CN300WF (front speakers), CP-CN300WC (centre speaker)
and CP-CN300WR (surround speakers).

1
HT-CN300W_A_1.fm02/7/11
HT-CN300W
General Information
- Special notes / Contents -
Special notes
Warning:
zWhen the ON/STAND-BY button is set at STAND-BY position, mains voltage is still
present inside the unit. When the ON/STAND-BY button is set at STAND-BY
position, the unit may be brought into operation by the timer mode or remote
control.
zThis unit contains no user serviceable parts. Never remove covers unless qualified
to do so. This unit contains dangerous voltages, always remove mains plug from
the socket before any service operation and when not in use for a long period.
zThe supplied AC adaptor contains no user serviceable parts. Never remove covers
unless qualified to do so. It contains dangerous voltages, always remove mains
plug from the main outlet socket before any service operation or when not in use
for a long period.
zTo prevent fire or shock hazard, do not expose this appliance to dripping or
splashing. No objects filled with liquids, such as vases, should be placed on the
apparatus.
Notes:
zThe letters in brackets contained in the model number indicate the colour of the
product only. Operation and specifications are unaffected.
Contents
Page
„General Information
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Controls and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 6
„Connections
Speaker connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7, 8
Aerial connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Remote control sensor connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Connecting other equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 11
Connecting to the AC socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12, 13
„Speaker Installation
Placing the speaker system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Installing the speakers on the wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
„Remote Control
Preparing the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Operation buttons on the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . 17 - 19
Memorising the remote control buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20, 21
„Basic Operation
Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Display control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Sound control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Enjoy Surround Sound (sound mode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 - 26
Listening to the radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Listening to a memorised station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
„Advanced Features
Speaker settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 - 31
Timer and sleep operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32, 33
„References
Troubleshooting chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34, 35
Error indicators and warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

2
HT-CN300W_A_1.fm02/7/11
HT-CN300W
General Information
- Accessories -
Accessories
Please confirm that the following accessories are included.
Note:
Only the above accessories are included.
Remote control 1 AC adaptor for remote control
1 "AA" size battery (UM/SUM-3,
R6, HP-7 or similar) 2
Labels for remote control 1 FM/AM loop aerial 1 Remote control sensor 1
Double-sided tape for remote
control sensor 1 Video cable 1 Speaker cushion 20 Speaker connection lead 5
(RADPA6006BGZZ)
Green
Surround (left):
15 m (45')
Front (left):
5 m (15')
RedWhite
Blue Grey
Centre:
5 m (15') Front (right):
5 m (15')
Surround (right):
15 m (45')

3
HT-CN300W_A_1.fm02/7/11
HT-CN300W
General Information
- Precautions -
Precautions
„General
zPlease ensure that the equipment is positioned in a well ventilated area and that
there is at least 10 cm (4") of free space along the sides and back. There must
also be a minimum of 15 cm (6") of free space on the top of the unit.
zDo not place anything on top of the unit.
zDo not expose the unit to moisture, to temperatures higher than 60°C (140°F) or to
extremely low temperatures.
zIf your system does not work properly, disconnect the AC power lead from the wall
socket. Plug the AC power lead back in, and then turn on your system.
zNo naked flame sources, such as lighted candles, should be placed on the
apparatus.
zAttention should be drawn to the environmental aspects of battery disposal.
zThis unit should only be used within the range of 5°C - 35°C (41°F - 95°F).
zWhen carrying the unit by hand, do not hold the subwoofer located on the lower
part. The subwoofer may be damaged.
Warning:
The voltage used must be the same as that specified on this unit. Using this product
with a higher voltage other than that which is specified is dangerous and may result in
a fire or other type of accident causing damage. SHARP will not be held responsible
for any damage resulting from use of this unit with a voltage other than that which is
specified.
„Volume control
The sound level at a given volume setting depends on speaker efficiency, location,
and various other factors. It is advisable to avoid exposure to high volume levels, to
avoid this do not turn the volume on to full at switch on and listen to music at
moderate levels.
zUse the unit on a firm, level surface free from
vibration.
zKeep the unit away from direct sunlight, strong
magnetic fields, excessive dust, humidity and
electronic/electrical equipment (home computers,
facsimiles, etc.) which generates electrical noise.
zIn case of an electrical storm, unplug the unit for
safety.
10 cm (4") 10 cm (4") 15 cm (6")
10 cm (4")
zHold the AC power plug by the head when removing
it from the wall socket, as pulling the lead can
damage internal wires.
zDo not remove the outer cover,as this may result
in electric shock. Refer internal service to your
local SHARP service facility.
zThe ventilation should not be impeded by covering
the ventilation openings with items, such as
newspapers, tablecloths, curtains, etc.
Correct

4
HT-CN300W_A_1.fm02/7/11
HT-CN300W
General Information
- Controls and indicators -
Controls and indicators
„Remote control Reference page
1.On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.Operation Buttons for Other Equipment . . . . . . . . . . . . . . . . . . . . . 18
3.Remote Control Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.Sound Mode Select Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
5.Dynamic Sound Select Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
6.Remote Control Sensor for Learn Function . . . . . . . . . . . . . . . . . . 20
7.Speaker Set Up Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
8.Clear Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21, 28
9.Learn Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
10.Volume Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
11.DVD Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
12.Video-1 Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
13.Tuner/Band Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
14.Video-2/Auxiliary Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
15.Memory 1/2 Buttons for Other Equipment . . . . . . . . . . . . . . . . . . . 19
16.Label Sealing Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
17.Clock Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
18.Memory Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
19.Timer/Sleep Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
20.TV Screen Display Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
21.Dimmer Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
22.Extra Bass/Demo Mode Button . . . . . . . . . . . . . . . . . . . . . . . . . 13, 23
23.Equaliser Mode Selector Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
24.Cursor Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22, 27, 29, 32
25.Enter Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22, 29, 32
26.Learn/Transmit Selector Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
27.3.6 V DC Input Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
28.Memory 1/2 Selector Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19, 20
2456
378 9
17
18
19
20
21
22
23
15
16
15
16
14
13
12
11
10
24 25
26
27
28
1

5
HT-CN300W_A_1.fm02/7/11
HT-CN300W
General Information
- Controls and indicators -
Controls and indicators (continued)
„Main unit (with subwoofer)
1.Memory Indicator
2.Timer Play Indicator
3.Sleep Indicator
4.Extra Bass Indicator
5.Digital Theatre System Indicator
6.FM Stereo Mode Indicator
7.FM Stereo Receiving Indicator
8.Dolby Pro Logic II Indicator
9.Dolby Virtual Indicator
10.Dolby Digital Indicator
Reference page
11.Power Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
12.On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
13.Remote Control Sensor Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
14.TV Type Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
15.TV Monitor Output Sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
16.DVD Video Input Sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
17.Video and Audio Input Sockets (VIDEO 2) . . . . . . . . . . . . . . . . . . .11
18.Video and Audio Input Sockets (VIDEO 1) . . . . . . . . . . . . . . . . . . .11
19.AC Voltage Selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
20.Subwoofer
21.AC Power Lead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
22.DVD Optical Digital Audio Input Socket . . . . . . . . . . . . . . . . . . . . . .10
23.DVD Coaxial Digital Audio Input Socket . . . . . . . . . . . . . . . . . . . . .10
24.Span Selector Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
25.FM/AM Loop Aerial Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
26.Video and Audio Output Sockets (VIDEO 1) . . . . . . . . . . . . . . . . . .11
27.Auxiliary Audio Input Sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
28.Speaker Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
15
23
25
26
27
28
16
17
18
20
21
22
12
13
14
19
24
12 345
8
67
9
10
11
Front
Back

6
HT-CN300W_A_1.fm02/7/11
HT-CN300W
General Information
- Controls and indicators -
„Front/Centre/Surround speakers Reference page
1.Full-Range Speaker
2.Angle Adjusting Lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.Label indication
4.Mounting Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.Speaker Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
6.Mounting Screw Holes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
„Remote control sensor Reference page
1.Remote Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.Remote Control Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.Remote Sensor Connection Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Caution:
zCarefully choose where you place the remote control sensor as the adhesive tape
may damage or peel the surface coating when the tape is removed.
zNever locate the remote control sensor in an unstable place. Otherwise it may fall.
Note:
Fix the remote control sensor on a flat surface.
1
1
3
2
2
5
Bottom
Front Side
6
4
3
Front Speaker (right): Red
Front Speaker (left): White
Centre Speaker: Green
Surround Speaker (right): Grey
Surround Speaker (left): Blue
Speaker cushion:
Attach the cushions to the bottom of the speakers to prevent
them from sliding.
Double-sided tape for remote control sensor:
You can fix the remote control sensor with the supplied tape.

7
HT-CN300W_A_2.fm02/7/11
HT-CN300W
Connections
- Speaker connections -
Speaker connections
Front speaker
(right) Front speaker
(left)
Surround speaker
(right)
Main unit
(with subwoofer)
Surround speaker
(left)
Centre
speaker
Grey
Black
Red
Red Black
White
Red
Red
Black
Grey
Red Black
Blue
Red
Black Red
Blue
White
Green
Green

8
HT-CN300W_A_2.fm02/7/11
HT-CN300W
Connections
- Speaker / Aerial / Remote control sensor connections -
The speaker terminals on the main unit, the tube and plugs of the speaker lead, and
speaker labels are distinguished by colour.
Connect the speaker and the unit by matching the colours.
Connect the speaker wires to the speakers first, then to the unit.
Speaker
Main unit
Caution:
zOnly the supplied speakers should be used with this unit.
zMake sure to connect the speakers after unplugging the unit.
zDo not mistake and , and right and left terminals of the speaker leads.
zDo not stand or sit on the speakers. You may be injured.
zInsert the speaker plug fully with the rising side facing up.
zHold the speaker plug when removing it from the unit. Pulling the lead may cause
breakage.
Aerial connection
Position the FM aerial wire and rotate the AM loop aerial for optimum reception.
Place the AM loop aerial on a shelf, or attach it to a stand or on a wall with screws
(not supplied).
Notes:
zPlacing the aerial on the unit, or near the AC power lead or the remote sensor may
cause noise pickup. Place the aerial away from the unit for better reception.
zDo not connect the attached FM aerial to an external FM aerial. Otherwise, trouble
may occur.
Installing the AM loop aerial:
Remotecontrolsensorconnection
Caution:
zHold the connection plug of the remote control sensor when removing it from the
unit. Pulling the lead may cause breakage.
zMake sure of the top and bottom of the plug when plugging in the remote control
sensor.
zDo not let the bare speaker wires touch each
other.
Label
Tube
Black Red
Recess
Label Speaker plug Plug in with the rising
side facing up.
Connect the FM/AM loop aerial to
the ANTENNA socket.
< Assembling > < Attaching to the wall >
Connect the plug of the remote
control sensor and push the plug
cover until it clicks.
Removing the remote control sensor:
Push the upper and lower sides of the plug cover and take the
plug off the unit to disconnect the remote control sensor.
Screws
(not supplied)
Wall
Plug cover
Plug
Push
Push

9
HT-CN300W_A_2.fm02/7/11
HT-CN300W
Connections
- Connecting other equipment -
Connecting other equipment
To enjoy images or music, connect other equipment to the main unit with the supplied video cable for TV or you can purchase commercially available cables.
TV
Camcorder,
Satellite receiver, etc.
VCR
S-video cable
(See page 10.)
(See page 11.)
(See page 11.)
Video cable
Audio cable
Video cable (supplied) DVD player
Optical digital audio cable
or
Coaxial digital audio cable
S-video cable
Video cable
Tape deck, etc. Audio cable
(See page 10.)
(See page 11.)
Only one video cable is supplied with this unit.
Video cable
Audio cable
Video cable
Audio cable
Video cable: Audio cable:
White (Left)
Red (Right)
White (Left)
Yellow Yellow Red (Right)

10
HT-CN300W_A_2.fm02/7/11
HT-CN300W
Connections
- Connecting other equipment -
„Connecting the TV
Connect the TV to the main unit with the supplied video cable. If your TV has S-video
input socket, connect the commercially available S-video cable to enjoy clearer
images on DVDs.
Notes:
zChange the TV input in accordance with the connected socket.
zDo not connect other equipment between the TV and this unit. If they are
connected via a VCR, pictures may be distorted.
zWhen the video and S-video cables are both connected, the images from the S-
video input socket appears on your TV.
Caution:
The settings appear only when the TV is connected with a video cable. They
will not appear when the TV is connected with an S-video cable.
During the tuner or auxiliary mode, the TV screen display will not be shown.
(See page 23 for the TV screen display.)
„Connecting the DVD player
Use the video cable or the S-video cable for receiving images. The S-video cable can
realise clearer images. For audio, connect with the optical digital cable or the coaxial
digital cable.
To connect to the video socket with the video cable:
Note:
When connecting a DVD player with a video cable, be sure to use another video
cable for the TV.
To connect to the S-video socket with the S-video cable:
Note:
When connecting a DVD player with an S-video cable, be sure to use another S-video
cable for the TV. This unit cannot convert the S-video signal into the video or other
signals.
Switching the DVD audio input:
Switch the DVD's audio signal with the remote control according to the connected
socket, "DIG1" (optical) or "DIG2" (coaxial) (see page 18).
Caution:
Turn off all other equipment before making this connection.
Notes:
zRefer to the operation manual of the equipment to be connected.
zInsert the plugs fully to avoid fuzzy pictures or noise.
Example: TV screen display
TV
Video cable (supplied) To video input socket
To S-video input socket
S-video cable
Optical digital socket cap:
When using the optical digital socket,remove the cap
first. After using the socket, replace the cap.
Video cable To video output socket
Optical digital audio cable
Coaxial digital
audio cable
DVD player
To S-video output socket
Optical digital audio cable
Coaxial digital
audio cable
DVD player
S-video cable

11
HT-CN300W_A_2.fm02/7/11
HT-CN300W
Connections
- Connecting other equipment -
Connecting other equipment (continued)
„Connecting the VCR (VIDEO 1)
Notes:
zConnect the unit and the TV with a video cable. The image of the equipment
connected to the VIDEO 1 IN sockets does not appear on the TV even if it is
connected with an S-video cable.
„Connecting the camcorder, satellite
receiver, etc. (VIDEO 2)
Note:
Connect the unit and the TV with a video cable. The image of the equipment
connected to the VIDEO 2 IN sockets does not appear on the TV even if it is
connected with an S-video cable.
„Connecting the tape deck, etc. (AUX)
„Selecting the colour TV system
There are two colour TV systems: PAL and NTSC.
Select either PAL or NTSC according to the TV connected.
To select the colour TV system:
Set the TV TYPE switch (on the rear panel) to PAL or NTSC.
Notes:
zThe image and sound are not emitted from the VIDEO 1 OUT sockets when the
equipment is connected to the DVD or VIDEO 1 IN sockets.
If connected to the VIDEO 2 IN sockets, they are emitted from the VIDEO 1 OUT
sockets. If connected to the AUX IN sockets or whilst in the tuner mode, only the
sound is emitted.
Video cable
Video cable
Audio cable
Audio cable To audio
output sockets
To video
output socket VCR
To audio
input sockets
To video
input socket
To audio
output sockets
To video
output socket Camcorder,
Satellite receiver, etc.
Video cable
Audio cable
zThis unit can display on the TV its current speaker and mode settings when
connected to the TV via a video cable in the DVD or VIDEO mode.
However, if TV TYPE is set to NTSC when PAL system TV is connected, or vice
versa, the settingswill not showcorrectly. (The display mayshow in black and white
or may be distorted.) Set accordingly.
zSet the colour system (PAL/NTSC) of your DVD or VCR according to the
connecting TV.
If the settings of TV, DVD/VCR and TV TYPE of this product do not match, pictures
will not show correctly or will be scrambled.
To audio output sockets Tape deck, etc.
Audio cable

12
HT-CN300W_A_3.fm02/7/11
HT-CN300W
Connections
- Connecting to the AC socket -
Connecting to the AC socket
„Setting the AC voltage selector
Check the setting of the AC voltage selector located on the rear panel before
plugging the unit into a wall socket. If necessary, adjust the selector to correspond to
the AC power voltage used in your area.
„Plugging in the main unit
Note:
Unplug the AC power lead from the wall socket if the unit will not be in use for a
prolonged period of time.
„Plugging in the remote control
Before connecting:
Check the setting of the AC voltage selector located on the AC adaptor. If necessary,
adjust the selector to correspond to the AC power voltage used in your area.
Turn the selector to the appropriate voltage number using a screwdriver (110 V
- 127 V or 220 V - 240 V).
Notes:
zYou can operate the remote control with batteries in areas where the AC adaptor
lead cannot reach (see page 16).
zRemove the AC adaptor from the AC socket if the unit will not be in use for a
prolonged period of time.
zUse only the supplied AC adaptor. Another adaptor may cause an electric shock or
fire.
z
If the AC adaptor or itspower supply lead is damaged, replace the AC adaptor
with the same type (RADPA6006BGZZ) in order to avoid any hazards.
Turn the selector with a screwdriver until the appropriate voltage
number appears in the window (110 V, 127 V,220 V or 230 V - 240 V AC).
After making all connections, plug the unit. If you plug the unit first, the
unit will enter the demonstration mode (see page 13).
Wall socket
(230 - 240 V, 50/60 Hz)
To 3.6 V DC
input socket
OFF
Wall socket
(230 - 240 V, 50/60 Hz)
110V 127V 220V 240V

13
HT-CN300W_A_3.fm02/7/11
HT-CN300W
Connections
- Connecting to the AC socket -
Connecting to the AC socket (continued)
„Setting the FM/AM span selector
The International Telecommunication Union (ITU) has established that member
countries should maintain either a 10 kHz or 9 kHz interval between broadcasting
frequencies of AM stations and 100 kHz or 50 kHz for FM stations. The illustration
shows the 50/9 kHz zones (regions 1 and 3), and the 100/10 kHz zone (region 2).
Before using the unit, set the SPAN SELECTOR switch (on the rear panel) to the
interval (span) of your area.
To change the tuning zone:
Caution:
This operation will erase all data stored in memory and restore various settings to the
initial status (default).
„Demonstration mode
The first time the unit is plugged in, the unit will enter the demonstration mode. You
will see words scroll.
To cancel the demonstration mode:
When the unit is in the power stand-by mode (demonstration mode), press the X-
BASS button. The demonstration mode will be cancelled and the display will
disappear.
To return to the demonstration mode:
When the unit is in the power stand-by mode, press the X-BASS button again.
Note:
When the power is on, the X-BASS button can be used to select the extra bass mode
(see page 23).
„To turn the power on
Press the ON/STAND-BY button on the main unit or the ON/ (STAND-BY) button on
the remote control.
To set the unit to stand-by mode:
Press the ON/STAND-BY button on the main unit or the ON/ (STAND-BY) button on
the remote control again.
Notes:
zFor the operation range and direction of the remote control, see page 16.
zWhen turning on the power right after it is set to the stand-by mode, wait a few
seconds.
1 Unplug the unit.
2 Set the SPAN SELECTOR switch (on the rear panel) as follows.
zFor 50 kHz FM interval (9 kHz in AM) 50/9
zFor 100 kHz FM interval (10 kHz in AM) 100/10
3 Plug in the AC power lead. Power indicator

14
HT-CN300W_A_3.fm02/7/11
HT-CN300W
Speaker Installation
- Placing the speaker system -
Placing the speaker system
The best surround effect will be achieved by placing each speaker at the same
distance from the listening position.
It is recommended to arrange the speakers as shown below.
Notes:
zPlace the TV halfway between the front speakers.
zIt is recommended that the centre speaker be placed near the television.
zPlace the surround speakers at a position just above the height of your ears.
The supplied speakers may be placed beside or near the TV as they are magnetically
shielded. However, colour variation may occur, depending on the type of the TV.
If colour variation occurs...
Turn off the TV (from the power switch).
After 15 - 30 minutes, turn the TV on again.
If the colour variation is still present...
Move the speakers further away from the TV.
Refer to the user's manual of the TV for details.
Example of speaker locations:
Main unit
(subwoofer)
Front
speaker (left) Front
speaker (right)
Surround
speaker (left) Surround
speaker (right)
Centre
speaker
Front speaker (left)
Same distance
Front speaker (right)
Centre speaker
Same distance

15
HT-CN300W_A_3.fm02/7/11
HT-CN300W
Speaker Installation
- Installing the speakers on the wall -
Installing the speakers on the wall
Front, centre and surround speakers can be mounted on the wall and their angle can
be adjusted. Each speaker needs 3 screws to be mounted (not supplied).
The design of the speakers allows them to be hung on the wall.
Be sure to use the type and size of the screw that are shown below.
Changing the speaker angle:
Whilst holding down the angle adjusting lever, move the speaker to the marking and
then release the lever.
The speaker angle can be adjusted in 5 levels.
1Drive one screw into the wall for each speaker, as shown in the
illustration.
zMake sure that both the screw and the wall can support a load of20 kg (45 lbs.).
zDrive the screw, so the screw head extends about 3.5 mm (9/64") out from the
wall.
2Install the speaker on the wall by inserting the screw head into the
slot on the back of the speaker.
Set the speaker lead in the recess, preventing it from being caught between the
wall and the speaker.
9 mm (3/8")
5 mm (3/16")
3.2 mm (1/8")
Min. 22 mm (7/8")
3.5 mm (9/64")
Min. 18.5 mm (23/32")
Wall mounting screw
(not supplied)
Wall surface
Recess
Wall surface
3Raise the speaker the most upward. (Refer to "Changing the
speaker angle" for details.)
4Drive two screws into the wall.
Use the round labels for hiding mounting screws.
5Perform steps 1 - 4 to mount other speakers.
Label Label
Mark
Caution:
Check the stability of the ceiling or wall fully. Sharp is not liable for accidents
caused by insufficient stability of the ceiling or wall, or improper mounting.
The speaker may fall due to unstable mounting.
If you need any assistance, contact the dealer you purchased the system from.
The following may cause personal injury or speaker damage.
Applying any other load to the fittings than the speaker.
Modification or change of the fittings.
Stepping on or hanging from the speakers.Especially pay attention to small children.

16
HT-CN300W_A_3.fm02/7/11
HT-CN300W
Remote Control
- Preparing the remote control -
Preparing the remote control
„Battery installation
You can operate the remote control with batteries in areas where the AC power lead
cannot reach.
Precautions for battery use:
zReplace all old batteries with new ones at the same time.
zDo not mix old and new batteries.
zRemove the batteries if the unit is not to be used for long periods of time. This will
prevent potential damage due to battery leakage.
Caution:
zDo not use rechargeable batteries (nickel-cadmium battery, etc.).
zInstalling the batteries incorrectly may cause the unit to malfunction.
Notes concerning use:
zReplace the batteries if the operating distance is reduced or if the operation
becomes erratic. Purchase 2 "AA" size batteries (UM/SUM-3, R6, HP-7 or similar).
zPeriodically clean the transmitter on the remote control and the remote control
sensor with a soft cloth.
zKeep the remote control away from moisture, heat, shock, and vibrations.
„Test of the remote control
Point the remote control directly at the remote sensor.
The remote control can be used within the range shown below:
zPress the ON/ (STAND-BY) button. Does the power turn on? Now, you can enjoy
your system.
zWhen the signal is received, the remote control indicator will flash. Whilst in the
dimmer mode (page 23), it will not flash or light.
Note:
Exposing the remote sensor to strong light may interfere with operation. Change the
lighting or the direction of the remote control sensor.
„How to open the remote control cover
To access the Memory 1/2 buttons, open the remote control cover.
Note:
You can control the DVD, VCR, etc. with this remote control (see page 19).
1Turn the remote control over and place it on a soft cloth.
2Open the battery cover.
3Insert the batteries according to the direction indicated in the
battery compartment.
When inserting or removing the batteries, push them towards the battery
terminals.
4Close the cover.
0.2 m - 6 m
(8" - 20')
Remote sensor
Remote control
indicator
15 15 20
20

17
HT-CN300W_A_3.fm02/7/11
HT-CN300W
Remote Control
- Operation buttons on the remote control -
Operation buttons on the remote control
This remote control allows you to operate the main unit and other Sharp equipment.
By memorising remote control operations (learn function), you can operate various
equipment.
„Operation buttons for the main unit
Operation buttons for other equipment
(See page 18.)
Operation buttons for the main unit
Memory 1/2 buttons for other equipment
(See page 19.)
132 456 789
10
11
12
13
14 15 2019181716
1 ON/ (STAND-BY)
Sets the power to "ON" or "STAND-BY".
2Changes the settings of time, tuner, timer/sleep operations, and speakers.
3 VOLUME
Decreases the volume.
4 VOLUME
Increases the volume.
5 STANDARD
Sets the sound mode to "STANDARD".
6 DYNAMIC SOUND
Switches the dynamic sound.
7SETUP
Changes the speaker setting.
8CLEAR
Deletes the tuner pre-selections.
9 CLOCK
Sets or displays the clock time.
10 MEMORY
Presets the tuner.
11 TIMER/SLEEP
Sets the power to "ON" or "STAND-BY" at the desired time.
12 DIMMER
Adjusts the brightness of the main unit display.
13 DISPLAY
Switches the TV display.
14 Changes the settings of tuner and speakers.
15 Changes the settings of time, tuner, timer/sleep operations, and speakers.
16 ENTER
Validates the settings of time, timer/sleep operations, and speakers.
17 Changes the settings of tuner and speakers.
18 2CH
Switches the sound mode to "VIRTUAL" or "STEREO".
19 EQ
Changes the tone setting.
20 X-BASS
Adjusts the bass or activates/deactivates the demonstration mode.

18
HT-CN300W_A_3.fm02/7/11
HT-CN300W
Remote Control
- Operation buttons on the remote control -
„Switching the operation buttons for the
main unit
„Operation buttons for other equipment
The remote control is set at the factory to operate the Sharp's DVD, TV and VCR.
To operate Sharp products or other companies' equipment that cannot be controlled
by the default remote control, you can memorise their remote control operations
(learn function) (see page 20).
1DVD
Used when the unit is set to DVD. Switch the setting according to the connected
sound source by pressing it repeatedly.
2 TUNER/BAND
Selects the tuner function or switches the frequency band.
3 VIDEO-2/AUX
Selects the "VIDEO-2" or "AUX" mode.
4 VIDEO-1
Selects the "VIDEO-1" mode.
1234
(Optical) (Coaxial)
1 DVD ON/ (STAND-BY)
Sets the DVD power to "ON" or "STAND-BY".
2 TV ON/ (STAND-BY)
Sets the TV power to "ON" or "STAND-BY".
3Skips DVD chapters.
4Skips DVD chapters.
5Stops the DVD player.
6Plays back the DVD.
7 VCR ON/ (STAND-BY)
Sets the VCR power to "ON" or "STAND-BY".
8 TV INPUT
Switches the TV input.
9MENU
Displays the DVD menu.
10 RETURN
Goes back to the previous screen.
12 3456
78910

19
HT-CN300W_A_3.fm02/7/11
HT-CN300W
Remote Control
- Operation buttons on the remote control -
Operation buttons on the remote control (continued)
„Memory 1/2 buttons for other equipment
Memory 1 buttons:
The remote control is set at the factory to operate the Sharp's DVD, TV and VCR.
To operate Sharp products or other companies' equipment that cannot be controlled
by the default remote control, you can memorise their remote control operations
(learn function) (see page 20).
Set the MEMORY 1/2 selector switch to MEMORY 1 to use the Memory 1 buttons.
Memory 2 buttons:
No functions are stored at the factory setting. Memorise the remote control signals
(learn function) of your equipment before use (see page 20).
Set the MEMORY 1/2 selector switch to MEMORY 2 to use the Memory 2 buttons.
Initial setting for Memory 1 buttons:
For details, refer to the operation manual attached to the other equipment.
OPEN
1
2
3
4
13
14
15
16
5
6
7
8
9
19
20
2110 11 12 22 23 24
18
17
1 TV/VCR
Switches the input to TV or VCR.
2 VCR CH
Switches up the VCR channels.
3 TV VOL
Turns up the TV volume.
4 TV CH
Switches up the TV channels.
5 TV VOL
Turns down the TV volume.
6 TV CH
Switches down the TV channels.
7 VCR CH
Switches down the VCR channels.
8VCR
Pauses VCR.
9VCR
Rewinds the VCR rapidly.
10 VCR
Advances the VCR rapidly.
11 VCR
Stops the VCR.
12 VCR
Plays the VCR.
13 AUDIO
Switches the DVD sound.
14 SET UP
Changes the DVD settings.
15 Selects the DVD menu.
16 DISPLAY
Switches the DVD display.
17 Selects the DVD menu.
18 SUB
Switches the subtitle of a DVD.
19 ENTER
Validates the menu.
20 Selects the DVD menu.
21 ANGLE
Switches the angle of the DVD images.
22 ZOOM
Zooms the DVD images.
23 Selects the DVD menu.
24 TOP
Displays the top menu of the DVD.
Table of contents
Other Sharp Home Theater System manuals

Sharp

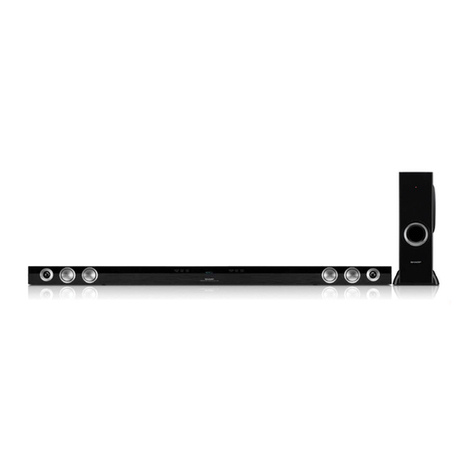

Sharp HT-SB60 User manual

Sharp
Sharp SD-AT100W User manual

Sharp
Sharp HT-X1W User manual

Sharp
Sharp AN-PR1500H User manual

Sharp
Sharp HT-CN400DVH User manual

Sharp
Sharp HT-X1 User manual

Sharp
Sharp HT-SB602 User manual

Sharp

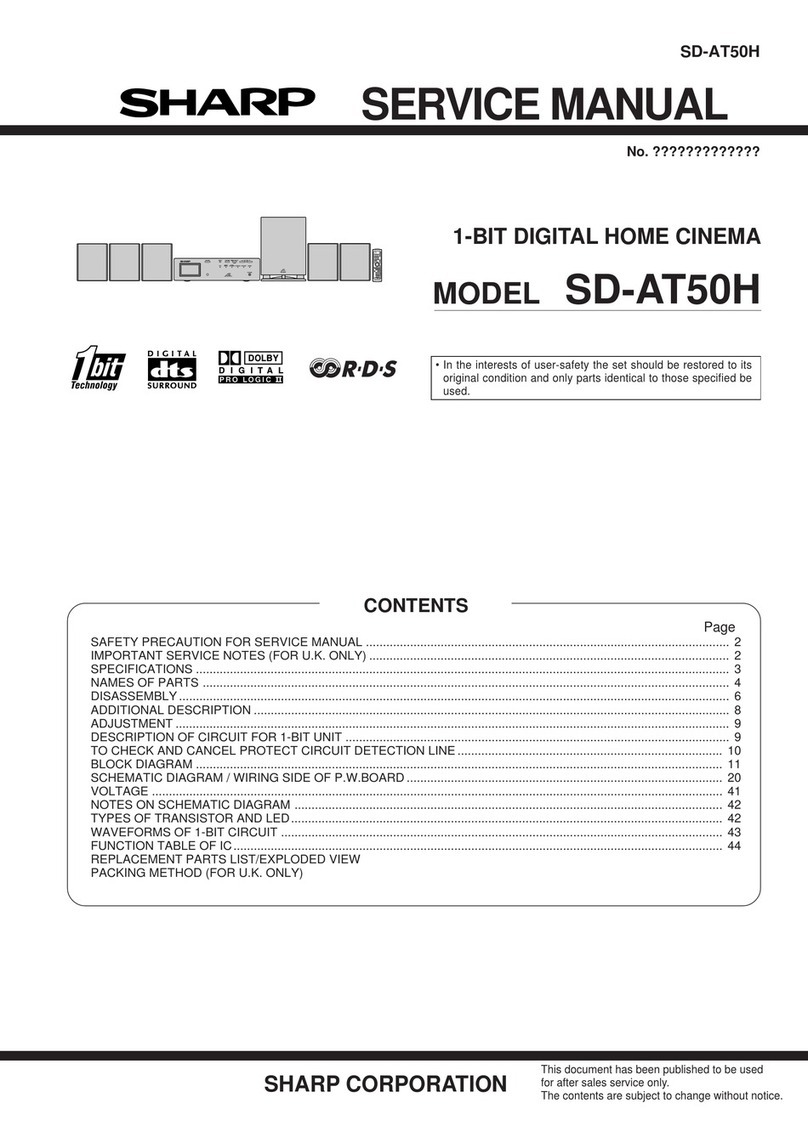

Sharp SD-AT50H User manual

Sharp

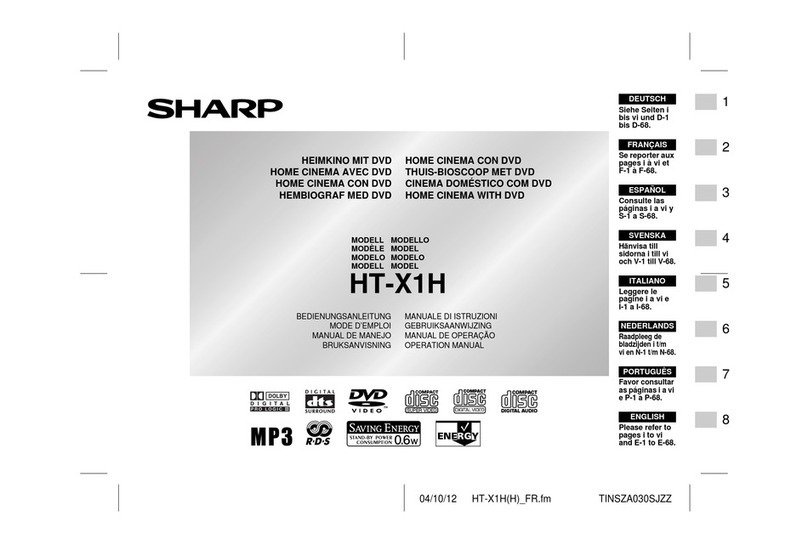

Sharp HT-X1H User manual

Sharp

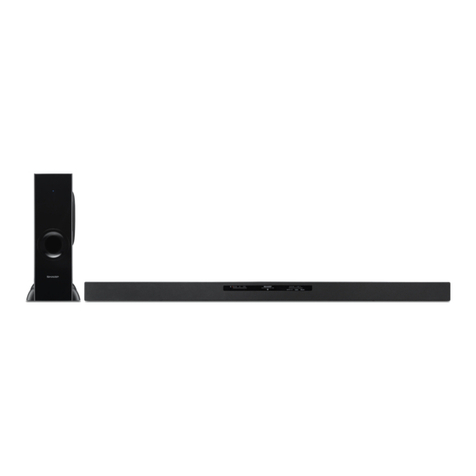

Sharp HT-SB603 User manual

Sharp
Sharp HT-SB110 User manual

Sharp
Sharp HT-CN650DVW User manual

Sharp
Sharp SD-AT1000W User manual

Sharp
Sharp HT-DV40H User manual

Sharp
Sharp HT-SB60 User manual

Sharp
Sharp HT-CN400DVW User manual

Sharp
Sharp SD-AT100H User manual

Sharp
Sharp HT-CN300H User manual

Sharp
Sharp HT-SB140(MT) User manual

Sharp
Sharp HT-SB20 User manual
