Shini STM Series User manual

STM Series
Oil Heater
Date:Sep, 2018
Version:Ver.H(English)

3(42)
Contents
1. General Description......................................................................................7
1.1 CodingPrinciple......................................................................................8
1.2 Feature....................................................................................................8
1.3 Options....................................................................................................8
1.4 TechnicalSpecifications........................................................................10
1.4.1 Specification................................................................................10
1.4.2 PumpPerformance.....................................................................10
1.4.3 ReferenceFormulaofMouldControllersModelSelection..........11
1.5 SafetyRegulations................................................................................11
1.5.1 SafetySignsand Labels.............................................................11
1.5.2 Signsand Labels.........................................................................13
1.5.3 OperationRegulations................................................................14
1.5.4 Transportation andStorageoftheMachine................................14
1.6 ExemptionClause.................................................................................16
2. StructureCharacteristics and WorkingPrinciple....................................17
2.1 WorkingPrinciple...................................................................................17
3. Installation and Debugging ........................................................................18
3.1 Installation Space..................................................................................18
3.2 Mouldand WaterCoupling....................................................................18
3.3 PowerSupply........................................................................................19
3.4 OptionsInstallation................................................................................19
3.4.1 Installation StepsforOptionsWaterManifold(Dewaxing)..........19
3.4.2 Installation StepsforOptionsWaterManifold(Welding).............20
4. Operation Guide..........................................................................................21
4.1 ControlPanel.........................................................................................21
4.2 Menu Introduction..................................................................................23
4.2.1 Mainscreen................................................................................23
4.2.2 MENU Screen.............................................................................23
4.3 ParameterTable....................................................................................24
4.3.1 ParameterSettingTable.............................................................24

4(42)
4.3.2 Output Setting.............................................................................27
4.3.3 AlarmSettings.............................................................................28
4.3.4 Startupforrefilling.......................................................................29
4.3.5 Auto refillingprocess...................................................................29
4.4 Errorsand Causes.................................................................................30
5. Trouble-shooting ........................................................................................31
6. Maintenance and Repair.............................................................................33
6.1 OpentheCovers...................................................................................34
6.2 YType Strainer......................................................................................35
6.3 SolenoidValve.......................................................................................35
6.4 Pipe Heater............................................................................................36
6.5 CoolingPipes........................................................................................36
6.6 Printed Circuit Board.............................................................................38
6.7 DisplayerTerminalConnectingDiagram...............................................40
6.8 MaintenanceSchedule..........................................................................41
6.8.1 About theMachine......................................................................41
6.8.2 Installation &Inspection..............................................................41
6.8.3 DailyChecking ............................................................................41
6.8.4 WeeklyChecking........................................................................41
6.8.5 TrimonthlyChecking...................................................................41
6.8.6 Half-yearlyChecking ...................................................................41
6.8.7 YearlyChecking..........................................................................42
6.8.8 3yearChecking..........................................................................42
TableIndex
Table1-1: Specification..................................................................................... 10
Table4-2: ControlSetting................................................................................. 24
Table4-3: AlarmSetup..................................................................................... 24
Table4-4: Output Setting.................................................................................. 24
Table4-5:Temp. Setting................................................................................... 25
Table4-6:TimeSetting..................................................................................... 25
Table4-7: One WeekON/OFF Setup............................................................... 25

5(42)
Table4-8: Communication Setup...................................................................... 26
Table4-9: Instrument Setup.............................................................................. 26
Table4-10: RefillingSetup................................................................................ 26
PictureIndex
Picture1-1: PumpPerformance........................................................................ 10
Picture2-1:WorkingPrinciple........................................................................... 17
Picture3-1: Installation Space........................................................................... 18
Picture3-2: Mouldand WaterCoupling1......................................................... 18
Picture3-3: Mouldand WaterCoupling2......................................................... 19
Picture4-1: ControlPanel................................................................................. 21
Picture4-2: MainMenuScreen......................................................................... 23
Picture4-3: MENU Screen................................................................................ 23
Picture6-1: Open theCovers1......................................................................... 34
Picture6-2: Open theCovers2......................................................................... 34
Picture6-3: Open theCovers3......................................................................... 34
Picture6-4: YType Strainer.............................................................................. 35
Picture6-5: SolenoidValve............................................................................... 35
Picture6-6: PipeHeater1................................................................................. 36
Picture6-7: PipeHeater2................................................................................. 36
Picture6-8: CoolingPipes1.............................................................................. 37
Picture6-9: CoolingPipes2.............................................................................. 37

6(42)

7(42)

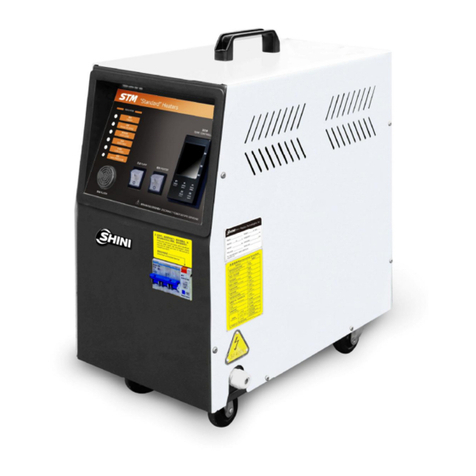

1. General Description
Read thismanualcarefullybeforeoperation topreventdamageofthe
machine orpersonalinjuries.
TheSTM-Oseriesstandardoil heaterareused toheatup the mouldandmaintain
thistemperature,althoughtheycan be usedinothersimilarapplications.High
temperatureoil fromthe mouldisreturnedtothecoolingtankand cooled by
indirectcooling.It isthen pressurisedbythehigh-pressurepump,senttothe
heatingtankandfinallytothe mouldwithaconstanttemperature.Withour
optimised design,oil can reachamaximumof200 and theHANYOUNG
temperaturecontrollercan maintainanaccuracyof 1.

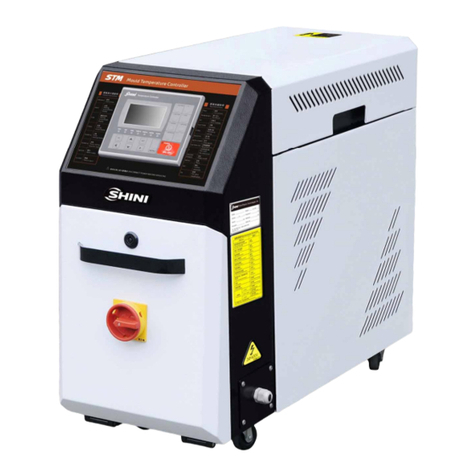

Model: STM-910Model:STM-910D

8(42)
1.1CodingPrinciple
1.2Feature
lControlleradopts3.2" LCD foreasyoperation.
lEquippedwiththe designof7-dayautomaticstart/stoptimer.LCD screen
can beconverted between ChineseandEnglish.Theunitoftemperature
can beconverted between oFand .
lP.I.Dmulti-stagetemperaturecontrolsystemcanmaintainmould
temperaturewithaccuracyof 0.5 .
lAdoptshighefficiency hightemperaturepump,whichcanmeetthe
demandsoftemperaturecontrolforprecisemouldsandmouldloopwith
minordiametertoachieveprecisetemperaturecontroland highefficient
heatexchange.
lMultiplesafetydevicesincludingpowerreversephaseprotection,pump
overload protection,overheatprotectionandlowlevelprotection thatcan
automaticallydetectabnormalperformanceandindicatethisviavisible
alarm.
lPipe heateraremade ofstainless steel.
lForstandardSTM-O, the heatingtemperaturecan reach200 ,whilefor
STM-HT,it canreach300 .
lSTM-HTisequipped withmagneticpumpand itsinternalstructureis
madeofhighpressureresistancestainless steeltopreventanyexplosion.
lAdoptedEthernetcommunicationfunctiontorealizecentralmonitoring
online.
1.3Options
lWatermanifolds,Teflonhoseand Transferoil areoptional.
lDisplaysofmoldtemperatureand returnoil temperatureofmoldare
optional.

9(42)
lBuzzerisoptional.Add “B”at themodelbehind.
lMagnepicPump(ExcludedforSTM-3650andSTM-D models),add "M"at
the endofthemodelcode.
lIt couldoptionwithmagneticfiltertoprolongservicelifeofmagneticpump
(onlysuitableformodelswithmagneticpump).Add “MF”atthe end of the
modelcode.
All serviceworkshouldbecarried outbyapersonwithtechnicaltrainingor
correspondingprofessionalexperience.Themanualcontainsinstructionsforboth
handlingandservicing.Chapter6,whichcontainsserviceinstructionsintendedfor
serviceengineers. Otherchapterscontaininstructionsforthedailyoperator.
Anymodificationsofthe machinemustbe approved bySHINIinordertoavoid
personalinjuryand damagetomachine.Weshall notbe liableforanydamage
causedbyunauthorized changeof themachine.
Ourcompanyprovidesexcellentafter-salesservice.Shouldyou haveany
problemduringusingthemachine,pleasecontactthecompanyorthelocal
vendor.
Headquarterand Taipeifactory
Tel:[phone]
ShiniPlastics Technologies(Dongguan), Inc
Tel:[phone]
ShiniPlastics TechnologiesIndiaPvt.Ltd.
Tel:[phone]

10(42)
1.4Technical Specifications
1.4.1Specification
Table1-1: Specification
Model
STM-
Ver.
Max.
Temp.
Pipe
Heater
(kW)
PumpPower
(kW)
(50 / 60Hz)
Max. pump
Flow(L / min)
(50 / 60Hz)
Max. pump
Pressure
(bar)
(50 / 60Hz)
Heating
Tank
Number
Main / Sub.
Oil Tank (L)
Cooling
Method
Inlet
/Outlet
(inch)
Dimensions
(mm)
(H WD)
Weight
(kg)
607 H
200
6 0.55 / 0.63 27 / 30 3.8 / 5 1 6 / 3.2
Indirect
3/4 / 3/4 700x350x900 70
607D G 6×2 0.55×227×23.8 2 6×2 / 3.2×2 3/4 / 3/4 700x535x900 120
910 G 9 0.75 / 0.92 42 / 50 5.0 / 6.4 1 6 / 3.2 3/4 / 3/4 700x350x900 70
910D G 9×20.75×2 / 0.92×2 42×2 / 50×2 5.0 / 6.4 2 6×2 / 3.2×2 3/4 / 3/4 700x535x900 140
1220 F 12 1.5 / 1.9 74 / 84 6.2 / 7.2 1 6.8 / 11.8 1 / 1 755x320x900 100
2440 E 24 2.8 / 3.4 90/ 90 8.0 / 10.2 2 11 / 16 1 / 1 899x407x1009 145
3650 E 36 4.0 / 4.0 100 / 100 8.0 / 8.0 3 14 / 16 11/4/ 11/4 928x407x999 155
Note:1) "D" standsfordual-heatingzones. Wereservetherighttochange
2) Pumptestingstandard:Power of 50 /60Hz,specificationswithoutpriornotice.
purifiedwater at20.(Thereis 10%tolerance
foreithermax.flowrateormax. pressure).
3) "*"Stands foroptions.
4) When machineworks continously,thesuggestedtemperatureshouldnothigher than180℃.
5) Power supply: 3Φ,230/400/460 /575VAC,50 / 60Hz.
1.4.2PumpPerformance
Picture1-1: PumpPerformance

11(42)
1.4.3ReferenceFormulaofMouldControllersModelSelection
HeaterPower(kW)=mouldweight(kg) ×mouldspecificheat(kcal/kg ) ×
temperaturedifferencebetween mouldand environment( ) ×safetycoefficient/
heatingduration/ 860
Note: safetycoefficientcan selectavalue from1.3to1.5.
FlowRate(L/min)=heaterpower(kw) ×860 /[heatingmediumspecific(kcal/kg )
×heatingmediumdensity(kg/L)×in/outlet temperaturedifference( )×time(60)]
Note:Waterspecificheat =1kcal/kg
Heatingmediumoil specificheat =0.49kcal/kg
Waterdensity=1kg/L
Heatingmediumoil density=0.842kg/L
1.5SafetyRegulations
Strictlyabide bythefollowingsafetyregulationstopreventdamageofthemachine
orpersonalinjuries.
1.5.1SafetySignsand Labels
Danger!
Theunitisdesignedtoendurehightemp,and highpressure.Forsafe
operation,do notremovethe coversorswitches.
Attention!
Theunit shouldbe operated byqualifiedpersonnelonly.
Duringoperation, avoidwearingglovesorclothesthatmaycausedanger.
Turnoffmainswitchwhen powersupplyisoff.
Stop the unitwhen theremaybe powersupplyproblemscaused bystatic
electricity.
Put onsafetyglovesand shoesduringinstallation orrelocation.
Componentsfromourcompanycan onlybe used forreplacement.
Warning!

12(42)
Donottouchthe switchwithwet object orhands.
Donotusethemachinebeforefullyawareofitsperformance.
Be carefulnot totouchorhit the switchorsensor.
Pleasekeepenoughoperationspace, and keep awayobstacles.
Toavoidproducingstatics,clean the floorfromoil orwatertokeepadry
environment.
Protectthemachineagainst severevibration orcollision.
Donotremovesafetysignsormakeit dirty.
Drunken,medicine-taking,ormen withoutproperjudgementshouldnot
operatethe machine.
Warning！
Hightemperature,takecareofhands!Thislabelisattached onthe surface
ofheatingparts.

13(42)
1.5.2Signsand Labels
Pleaseaccordingtoschedule tomakeregular
maintenance.
Oil outlet valve:oildischarge outletfor renewing oil.
High liquidlevel: thehighest oillevel towhichmachine
can reachunder roomtemperature.
Frommould:connector forcirculating water/oil coming
frommould.
Tomold:connector for circulating water/ oil togo to
mould.
Oil inlet: oil filler formachine.
Overflow
1. Tomaintaintemperatureconsistency, cooling water
pressuremust behigherthan 2bar at alltime,but
should never exceed 5barin anycase.
2.CleanY-shapeCoolingWaterStrainerperiodicallyto
ensureperfect cooling capacity.

14(42)
Water outlet: drainage outlet.
Water inlet: inletforcoolingwater.
1.5.3OperationRegulations
1)Beforeoperation,makesurethatcoolingwaterisclean softwaterwithout
pollutants.
※Lowqualitywaterbringslimescales, whichmaycauseproblems.
2)If problemsofdrainage orbadtemperaturecontrolarenoted,pleaseclean
solenoidvalveand coolingwaterinlet and outlet.
3)Donotmovethe unit when itisinoperation.
4)When inneedof repairing, wait until oil temperaturefallsbelow30 .
5)Motoroverloadmaybe causedbyphaseshortage,pipe obstruction,
broken bearing,etc.Motoroverload relaywilltripoff tostop the machine
when thishappens.Fixing the problems,press RESETon overloadrelay
toclearthe alarm.
6)Beforeturnoff thepump,waituntil oil temperaturefallsblow50 .Orthe
lifeofthe unit wouldbeaffected.
1.5.4Transportation andStorageoftheMachine
Transportation
1)STMseriesstandardoilheaterarepacked incratesorplywood caseswith
wooden pallet at thebottom, suitableforquickpositioningbyforklift.
2)Afterunpacked, castorsequipped onthemachine canbeused foreaseof
movement.
3)Donotrotatethemachine andavoidcollisionwithotherobjectsduring
transportationtoprevent improperfunctioning.
4)Thestructureofthe machine iswell-balanced,althoughitshouldalsobe
handled withcarewhenliftingthemachineforfearoffallingdown.
5)Themachineanditsattachedpartscanbekeptatatemperaturefrom
-25 to+55 forlong distancetransportation andforashortdistance,it
can betransported withtemperatureunder+70 .

15(42)
Storage
1)STMseriesstandardoil heatershouldbe stored indoorswithtemperature
keptfrom5 to40 and humiditybelow80%.
2)Disconnectall powersupplyand turnoffmainswitchand controlswitch.
3)Keep the wholemachine,especiallythe electricalcomponentsawayfrom
watertoavoidpotentialtroublescaused bythe water.
4)Plasticfilmshouldbeused toprotect the machine fromdustandrains.
Workingenvironment
Themachineshouldbeoperated:
1)Indoorsinadryenvironmentwithmax.temperature+45 andhumidity
no morethan80%.
Donotusethemachine:
1)If it iswithadamaged cord.
2)Onawetfloororwhenit isexposedtoraintoavoidelectricalshock.
3)If ithasbeendroppedordamageduntil it ischeckedorfixed byaqualified
serviceman.
4)Thisequipmentworks normallyintheenvironmentwithaltitudewithin
3000m.
5)At leastaclearanceof1msurroundingtheequipmentisrequired during
operation.Keep thisequipment awayfromflammablesourcesat least two
meters.
6)Avoidvibration, magneticdisturbanceat the operationarea.
Rejectedpartsdisposal
When theequipmenthasrun outitslifetimeand can notbe used anymore,
unplugthepowersupplyand disposeof it properlyaccordingtolocalcode.
FireHazard
Incaseoffire, Co2drypowderfireextinguishershouldbeapplied.
Pleaseabide bythesafetyguide whenyou operatethemachine soasto
prevent damageofthemachine andpersonalinjuries.

16(42)
All electricalcomponentsshouldbeinstalled byqualified electricians.
Turnoffmainswitchand controlswitchduring repair andmaintenance.
Warning! Highvoltage!
Thismarkisattached on the coverof thecontrolbox.
Warning! Becareful!
Be morecarefulwhen thismarkappears.
Warning!
Hightemperature,takecareofhands!Thislabelisattached onthe surface
ofheatingparts.
1.6ExemptionClause
Thefollowingstatementsclarifytheresponsibilitiesandregulationsbornbyany
buyeroruserwho purchasesproductsandaccessoriesfromShini(including
employeesandagents).
Shiniisexempted fromliabilityforanycosts,fees,claimsandlossescausedby
reasonsbelow:
1)Anycareless orman-madeinstallations,operationandmaintenances
uponmachineswithoutreferringtotheManualpriortomachine using.
2)Anyincidentsbeyondhumanreasonablecontrols,whichinclude
man-made viciousordeliberatedamagesorabnormalpower,and
machinefaultscaused byirresistiblenaturaldisastersincludingfire,flood,
stormandearthquake.
3)Anyoperationalactionsthatarenotauthorized byShiniuponmachine,
includingaddingorreplacingaccessories,dismantling,deliveringor
repairing.
4)Employingconsumablesoroil mediathatarenotappointed byShini.

17(42)
2. Structure Characteristics andWorkingPrinciple
2.1WorkingPrinciple
Picture2-1:WorkingPrinciple
Thehightemperatureoil returnstothemachine andthen be pressured bypump
tothe heater.Afterbeingheated,oil will be forced tothe mouldandcontinuethe
circle.Inthe process,ifthe oil temperatureistoo high,systemwill activatethe
solenoidvalvetoletcoolingwatercooldownhightemperatureoilindirectlyuntil
the temperatureisdowntothesystemrequirement. Ifthetemperaturekeeps
increasingandreachestothe setpointofEGO, thesystemwill sound alarm and
stop operation.The systemwill havelowlevelalarm andstopworkingifoil level
fallsdownbelowtheset point.

18(42)
3.Installationand Debugging
3.1InstallationSpace
Duringinstallationofthemachine,keepatleast500mminstallationspacearound
the machine asshownbythe picture.Donotinstall the machineinaposition
crowded withotherobjects.Thiswouldcauseinconveniencetooperation,
maintenanceandrepair.
Donotsit onthemachine.
Keepawayflammableand explosivegoods.
Picture3-1: Installation Space
3.2Mouldand Water Coupling
1)When connectmouldcouplingwithpipesfromthemould.Useaspanner
tosecureone end ofthecoupling,insertmouldconnectingpipe and fasten
it byanotherspanner.
Picture3-2: Mouldand WaterCoupling1

19(42)
Notice:Cooling waterinletand outletareasbelow,payattention
tothedirection!
Picture3-3: Mouldand WaterCoupling2
2)Connectcoolingwaterinletwithwatersupplyandcoolingwateroutletwith
adrainagepipe. Afterthat, turnon watersupply.
3.3Power Supply
Makesurethat powersupplyisthe sameasrequired beforeinstallation.
Mouldheateraregenerallysettobe usedwith3Ф400Vpowersupplyorother
specificationsaccording tocustomers' requirement.
3.4Options Installation
3.4.1Installation StepsforOptionsWaterManifold(Dewaxing)
1)Install copperjoint tothe levelvalve.
2)Install levelvalvewithcopperjoint tothe dewaxingwatermanifold.
3)Install watermanifoldtothemachine.

20(42)
4)Install Teflon tocopperjoint.
Note:For theoperating temperaturenothigherthan200 ,
Teflon withtemperatureresistance200 isusable;for the
operating temperaturefrom 200to300 ,mustuse Teflon with
temperatureresistance 300 .
3.4.2Installation StepsforOptionsWaterManifold(Welding)
1)Install copperjoint tothe levelvalve.
2)Install levelvalvewithcopperjoint tothe weldingwatermanifold.
3)Install watermanifoldtothemachine.
4)Connect watermanifoldwithmanifoldjoint viascrews.
5)Install Teflon tocopperjoint.
Note:For theoperating temperaturenothigherthan200 ,
Teflon withtemperatureresistance200 isusable;for the
operating temperaturefrom 200to300 ,mustuse Teflon with
temperatureresistance 300 .
