Showven SPARKULAR JET User manual

USER MANUAL
SPARKULAR®JET
V3.1
2022/05/17
Showven Technologies Co., Ltd.

Thanks for choosing SPARKULAR®JET, we wish it will sparks up your show.
Please read the following manual carefully before operating this product.
ΔSafety Instructions
\Unauthorized repair are prohibited, it may cause serious incident.
\SPARKULAR®JET can be used in rain, but after use please clean it, and store it at dry environment.
\Make sure lid of feeding hopper are well covered when use SPARKULAR®JET.
\Accidentally burning of consumable can only use sands to extinguish.
\Consumable should keep away from moisture and stored in a dry sealed environment.
\Check whether there is consumable aggregate in the output nozzle both before and after each
show, if any, please clean it up, or it will affect the firing effect or even damage SPARKULAR®JET.
\Please be noted that there may sparks or remains fall to the ground. Make sure there is no
flammable objects such as carpet on the ground with a radius of 3m close to the machine.
\Maximum cascade of SPARKULAR®JET is 6 units (BT91) / 3 units (BT92) with a standard power cable.
Exceed connecting may result in damage or even cause fire.
\For better heat dissipation, block the air intake and air outlet is prohibited.
\Cover the output nozzle of SPARKULAR®JET is forbidden, inspect the machine before each show,
making sure no objects or material will block the output nozzle.
\Never touch the nozzle of SPARKULAR®JET, danger of getting burnt
\Never touch the sparks which shooting out from the nozzle
\Ensure that children, animals and unauthorized persons don’t have access to the SPARKULAR®JET.
\Keep audience animals or flammable material at a minimum distance of 3m from SPARKULAR®JET.
\Make sure sparks shoot out from SPARKULAR®JET can NOT touch any objects. And keep a safety
zone with minimum 2m from the maximum effect height.

ΔDescription
SPARKULAR®JET is another brand new effect originally invented by SHOWVEN®. It generates
a flashing SPARKULAR®effect up to 10m. Built-in automatic air compressor, no external
pressure tank needed, makes it easier for setup and fewer usage restrictions. It is perfect
effects solution for stadium, concerts etc. medium to large events.
ΔTechnical Specifications
\Model: BT91 / BT92
\Dimension: 320 280 300mm
\Weight: 16.5kg
\Housing material: 304 Stainless steel
\Input: AC 100V-120V,50/60Hz, Max.cascade:3PCS
AC 200V-240V,50/60Hz, Max.cascade:6PCS
\Work power: 350W
\Work Temp.: -10 ~50
\Effect height: HC8200 LARGE(8-10m) / HC8200 MEDIUM(6-8m) / SMALL(4-5m)
\Hopper capacity: 450g
\Trigger delay: 0.6-1s
\HC8200 consumption: HC8200 LARGE/MEDIUM 10-15g/shot; HC8200 SMALL 4-6g/shot
\Interface: 3-pin and 5-pin DMX IN/OUT, NEUTRIK POWERCON TURE 1
\Control: Standard DMX 2 Channels

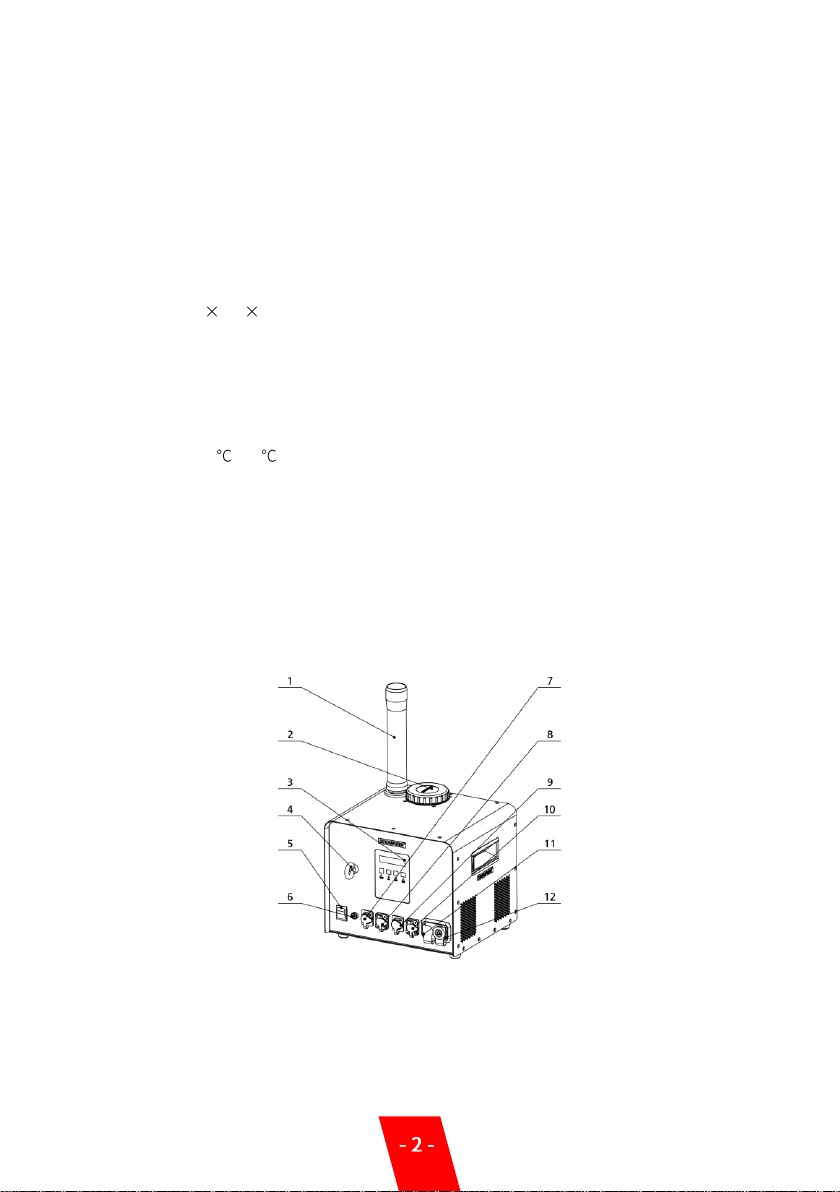

ΔStructure of SPRKULAR®JET
1. Extension Tube
2. Feeding Hopper
3. LCD screen
4. Safety Loop
5. Power Switch
6. Fuse

7. 5-PIN DMX IN
8. 5-PIN DMX OUT
9. 3-PIN DMX IN
10. 3-PIN DMX OUT
11. POWER IN
12. POWER OUT

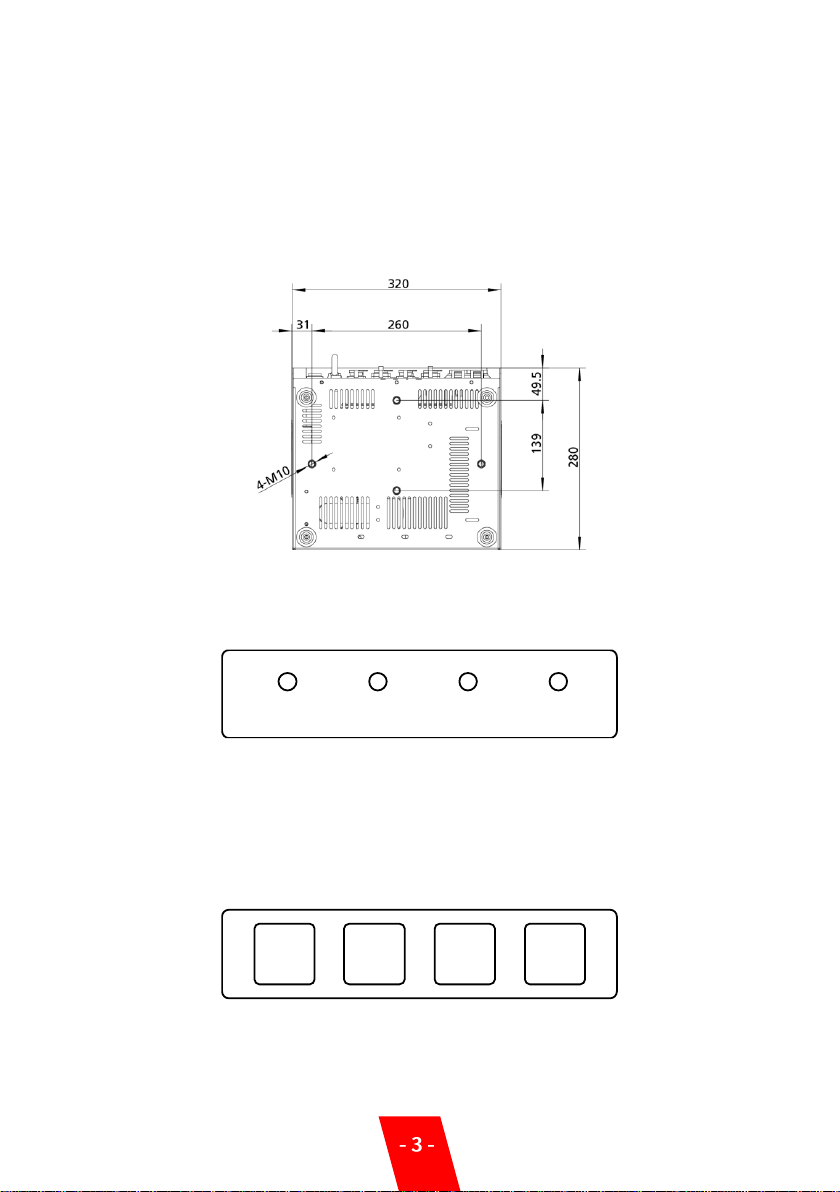

Diagram of Bottom Panel
ΔOperation Panel
1. LED display area
READY DMX FAU LT HE AT
READY: Green light flashing means heating up. Turns from flashing into long on, indicates that
the machine is ready to work
DMX: Flashing shows that DMX signal is connected, light OFF means there is no DMX signal
FAULT: Light ON when error occurs
HEAT: Light ON when system is heating up
2. Control button area
MENU DOWN UP ENTER
MENU: Press to switch through menu, press and hold for 3s enter advanced menu
DOWN: Parameter down
UP: Parameter up
ENTER: Confirm and save parameters

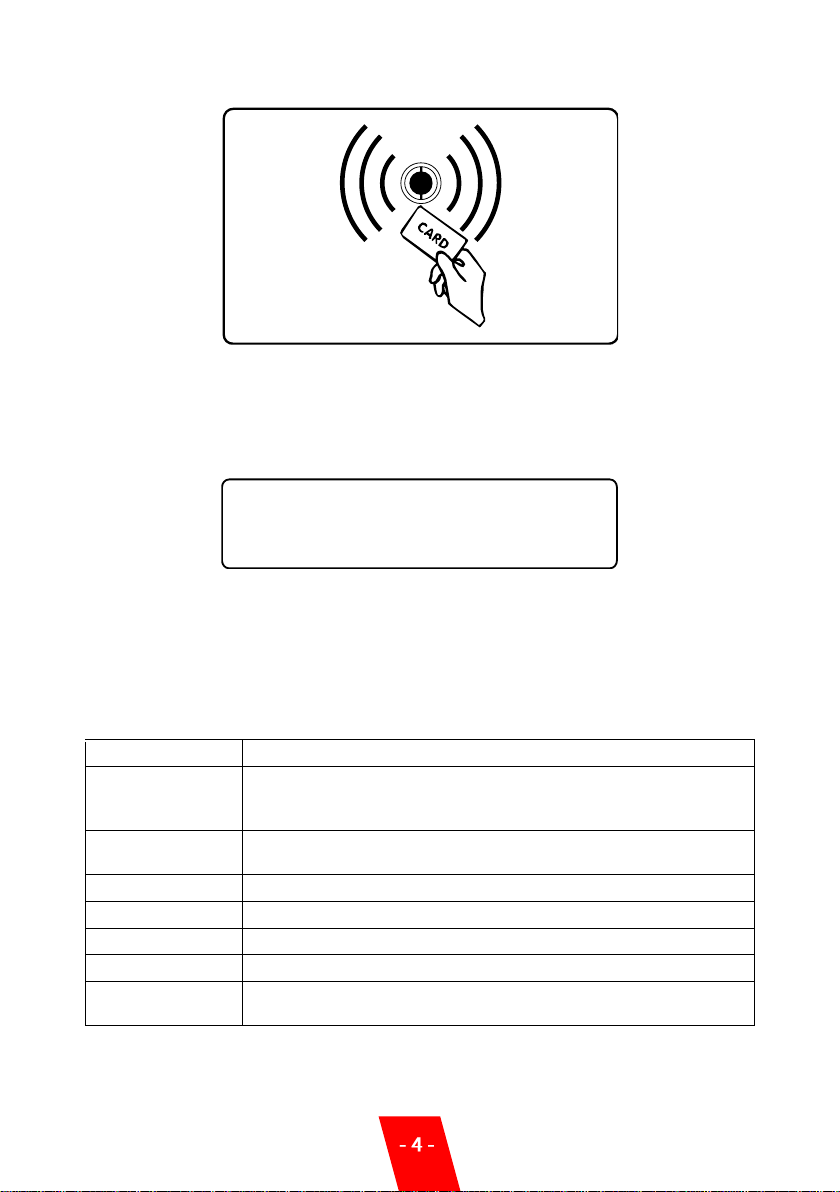

3. RFID area
Composite Ti with RFID card, swiping cards used to identify parameters and types of granules.
The RFID card is disposable, one card can only use one time.
ΔInterface
1. Main Interface:
DMX: 11 P: 0
T: 19 Delay: 1.0s
First Line: DMX: DMX address P: pressure value
Second Line: T: inner core temp. Delay: firing trigger delay
The working principle of the machine is when the firing is triggered, it takes some time (jet
delay) for the system to transfer and stimulate the consumables. When it reached the firing
trigger delay time, the valve will open automatically and firing.
2. Error information
Error information
Explanation
E0 System IC
1. Emergency stop was executed when firing was triggered, and firing
stops. E0 disappear automatically 1min later
2. Too frequent firing in a short period of time, E0 disappear 100s later
E1 Pump Protect
It happens when continuous pressurization fail, probably the pump
broken
E2 Temp. Sensor
Temperature sensor is not connected or damage
E3 P Temp. Over
Chassis over-temperature
E4 Time Remain
Activated time for machine is not enough, need to swiping RFID card
E5 K Temp. Over
Heating chamber over-temperature
E6 Heat Fail
Heating fail, if recover automatically, please pay attention to the power
supply

3. Setting Menu
Press “MENU”switch through setup menu.
4. Advanced Menu:
Press “MENU”switch through setup menu.
*Please don't change default value without engineer's suggestion from SHOWVEN®
Options
Range
Default
Explanation
Set DMX
Address
1-512
1
Set DMX address. Each machine occupy two
DMX channels. If controlled by Host Controller,
please assign a unique address for each machine
Material
Select
Large/Medium/Small
Large
Please select based on the consumable you use
Manual Clear
On/Off
OFF
Clear material manually. Please be careful, do
NOT close to the nozzle.
Options
Range
Default
Explanation
Set
Temperature
480-620
580
Set inner core temp
Auto Heat
On/Off
ON
ON: machine will heating up and pressurize
automatically when power on machine
OFF: Need to manually turn on heating up and
pressurize on DMX console
Mode
Selection
Factory
Mode/ User
Mode
User Mode
Factory mode is for engineer only. When in Factory
mode machine can’t controlled by DMX console/host
controller
Standby Switch
On/Off
OFF
Standby function. When ON, the machine can firing
only when heating up was finished
Ext. Ignite
On/Off
OFF
When use fireworks firing system to firing the
machine. Customized design for fireworks customer
Feeding Test
On/Off
Test the feeding structure and feeding motor
Fan Test
On/Off
Test the blowing fan
Tip Over Error
ON/OFF
OFF
Tilt function switch

5. DMX Control
SPARKULAR®JET occupy 2 channels.
First channel
Function
0-111
Firing OFF
112-255
Firing. To avoid false triggering, trigger time should maintain above 0.2s.
Second channel
Function
60-80
Clear material, the valve will open when clear material, and clear the
consumable remains in the heating chamber. DO remember to clear
material after each show.
20-40
Emergency stop, when firing was triggered, operator can stop the firing
during this jet delay period. And machine will prompt E0 error
0-10
Pre-heat OFF and auto pressurize OFF (disabled when auto-heat ON)
240-255
Pre-heat ON and auto pressurize ON (disabled when auto-heat ON)
ΔOperation Guide
1. Check output nozzle and install the extension tube
a) Check carefully the output nozzle and extension tube of each machine, make sure the
output nozzle and extensive tube are in good shape and there is no powder aggregate.
b) Install the extension tube if use HC8200 MEDIUM and HC8200 LARGE. When use HC8200
SMALL there is no need to install extension tube.
2. Fill SPARKULAR®JET
a) Open powder bags and fill the feeding hopper. Hopper capacity of SPARKULAR®JET is
450g.
b) Choose correct consumable according to the application scenario. SPARKULAR®JET can
only use HC8200 LARGE, MEDIUM and SMALL.
c) Please be noted that there may sparks or remains fall to the ground. Make sure no
flammable material on ground in the safety zone.
d) Maximum effect height: HC8200 LARGE is 10m, HC8200 MEDIUM is 8m, HC8200 SMALL is
5m.
e) Make sure the lid of hopper is locked tight after filling.
3. Install SPARKULAR®JET

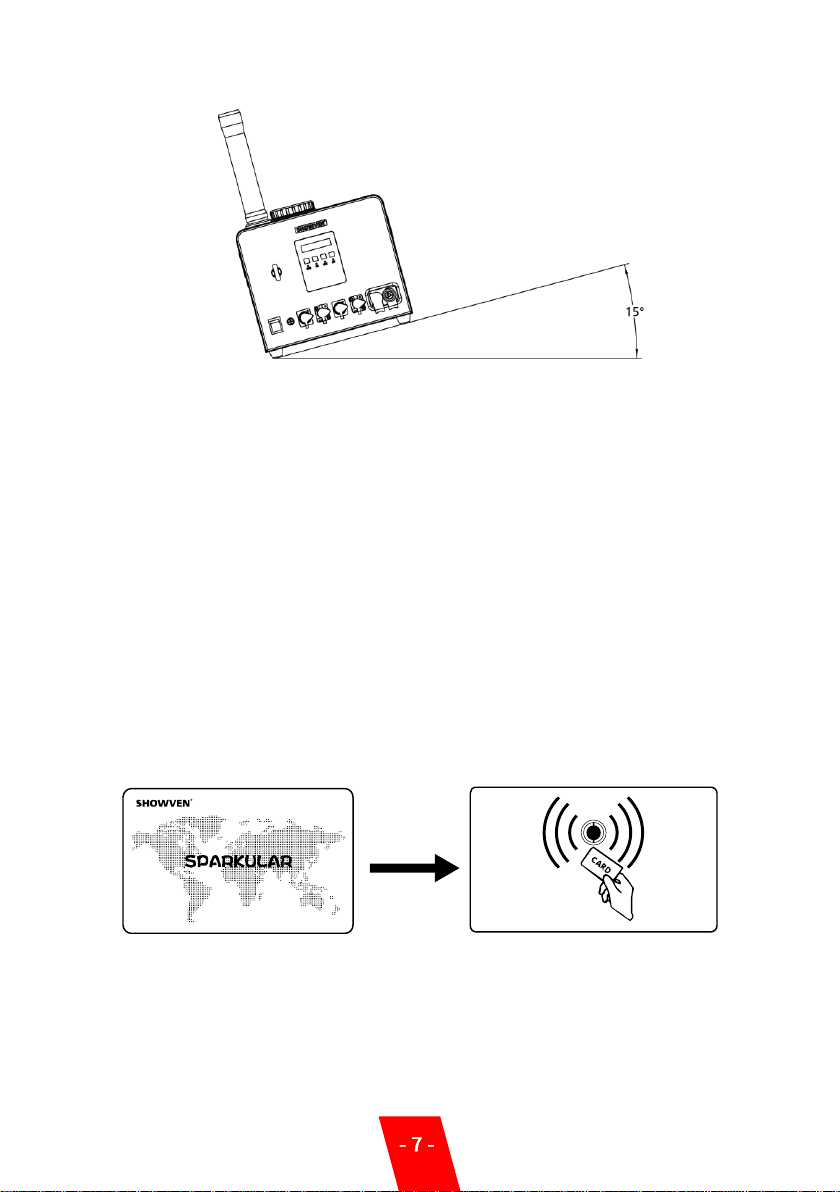

a) Horizontal installation is preferred for SPARKULAR®JET. If need to installed SPARKULAR®
JET in angles, maximum firing angle is 15° and can ONLY be angled to the left side as below
picture.

b) Make sure the machine is securely installed to avoid tipping.
4. Connect SPARKULAR®JET and Host Controller with power / DMX cable
a) Make sure power supply in consistent with the rated voltage of the equipment, and the
socket must well grounded.
b) Maximum cascade of SPARKULAR®JET is 6 units (BT91) / 3 units (BT92) with a standard
power cable. Do not connect exceed units to a single electrical circuit.
c) If use together with HOST CONTROLLER ZK6200/6300, each unit of SPARKULAR®JET must
set unique DMX address, otherwise it may leads to signal interference.
d) Suggest to plug in a DMX terminator into the DMX out in last unit of machine.
e) Turn on host controller and SPARKULAR®JET.
5. Activate SPARKULAR®JET by swipe RFID card
a) Swipe an RFID card. Read the card as show below. SPARKULAR JET screen flash once if read
successfully.
b) SPARKULAR®JET will report E4 when remaining firing times is less than 10mines.
c) Please note each RFID card come with 200g package HC8200 can increase single machine 30
firing times, the maximum recharge times each time for SPARKULAR®JET is 120 times,
when remaining firing times reached 120, it can’t recharge anymore RFID card.
CN. 00000001
6. Clear material
Run clear material for all SPARKULAR®JET before firing by press “CLEAR” button on host
controller or turn DMX value to 60-80 on second channel.

7. Programming and Firing
a) Programming SPARKULAR®JET, set the “Material Select”in the menu according to the
consumable (HC8200 LARGE / MEDIUM / SMALL) you use.
b) Heating up and pressurize the machine, it takes around 8min.
c) Make sure the prescribed safety zone is clear.
d) Firing. Between each firing there is a firing interval which is for the pressure recovery of the
built in pressure tank.
e) The operator should always have a clear view of the device, so that he/she can stop the
show immediately when there is danger.
8. Clear material
a) Clear material for SPARKULAR®JET after show, clear material will remove the remaining
particles from heating chamber.
b) Running clear material once for SPARKULAR®JET. For angled installation, please try clear
material several times, until there are only few or no sparks spray out from output nozzle.
9. Turn off machine and empty the feeding hopper
a) Power off SPARKULAR®JET and host controller, allow SPARKULAR®JET to cool down.
Whenever deliver or not use machine for a long period of time, please empty the remaining
HC8200 in hopper, and store the remaining HC8200 in a dry sealed bottle for next time use.
b) Operators can use handheld vacuum cleaner to empty the feeding hopper. Do make sure
the machine was cool down when clean it. Do NOT use high-power vacuum cleaners to
avoid hot consumables being sucked into the vacuum cleaner from the heating chamber
and cause fire.
c) Never touch the output nozzle of SPARKULAR®JET. DANGER OF GET BURNT!
ΔMaintenance
a) Empty the feeding hopper before shipment of machine.
b) Empty the feeding hopper if long time not use, for high humidity environment we suggest
to empty feeding hopper after each show.
c) Clear material both before and after the show.

ΔWarranty Instructions
\Sincere thanks for your choosing our products, you will receive quality service from us
\The product warranty period is one year. If there are any quality problems within 7 days after
shipping out from our factory, we can exchange a brand new same model machine for you
\We will offer free of charge maintenance service for machines which with hardware
malfunction (except for the instrument damage caused by human factors) in warranty period.
Please don't repair machine without factory permission
Below situations NOT included in warranty service:
\Damage caused by use other type of consumable which is not from SHOWVEN®or
SHOWVEN®authorized distributor.
\Damage caused by improper transportation, usage, management, and maintenance, or
damage caused by human factors;
\Disassemble, modify or repair products without permission;
\Damage caused by external reasons (lightning strike, power supply etc.)
\Damage caused by improper installation or use;
For product damage not included in warranty range, we can provide paid service.
Invoice is necessary when applying for maintenance service from SHOWVEN®.

PREMIUM FACTORY SAS - DISTRIBUTEUR OFFICIEL
1 Route Neuve, 71710 MONTCENIS – FRANCE
Office [phone] | [phone]
[email protected] | www.premiumfactory.eu
