Shure ULX-D User manual

Wireless Systems
PGW PGX SLX®ULX® ULX-D®UHF-R® AXIENT®
Shure ULX-D®Digital Wireless offers uncompromising 24-bit audio clarity
and extremely efficient RF performance with single, dual, and quad channel
receivers for any size professional sound reinforcement application.
Generations ahead of any other available system in its class, ULX-D brings a
new level of performance to professional sound reinforcement.
Uncompromising Professional Digital Wireless
• 24-bit/48 kHz digital audio that delivers incredibly clear and accurate sound reproduction
• 20 Hz – 20 kHz frequency range with flat response
• Greater than 120 dB dynamic range
• Wide selection of trusted Shure Microphones
Extremely Efficient and Reliable RF Performance
• Up to 64 MHz overall tuning range (region dependent)
• Up to 17 active transmitters in one 6 MHz TV channel (23 on an 8 MHz TV channel)
• High Density mode enables up to 47 active transmitters in one 6 MHz TV channel
• Rock-solid signal stability with no audio artifacts over the entire 100 meter range
• Optimized scanning automatically finds, prioritizes, and selects the cleanest frequencies available
Scalable, Intelligent Hardware
• Single (half-rack), Dual and Quad (full-rack) receiver form factors
• AES 256-bit encryption equipped for secure wireless transmission
• Dante™ digital networked audio over Ethernet
• Wireless Workbench®6 software compatible for advanced coordination, monitoring, and control
• Compatible with the Shure SB900 Rechargeable Battery and SBC chargers
ULX-D®DIGITAL WIRELESS
PRODUCT HIGHLIGHTS
24-bit/48 kHz Digital
Wireless Audio
High Density Mode
Single, Dual, and Quad
Channel Receivers
Advanced Recharge-
ability
DanteTM Networked
Audio over Ethernet
APPLICATIONS
A/V Production & Rental
Installed Sound
House of Worship
Presentation

www.shure.com
ULX-D®System Specifications
RF Carrier Range 470–932 MHz, varies by region (See Frequency Range and Ouput Power table)
Working Range 100 m (328 ft)
Note: Actual range depends on RF signal absorption, reflection and interference.
RF Tuning Step Size 25 kHz, varies by region
Image Rejection >70 dB, typical
RF Sensitivity -98 dBm at 10-5 BER
Latency <2.9 ms
Audio Frequency Response ULXD1: 20 Hz – 20 kHz (±1 dB)
ULXD2: 30 Hz – 20 kHz (±1 dB)
Note: Dependent on microphone type
Audio Dynamic Range
System Gain @ +10
XLR Analog Output: >120 dB, A-weighted
Dante Digital Output (Dual and Quad receivers): 130 dB (typical), A-weighted
Total Harmonic Distortion
−12 dBFS input, System Gain
@ +10
<0.1%
System Audio Polarity Positive pressure on microphone diaphragm produces positive voltage on pin 2
(with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.
Operating Temperature Range -18°C (0°F) to 50°C (122°F)
Note: Battery characteristics may limit this range.
Storage Temperature Range -29°C (-20°F) to 74°C (165°F)
Note: Battery characteristics may limit this range.
Frequency Range
Band Range (MHz) Transmitter Output (mW)
G50 470 to 534 1/10/20
G51 470 to 534 1/10/20
G52 479 to 534 1/10
H50 525 to 572 1/10/20
H51 534 to 598 1/10/20
H52 534 to 565 1/10
J50 572 to 636 1/10/20
K51 606 to 670 1/10
L50 632 to 696 1/10/20
L51 632 to 696 1/10/20
P51 710 to 782 1/10/20
R51 800 to 810 1/10/20
JB (Tx only) 806 to 810 1/10
AB (Rx and Tx) 770 to 810 “A” band (770.250-805.750): 1/10/20
“B” band (806.125-809.750): 1/10
Q51 794 to 806 1/10/20
X50 925 to 932 1/10
Rechargeable Power Management (sold separately)
SB900 Rechargeable Battery
ULX-D transmitters are compatible with the SB900 lithium-ion rechargeable
battery, which provides over 12 hours of continuous use and precise tracking
of remaining life and charge cycle details.

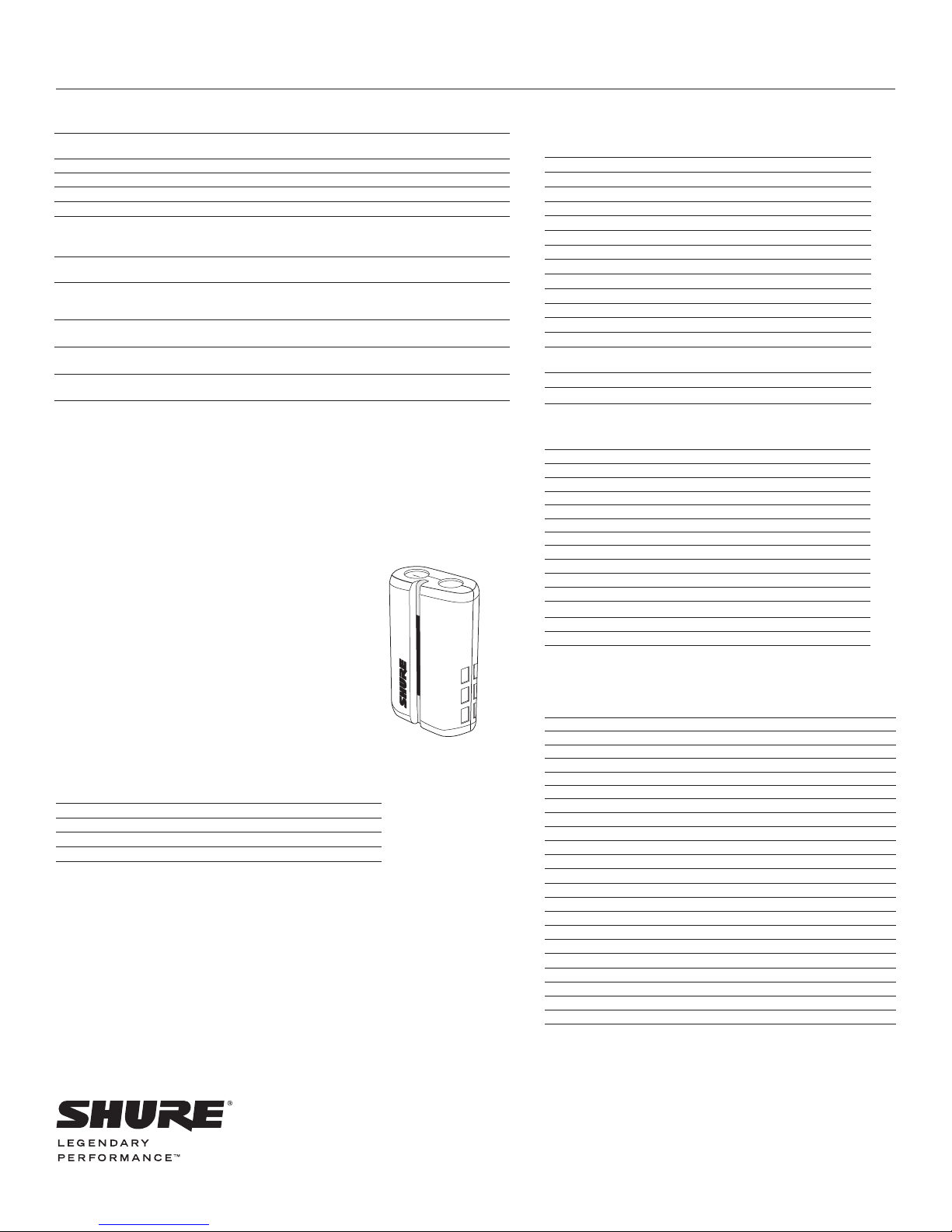

SBC200 Dual Docking Recharging Station
This compact and portable unit charges batteries while in transmitters or out.
Up to 4 SBC200‘s can be chained together to run off one power supply.
SBC800 Eight Battery Recharging Station
This compact and portable unit charges up to 8 SB900 batteries to full capac-
ity within 3 hours, with status LEDs to indicate power levels. SB900 batteries fit
securely in the charger for easy, efficient storage and transport.
Battery Type 1 mW 10 mW 20 mW
SB900 >11 hours >11 hours >7 hours
Alkaline <11 hours <11 hours <5.5 hours
NiMH <11 hours <11 hours <8 hours
Li-primary 12.5-18 hours 12.5-18 hours 9.5-12 hours
Battery Runtime
NOTE:
This Radio equipment is intended for use in musical professional entertainment and similar
applications. This Radio apparatus may be capable of operating on some frequencies not
authorized in your region. Please contact your national authority to obtain information on
authorized frequencies and RF power levels for wireless microphone products.
Furnished Accessories
All Systems
PS41US* Power supply
95T9279* 1/2 Wave Receiver Antenna (2)
95K2035 2‘ BNC Cable (2)
98A8994 BNC Bulkhead Adapter (2)
90AZ8100 Rackmout Hardware kit
95A16941 5‘ ethernet cable
80B8201 2 x AA batteries (bodypack systems)
Handheld Systems
95T9279 Microphone Clip (handheld systems)
95B2313 Handheld Zipper Bag (bodypack systems)
Bodypack Systems
95G9043* Bodypack Antenna
95A2313 Bodypack Zipper Bag (bodypack systems)
*: region specific part # (US part listed)
Optional Accessories
SB900 Shure Rechargeable Battery
SBC800 8-Bay Battery Charger
SBC200 Dual Docking Battery Charger
WA610 Carrying Case
AXT652 Y-Cable for Bodypack Transmitters
UA845SWB Active Antenna Spitter
UA221 Passive Antenna Splitter/Combiner Kit
UA830USTV UHF Line Amplifier
UA844SWB UHF Antenna Power Distribution Amplifier (U.S.A.)
UA844SE UHF Antenna Power Distribution Amplifier (Europe)
UABIAST In-line Power Supply
UA600 Front Mount Antenna Kit (Includes 2 cables and 2 bulkhead
UA505 Remote Antenna Bracket with BNC Bulkhead Adapter
UA820 1/2 Wave Omnidirectional Antenna
UA874WB UHF Powered Directional Antenna
PA805SWB Passive Directional Antenna
UA864US Wall-Mounted Wideband Antenna
UA802 Coaxial Cable, BNC-BNC, RG58C/U type, 50 Ohm, 2 ft length (0.6 m)
UA806 Coaxial Cable, BNC-BNC, RG58C/U type, 50 Ohm, 6 ft length (2 m)
UA825 Coaxial Cable, BNC-BNC, RG8X/U type, 50 Ohm, 25 ft length (7.5 m)
UA850 Coaxial Cable, BNC-BNC, RG8X/U type, 50 Ohm, 50 ft length (15 m)
UA8100 Coaxial Cable, BNC-BNC, RG213/U Type, 50 Ohm, 100 ft length (30 m)

Component Specifications
Product Specifications
www.shure.com
Overview
ULXD4 Digital Wireless Receiver
The Shure ULXD4 is a half-rack wireless receiver for use with ULX-D®Digital Wireless Systems. With an expansive set of professional features, includ-
ing 24-bit/48kHz digital audio quality, efficient and intelligent RF performance, and AES 256-bit encryption, ULX-D offers uncompromising wireless
tailored for professional sound reinforcement.
• Up to 64 MHz tuning range
• Predictive switching diversity
• Intelligent scanning automatically finds and deploys the cleanest frequencies to transmitters over IR sync
• Interference detection and alerts provided on both the receiver and WWB6
• Front panel gain adjustment buttons provide up to 60 dB additional gain
• AES 256-bit encryption-enabled for applications where secure transmission is needed
• Ethernet networking for streamlined setup across multiple receivers, WWB6 integration (coming soon), and AMX/Crestron control
• Support for frequency coordination with Axient Spectrum Manager (coming soon)
• Rugged metal chassis
• Intuitive front panel LCD menu and controls
• Easily readableUpgraded LCD with adjustable contrast and brightness
• Audio and RF LED meters with peak indicator
• Front panel lockout
• XLR and ¼” outputs
• Remoteable ½ wave antennas
• Furnished rack hardware
Dimensions 197 mm x 171 mm x 42 mm (7.75 in. x 6.75 in. x 1.65 in.), H x W x D
Weight 913 g (2.0 lbs), without antennas
Housing Galvanized Steel
RF Input
Spurious Rejection >80 dB, typical
Connector Type BNC
Impedance 50 Ω
Bias Voltage 12 - 13 V DC, 170 mA maximum, per antenna
Audio Output
Gain Adjustment Range -18 to +42 dB in 1 dB steps (plus Mute setting)
Configuration 1/4” (6.35 mm):: Impedance balanced (Tip=audio, Ring=no audio, Sleeve=ground)
XLR: Balanced (1=ground, 2=audio +, 3=audio -)
Impedance 1/4” (6.35 mm):: 100 Ω(50 ΩUnbalanced)
XLR: 100 Ω
Full Scale Output 1/4” (6.35 mm):: +12 dBV
XLR: LINE setting= +18 dBV, MIC setting= -12 dBV
Mic/Line Switch 30 dB pad
Phantom Power Protection 1/4” (6.35 mm): Yes
XLR: Yes
Networking
Power Over Ethernet (PoE) No, protected
Network Interface Single Port Ethernet 10/100 Mbps
Network Addressing Capability DHCP or Manual IP address
Maximum Ethernet Cable Length 100 m (328 ft)
ULXD4 Front Panel
ULXD4 Back Panel
line
mic
ULXD4
www.shure.com
15V0.6A
power mic/line inst/auxantenna.B antenna.A
12VOUT
150mA
12VOUT
150mA
Digital Wireless Receiver
sync push
control
ENTER
EXIT
SCAN
RF
AB
OL
OL
gain poweraudio
ULXD4

Component Specifications
Product Specifications
www.shure.com
Overview
ULXD4D Dual Channel Digital Wireless Receiver
The Shure ULXD4D Dual Channel Digital Wireless Receiver offers two channels of uncompromising audio quality, RF signal stability, and advanced
setup features in a space-efficient single rack unit. Digital wireless processing delivers premium 24-bit/48 kHz audio and RF spectrum efficiencies that
dramatically increase the number of available compatible channels. With an expansive set of enhanced features including AES 256-bit encryption for
security and Dante™ digital networking for audio over Ethernet, the ULXD4D brings a new level of performance to professional sound reinforcement.
• Two receivers in a rugged 1RU metal chassis with internal power supply
• Individual gain controls, LED meters, and XLR outputs for each channel
• Up to 64 MHz tuning range (region dependent)
• Digital predictive switching diversity
• High Density mode optimizes ULX-D systems to simultaneously operate significantly more channels in applications up to 30 meters
• RF cascade ports allow distribution of RF signal to another unit
• Optimized scanning automatically finds, prioritizes, and deploys the cleanest
• frequencies to transmitters over IR sync
• Bodypack Frequency Diversity ensures uninterrupted audio for mission-critical applications
• AES 256-bit encryption-enabled for secure transmission
• Audio summing routes both audio channels to each XLR receiver output
• Dante™ digital networked audio over Ethernet
• Up to 60 dB independently adjustable gain for each channel
• Ethernet networking for streamlined frequency coordination and deployment across multiple receivers
• Wireless Workbench®6 (WWB6) software integration for advanced coordination, monitoring, and control
• Interference detection and alerts provided on both the receiver and WWB6
• AMX/Crestron control
• AXT600 Axient®Spectrum Manager compatible
• Intuitive front panel LCD menu and controls with lockout feature
• Audio and RF LED meters with peak indicator
• XLR connectors with switchable mic/line output level
• Remoteable ½ wave antennas
Dimensions 44 mm x 482 mm x 274 mm (1.73 in. x 18.97 in. x 10.79 in.), H x W x D
Weight 3.36 Kg (7.4 lbs), without antennas
Housing Steel; Extruded Aluminum
Power Requirements 100 to 240 V AC, 50-60 Hz, 0.26 A max.
RF Input
Spurious Rejection >80 dB, typical
Connector Type BNC
Impedance 50 Ω
Bias Voltage 12 - 13 V DC, 150 mA maximum, per antenna
Audio Output
Gain Adjustment Range -18 to +42 dB in 1 dB steps (plus Mute setting)
Configuration XLR: Balanced (1=ground, 2=audio +, 3=audio -)
Impedance 100 Ω
Full Scale Output LINE setting= +18 dBV, MIC setting= -12 dBV
Mic/Line Switch 30 dB pad
Phantom Power Protection Yes
Networking
Network Interface Dual Port Ethernet 10/100 Mbps, 1 Gbps
Network Addressing Capability DHCP or Manual IP address
Maximum Ethernet Cable Length 100 m (328 ft)
Cascade Output
Connector Type BNC: For connection of 1 additional receiver
Configuration Unbalanced, passive
Impedance 50 Ω
Insertion Loss 0 dB
ULXD4D Front Panel
ULXD4D Back Panel
ULXD4D
Digital Wireless Receiver
push
control
ENTER
EXIT
SCAN
power
RF
AB
OL
OL
gainaudio RF
AB
OL
OL
gainaudio
RX1 RX2
IR
syn c syn c
SEL SEL
line
mic
line
mic
BA
output 1output 2
PrimarySecondary

Component Specifications
Product Specifications
www.shure.com
Overview
ULXD4Q Quad Channel Digital Wireless Receiver
The Shure ULXD4Q Quad Channel Digital Wireless Receiver offers four channels of uncompromising audio quality, RF signal stability, and advanced setup
features in a space-efficient single rack unit. Digital wireless processing delivers premium 24-bit/48 kHz audio and RF spectrum efficiencies that dramatically
increase the number of available compatible channels. With an expansive set of enhanced features including AES 256-bit encryption for security and Dante™
digital networking for audio over Ethernet, the ULXD4D delivers the most wireless performance per square inch.
• Four receivers in a rugged 1RU metal chassis with internal power supply
• Individual gain controls, LED meters, and XLR outputs for each channel
• Up to 64 MHz tuning range (region dependent)
• Digital predictive switching diversity
• High Density mode optimizes ULX-D systems to simultaneously operate significantly more channels in applications up to 30 meters
• RF cascade ports allow distribution of RF signal to another unit
• Optimized scanning automatically finds, prioritizes, and deploys the cleanest frequencies to transmitters over IR sync
• Bodypack Frequency Diversity ensures uninterrupted audio for mission-critical applications
• AES 256-bit encryption-enabled for secure transmission
• Audio summing routes two or more audio channels to combinations of receiver outputs. Use each channel’s gain adjustment to reach the desired mix.
• Dante™ digital networked audio over Ethernet Two receivers in a rugged 1RU metal chassis with internal power supply
• Individual gain controls, LED meters, and XLR outputs for each channel
• Ethernet networking for streamlined frequency coordination and deployment across multiple receivers
• Interference detection and alerts provided on both the receiver and WWB6
• Up to 60 dB independently adjustable gain for each channel
• Wireless Workbench® 6 software integration for advanced coordination, monitoring, and control AMX/Crestron control
• Compatible with the AXT600 Axient™ Spectrum Manager
• Intuitive front panel LCD menu and controls with lockout feature
• Upgraded LCD with adjustable contrast and brightness
• Audio and RF LED meters with peak indicator
• Switchable mic/line output level
• Remoteable ½ wave antennas
Dimensions 44 mm x 482 mm x 274 mm (1.73 in. x 18.97 in. x 10.79 in.), H x W x D
Weight 3.45 Kg (7.6 lbs), without antennas
Housing Steel; Extruded Aluminum
Power Requirements 100 to 240 V AC, 50-60 Hz, 0.32 A max.
RF Input
Spurious Rejection >80 dB, typical
Connector Type BNC
Impedance 50 Ω
Bias Voltage 12 - 13 V DC, 150 mA maximum, per antenna
Audio Output
Gain Adjustment Range -18 to +42 dB in 1 dB steps (plus Mute setting)
Configuration XLR: Balanced (1=ground, 2=audio +, 3=audio -)
Impedance 100 Ω
Full Scale Output LINE setting= +18 dBV, MIC setting= -12 dBV
Mic/Line Switch 30 dB pad
Phantom Power Protection Yes
Networking
Network Interface Dual Port Ethernet 10/100 Mbps, 1 Gbps
Network Addressing Capability DHCP or Manual IP address
Maximum Ethernet Cable Length 100 m (328 ft)
Cascade Output
Connector Type BNC: For connection of 1 additional receiver
Configuration Unbalanced, passive
Impedance 50 Ω
Insertion Loss 0 dB
ULXD4Q Front Panel
ULXD4Q Back Panel
ULXD4Q
Digital Wireless Receiver
push
control
ENTER
EXIT
SCAN
power
RF
AB
OL
OL
gainaudio RF
AB
OL
OL
gainaudio RF
AB
OL
OL
gainaudio RF
AB
OL
OL
gainaudio
RX1 RX2 RX3 RX4
IR
syn c sync sync syn c
SEL SEL
line
mic
line
mic
line
mic
line
mic
BA
output 1output 2output 3output 4
PrimarySecondary

ULXD2 Wireless Handheld Transmitter
Gain Offset Range 0 to 21 dB (in 3 dB steps)
Battery Type Shure SB900 Rechargeable Li-Ion or LR6 AA batteries 1.5 V
Battery Runtime
@ 10 mW
Shure SB900: >11 hours
Alkaline: 11 hours
See Battery Runtime Chart
Dimensions 256 mm x 51 mm (10.1 in. x 2.0 in.) L x Dia.
Weight 340 g (12.0 oz.), without batteries
Housing Machined aluminum
Audio Input
Configuration Unbalanced
Maximum Input Level
1 kHz at 1% THD
145 dB SPL (SM58), typical
Note: Dependent on microphone type
Preamplifier Equivalent Input Noise (EIN)
System Gain Setting ≥+20
120 dBV, A-weighted, typical
RF Output
Antenna Type Integrated Single Band Helical
Occupied Bandwidth <200 kHz
Modulation Type Shure Proprietary Digital
Power 1 mW, 10 mW, 20 mW
See Frequency Range and Ouput Power table, varies by region
Microphone Options
ULXD2/SM58 ULXD2 Handheld Transmitter with SM58 Cardioid Microphone
ULXD2/SM86 ULXD2 Handheld Transmitter with SM86 Cardioid Microphone
ULXD2/SM87A ULXD2 Handheld Transmitter with SM87A Supercardioid Microphone
ULXD2/BETA 58 ULXD2 Handheld Transmitter with Beta 58A Supercardioid Microphone
ULXD2/BETA 87A ULXD2 Handheld Transmitter with Beta 87A Supercardioid Microphone
ULXD2/BETA 87C ULXD2 Handheld Transmitter with Beta 87C Cardioid Microphone
Component Specifications
Product Specifications
www.shure.com
The Shure ULXD2 is a handheld wireless transmitter compatible with ULX-D®Digital Wireless Systems. Offering premium 20 Hz – 20 kHz audio quality,
advanced rechargeability options, and a wide selection of interchangeable Shure microphone heads, the ULXD2 delivers uncompromising wireless per-
formance for professional sound reinforcement applications. The ULXD2 is offered with SM58®, SM86, SM87A, Beta 58A®, Beta 87A, and Beta 87C.
• 30 Hz to 20 kHz range with flat frequency response (actual response is microphone dependent)
• Interchangeable Shure microphone cartridges, including the legendary SM58®
• >120 dB dynamic range
• 1, 10, and 20 mW selectable RF output power
• 5 segment battery fuel gauge
• Shure lithium-ion rechargeable battery pack provides up to 12 hours of battery life, precision metering, and zero memory effect
• Up to 11 hours continuous use with 2 x AA batteries
• Backlit LCD with easy to navigate menu and controls
• 100 meter (300 ft) operating range
• Rugged metal construction
• Frequency and power lockout
Overview
ULXD2
Wireless Handheld Transmitter
on
ULXD2

ULXD1 Wireless Bodypack Transmitter
Microphone Options (see catalog for more)
Component Specifications
Product Specifications
The ULXD1 is a wireless bodypack transmitter compatible with ULX-D®Digital Systems. With a rugged yet lightweight aluminum case, the ULXD1
delivers uncompromising audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for
professional sound reinforcement applications.
• 20 Hz to 20 kHz range with flat frequency response (actual response is microphone dependent)
• AES 256-bit encryption-enabled for applications where secure transmission is needed
• Interchangeable Shure microphone cartridges, including the legendary SM58®
• >120 dB dynamic range
• 1, 10, and 20 mW selectable RF output power
• 5 segment battery fuel gauge
• Shure lithium-ion rechargeable battery pack provides up to 12 hours of battery life, precision metering, and zero memory effect
• Up to 11 hours continuous use with 2 x AA batteries
• Backlit LCD with easy to navigate menu and controls
• 100 meter (300 ft) operating range
• Rugged metal construction
• Frequency and power lockout
Overview
WL93 WL93 condenser capsule, omnidirectional lavalier mic
WL183 WL183 condenser capsule, omnidirectional lavalier mic
WL184 WL184 condenser capsule, supercardioid lavalier mic
WL185 WL185 condenser capsule, cardioid lavalier mic
WL50 WL50 condenser capsule, omnidirectional lavalier mic
WL51 WL51 condenser capsule, cardioid lavalier mic
WH30 WH30 condenser capsule, cardioid headworn mic
WCM16 WCM16 condenser capsule, hypercardioid headworn mic
WBH53 WBH53 condenser capsule, omnidirectional headworn mic
WBH54 WBH54 condenser capsule, supercardioid headworn mic
WB98H/C WB98H/C condenser capsule, cardioid instrument clip mic
Gain Offset Range 0 to 21 dB (in 3 dB steps)
Battery Type Shure SB900 Rechargeable Li-Ion or AA batteries
Battery Runtime
@ 10 mW
Shure SB900: >11 hours
Alkaline: 11 hours
Dimensions 86 mm x 66 mm x 23 mm (3.4 in. x 2.6 in. x 0.9 in.) H x W x D
Weight 142 g (5.0 oz.), without batteries
Housing Cast aluminum
Audio Input
Connector 4-Pin male mini connector (TA4M)
Configuration Unbalanced
Impedance 1 MΩ
Maximum Input Level
1 kHz at 1% THD
Pad Off: 8.5 dBV (7.5 Vpp)
Pad On: 20.5 dBV (30 Vpp)
Preamplifier Equivalent Input Noise (EIN)
System Gain Setting ≥+20
120 dBV, A-weighted, typical
RF Output
Connector SMA
Antenna Type 1/4 wave
Impedance 50 Ω
Occupied Bandwidth <200 kHz
Modulation Type Shure Proprietary Digital
Power 1 mW, 10 mW, 20 mW
See Frequency Range and Ouput Power table, varies by region
ULXD1
Wireless Bodypack Transmitter
ULXD1
www.shure.com
Asia, Pacific:
Shure Asia Limited
22/F, 625 King’s Road
North Point, Island East
Hong Kong
Phone: [phone]
Fax: [phone]
Email: [email protected]
United States, Canada,
Latin America, Caribbean:
Shure Incorporated
5800 West Touhy Avenue
Niles, IL 60714-4608 USA
Phone: [phone]
Fax: [phone] (USA)
Fax: [phone]
Email: [email protected]
©2013 Shure Incorporated
Europe, Middle East, Africa:
Shure Europe GmbH
Jakob-Dieffenbacher-Str. 12,
75031 Eppingen, Germany
Phone: [phone]
Fax: [phone]
Email: [email protected]
Shure Scandinavia A/S:
Vestre Teglgade 12
DK-2450 Copenhagen SV
Denmark
Phone: [phone]
Fax: [phone]
www.dis.cc
