Shure ULX Wireless System User manual

©2011 Shure Incorporated
27A15788 (Rev. 1)
ULX Wireless System
Shure ULX Wireless
ULX sans fil de Shure
Sistema inalámbrico ULX de Shure
Sistema ULX Sem Fio da Shure

2
Shure ULX Wireless
ULX System Components
FULL RACK MOUNT HARDWARE
UA507
1/2 RACK MOUNT HARDWARE
UA506
WA302
ULXP4 receivers include rack-mounting hardware.Guitar systems include a 1/4” to mini 4-pin cable.
SM58, SM86, SM87A,
Beta 58, Beta 87C
WH30, WCM16, WBH53/54
WL93, WL183/184/185,
WL50/51
WB98H/C
Handheld systems include
a choice of interchangeable
microphone heads.
Bodypack systems include a choice of lavalier,
headworn, or instrument microphones.
All systems include either a ULXS4
Standard Diversity Receiver or ULXP4
Professional Diversity Receiver.
ULXP4, ULXS4
Antennas
Active Antennas
The antenna connectors on the ULX receiver provide 12 Vdc for active circuit antennas.
Caution: Use only Shure antenna accessories to ensure the best operation. Do not use split-
ters, combiners, or antennas that provide a DC ground, as this can cause the receiver to func-
tion improperly.

3
ULXP4 DUAL
ULXP4 6 mm (1/4”)
1 x UA506
1 x UA600
2 x UA820
1 x UA440
1 x UA507
4 x UA820
1 x UA844
1 x UA507
4 x UA506
1 x UA844
2 x UA507
Rack Installation Rackmount Options
The following shows rackmounting options for one to four receivers and
lists the required accessories.
FRONT MOUNT ANTENNA KIT
UA600
COAXIAL CABLES
UA802
UA806
UA825
UA850
UA100
UA830
UA870
FOR LONG ANTENNA CABLE RUNS
UA870
UA844
DISTRIBUTION AMPLIFIER
ANTENNA RACK MOUNT KIT
UA440
Antenna Combiners and Accessories
The supplied antennas can be connected directly to the BNC-type ANTENNA connectors. However, optional antenna mounting accessories from Shure
can improve reception and reduce rack clutter. Use the following guidelines:
• Antennas and receivers must be from the same band.
• Mount antennas more than 40 cm (16 inches) apart.
• Use Shure UA825 or UA850 low-loss coaxial antenna cable (or any 50 ohm, low-loss cable such as RG-8U).
Visit www.shure.com for more information on wireless antenna accessories.
UA600
Coaxial Cables
Inline Antenna Amplier
for long antenna cable runs
Antenna Rack Mount Kit
Distribution Amplier
combines antennas and power supplies for
multiple receivers
Active Directional Antenna
for more focused reception
1/2-Wave Antenna
included with ULXP4
systems
Front Mount Antenna Kit
UA802
UA806
UA825
UA850
UA100
UA820
UA830
UA440
UA844
UA870

4
ULXP4, ULXS4
ULX1, ULX2 ULX1
ULX2
Hours
ULX1, ULX2 ULXP4, ULXS4
Power
Power Connector
Connect using the supplied AC adapter or certi-
fied 14–18 Vdc (550 mA) replacement supply.
Power switch

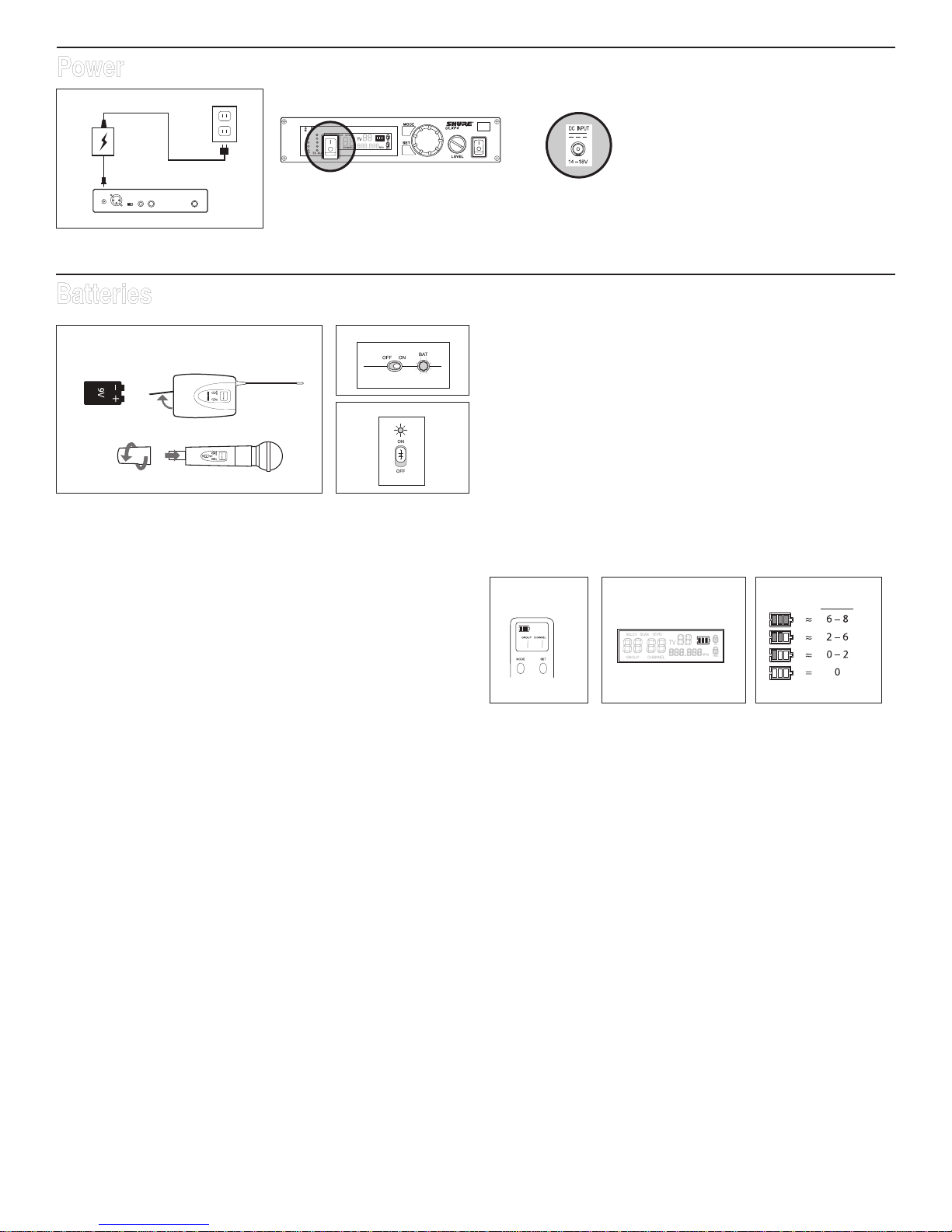

Batteries
Power/Mute Switch
• Turn transmitter off to mute the microphone or conserve battery power.
• Use the lock feature to avoid accidental muting of the microphone
during a performance.
Power Indicator (BAT)
Green: ready
Red: battery power low
NOTE: Remaining battery life varies with battery type.
Battery Indicator
Both the transmitter and receiver LCD shows approximate operation
time remaining for the transmitter.
Battery Life
Use only 9V alkaline or lithium batteries. Typical life for common types of
9V batteries are listed below. For detailed information on battery perfor-
mance, contact Shure Applications Engineering.
Recommended:
• Lithium (16 hours)
• Alkaline (8 hours)
Not recommended:
• Carbon-Zinc (½ hour)
• Rechargeable Ni-Cd (2 hours)
• Rechargeable Ni-MH (2½ hours)
NOTE:
• Battery life varies with type and manufacturer.
• Batteries stored for more than a year or stored in excessively hot
environments may experience a higher failure rate.
• Do not use rechargeable batteries with a fully-charged rating of greater
than 9 V (for example, 9.6 V).
• Transmitters require a minimum of 6 V to operate.

5
1
2ULX1, ULX2
ULXP4, ULXS4
00:00:02
ULXP4
ULX1, ULX2
00:00:02
ULXP4, ULXS4
ULX1, ULX2
ULXP4, ULXS4
Automatic Frequency Scan
Channel Scan
This feature scans for an open channel in the selected group.
Group Scan (ULXP4 only)
The “group scan” feature on the ULXP helps maximize the number of
systems you can install at a single venue. It scans for wireless interfer-
ence and finds the group with the most open channels.
Changing Group and Channel
If you encounter wireless interference, set the receiver and transmitter to
a different channel or group.
Change Channel
Change Group
Note: You can reverse the scroll direction by holding SET and
pressing MODE.
Frequency Master List Mode
Master List mode offers more precise frequency selection for larger,
multiple-system installations.
Enter Master List mode on the receiver or transmitter by holding down the
SET button for 10 seconds. Set GROUP and CHANNEL as you would in
normal mode.
NOTE: The unit must remain in Master List mode to operate at the se-
lected frequency.
Exit Master List mode by holding the SET button for 10 seconds.
Single System
If you encounter wireless interference, perform a channel scan on the re-
ceiver and use the selected channel. You usually do not need to change
the group.
Multiple Systems
To maximize performance, set all wireless systems to different channels
from the same group. These channels are selected to work well together.
Follow these steps when using group and channel scan with multiple
systems.
1. Power off all system transmitters. Turn on all other wireless or digital
devices as they would be during the performance or presentation.
2. On the first receiver: Perform a group scan. Note the selected group,
then use channel scan to find the first open channel in that group.
3. Power on the first transmitter and set it to the selected group and
channel.
4. IMPORTANT: Leave the first transmitter powered on while setting up
the next system.
5. For each additional system: Set to the same group as the first.
Perform a channel scan and set the receiver and transmitter to the
selected channel.
6. Leave each transmitter on while setting up additional systems.
Note:
• Keep each transmitter at least two meters (6 feet) apart.
• If using systems from different bands, set up all systems from the same
band together.
Tip: To reduce setup time, you can manually set up the group and chan-
nels before arriving at the venue. Visit www.shure.com for a list of groups
and channels that are anticipated to be free of interference in a particular
city or region.

6
ULXP4 ULXS4
ULXP4 ULXS4
ULXP4, ULXS4
ULXP4
ULXP4
ULXP4, ULXS4
ULXP4
LEVEL
Wireless Indicators
RF Indicator
Indicates wireless activity over the selected
channel.
Note: When the antenna and battery indica-
tors are illuminated, the RF indicator shows
signal strength from the transmitter. Otherwise,
it is showing interference from another source.
Select a different channel.
Antenna Indicator
This indicator shows which an-
tenna is receiving the strongest
signal from the transmitter.
TV
For models sold in the United States only.
Displays the TV channel occupied by the
selected frequency.
Frequency Display
Squelch
The factory setting offers the optimum performance for most installations.
Increasing squelch filters out all but the highest quality signal, but this decreases operating range. Decreasing squelch
extends the operating range, but can increase signal noise.
Audio Output
Audio Output Connectors
Balanced XLR: Connect to a mixer or other professional
audio input. Use the MIC/LINE switch to adjust for micro-
phone or line-level inputs.
Unbalanced 6.35 mm (1/4”): Connect to high impedance
inputs, such as a guitar amplifier.
NOTE: The LINE/MIC switch does not affect the 6.35 mm
(1/4”) jack.
Receiver Output Level
Adjusts the level of the receiver’s audio outputs.

7
ULX1 ULX2
ULX1, ULX2
ULXP4
ULXP4
ULX1, ULX2
ULX1, ULX2
ULX1
ULX2
ULX1
ULX2
Locking/Unlocking Frequency
ULX1
ULX2
Locking/Unlocking Frequency
00:00:04

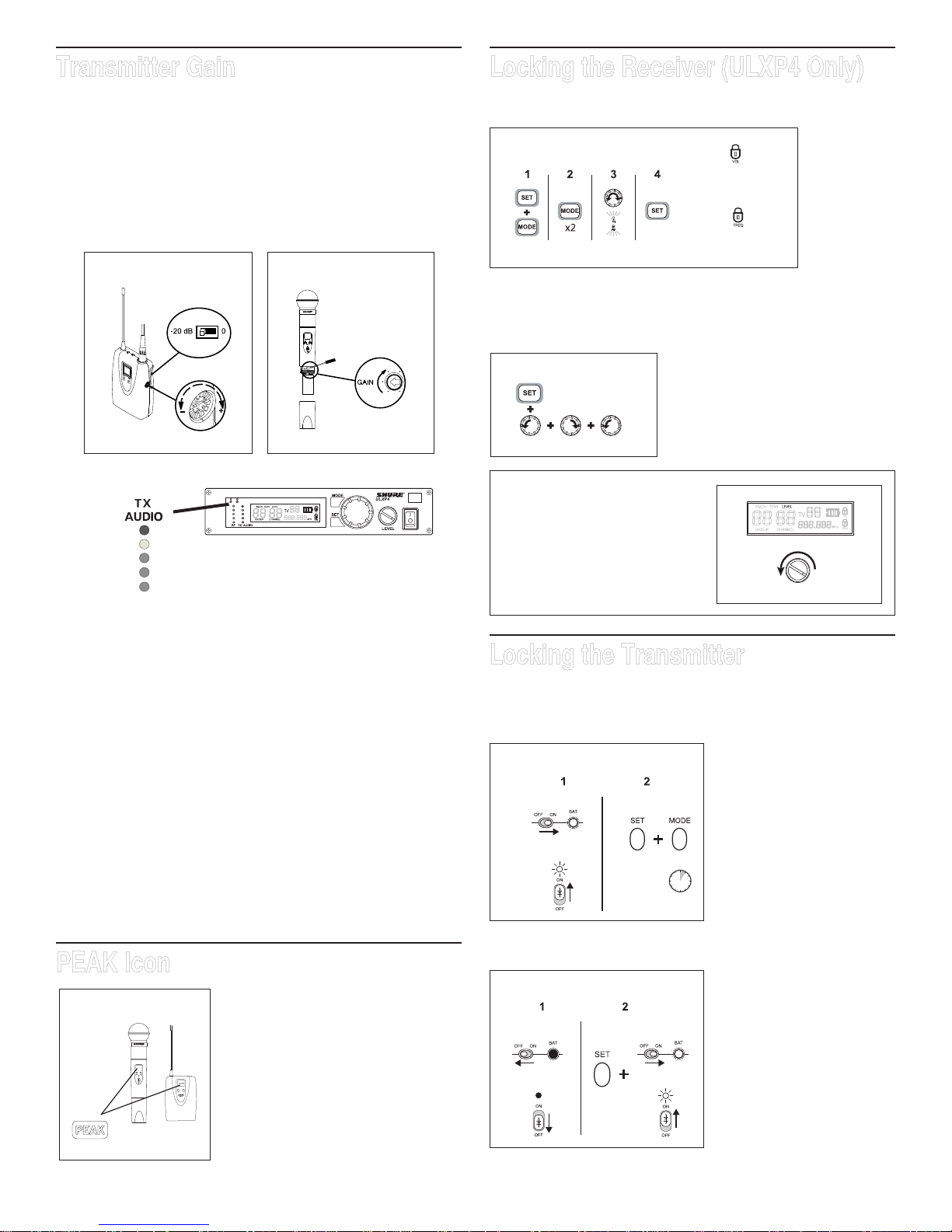

Transmitter Gain
For best audio quality, adjust transmitter gain so only the green and yel-
low TX AUDIO LEDs flicker. (Occasional illumination of the red LED is
okay.)
Green=nominal
Yellow=peak
Red=overload
ULX1
1. Set the attenuator (pad) switch to 0 dB for microphones and –20 dB for
guitars. (Some low output instruments may not need attenuation.)
2. Adjust gain control as necessary.
ULX2
• Fully clockwise for quiet to normal vocal performance.
• Halfway counterclockwise for loud vocal performance.
• Fully counterclockwise for horn or percussive instruments.
Audio Input Meter
PEAK Icon
This icon appears when the input signal
overloads the transmitter. The icon is dis-
played for 2 seconds after input overload
is detected.
Locking the Receiver (ULXP4 Only)
This feature prevents accidental setting changes.
Unlocking
Hold the SET button while turning the
control wheel left, right, left.
lock volume
lock frequency
Note: If LEVEL flashes on the
LCD, decrease the LEVEL control
to continue.
Locking the Transmitter
Lock Frequency
Lock Power (On)

8
500Ω
500Ω
4kΩ
+5V
AUDIO
4-PIN MINI CONNECTOR
TA4F
TA4F
TIP
SLEEVE
TA4M
INSTRUMENT CABLE
CONDENSER MICROPHONE BODYPACK TRANSMITTER
GROUND
AUDIO
SHIELD
300kΩ
100kΩ
1kΩ 4.7 µf
27 pf
27 pf

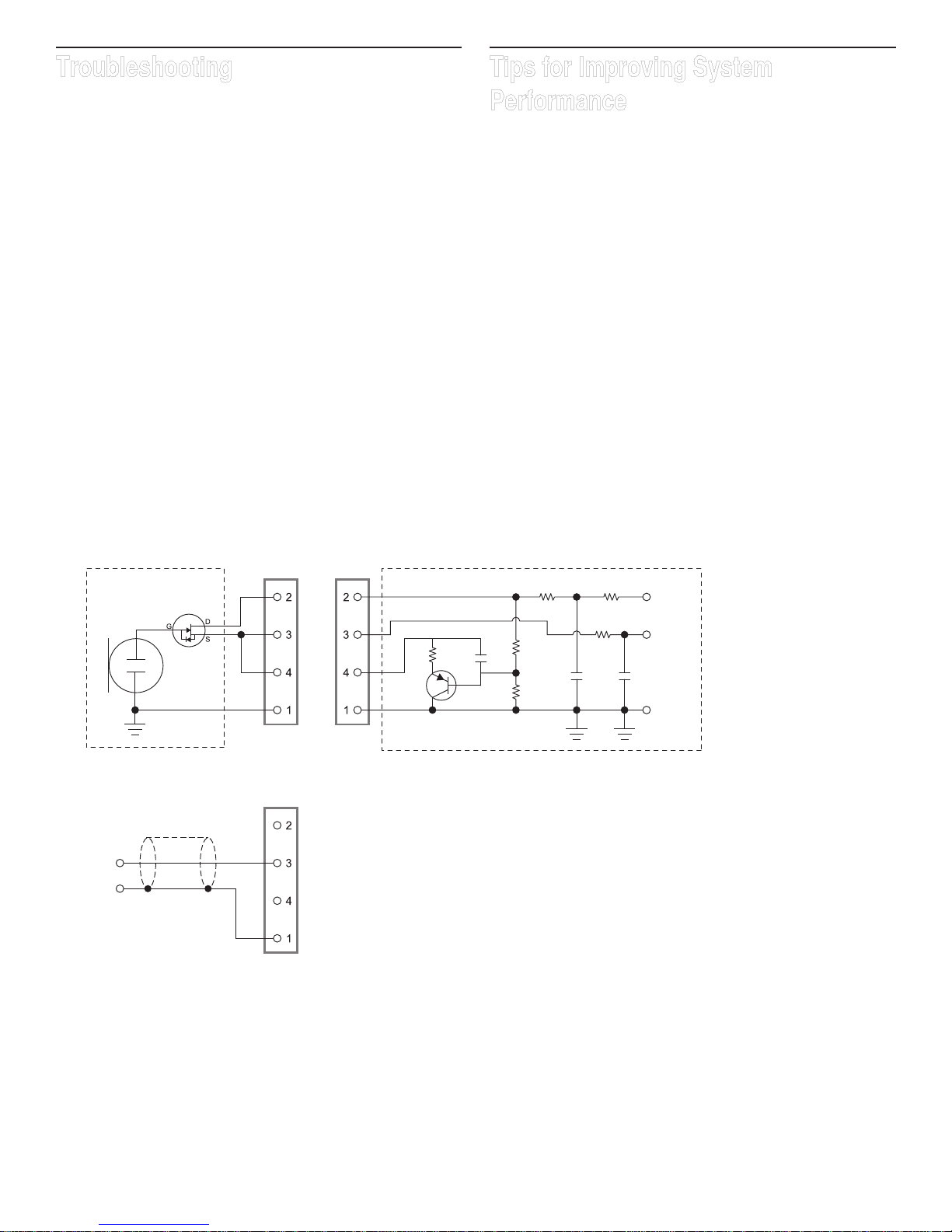

Troubleshooting
No power: Check battery and power supply connections and voltage.
Check the power switch on the transmitter.
The LCD displays “E0 00” or similar code: Exit master list mode by
holding the SET button for ten seconds.
Can’t turn off or change settings on the transmitter or receiver: The
interface is locked. See the section on locking the interface.
No audio: If the antenna and battery indicators do not appear on the re-
ceiver, then it is not receiving a signal from the transmitter. Make sure the
transmitter and receiver are tuned to the same group and channel.
Faint or distorted audio: Adjust transmitter gain, bodypack attenuator
switch, and receiver output level.
Noise: Noise usually results from wireless interference or a weak signal
from the transmitter. See Tips for Improving System Performance.
Tips for Improving System
Performance
If you encounter wireless interference or drop outs, try the following:
• Replace the transmitter battery with a fresh alkaline battery (avoid
rechargeable batteries).
• Choose a different frequency channel.
• Reposition the antennas so there is nothing obstructing a line of sight
to the transmitter (including the audience).
• Avoid placing transmitter and receiver where metal or other dense
materials may be present.
• Move the receiver to the top of the equipment rack (or remote mount
antennas outside the rack).
• Remove nearby sources of wireless interference, such as cell
phones, two-way radios, computers, media players, and digital signal
processors.
• Keep transmitters more then two meters (6 feet) apart.
• Keep the transmitter and receiver more than 5 meters (15 ft) apart.
• Point the receiver antenna tips away from each other at a 45° angle,
and keep them away from large metal objects.
• During sound check, mark “trouble spots” and ask presenters or
performers to avoid those areas.

9
ULXS4, ULXP4
Dimensions ULXS4: 43 x 214 x 163 mm (1.72
x 8.56 x 6.52 in.), H x
W x D
ULXP4: 43 x 214 x 172 mm (1.72
x 8.56 x 6.88 in.), H x
W x D
Weight ULXS4: 1049 g (2 lbs, 5 oz.)
ULXP4: 1105 g (2 lbs, 7 oz.)
Power Requirements 14–18 V DC (negative ground), 550 mA
Audio Output
Configuration XLR Output: Active Balanced
6.35 mm (1/4”)
output: Unbalanced
Impedance XLR Output: MIC setting: 1848Ω
LINE setting: 75Ω
6.35 mm (1/4”)
output: 3kΩ
Maximum Audio Output Level
Ref. ±38 kHz deviation with 1 kHz
tone
XLR connector
(into 600 Ω load):
MIC setting: −17dBV
LINE setting: +3.9 dBV
6.35 mm (1/4”)
connector (into
3 kΩ load):
−2dBV
Pin Assignments XLR Output: 1=ground, 2=hot, 3=cold
6.35 mm (1/4”)
connector: Tip=audio, Ring/Sleeve=ground
Receiver Antenna Input
Connector Type BNC
Impedance 50Ω
Nominal Input Level −95to−30dBm
Maximum Input Level −20dBm
DC bias 12 V DC, 150 mA, maximum
Transmitter Input
Configuration Unbalanced, active
Impedance 20kΩ
Maximum Input Level
1 kHz at 1% THD 12 dBV (10 Vp-p)
Transmitter Input
Connector 4-Pin male mini connector (TA4M)
Configuration Unbalanced, active
Impedance Microphone: 75kΩ
WA302: 1MΩ
Maximum Input Level
1 kHz at 1% THD
Microphone: −4dBV(1.82Vp-p)
WA302: PAD OFF (0dB): 5 dBV (5
Vp-p)
PAD ON
(−20dB):
25 dBV (50
Vp-p)
Pin Assignments
TA4M
1: ground (cable shield)
2: + 5 V Bias
3: audio
4: Tied through active load to ground (On instrument
adapter cable, pin 4 floats)
ULX2
Gain Adjustment Range 20 dB
Dimensions SM58: 229 x 51 mm (9 x 2 in.),
L x Dia.
BETA 58: 221 x 51 mm (8.7 x 2 in.),
L x Dia.
SM86: 213 x 49 mm mm (8.4 x
1.9 in.), L x Dia.
SM87/BETA 87: 223 x 51 mm (8.8 x 2 in.),
L x Dia.
Weight SM58/BETA 58: 289 g (10.2 oz.) without
batteries
SM86: 251 g (8.8 oz.) without
batteries
SM87/BETA 87: 258 g (9.1 oz.) without
batteries
Power Requirements 9 V alkaline
RF Output Power 30 mW maximum
varies by region
ULX1
Gain Adjustment Range 25 dB
Attenuation Switch 0,−20dB
Dimensions 96.5 x 67 x 26.7 mm (3.86 x 2.68 x 1.10
in.), H x W x D
Weight 79 g (2.8 oz.) without batteries
Power Requirements 9 V alkaline
Input Impedance 1MΩ
RF Output Power 30 mW maximum
varies by region
SPECIFICATIONS
RF Carrier Range 470,000–865,000 MHz
varies by region
Working Range 100 m (300 ft) typical
Note: Actual range depends on RF signal
absorption, reflection and interference.
Audio Frequency Response 25–15 kHz, ±2 dB
Note: Dependent on microphone type
Modulation ±38 kHz deviation compressor-expander
system with pre- and de-emphasis
Dynamic Range >100 dB, A-weighted
Image Rejection 80 dB, typical
RF Sensitivity 1.26 µV for 12 dB SINAD, typical
Spurious Rejection 75 dB, typical
Ultimate Quieting
Ref. ±38 kHz deviation with 1 kHz
tone
>105 dB, A-Weighted
Total Harmonic Distortion
Ref. ±38 kHz deviation with 1 kHz
tone
0.3%, typical
Operating Temperature Range -20°C (-4°F) to 49°C (120°F)
Note: Battery characteristics may limit
this range.
Polarity Positive pressure on microphone dia-
phragm (or positive voltage applied to tip
of WA302 phone plug) produces positive
voltage on pin 2 (with respect to pin 3 of
low-impedance output) and the tip of the
high impedance 1/4-inch output.
Battery Life 8 to 9 hours (9 V alkaline)

10
ULX1, ULX2, ULXS4, ULXP4
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003
du Canada.
Meets requirements of EMC standards EN 300 422 Parts 1 and 2 and EN
301 489 Parts 1 and 9.
Meets essential requirements of European R&TTE Directive 99/5/EC,
eligible to bear the CE mark.
ULX1, ULX2
Certified under FCC Part 74. (FCC ID: DD4ULX1, DD4ULX2,
DD4ULX1G3, DD4ULX2G3). Certified by IC in Canada under RSS-123
and RSS-102. (IC: 616A-ULX1, 616A-ULX2).
ULXS4, ULXP4
Approved under the Declaration of Conformity (DoC) provision of FCC
Part 15. Certified in Canada by IC to RSS-123. (IC: 616A-ULX4).
Conforms to European Regulation (EC) No. 1275/2008, as amended.
Operation of this device is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation
of the device.
The CE Declaration of Conformity can be obtained from Shure
Incorporated or any of its European representatives. For contact informa-
tion please visit www.shure.com
The CE Declaration of Conformity can be obtained from: www.shure.com/
europe/compliance
Authorized European representative:
Shure Europe GmbH
Headquarters Europe, Middle East & Africa
Department: EMEA Approval
Wannenacker Str. 28
D-74078 Heilbronn, Germany
Phone: [phone]
Fax: [phone]
Email: [email protected]
LICENSING INFORMATION
Licensing: A ministerial license to operate this equipment may be re-
quired in certain areas. Consult your national authority for possible
requirements. Changes or modifications not expressly approved by
Shure Incorporated could void your authority to operate the equipment.
Licensing of Shure wireless microphone equipment is the user’s respon-
sibility, and licensability depends on the user’s classification and applica-
tion, and on the selected frequency. Shure strongly urges the user to
contact the appropriate telecommunications authority concerning proper
licensing, and before choosing and ordering frequencies.
Information to the user
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Note: EMC conformance testing is based on the use of supplied and rec-
ommended cable types. The use of other cable types may degrade EMC
performance.
Changes or modifications not expressly approved by the manufac-
turer could void the user’s authority to operate the equipment.
WARNING: Dispose of properly. Check with local vendor for
proper disposal of used battery and electronics.
CERTIFICATION

11
Furnished Accessories
Microphone Stand Adapter (ULX2) WA371
Grip/Switch Cover (ULX2) WA555
Zipper Bag (ULX1) 95A2313
Zipper Bag (ULX2) 95B2313
Screwdriver (ULX2) 80A498
Optional Accessories
Passive Antenna Splitter/Combiner Kit UA221
UHF Line Amplifier UA830WB
UHF Powered Directional Antenna UA870WB
UHF Antenna Power Distribution Amplifier (U.S.A.) UA844SWB
UHF Antenna Power Distribution Amplifier (Europe)
UHF Antenna Power Distribution Amplifier (UK) UA844SWB-UK
33 m (100 ft.) BNC–BNC cable UA8100
1.8 m (6 ft.) BNC–BNC cable UA806
Antenna Rack Panel UA440
Front Mount Antenna Kit (Includes 2 cables and 2 bulk-
head adapters) UA600
Remote Antenna Bracket with BNC Bulkhead Adapter UA505
Front Mount Antenna Kit (Includes 2 cables and 2 bulk-
head adapters) UA506
Rack Mount Kit for Two Receivers UA507
Carrying Case WA610
Microphone Adapter Cable (XLR) WA310
Replacement Parts
AC Adapter (120 VAC, 60 Hz) PS41
AC Adapter (220 VAC, 50 Hz) PS41AR
AC Adapter (230 VAC, 50/60 Hz) PS41AZ
AC Adapter (230 VAC, 50/60 Hz, Europlug) PS41E
AC Adapter (230 VAC, 50/60 Hz) PS41UK
AC Adapter (100 VAC, 50/60 Hz) PS41J
SM58®Cartridge with Grille (ULX2/58) RPW112
BETA 58A®Cartridge with Grille (ULX2/ BETA 58) RPW118
SM86 Cartridge with Grille (ULX2/SM86) RPW114
SM87A Cartridge with Grille (ULX2/87) RPW116
BETA 87A Cartridge with Grille (ULX2/BETA 87A) RPW120
BETA 87C Cartridge with Grille (ULX2/BETA 87C TM) RPW122
Matte Silver Grille for SM58®RK143G
Matte Silver Grille for SM86 RPM226
Matte Silver Grille for BETA 58A®RK265G
Matte Silver Grille for BETA 87A RK312
Black Grille for SM87A RK214G
Black Grille for BETA 58A RPM323G
Black Grille for BETA 87A and BETA 87C RPM324G
Belt Clip 44A8013A
1/4-Wave Antenna (470 - 752 MHz) UA400B
1/4-Wave Antenna (774 - 952 MHz) UA400
1/2-Wave Antenna (774 - 862 MHz) UA820A
1/2-Wave Antenna (638 - 698 MHz) UA820L3
1/2-Wave Antenna (554 - 590 MHz) UA820D
1/2-Wave Antenna (740 - 814 MHz) UA820Q
1/2-Wave Antenna (470 - 530 MHz) UA820G
1/2-Wave Antenna (746 - 784 MHz) UA820E
1/2-Wave Antenna (572 - 596 MHz) UA820F
1/2-Wave Antenna (578 - 638 MHz) UA820J
Accessories and Parts

ULX FREQUENCIES FOR EUROPEAN COUNTRIES
ULX-G3E 470 - 506 MHz, max. 30 mW
Country Code Frequency Range
Code de Pays Gamme de frequences
Codice di paese Gamme di frequenza
Código de país Gama de frequencias
Länder-Kürzel Frequenzbereich
A, B, BG, CH, CY, CZ, D, EST 470 - 506 MHz *
F, GB, GR, H, I, IS, L, LT 470 - 506 MHz *
NL, P, PL, S, SK, SLO 470 - 506 MHz *
DK, FIN, M, N *
HR, E, IRL, LV, RO, TR *
all other countries *
ULX-K2E 606 - 642 MHz, max. 10 mW
Country Code Frequency Range
Code de Pays Gamme de frequences
Codice di paese Gamme di frequenza
Código de país Gama de frequencias
Länder-Kürzel Frequenzbereich
A, BG, CH, CY, CZ, D, EST 606 - 642 MHz *
F, GB, GR, H, I, IS, L, LT 606 - 642 MHz *
P, PL, S, SK, SLO 606 - 642 MHz *
B, DK, FIN, M, N, NL *
HR, E, IRL, LV, RO, TR *
all other countries *
ULX J2 554–590 MHz max. 30 mW
Country Code: Frequency Range
Code de Pays: Gamme de frequences
Codice di paese: Gamme di frequenza
Código de país: Gama de frequencias
Länder-Kürzel: Frequenzbereich
A, B, CH, D, E, F, GB 554–590 MHz *
GR, I, IRL, L, NL, P 554–590 MHz *
DK, FIN, N, S *
All other Countries *
ULX M2 662–698 MHz max. 30 mW
Country Code: Frequency Range
Code de Pays: Gamme de frequences
Codice di paese: Gamme di frequenza
Código de país: Gama de frequencias
Länder-Kürzel: Frequenzbereich
A, B, CH, D, E, F, GB 662–698 MHz *
GR, I, IRL, L, NL, P 662–698 MHz *
DK, FIN, N, S *
All other Countries *
ULX R4 784–820 MHz max. 30 mW
Country Code: Frequency Range
Code de Pays: Gamme de frequences
Codice di paese: Gamme di frequenza
Código de país: Gama de frequencias
Länder-Kürzel: Frequenzbereich
A, B, CH, D, E, F, GB 784–820 MHz *
GR, I, IRL, L, NL, P 784–820 MHz *
DK, N 800-820 MHz *
FIN 800.1–819.9 MHz *
S 800–814 MHz *
I, GB, All other Countries *
ULX S3 829–865 MHz max. 10 mW
Country Code: Frequency Range
Code de Pays: Gamme de frequences
Codice di paese: Gamme di frequenza
Código de país: Gama de frequencias
Länder-Kürzel: Frequenzbereich
A, B, CH, D, E 829–865 MHz *
GR, IRL, L, NL, P 838–862 MHz *
GB 830-865 MHz*
DK, F, FIN, I, N, S 863–865 MHz*
All other Countries *
ULX Q2 748–784 MHz max. 30 mW
Country Code: Frequency Range
Code de Pays: Gamme de frequences
Codice di paese: Gamme di frequenza
Código de país: Gama de frequencias
Länder-Kürzel: Frequenzbereich
A, B, CH, D, E, F, GB 748–784 MHz *
GR, I, IRL, L, NL, P 748–784 MHz *
DK, FIN, N, S *
All other Countries *

ULX SYSTEM COMPATIBILITY GUIDE FOR FREQUENCY BAND G3E (470–506 MHz)
Channel
Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7
Full Range
max. # of compatible
frequencies
(option 1)
Full Range
max. # of compatible
frequencies
(option 2)
Full Range
max. # of compatible
frequencies
(option 3)
France
preferred:
User Group A
(option 1)
France
preferred:
User Group A
(option 2)
France
preferred:
User Group A
(option 3)
France
preferred:
User Group B
(option 1)
1470.775 470.250 470.450 470.750 471.500 470.750 472.025
2471.525 471.950 473.575 471.500 472.500 471.750 472.775
3473.350 473.300 474.125 472.500 473.750 472.500 474.225
4474.875 474.175 475.150 473.250 474.500 474.500 474.975
5476.150 475.700 476.450 473.750 475.500 475.750 476.900
6476.850 476.875 476.975 474.500 476.250 476.250 477.700
7477.775 478.875 479.025 475.500 480.500 478.750 480.025
8480.000 479.950 480.725 479.750 481.250 479.250 480.775
9481.250 481.525 482.150 483.250 481.750 480.500 486.100
10 481.900 482.300 483.275 484.250 483.250 482.500 490.225
11 483.400 483.925 484.175 487.250 483.750 483.250 490.975
12 484.300 485.025 485.600 487.750 486.750 483.750 492.900
13 488.250 486.850 488.575 489.250 487.750 487.500 493.700
14 490.175 491.925 489.875 489.750 489.250 489.750 496.775
15 491.500 492.425 493.425 490.500 490.500 491.500 498.225
16 494.250 494.000 494.450 491.500 491.500 495.250 498.975
17 495.025 495.125 495.250 495.500 495.750 496.500 500.900
18 495.550 497.225 496.725 496.500 496.500 497.250 501.700
19 497.600 498.575 497.300 497.250 498.500 498.500 504.025
20 499.350 500.175 499.650 498.500 499.500 499.500 504.775
21 500.575 500.700 501.675 499.250 500.250 502.750
22 501.325 503.675 502.325 500.250 502.750 503.500
23 502.300 504.400 504.275 502.750 503.500 504.500
24 504.725 505.450 505.300 504.500 505.750 505.250
Channel
Group 8 Group 9 Group 10 Group 11 Group 12 Group 13 Group 14 Group 15 Group 16
France
preferred:
User Group B
(option 2)
France
preferred:
User Group B
(option 3)
France
preferred:
User Group C
(option 1)
France
preferred:
User Group C
(option 2)
France
preferred:
User Group C
(option 3)
European TV
channel 21
optimized
470 - 478 MHz
European TV
channel 22
optimized
478 - 486 MHz
European TV
channel 23
optimized
486 - 494 MHz
European TV
channel 24
optimized
494 - 502 MHz
1470.500 472.025 470.300 470.300 470.300 470.300 478.300 486.300 494.300
2472.025 473.500 471.000 471.000 471.000 471.025 479.025 487.025 495.025
3472.775 477.300 472.225 474.025 472.225 471.525 479.525 487.525 495.525
4474.225 478.100 474.775 474.775 474.775 472.275 480.275 488.275 496.275
5477.300 480.025 476.000 476.000 476.000 473.275 481.275 489.275 497.275
6478.500 480.775 476.700 476.700 476.700 473.875 481.875 489.875 497.875
7480.025 482.225 478.300 478.300 478.300 474.775 482.775 490.775 498.775
8480.775 482.975 479.000 479.000 479.000 475.250 483.250 491.250 499.250
9482.225 484.900 480.225 480.225 480.225 475.975 483.975 491.975 499.975
10 485.300 485.700 482.775 484.700 484.000 476.950 484.950 492.950 500.950
11 492.900 490.225 484.000 490.775 484.700 477.675 485.675 493.675 501.675
12 493.700 492.900 492.700 492.000 490.775
13 496.775 493.700 494.300 494.300 494.300
14 498.225 496.025 495.000 495.000 495.000
15 498.975 496.775 496.225 496.225 496.225
16 500.900 501.300 498.775 498.775 498.775
17 502.500 502.100 500.000 500.000 500.000
18 504.775 504.025 500.700 500.700 500.700
18 505.500 505.500 502.300 502.300 502.300
20 503.000 503.000 503.000
21 504.225 504.225 504.225

ULX SYSTEM COMPATIBILITY GUIDE FOR FREQUENCY BAND K2E (606-642 MHz)
Channel
Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7 Group 8 Group 9
Full Range
max. # of
compatible
frequencies
(option 1)
Full Range
max. # of
compatible
frequencies
(option 2)
Full Range
max. # of
compatible
frequencies
(option 3)
Full Range
max. # of
compatible
frequencies,
Ch. 38 excluded
(option 1)
Full Range
max. # of
compatible
frequencies,
Ch. 38 excluded
(option 2)
Full Range
max. # of
compatible
frequencies,
Ch. 38 excluded
(option 3)
U.K. preferred:
TV ch. 38
606-614 MHz
with 500 kHz
guard band
(option 1)
U.K. preferred:
TV ch. 38
606-614 MHz
with 500 kHz
guard band
(option 2)
U.K. preferred:
TV ch. 38
606-614 MHz
with 500 kHz
guard band
(option 3)
1606.450 606.800 606.150 614.200 614.125 614.225 606.775 606.650 606.500
2607.250 608.300 607.350 614.950 615.200 615.175 607.300 607.625 607.150
3608.725 608.925 607.825 615.450 615.925 615.875 608.325 608.375 608.025
4609.900 610.375 608.775 616.950 617.125 616.350 609.100 608.850 608.525
5611.325 611.525 612.875 617.575 618.050 617.275 609.600 609.725 609.300
6611.825 612.175 613.350 619.925 619.875 618.950 610.500 610.350 610.325
7613.075 613.450 615.300 620.675 620.425 620.100 611.125 611.325 610.975
8615.150 614.400 616.150 621.175 621.375 621.025 612.175 612.075 611.875
9615.725 615.000 616.700 623.375 623.500 622.475 612.925 612.575 612.350
10 616.950 615.825 617.475 624.125 626.125 623.375 613.450 613.400 613.075
11 617.875 616.900 620.275 628.950 628.125 625.325
12 619.350 619.150 621.375 630.400 629.425 631.275
13 621.200 628.325 624.175 632.175 630.350 632.275
14 626.425 628.875 628.550 633.025 631.500 632.775
15 628.100 630.525 629.125 633.525 633.875 633.950
16 631.900 631.125 630.500 635.150 635.600 634.550
17 632.750 635.400 633.700 636.150 636.600 635.950
18 634.300 636.375 634.700 637.725 637.900 637.600
19 635.425 636.850 636.325 638.550 638.750 638.325
20 636.250 637.800 637.625 639.025 639.925 639.850
21 638.625 638.975 638.525 640.575 640.550 640.950
22 639.525 639.450 639.175 641.650 641.400 641.750
23 640.150 640.575 640.050
24 641.300 641.325 641.250
Channel
Group 10 Group 11 Group 12 Group 13 Group 14 Group 15 Group 16 Group 17 Group 18
France
preferred:
User Group A
(option 1)
614 - 642 MHz
France
preferred:
User Group A
(option 2)
614 - 642 MHz
France
preferred:
User Group B
(option 1)
614 - 642 MHz
France
preferred:
User Group B
(option 2)
614 - 642 MHz
France
preferred:
User Group C
(option 1)
614 - 642 MHz
France
preferred:
User Group C
(option 1)
614 - 642 MHz
European TV
channel 39
optimized
614 - 622 MHz
European TV
channel 40
optimized
622 - 630 MHz
European TV
channel 41
optimized
630 - 638 MHz
1614.750 614.750 614.500 616.025 614.300 640.975 614.200 622.200 630.200
2615.500 615.250 616.025 616.775 615.000 640.225 614.700 622.700 630.700
3616.500 616.500 616.775 618.225 616.225 637.900 615.750 623.750 631.750
4617.250 617.250 618.225 620.900 618.775 637.100 616.500 624.500 632.500
5617.750 618.500 620.900 621.700 620.000 636.000 617.025 625.025 633.025
6618.500 619.500 621.700 624.025 621.900 632.975 617.900 625.900 633.900
7619.500 620.250 624.025 624.775 623.000 632.225 618.550 626.550 634.550
8622.750 622.750 624.775 628.900 626.775 630.300 619.575 627.575 635.575
9623.750 623.500 629.300 630.500 629.100 629.100 620.375 628.375 636.375
10 625.750 626.500 630.500 634.225 630.300 626.775 620.875 628.875 636.875
11 627.500 627.250 634.225 634.975 632.225 623.000 621.850 629.850 637.850
12 631.500 627.750 636.500 636.500 632.975 621.900
13 632.500 631.500 637.300 637.300 636.000 620.000
14 633.250 632.500 638.500 638.500 637.100 618.775
15 634.500 633.250 640.775 640.775 637.900 616.225
16 635.250 633.750 641.500 641.500 640.225 615.000
17 636.250 635.500 640.975 614.300
18 638.750 636.250
19 639.750 640.500
20 640.500 641.250
21 641.750 641.750
ULX SYSTEM COMPATIBILITY GUIDE FOR FREQUENCY BAND X3 (925-932 MHz)
Channel
Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7 Group 8 Group 9
Full range,
Robust,
7 channels
Full range,
Robust,
7 channels
Full range,
Robust,
7 channels
Full range,
Standard,
8 channels
Full range,
Standard,
8 channels
Full range,
Standard,
8 channels
Full range, Max
frequencies,
9 channels
Full range, Max
frequencies,
9 channels
Full range, Max
frequencies,
9 channels
1925.175 925.150 925.775 925.325 925.450 925.225 925.125 925.275 925.150
2926.325 926.200 926.475 926.125 926.000 926.275 925.850 926.275 926.050
3926.925 927.700 927.550 926.600 927.050 926.950 926.300 926.975 926.625
4927.900 928.625 928.125 927.350 927.825 927.950 927.075 927.925 927.475
5929.750 929.875 930.125 929.700 929.025 928.400 928.600 928.425 928.650
6930.225 930.575 931.025 930.325 929.925 929.250 929.300 929.250 929.375
7931.100 931.725 931.500 931.225 930.525 931.250 929.725 930.325 930.400
8931.775 931.650 931.850 930.400 930.900 930.925
9931.775 931.850 931.700

www.shure.com ©2011 Shure Incorporated
Asia, Pacific:
Shure Asia Limited
22/F, 625 King’s Road
North Point, Island East
Hong Kong
Phone: [phone]
Fax: [phone]
Email: [email protected]
United States, Canada, Latin
America, Caribbean:
Shure Incorporated
5800 West Touhy Avenue
Niles, IL 60714-4608 USA
Phone: [phone]
Fax: [phone] (USA)
Fax: [phone]
Email: [email protected]
Europe, Middle East, Africa:
Shure Europe GmbH
Jakob-Dieffenbacher-Str. 12,
75031 Eppingen, Germany
Phone: [phone]
Fax: [phone]
Email: [email protected]
