Shuttle AI61 User manual

- 69 -
AI61
AMDK7processor
BasedAGP MAINBOARD
User's Manual

M334
AI61
AMD K7 processor based AGPset Mainboard
Manual Version 1.1
Disclaimer
Themanufacturermakesnorepresentationsorwarrantiesregardingthecontentsofthis
manual. Informationin this manual hasbeen carefully checked forreliability; however, no
guarantee is given as to the correctness of the contents. In the interest of continued product
improvement,this company reserves the rightto revise the manual orinclude changes in the
specifications of the product described within it at any time without notice and without obliga-
tion to notify any persion of such revision or changes. The information contained in this
manualisprovidedforgeneral use by the customers.
Trademarks
AMDisaregisteredtrademarksofAMDCorporation.
PS/2isaregisteredtrademarkofIBMCorporation.
AWARDis a registered trademark of Award SoftwareInc.
MicrosoftandWindows are registered trademarksofMicrosoft Corporation.
General Notice:Other brand and productnames used herein are for identification
purposesonly and may betrademarks of their respective owners.

- 1 -
WHAT’SIN THE MANUAL ................................................................4
QuickReference.................................................................................................4
About This Manual..............................................................................................4
Technical Support..............................................................................................4
1INTRODUCTION ............................................................................5
1.1 TO DIFFERENT USERS................................................................................5
FIRST-TIME DIY SYSTEM BUILDER.......................................................5
EXPERIENCED DIY USER.......................................................................5
SYSTEMINTEGRATOR ...........................................................................5
1.2 ITEM CHECKLIST.........................................................................................6
2FEATURES....................................................................................7
2.1 SPECIFICATIONS.........................................................................................7
3HARDWARE INSTALLATION.......................................................10
3.1 STEP BY STEP INSTALLATION................................................................10
Accessories Of AI61 ................................................................................10
STEP 1 Install the CPU ...........................................................................11
STEP 2 Set Jumpers ...............................................................................12
STEP 3 Install SDRAM System Memory.................................................12
STEP 4 Install Internal Peripherals in System Case ...............................13
STEP 5 Mount the Mainboard on the Computer Chassis .......................14
STEP 6 Connect Front Panel Switches/LEDs/Speaker ..........................15
STEP 7 Connect IDE & Floppy Disk Drives ............................................17
STEP 8 Connect Other Internal Peripherals ...........................................17
STEP 9 Connect the Power Supply.........................................................18
STEP 10 Install Add-on Cards in Expansion Slots..................................18
TABLEOFCONTENTS

- 2 -
STEP 11 Connect External Peripherals to Back Panel...........................19
STEP 12 First Time System Boot Up ......................................................20
STEP 13 Install Drivers & Software Components...................................21
3.2 JUMPER SETTINGS...................................................................................22

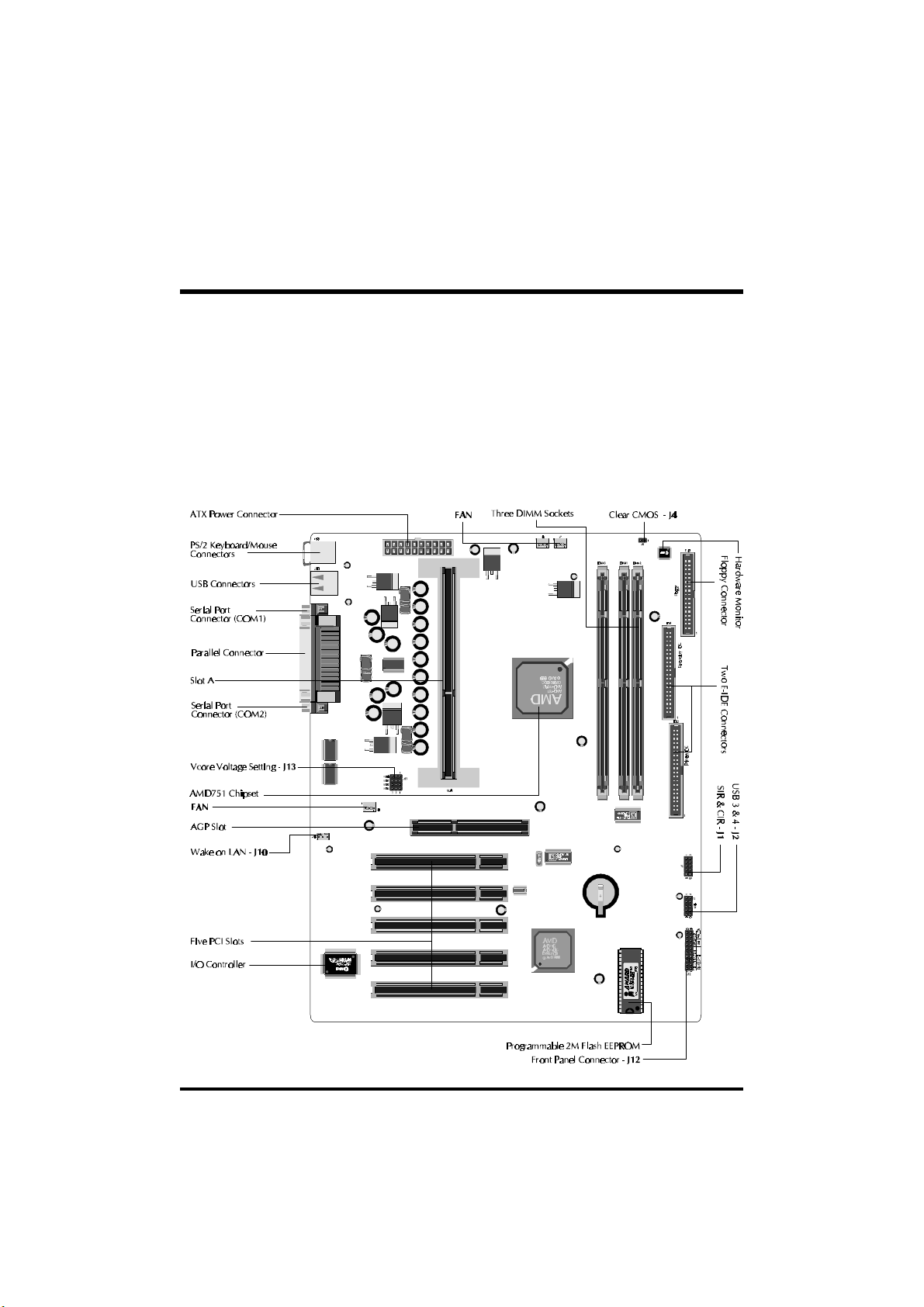

Jumpers & Connectors Guide .................................................................23
Clear CMOS (J4) .....................................................................................25
Vcore Voltage Setting (J13).....................................................................25
PS/2 Keyboard & PS/2 Mouse Connectors.............................................26
USB1 / USB2 Port Connectors................................................................26
COM1 / COM2 Connector .......................................................................26
Parallel Port Connector............................................................................26
ATX Power On/Off Switch Connector (PW_ON).....................................27
SMI Connector (SMI)...............................................................................27
HDD LED Connector (H_LED) ................................................................28
PWR LED / Green LED Connector (P_LED)...........................................28
Speaker Connector (SPEAKER) .............................................................28
Keylock Connector (KLOCK)...................................................................28
Hardware Reset Connector (RST) ..........................................................29
Front Panel USB Connector Heaker (J2)................................................29
Enhanced IDE Ports and Floppy Connectors .........................................30
Housing Fan Connectors (J8, J7, J9)......................................................30
ATX Power Supply Connector.................................................................31
Wake-on LAN Connector (J10) ...............................................................31
SIR/CIR Connector (J1)...........................................................................32
3.3 SYSTEM MEMORY CONFIGURATION......................................................33
Install Memory..........................................................................................33
Upgrade Memory .....................................................................................33

- 3 -
4SOFTWARE UTILITY ...................................................................34
4.1 AI61 MAINBOARD CD OVERVIEW...........................................................34
4.2 INSTALL MAINBOARD DRIVER...............................................................35
4.3 INSTALL AGP AND IRQ MINIPORT DRIVER...........................................36
4.4 TO VIEW THE USER'S MANUAL..............................................................37
5 BIOS SETUP ...............................................................................38
5.1 ENTERING BIOS.........................................................................................38
5.2 THE MAIN MENU.........................................................................................39
Standard CMOS Setup............................................................................41
BIOS Features Setup...............................................................................45
Chipset Features Setup...........................................................................49
Integrated Peripherals .............................................................................52
Power Management Setup......................................................................56
PnP / PCI Configuration ..........................................................................60
PC Health Status Setup...........................................................................62
Frequency/Voltage Control......................................................................64
Load Fail-Safe Defaults ...........................................................................65
Load Optimized Defaults .........................................................................65
Supervisor Password Setting ..................................................................66
User Password Setting ............................................................................66
Save & Exit Setup....................................................................................67
Exit Without Saving..................................................................................67

- 4 -
Quick Reference
HardwareInstallation>>Step-by-Step.................................................Page 10
Jumper Settings >> A Closer Look.......................................................Page 22
Software Utility >> How to Install..........................................................Page 34
BIOS Setup >> How to Configure.........................................................Page 38
About This Manual
For First-Time DIY System Builder.........................................................Page 5
ForExperienced DIY User.......................................................................Page 5
For System Integrator..............................................................................Page 5
TechnicalSupport
Contact Your Dealer
WHAT’SINTHEMANUAL

- 5 -
1INTRODUCTION
1.1ToDifferentUsers
First-Time DIY System Builder
Welcome to the DIY world! Building your own computer system is not as
difficult as you may think. To make your first computer DIY experience a
success, right from the start, we have designed the 3 Hardware Installation
section in a step-by-step fashion for all the first-time DIY system builders.
Prior to installation, we also suggest you to read the whole manual carefully
to gain a complete understanding of your new AI61 mainboard.
Experienced DIY User
Congratulations on your purchase of the AI61 mainboard. You will find that
installing your new AI61 mainboard is just that easy. Bundled with an array of
onboard functions, the highly-integrated AI61 mainboard provides you with a
total solution to build the most stable and reliable system. Refer to section 3.2
Jumper Settings and Chapter 4 Software Utility to findout how toget the best
out of your new mainboard. Chapter 5 BIOS Setup also contains relevant
information on how to tune up your system to achieve higher performance.
System Integrator
You have wisely chosen AI61 to construct your system. AI61 incorporates
all the state-of-the-art technology of the AMD-751 and AMD-756 chipset
from AMD. It integrates the most advanced functions you can find to date
in a compact ATX board. Refer to section 3.2 Jumper Settings and Chapter
4 Software Utility for an in-depth view of system construction.

- 6 -
1.2ItemChecklist
Check all items you received with your AI61 mainboard to make sure
nothing is missing. The complete package should include:
One AI61 Mainboard
(with onboard Slot A, built-in AMD-751
chipset, ATX form factor, including 2xUSB,
2xSerial, and 1xParallel ports, plus 1xPS/2
Keyboard, and 1xPS/2 Mouse connectors.)
One ATA/66 Ribbon Cable
One Floppy Ribbon Cable
One set of Universal Retention Mechanism
This AI61 User’s Manual
One CD-ROM containing:
The AI61 user’s manual on PDF format
The IDE Bus Master Drivers
The AGP and IRQ Miniport Drivers
The Award Flashing Utility

- 7 -
The AI61 mainboard is carefully designed for the demanding PC user who wants high
performance and maximum intelligent features in a compact package.
2.1Specifications
CPU Support
AMD K7 processor 500 ~ 750+MHz
Chipset
Features AMD-751and AMD-756 AGPset with I/O subsystems.
Jumperless CPU Configuration
Auto-detect CPU voltage
Soft-configure CPU Speed (The CPU operating speed is software
configurable in the Category of Frequency/Voltage Control of the BIOS
Setup utility.)
Versatile Memory Support
Equipped with three DIMM banks of PC100 compliant SDRAM to
provide up to 768MB of system memory.
AGP Slots
Supports Accelerated Graphics Port cards for high-performance, compo-
nent level interconnect directed at 3D graphical display applications.
PCI Expansion Slots
Provides five 32-bit PCI slots.
LPC Super I/O Onboard
Provides a variety of I/O interfaces:
1 × Floppy interface for 3.5-inch FDD with 720KB, 1.44MB, 2.88MB
format or for 5.25-inch FDD with 360KB or 1.2MB format.
1 × PS/2 mouse connector
1 × PS/2 Keyboard connector
4 × USB connectors
2FEATURES

- 8 -
2 × DB9 Serial connectors 16550 UART compatible
1 × Infrared communications port ASKIR and HPSIR compatible.
(Serial port COM2 can also be redirected to an external IrDA Adapter
for wireless connection.)
1 × DB25 Parallel port supporting Standard Parallel Port (SPP),
Enhanced Parallel Port (EPP), and Extended Capabilities Port (ECP)
data transmission schemes.
PCI Bus Master IDE Controller Onboard
Two UltraDMA 33/66 Bus Master Dual-channel IDE ports provide support to
a maximum of four IDE devices (one Master and one Slave per channel). The
IDE Bus implements data transfer speeds of up to 33/66 MB/sec and also
supports Enhanced PIO Modes 3 & 4.
ATX Power Supply Connector
ATX power supply unit can connect to the onboard 20-pin ATX power
connector, supporting Suspend and Soft-On/Off by dual-function power
button.
Advanced Configuration and Power Interface
Features four power savings modes: Snoop, Suspend to RAM, Suspend to
Disk, and Soft-Off. ACPI provides more efficient Energy Savings Features
controlled by your operating system that supports OS Direct Power Manage-
ment (OSPM) functionality.
System BIOS
Provides licensed Award V4.51PG BIOS on 2MB Flash EEPROM.
Supports Green PC and Desktop Management Interface (DMI).
ATX Form Factor
System board conforms to the ATX specification.
Board dimensions: 305mm × 244mm

- 9 -
Advanced Features
Dual Function Power Button - The system can be in one of two states,
one is Suspend mode and the other is Soft-Off mode. Pushing the power
button for less than 4 seconds places the system into Suspend mode.
When the power button is pressed for longer than 4 seconds, the system
enters the Soft-Off mode.
Keyboard/Mouse Power-On - This mainboard implements a special
jumper to enable a system power-on function by keyboard or PS/2 mouse.
Wake-on-LAN (WOL) - The onboard WOL connector can be attached to
a network card that supports this function to wake up the system via the
LAN.
Modem Ring Power-On - The system can be powered on automatically
by activation of the modem ring.
Optional Features
Voltage Monitoring - Monitors various voltages of key elements, such as
the CPU, and other critical system voltage levels to ensure stable current
reach to mainboard components. System voltages include Vcore/ VTT on
CPU, and +5V, +12V, -5V, -12V on system.
Fan Status Monitoring - To prevent overheating of CPU, the CPU fan is
monitored for RPM and failure. (CPU Cooling FAN with RPM sensor is
required.)

- 10 -
This section outlines how to install and configure your AI61 mainboard. Refer to the
following mainboard layout to help you identify various jumpers, connectors, slots, and
ports. Then follow these steps designed to guide you through a quick and correct instal-
lation of your system.
3.1Step-by-StepInstallation
Accessories Of AI61
3HARDWAREINSTALLATION

- 11 -
Step 1
Install the CPU
1. Mark your CPU Frequency
Checking the working frequency of your cpu that should be clearly
marked on the CPU cover or write your own combination in the space
provided.
2. AMD K7 Processor Installation
<Locate the Retention Mechanism>
To install a CPU, first turn off your system and remove its cover.
Insert two Retention Mechanism (1) on opposite side of Slot A.
Fix (1) by inserting Attach Mounts (1.2) up through holes (A1...A4) in
the bottom of the mainboard, and screw the four captive nuts (1.1).
<Install the CPU>
Insert CPU (2) into the Retention Mechanism (1).
Ensure that the alignment notch in the processor fits over the plug,
then push processor down firmly until it is seated.
Push the latches (2.1) on the processor outward until they click into
place.
Connect power cable (2.2) of Fan/Heat Sink.

- 12 -
Step2.
Set Jumpers
This mainboard is jumperless! The default jumper settings have been set for
the common usage standard of this mainboard. Therefore, you do not need
to reset the jumpers unless you require special adjustments as clear CMOS.
For first-time DIY system builders, we recommend that you do not change
the default jumper settings if you are not totally familiar with mainboard
configuration procedures. The factory-set default settings are tuned for
optimum system performance. For the advanced users who wish to custom-
ize their system, section 3.2 Jumper Settings will provide detailed informa-
tion on how to configure your mainboard manually.
Step 3
Install SDRAM System Memory
To install memory, insert SDRAM memory module(s) in any one, two or
three DIMM banks. Note that SDRAM modules are directional and will not
go in the DIMM slots unless properly oriented. After the module is fully
inserted into the DIMM socket, lift the clips of both sides of the DIMM bank
to lock the module in place.

- 13 -
Step 4
Install Internal Peripherals in System Case
Before you install and connect the mainboard into your system case, we
recommend that you first assemble all the internal peripheral devices into
the computer housing, including but not limited to the hard disk drive (IDE/
HDD), floppy disk drive (FDD), CD-ROM drive, and ATX power supply
unit. This will greatly facilitate in making the connections to the mainboard
described below.
To install IDE & FDD drives, follow this procedure:
1. Set the required jumpers on each device according to the instructions
provided by the manufacturer. (IDE devices, HDD and CD-ROM, have to
set jumpers to Master or Slave mode depending on whether you install
more than one device of each kind.)
2. Connect IDE cable and FDD cable on the back-panel of the internal
peripheral devices. Note that the cable should be oriented with its
colored stripe (usually red or magenta) connected to pin#1 both on the
mainboard IDE or FDD connector and on the device as well.
3. Connect an available power cable from your system power supply unit
to the back-panel of each peripheral device. Note that the power cable is
directional and cannot fit in if not properly positioned.

- 14 -
Step 5
Mount the Mainboard on the Computer Chassis
1. You may find that there are a lot of different mounting hole positions
both on your computer chassis and on the mainboard. To choose a
correct mounting hole, the key point is to keep the back-panel of the
mainboard in a close fit with your system case, as shown below.
2. After deciding on the proper mounting holes, position the studs between
the frame of the chassis and the mainboard. The studs are used to fix the
mainboard and to keep a certain distance between the system chassis
and the mainboard, in order to avoid any electrical shorts between the
board and the metal frame of the chassis. (If your computer case is
already equipped with mounting studs, you will need to tighten screws to
attach the mainboard.)
Note: In most computer housings, you will be able to find 4 or more
attachment points to install mounting studs and fix the mainboard.
If there aren’t enough matching holes, then make sure to install at
least 3 mounting studs to ensure proper attachment of the
mainboard.

- 15 -
Step 6
Connect Front Panel Switches/LEDs/Speaker
You can find there are several different cables already existing in the system
case and originating from the computer’s front-panel devices (HDD LED,
Power LED, Reset Switch, PC Speaker, etc.) These cables serve to connect
the front-panel switches and LEDs and USB connectors to the mainboard’s
front-panel connectors group, (J12 and J2) as shown below.
1. ATX Soft Power On/Off
2. SMI
(Hardware System Management Interface)

- 16 -
3. HDD-LED
4. Power-LED / G-LED
5. PC Speaker
6. Keylock
7. Hardware Reset Switch
8. Front panel USB conneting header

- 17 -
Step 7
Connect IDE & Floppy Disk Drives
1. IDE cable connector
2. FDD cable connector
Step 8
Connect Other Internal Peripherals
1. SIR/CIR connector

- 18 -
Step 9
Connect the Power Supply
1. System power connector
Step10
Install Add-on Cards in Expansion Slots
1. Accelerated Graphics Port (AGP) Card
2. PCI Card
