Shuttle AB52P User manual

AB52P
Pentium4/Celeron
478-pin Processor
Based MAIN BOARD
User's Manual

Shuttle®AB52P
Pentium 4/Celeron , 478-pin processor based Mainboard
Manual Version 1.0
Copyright
Copyright©2003 by Shuttle®Inc. All Rights Reserved.
No part of this publication may be reproduced, transcribed, stored in a retrieval system,
translated into any language, or transmitted in any form or by any means, electronic,
mechanical, magnetic, optical, chemical, photocopying, manual, or otherwise, without
prior written permission from Shuttle®Inc.
Disclaimer
Shuttle®Inc. shall not be liable for any incidental or consequential damages resulting from the
performance or use of this product.
This company makes no representations or warranties regarding the contents of this manual.
Information in this manual has been carefully checked for reliability; however, no guarantee is
given as to the correctness of the contents. In the interest of continued product improvement,
this company reserves the right to revise the manual or include changes in the specifications
of the product described within it at any time without notice and without obligation to notify any
person of such revision or changes. The information contained in this manual is provided for
general use by the customers.
Trademarks
Shuttle is a registered trademark of Shuttle Inc.
Intel, Pentium is a registered trademarks of Intel Corporation.
PS/2 is a registered trademark of IBM Corporation.
AWARD is a registered trademark of Award Software Inc.
Microsoft and Windows are registered trademarks of Microsoft Corporation.
General Notice: Other product names used in this manual are ascribed to their respective
owners and acknowledged.
M783

Statement of Shuttle Mainboard via the EMI Test
Shuttle mainboards have been via the EMI test in terms of series of regulations: EN55022/
CISPR22/AS/NZS3548ClassB,EN55024(1998/AS/NZS),EN4252.1(1994),EN61000,ANSI
C63.4 (1992), CFR47 Part 15 Subpart B, and CNS13438 (1997). The items tested are illus-
trated as follows:
(A)Voltage:AC110V/60HZ &AC230V/50HZ
(B) Tested Product Information:
Product Name: PC Mainboard
Status: Sample
ModelName:AB52P
S/N:
CPU:
External Frequency: 100 MHz
IntelPentium 4: 1.6GHz/1.8GHz/2.0GHz/2.2GHz/2.4GHz
External Frequency: 133 MHz
IntelPentium4:2.26GHz/2.40GHz/2.53GHz/2.26GHz/2.80GHz/3.06GHz
Keyboard Port: one port with 6 pins
Mouse Port: one port with 6 pins
USB Port: two ports with 4 pins respectively
Parallel Port: one port with 25 pins
Serial Port: two ports with 9 pins respectively
MIDI/Game Port: one port with 15 pins
Line-Out & Line-In & Mic-In Ports: one port for each
DDR Memory: 128 MB *2
All CPUs have completely been tested, and values offered by the worst EMI combination of
CPU external frequency are listed as follows:
(C) Remedy for the Tested Product & Its EMI Interference:
Remedy:N/A
EMIInterference:
Crystal:32.768KHz(X2)/14.318MHz(X1)/24.576MHz(X3)
Clock Generator: CLK1
(D) Supported Host Peripherals:
Test Mode External Frequency CPU Power Supply Case Open/Closed
1100MHz Pentium4 2.4GHz ENP-0730(ATX12V) Closed
2100MHz Pentium4 2.4GHz ENP-0730(ATX12V) Open
3133MHz Pentium4 3.06GHz ENP-0730(ATX12V) Closed
4133MHz Pentium4 3.06GHz ENP-0730(ATX12V) Open
Host Peripheral Product Name Model Name FCC ID
#1 Genuine Chassis IW-S500
#2 Power Supply Enhance (ENP-0730) 3872B443
#3 WD HDD WD300-ATA100 3902B934
#4 Mitsumi FDD D353M3 62007003
#5 ASUS CD-ROM Player CD-S500/A
#6 WINFAST VGA Card ABB12276 3892C520

- 1 -
WHAT'S IN THE MANUAL.................................................................... 4
Quick Reference............................................................................................... 4
About This Manual ........................................................................................... 4
1 INTRODUCTION................................................................................ 5
1.1 TO DIFFERENT USERS ............................................................................. 5
FIRST-TIMEDIYSYSTEMBUILDER............................................................ 5
EXPERIENCEDDIY USER ........................................................................ 5
SYSTEMINTEGRATOR............................................................................... 5
1.2 ITEM CHECKLIST....................................................................................... 6
2 FEATURES ........................................................................................ 7
2.1 SPECIFICATIONS ....................................................................................... 7
3 HARDWARE INSTALLATION..........................................................10
3.1 STEP BY STEP INSTALLATION............................................................... 10
Accessories of AB52P ......................................................................... 10
STEP1 Installthe CPU...........................................................................11
STEP 2 Set Jumpers............................................................................. 13
STEP3 InstallDDR SDRAMSystemMemory........................................ 13
STEP4 InstallPeripheralsin SystemCase............................................ 14
STEP5 Mountthe Mainboardon theComputerChassis........................ 15
STEP6 ConnectFront PanelSwitches.................................................. 16
STEP 7 Connect IDE and Floppy Disk Drives........................................ 17
STEP8Connect OtherInternalPeripherals............................................ 18
STEP9 Connectthe PowerSupply........................................................ 19
STEP10 InstallAdd-on Cardsin ExpansionSlots .................................. 20
STEP11 ConnectExternal Peripheralsto Back Panel .......................... 21
STEP 12 First Time System Boot Up ..................................................... 22
STEP13 InstallDrivers& SoftwareComponents ................................... 23
TABLE OF CONTENTS

- 2 -
3.2 JUMPER SETTINGS ................................................................................. 24
JUMPERS& CONNECTORSGUIDE.................................................... 25
Jumpers
Clear CMOS Setting (JP1) ................................................................... 27
BIOSFlash ProtectionSetting (JP2) ...................................................... 27
DisableUSB FunctionSetting(JP4) ...................................................... 28
Back-Panel Connectors
PS/2Keyboard &PS/2 MouseConnectors............................................ 29
USB1/USB2Port Connectors................................................................ 29
ParallelPortConnector.......................................................................... 29
COM1/2PortConnectors ...................................................................... 29
MIDI/GAMEPortConnector ................................................................... 30
Line-Out PortConnector ....................................................................... 30
Line-InPortConnector ........................................................................... 30
Mic-InPortConnector ............................................................................ 30
Front-Panel Connectors
PanelConnector(Panel1)....................................................................... 31
Internal Peripherals Connectors
EnhancedIDE andFloppyConnectors................................................... 33
Other Connectors
ATXPower SupplyConnector(ATX1).................................................... 34
CoolingFan Connectorsfor CPU(CPUFAN1),CAS (CASFAN1),PWR
(PWRFAN1) .......................................................................................... 35
IRHeader(IR1)...................................................................................... 35
CD-INConnectors(CD_IN1/2)............................................................... 36
AudioConnector (Audio1) ..................................................................... 36
ExtendedUSB Header(USB1).............................................................. 37
SpeakerConnector (Speaker1) ............................................................. 37

- 3 -
3.3 SYSTEM MEMORY CONFIGURATION ..................................................... 38
1.INSTALLMEMORY ............................................................................ 38
2.UPGRADEMEMORY ........................................................................ 38
4 SOFTWARE UTILITY ...................................................................... 39
4.1 Mainboard CD Overview ......................................................................... 39
4.2 Install Mainboard Software ..................................................................... 39
4.2.A InstallIntelChipsetDriver ................................................................. 41
4.2.B InstallIDEDriver .............................................................................. 42
4.2.C InstallAudio Driver........................................................................... 43
4.2.D InstallUSB2.0 Driver........................................................................ 44
4.3 View the User's Manual........................................................................... 45
5 BIOS SETUP ................................................................................... 46
5.1 ENTER BIOS ............................................................................................. 46
5.2 THE MAIN MENU ...................................................................................... 47
STANDARD CMOS FEATURES ............................................................... 49
ADVANCED BIOS FEATURES................................................................. 52
ADVANCED CHIPSET FEATURES .......................................................... 56
INTEGRATEDPERIPHERALS .................................................................. 59
POWERMANAGEMENT SETUP.............................................................. 63
PNP/PCICONFIGURATION....................................................................... 67
PCHEALTH STATUS................................................................................ 69
FREQUENCY/VOLTAGECONTROL......................................................... 70
LOAD FAIL-SAFE DEFAULTS .................................................................. 71
LOADOPTIMIZEDDEFAULTS ................................................................. 71
SETSUPERVISOR PASSWORD ............................................................. 72
SET USER PASSWORD........................................................................... 72
SAVE & EXIT SETUP................................................................................ 74
EXITWITHOUTSAVING............................................................................ 74

- 4 -
Quick Reference
Hardware Installation >> Step-by-Step ................................................Page 10
Jumper Settings >> A Closer Look.......................................................Page 24
Drivers/Software Utilities >> How to Install..........................................Page 38
BIOS Setup >> How to Configure.........................................................Page 45
About This Manual
For First-Time DIY System Builder .........................................................Page 5
For Experienced DIY User ......................................................................Page 5
For System Integrator .............................................................................Page 5
WHAT'S IN THE MANUAL

- 5 -
1.1 To Different Users
First-Time DIY System Builder
Welcome to the DIY world! Building your own computer system is not as diffi-
cult as you may think. To make your first computer DIY experience successful,
right from the start, we have designed the 3.1 Hardware Installation section
in a step-by-step fashion for all the first-time DIY system builders. Prior to instal-
lation, we also suggest you to read the whole manual carefully to gain a com-
plete understanding of your new Shuttle AB52P mainboard.
Experienced DIY User
Congratulate on your purchase of the Shuttle AB52P mainboard. You will find
that installing your new Shuttle AB52P mainboard is just easy. Bundled with an
array of onboard functions, the highly-integrated AB52P mainboard provides
you with a total solution to build the most stable and reliable system. Refer to
sections 3.2 Jumper Settings and Chapter 4 Drivers/Software Utilities to
find out how to get the best out of your new mainboard. Chapter 5 BIOS
Setup also contains the relevant information on how to tune up your system to
achieve higher performance.
System Integrator
You have wisely chosen Shuttle AB52P to construct your system. Shuttle
AB52P incorporates all the state-of-the-art technology of the Brookdale
chipset from Intel. It integrates the most advanced functions you can find to
date in a compact ATX board.
1INTRODUCTION

- 6 -
1.2 Item Checklist
Check all items with you AB52P mainboard to make sure nothing is missing.
The complete package should include:
-One piece of Shuttle AB52P Mainboard
-One piece of ATA 100/66/33 Ribbon Cable
-One piece of Floppy Ribbon Cable
-One piece of twin ports USB Cable (optional)
-AB52P User's Manual
-One piece of Bundled CD-ROM with containing:
ØAB52P user's manual saved in PDF format
ØIntel Chipset System Driver
ØIDE driver
ØAudio driver
ØUSB2.0 driver
ØAward Flashing Utility
IT8712F-A
0227-GXS
Mf2120
AmMega
8
7
-
9
6
c
KB_MS
USB
COM1
COM2 PRT
AUDIO1
DIMM2
DIMM1
1
1
K
T
S
L
I
T
H
I
U
M
B
A
T
T
E
R
Y
J
A
P
A
N
S
T
D
C
r
2
0
3
0
F
W
8
2
8
0
1
B
A
F
2
0
4
0
1
3
0
S
L
5
W
K
I
N
T
E
L
0
Q
C
P
H
I
L
I
P
P
I
N
E
S
SIR1
1
1
1
1
1
CASFAN1
CPUFAN1
PWRFAN1
IDE1
IDE2
1
1
1
A
T
X
1
R
G
8
2
8
4
5
Q
C
2
2
E
S
CD-IN1
CD-IN2
SPEAKE R1
JP2
PCI1
AGP
PCI2
PCI3
PCI4
PCI5
PCI6
JP15
USB1
JP1
PANEL1
FDD1
LED1
1
JP4
1

- 7 -
AB52P mainboard is carefully designed for the demanding PC user who wants high
performance and maximum intelligent features in a compact package.
2.1 Specifications
-CPU Support
Intel Pentium 4/Celeron, 478-pin processors with 400/533 MHz FSB.
-Chipset
Features Intel i82845 (MCH) N.B. and Intel 82801BA (ICH2) S.B..
-CPU FSB Configuration
Soft-configuration FSB (The FSB speed is software configurable from 100MHz
to 133MHz).
-On Board Channel Hardware Audio Controller
The AC' 97 Audio codec is compliant with the AC'97 2.2 specification, and
supports 18-bit ADC(Analog Digital Converter) and DAC(Digital Analog
Converter) resolution as well as 18-bit stereo full-duplex codec with indepen-
dent and variable sampling rates.
-Versatile Memory Support
This mainboard can accommodate 2.5V DDR SDRAM. It accommodates
two unbuffered 2.5V 184 pin slots to support to 2GB of PC 1600, PC2100 or
PC2700 compliant DDR SDRAM module.
-Expansion Slots
Provides one 32-bit AGP slot which supports 4X AGP devices.( support 1.5V
only)
Provides six 32-bit PCI slots.
-4 USB 2.0 Interface Onboard
2 X USB connectors on back-panel and one sets of dual USB ports headers
on mid-board.
-I/O Interface
Provides a variety of I/O interfaces:
Ø1 X Floppy interface for 3.5-inch FDD with 720KB, 1.44MB, or 2.88MB
format or for 5.25-inch FDD with 360K or 1.2MB format.
Ø1 X PS/2 mouse connector.
2 FEATURES

- 8 -
Ø1 X PS/2 Keyboard connector.
Ø2 X USB ports.
Ø2 X DB9 Serial connectors 16550 UART compatible.
Ø1 X DB25 Parallel port supports Standard Parallel Port and Bi-directional
(SPP), Enhanced Parallel Port (EPP), and Extended Capabilities Port (ECP)
data transmission schemes.
Ø1 X Line-Out port. (share with Front-out port)
Ø1 X Line-In port. (share with Rear-out port)
Ø1 X Mic-In port. (share with Center/Bass port)
Ø1 X MIDI/GAME port.
-PCI Bus Master IDE Controller Onboard
Two Ultra DMA 100/66/33 Bus Master Dual-channel IDE ports provide sup-
port to a maximum of four IDE devices (one Master and one Slave per channel).
The IDE Bus implements data transfer speeds of up to 100/66/33 MB/sec and
also supports Enhanced PIO Modes.
80-pin Cable Backward Compatible Legacy ATAPI Devices, ATAPI IDE CD-
ROM, CD-R, CD-RW, and LS-120 Supports.
-ATX Power Supply Connector
ATX power supply unit can connected to the onboard 20-pin Pentium 4
standard ATX power connectors, supporting Suspend and Soft-On/Off by
dual-function power button.
-System BIOS
Provides licensed Award BIOS V6.0 PG on Intel Firmware Hub 2Mb Flash
core and supports Green PC, Desktop Management Interface (DMI).
-ATX Form Factor
System board conforms to ATX specification.
Board dimension: 305mm X 220mm.
-Advanced Features
ØLow EMI - Built in spread spectrum and automatic clock shut-off of
unused PCI/DDR-SDRAMS slots to reduce EMI.
ØDual Function Power Button - The system can be in one of two states,
one is Suspend mode and the other is Soft-Off mode. Pushing the power
button for less than 4 seconds places the system into Suspend mode.
When the power button is pressed for longer than 4 seconds, the system
enters Soft-Off mode.

- 9 -
ØModem Ring Power-On - The system can be powered on automatically
by the activation of modem ringing.
ØCPU Clock Setting - This item allows users to adjust CPU Host Clock in
BIOS.
ØCPU Multiplier Setting - This item allows users to adjust CPU Multiplier in
BIOS.
-Intelligent Features
ØVoltage Monitoring - Monitors various voltages of key elements, such as
the CPU, and other critical system voltage levels to ensure stable current
passing through mainboard components. System voltages include CPU
Vcore, +3.3v, +5V, +12V, Battery on system etc.
ØFan Status Monitoring -To prevent CPU from overheating, the CPU fan
is monitored for RPM and failure. (CPU Cooling FAN with RPM sensor is
required.)
ØTemperature Monitoring -This item allows users to make sure whether
the CPU or system runs in a suitable temperature.

- 10 -
Before removing or installing any of these devices including CPU, DIMMs,
Add-On Cards, Cables, please make sure to unplug the onboard power
connector.
This section outlines how to install and configure your mainboard. Refer to the following
mainboard layout to help you to identify various jumpers, connectors, slots, and ports.
Then follow these steps designed to guide you through a quick and correct installation of
your system.
3.1 Step-by-Step Installation
3HARDWAREINSTALLATION

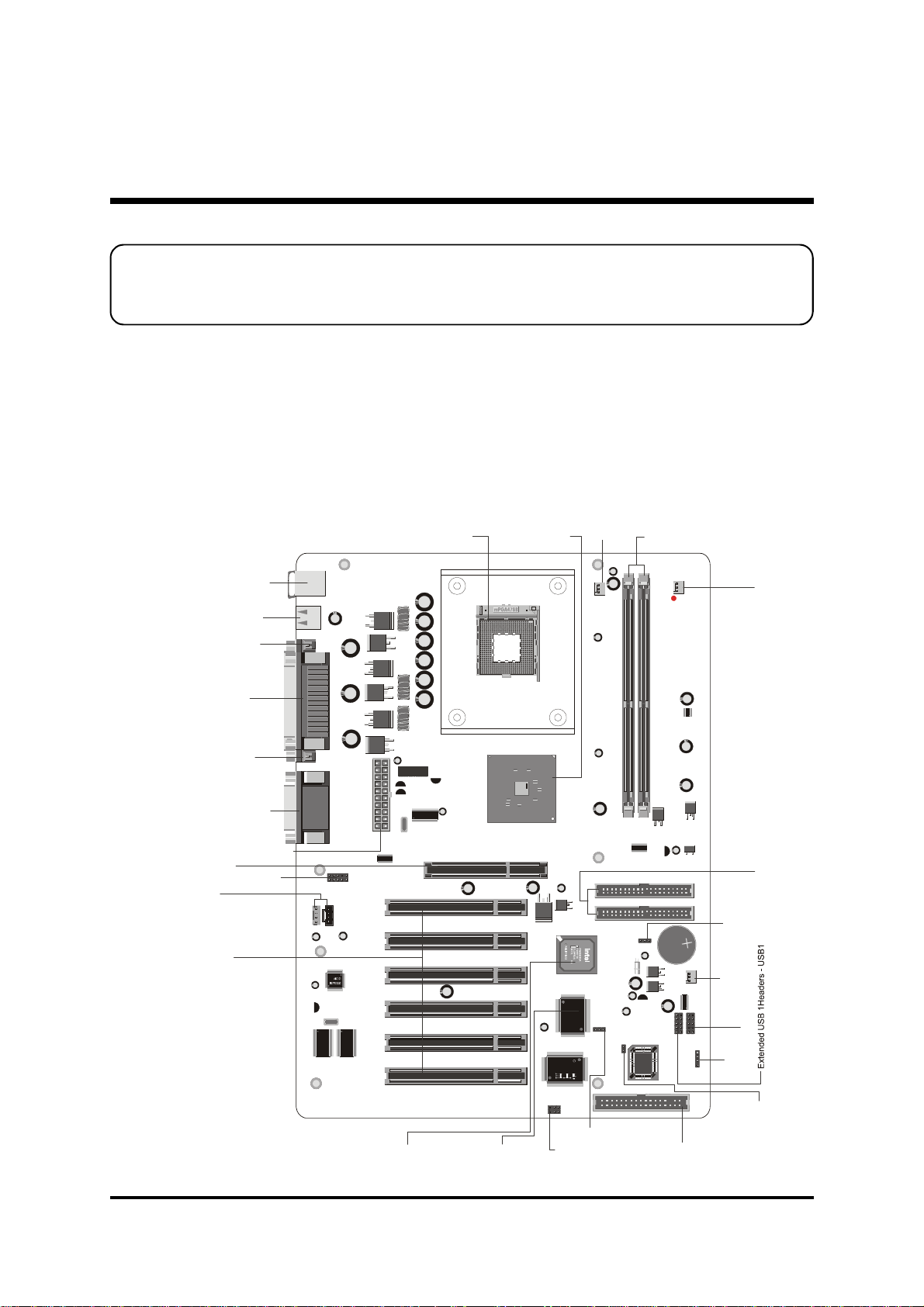

Accessories Of AB52P
IT8712F-A
0227-GXS
Mf2120
AmMega
8
7
-
9
6
c
KB_MS
USB
COM1
COM2 PRT
AUDIO1
DIMM2
DIMM1
1
1
K
T
S
L
I
T
H
I
U
M
B
A
T
T
E
R
Y
J
A
P
A
N
S
T
D
C
r
2
0
3
0
SIR1
1
1
1
1
1
CASFAN1
CPUFAN1
PWRFAN1
IDE1
IDE2
1
1
1
A
T
X
1
R
G
8
2
8
4
5
Q
C
2
2
E
S
CD-IN1
CD-IN2
SPEAKER1
JP2
PCI1
AGP
PCI2
PCI3
PCI4
PCI5
PCI6
JP15
USB1
JP1
PANEL1
FDD1
LED1
1
JP4
1
SIX PCI Slots
SPEAKER1
BIOSProtect Jumper-JP2
Two USB Connectors
Parallel Connector
Serial Port
Connector (COM1)
Serial Port
Connector (COM2)
Line-Out/Line-In/Mic-In/
Game/MIDI Connectors
Audio Connector - Audio1
One AGP Slot
CD_IN1/2
PS/2 Keyboard and
PS/2 Mouse Connectors
USB Controller Setting - Jp4
Two DIMM Slots
PWRFAN1
CPUFAN1
Intel I82845 Chipset
CASFAN1
ATX Power Connector - ATX1
Panel1Connector-Panel1
IR Connector - Ir1
ClearCMOS-JP1
INTEL 82801BA Chipset Floppy Connector
TwoIDEConnectors
MPGA478 Socket
USB2.0 Controller
VT6202

- 11 -
Step 1
CPU Installation:
This mainboard supports Intel Pentium 4/Celeron , Socket 478 series CPU.
Please follow the step as below to finish CPU installation.
Be careful of CPU orientation when you plug it into CPU socket.

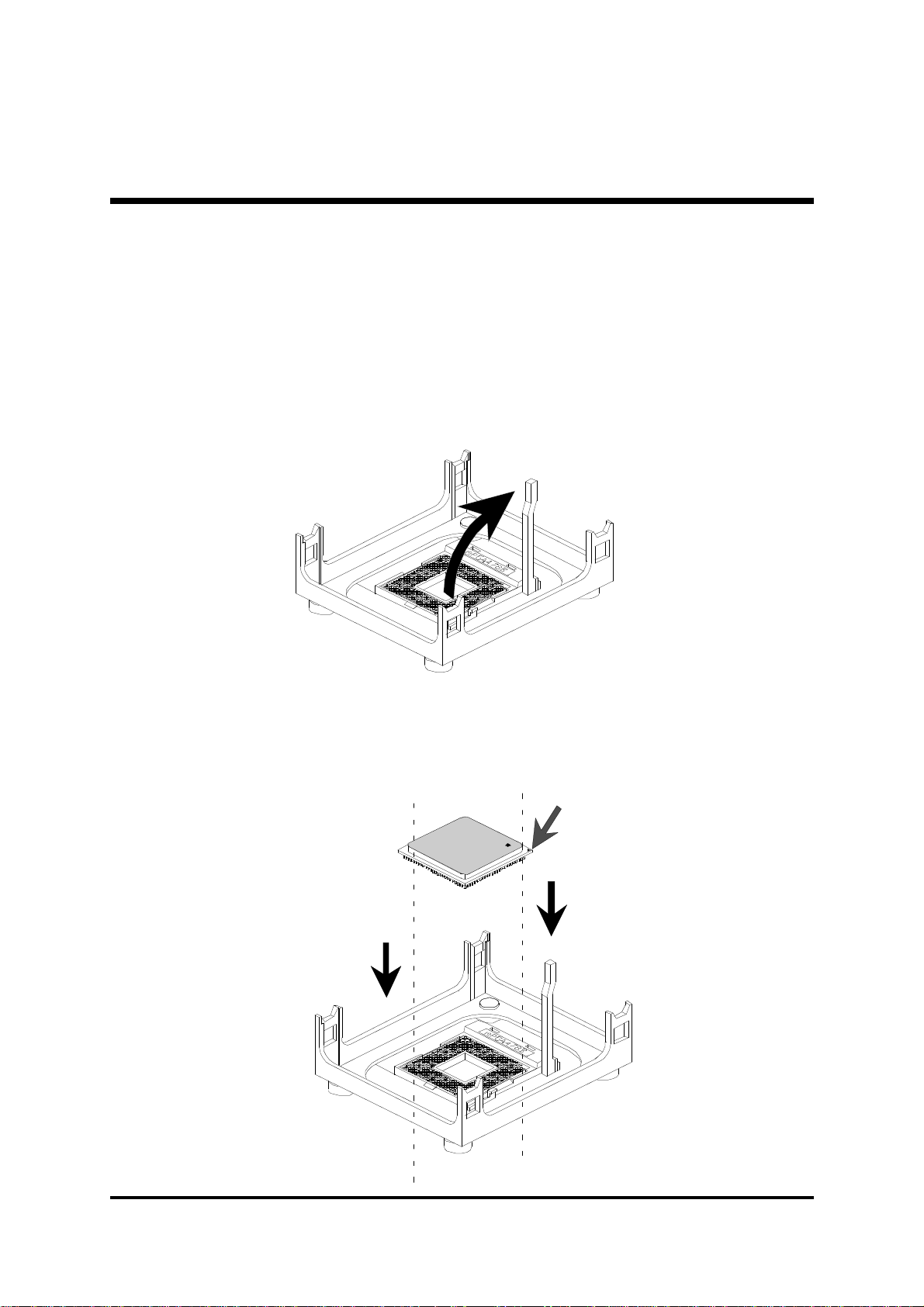

1. Pull up the CPU socket lever and up to 90-degree angle.
2. Locate Pin 1 in the socket and look for a black dot or cut edge on the CPU
upper interface. Match Pin 1 and cut edge, then insert the CPU into the
socket. CPU pin 1 and cut edge
CPU socket lever up to
90 degree

- 12 -

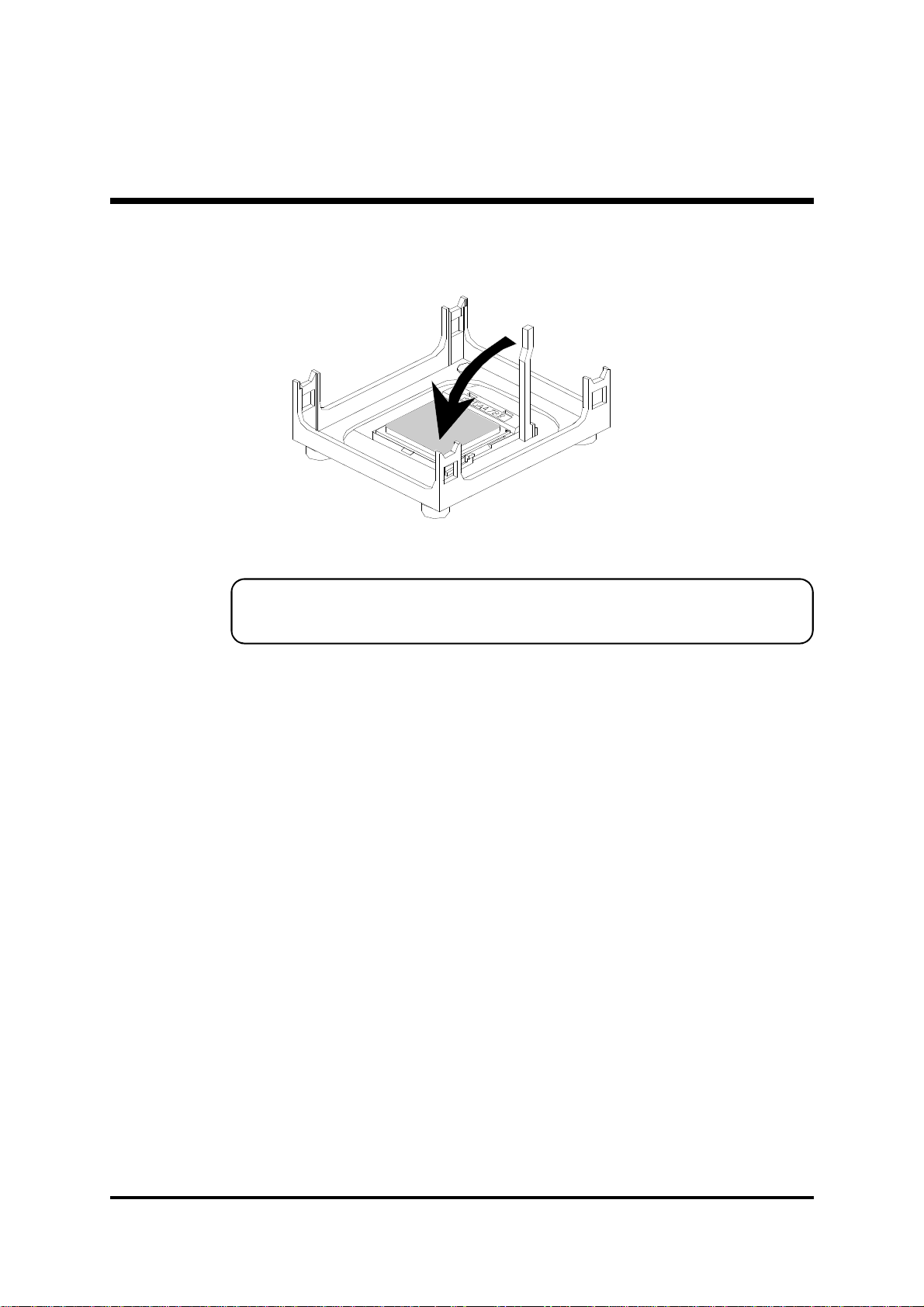

3. Press down the CPU socket lever and finish CPU installation.
Note: If you do not match the CPU socket Pin 1 and CPU cut edge
well, it may damage the CPU.
4. The Intel Pentium 4/Celeron processor requires a set of heatsink/fan to en
sure proper cooling of the processor. If heatsink/fan have not been already
bundled with your CPU, you must purchase the heatsink/fan separately and
have it installed. Plug the cable through the heatsink/fan in the CPU fan
power connector located nearby. Note that there are several types of CPU
fan connectors. Normally, if your mainboard supports the hard ware moni
toring function, a 3-pin fan power connector should allow your system to
detect the CPU fan's speed. The CPU fan can also run with a 2-pin fan
power connector, however, detection of CPU fan's speed is not supported.
Another type of CPU fan may feature a large 4-pin fan power connector,
which does not support CPU fan's speed detection and must be directly
connected to the system's power supply unit.

- 13 -
Step 2.
Set Jumpers
This mainboard is jumperless! The default jumper settings have been set for
the common usage standard of this mainboard. Therefore, you do not need
to reset the jumpers unless you require special adjustments as any of the
following cases:
1. Clear CMOS
2. BIOS Protect
3. USB 2.0 Controller Setting
For first-time DIY system builders, we recommend that you do not change the
default jumper settings if you are not totally familiar with the mainboard
configuration procedures. The factory-set default settings are tuned for opti-
mum system performance. For the advanced users who wish to customize
their system, section 3.2 Jumper Settings will provide detailed information on
how to configure your mainboard manually.
Step 3
Install DDR SDRAM System Memory
To install memory, insert DDR-SDRAM memory module(s) in any one or two
DIMM banks. Note that SDRAM modules are directional and will not go in
the DIMM banks if they are not properly oriented. After the module is fully
inserted into the DIMM bank, lift the clips of both sides of the DIMM bank to
lock the module in place.

- 14 -
Step 4
Install Internal Peripherals in System Case
Before you install and connect the mainboard into your system case, we
recommend that you first assemble all the internal peripheral devices into the
computer housing, including but not limited to the hard disk drive (IDE/
HDD), floppy disk drive (FDD), CD-ROM drive, and ATX power supply unit.
This will greatly facilitate in making the connections to the mainboard de-
scribed below.
To install IDE & FDD drives, follow this procedure:
1. Set the required jumpers on each device according to the instructions
provided by the manufacturer. (IDE devices, HDD, and CD-ROM, have to
set jumpers to Master or Slave mode depending on whether you install
more than one device of each kind.)
2. Connect IDE cable and FDD cable on the back-panel of the internal
peripheral devices to the corresponding headers on board. Note that the
cable should be oriented with its colored stripe (usually red or magenta)
connected to pin#1 both on the mainboard IDE or FDD connector and on
the device as well.
3. Connect an available power cable from your system power supply unit
to the back-panel of each peripheral device. Note that the power cable is
directional and cannot fit in if not properly positioned.

- 15 -
Step 5
Mount the Mainboard on the Computer Chassis
1. You may find that there are a lot of different mounting hole positions
both on your computer chassis and on the mainboard. To choose
correct mounting holes, the key point is to keep the back-panel of the
mainboard in a close fit with your system case, as shown below.
2. After deciding on the proper mounting holes, position the studs between
the frame of the chassis and the mainboard. The studs are used to fix the
mainboard and to keep a certain distance between the system chassis
and the mainboard, in order to avoid any electrical shorts between the
board and the metal frame of the chassis. (If your computer case is
already equipped with mounting studs, you will need to tighten screws to
attach the mainboard.)
Note: In most computer housings, you will be able to find 4 or more
attachment points to install mounting studs and then fix the
mainboard. If there aren't enough matching holes, then make sure to
install at least 4 mounting studs to ensure proper attachment of the
mainboard.

- 16 -
Step 6
Connect Front Panel Switches
You can find there are several different cables already existing in the system
case and originating from the computer's front-panel devices (HDD LED,
Power LED, Reset Switch, PC Speaker devices etc.) These cables serve to
connect the front-panel switches to the mainboard's front-panel connectors
group, as shown below.
PANEL1
1. HD_LED
2. RST
3. Green LED
4. PW BTN
1
HD_LED
RST
NC
PW BTN
Green LED
RSVD
PANEL 1
2
PANEL 1
1
1
2
3
4
2

- 17 -
Step 7
Connect IDE and Floppy Disk Drives
1. IDE cable connector
2. Floppy cable connector
FDC
1
1
IDE1
IDE2
1
FDD
