Shuttle FV24 User manual

FV24
FC-PGA/PPGA Celeron
and FC-PGA Pentium III Processor
Based Main Board
User's Manual

Shuttle®SpacewalkerTM FV24
PPGA/FC-PGA Celeron and FC-PGA Pentium III processor
based AGPset Mainboard
Manual Version 1.1
Copyright
Copyright©2001 by Shuttle®Inc. All Rights Reserved.
No part of this publication may be reproduced, transcribed, stored in a retrieval system,
translated into any language, or transmitted in any form or by any means, electronic,
mechanical, magnetic, optical, chemical, photocopying, manual, or otherwise, without
prior written permission from Shuttle®Inc.
Disclaimer
Shuttle®Inc. shall not be liable for any incidental or consequential damages resulting from the
performance or use of this product.
This company makes no representations or warranties regarding the contents of this manual.
Information in this manual has been carefully checked for reliability; however, no guarantee is
given as to the correctness of the contents. In the interest of continued product improvement,
this company reserves the right to revise the manual or include changes in the specifications
of the product described within it at any time without notice and without obligation to notify any
person of such revision or changes. The information contained in this manual is provided for
general use by the customers.
Trademarks
Spacewalker is a registered trademark of Shuttle Inc.
VIA is a registered trademark of VIA Corporation.
Intel, Pentium is a registered trademarks of Intel Corporation.
PS/2 is a registered trademark of IBM Corporation.
AWARD is a registered trademark of Award Software Inc.
Microsoft and Windows are registered trademarks of Microsoft Corporation.
General Notice: Other brand and product names used herein are for identification
purposes only and may be trademarks of their respective owners.
M455

- 1 -
WHAT’S IN THE MANUAL .....................................................................5
Quick Reference................................................................................................5
About This Manual ............................................................................................5
1 INTRODUCTION .................................................................................6
1.1 TO DIFFERENT USERS ..............................................................................6
First-TimeDIYSystemBuilder ..................................................................6
ExperiencedDIYUser ..............................................................................6
SystemIntegrator .....................................................................................6
1.2 ITEM CHECKLIST........................................................................................7
2 FEATURES..........................................................................................9
2.1 SPECIFICATIONS ........................................................................................9
3 HARDWARE INSTALLATION ...........................................................12
3.1 STEP-BY-STEP INSTALLATION ...............................................................12
STEP1InstalltheCPU...........................................................................13
STEP 2 Set Jumpers..............................................................................14
STEP3InstallSDRAMSystemMemory .................................................14
STEP4InstallInternalPeripherals in SystemCase.................................15
STEP5MounttheMainboardontheComputerChassis ........................16
STEP6ConnectFront-panelSwitches/LEDs/Speaker/Audio/USB ........17
STEP 7 Connect IDE & Floppy Disk Drives............................................19
STEP8ConnectOther Internal Peripherals ............................................20
STEP9ConnectPowerSupply..............................................................20
STEP10InstallAdd-onCardsinExpansionSlots ..................................21
STEP11ConnectExternalPeripheralstoBack-panel............................21
STEP 12 First Time System Boot Up......................................................23
STEP13InstallDriver&SoftwareComponents......................................24
TABLE OF CONTENTS

- 2 -
3.2 JUMPER SETTINGS ..................................................................................25
JUMPER&CONNECTORGUIDE .........................................................26
Jumpers
Clear CMOS (J9) ...................................................................................28
Back-Panel Connectors
PS/2 Keyboard & PS/2 Mouse Connectors ............................................29
VGAPortConnector...............................................................................29
COM1PortConnector............................................................................29
ParallelPortConnector...........................................................................29
TV-OutS/VideoPortConnectors............................................................30
1394PortConnector..............................................................................30
10/100base-TLANPortConnector........................................................30
USB1/USB2PortConnectors.................................................................30
Line-In ....................................................................................................30
Line-Out .................................................................................................31
Front-Panel Connectors
ATXPowerOn/Off SwitchConnector(PWON) .......................................32
EPMIConnector(EPMI) .........................................................................32
Green LED / Power LED Connector (GRN LED / PWR LED) .................33
HDD LED Connector (HDD LED)...........................................................33
PWR LED Connector (PWR LED)..........................................................34
HardwareResetConnector(RST) ..........................................................34
SPK-OutandMic-InHeader(JP2)..........................................................34
ExtendedUSBHeader(USB2) ..............................................................35
Internal Peripherals Connectors
EnhancedIDEPortsandFloppyConnectors ..........................................36

- 3 -
Other Connectors
ATX Power Supply Connector(JWR1)....................................................37
Cooling FAN Connectors for CPU FANs (FAN1/FAN2)...........................37
OptionalModemRiserAdapterConnector(JP5)....................................38
AudioConnectorCD_In(SJP1)..............................................................38
3.3 SYSTEM MEMORY CONFIGURATION ......................................................39
InstallMemory.........................................................................................39
UpgradeMemory ...................................................................................39
4 SOFTWARE UTILITY .......................................................................40
4.1 Mainboard CD Overview ..........................................................................40
4.2 Install Mainboard Software ......................................................................41
InstallVIA4in1,AGP,AudioDriver ........................................................42
4.3 Install VIA Hardware Monitor ...................................................................43
4.4 Install LAN Software.................................................................................44
InstallWIN98LAN driver .........................................................................44
InstallWIN2000LANdriver .....................................................................47
InstallWINNTLANdriver.........................................................................51
4.5 View the User's Manual............................................................................53

- 4 -
5 BIOS SETUP.....................................................................................54
5.1 ENTER THE BIOS......................................................................................54
5.2 THE MAIN MENU .......................................................................................55
STANDARD CMOS FEATURES ................................................................57
ADVANCED BIOS FEATURES..................................................................61
ADVANCED CHIPSET FEATURES...........................................................65
INTEGRATEDPERIPHERALS...................................................................69
POWERMANAGEMENTSETUP ..............................................................72
PNP/PCICONFIGURATION .......................................................................77
PC HEALTH STATUS.................................................................................80
FREQUENCY/VOLTAGECONTROL..........................................................81
LOAD FAIL-SAFE DEFAULTS...................................................................82
LOADOPTIMIZEDDEFAULTS ..................................................................82
SET SUPERVISOR PASSWORD ..............................................................83
SET USER PASSWORD ...........................................................................83
SAVE & EXIT SETUP.................................................................................84
EXITWITHOUTSAVING.............................................................................84

- 5 -
Quick Reference
Hardware Installation >> Step-by-Step ................................................ Page 12
Jumper Settings >> A Closer Look ...................................................... Page 25
Software Utility >> How to Install ......................................................... Page 40
BIOS Setup >> How to Configure ........................................................ Page 54
About This Manual
For First-Time DIY System Builder......................................................... Page 6
For Experienced DIY User ...................................................................... Page 6
For System Integrator ............................................................................. Page 6
WHAT’S IN THE MANUAL

- 6 -
1INTRODUCTION
1.1 To Different Users
First-Time DIY System Builder
Welcome to the DIY world! Building your own computer system is not as
difficult as you may think. To make your first computer DIY experience
successful, right from the start, we ha e designed the Chapter 3 Hardware
Installation section in a step-by-step fashion for all the first-time DIY system
builders. Prior to installation, we also suggest you to read the whole manual
carefully to gain a complete understanding of your new FV24 mainboard.
Experienced DIY User
Congratulate on your purchase of the FV24 mainboard. You will find that
installing your new FV24 mainboard is just easy. Bundled with an array of
onboard functions, the highly-integrated FV24 mainboard pro ides you with a
total solution to build the most stable and reliable system. Refer to sections 3.2
Jumper Settings and Chapter 4 Software Utility to find out how to get the best
out of your new mainboard. Chapter 5 BI S Setup also contains the rele ant
information on how to tune up your system to achie e higher performance.
System Integrator
You ha e wisely chosen FV24 to construct your system. FV24 incorporates all
the state-of-the-art technology of the PL133 chipset from VIA. It integrates the
most ad anced functions you can find to date in a compact FlexATX board.
Refer to sections 3.2 Jumper Settings and Chapter 4 Software Utility for an in-
depth iew of system construction.

- 7 -
1.2 Item Checklist
Check all items with your FV24 mainboard to make sure nothing is missing.
The complete package should include:
One pices of FV24 Mainboard
One pices of ATA100/66/33 Ribbon Cable
One pices of Floppy Ribbon Cable
One pices of twin ports USB Cable (optional)
One pices of 6P to 6P IEEE1394 Cable (optional)
or 6P to 4P IEEE1394 Cable (optional)
One I/O back-Panel Shielding

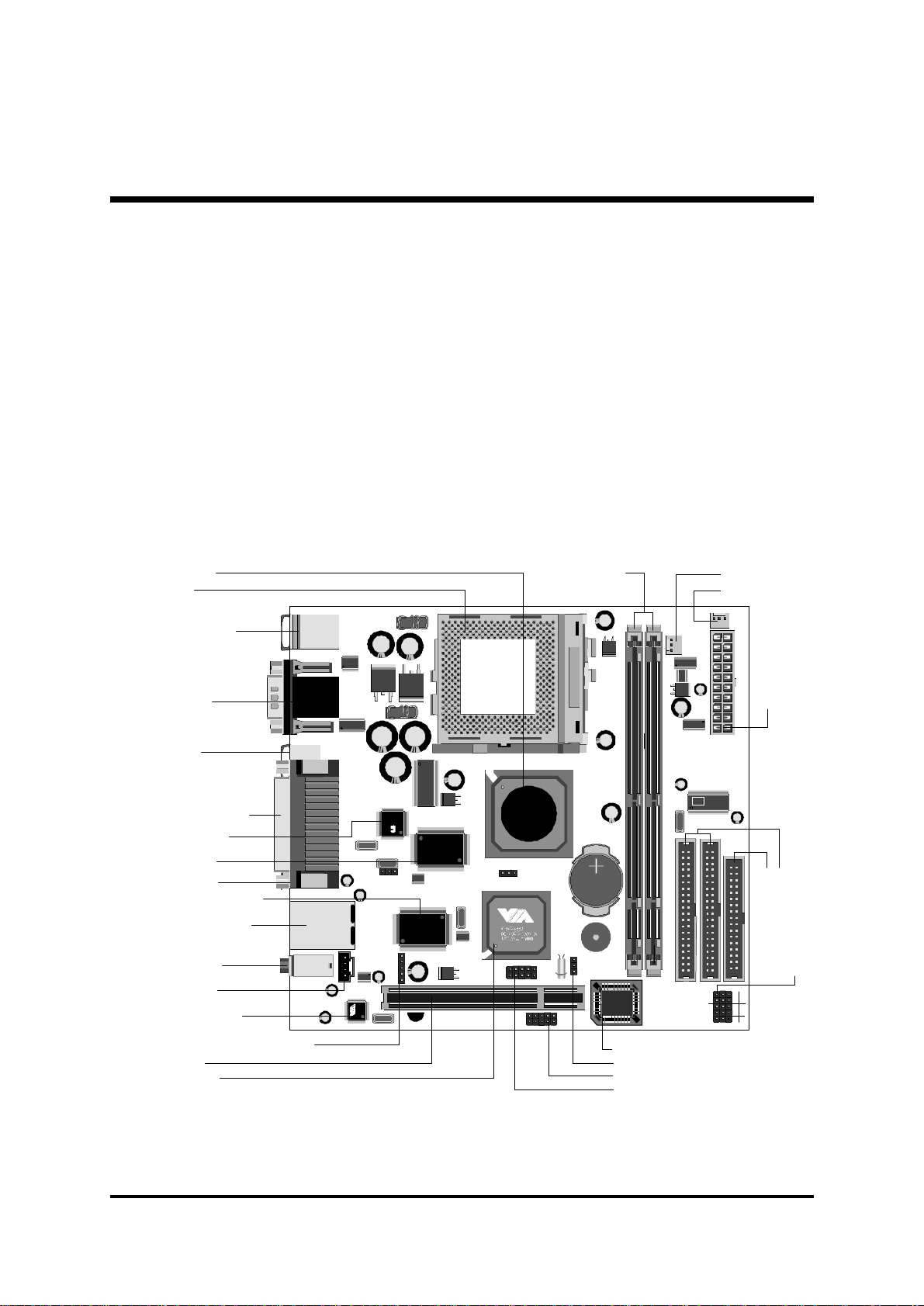

2/)!% 
9248BF- 73
9923
CA930220
PCI1
KBMS1
14.318BOL
SST
MPF
39SF020A
TO-4C-NH
0029018-4
009BTAIWAN
4
MC
Panasonic
CR2032
3V
JAPAN1
VT1611A
LU CE NT
FW323-014
1394ALTNK/PHY
0026S
1731225
RichTek
RT9231
CS2CD1
J6
1
SJP1
1
JP2
1
1
JP5
USB2
1
J9
1
J4
1
JP4
JP3
1
1
ID E 1
EPMI PWRLED
GRNLED
HDDLEDRST
PWON
ID E 2
FDD1
1
1
1
DIMM1
DIMM2
JWR1
FAN1
1
1
FAN2
1
CHRONTEL CH7006C-T RUC0035 MC436
5!
ProSavage
PL133
8604
NFCOCA
0017 C62905.00
TAIWAN

- 8 -
FV24 Users Manual
One piece of Bundled CD-ROM with containing:
ØFV24 users manual on PDF format
ØVIA 4-IN-1 dri er
ØVIA AGP dri er
ØVIA Audio dri er
ØVIA Hardware Monitor dri er
ØLAN dri er
ØAward Flashing Utility

- 9 -
FV24 mainboard is carefully designed for the demanding PC user who wants high perfor-
mance and maximum intelligent features in a compact package.
2.1 Specifications
CPU Support
Support Socket370 package CPU with 66/100/133 MHz FSB.
Intel PPGA/FC-PGA Celeron processors: 300 ~ 800+ MHz.
Intel Pentium III FC-PGA processors: 500MHz ~ 1.13+ GHz.
VIA Cyrix III processors.
Chipset
Features VIA PL133, VT8604/VT82C686B Chipset.
nboard Lan
Realtek 8139C, support 10Mb/ sand 100Mb/s operation.
nboard TV-out (optional)
Chrontel CH7006C.
nboard 1394
Lucent FW323, support 400Mb/s, 200Mb/s, 100Mb/s data transfer rate.
Jumperless CPU Configuration
Soft-configuration FSB (The FSB speed is software configurable from 66MHz
to 150MHz in the Frequency/Voltage Control of BIOS setup program.)
Integrated Graphics Controller
3D Hyper Pipelined Architecture.
Full 2D Acceleration.
Motion Video Acceleration.
4 to 32MB frame buffer using system memory.
AC'97 Link for Audio and Telephony CODEC
AC'97 2.1 compliant.
Spread independent PCI functions for Audio and Modem.
Versatile Memory Support
Two 168-pin DIMM slots to support up to 1GB of PC100 or PC133
compliant SDRAM.
2 FEATURES

- 10 -
PCI Expansion Slots
Pro ides one 32-bit PCI slot.
I/O Interface
Pro ides a ariety of I/O interfaces:
Ø1 × Floppy interface for 3.5-inch FDD with 720KB, 1.44MB, or 2.88MB
format or for 5.25-inch FDD with 360K or 1.2MB format.
Ø1 × PS/2 mouse connector.
Ø1 × PS/2 Keyboard connector.
Ø1 × DB9 Serial connectors 16550 UART compatible.
Ø1 ×DB15 VGA connector.
Ø1 ×S-Video and Composite Video connector. (optional)
Ø2 ×1394 connector.
Ø1 ×RJ45 LAN connector.
Ø1 × DB25 Parallel port supporting Standard Parallel Port (SPP),
Enhanced Parallel Port (EPP), and Extended Capabilities Port (ECP)
data transmission schemes.
Ø1 ×Line-In connector.
Ø1 ×Line-Out connector.
4 USB Interface Onboard
Ø2 × USB connectors on back-panel and one 10-pin header for optional
USB cable to extend another 2 USB ports .
PCI Bus Master IDE Controller Onboard
Two UltraDMA 100/66/33 Bus Master Dual-channel IDE ports pro ide support
to a maximum of four IDE de ices (one Master and one Sla e per channel).
The IDE Bus implements the data transfer speed up to 100/66/33 MB/sec and
also supports Enhanced PIO Modes.
80-pin Cable Backward Compatible Legacy ATAPI De ices, ATAPI IDE CD-
ROM, CD-R, CD-RW, and LS-120 Supports.
ATX Power Supply Connector
ATX power supply unit can be connect to the onboard 20-pin ATX power
connector, supporting Suspend and Soft-On/Off by dual-function power
button.

- 11 -
Advanced Configuration and Power Interface
Features four power sa ing modes: Snoop, Suspend to RAM, Suspend to
Disk, and Soft-Off. ACPI pro ides more efficient Energy Sa ings Features
controlled by your operating system that supports OS Direct Power Manage-
ment (OSPM) functionality.
System BIOS
Pro ides licensed Award BIOS V6.0 PG on 2Mb Flash EEPROM and
supports Green PC, Desktop Management Interface (DMI).
Flex ATX Form Factor
System board conforms to the Flex ATX specification.
Board dimension: 190mm × 175mm.
Advanced Features
ØDual Function Power Button - The system can be in one of two states;
one is Suspend mode and the other is Soft-Off mode. Pushing the power
button for less than 4 seconds places the system into Suspend mode.
When the power button is pressed for longer than 4 seconds, the system
enters the Soft-Off mode.
ØCPU Clock Setting- This item allows users to adjust CPU Host Clock in BIOS.
Intelligent Features
ØVoltage Monitoring - Monitors arious oltages of key elements, such as
the CPU, and other critical system oltage le els to ensure stable current
passing through mainboard components. System oltages include Vcore
on CPU, and +2.5V, +3.3V, +5V, +12V on system etc.
ØFan Status Monitoring - To pre ent CPU from o erheating, the CPU fan is
monitored for RPM and failure. (CPU Cooling FAN with RPM sensor is
required.)
ØTemperature Monitoring - This item allows users to make sure whether
the CPU or system runs in a suitable temperature.

- 12 -
3HARDWAREINSTALLATION
Before removing or installing any of these devices including CPU, DIMMs, Add- n
Cards, Cables, please make sure to unplug the onboard power connector.
This section outlines how to install and configure your FV24 mainboard. Refer to the
following mainboard layout to help you identify arious jumpers, connectors, slots, and
ports. Then follow these steps to guide you through a quick and correct installation of
your system.
3.1 Step-by-Step Installation
Accessories Of FV24
2/)!%
9248BF-73
9923
CA930220
ICS
PCI1
KBMS1
14 .3 18BO L
556
MPF
39SF020A TO-4C-NH 0029018-4
RTL8139C
02175T1
0 09B TA IWAN
4MC
Panasonic
CR2032
3V
JAPAN1
V T1 611 A
LUCENT
FW32 3- 014
1394 A LTNK/PHY
0026 S
1731 22 5
RichTek
RT9231
CS2CD1
J6
1
SJP1
1
JP2
1
1JP5
USB2
1
J9
1
J4
1
JP4 JP3
11
IDE1
EPMI
PWR LED
GR N LED HDD LEDRST
PWON
IDE2
FDD1
111
DIMM1 DIMM2
JWR1
FAN 1
1
1
FAN 2
1
CHRONTEL
CH7006C-T
RUC 0035
MC4 36
5!Pr oSava
g
e
PL133
8604
NFCOCA
0017 C62905.00
TAIWAN
+-
+ +
- -
PS/2 Keyboard/Mouse
Connectors
COM1 & VGA
Connectors
LAN & USB Connectors
R L8139C LAN Controller
Parallel Port Connecto r
1394 Connector
1394 Controller
Chrontel CH7006C
V-out Controller (optional)
Line-In/Line-Out
Connectors
PL133 V 8604
FAN1
Programmable 2Mb Flash EEPROM
One PCI Slot
One Modem Riser Connector - JP5
VIA V 82C686B
Onboard Audio
Connector - SJP1
Speaker-Out & Mic-In Connectors - JP2
Clear CMOS - J9
Front-Panel Connectors - JP3/JP4
Extended two USB Connectors header - USB2
Onboard VIA CODEC
wo DIMM Socket
wo IDE Connectors
One Floppy Connector
S/Composite Video
Connectors
(optional)
A X Power Connector
Socket 370
FAN2

- 13 -
Step 1
Install the CPU:
1. Locate the CPU ZIF (Zero Insertion Force) socket on the upper-right
sector of your mainboard (between the back-panel connectors and the
DIMM memory slots).
2. Pull the CPU ZIF socket le er slightly sideways away from the socket
to unlock the le er, and then bring it to an upwardly ertical position.

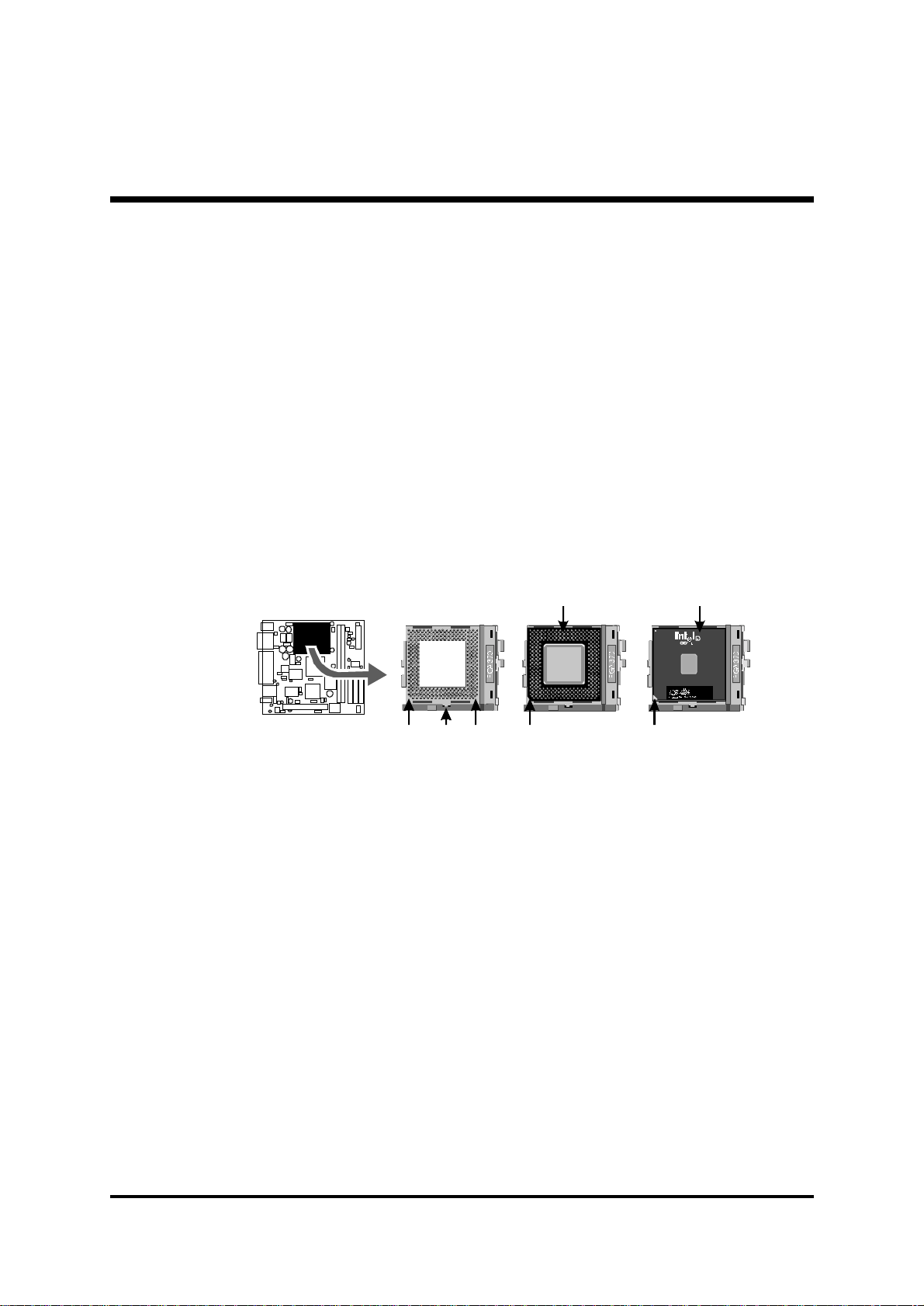

3. Place your PPGA/FC-PGA370 processor in the ZIF socket. Note that the
CPUs edges ha e been purposely designed non-symmetrically to pre ent
from inserting the processor in the wrong direction. The following diagram
demonstrates the correct placement of the CPU in the ZIF socket. You can
see that the two blunt-edged corners should face towards the socket-le er.
4. Slightly push the PPGA/FC-PGA370 processor into the socket without
applying excessi e force while making sure there is no gap between CPU
and socket. Then lower the socket-le er all the way down to its horizontal
position and lock it to secure the CPU in place.
5. The PPGA/FC-PGA370 processor requires a set of heatsink/fan to ensure
proper cooling of the processor. If heatsink/fan ha e not been already
mounted on your CPU, you must purchase the heatsink/fan separately
and ha e it installed. Plug the cable through the heatsink/fan in the CPU
fan power connector located nearby. Note that there are se eral types of
CPU fan connectors. Normally, if your mainboard supports the hardware
monitoring function, a 3-pin fan power connector should allow your system
to detect the CPU fans speed . The CPU fan can also run with a 2-pin fan
power connector, howe er, detection of CPU fans speed is not supported.
Another type of CPU fan may feature a large 4-pin fan power connector,
which does not support CPU fan's speed detection and must be directly
connected to the systems power supply unit. Please refer to the following
diagram.
Blank Blank Notch
PPGA CPU FC-PGA CPU
NotchLever

- 14 -
Step 2.
Set Jumpers
This mainboard is jumperless! The default jumper settings ha e been set for
the common usage standard of this mainboard. Therefore, you do not need
to reset the jumpers unless you require special adjustments as in any of the
following cases:
1. O er-clock your CPU
2. Clear CMOS
For first-time DIY system builders, we recommend that you do not change the
default jumper settings if you are not totally familiar with mainboard configu-
ration procedures. The factory-set default settings are tuned for optimum
system performance. For the ad anced users who wish to customize their
system, section 3.2 Jumper Settings will pro ide detailed information on how
to configure your mainboard manually.
Step 3.
Install SDRAM System Memory

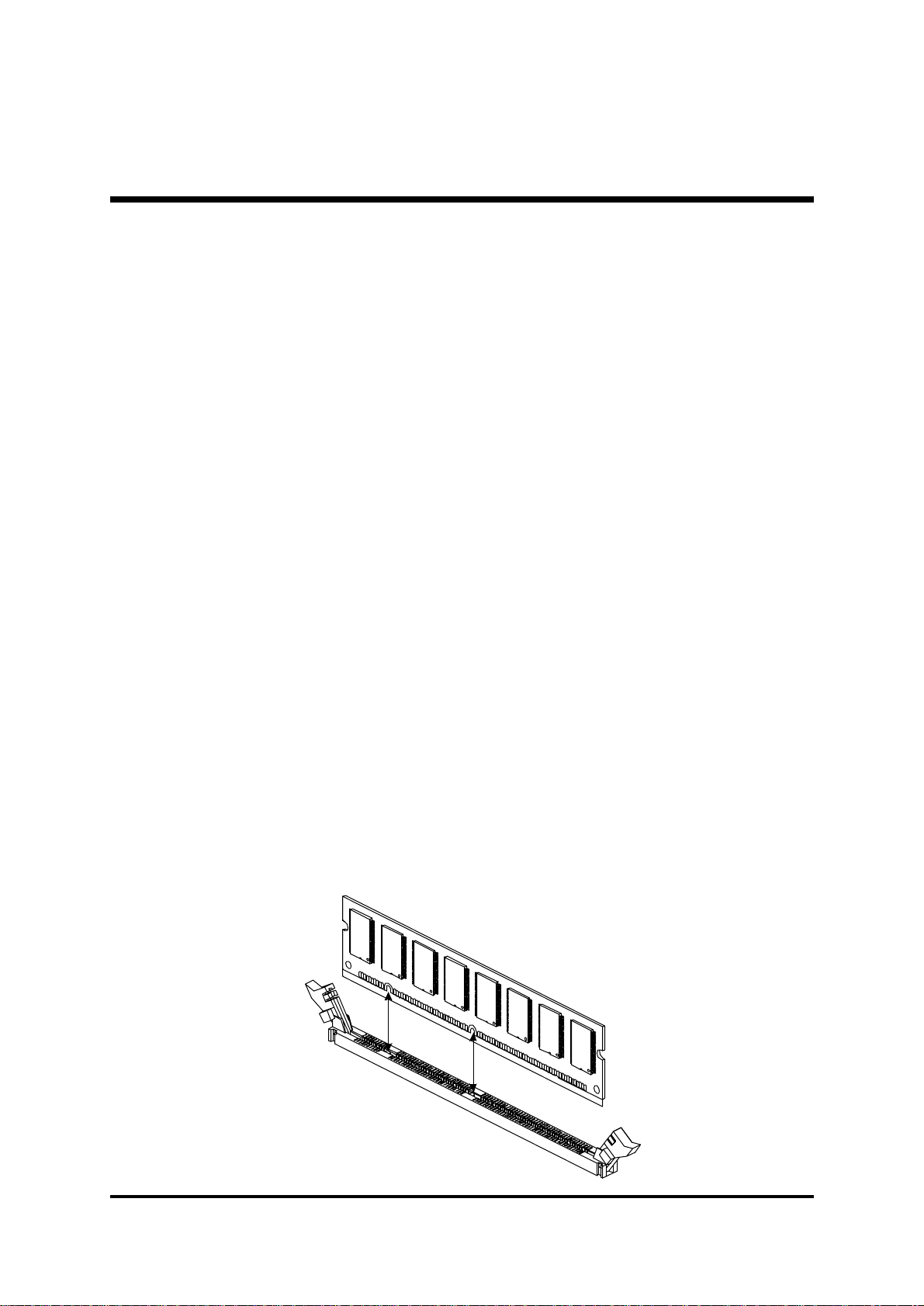

To insert memory module(s) in any one or two DIMM slot(s). Please note
that modules are directional and will not go in the DIMM slots unless prop-
erly oriented. After the module is fully inserted into the DIMM slots, lift the
clips of both sides of the DIMM slot to lock the module in place.

- 15 -
Step 4
Install Internal Peripherals in System Case
Before you install and connect the mainboard into your system case, we
recommend that you first assemble all the internal peripheral de ices into the
computer housing, including but not limited to the hard disk dri e (IDE
/HDD), floppy disk dri e (FDD), CD-ROM dri e, and ATX power supply unit.
This will greatly facilitate in making the connections to the mainboard de-
scribed below.
To install IDE & FDD dri es, follow this procedure:
1. Set the required jumpers on board each de ice according to the
instructions pro ided by the manufacturer. (IDE de ices, HDD, and
CD-ROM ha e to set jumpers on Master or Sla e mode depending
on your willing to install more than one de ice for each kind.)
2. Connect IDE cable and FDD cable on the back-panel of the internal
peripheral de ices to the corresponding headers on board. Note that the
cable should be oriented with its colored stripe (usually in red or magenta)
connected to pin#1 both on the mainboard IDE or FDD connector and on
the de ice as well.
3. Connect an a ailable power cable through your system power supply unit
to the back-panel of each peripheral de ice. Note that the power cable
is directional and cannot fit in if it is not properly positioned.

- 16 -
Step 5
Mount the Mainboard on the Computer Chassis
1. You may find that there are a lot of different mounting hole positions
both on your computer chassis and on the mainboard. To choose a
correct mounting hole, the key point is to keep the back-panel of the
mainboard in a close fit with your system case, as shown below.
2. After deciding on the proper mounting holes, position the studs between
the frame of chassis and the mainboard. The studs are used to fix the
mainboard and to keep a certain distance between the system chassis
and the mainboard, in order to a oid any electrical shortage between the
board and the metal frame of chassis. (If your computer case is already
equipped with mounting studs, you will need to tighten screws to attach
the mainboard.)
Note: In most computer housings, you will be able to find 4 or more
attachment points to install mounting studs and fix the mainboard.
If there arent enough matching holes, then make sure to install at
least 4 mounting studs to ensure proper attachment of the
mainboard.

- 17 -
Step 6
Connect Front-Panel Switches/LEDs/Speaker/Audio/USB
connectors
You can find there are se eral different cables already existing in the system
case and originating from the computers front-panel de ices (HDD LED,
Power LED, Reset Switch, or USB de ices etc.) These cables ser e to connect
the front-panel switches, LEDs, USB, Speaker-Out, and Mic-In connectors to
the mainboards front-panel connectors group (JP3, JP4, USB2, and JP2), as
shown below.
1. ATX Soft Power On/Off (PW ON)
2. EPMI
(Hardware System Management
Interface)
USB2
1
JP2
1
+-
+ + -
- - +
JP4
JP3
11
EPMI
PWR LED
PWR LED GRN LED HDD LEDRST
PW ON
JP4
JP3
11
EPMI
PWR LED
HDD LEDRST
PW ON
+
-
-+
+ -
- +
PWR LED GRN LED
JP4
JP3
11
EPMI
PWR LED
HDD LEDRST
PW ON
+
-
-+
+ -
- +
PWR LED GRN LED

- 18 -
3. Green_LED/ Power_LED (GRN LED/PWR LED)
4. HDD_LED (HDD LED)
5. Power-LED (PWR LED)
6. Hardware Reset Switch (RST)
JP4
JP3
11
EPMI
PWR LED
HDD LEDRST
PW ON
-+
+-
+ -
- +
PWR LED GRN LED
JP4
JP3
11
EPMI
PWR LED
HDD LEDRST
PW ON
-+
+-
+ -
- +
PWR LED GRN LED
JP4
JP3
11
EPMI
PWR LED
HDD LEDRST
PW ON
+-
-+
+ -
- +
PWR LED GRN LED
JP4
JP3
11
EPMI
PWR LED
HDD LEDRST
PW ON
-+
+-
+ -
- +
PWR LED GRN LED
