HOT-565
Pentium™processor
Based PCI MAIN BOARD
User's Manual

FCC Notice:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy. If not installed and used properly, in
strict accordance with the manufacturer’s instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures :
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/television technician for help and for additional suggestions.
The user may find the following booklet prepared by the Federal Communications Commission helpful “How to Identify
and Resolve Radio-TV Interference Problems.” This booklet is available from the U.S. Government Printing Office.
Washington, DC 20402, Stock 004-000-00345-4
FCC Warning
The user is cautioned that changes or modifications not expressly approved by the manufacturer could void the user’s
authority to operate this equipment.
Note : In order for an installation of this product to maintain compliance with the limits for a Class B device, shielded
cables and power cord must be used.
CE Notice:
Following standards were applied to this product, in order to achieve compliance with the electromagnetic compatibility :
- Immunity in accordance with EN 50082-1: 1992
- Emmitions in accordance with EN 55022: 1987 Class B.
NOTICE
Copyright 1997.
All Right Reserved
Manual Ver 1.0
All information, documentation, and specifications contained in this manual are subject to change without prior
notification by the manufacturer.
The author assumes no responsibility for any errors or omissions which may appear in this document nor does it
make a commitment to update the information contained herein.
TRADEMARKS
Intel is a registered trademark of Intel Corporation
PentiumÔ Processor is a registered trademark of Intel Corporation
PC/AT is a registered trademark of International Business Machine Corporation.
PS/2 is a registered trademark of IBM Corporation.
All other brand and product names referred to in this manual are trademarks or registered trademarks of their
respective holders.

HOT- 565 User's Manual 3
TABLE OF CONTENTS
PREFACE ..................................................................................................4
CHAPTER 1 INTRODUCTION .......................................................................5
Specification................................................................................................5
CHAPTER 2 HARDWARE CONFIGURATION ..................................................7
HOT-565 Layout..........................................................................................7
Jumpers........................................................................................................8
CPU Clock Speed Selection - JP36, JP23, JP24 and JP42......................... 8
Onboard Regulators Output - J100, J101, J103 and JP43........................10
Flash EPROM Jumper - JP19....................................................................11
Clear CMOS - JP40....................................................................................11
Connectors & Sockets................................................................................12
CHAPTER 3 MEMORYCONFIGURATION ...................................................14
CHAPTER 4 AWARD BIOS SETUP ...........................................................16
The Main Menu..........................................................................................17
Standard CMOS Setup...............................................................................19
BIOS Features Setup..................................................................................21
Chipset Features Setup...............................................................................23
Power Management Setup..........................................................................26
PCI Configuration Setup............................................................................28
Integrated Peripherals................................................................................30
Password Setting........................................................................................32

HOT- 565 User's Manual 4
HOT-565 mainboard is a highly integrated IBM PC/AT compatible system
board. The design will accept Intel Pentium P54C, Pentium MMX, Cyrix/IBM
6x86/L and AMD K5/K6 processors and also features high-performance
pipelined burst secondary cache memory support with size of 512KB or
256KB. The memory subsystem is designed to support up to 256 MB of EDO
RAM, Standard Fast Page DRAM and SDRAM in standard 72-pin SIMM
socket and 168-pin 3.3 V DIMM socket.
HOT-565 provides a new level of I/O integration. Intel's 82430TX PCIset
chipset provides increased integration and improved performance over other
chipset designs. The 82430TX PCIset chipset provides an integrated Bus
Mastering IDE controller with two high performance Ultra 33 DMA IDE
interfaces for up to four IDE devices.
The onboard Giga I/O controller provides the standard PC I/O functions: floppy
interface, two FIFO serial ports, an IrDA device port and a SPP/EPP/ECP
capable parallel port.
Up to four PCI local bus slots provide a high bandwidth data path for data-
movement intensive functions such as graphics, and up to three ISA slots
complete the I/O function.
The HOT-565 provides the foundation for cost effective, high performance,
highly expandable platforms, which deliver the latest in Pentium processor and
I/O standard.
Preface

HOT- 565 User's Manual 5
Chapter1 Introduction
Specification
CPU Function
Pentium P54C/P55C-MMX™ processors : 75~233MHz
Cyrix/IBM 6x86/L processors : PR120~PR166
AMD K5/K6 processors : PR75~PR233
Chipset
Intel PCIset 82439TX and 82371AB
Memory
Supports two banks of EDO, Fast Page Mode DRAM or
3.3V Sync. DRAM ranging from 8MB to 256MB
Supports 4MB, 8MB, 16MB, 32MB and 64MB 72-pins
SIMMs or 8MB, 16MB, 32MB, 64MB and 128MB 168-pin
DIMMs
Cache Memory
Integrated L2 write-back cache controller
- 512KB or 256KB Direct Mapped Pipeline Burst Cache
Power Management Function
Provides four power management modes : Full on, Doze,
Standby, and Suspend
Supports Microsoft APM 1.2
Provides EPMI (External Power Management Interrupt) pin

HOT- 565 User's Manual 6
Expansions
32-bit PCI bus slot x 4
16-bit ISA bus slot x 3
2-channel PCI IDE port
- Support up to 4 IDE devices
- PIO Mode 4, DMA Mode 2 transfers up to 22 MB/sec
- Supports "Ultra 33" synchronous DMA mode transfer tup
to 33 Mbytes/sec
- Integrated 8 x 32-bit buffer for PCI IDE burst transfers
One floppy port
One parallel port
- SupportsSPP (PS/2 compatible bidirectional Parallel
Port), EPP (Enhanced Parallel Port), andECP (Extended
Capabilities Port) high performance parallel port.
Two serial ports
- Supports 16C550 compatible UARTS.
- Supports IrDA (Infrared) communication.
One PS/2 mouse port
Two USB (Universal Serial Bus) ports
System BIOS
Award PnP BIOS v4.51PG
Bundled with Symbios Login(NCR) SDCM V4.0 SCSI BIOS
Board Design
Dimension 220mm x 280mm

HOT- 565 User's Manual 7
Chapter2Hardware Configuration
HOT-565Layout

HOT- 565 User's Manual 8
Jumpers
CPU Clock Speed Selection - JP23, JP24 and JP42
HOT-565 mainboard features a clock generator to provide adjustable system
clock frequency. JP36 is a 6-pins jumper which determine the system clock
frequency from 50 MHz to 66 MHz.
HOT-565 mainboard also provides Jumpers JP23 and JP24 to figure the
CPU core clock multiplier. By inserting jumper caps on JP23 and JP24, the
user can change theHost Bus Clock/CPU Core Clock ratio from
1 : 1.5 to 1 : 3.5.
JP42 is reserved for AMD future processors.
Several hardware settings are made through the use of jumper caps to
connect jumper pins on the main board. The jumper's pin 1 on main board
will be on the top or on the left when holding the main board with the
keyboard connector away from yourself. Pinout numeric is written around
the jumpers with four or six pin jumpers. The jumpers will be show
graphically such as to connect pins 3&4 and 5&6, and
to connect pins 1&2 and 3&4 for six pin jumpers.
Jumpers will be show graphically such as to connect pins 2&4 and
to connect pins 3&4 for four pin jumpers.
Jumpers with two pins will be shown as for Short (On) and for
Open (Off).
To connect the pins, simply place a plastic jumper cap over the two pins as
diagramed.

HOT- 565 User's Manual 9
Processors JP36 System
Clock
/Multiplier
Frequency
Multiplier
JP23, JP24
PentiumMMX233 MHz
Pentium100 MHz
AMD-K6PR2-233
AMD-K5PR100/133
66 MHz
x 1.5 / x 3.5
Pentium/MMX200 MHz
AMD-K6PR2-200
AMD-K5PR200
66 MHz
x 3
Pentium/MMX166 MHz
AMD-K6PR2-166 MHz
AMD-K5PR166 MHz
66 MHz
x 2.5
Pentium/MMX150 MHz
AMD-K5PR150 60 MHz x 2.5
Pentium133 MHz
Cyrix6x86/LP166+
IBM6x86/LP166+
66 MHz
x 2
Pentium120 MHz
Cyrix6x86 P150+
IBM6x86 P150+
60 MHz
x 2
Cyrix6x86 PR133+
IBM6x86 PR133+55 MHz x 2
Cyrix6x86 P120+
IBM6x86 P120+50 MHz x 2
Pentium90 MHz
AMD-K5PR90/120 60 MHz x 1.5
Pentium75 MHz
AMD-K5PR75 50 MHz x 1.5
CPU Clock Configuration

HOT- 565 User's Manual 10
OnboardRegulatorOutput- J100, J101,J103and JP43
These jumpers set the voltage supplied to the processor. Intel Pentium
processors has only a Single Power Plane and uses the standard 3.3V(STD),
AMD K5 and Cyrix/IBM 6x86 has also have a single power plane and use
3.52V. Currently Intel's new Pentium P55C MMX, AMD K6 and Cyrix/IBM
6x86L with dual power planes, Pentium P55C MMX and Cyrix/IBM 6x86L
requires 2.8V, AMD K6 PR166 and PR200 requires 2.9V; PR233 requires
3.2V.
JP43 is designed to fine tune VCORE
output from regulator. When the
jumper cap is removed from JP43, it
will increase VCORE voltage output
from regulator by 2.5%. Normally,
JP43 is set to close by insert a
jumper cap.
Processor Voltage
Output J103 J101 J100
AMD K5,
Cyrix/IBM 6x86 3.52 V
Pentium,
Cyrix/IBM 6x86 3.3 V
Processor Vcore
Output J103 J101 J100 Vio=3.3V
Pentium MMX,
Cyrix/IBM
6x86L 2.8 V
AMD K6
PR166/PR200 2.9 V
AMD K6
PR233 3.2 V
Single Power Plane (VIO=VCORE)
Dual Power Planes (VIO, VCORE separated)

HOT- 565 User's Manual 11
Clear CMOS - JP40
FlashEPROMJumper - JP19
HOT-565 mainboard supports two types of flash EPROM: 5 volt and 12
volt. By setting up jumper JP19, you can update both types of flash
EPROM with new system BIOS files as they come available.
JP19 Pin 2-3 Close for 5V, Pin 1-2 Close for 12V.
BIOS UPGRADES
Flash memory makes distributing BIOS upgrades easy. A new version of
the BIOS can be installed from a diskette.
Please note the following when making the BIOS updates.
** Flash utility can't work under protected/virtual mode. Memory
manager likeQEMM.386, EMM386 should not be loaded. (or
Simply bypass allconfig.sys and autoexec.bat on system boot
up.
** Flash utility supports both 5V and 12V Flash EPROM.
HOT-565 mainboard supports jumperJP40 for discharging mainboard's
CMOS memory.
This jumper can clear the CMOS data stored in the Ultra I/O chip. To
clear the CMOS data please follow listed steps:
1) Turn off the PC,
2) Remove the jumper cap from JP40 pin 1-2,
3) Insert the jumper cap to JP40 pin 2-3 for a brief while,
4) Remove the jumper cap from JP40 pin 2-3,
5) Reinsert the jumper cap to JP40 pin 1-2,
6) Turn on the PC.

HOT- 565 User's Manual 12

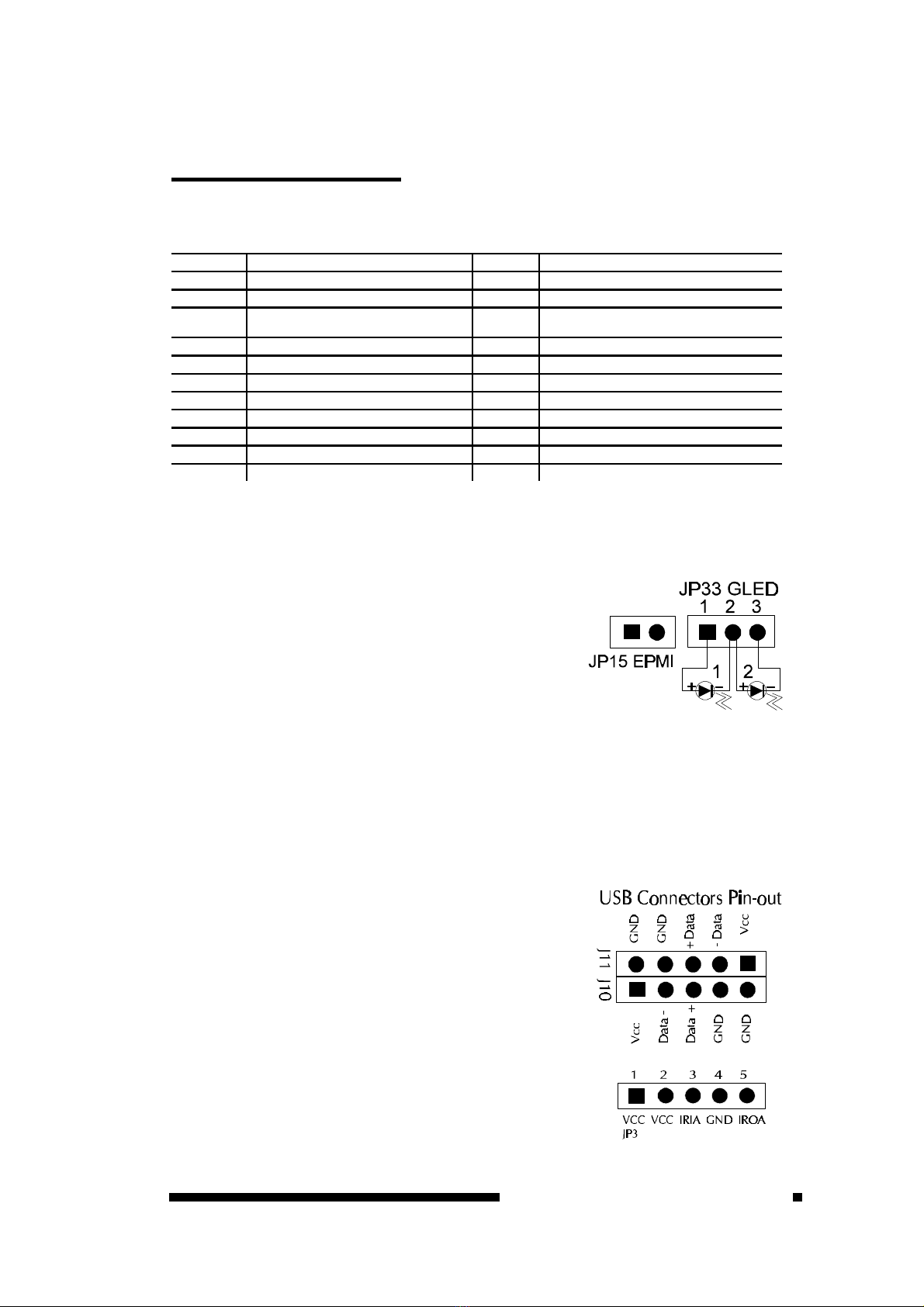

Connectors&Sockets
Connectors & Sockets
ITEM FUNCTION ITEM FUNCTION
J2,3,4,5On-boardSIMM socketsJ14 PowerLEDand Keylock Connector
DIM1,2On-board3.3VDIMM socketsJ12 PCSpeakerConnector
J23,17,18,
19 On-boardPCISlotsJP12 HardwareResetSwitchConnector
J20,21,22 On-boardISA SlotsJP33 Green LED**Note1
J6 On-boardPCIPrimaryIDEConnectorJP15 EPMIConnector*Note1
J7 On-boardPCISecondaryIDEConnectorJP22 On-boardEnhanced IDER/WLEDConnector
CN1 On-boardFloppyControllerConnectorJ10,11 UniversalSerialBus(USB)Connectors*Note2
CN4 On-boardParallelPortConnectorJP3 Infra-red Communication PortConnector*Note3
CN2 On-boardSerialport-1ConnectorJP1 Cooling Fan Connector*Note4
CN3 On-boardSerialPort-2Connector
J99 On-boardPS/2MousePortConnector*Note5
Note 1: JP33, JP15 - Green LED and EPMI connector
Themainboardprovides an EPMI connector-JP15, this
allows the user to manually place the system into suspend
mode. This2-pinconnectorconnects to the case-
mounted suspend switch. If you do not have a switch for
the connector, you may use the "Turbo Switch" since it
does not have a function.
If you want to use this connector, "Power Management"
in the Power Management Setup of the BIOS section
shouldnotbeon the setting of Disabled.
JP33 is a 3-pin Green LED connector, the user can connect LED on
pin 1-2(setting 1) or pin 2-3(setting 2). Setting 1 will turn on LED on normal operation
and turn off LED on suspend mode. On the contrary, setting 2 will turn off LED on
normal operation and turn on LED on suspend mode.
Note 2: J10, J11 - USB connectors
Themainboardprovides two sets USB (UniversalSerial
Bus) connectors - J10 and J11 for USB devices use.
Note 3: JP3 - Infrared module connector
The main board provides a 5-pin infrared connector - JP3 as
anoptionalinfraredmodule for wireless transmitting and
receiving.
Note 4: JP1 - 12V cooling fan power connector

HOT- 565 User's Manual 13
The main board provides a on-board 12V cooling fan power
connector for cooling fan. Please make sure the red wire connect to
+12V and black wire connect to ground (GND).
Caution : Do not short 12V and GND pin of JP1 by a
jumper cap or it will cause serve damage to the
main board.
Note 5: JP99- PS/2 Mouse 5 pins connector
The main board provides an 5 pins PS/2 mouse connector for optional
PS/2 mouse cable. Diagram on the right side is the pinout of
connector.

HOT- 565 User's Manual 14
Chapter3Memory Configuration
The HOT-565 mainboard provides four 72-pin SIMM sockets and two 168-
pin DIMM sockets that make it possible to install up to 256MB of RAM.
The SIMM socket support 4MB, 8MB, 16MB, 32MB and 64MB 5V single-
or double-side fast page or EDO DRAM modules, and DIMM socket support
8MB, 16MB, 32MB, 64MB, and 128MB 3.3V single- or double-side
SDRAM, fast page, or EDO modules.
Caution : The user should not populate both 5V SIMM modules & 3.3V
DIMM modules at the same time.
The four SIMM sockets are arranged in two banks of two sockets each, the
two DIMM socket are also arranged in two banks of one socket each. Each
bank provides a 64/72-bit wide data path.
Both SIMMs in a bank must be of the same memory size and type, although
the different types of memory may differ between banks. It is possible to
have 70 ns fast page DRAM in one bank and 60 ns EDO DRAM in the other.
The memory configuration tables on next two pages list the SIMMs and
DIMMs memory configuration.

HOT- 565 User's Manual 15
Table 3-1. Memory Configuration Table
SIMM 1SIMM 2SIMM 3SIMM 4DIMM 1DIM2TOTAL
4 MB 4 MB —— —— —— —— 8 MB
4 MB 4 MB 4 MB 4 MB —— —— 16 MB
8 MB 8 MB —— —— —— —— 16 MB
4 MB 4 MB 8 MB 8 MB —— —— 24 MB
8 MB 8 MB 8 MB 8 MB —— —— 32 MB
16 MB 16 MB —— —— —— —— 32 MB
4 MB 4 MB 16 MB 16 MB —— —— 40 MB
8 MB 8 MB 16 MB 16 MB —— —— 48 MB
16 MB 16 MB 16 MB 16 MB —— —— 64 MB
32 MB 32 MB —— —— —— —— 64 MB
4 MB 4 MB 32 MB 32 MB —— —— 72 MB
8 MB 8 MB 32 MB 32 MB —— —— 80 MB
16 MB 16 MB 32 MB 32 MB —— —— 96 MB
32 MB 32 MB 32 MB 32 MB —— —— 128 MB
64 MB 64 MB —— —— —— —— 128 MB
4 MB 4 MB 64 MB 64 MB —— —— 136 MB
8 MB 8 MB 64 MB 64 MB —— —— 144 MB
16 MB 16 MB 64 MB 64 MB —— —— 160 MB
32 MB 32 MB 64 MB 64 MB —— —— 192 MB
64 MB 64 MB 64 MB 64 MB —— —— 256 MB
—— —— —— —— 8 MB —— 8 MB
—— —— —— —— 8 MB 8 MB 16 MB
—— —— —— —— 16 MB —— 16 MB
—— —— —— —— 8 MB 16 MB 24 MB
—— —— —— —— 16 MB 16 MB 32 MB
—— —— —— —— 32 MB —— 32 MB
—— —— —— —— 8 MB 32 MB 40 MB
—— —— —— —— 16 MB 32 MB 48 MB
—— —— —— —— 32 MB 32 MB 64 MB
—— —— —— —— 64 MB —— 64 MB
—— —— —— —— 8 MB 64 MB 72 MB
—— —— —— —— 16 MB 64 MB 80 MB
—— —— —— —— 32 MB 64 MB 96 MB
—— —— —— —— 64 MB 64 MB 128 MB
—— —— —— —— 128 MB —— 128 MB
—— —— —— —— 8 MB 128 MB 136 MB
—— —— —— —— 16 MB 128 MB 144 MB
—— —— —— —— 32 MB 128 MB 160 MB
—— —— —— —— 64 MB 128 MB 192 MB
—— —— —— —— 128 MB 128 MB 256 MB

HOT- 565 User's Manual 16
HOT-565 BIOS ROM has a built-in Setup program that allows users to
modify the basic system configuration. This type of information is stored in
battery-backed RAM so that it retains the Setup information when the
power is turned off.
EnteringSetup
Power on the computer and press <Del> immediately will allow you to
enter Setup. The other way to enter Setup is to power on the computer,
when the below message appear briefly at the bottom of the screen
during the POST (Power On Self Test), press <Del> key or
simultaneously press <Ctrl>,<Alt>, and <Esc> keys.
TO ENTER SETUP BEFORE BOOT PRESS CTRL-ALT-ESC OR DEL KEY
If the message disappears before you respond and you still wish to enter
Setup, restart the system to try again by turning it OFF the ON or
pressing the "RESET" button on the system case. You may also restart
by simultaneously press <Ctrl>,<Alt>, and <Delete> keys. If you do not
press the keys at the correct time and the system does not boot, an error
message will be displayed and you will again be asked to,
PRESS F1 TO CONTINUE, CTRL-ALT-ESC OR DEL TO ENTER SETUP
Chapter4Award BIOS Setup

HOT- 565 User's Manual 17
The Main Menu
Standard CMOS setup
This setup page includes all items in a standard compatible BIOS.
BIOS features setup
This setup page includes all items of Award special enhanced features.
Chipset features setup
This setup page includes all items of chipset features.
Power Management Setup
This setup page includes all items of Power Management features.
PnP/PCI Configuration setup
This item specifies the value (in units of PCI bus blocks) of the latency
timer for the PCI bus master and the IRQ level for PCI device. Power-on
with BIOS defaults
Load BIOS Defaults
BIOS defaults loads the values required by the System for the maximum
performance. However, you can change the parameter through each Setup
Menu.

HOT- 565 User's Manual 18
Load Setup Defaults
Setup defaults loads the values required by the system for the O.K.
performance. However, you can change the parameter through each Setup
Menu.
Integrated Peripherals
This setup page includes all items of peripheral features.
IDE HDD auto detection
Automatically configure IDE hard disk drive parameters.
Supervisor Password
Change, set, or disable supervisor password. It allows you to limit access to
the system and Setup, or just to Setup.
User Password
Change, set, or disable user password. It allows you to limit access to the
system and Setup, or just to Setup.
Save & Exit setup
Save CMOS value change to CMOS and exit setup
Exit without saving
Abandon all CMOS value changes and exit setup.

HOT- 565 User's Manual 19
StandardCMOSSetup
Date
The date format is <day>, <month> <date> <year>. Press <F3> to show the
calendar.
Time
The time format is <hour> <minute> <second>. The time is calculated base
on the 24-hour military-time clock. For example. 5 p.m. is 17:00:00.
Hard Disks Type
This item identify the types of hard disk drives that has been installed in the
computer. There are 46 predefined types and a user definable type.
Press PgUp or PgDn to select a numbered hard disk type or type the number
and press <Enter>. Note that the specifications of your drive must match
with the drive table. The hard disk will not work properly if you enter
improper information for this item. If your hard disk drive type is not
matched or listed, you can use Type User to define your own drive type
manually.
If you select Type User, related information is asked to be entered to the
following items. Enter the information directly from the keyboard and press
<Enter>. Those information should be provided in the documentation from
your hard disk vendor or the system manufacturer.
The user may also set those items to AUTO to auto configure hard disk

HOT- 565 User's Manual 20
drives parameter when system power-on.
If a hard disk drive has not been installed select NONE and press <Enter>.
Drive A type/Drive B type
This item specifies the types of floppy disk drive A or drive B that has been
installed in the system.
Video
This item selects the type of adapter used for the primary system monitor
that must matches your video display card and monitor. Although secondary
monitors are supported, you do not have to select the type in Setup.
Error halt
This item determines if the system will stop, when an error is detected
during power up.
Memory
This item is display-only. It is automatically detected by POST (Power On
Self Test) of the BIOS.
Base Memory
The POST of the BIOS will determine the amount of base (or conven-
tional) memory installed in the system. The value of the base memory is
typically 512K for systems with 512K memory installed on the
mainboard, or 640K for systems with 640K or more memory installed on
the mainboard.
Extended Memory
The BIOS determines how much extended memory is present during the
POST. This is the amount of memory located above 1MB in the CPU's
memory address map.
