Table of Contents 1
VAR Language: English; VAR issue date: 09-Februar-2004
This is a summarised version of the Operating Manual. The
complete version can be found in the Internet at this address:
www.siemens-mobile.com/cx65
left page (1) of KCX 65 Ulysses en2 short, A31008-H7100-M7-1-RC19 (26.04.2004, 14:24)
Safety precautions ..................... 2
Telephone list ............................ 4
Display symbols ......................... 6
Getting started ........................... 7
Switching phone on and off/enter-
ing PIN ...................................... 11
General instructions ................ 12
Standard functions .................. 14
Security .................................... 16
Text entry ................................. 18
Calling ...................................... 21
Default book ............................ 23
Addressbook ............................ 24
Phonebook ............................... 26
Call records .............................. 28
Camera ..................................... 29
Message list ............................. 31
SMS .......................................... 32
MMS ......................................... 34
E-mail ....................................... 38
Voice message/CB .................... 39
Surf & fun ................................. 40
Setup ........................................ 43
Fast access key ......................... 53
Organiser ................................. 54
Extras ....................................... 57
My stuff .................................... 59
Customer Care ......................... 60
Care and maintenance ............. 62
Product data ............................. 63
Menu tree ................................. 64
SAR – International (ICNIRP) .... 70
Index ......................................... 71
Table of Con-
tents
This is a sum-
marised ver-
sion of the
Operating
Manual. The
complete ver-
sion can be
found in the
Internet at this
address:
www.sie-
mens-
mobile.com/
cx65

©Siemens AG 2003, \\Dellserver\users\admin\CX65\E2\short\KCX65_SecurityInfo.fm
Safety precautions2
VAR Language: English; VAR issue date: 09-Februar-2004
left page (2) of KCX 65 Ulysses en2 short, A31008-H7100-M7-1-RC19 (26.04.2004, 14:24)
Safety precautions
Information for parents
Please read the operating instructions and safety precautions carefully before use.
Explain the content to your children and the hazards associated with using the phone.
Remember to comply with legal
requirements and local restric-
tions when using the phone. For
example in aeroplanes, petrol
stations, hospitals or while driv-
ing.
Mobile phones can interfere
with the functioning of medical
devices such as hearing aids or
pacemakers. Keep at least
20 cm/9 inches between phone
and pacemaker. When using
the mobile phone hold it to the
ear which is further away from
the pacemaker. For more infor-
mation consult your doctor.
Ringtones (p. 46), info tones
(p. 47) and handsfree talking
are reproduced through the
loudspeaker. Do not hold the
phone to the ear when it rings or
when you have switched on the
handsfree function (p. 21).
Otherwise you risk serious per-
manent damage to your hear-
ing.
Do not use an optical magnifier
to look at the activated infrared
interface [Class 1 LED product
(classification as per
IEC 60825-1)].
Only use original Siemens bat-
teries (100 % mercury-free) and
charging devices. Otherwise
you risk serious damage to
health and property: the battery
could explode, for instance.
The SIM card may be removed.
Caution! Small parts like this
could be swallowed by young
children.
The mains voltage specified on
the power supply unit (Volt)
must not be exceeded. Other-
wise the charging device may
be destroyed.
You may only open the phone
to replace the battery, face-
plate, keypad or SIM card. You
must not open the battery under
any circumstances. Any other
changes to this device are
strictly prohibited and will invali-
date the operating licence.

©Siemens AG 2003, \\Dellserver\users\admin\CX65\E2\short\KCX65_SecurityInfo.fm
3Safety precautions
VAR Language: English; VAR issue date: 09-Februar-2004
left page (3) of KCX 65 Ulysses en2 short, A31008-H7100-M7-1-RC19 (26.04.2004, 14:24)
Important
Dispose of used batteries and
phones according to the legal
regulations.
Mobile phones can interfere
with the operation of nearby
TVs, radios or PCs.
Use only Siemens original
accessories. This will avoid
potential risks to health or prop-
erty and ensure compliance
with all relevant regulations.
Improper use will invalidate the guarantee!
These safety instructions also apply to
Siemens original accessories.

©Siemens AG 2003, \\Dellserver\users\admin\CX65\E2\short\KCX65_Overview.fm
Telephone list4
VAR Language: English; VAR issue date: 09-Februar-2004
left page (4) of KCX 65 Ulysses en2 short, A31008-H7100-M7-1-RC19 (26.04.2004, 14:24)
Telephone list
1
ACall key
Dial phone number/name displayed/
highlighted, take calls. Show last phone
numbers dialled in standby mode.
2
BOn/Off/End key
• Switched off: press down to switch
on.
• During a conversation or in an appli-
cation: press briefly to finish.
• In menus: press briefly to go back a
level. Hold down to go back to
standby mode.
• In standby mode: hold down to switch
off phone.
3Joystick
CPress the joystick down verti-
cally to start an application or
function.
In standby mode:
COpen main menu.
GOpen user profiles.
HOpen phonebook/addressbook.
EInbox open
DStart the camera.
In lists, messages and menus:
IScroll up and down.
DBack one level.
During a call:
ISet volume.
ECall options.
4Soft keys
The current functions of this key are
shown in the bottom line of the display
as §Text§/icon (e.g.
p).
5Additional key for WAP access
(if required, and no other default
setting is made).
Z
£
X
Service provider
2004.05.01 10:10
NewMMS Menu

©Siemens AG 2003, \\Dellserver\users\admin\CX65\E2\short\KCX65_Overview.fm
5Telephone list
VAR Language: English; VAR issue date: 09-Februar-2004
left page (5) of KCX 65 Ulysses en2 short, A31008-H7100-M7-1-RC19 (26.04.2004, 14:24)
1Integrated antenna
Do not obstruct the phone above the
battery cover unnecessarily. This
reduces the signal quality.
2LED for Dynamic Light (p. 45)
3Loudspeaker
4Display
5Infrared interface (IrDA)
6Input keys
7
*Ringtone
•Press and hold in standby mode:
Switch all audible signals on/off
(except alarm).
•Hold down on incoming call:
Switch off ringtone for this call only.
8
#Key lock
Press and hold in standby mode:
Switch key lock on/off.
9Connection socket
For charger, headset, flash, etc.
:Connection for external antenna
Camera lens
Mirror (depending on telephone
model)
Z
£
X
Service provider
2004.05.01 10:10
NewMMS Menu

©Siemens AG 2003, \\Dellserver\users\admin\CX65\E2\short\KCX65_Displaysymbols.fm
Display symbols6
VAR Language: English; VAR issue date: 09-Februar-2004
left page (6) of KCX 65 Ulysses en2 short, A31008-H7100-M7-1-RC19 (26.04.2004, 14:24)
Display symbols
Display symbols (selection)
ZSignal strength.
WBattery charge level, e.g. 50 %
LPhonebook
PCall records
OSurf & fun/
Service supplier portal
QOrganiser
MMessages
RCamera
SExtras
NMy stuff
TSetup
ÇAll calls are diverted.
¿Ringing tone off.
¾Short ring (beep) only.
¼Ringtone only if the caller is
stored in the Phonebook.
¹Alarm set.
ÄKeypad locked.
ÅAuto answer feature on.
£Activated and available.
²WAP online.
®IrDA transmission
Events (selection)
ãSIM memory full.
äSIM memory full.
åPhone memory full.
ÆNo network access.
ÂMissed call
ÊDelete assistant
Message symbols (selection)
pUnread
qRead
sSent
wMMS received
yMMS with DRM contents (p. 12)
zE-mail forwarded
{E-mail with attachment
ÀVoice mail received

©Siemens AG 2003, \\Dellserver\users\admin\CX65\E2\short\KCX65_Startup.fm
7Getting started
VAR Language: English; VAR issue date: 09-Februar-2004
left page (7) of KCX 65 Ulysses en2 short, A31008-H7100-M7-1-RC19 (26.04.2004, 14:24)
Getting started

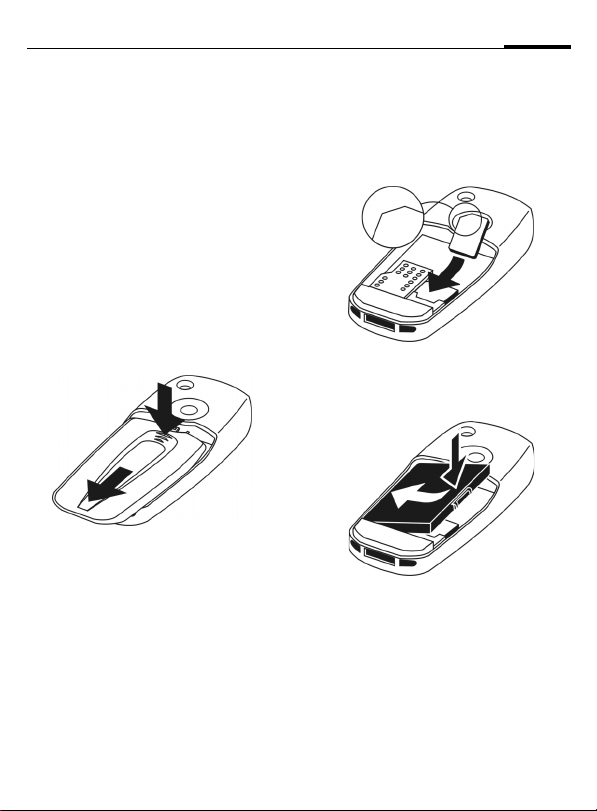

Inserting the SIM card/
battery
The service provider supplies you
with a SIM card on which all the
important data for your line is
stored. If the SIM card has been
delivered in credit-card size, snap the
smaller segment out and remove
any rough edges.
Press the grooved area 1, then push
cover towards the front in the direc-
tion indicated by the arrow 2.
• Place the SIM card in front of the
slot with the contact surface fac-
ing downwards. Then press the SIM
card slightly to push it in 3
(ensure that the chamfered corner
is in the correct position).
• Insert the battery sideways into
the phone 4, then press it down-
wards 5until it engages.
• To remove, press the retaining tab
on the side of the battery, then lift
the battery out.
1
2
3
4
5

©Siemens AG 2003, \\Dellserver\users\admin\CX65\E2\short\KCX65_Startup.fm
Getting started8
VAR Language: English; VAR issue date: 09-Februar-2004
left page (8) of KCX 65 Ulysses en2 short, A31008-H7100-M7-1-RC19 (26.04.2004, 14:24)
• Place the cover in position and
push it towards the front 6until
it latches into place.
Charging the battery
Charging the battery
The battery is not fully charged when
delivered. Plug charger cable into the
bottom of the phone, plug power
supply unit into a mains power socket
and charge for at least two hours.
YDisplay during charging.
Charging time
An empty battery is fully charged
after about 2 hours. Charging is only
possible within a temperature range
of +5 °C to 45 °C. If the temperature
rises/falls 5 °C above/below this, the
charge symbol flashes a warning.
The mains voltage specified on the
power supply unit must not be
exceeded.
Operating time
The operating time depends upon
the respective conditions of use.
Extreme temperatures considerably
reduce the phone’s standby time.
Avoid placing the phone in the sun
or on a heater.
Call time: 100 to 330 minutes
Stand-by time: 60 to 300 hours.
Charge icon not visible
If the battery has been discharged
fully, the charge icon is not immedi-
ately visible when the power supply
is plugged in. It will appear after up
to two hours. In this case the battery
is fully charged after 3 to 4 hours.
Only use the plug-in power supply
included in delivery!
Additional information
Please switch off your phone before
removing the battery!
Only 3 V SIM cards are supported. Please
contact your service provider if you have an
older card.
6

©Siemens AG 2003, \\Dellserver\users\admin\CX65\E2\short\KCX65_Startup.fm
9Getting started
VAR Language: English; VAR issue date: 09-Februar-2004
left page (9) of KCX 65 Ulysses en2 short, A31008-H7100-M7-1-RC19 (26.04.2004, 14:24)
Display while in service
Charge level display during opera-
tion (empty–full):
V W X
A beep sounds when the battery is
nearly empty. The charge level of the
battery is only displayed correctly
after an uninterrupted charging/dis-
charging cycle. You should therefore
not remove the battery unnecessarily
and where possible not finish the
charging process prematurely.
Changing CLIPIt™
covers
You can use CLIPIt™ covers (accesso-
ries) to adjust the appearance of
your phone according to your per-
sonal taste.
Please switch the phone off before
changing the keypad mat or faceplate.
Dismantling the phone
Remove battery cover (see p. 7). To
make it easier for you to open the
telephone faceplate, we have
included a small key. Please do not
use the battery cover since it may
bend.
To remove the faceplate, insert the
key into the opening, press it slightly
1and turn it at the same time 2to
open the lock.
Additional information
The power supply unit heats up when used
for long periods. This is normal and not
dangerous.
If the battery is removed for longer than
30 seconds, the clock must be reset.
2
1

©Siemens AG 2003, \\Dellserver\users\admin\CX65\E2\short\KCX65_Startup.fm
Getting started10
VAR Language: English; VAR issue date: 09-Februar-2004
left page (10) of KCX 65 Ulysses en2 short, A31008-H7100-M7-1-RC19 (26.04.2004, 14:24)
Assembling the phone
Remove the old keypad mat and
insert the new keypad mat 3into
the faceplate. Take care that it is cor-
rectly positioned.
Insert the phone into the bottom of the
faceplate
4
and then push it in care-
fully until it clicks into position
5
.
CLIPIt™ Covers
The new keypad has an additional key
beneath the joystick to permit direct access
to the Internet information from the service
provider.
3
4
5

©Siemens AG 2003, \\Dellserver\users\admin\CX65\E2\short\KCX65_Startup.fm
11Switching phone on and off/entering PIN
VAR Language: English; VAR issue date: 09-Februar-2004
left page (11) of KCX 65 Ulysses en2 short, A31008-H7100-M7-1-RC19 (26.04.2004, 14:24)
Switching phone on
and off/entering PIN
Switching phone on
and off
BPress down key.
Enter PIN
The SIM card can be protected with a
4to8-digitPIN.
JEnter the PIN using the
number keys. The charac-
ters **** appear to
ensure nobody can read
your PIN on the display.
Correction with
].
CConfirm by pressing the
joystick. Logging on to
the network will take a
few seconds.
Emergency number
(SOS)
Only to be used in real emergencies!
By pressing the soft key §SOS§ you can
make an emergency call on any net-
work without a SIM card and without
entering a PIN (not available in all
countries).
Switching on your phone
for the first time
Time/date
During commissioning, set the clock
so that it displays the correct time.
You will not have to make this set-
ting again.
CPress this key, then select
§Change§.
JFirst enter the date (day/
month/year), then the
time (24 hours, including
seconds).
CPress this key. The time
and date are updated.
Time zones
Set the time zone for your area.
ISelect the city in the
desired time zone from
the list ...
§Set§ ... and specify this firmly.
Copying SIM addresses
The first time the SIM card is insert-
ed, the entries on it can be copied to
the Addressbook. Please do not inter-
rupt this procedure. During this time,
do not accept incoming calls. Follow
the instructions in the display.
You can also copy data from the
SIM card at a later time (p. 27).
Additional information
Change PIN.......................................p. 16
Clear SIM card barring ......................p. 17

©Siemens AG 2003, \\Dellserver\users\admin\CX65\E2\short\KCX65_Startup.fm
General instructions12
VAR Language: English; VAR issue date: 09-Februar-2004
left page (12) of KCX 65 Ulysses en2 short, A31008-H7100-M7-1-RC19 (26.04.2004, 14:24)
General instructions
Standby mode
The phone is in standby mode and is
ready for use when the name of the
service provider appears on the dis-
play.
BBy pressing and holding,
you can return to standby
mode from any situation.
Signal strength
ZStrong receive signal.
[A weak signal reduces the
call quality and may lead
to loss of the connection.
Change your location.
Digital Rights Mgmt.
(DRM)
Remember that you telephone has
digital rights management. The use
of downloaded pictures, tones or
appliations can be restricted by the
suppliers, e.g. copy protection, use
for a limited period of time only,
number of times it can be used etc.
Main menu
The main menu is displayed graphi-
cally with symbols:
CCall up from standby
mode
F
ISelect the application
symbols.
CStart an application.
Main menu options
§Options§ Open menu.
Different functions are available
depending on the context:
Big letters Selection between two
font sizes.
Illumination Set display light brighter/
darker.

©Siemens AG 2003, \\Dellserver\users\admin\CX65\E2\short\KCX65_Startup.fm
13General instructions
VAR Language: English; VAR issue date: 09-Februar-2004
left page (13) of KCX 65 Ulysses en2 short, A31008-H7100-M7-1-RC19 (26.04.2004, 14:24)
User guide
Menu controls
The steps needed to reach a function
are shown in a condensed form in the
user guide, e. g. to display call list for
missed calls in condensed form:
C¢
P¢Calls missed
This comprises the following steps:
COpen main menu.
¢Select
P, then function
Calls missed.
§Select§ Press to confirm.
Menu speed dialling
All menus are numbered so that a
function (such as writing a new SMS)
can be selected directly from stand-
by mode by entering a number:
CPress this key to display
the main menu.
5Press this key for
Messages.
1Press this key for
Write message.
1Press this key for SMS.
Symbols
The following symbols are used to
explain operation:
JEnter numbers/letters
BOn/Off/End key
ACall key
<> Soft keys
§Menu§ Displays a soft-key func-
tion.
CPress the joystick vertically,
e.g., to call up the menu.
D F E
H
I
G
Press the joystick in the
direction indicated.
=Function dependent on
service provider, special
registration may be
required.

©Siemens AG 2003, \\Dellserver\users\admin\CX65\E2\short\KCX65_Startup.fm
Standard functions14
VAR Language: English; VAR issue date: 09-Februar-2004
left page (14) of KCX 65 Ulysses en2 short, A31008-H7100-M7-1-RC19 (26.04.2004, 14:24)
Standard functions
Option menus
List of functions repeatedly appear-
ing in options menus.
§Options§ Open menu.
Edit Open the entry to edit.
View Display entry.
Delete/
Delete all Delete entry / delete all
entries after confirmation.
New entry Create new entry.
Send... Select transmission service
and medium for sending or
printing.
Reply/
Reply to all The sender becomes the
recipient, "Re" is placed in
front of the subject matter
and the received text is
transferred into the new
message.
Save Store entry.
Save to 9Save recipients in the cur-
rent address directory.
Sort Set sort criteria (alphabeti-
cal, type, time).
Text input
(p. 18)
T9 preferred: Activate/
deactivate T9 input.
Associated
Automatically display
choices of characters typi-
cally used in pairs.
Chinese input
You may set maximum 2
Chinese input methods to
be used for entering mes-
sages.
Rename Rename selected entry.
Capacity Display memory capacity
Attributes Display properties of the
highlighted object
Help Display help text.

©Siemens AG 2003, \\Dellserver\users\admin\CX65\E2\short\KCX65_Startup.fm
15Standard functions
VAR Language: English; VAR issue date: 09-Februar-2004
left page (15) of KCX 65 Ulysses en2 short, A31008-H7100-M7-1-RC19 (26.04.2004, 14:24)
Highlighting mode
Highlight one or more entries in
order to perform a function on it/
them.
§Options§ Open menu.
Mark Activate mode.
§Mark§ Highlight a non-highlighted
entry.
§Unmark§ Take the highlighting back
from a highlighted entry.
Additional highlighting functions:
Mark all Highlight all entries.
Unmark all Delete highlighting on
all marked entries.
Delete marked All selected entries are
deleted.

©Siemens AG 2003, \\Dellserver\users\admin\CX65\E2\short\KCX65_Startup.fm
Security16
VAR Language: English; VAR issue date: 09-Februar-2004
left page (16) of KCX 65 Ulysses en2 short, A31008-H7100-M7-1-RC19 (26.04.2004, 14:24)
Security
The phone and SIM card are pro-
tected against misuse by several
security codes.
Codes
C¢
T¢Security¢Codes
¢Select function.
PIN control
The PIN is usually requested each
time the phone is switched on. You
can deactivate this feature but you
risk unauthorised use of the phone.
Some service providers do not per-
mit deactivating the control.
§Select§ Press this key.
JEnter PIN.
CConfirm input.
§Change§ Press this key.
CConfirm.
Change PIN
You can change the PIN to any 4- to
8-digit number you find easier to
remember.
JEnter current PIN.
CPress this key.
J,
CEnter new PIN.
J,
CRe-enter new PIN.
Keep these confidential numbers in a
safe place where you can access them
again if required.
PIN Protects your SIM card (per-
sonal identification number).
PIN2 This is needed to set the
charge detail display and to
access additional functions on
special SIM cards.
PUK
PUK2 Key code. Used to unlock SIM
cards after the wrong PIN has
been entered repeatedly.
Phone
code Protects your phone. Must be
entered at the first security
setting.

©Siemens AG 2003, \\Dellserver\users\admin\CX65\E2\short\KCX65_Startup.fm
17Security
VAR Language: English; VAR issue date: 09-Februar-2004
left page (17) of KCX 65 Ulysses en2 short, A31008-H7100-M7-1-RC19 (26.04.2004, 14:24)
C¢
T¢Security¢Codes
¢Select function.
Change PIN2
(Display only if PIN 2 is available).
Proceed as with Change PIN.
Chg.phonecode
(Change phone code)
You define the phone code (4–8 dig-
its) when you call up a phone-code
protected function for the first time
(e.g. Direct call, p. 50). It is then valid
for all phone-code protected func-
tions.
Following the third unsuccessful
attempt, access to the phone code
and the functions that use it is
denied. If this occurs, contact the
Siemens Service (p. 60).
Clearing SIM card barring
If the PIN is entered incorrectly three
times, the SIM card is barred. Enter
the PUK (MASTER PIN) provided by
your service provider with the SIM
card in accordance with the instruc-
tions. If the PUK (MASTER PIN) has
been lost, please contact your serv-
ice provider.
Preventing accidental
activation
Even if PIN use is deactivated (p. 16)
confirmation is required to switch on
the phone.
This prevents accidental activation
of the phone, e.g. when you are
carrying it in a bag or when you are
travelling in an aircraft.
BPress down.
CPress this key. The phone
switches on.
§Cancel§ Press this key or take no
action. The phone does
not switch on.

©Siemens AG 2003, \\Dellserver\users\admin\CX65\E2\short\KCX65_Text.fm
Text entry18
VAR Language: English; VAR issue date: 09-Februar-2004
left page (18) of KCX 65 Ulysses en2 short, A31008-H7100-M7-1-RC19 (26.04.2004, 14:24)
Text entry
Text entry without T9
Press number key repeatedly until
the required letter appears.
Example:
2Press once briefly to type
the letter a, twice to type
betc. Press and hold to
write the number.
]Press briefly to delete the
letter before the cursor,
hold down to erase the
whole word.
FMove the cursor
(forwards/back).
#Press briefly: Swap be-
tween abc, Abc, T9abc,
T9Abc, T9ABC, 123, Pinyin
Hold down: All input-
variants are displayed.
*Press briefly: Special char-
acters are shown.
Hold down: Open input
menu.
0Press once/repeatedly:
. , ? ! ’ " 0 + - ( ) @ / : _
Hold down: Writes 0.
1Writes blank.
Press twice = line break.
Special characters
*Press briefly.
Line break
I,
FNavigate to characters.
§Select§ Press.
Text entry menu
*Press down:
Text format (SMS only),
Text input, Mark text, Copy
¿¡_;.,?!
+- "’ : * / ( )
¤¥$£€@\ &#
[]{}%~<=>
|^ §
Γ∆ΘΛΞ
ΠΣ ΦΨΩ

©Siemens AG 2003, \\Dellserver\users\admin\CX65\E2\short\KCX65_Text.fm
19Text entry
VAR Language: English; VAR issue date: 09-Februar-2004
left page (19) of KCX 65 Ulysses en2 short, A31008-H7100-M7-1-RC19 (26.04.2004, 14:24)
Text input with T9
"T9" combines the correct value from
the various key inputs.
#Activate, deactivate T9
Select input language
§Options§ Open text menu.
Text input, then select Input
language.
T9 preferred
Select.
§Change§ Activate T9.
Associated
Automatically display choices of
characters typically used in pairs.
Chinese input
You may set maximum 2 Chinese in
put methods to be used for entering
messages.
T9 Bo Po Mo Fo
T9 Pinyin
T9 Stroke-T
T9 Stroke-S
Write with T9
it is best if you finish a word without
looking at the display.
You simply press the keys where the
relevant letter is located once only.
1/
EA blank space or moving
to the right ends the
word.
Do not use special characters such as
Ä. Instead use the standard charac-
ters such as A and T9 will do the rest
for you.
T9 word suggestions
If several options are found in the
dictionary for a word, the most prob-
able is displayed first.
^Press this key. If this word
is also incorrect, press the
key again.
^Press this key until the
correct word is displayed.
Add a new word to the dictionary:
§Spell§ Select and enter word
without T9. Then §Save§.
Correct a word
Words written with T9:
FMove left or right, word by
word, until the required
word is §highlighted§.
