Introduction
This Service Repair Documentation is intended to carry out repairs on Siemens repair level
2.5 light. The described failures shall be repaired in Siemens authorized local workshops
only,
The level 2.5 (former Level 2.5e) partners are obliged to repair level 2 classified boards, up
to their repair level, under consideration of the information given by level 2.5 (former level
2.5e) repair instruction.
All repairs have to be carried out in an ESD protected environment and with ESD protected
equipment/tools. For all activities the international ESD regulations have to be considered.
Assembling/disassembling has to be done according to the latest C75 Level 2 repair
documentation. It has to be ensured that every repaired mobile Phone is checked according
to the latest released General Test Instruction document (both documents are available in
the Technical Support section of the C-market).
Check at least weekly C-market for updates and consider all C75 related Customer Care
Information
C75 Partnumber on IMEI label: S30880-S6970-#xxx
, while # may be any letter (A-Z) and xxx may be any number from 100, 101, 102....
Scrap Handling: All Scrap information given in this manual are related to the
SCRAP-Rules and instructions.
Attention: Consider the new "LEAD-FREE" soldering rules
(available in the communication market), avoid excessive heat.
If you have any questions regarding the repair procedures or technical questions spare not
hesitate to contact our technical support team in Kamp-Lintfort, Germany:
Tel.: [phone]
Fax: [phone]
E-mail: [email protected]

Company Confidential s Com
Copyright 2005© Siemens AG
Page 3of 13
Service Repair Documentation
TI_Repair_L2,5L_C75_R1.0
Table of Content
1C75 board layout...........................................................................................................................4
2Connector SIM Card Reader.........................................................................................................5
3Connector IO Jack.........................................................................................................................6
4Connector Board to Board.............................................................................................................8
5Connector Battery .........................................................................................................................9
6Connector Camera......................................................................................................................10
7Connector Display.......................................................................................................................10
8IRDA............................................................................................................................................12
9JOYSTICK...................................................................................................................................13

Company Com
Copyright 2005© Siemens AG
Page 4of 13
Service Repair Documentation
TI_Repair_L2,5L_C75_R1.0
Confidential s
1 C75 board layout
Jigs, Tools and working materials for all described repairs:
-hot air blower
-soldering gun
-tweezers
-flux Connector
Display Connector
Board to
Board
Joystick
-solder
Connector
Camera IRDA Connector
SIM Card
Reade
r
IO Jack
Slim
Connector
Battery
Connector
Antenna

Company Confidential s Com
Copyright 2005© Siemens AG
Page 5of 13
Service Repair Documentation
TI_Repair_L2,5L_C75_R1.0
2 Connector SIM Card Reader
Fault Symptoms
Customer: GRT:
Handset does not accept SIM card SIM Card Problems
Connector SIM Card Reader
Use soldering iron to remove defective component. Avoid excessive heat! Watch surrounding components!
Resolder new component afterwards.
E-commerce order number: L50634-Z97-C406
E-commerce order name: CONNECTOR SIM CARD READER R65 (B)
Soldering temperature: ~ 360°C TIP Temp.
IRIS Diagnose Code: 43300 Interface/SIM Card reader/Mechanical Damage

Company Confidential s Com
Copyright 2005© Siemens AG
Page 6of 13
Service Repair Documentation
TI_Repair_L2,5L_C75_R1.0
3 Connector IO Jack
Fault Symptoms
Customer: GRT:
Charging Problems No connection to GRT
Problems with external loudspeaker or microphone when using a car kit Tbd.
Problems with accessories connected at the IO connector
Connector IO Jack
Use soldering iron to remove defective component. Avoid excessive heat! Watch surrounding components!
Resolder new component afterwards.
E-commerce order number: L36334-Z93-C303
E-commerce order name: IO-JACK SLIM 12-POL
Soldering temperature: ~ 360°C TIP Temp.
IRIS Diagnose Code: 46100 Interface/Charging Connector/Mechanical Damage
47300 Interface/Data Interface/Mechanical Damage
4B100 Interface/Headset Connector/Mechanical Damage

Company Confidential s Com
Copyright 2005© Siemens AG
Page 7of 13
Service Repair Documentation
TI_Repair_L2,5L_C75_R1.0
Important additional soldering hints
The MMC Reader is located on the opposite of the SLIM-Lumberg connector.
Therefore the risk to damage the plastic material of this MMC-Reader is
potentially high if excessive heat is used while removal or soldering of the
SLIM-Lumberg connector.
Please follow these instructions:
a) Remove the SLIM-Lumberg connector with a soldering iron and Desolder
Wick
b) Clean the Pads afterwards
c) Solder the new connecter by using soldering iron under consideration of
the max. allowed temperature range.
Samples of critical area:
Lock mechanism damaged Lock mechanism OK

Company Confidential s Com
Copyright 2005© Siemens AG
Page 8of 13
Service Repair Documentation
TI_Repair_L2,5L_C75_R1.0
4 Connector Board to Board
Fault Symptoms
Customer: GRT:
Keyboard malfunction Keyboard malfunction
Keypad illumination does not work Tbd.
Connector Board to Board
Use hot air blower to remove defective component. Avoid excessive heat! Watch surrounding components!
Resolder new component afterwards.
E-commerce order number: L50634-Z97-C383
E-commerce order name: CONNECTOR BOARD TO BOARD 12-POL. X75
Soldering temperature: ~ 360°C TIP Temp.
IRIS Diagnose Code: 32100 Keys / Main / No Function
32200 Keys / Main / Reduced Functionality
36000 Keys / Illumination

Company Confidential s Com
Copyright 2005© Siemens AG
Page 9of 13
Service Repair Documentation
TI_Repair_L2,5L_C75_R1.0
5 Connector Battery
Fault Symptoms
Customer: GRT:
Mobile does not switch on No connection to GRT
Connector BATTERY
Use hot air blower to remove defective component. Avoid excessive heat! Watch surrounding components!
Resolder new component afterwards.
E-commerce order number: L36334-Z97-C336
E-commerce order name: CONNECTOR BATTERY 3-POL R65
Soldering temperature: ~ 360°C TIP Temp.
IRIS Diagnose Code: 13000 Battery/Mechanical Damage

Company Confidential s Com
Copyright 2005© Siemens AG
Page 10 of 13
Service Repair Documentation
TI_Repair_L2,5L_C75_R1.0
6 Connector Camera
Fault Symptoms
Customer: GRT:
Camera malfunction Tbd.
Connector CAMERA
Use hot air blower to remove defective component. Avoid excessive heat! Watch surrounding components!
Resolder new component afterwards.
E-commerce order number: L50634-Z97-C379
E-commerce order name: CONNECTOR CAMERA-SOCKET
Soldering temperature: ~ 360°C TIP Temp.
IRIS Diagnose Code: BA000 Accessories / Camera

Company Confidential s Com
Copyright 2005© Siemens AG
Page 11 of 13
Service Repair Documentation
TI_Repair_L2,5L_C75_R1.0
7 Connector Display
Fault Symptoms
Customer: GRT:
Display problems, like missing lines or columns on
the LCD or display contrast problems or illumination
problems
Display problems
Connector DISPLAY
Use hot air blower to remove defective component. Avoid excessive heat! Watch surrounding components!
Resolder new component afterwards.
E-commerce order number: L36334-Z97-C205
E-commerce order name: CONNECTOR DISPLAY 10POL
Soldering temperature: ~ 360°C TIP Temp.
IRIS Diagnose Code: 21000 Display / Performance
22000 Display / Background Illumination

Company Confidential s Com
Copyright 2005© Siemens AG
Page 12 of 13
Service Repair Documentation
TI_Repair_L2,5L_C75_R1.0
8 IRDA
Fault Symptoms
Customer: GRT:
No infrared connection possible Tbd.
IRDA
Use hot air blower to remove defective component. Avoid excessive heat! Watch surrounding components!
Resolder new component afterwards.
E-commerce order number: L36197-F5008-F492
E-commerce order name: IRDA 115.2 KBIT
Soldering temperature: ~ 360°C TIP Temp.
IRIS Diagnose Code: 41100 Interfaces / IRDA / No Function
41300 Interfaces / IRDA / Mechanical Damage

Company Confidential s Com
Copyright 2005© Siemens AG
Page 13 of 13
Service Repair Documentation
TI_Repair_L2,5L_C75_R1.0

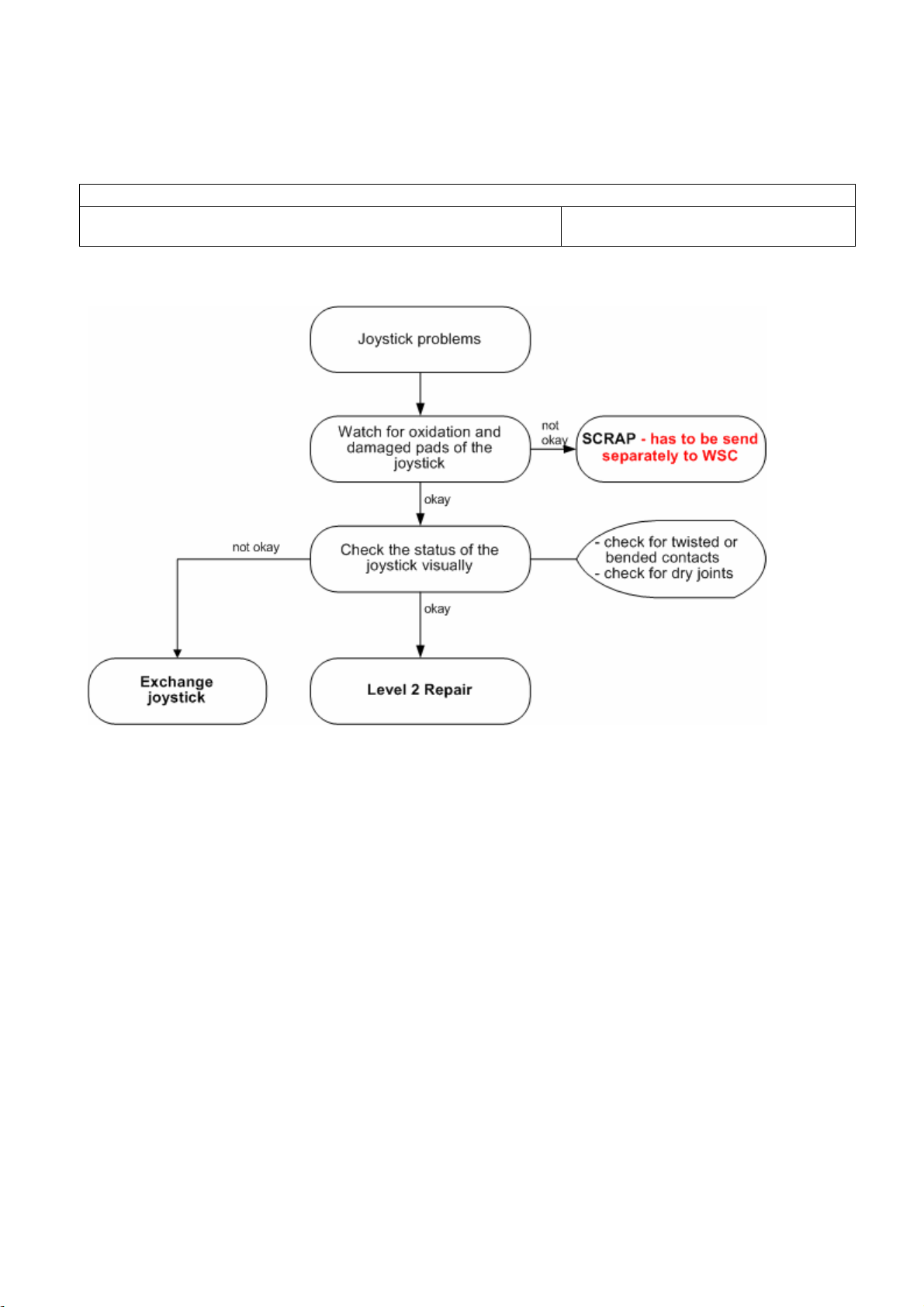

9 JOYSTICK
Fault Symptoms
Customer: GRT:
Joystick malfunction Tbd.
Joystick
Use hot air blower to remove defective component. Avoid excessive heat! Watch surrounding components!
Resolder new component afterwards.
E-commerce order number: L36315-Z77-C218
E-commerce order name: JOYSTICK
Soldering temperature: ~ 360°C TIP Temp.
IRIS Diagnose Code: 32100 Keys / Main / No Function
32200 Keys / Main / Reduced Functionality
