Siemens SIMATIC ET 200eco PN User manual

SIMATIC
ET 200ecoPN
Comm
unication module
CM 8x IO
-Link + DI 4x24VDC M12-
L
(6ES7148-6JG00-0BB0
Equipment Manual
09/2020
A5E49284833
-AA
Preface
ET 200eco PN M12-L
Documentation Guide
1
Product overview
2
Wiring
3
Parameters/address space
4
Interrupts/diagnostics
alarms
5
Technical specifications
6
Dimension drawing
A

Siemens AG
Digital Industries
Postfach 48 48
90026 NÜRNBERG
GERMANY
A5E49284833-AA
Ⓟ
09/2020 Subject to change
Copyright © Siemens AG 2020.
All rights reserved
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by personnel qualified for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions.
Qualified personnel are those who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.

Communication module CM 8x IO-Link + DI 4x24VDC M12-L (6ES7148-6JG00-0BB0
Equipment Manual, 09/2020, A5E49284833-AA 3
Preface
Purpose of the documentation
This equipment manual supplements the ET 200eco PN M12-L Distributed I/O System
(https://support.industry.siemens.com/cs/ww/en/view/109778292) system manual. Functions
that relate in general to the distributed I/O devices ET 200eco PN M12-L are described in this
system manual.
The information provided in this equipment manual and in the system manual and the
function manuals supports you in commissioning the ET 200eco PN M12-L distributed I/O
devices.
Conventions
Also observe notes labeled as follows:
Note
A note contains important information:
•
On the product described in the documentation
•
On handling the product
•
On the part of the documentation to which particular attention should be paid.

Preface
Communication module CM 8x IO-Link + DI 4x24VDC M12-L (6ES7148-6JG00-0BB0
4Equipment Manual, 09/2020, A5E49284833-AA
Security information
Siemens provides products and solutions with industrial security functions that support the
secure operation of plants, systems, machines and networks.
In order to protect plants, systems, machines and networks against cyber threats, it is
necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial
security concept. Siemens’ products and solutions constitute one element of such a concept.
Customers are responsible for preventing unauthorized access to their plants, systems,
machines and networks. Such systems, machines and components should only be connected
to an enterprise network or the internet if and to the extent such a connection is necessary
and only when appropriate security measures (e.g. firewalls and/or network segmentation)
are in place.
For additional information on industrial security measures that may be implemented, please
visit (https://www.siemens.com/industrialsecurity).
Siemens' products and solutions undergo continuous development to make them more
secure. Siemens strongly recommends that product updates are applied as soon as they are
available and that the latest product versions are used. Use of product versions that are no
longer supported, and failure to apply the latest updates may increase customers' exposure to
cyber threats.
To stay informed about product updates, subscribe to the Siemens Industrial Security RSS
Feed visit (https://www.siemens.com/industrialsecurity).
Open Source Software
Open-source software is used in the firmware of the I/O modules. Open Source Software is
provided free of charge. We are liable for the product described, including the open-source
software contained in it, pursuant to the conditions applicable to the product. Siemens
accepts no liability for the use of the open source software over and above the intended
program sequence, or for any faults caused by modifications to the software.
For legal reasons, we are obliged to publish the original text of the license conditions and
copyright notices. Please read the information relating to this on the Internet
(https://support.industry.siemens.com/cs/ww/en/view/109741045).

Communication module CM 8x IO-Link + DI 4x24VDC M12-L (6ES7148-6JG00-0BB0
Equipment Manual, 09/2020, A5E49284833-AA 5
Table of contents
Preface ................................................................................................................................................... 3
1 ET 200eco PN M12-L Documentation Guide .......................................................................................... 6
2 Product overview................................................................................................................................. 10
2.1 Properties .......................................................................................................................... 10
2.2 Operator controls and display elements.............................................................................. 13
2.3 Functions .......................................................................................................................... 14
2.4 Reset communication module to factory settings................................................................ 16
3 Wiring .................................................................................................................................................. 17

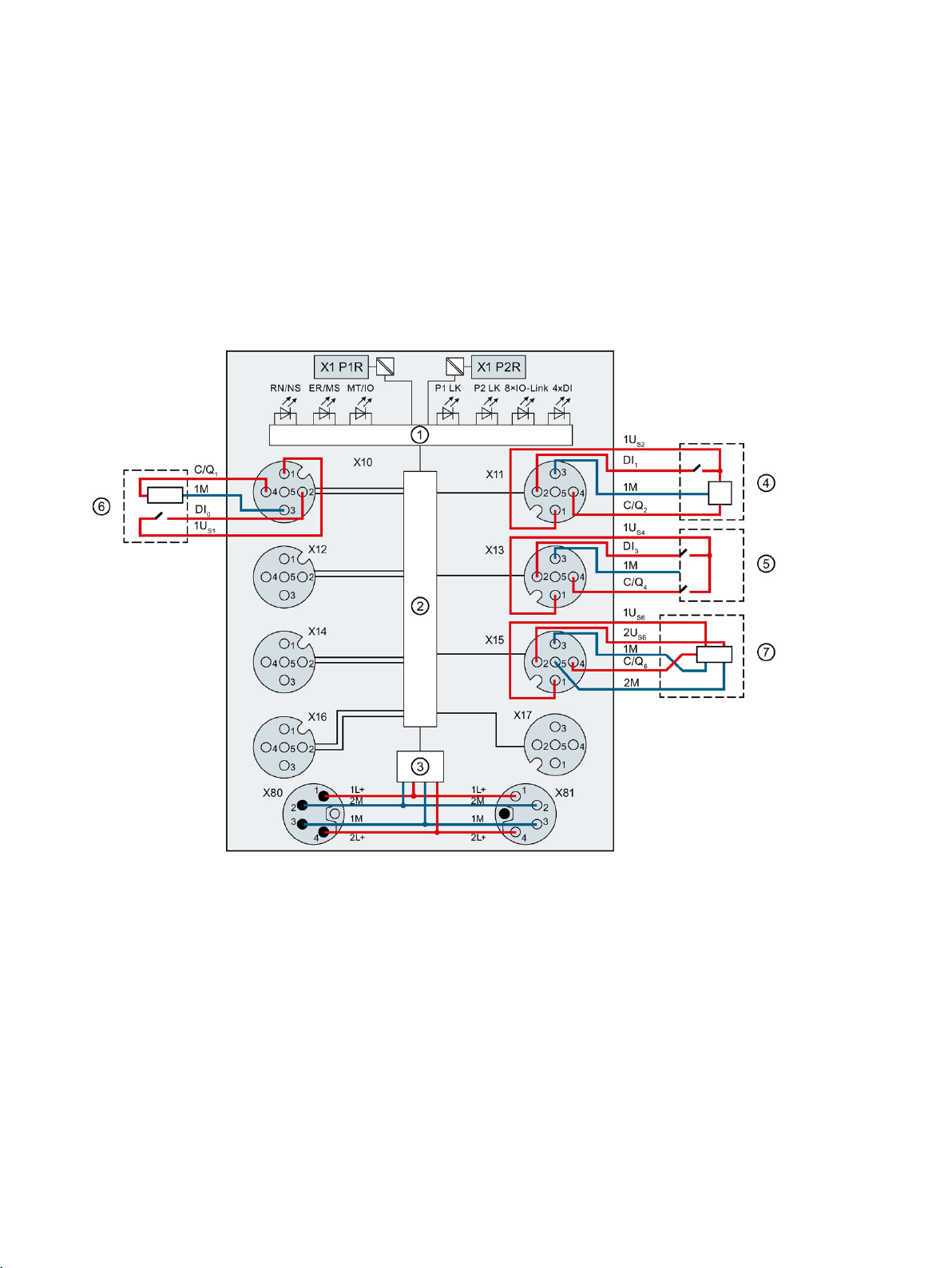

3.1 Terminal and block diagram............................................................................................... 17

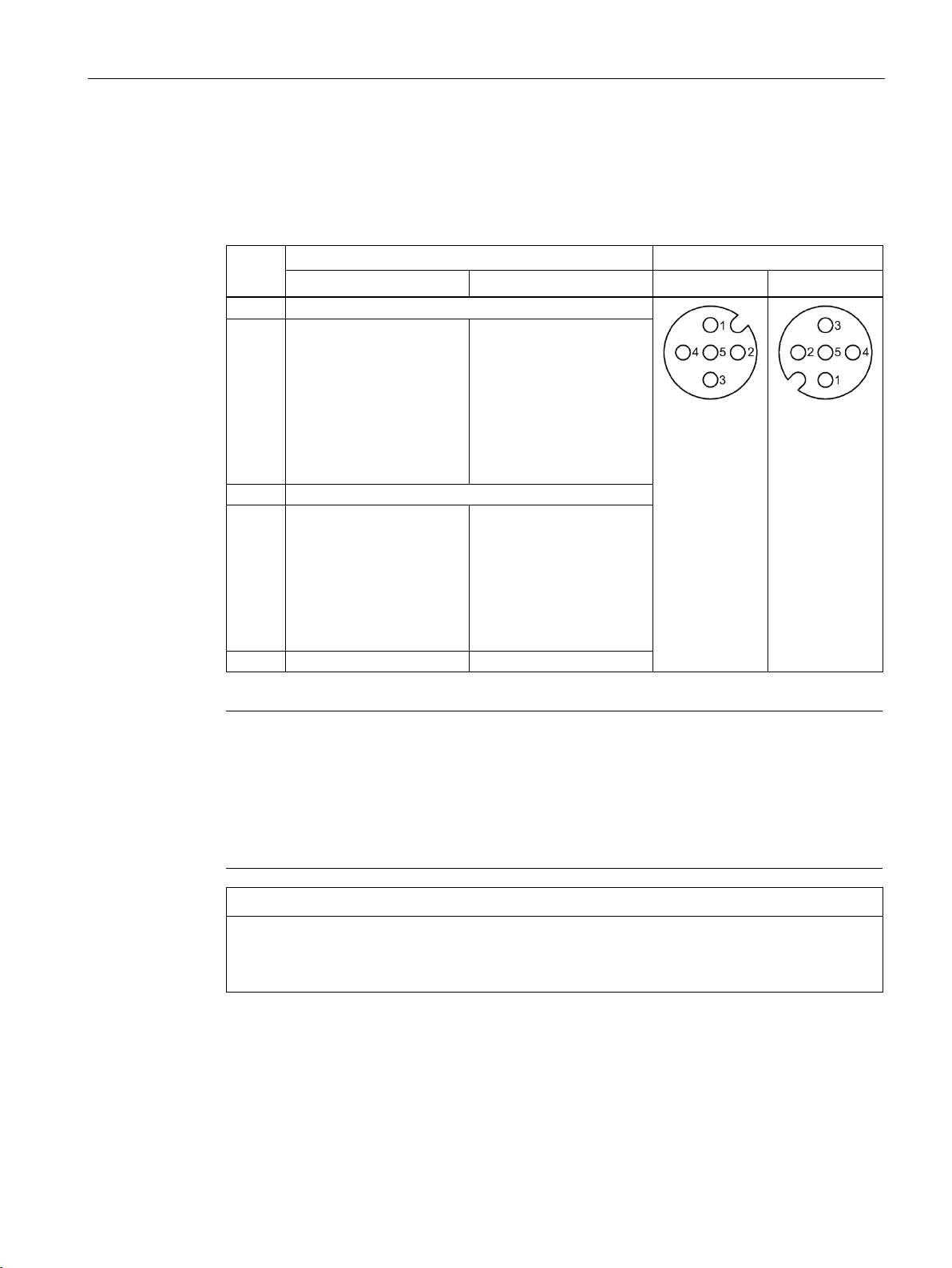

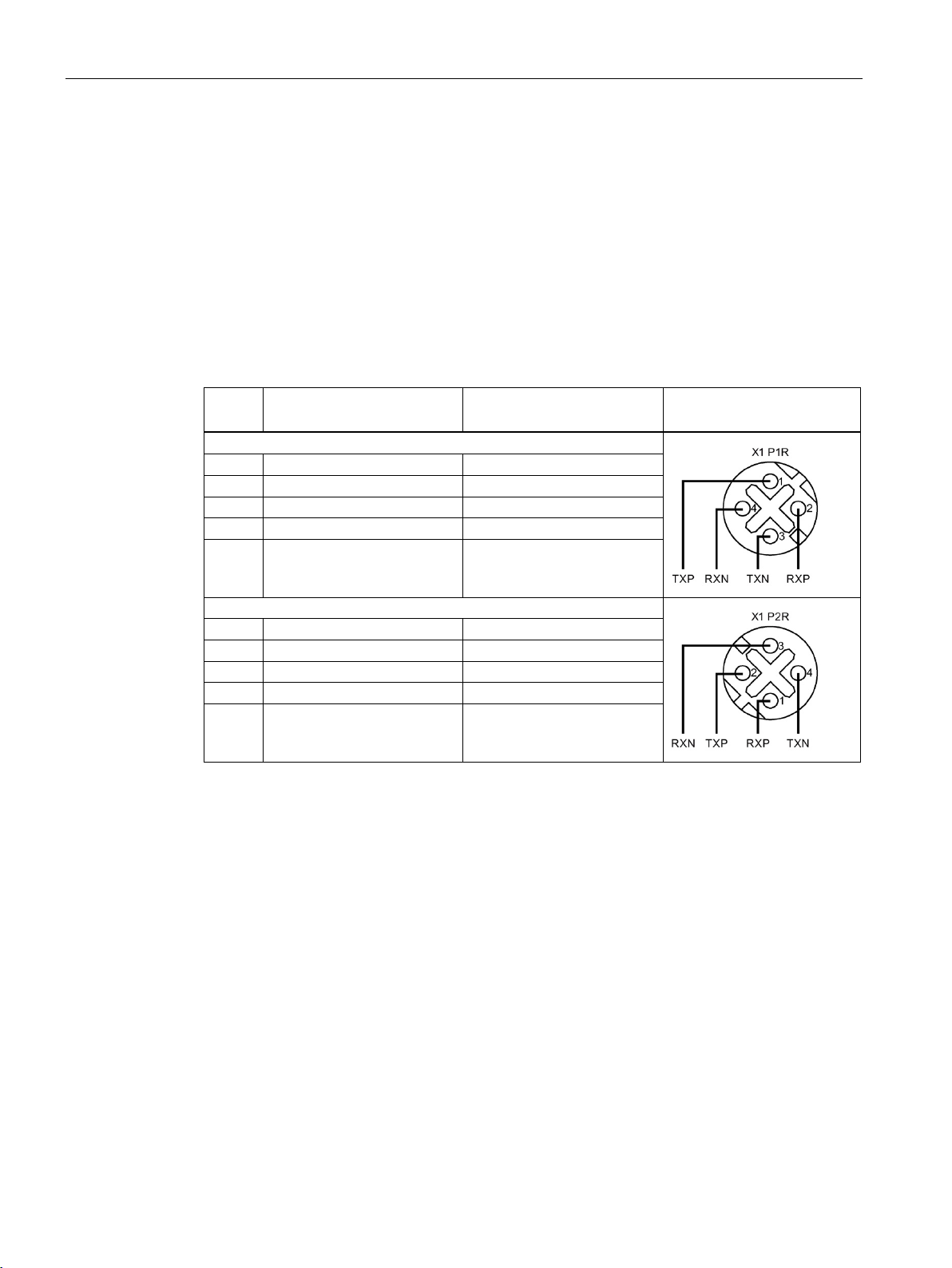

3.2 Pin assignment .................................................................................................................. 18
4 Parameters/address space ................................................................................................................... 21
4.1 Parameters ........................................................................................................................ 21
4.2 Explanation of the parameters ........................................................................................... 23
4.3 Address space.................................................................................................................... 25
5 Interrupts/diagnostics alarms .............................................................................................................. 27
5.1 Status and error displays .................................................................................................... 27
5.2 Interrupts .......................................................................................................................... 31
5.3 Alarms............................................................................................................................... 32
5.3.1 Diagnostics alarms............................................................................................................. 32
5.3.2 Maintenance events........................................................................................................... 34
5.3.3 Process alarm events.......................................................................................................... 34
6 Technical specifications....................................................................................................................... 35
A Dimension drawing ............................................................................................................................. 40

Communication module CM 8x IO-Link + DI 4x24VDC M12-L (6ES7148-6JG00-0BB0
6Equipment Manual, 09/2020, A5E49284833-AA
ET 200eco PN M12-L Documentation Guide
1
The documentation for the SIMATIC ET 200eco PN M12-L distributed I/O system is arranged
into three areas. This arrangement enables you to access the specific content you require.
Basic information
The system manual describes in detail the configuration, installation, wiring and
commissioning of the SIMATIC ET 200eco PN M12-L distributed I/O system. The STEP 7 online
help supports you in the configuration and programming.
Device information
Product manuals contain a compact description of the module-specific information, such as
properties, interfaces, wiring diagrams, display and operator control elements and technical
specifications.
General information
The function manuals contain detailed descriptions on general topics relating to the SIMATIC
ET 200eco PN M12-L distributed I/O system, e.g. diagnostics, communication and PROFINET.
You can download the documentation free of charge from the Internet
(https://support.industry.siemens.com/cs/de/en/view/109742718).

ET 200eco PN M12-L Documentation Guide
Communication module CM 8x IO-Link + DI 4x24VDC M12-L (6ES7148-6JG00-0BB0
Equipment Manual, 09/2020, A5E49284833-AA 7
"mySupport"
With "mySupport", your personal workspace, you make the best out of your Industry Online
Support.
In "mySupport", you can save filters, favorites and tags, request CAx data and compile your
personal library in the Documentation area. In addition, your data is already filled out in
support requests and you can get an overview of your current requests at any time.
You must register once to use the full functionality of "mySupport".
You can find "mySupport" on the Internet (https://support.industry.siemens.com/My/ww/en).
Application examples
The application examples support you with various tools and examples for solving your
automation tasks. Solutions are shown in interplay with multiple components in the system -
separated from the focus on individual products.
You will find the application examples on the Internet
(https://support.industry.siemens.com/sc/ww/en/sc/2054).
TIA Selection Tool
With the TIA Selection Tool, you can select, configure and order devices for Totally Integrated
Automation (TIA).
This tool is the successor of the SIMATIC Selection Tool and combines the known
configurators for automation technology into one tool.
With the TIA Selection Tool, you can generate a complete order list from your product
selection or product configuration.
You can find the TIA Selection Tool on the Internet
(https://w3.siemens.com/mcms/topics/en/simatic/tia-selection-tool).

ET 200eco PN M12-L Documentation Guide
Communication module CM 8x IO-Link + DI 4x24VDC M12-L (6ES7148-6JG00-0BB0
8Equipment Manual, 09/2020, A5E49284833-AA
SIMATIC Automation Tool
You can use the SIMATIC Automation Tool to perform commissioning and maintenance
activities simultaneously on various SIMATIC S7 stations as a bulk operation independent of
TIA Portal.
The SIMATIC Automation Tool provides a multitude of functions:
•Scanning of a PROFINET/Ethernet system network and identification of all connected CPUs
•Address assignment (IP, subnet, gateway) and station name (PROFINET device) to a CPU
•Transfer of the date and the PG/PC time converted to UTC time to the module
•Program download to CPU
•RUN/STOP mode switchover
•CPU localization by means of LED flashing
•Reading out of CPU error information
•Reading the CPU diagnostics buffer
•Reset to factory settings
•Firmware update of the CPU and connected modules
You can find the SIMATIC Automation Tool on the Internet
(https://support.industry.siemens.com/cs/ww/en/view/98161300).
PRONETA
SIEMENS PRONETA (PROFINET network analysis) allows you to analyze the plant network
during commissioning. PRONETA features two core functions:
•The topology overview automatically scans the PROFINET and all connected components.
•The IO check is a fast test of the wiring and the module configuration of a system.
You can find SIEMENS PRONETA on the Internet
(https://support.industry.siemens.com/cs/ww/en/view/67460624).

ET 200eco PN M12-L Documentation Guide
Communication module CM 8x IO-Link + DI 4x24VDC M12-L (6ES7148-6JG00-0BB0
Equipment Manual, 09/2020, A5E49284833-AA 9
SINETPLAN
SINETPLAN, the Siemens Network Planner, supports you in planning automation systems and
networks based on PROFINET. The tool facilitates professional and predictive dimensioning of
your PROFINET installation as early as in the planning stage. In addition, SINETPLAN supports
you during network optimization and helps you to exploit network resources optimally and to
plan reserves. This helps to prevent problems in commissioning or failures during productive
operation even in advance of a planned operation. This increases the availability of the
production plant and helps improve operational safety.
The advantages at a glance
•Network optimization thanks to port-specific calculation of the network load
•Increased production availability thanks to online scan and verification of existing systems
•Transparency before commissioning through importing and simulation of existing STEP 7
projects
•Efficiency through securing existing investments in the long term and the optimal use of
resources
You can find SINETPLAN on the Internet (https://www.siemens.com/sinetplan).

Communication module CM 8x IO-Link + DI 4x24VDC M12-L (6ES7148-6JG00-0BB0
10 Equipment Manual, 09/2020, A5E49284833-AA
Product overview
2
2.1 Properties
Article number
6ES7148-6JG00-0BB0

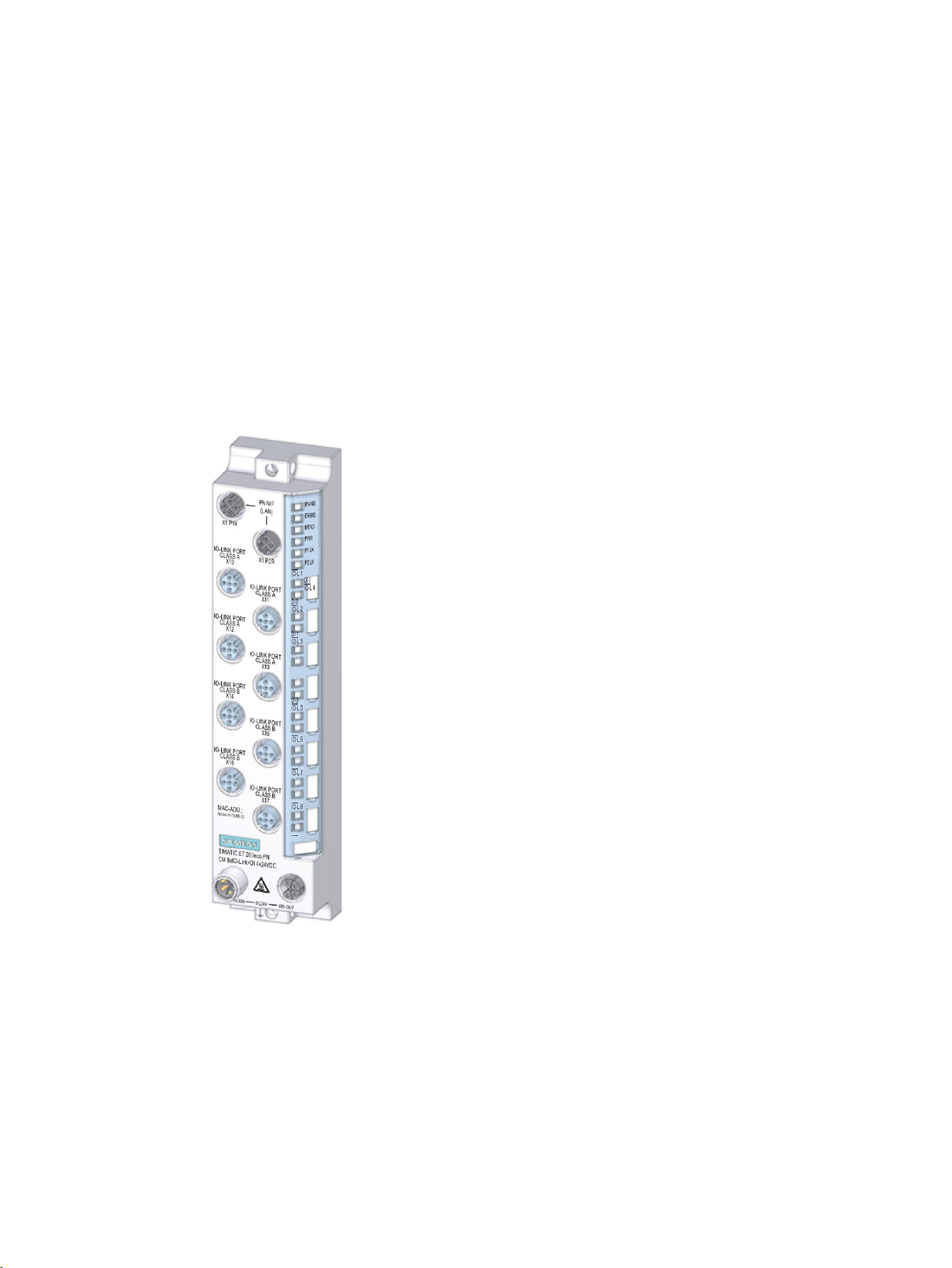

View of the module
Figure 2-1 View of the CM 8xIO-Link + DI 4x24VDC M12-L communication module

Product overview
2.1 Properties
Communication module CM 8x IO-Link + DI 4x24VDC M12-L (6ES7148-6JG00-0BB0
Equipment Manual, 09/2020, A5E49284833-AA 11
Properties
The module has the following technical properties:
•IO-Link master according to IO-Link specification V1.1
•8 IO-Link ports usable as:
–4 IO-Link Ports Type Class A and 4 IO-Link Ports Type Class B
•4 digital inputs
•SIO mode (standard IO mode)
•Supported data transmission rates:
–COM1 (4.8 kBd)
–COM2 (38.4 kBd)
–COM3 (230.4 kBd)
•Configuration limits:
–Max. 33 bytes of input data and 32 bytes of output data per port
–Max. 265 bytes of input data and 256 bytes of output data per module
•Automatic backup of device parameters during replacement of the IO-Link device
(only for V1.1 devices)
•Configurable diagnostics can be set for each channel
•Hardware interrupts
•Dimensions 45 x 200 mm
The module supports the following functions:
•Firmware update
•Identification and maintenance data (I&M)
•IO-Link port configuration with S7-PCT as of V3.5, SP2
•IO-Link port configuration without S7-PCT
–IO-Link autostart
–IO-Link manual
•Master backup with function block "IO_LINK_MASTER_8"
•Port Qualifier Information (PQI)
Accessories
The following components are included in the module package:
•Identification labels
•Product information

Product overview
2.1 Properties
Communication module CM 8x IO-Link + DI 4x24VDC M12-L (6ES7148-6JG00-0BB0
12 Equipment Manual, 09/2020, A5E49284833-AA
Other components
The following component can be ordered as spare part:
•Identification labels
The following components can be ordered as accessories:
•Mounting rail
•Connectors and cables
•M12 sealing cap
See also
You can find additional information on the accessories in the ET 200eco PN M12-L distributed
I/O system (http://support.automation.siemens.com/WW/view/en/109774008) system
manual.

Product overview
2.2 Operator controls and display elements
Communication module CM 8x IO-Link + DI 4x24VDC M12-L (6ES7148-6JG00-0BB0
Equipment Manual, 09/2020, A5E49284833-AA 13
2.2 Operator controls and display elements
The following figure shows the operator controls and display elements of the CM 8xIO-Link +
DI 4x24VDC M12-L communication module.
①
PN/MF (LAN): Sockets for connecting PROFINET
②
RN/NS: RUN/network status LED
③
ER/MS: ERROR/module status LED
④
MT/IO: MAINT/IO status LED
⑤
PWR: LED display for load voltage 2L+
⑥
P1 LK: LINK port status LED
⑦
P2 LK: LINK port status LED
⑧
IO-L1 to IO-L8: LED indicators for channel status IO-Link
⑨
DI0to DI3: LED indicators for channel status digital input
⑩
X10 to X13: Sockets for IO-Link port Class A and DI
X14 to X17: Sockets for IO-Link port Class B
⑪
X80: Connector for infeed of the supply voltages
⑫
X81: Socket for loop-through of the supply voltages
Figure 2-2 Operator controls and display elements

Product overview
2.3 Functions
Communication module CM 8x IO-Link + DI 4x24VDC M12-L (6ES7148-6JG00-0BB0
14 Equipment Manual, 09/2020, A5E49284833-AA
2.3 Functions
IO-Link is a point-to-point connection between an IO-Link master and an IO-Link device. On
the IO-Link master, you can use IO-Link devices as well as conventional sensors/actuators
with unshielded standard cables using proven 3-wire technology. IO-Link is downward-
compatible to conventional digital sensors and actuators. The switching state and data
channels are designed with trusted 24 V DC technology.
Master Backup
The "IO_LINK_MASTER_8" function block is used to read all relevant IO-Link device and IO-Link
master parameters. These can be stored retentively at a central location, such as in a data
block in the IO controller.
The status of the IO-Link devices or IO-Link ports stored in the IO-Link master can be restored
with the "IO_LINK_MASTER_8" function block.
As a result, the IO-Link ports and the IO-Link master are configured with the values stored in
the master backup.
A typical application is the restoration of parameters after replacement of the IO-Link master.
Port Qualifier Information (PQI)
Each port has Port Qualifier Information (PQI). This PQI provides information on the device
status of the port and IO-Link. The PQI is transmitted cyclically with the process data. The PQI
cannot be deactivated.
Port configuration
With an IO-Link master 8xIO-Link + DI 4x24VDC M12-L, you can commission the IO-Link
submodules (ports) of the IO-Link master or the connected IO-Link devices in two different
ways:
•Port configuration without S7-PCT
•Port configuration with S7-PCT
Port configuration without S7-PCT
Requirements
You have selected the "Port configuration without S7-PCT" check box in the configuration of
the IO-Link master submodule in STEP 7.
Procedure
You configure the IO-Link master submodules directly in STEP 7:
•Activate the diagnostics
•Port mode:
–Operation in "IO-Link autostart" mode (default)
–Operation in "IO-Link manual" mode

Product overview
2.3 Functions
Communication module CM 8x IO-Link + DI 4x24VDC M12-L (6ES7148-6JG00-0BB0
Equipment Manual, 09/2020, A5E49284833-AA 15
Port configuration with S7-PCT
Requirements
You have cleared the "Port configuration without S7-PCT (PDCT)" check box in the
configuration of all IO-Link master submodules in STEP 7 (default).
Procedure
You configure the IO-Link master with the Port Configuration Tool S7-PCT (PDCT) V3.5 SP2 or
higher.
Reference
For more information on the IO-Link system, please see the IO-Link system
(http://support.automation.siemens.com/WW/view/en/65949252) function manual.

Product overview
2.4 Reset communication module to factory settings
Communication module CM 8x IO-Link + DI 4x24VDC M12-L (6ES7148-6JG00-0BB0
16 Equipment Manual, 09/2020, A5E49284833-AA
2.4 Reset communication module to factory settings
There are two ways to reset to factory settings:
•PROFINET factory reset
•SIMATIC S7-PCT Factory Reset
PROFINET factory reset
You can find additional information on the PROFINET factory reset in the ET 200eco PN M12-L
distributed I/O system (http://support.automation.siemens.com/WW/view/en/109774008)
system manual.
SIMATIC S7-PCT Factory Reset
You trigger the reset to the factory settings in SIMATIC S7-PCT tool.
A reset is performed completely by IO-Link application and affects IO-Link related data.
•The port modes remain in the currently used mode
•Non-volatile memory is reset (content of the IO-Link data memory is lost)

Communication module CM 8x IO-Link + DI 4x24VDC M12-L (6ES7148-6JG00-0BB0
Equipment Manual, 09/2020, A5E49284833-AA 17
Wiring
3
3.1 Terminal and block diagram
The following figure shows an example of the pin assignment for Port Class A and Port Class
B.
①
Bus interface with integrated 2-port switch
1L+
Supply voltage 1L+ (non-switched)
②
Electronics
1M
Ground 1M (non-switched)
③
Internal supply voltage
2L+
Load voltage 2L+ (switched)
④
IO-Link device, class A and 1x switch
2M
Ground 2M (switched)
⑤
2x switch
1US
24 V encoder supply
⑥
Load and 1x switch
C/Qn
IO-Link Port n
⑦
IO-Link Device Class B
P1 LK/P2 LK
LED LINK Port 1/Port 2 (green)
X10 to X13
IO-Link Port Class A + DI
RN/NS
RUN/network status LED (green)
X14 to X17
IO-Link Port Class B
ER/MS
ERROR/module status LED (red)
X80
Infeed of supply voltages
MT/IO
MAINT/IO status LED (yellow)
X81
Loop-through of supply voltages
X1 P1R
PROFINET Port 1
DIn
Input signal
X2 P2R
PROFINET Port 2

Wiring
3.2 Pin assignment
Communication module CM 8x IO-Link + DI 4x24VDC M12-L (6ES7148-6JG00-0BB0
18 Equipment Manual, 09/2020, A5E49284833-AA
Figure 3-1 Terminal and block diagram
3.2 Pin assignment
Terminal assignment PROFINET connector
The following table shows the pin assignment of the PROFINET connector.
Table 3- 1 Pin assignment of the PROFINET connectors, port 1 and 2
Pin Assignment of the core
color of the PROFINET cable
Assignment Front view of the connect-
ors
Assignment X1 P1 R
1
Yellow
TXP
2
White
RXP
3
Orange
TXN
4
Blue
RXN
Thread
Functional earth FE
Assignment X1 P2 R
1
Yellow
RXP
2
White
TXP
3
Orange
RXN
4
Blue
TXN
Thread
Functional earth FE

Wiring
3.2 Pin assignment
Communication module CM 8x IO-Link + DI 4x24VDC M12-L (6ES7148-6JG00-0BB0
Equipment Manual, 09/2020, A5E49284833-AA 19
Pin assignment of the IO-Link sockets
The table below shows the pin assignments of the 8 sockets for the connection of IO-Link.
Table 3- 2 Pin assignment of the IO-Link sockets
Pin
Assignment
Front view of the sockets
Port Class A
Port Class B
1
24V encoder supply 1Us
2
Input signal DI
0
:
Connector X10
Input signal DI1:
Connector X11
Input signal DI2:
Connector X12
Input signal DI3:
Connector X13
Encoder supply 2Us
5
:
Connector X14
Encoder supply 2Us6:
Connector X15
Encoder supply 2Us7:
Connector X16
Encoder supply 2Us8:
Connector X17
3
Ground 1M (non-switched)
4
IO-Link port 1: Connector
X10
IO-Link port 2: Connector
X11
IO-Link port 3: Connector
X12
IO-Link port 4: Connector
X13
IO-Link port 5: Connector
X14
IO-Link port 6: Connector
X15
IO-Link port 7: Connector
X16
IO-Link port 8: Connector
X17
5
Not used
Ground 2M (switched)
Note
Port Class B
The pin assignment of the IO
-Link interface of the sockets X14 to X 17 corresponds to the IO-
Link specification as per Port Class B. Port Class B is specially suited for the connection of
actuators with additional supply (e.g. valve terminals). To connect
devices with Port Class A
(e.g. sensors) to the communication module CM 4xIO
-Link 4xM12, a 3-wire connection cable
should be used (Port Class A compatibility).
NOTICE
24 V encoder supply 1U
s
Use only the 24 V encoder supply 1Usprovided by the IO link master to supply power to the
devices.
